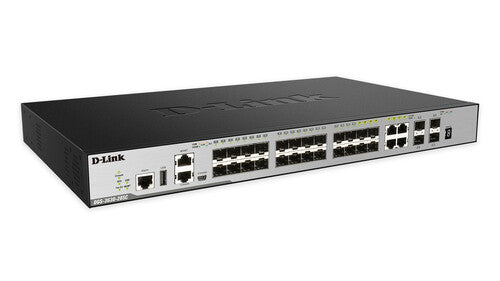

D-Link DGS-3630-28SC Managed L3 None 1U Black
KEY FEATURES
- High Performance
- Gigabit access ports and built-in 10 Gigabit uplinks provide high bandwidth connections for clients, servers, and storage
- Flexible Software
- Multiple software images provide a flexible approach to software management, allowing only the required features to be installed
- High Availability
- Up to 9 physical switches can be stacked to create a single virtual switch, providing fault tolerance and increasing network reliability
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
D-Link DGS-3630-28SC Managed L3 None 1U Black
Description
D-Link DGS-3630-28SC. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: None, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 68000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports, 10 GbE SFP+ ports, advanced security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.
Standard and Enhanced Software Images
The DGS-3630 Series switches include the Standard Image (SI) software, and for additional functionality, they may be upgraded to Enhanced Image (EI) with a separately ordered license upgrade. The Standard Image provides core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features. The Enhanced Image includes all the features from the Standard Image, and also supports full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.
This approach allows I.T. managers to deploy a lower cost L2/L2+ solution today, and upgrade to a L3 solution in the future if networking needs change and a full dynamic routing solution is required.
High Availability and Flexibility
The DGS-3630 Series switches support stacking technology, which combines multiple switches to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be stacked using Direct Attach Copper (DAC) or fiber optic cables to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode, LAN Mode, and L2 VPN Mode, which modify the size of the Layer 2 and 3 tables for optimum efficiency.
Security, Performance and Availability
The DGS-3630 Series switches provide a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 switches also offer extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switches’ reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
D-Link Green Technology
The DGS-3630 Series switches feature D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when not needed. The smart fan3 feature allows for the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and ecofriendly operation of the switch.
Versatile Management
The DGS-3630 Series switches can be managed by the D-Link Network Assistant Utility, an industry-standard Command Line Interface (CLI), and an intuitive web-based Graphical User Interface (GUI) that enables administrators to set up and remotely manage their networks. Support for SNMP allows centralized management of a large number of devices, and out-of-band management is available via a dedicated console port. A mini-USB console port allows the DGS-3630 Series switches to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images. The DHCP auto-configuration and auto-image features can also be used to deploy multiple switches automatically, saving costs with larger deployments.
Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3630 Series of Layer 3 Stackable Managed Gigabit Switches to further its commitment to product quality and long-term customer confidence.
Warranty: Lifetime
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| System event log | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Number of management ports | 1 pc(s) |
| SFP+ module slots quantity | 4 |
| SFP module slots quantity | 20 |
| Combo SFP ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 16000 |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 256 |
| Number of queues | 8 |
| Forwarding rate | 95.24 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 68000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, Port-based authentication |
| Security algorithms | 802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast MAC address table | 68000 entries |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP, NTPv3/v4, Telnet |
| Design | |
|---|---|
| Electromagnetic compatibility | CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
| Safety | cUL, CB, CE, CCC, BSM |
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 280612 h |
| Noise level | 56 dB |
| Virtual stacking (units) | 32 |
| Technical details | |
|---|---|
| Shipping (inner) case height | 45 cm |
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case length | 54.9 cm |
| Shipping (inner) case net weight | 13.5 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 553.5 kg |
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Products per pallet (air) | 96 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 193.5 cm |
| Pallet gross weight (sea) | 553.5 kg |
| Master (outer) cases per pallet (sea) | 32 pc(s) |
| Products per pallet (sea) | 96 pc(s) |
| Pallet height (sea) | 193.5 cm |
| Shipping (inner) case gross weight | 16.7 kg |
| Power | |
|---|---|
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
| Power consumption (max) | 63.58 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 216.81 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.79 kg |
| Height | 44 mm |
| Depth | 260 mm |
| Width | 441 mm |
| Packaging data | |
|---|---|
| Package weight | 5.29 kg |
| Package height | 91 mm |
| Package depth | 528 mm |
| Package width | 415 mm |
