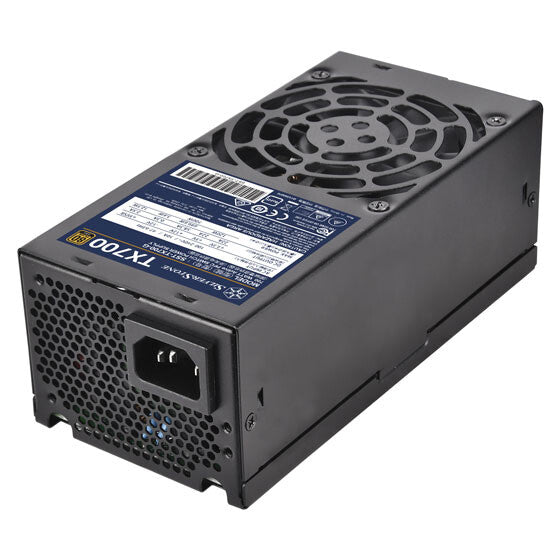

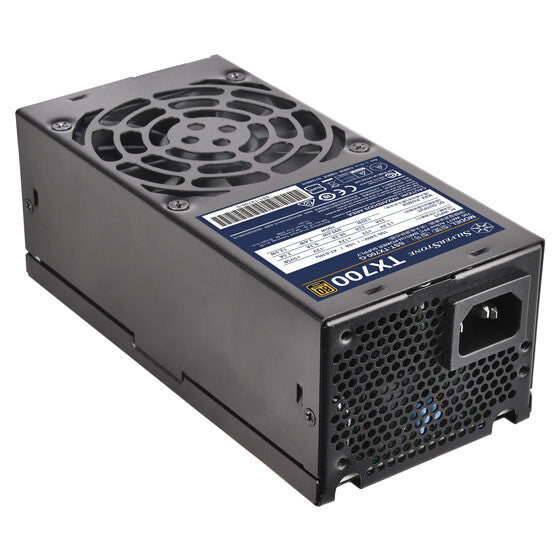

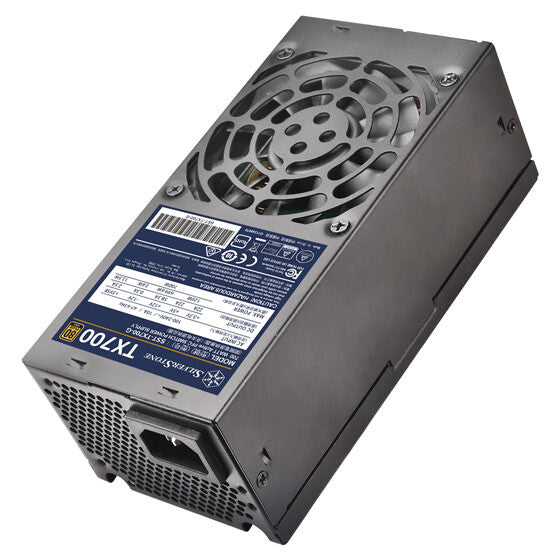

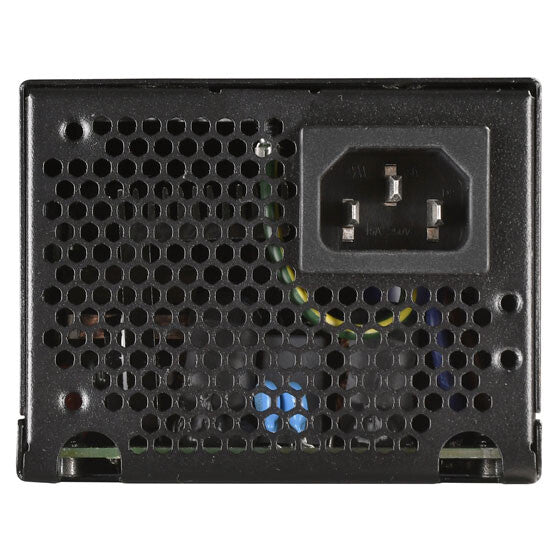

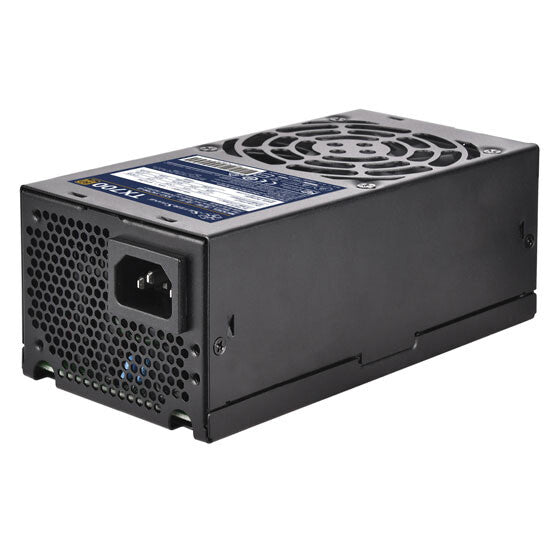

Silverstone TX700 Gold power supply unit 700 W 20+4 pin ATX TFX Black
KEY FEATURES
- Support standard TFX form factor
- 700W continuous power output at 50°C operating temperature rated for 24/7 operation
- High efficiency with 80 PLUS Gold certification
- Silent running 80mm fan with 18 dBA minimum
- Multiple protection circuitry
- Single PCI-E 6+2pin connectors support
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Silverstone TX700 Gold power supply unit 700 W 20+4 pin ATX TFX Black
Description
Silverstone TX700 Gold. Total power: 700 W, AC input voltage: 90 - 264 V, AC input frequency: 43 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: CE
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Power | |
|---|---|
| Total power | 700 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 43 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 699.6 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 58.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150,350 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Silent mode | Yes |
| Noise level | 18 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Built-in display | No |
| Illumination | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 1.49 kg |
| Technical details | |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
