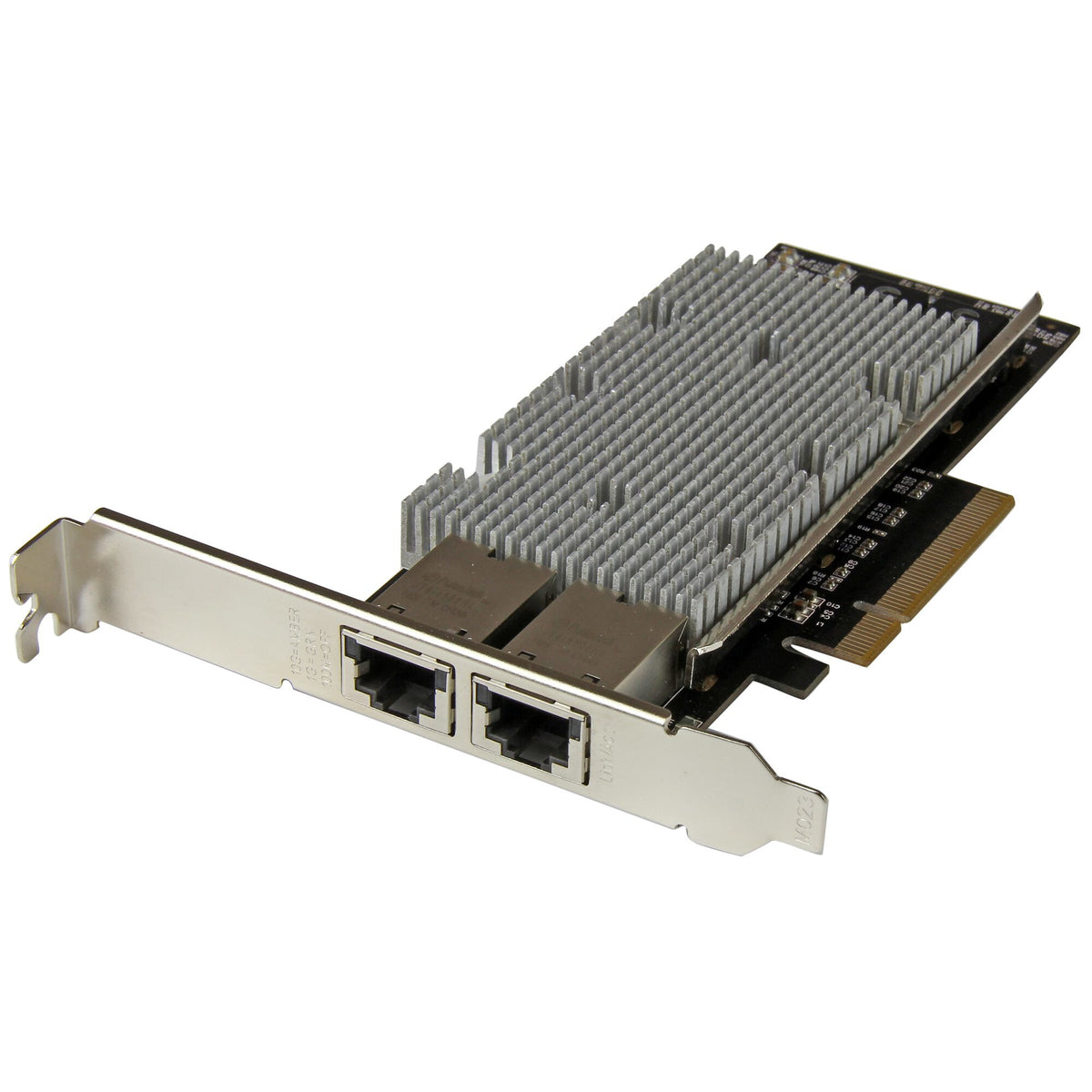

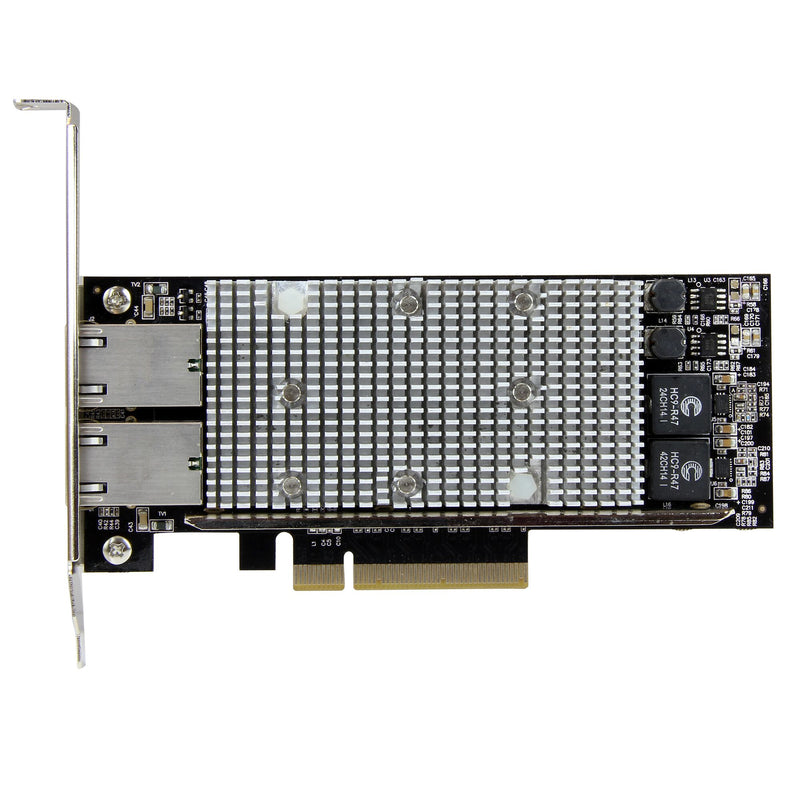

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
KEY FEATURES
- Wired
- PCI Express Ethernet
- 20000 Mbit/s 10/100/1000BaseT(X)
- Internal Chipset: Intel - X540
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
Description
StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 20000 Mbit/s. Product colour: Black, Stainless steel

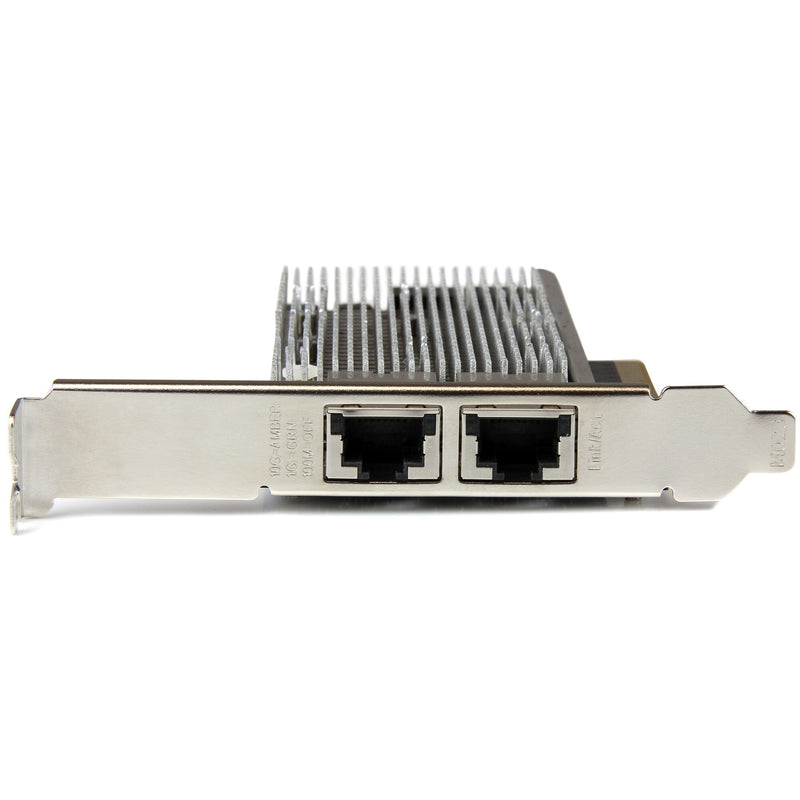

Add two 10 Gigabit Ethernet ports (10Gbps) to a client, server or workstation through one PCI Express slot
Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.
Versatile and cost effective
Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It’s a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
Reliable, high-performance connectivity

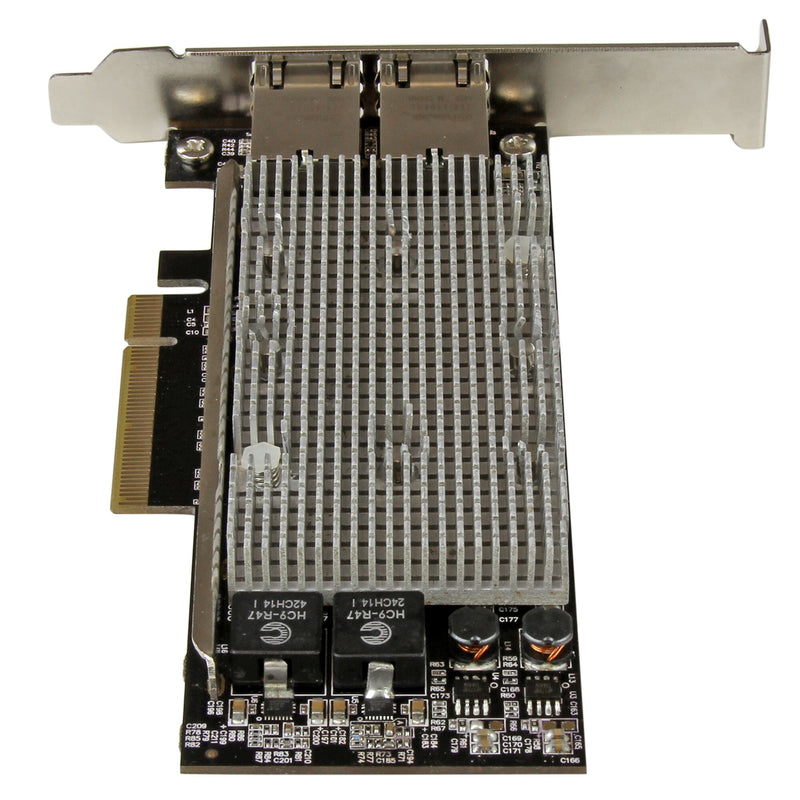

This 2-port PCI Express 10GBase-T network card features the Intel X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel Virtualization Technology for connectivity and PXE network boot support.
Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.
The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Add two 100/1000/10Gbase-T RJ45 ports, providing cost-effective network connectivity for high bandwidth workstations and servers
- Intel X540 chipset with Intel Virtualization Technology for Connectivity
- Up to 20Gbps (full duplex) bandwidth per port
Warranty: 2 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| VLAN tagging | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Auto MDIX IEEE | No |
| Wake-on-LAN ready | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ad, IEEE 802.3q, IEEE 802.3u, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ab |
| Maximum data transfer rate | 20000 Mbit/s |
| Design | |
|---|---|
| LED indicators | Activity, Speed |
| Chipset | Intel - X540 |
| Product colour | Black, Stainless steel |
| Internal | Yes |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Home Premium x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 5 - 50 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 160 g |
| Height | 120 mm |
| Depth | 163 mm |
| Width | 20 mm |
| Packaging data | |
|---|---|
| Package weight | 242 g |
| Package height | 40 mm |
| Package depth | 147 mm |
| Package width | 208 mm |
| Low-profile bracket | Yes |
| Packaging content | |
|---|---|
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case height | 308 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case width | 420 mm |
| Other features | |
|---|---|
| Harmonized System (HS) code | 85176990 |
