Intel I226-T1 Internal Ethernet 25000 Mbit/s
KEY FEATURES
- Low power, low cost
- Single-port 10/100/1000/2.5GBASE-T(X) Copper
- Ultra-compact footprint
- Ventilated bracket
- Environmentally friendly
- Lead free and low halogen
- PCIe 3.1 support (5GT/s)
- Distance up to 100 meters
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Intel I226-T1 Internal Ethernet 25000 Mbit/s
Description

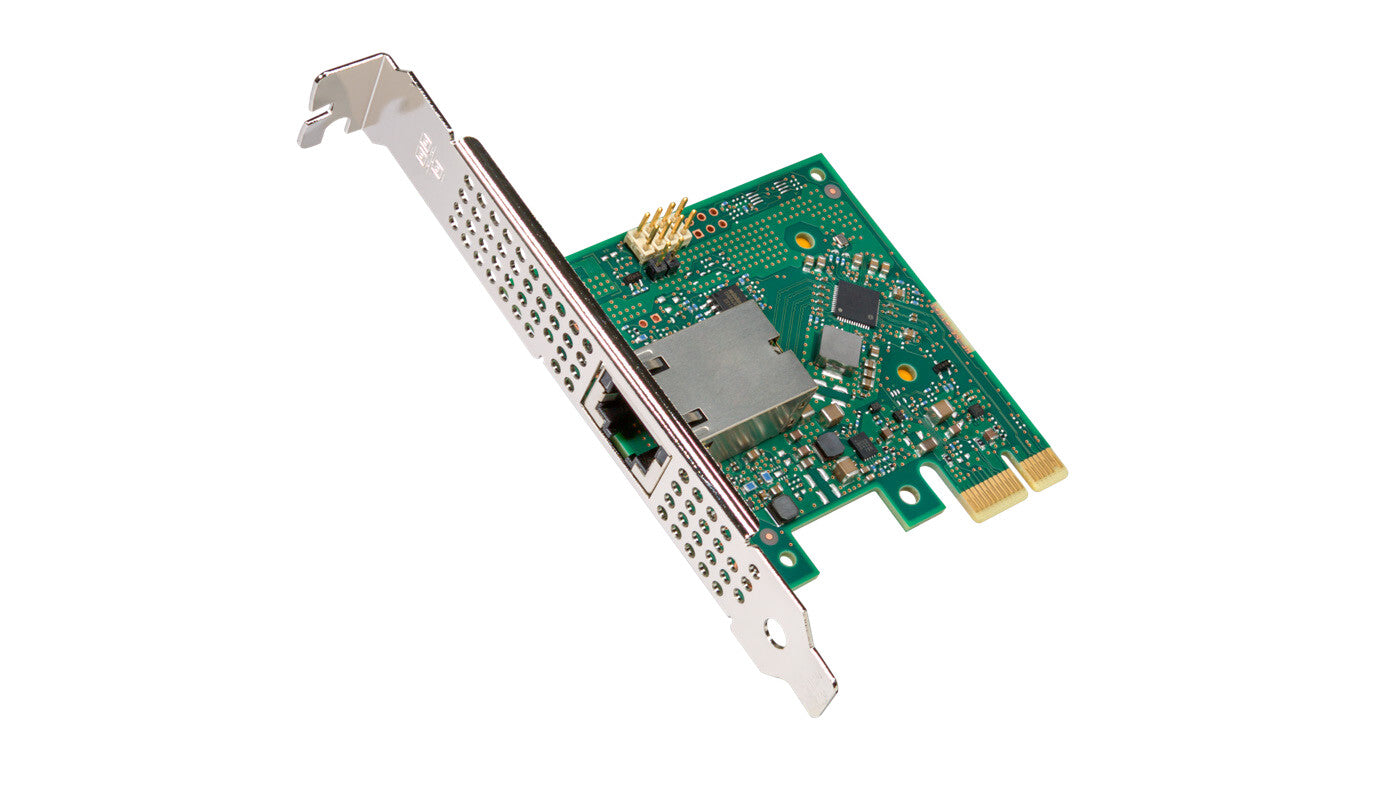

The Intel® Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
| PCI version | 3.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Maximum operating distance | 100 m |
| Jumbo frames support | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3z |
| Maximum data transfer rate | 2500 Mbit/s |
| Design | |
|---|---|
| LED indicators | Activity, Link |
| Product colour | Green, Silver |
| Component for | PC/Server |
| Internal | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 1.4 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 65.3 mm |
| Width | 68.7 mm |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI |
| Other features | |
|---|---|
| Launch date | Q3'23 |
| Network interface card cable medium | Copper |
| Ethernet adapter ARK ID | 225771 |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Cabling type | CAT5e, CAT6, CAT6A |
| Market segment | Desktop |
