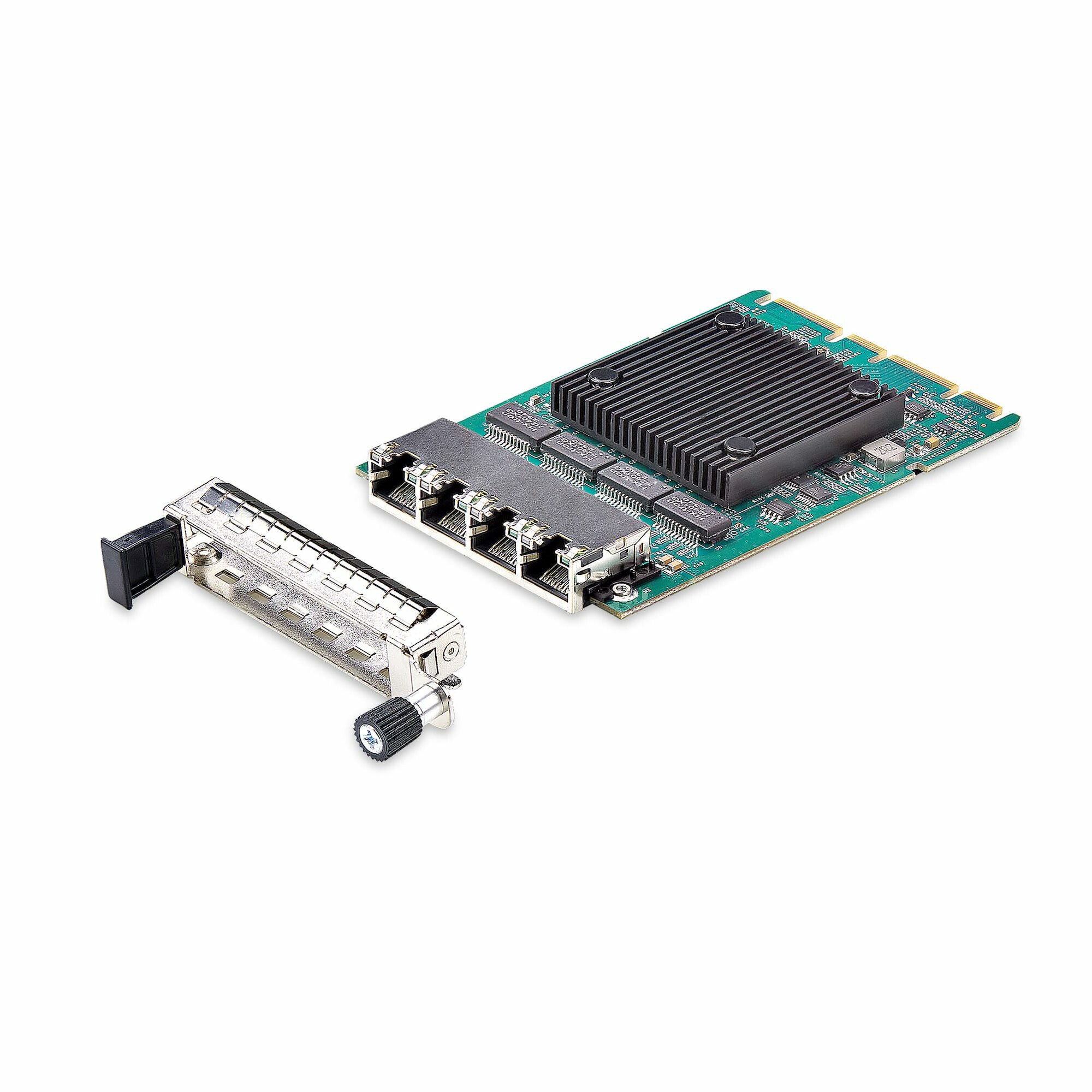

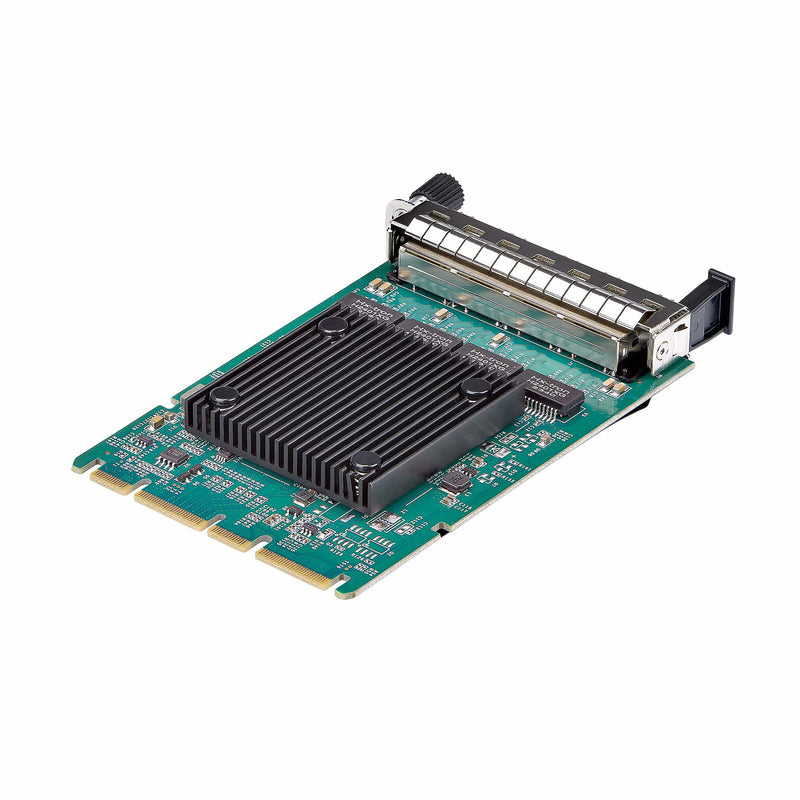

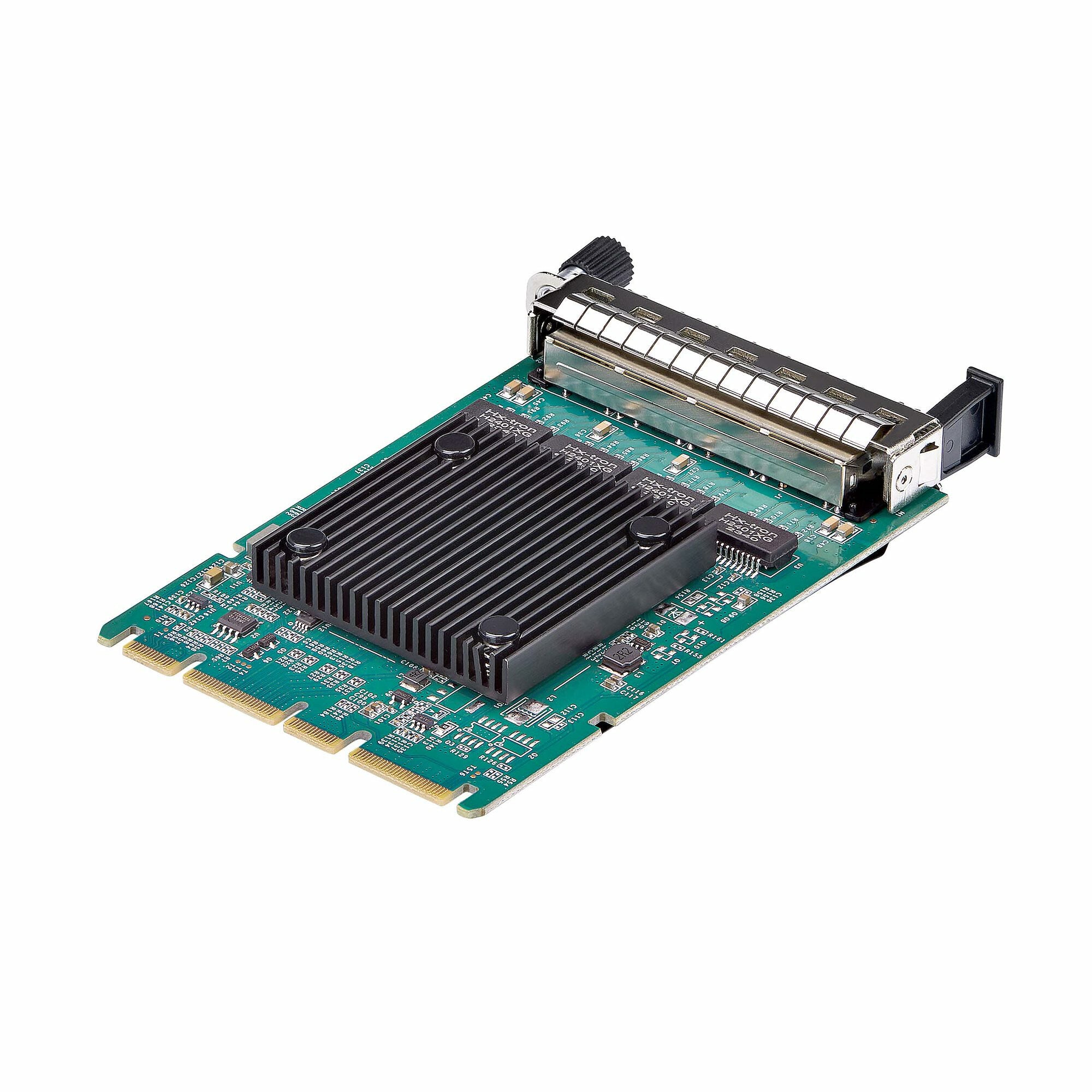

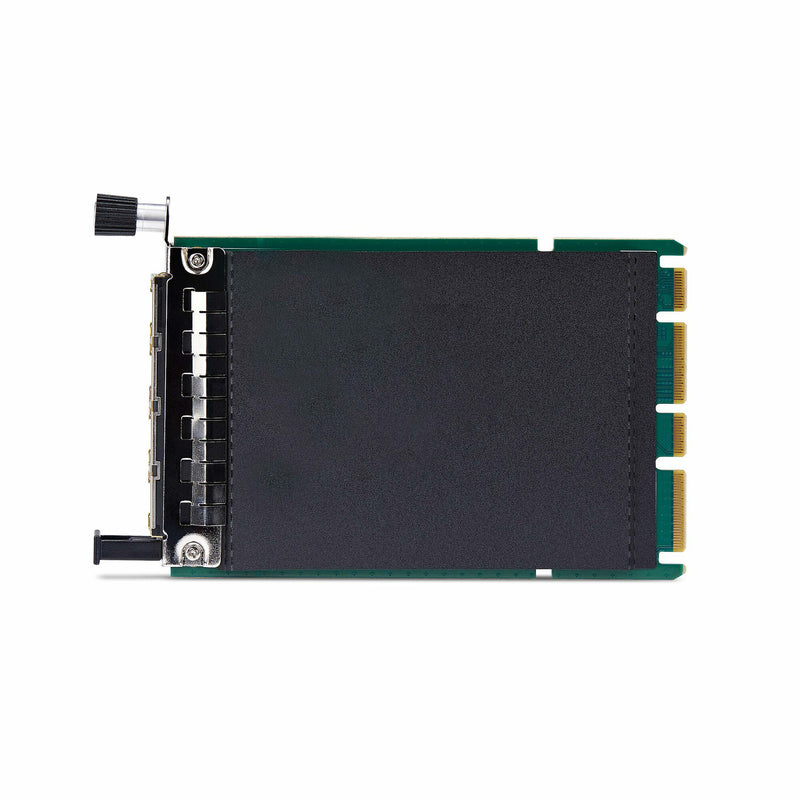

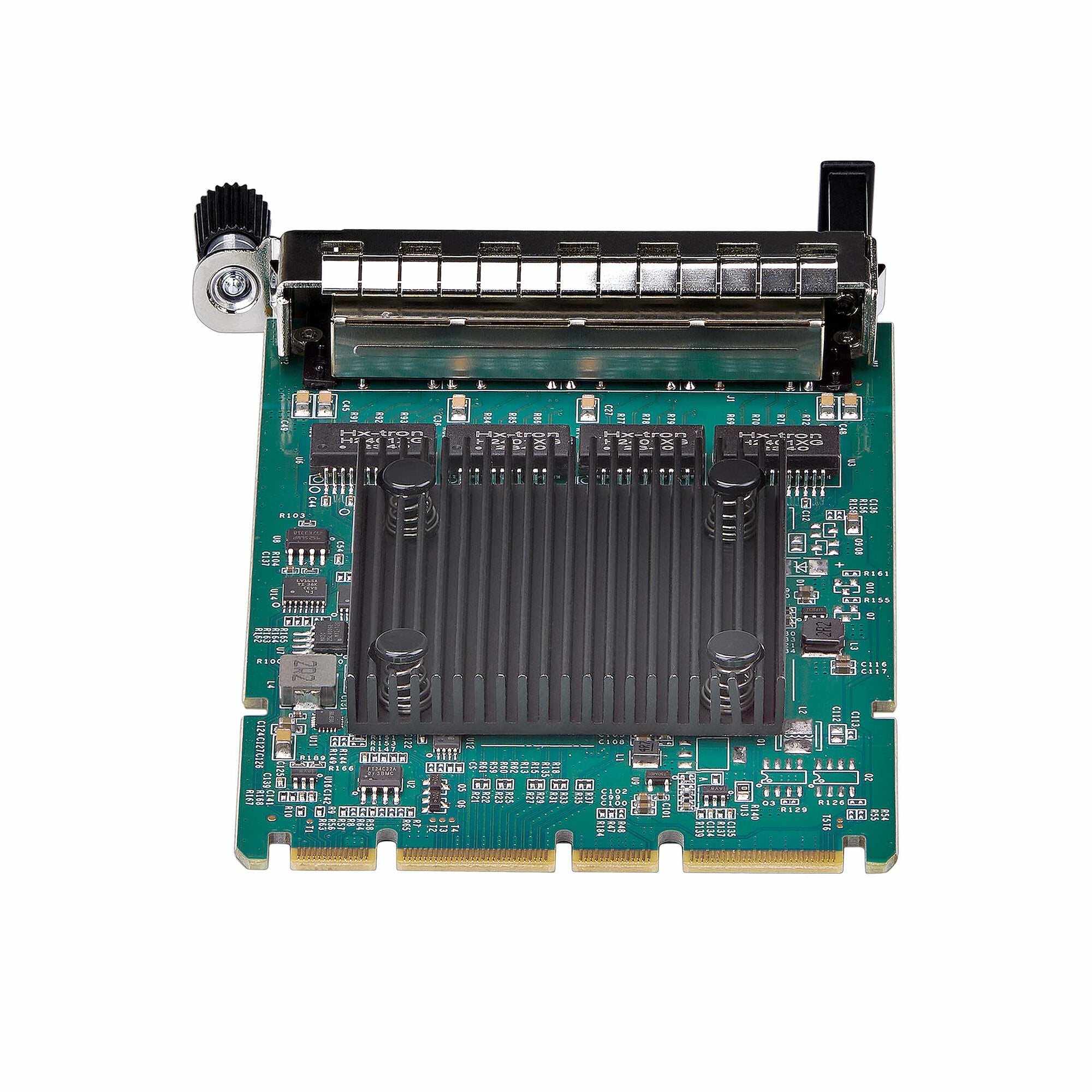

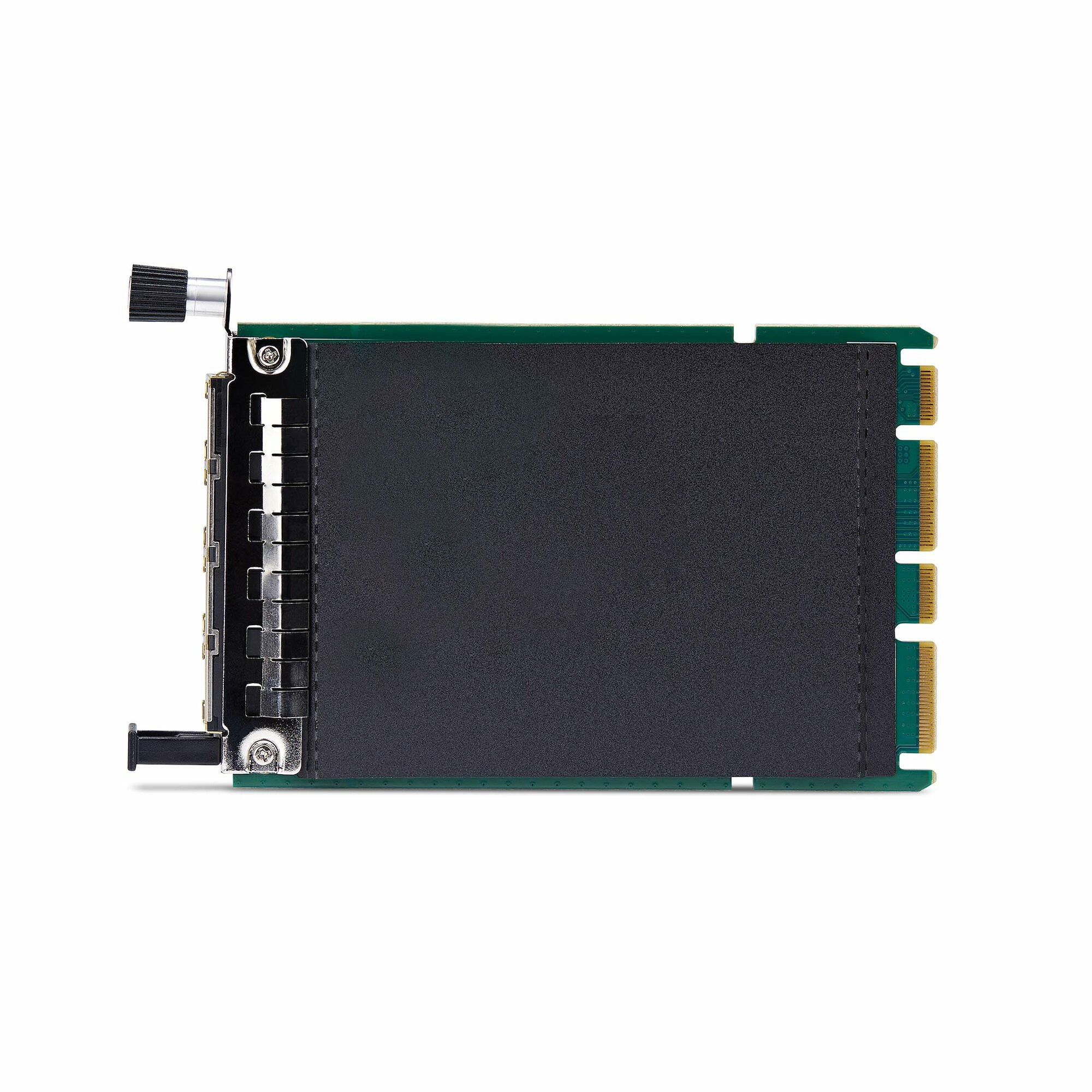

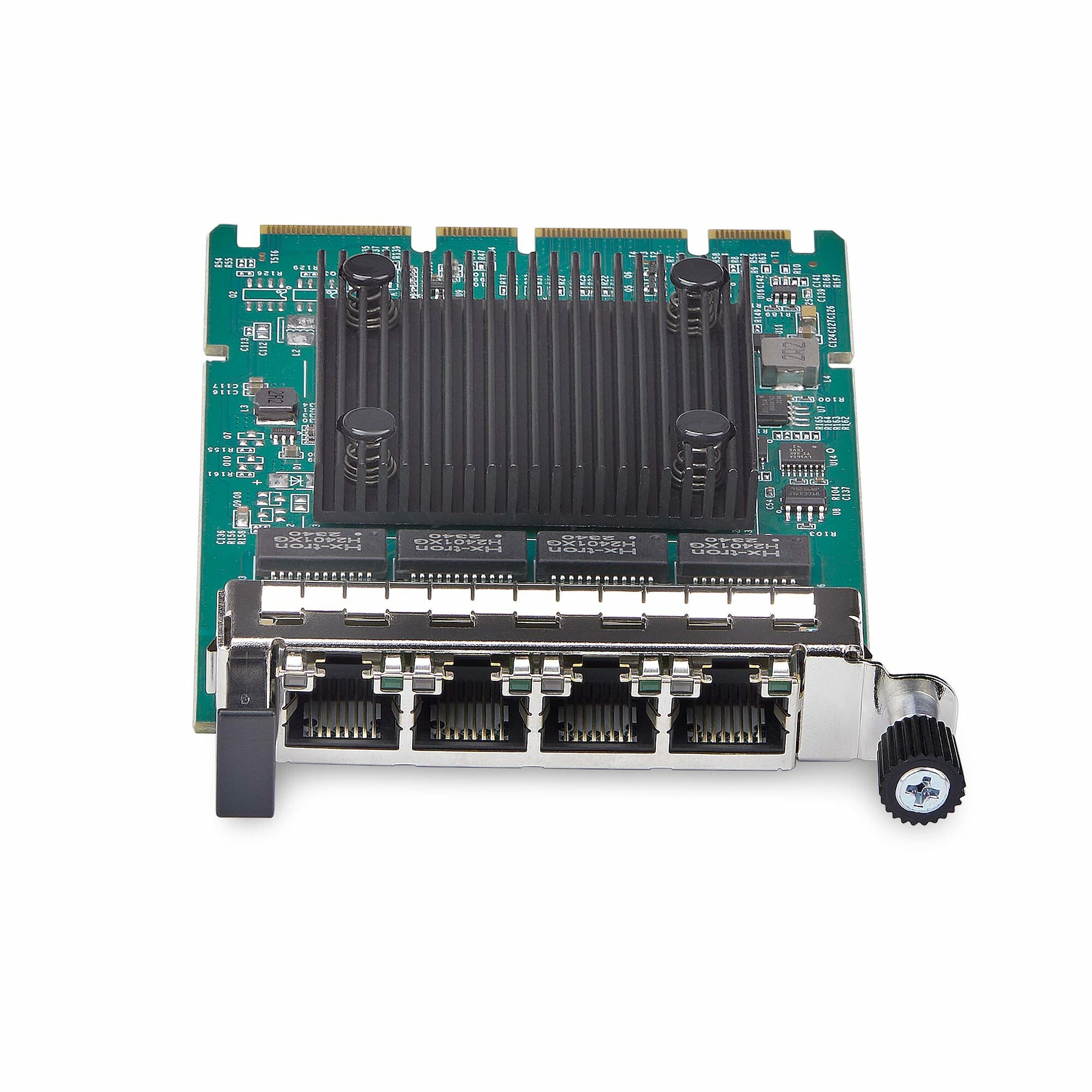

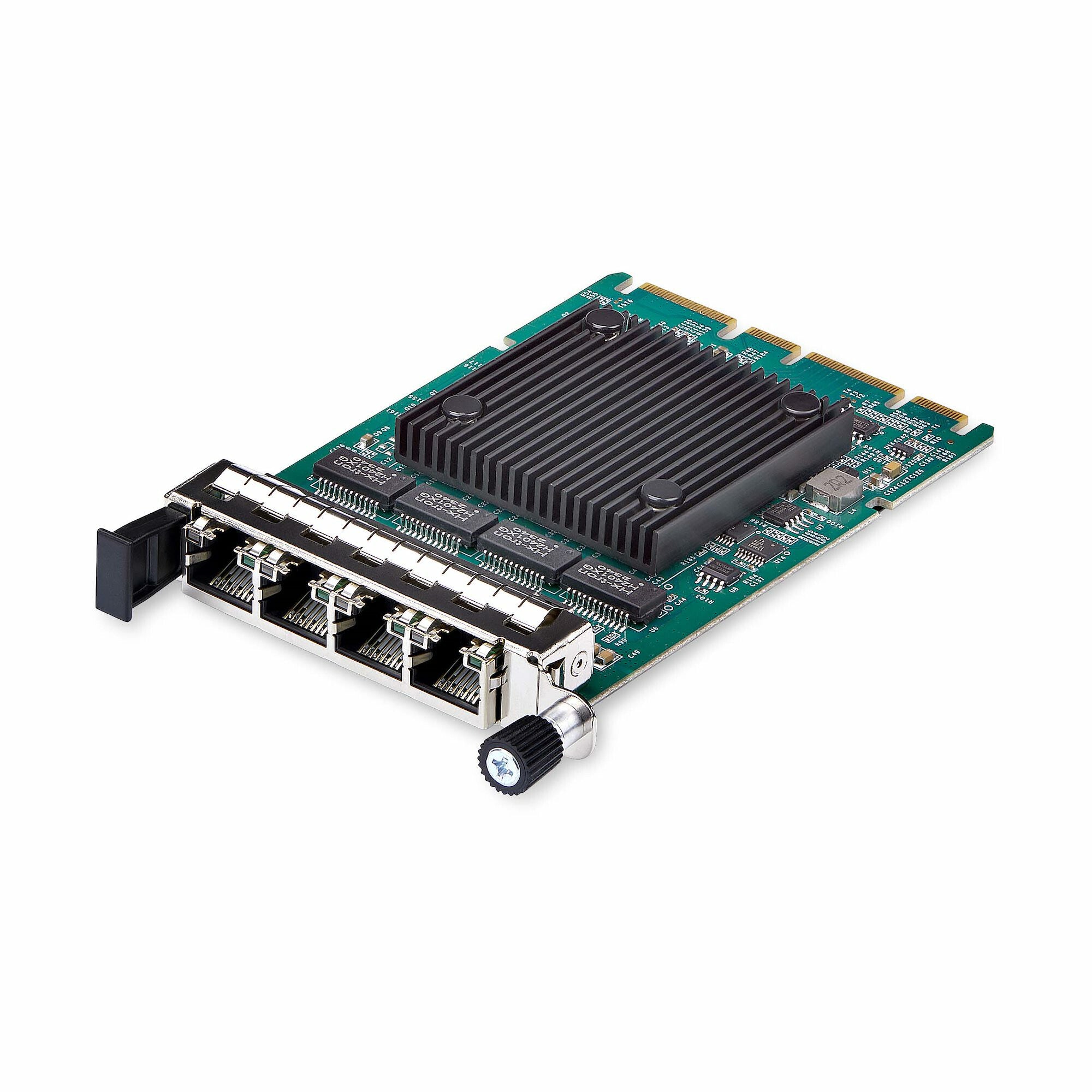

StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel® I350-AM4, SFF 4C+ Compatible, Multi-Speed Ethernet, PCIe 3.0, LAN Transformer, NIC w/PXE/9K
KEY FEATURES
- OCP 3.0 NETWORK CARD: 1Gbps Network Interface Card w/4x RJ45 Ethernet Ports; Intel® I350-AM4 Ethernet Controller; Leverage existing Cat5e/Cat6 cabling (or better) up to 100m; Adheres to PCI Express 3.0; EEE compatible; Ideal for various scenarios, from virtualization to cloud computing
- OCP INTERFACE: Network adapter card uses the OCP (Open Compute Project) 3.0 port (168-Pin 4C+) developed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades
- COMPATIBILITY: LAN adapter is SFF 4C+ compatible; Variable speed options (10/100/1000 Mbps) with auto-negotiation; Removable pull-tab bracket; NIC is compatible with Windows Server, VMware, and Linux; Supports Single Root I/O Virtualization (SR-IOV)
- IT MANAGEABILITY: Supports Intel® vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frames for reduced packet overhead; Remotely boot a system using WoL; VLAN support for improved traffic management
- BUILD QUALITY: Gigabit PCIe card features a built-in heatsink to keep the network chip running cool, LED indicators for link status/speed, LAN transformers to maintain signal quality and reduced EMI for reliable communication up to 100m even with Cat5e
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel® I350-AM4, SFF 4C+ Compatible, Multi-Speed Ethernet, PCIe 3.0, LAN Transformer, NIC w/PXE/9K
Description
Enhance a server's connectivity with this OCP 3.0 quad-port network adapter card featuring Intel® I350 chipThis 4-port RJ45 1Gbps OCP 3.0 Network Interface Card (NIC) features an Intel® i350-AM4 Ethernet Controller, enhancing performance and data integrity. The Ethernet card adheres to OCP 3.0 standards and ensures broad compatibility, making it an ideal solution for reliable network connectivity and robust data transfer capabilities.Optimized Network EfficiencyLeverage existing Cat5e/Cat6 cabling (or better) up to 100m to maximize existing networks and equipment. The NIC supports variable speed options (10/100/1000 Mbps) with auto-negotiation and 9K jumbo frames to reduce packet overhead, reducing network slowdowns.Enhanced HardwareThis network adapter leverages the OCP 3.0 standard, a server-specific innovation, that optimizes size and port density while enabling simplified installation, maintenance, and upgrades of Field Replaceable Units (FRUs) through hot swapping. It's designed for the SFF form factor, aligning with W1 4C+ standards. The network adapter is compatible with both TSFF and SFF systems expanding compatibility with different server types.Advanced FeaturesThe Ethernet card supports Intel® vPro™ for remote management and troubleshooting, PXE boot for expedited deployment or updates, and VLAN support for improved traffic management and reduced network congestion. The NIC is compatible with Windows Server, VMware, and Linux and supports Single Root I/O Virtualization (SR-IOV) to enhance virtual machines' performance with minimal overhead. LAN transformers are included to maintain signal quality and reduce EMI, ensuring reliable communication up to 100m even when using Cat5e.The StarTech.com Advantage
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | OCP 3.0 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Quality of Service (QoS) support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Wake-on-LAN ready | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| LED indicators | Activity |
| Chipset | Intel® I350-AM4 |
| Product colour | Black, Green |
| Component for | Server |
| Internal | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 4.65 W |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 50 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 100 g |
| Height | 15 mm |
| Depth | 85 mm |
| Width | 132 mm |
| Packaging data | |
|---|---|
| Package weight | 110 g |
| Package height | 38 mm |
| Package depth | 207 mm |
| Package width | 144 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case height | 320 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 420 mm |
| Other features | |
|---|---|
| Flow control support | Yes |
