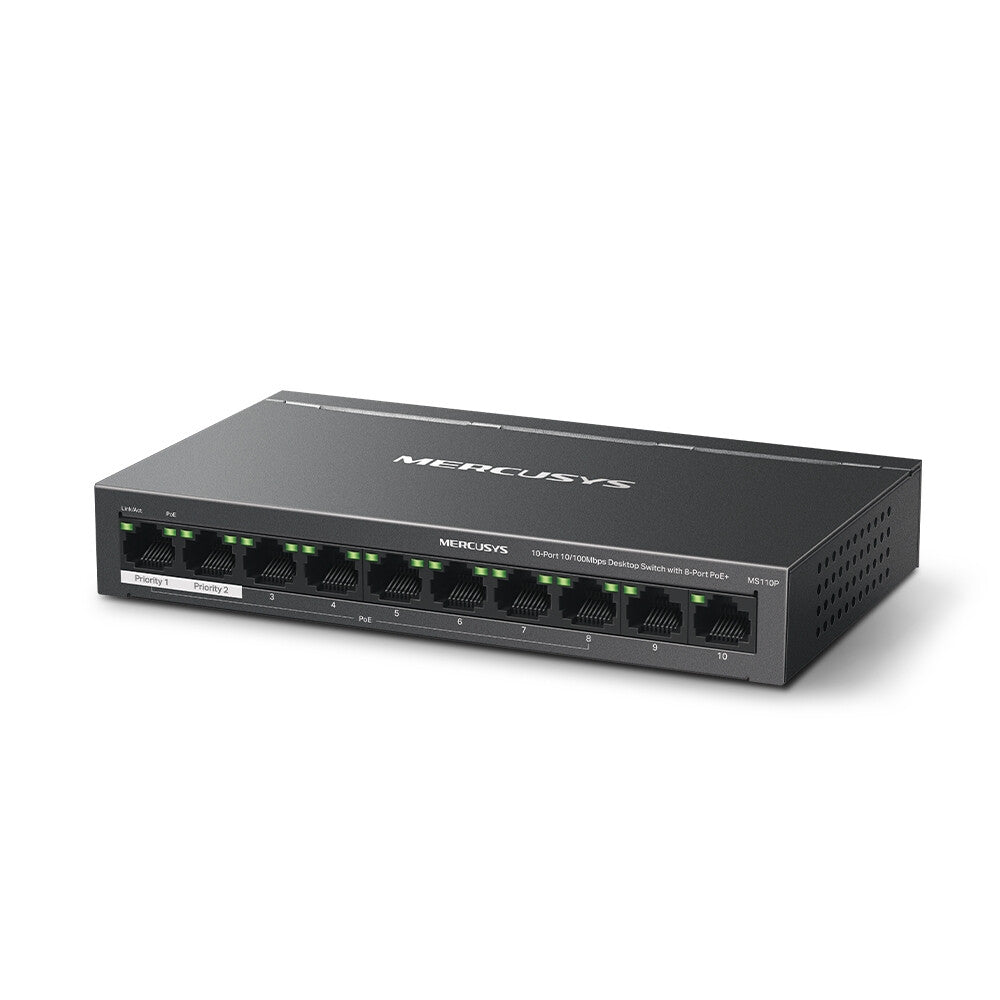

Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
KEY FEATURES
- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

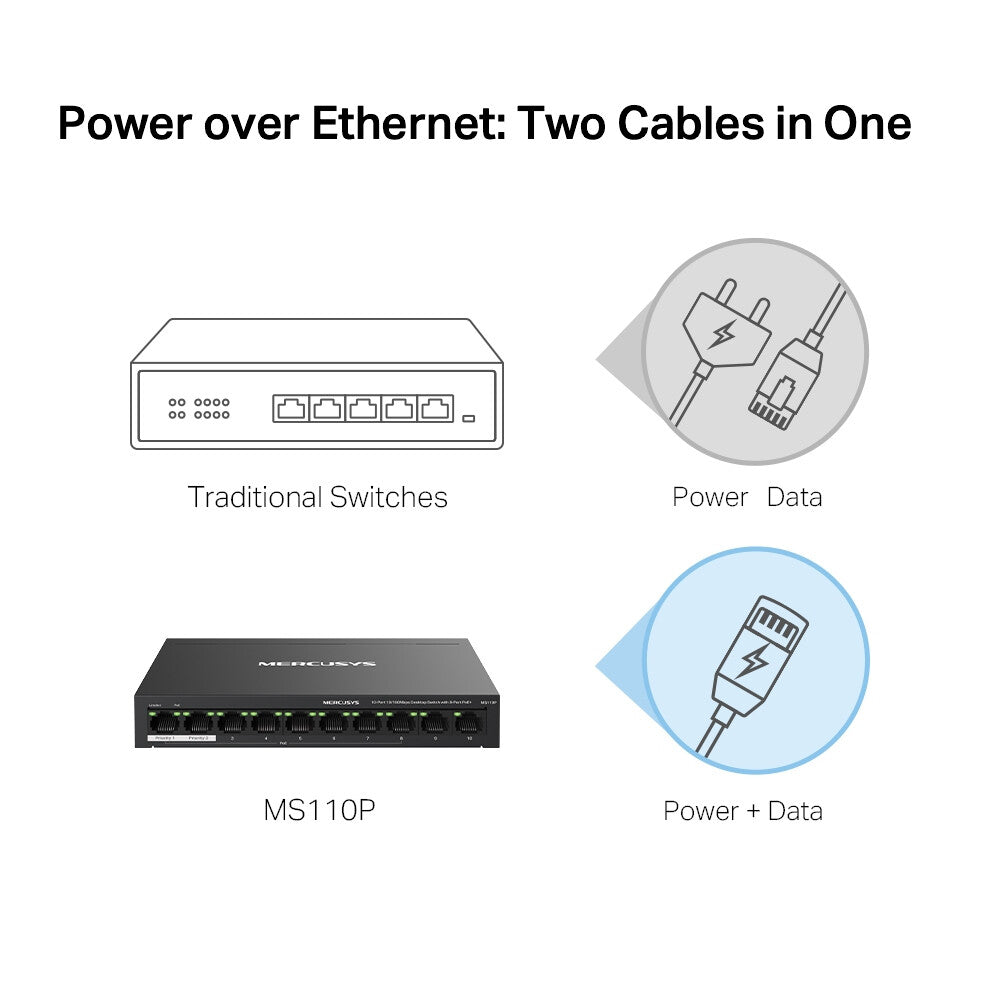

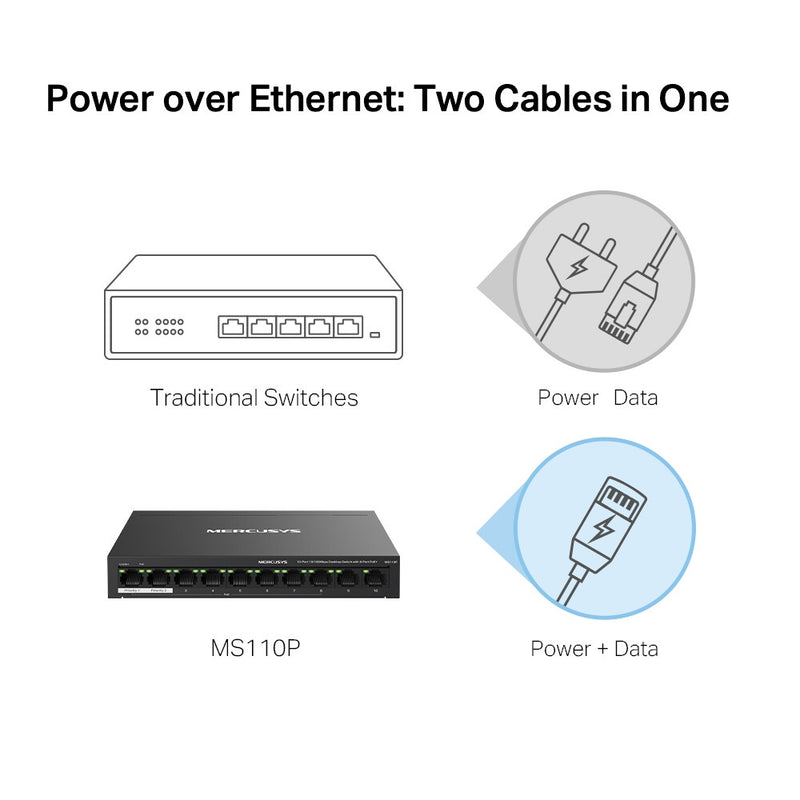

- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort

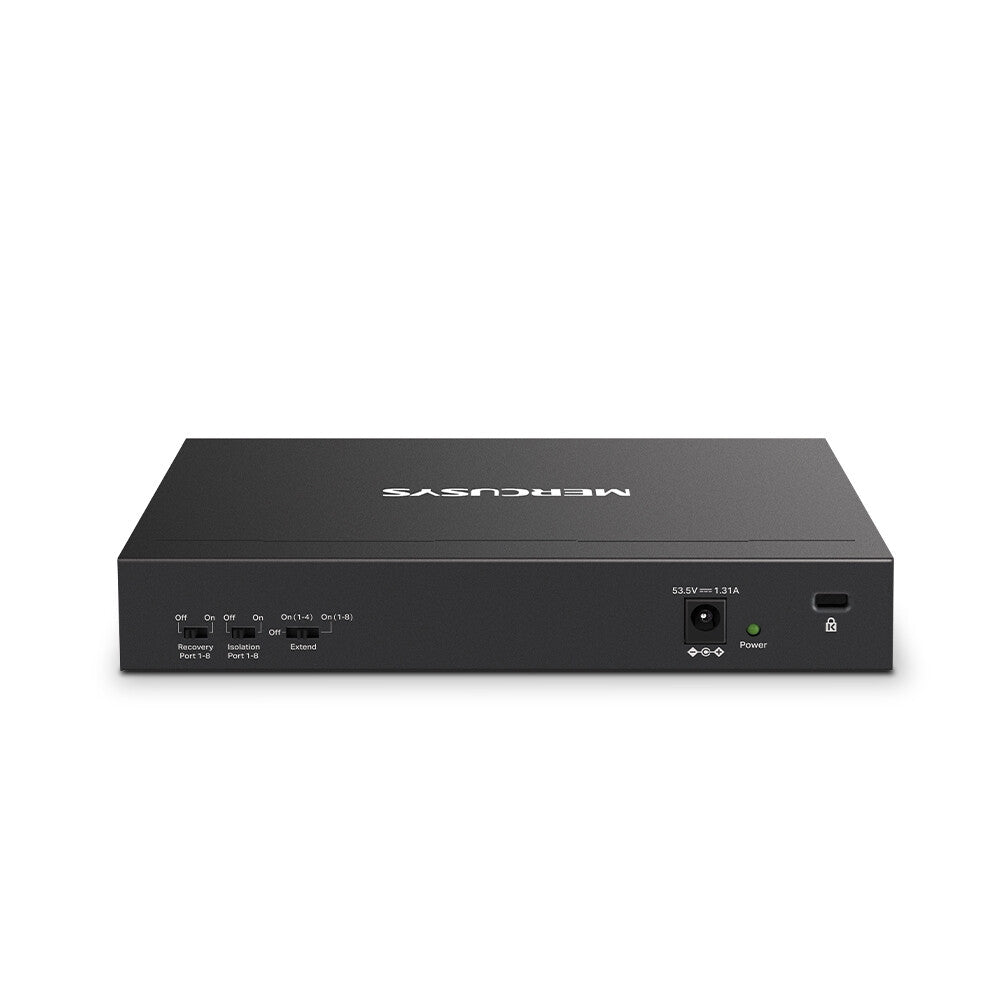

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions

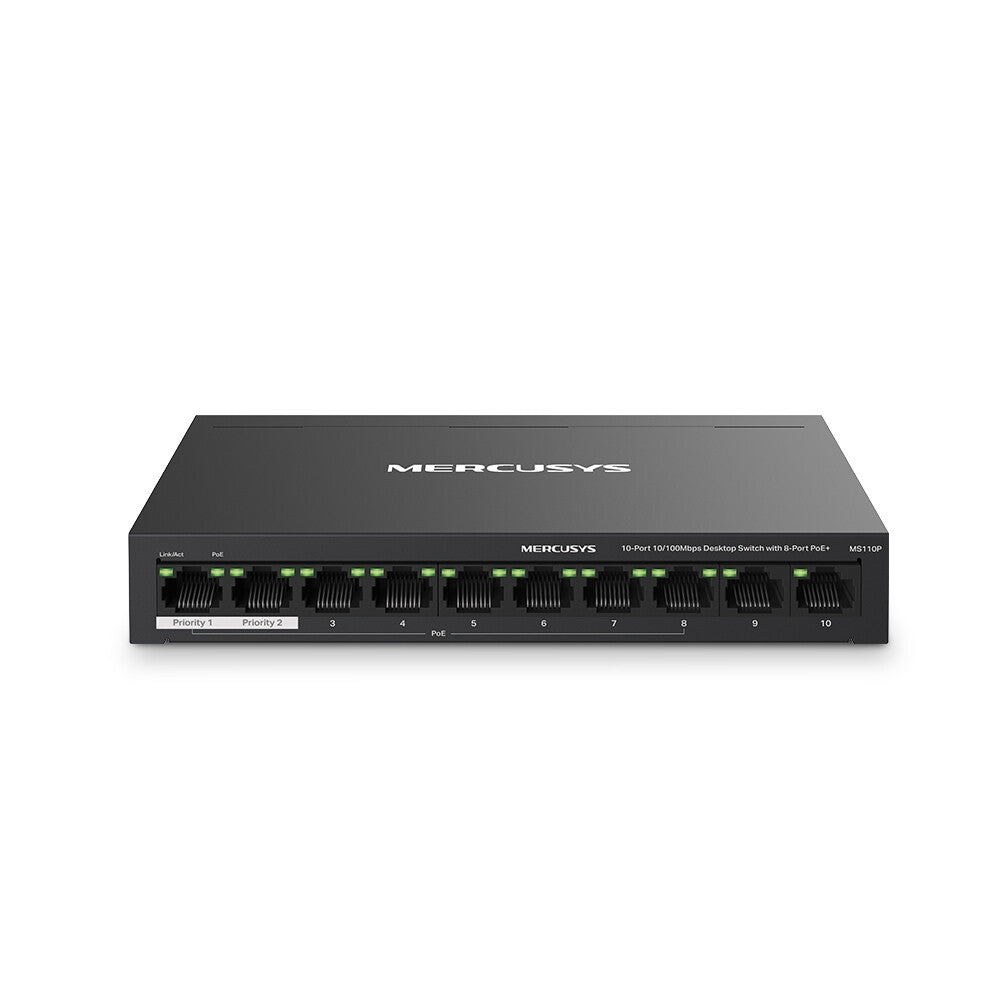

Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Description
Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

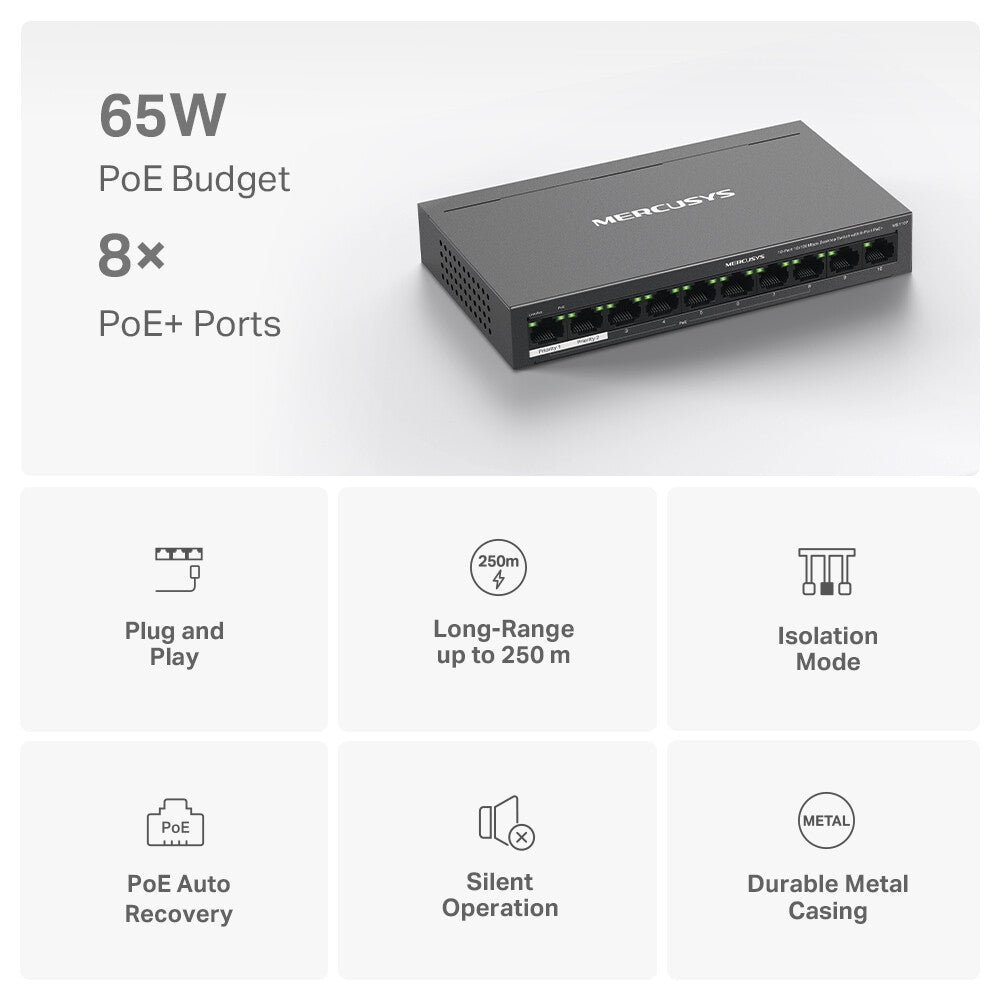

8 PoE+ Ports (65 W Budget) for Network Deployment
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

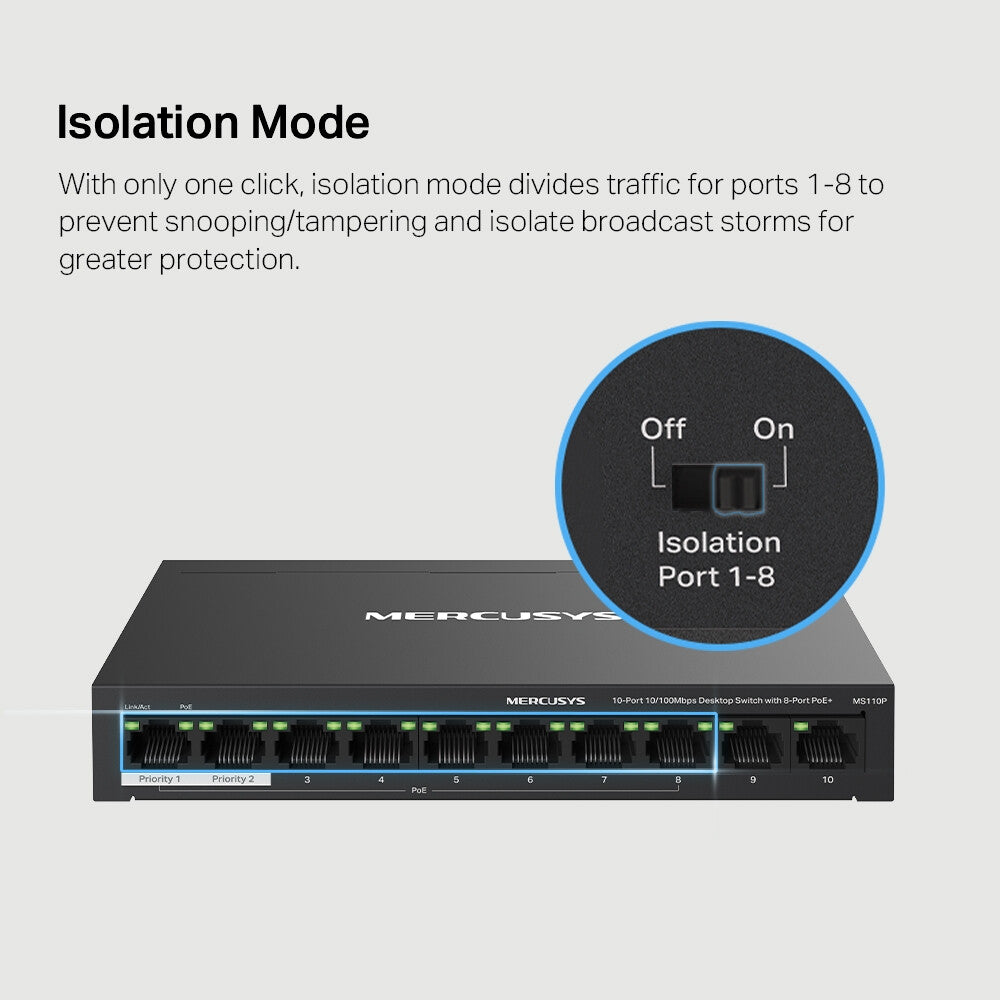

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.

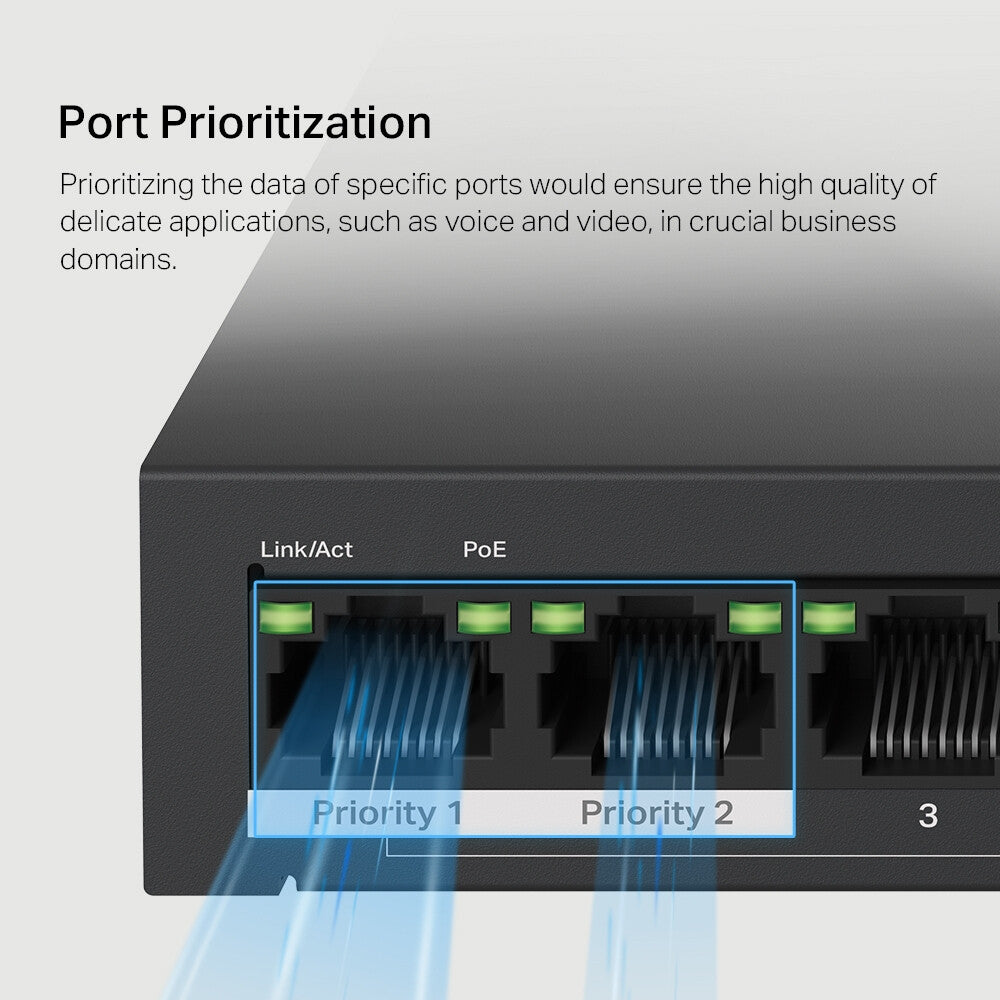

Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

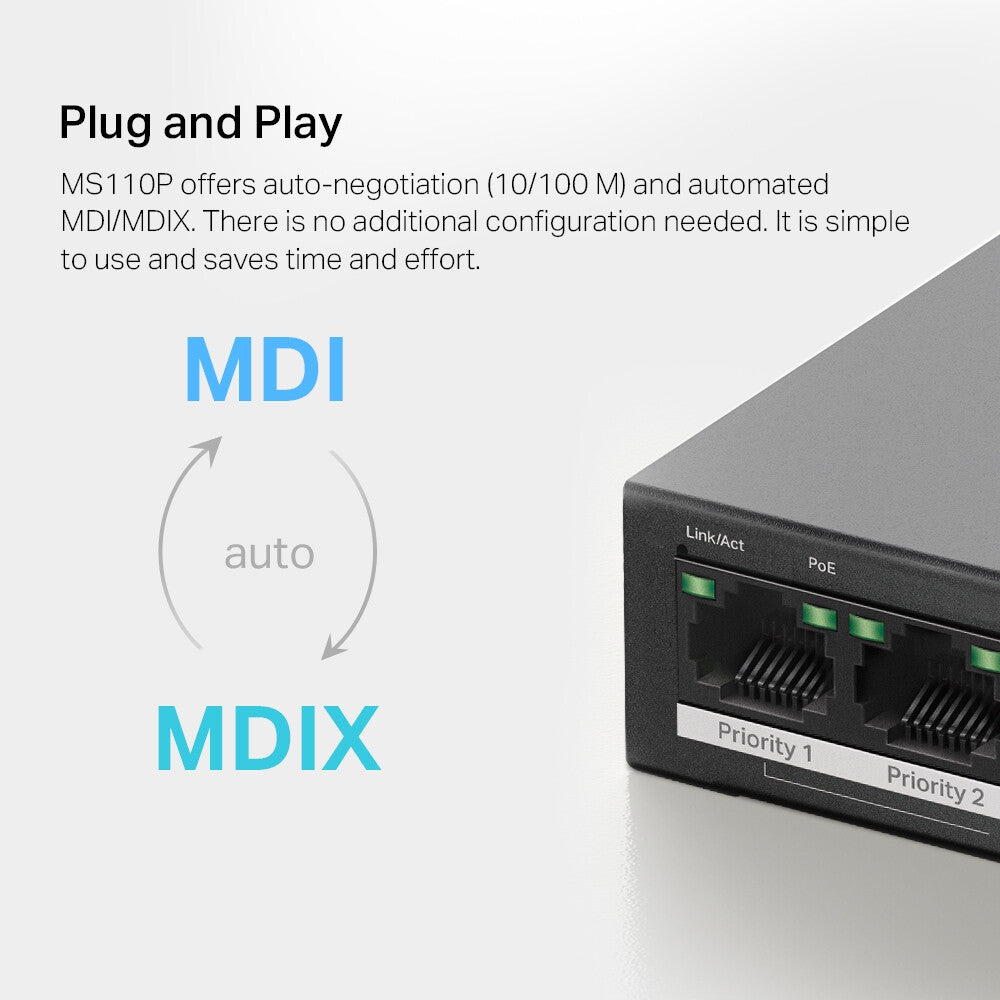

Plug and Play
MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

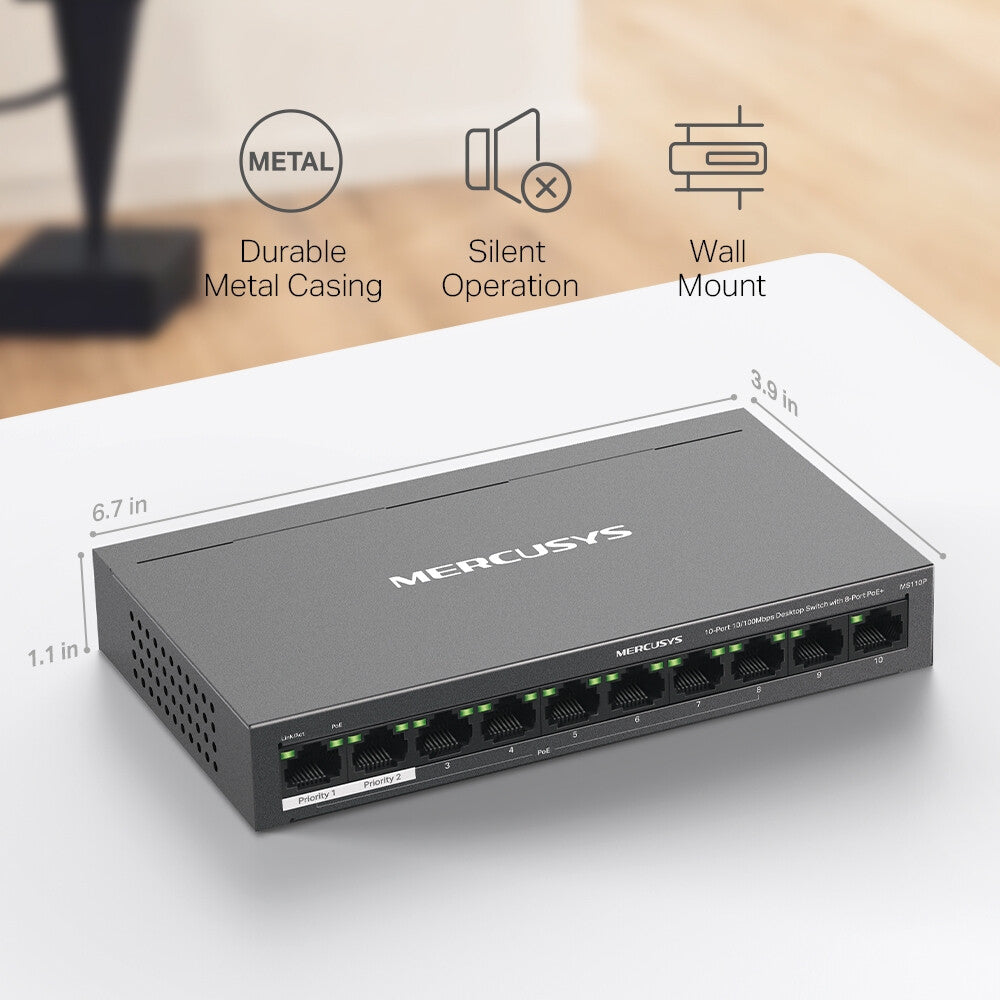

Durable and Silent
MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Management features | |
|---|---|
| Web-based management | Y |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Policy-based routing | Y |
| Full duplex | Y |
| 10G support | N |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Design | |
|---|---|
| Wall mountable | Y |
| Product colour | Black |
| Stackable | N |
| Rack mounting | N |
| Power | |
|---|---|
| Power consumption (max) | 77.52 W |
| Power consumption (typical) | 2.96 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Y |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) power per port | 65 W |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Heat dissipation | 263.568 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 27 mm |
| Depth | 98 mm |
| Width | 171 mm |
| Packaging data | |
|---|---|
| Quick start guide | N |
| Cables included | AC |
