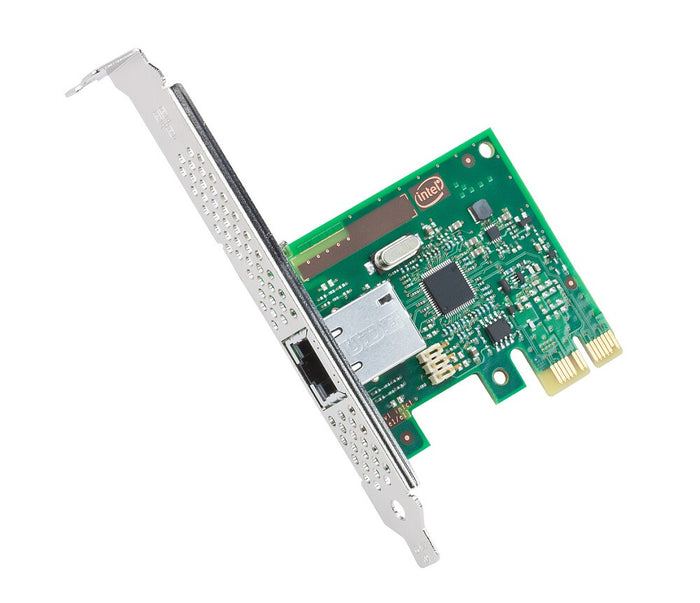

Intel I210T1BLK network card Internal Ethernet 1000 Mbit/s
KEY FEATURES
- Low-halogen1 single-port PCI-Express 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization buffering, and reservation
- High-performing design supporting PCI Express Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Intel I210T1BLK network card Internal Ethernet 1000 Mbit/s
Description
Intel I210T1BLK. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 2.1 |
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet, 100 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10,100,100000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Maximum operating distance | 100 m |
| LAN controller | Intel I210 |
| Design | |
|---|---|
| Internal | Yes |
| Other features | |
|---|---|
| Cable type | RJ45 Category 5, up to 100 m |
| Market segment | Server |
| Thermal power | 1 W |
| Embedded options available | No |
| Conflict-Free | Yes |
| Intel Data Direct I/O Technology | No |
| Intel Ethernet Power Management | Yes |
| Fiber Channel over Ethernet | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Flexible Port Partitioning | No |
| On-chip QoS and Traffic Management | No |
| PCI-SIG* SR-IOV Capable | No |
| Intel Virtual Machine Device Queues (VMDq) | No |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Cabling type | RJ45 Category 5, up to 100 m |
| Controller type | Intel I210 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Export Control Classification Number (ECCN) | 5A991 |
| Harmonized System (HS) code | 85176990 |
| Ethernet adapter ARK ID | 68668 |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Thermal Design Power (TDP) | 1 W |
| Product type | Network Interface Card |
| Low halogen options available | No |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Interface type | PCIe v2.1 (2.5 GT/s) |
| Last change | 63903513 |
| Status | Launched |
| Product brief URL | https://cdrdv2.intel.com/v1/dl/getContent/724375 |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Launch date | Q1'13 |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I210 |
