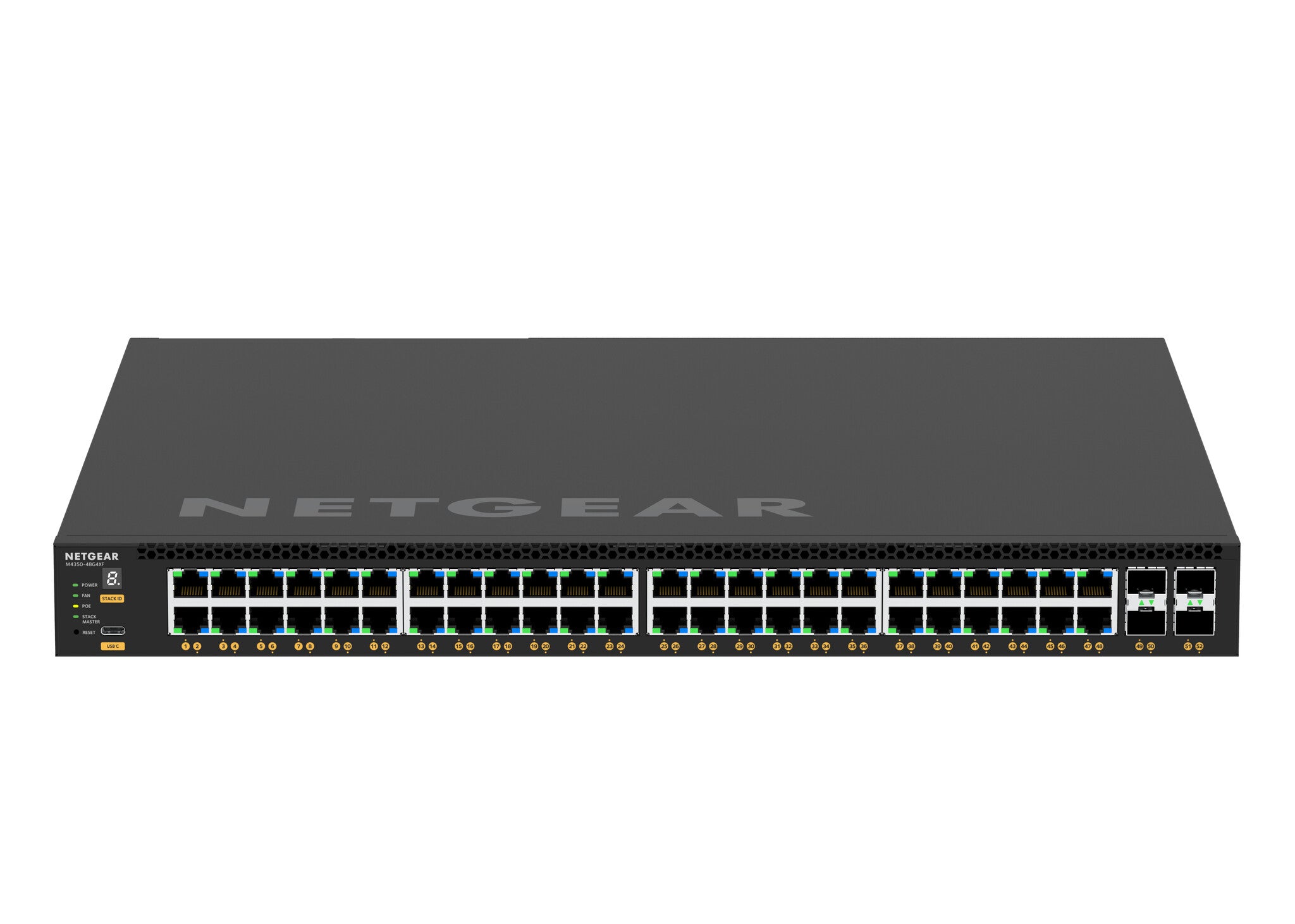

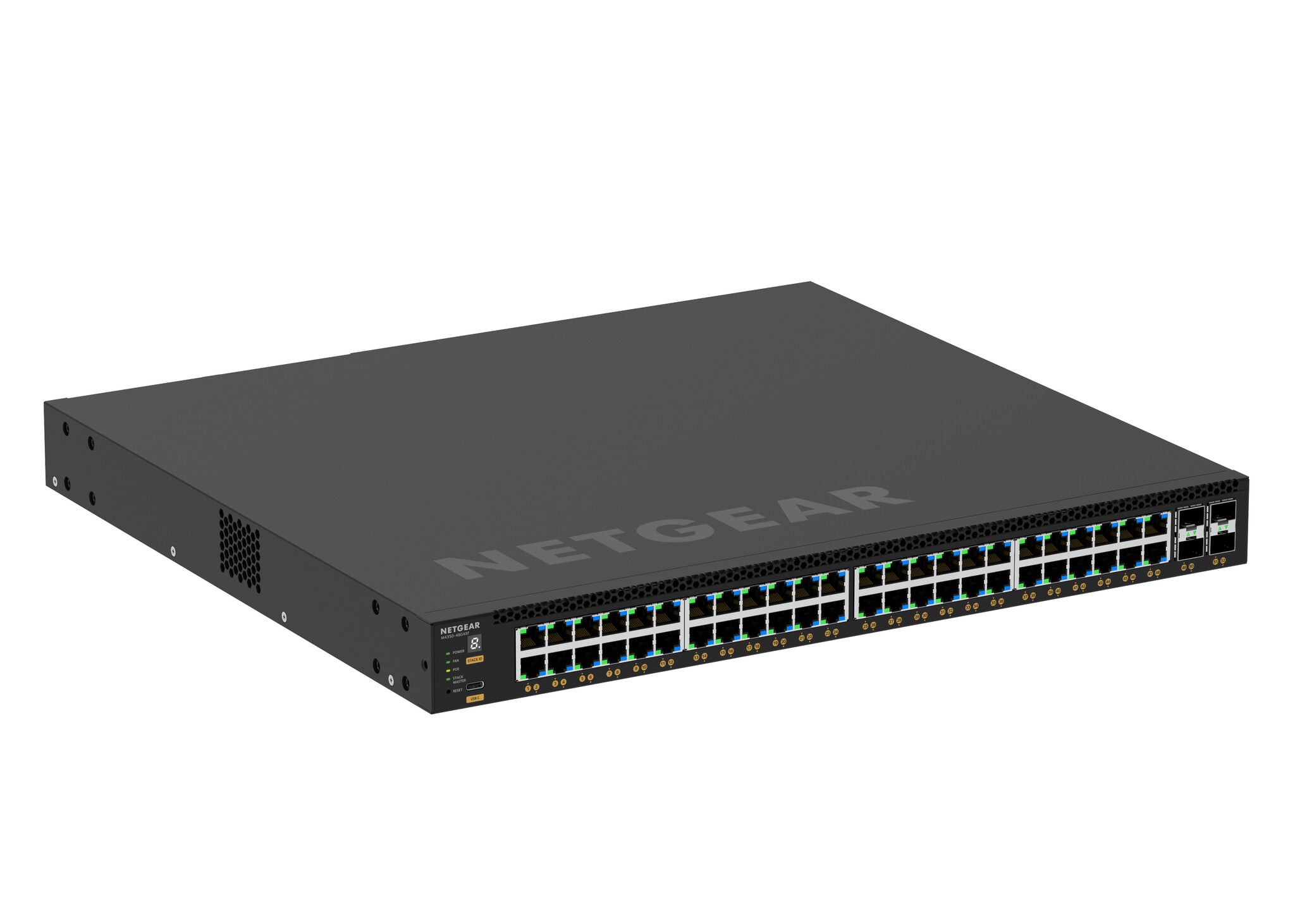

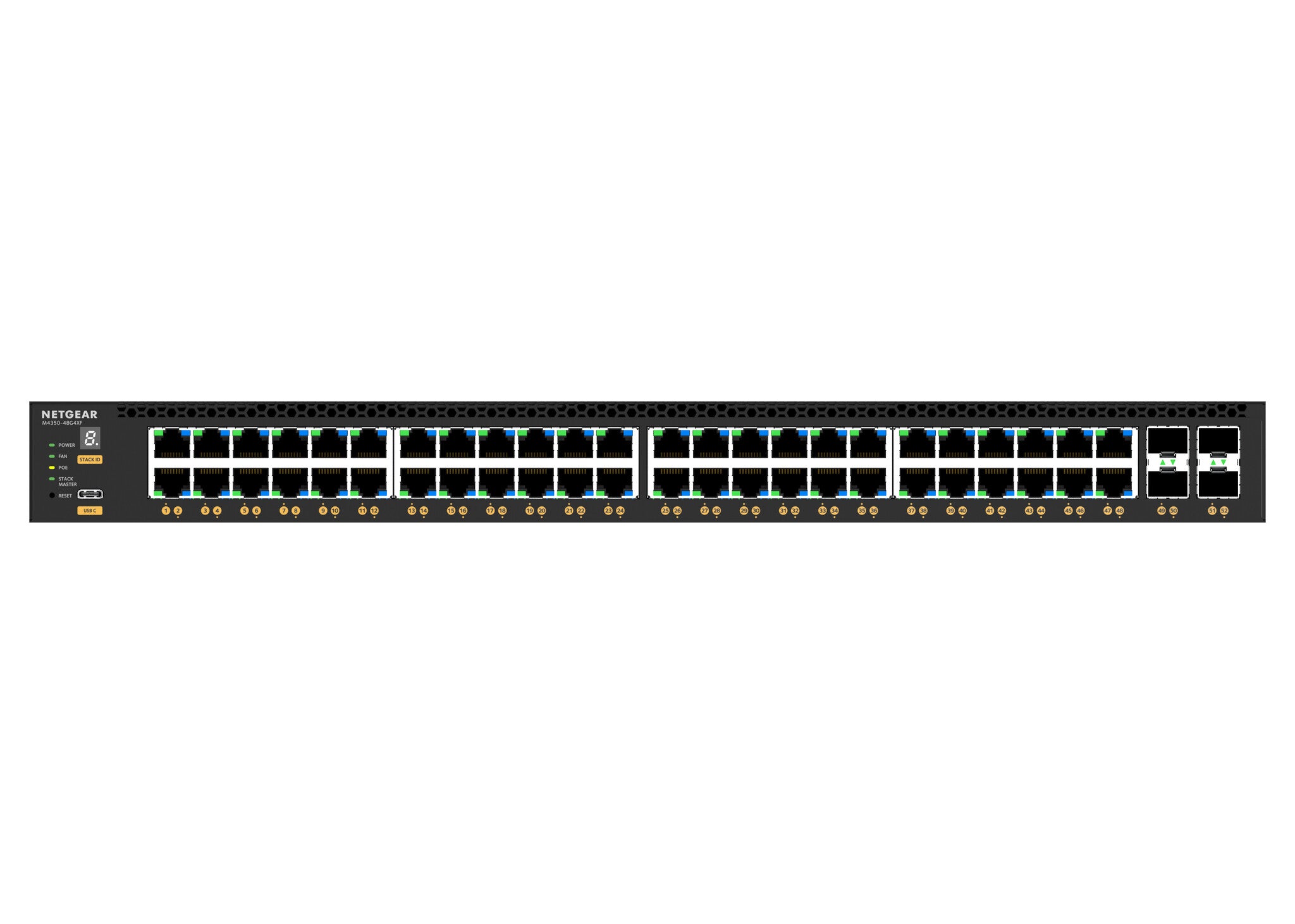

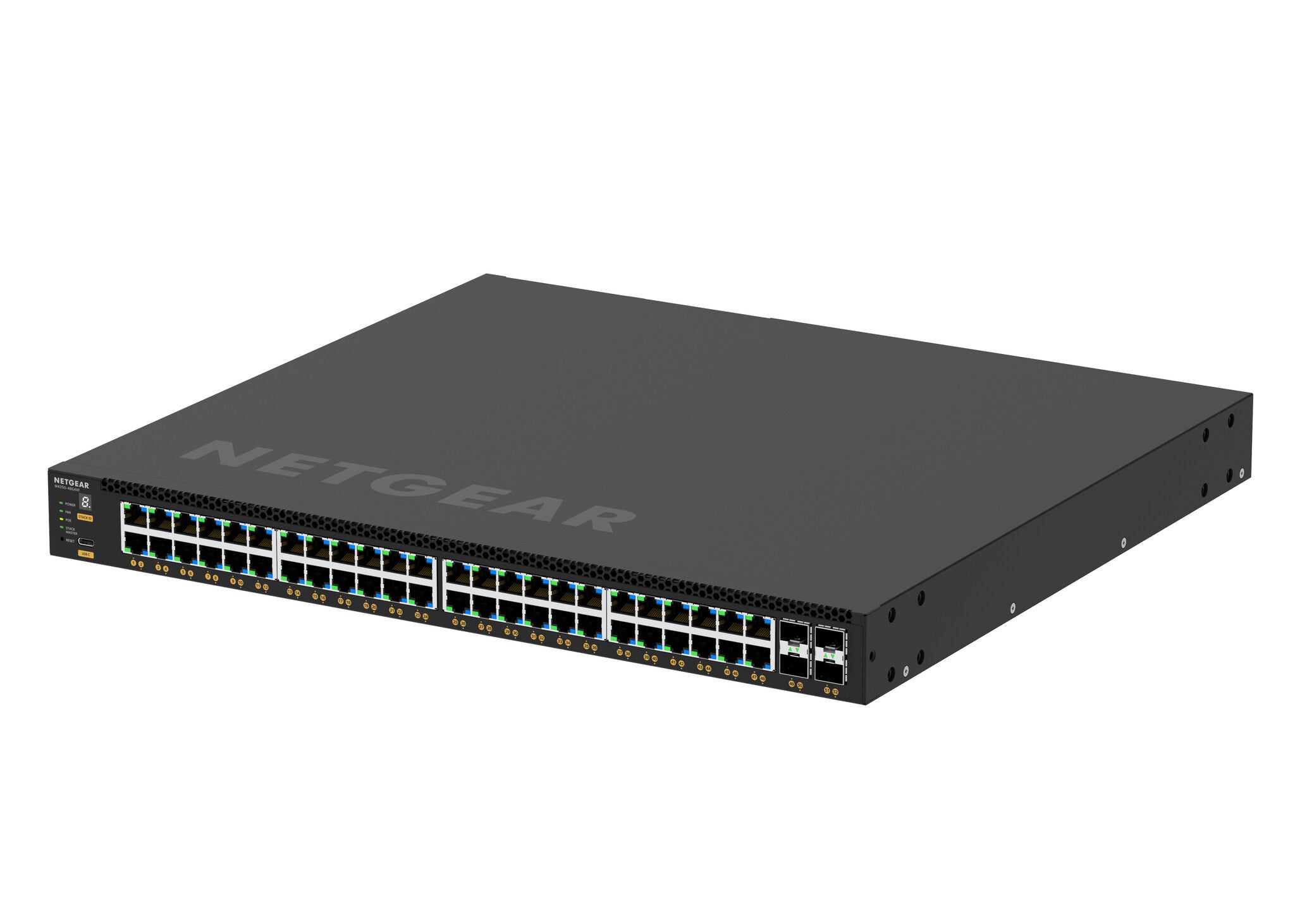

NETGEAR M4350-48G4XF Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Name: NETGEAR M4350-48G4XF Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: Netgear
SKU: GSM4352-100NES
Price: 4087.96 GBP
Availability: InStock

SKU: GSM4352-100NES

£4,087.96

Quantity select

1 in stock. Need more? Contact us!

FREE carbon neutral delivery on orders over £99

Description

Delivery & Returns

Got questions? Call our team on 020 8208 1234

£4,087.96

Quantity

Quantity select

Description

NETGEAR M4350-48G4XF. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

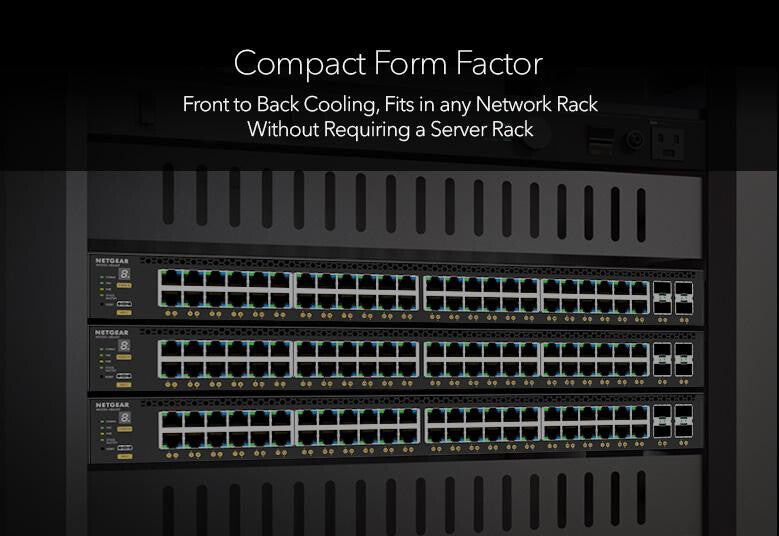

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

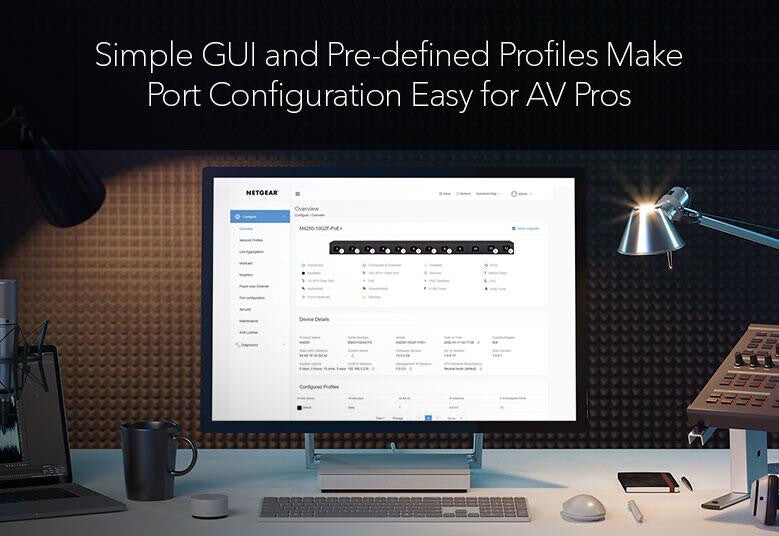

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Warranty: Limited Lifetime

View Product Specifications

Reviews

Frequently Asked Questions

When will it arrive?

Any order over £59 wil be shipped on our free 2-3 working day service, if you opt for Next Working Day shipping then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 day service.

What information do I need to provide for the delivery?

How long is the returns policy?

Delivery & Returns

How long will it take to receive my order?

We provide multiple shipping options for our customers including next day delivery. If you opt for Next Working Day shipping order needs to be placed before 2 PM; all orders placed after 2pm will be processed following working day and then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 working day service.

Can I choose a specific day to receive my order?

This is something that we are working hard to bring to you - we recognise that having deliveries on preferred days not only makes it easier for you but it is also great for the environment. By having deliveries arranged on days that you are going to be in or consolidating your orders to arrive to you at the same time means that the courier won't need to come back multiple times due to missed deliveries or multiple deliveries.

Can I change my delivery address once the order has been placed?

Our systems are highly automated, where possible we will do our utmost to accommodate this. To ensure we maintain a high delivery success rate most of our orders are picked and prepped for shipment within 30 minutes

How do I return my order?

If you need to return your order please raise a return through your order page detailing the reason for return. Once this form has been submitted it will be reviewed by the Returns Department who will contact you to arrange the return.
Please note the returns department may ask for more information such as the serial number(s) and images where applicable to process the return.

How long do I have to return an item?

For most products bought online, you have a legal right to change your mind within 14 days and receive a refund. If you wish to return unwanted products, you must let us know that you want to return them within 14 calendar days from the day after delivery. The item must also be returned to us within 7 working days from approval of return and receipt of the return label

Are returns free?

Returns for faulty / damaged items will be free of charge
Returns for unwanted items that have no fault will incur a minimal returns fee - delivery charges will not be refunded

Save On Delivery Carbon Neutral Deliveries Free Standard Delivery Over £99

Management features
ARP inspection	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Switch type	Managed

Ports & interfaces
Power connector	AC-in jack
SFP+ module slots quantity	4
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48

Network
Number of VLANs	4093
Virtual LAN features	MAC address-based VLAN, Private VLAN, Voice VLAN
VLAN support	Yes
IPv4 routes	512
IPv6 routes	256
Flow control support	Yes
Broadcast storm control	Yes
Rate limiting	Yes
6to4 tunnel	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Policy-based routing	Yes
Full duplex	Yes
10G support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u

Data transmission
Packet buffer memory	32 MB
Jumbo frames	12000
Jumbo frames support	Yes
Latency (10 Gbps)	0.7 µs
Latency (1 Gbps)	2.2 µs
Store-and-forward	Yes
Throughput	130.94 Mpps
Switching capacity	176 Gbit/s
MAC address table	16000 entries

Security
Password protection	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Root protection	Yes
Static port security	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
DoS attack prevention	Yes
Authentication	Guest VLAN, MAC-based authentication
Authentication type	RADIUS, TACACS+
MAC address filtering	Yes
IGMP proxy	Yes
IGMP snooping	Yes
Access Control List (ACL) ingress	511
Access Control List (ACL) egress	1023
Access Control List (ACL)	Yes
DHCP features	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support	Yes

Protocols
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
GARP VLAN Registration Protocol (GVRP)	Yes
Management protocols	SNMP V1, V2, V3

Design

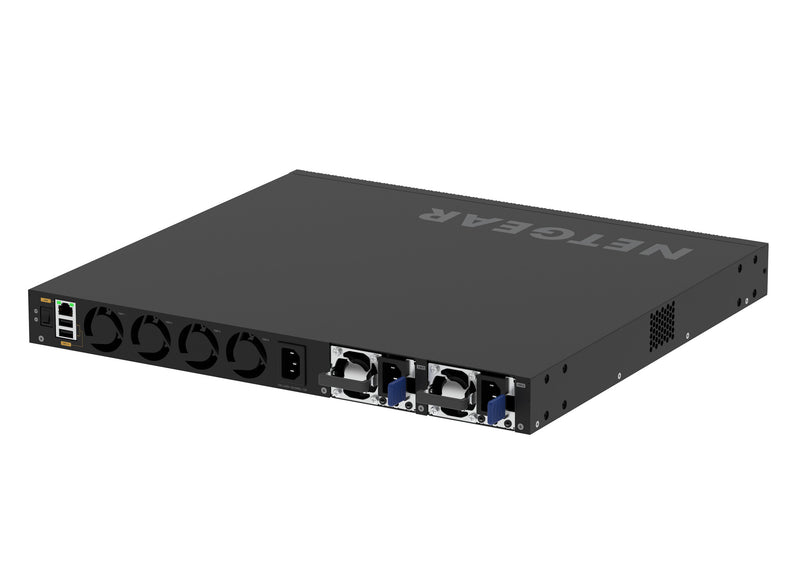

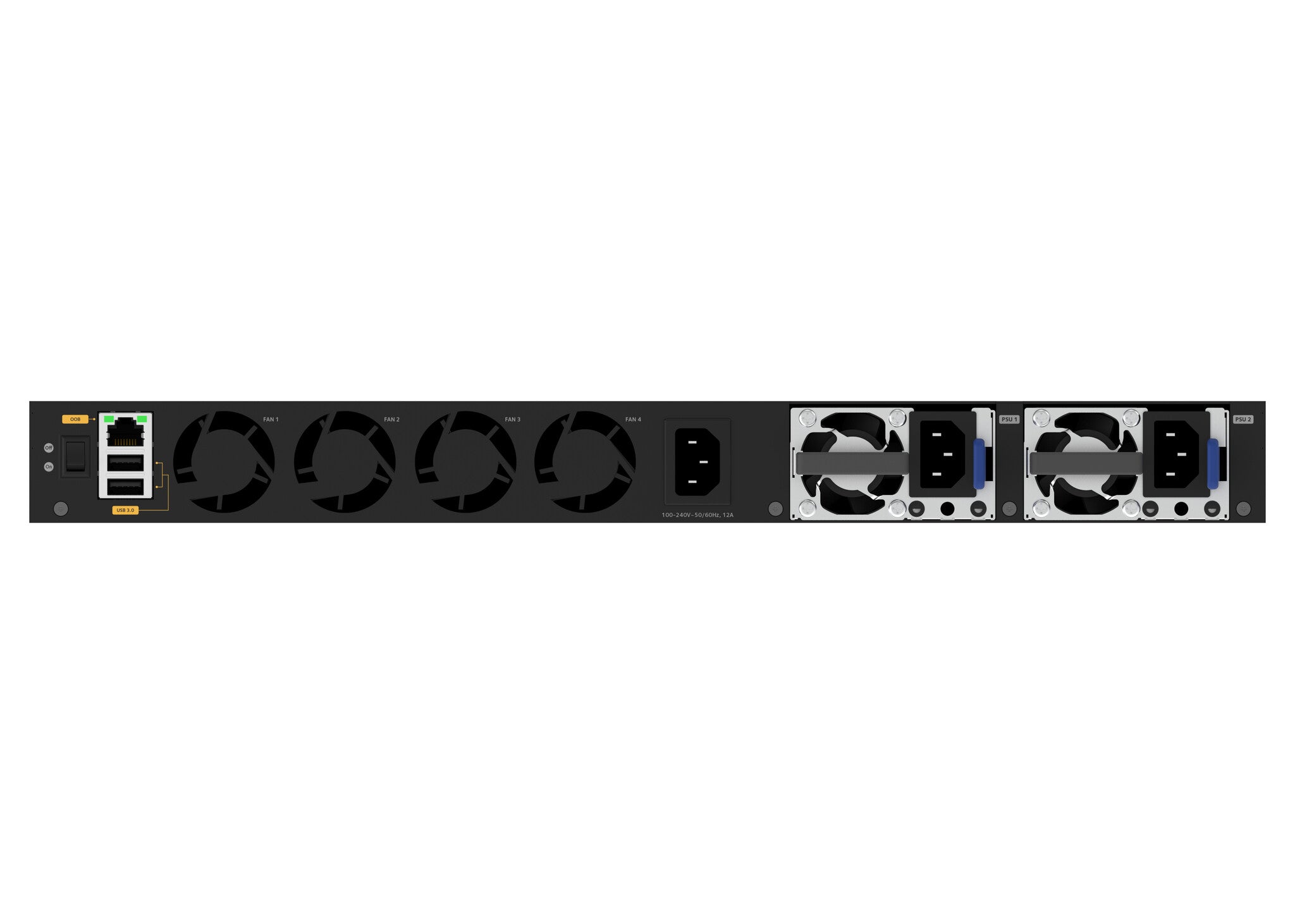

Airflow direction	Front-to-back airflow
LED indicators	Yes
Product colour	Black
Form factor	1U
Stackable	Yes
Rack mounting	Yes

Performance
sFlow	Yes
Flash memory	512 MB
Internal memory	2048 MB
Memory type	DDR4-SDRAM
Processor frequency	1800 MHz
Processor model	ARM Cortex-A57
Built-in processor	Yes

Technical details
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Sustainability compliance	Yes

Power
Power consumption (max)	348 W
Power consumption (typical)	99 W
Power supply included	Yes
Power source	AC

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	1440 W
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE)	Yes

Operational conditions
Non-operating altitude	0 - 3000 m
Operating altitude	0 - 3000 m
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 90%
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight & dimensions
Weight	7.19 kg
Height	43.2 mm
Depth	400 mm
Width	440 mm

Packaging data
Included power plug types	EU, UK, NA
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC, USB Type-C

Other features
Power supply	550 W
