DeepCool LE520 AIO Liquid Cooler | 2400mm 85.85 CFM PWM RGB Black
KEY FEATURES
- Processor All-in-one liquid cooler 12 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
- 85.85 cfm 3.27 mmH2O
- Pulse-width modulation (PWM) support
- 120 x 120 x 25 mm
- Black
- 1 pc(s)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
DeepCool LE520 AIO Liquid Cooler | 2400mm 85.85 CFM PWM RGB Black
Description
DeepCool LE520. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum airflow: 85.85 cfm, Maximum air pressure: 3.27 mmH2O. Product colour: Black
LE520

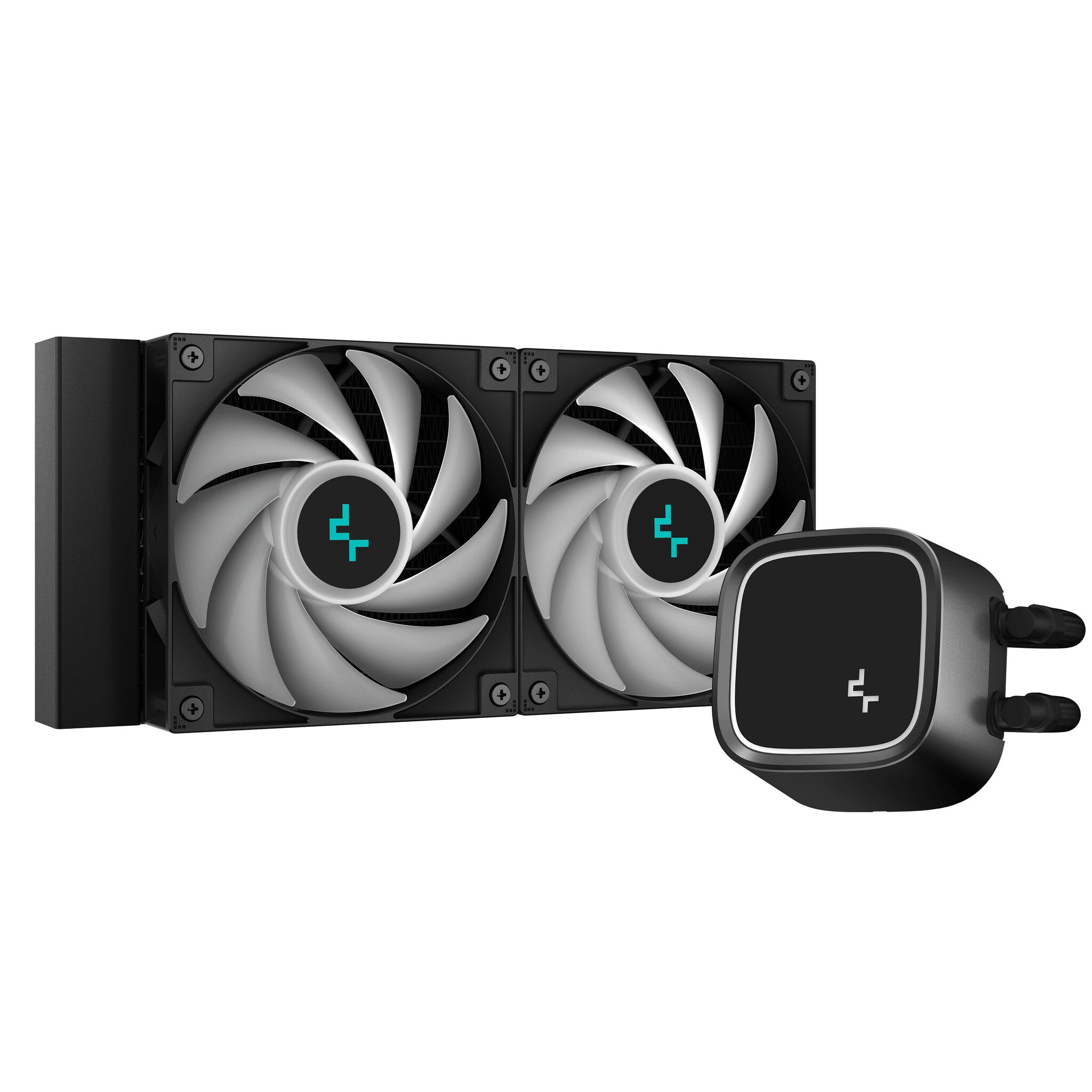

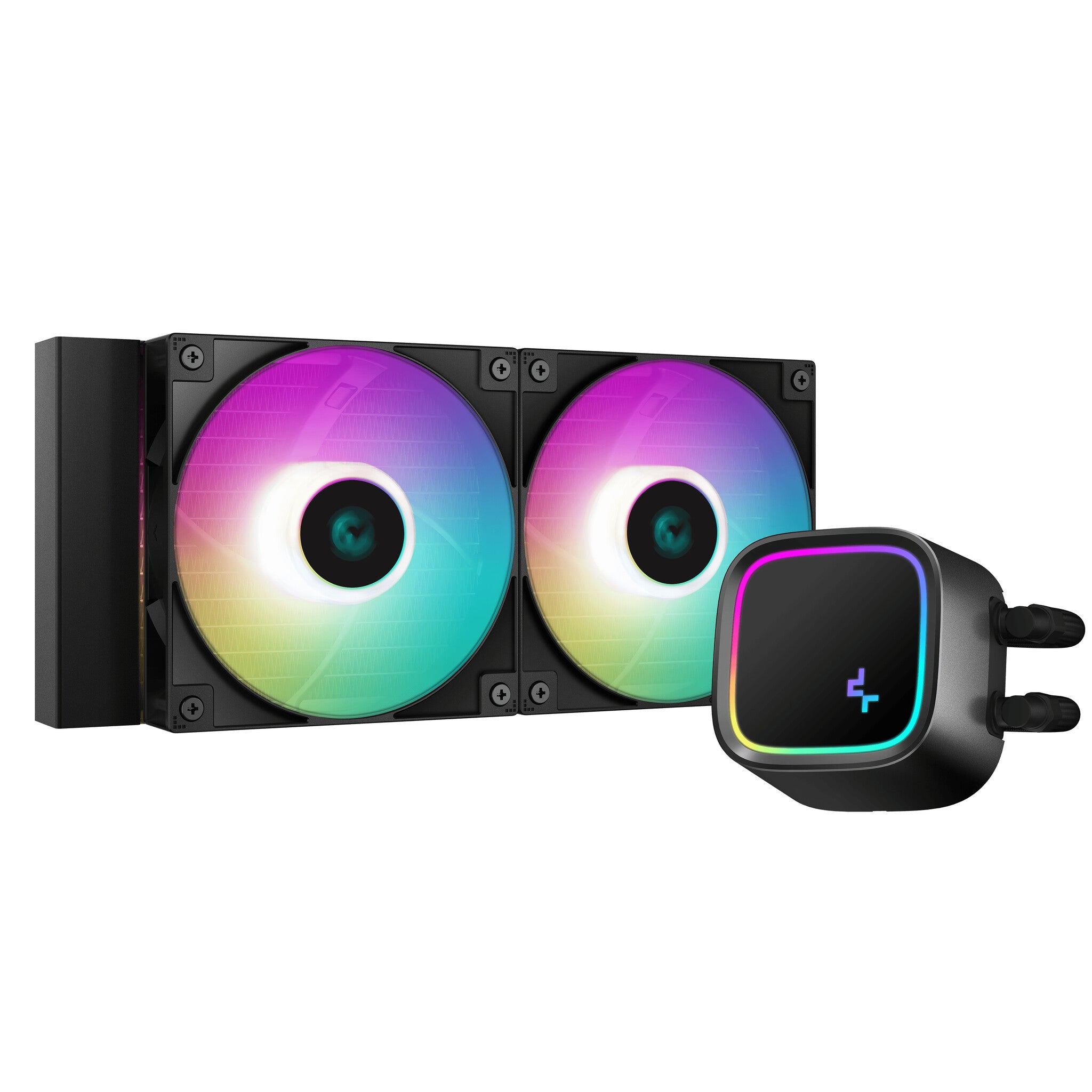

The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.
LE520
240mm ARGB Liquid Cooler
POWERFUL HEAT DISSIPATION
Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

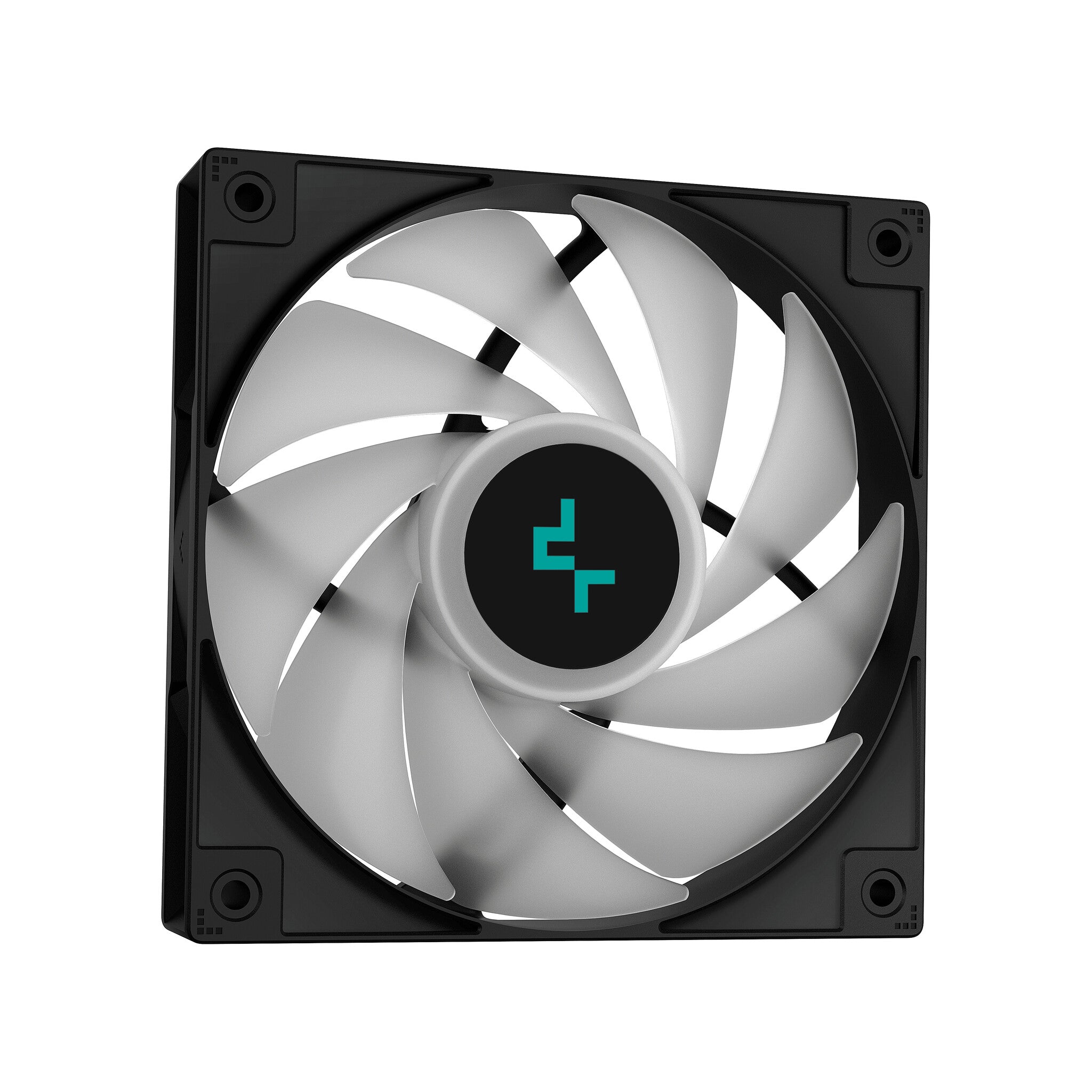

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI-LEAK TECHNOLOGY
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 32.9 dB |
| Pump noise level | 17.8 dB |
| Fan bearing technology | Hydro bearing |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2250 RPM |
| Pump motor speed | 2400 RPM |
| Design | |
|---|---|
| Product colour | Black |

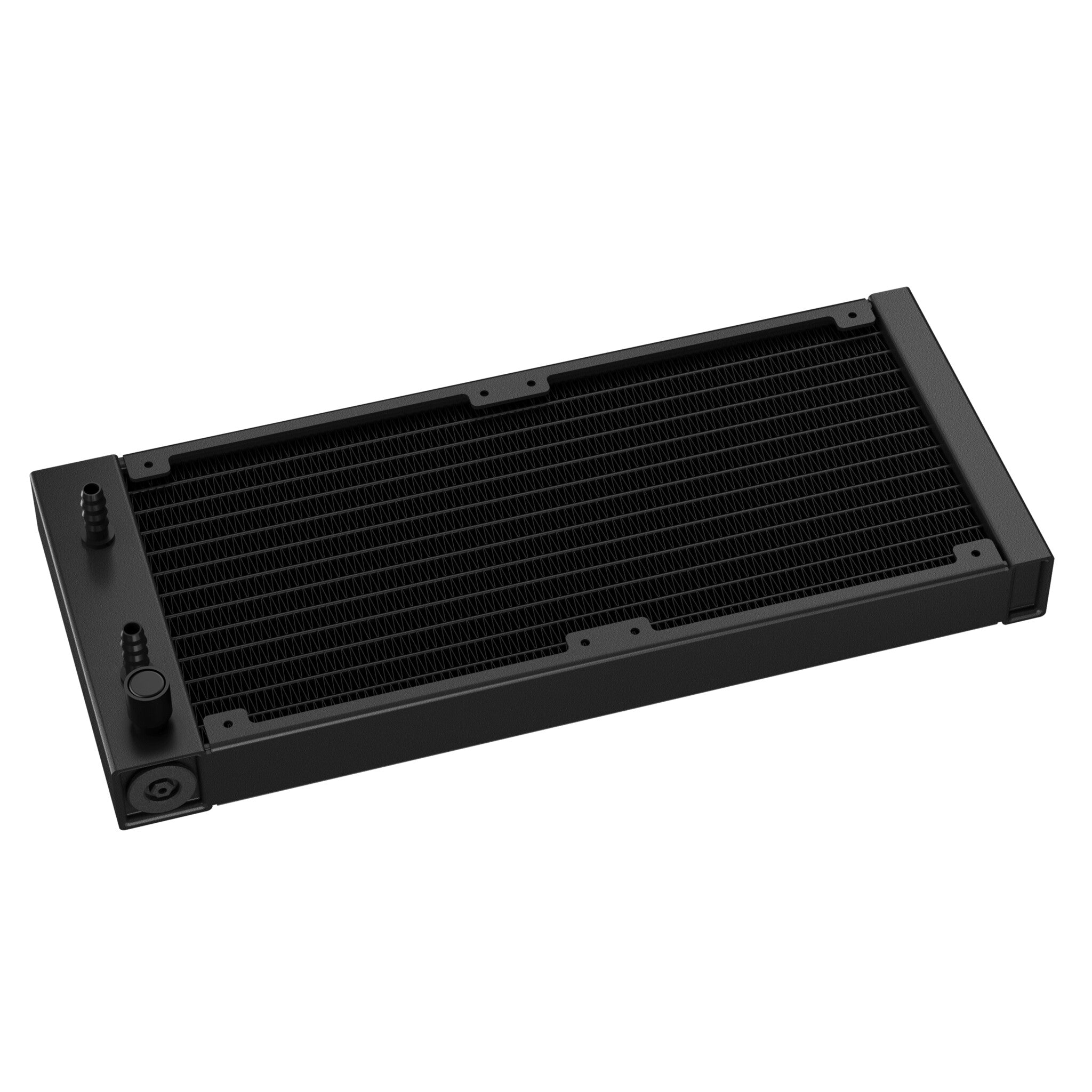

| Radiator material | Aluminum |

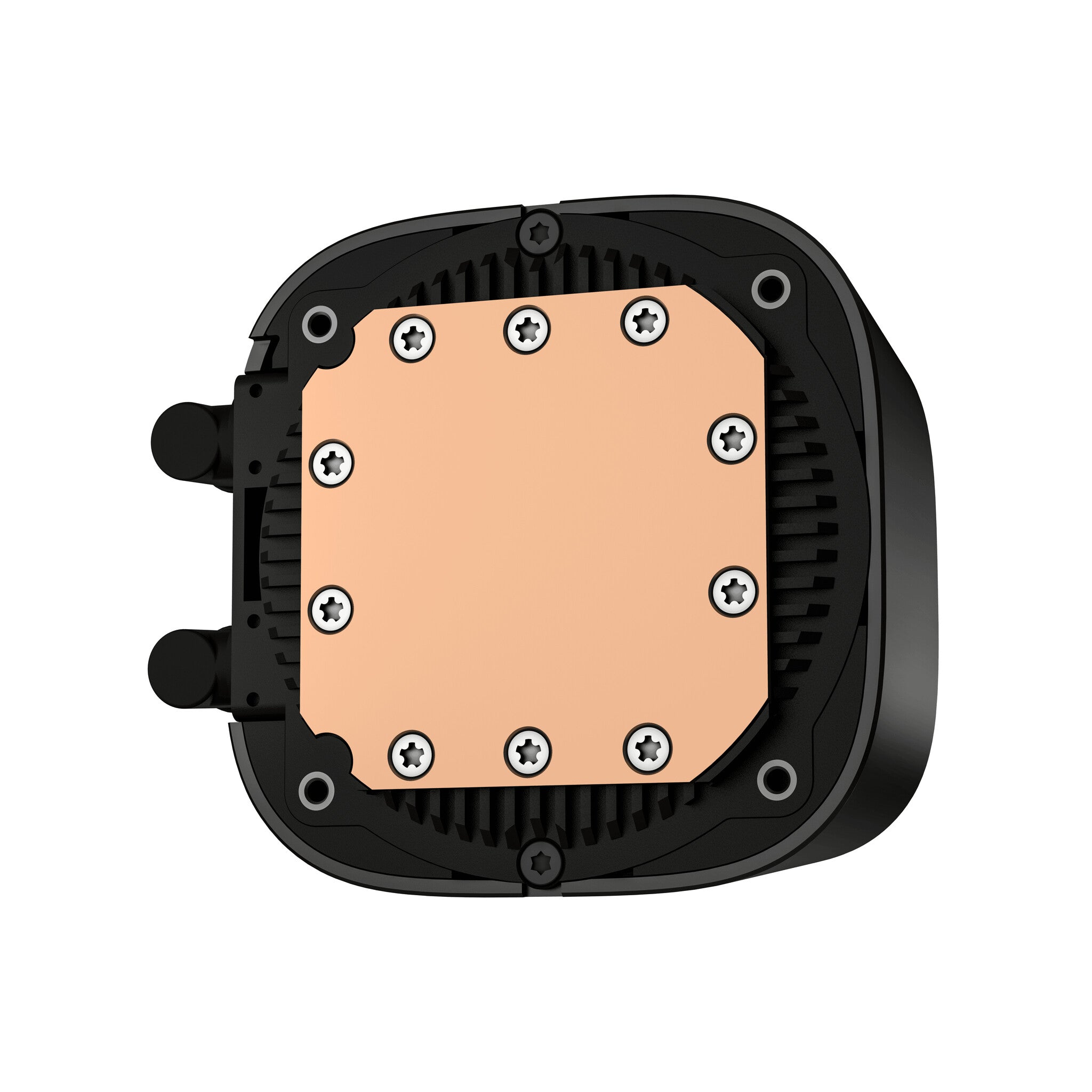

| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Power | |
|---|---|
| Fan power consumption | 3 W |
| Pump power consumption | 2.4 W |
| LED power consumption (pump) | 2.25 W |
| LED power consumption (fan) | 2.1 W |
| Thermal Design Power (TDP) | 220 W |
| Fan voltage | 12 V |
| Pump voltage | 12 V |
| Fan current | 0.25 A |
| Pump current | 200 mA |
| Weight & dimensions | |
|---|---|
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 9.1 cm |
| Pump depth | 8 cm |
| Pump height | 5.2 cm |
| Weight | 1.24 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Packaging content | |
|---|---|
| Package type | Box |

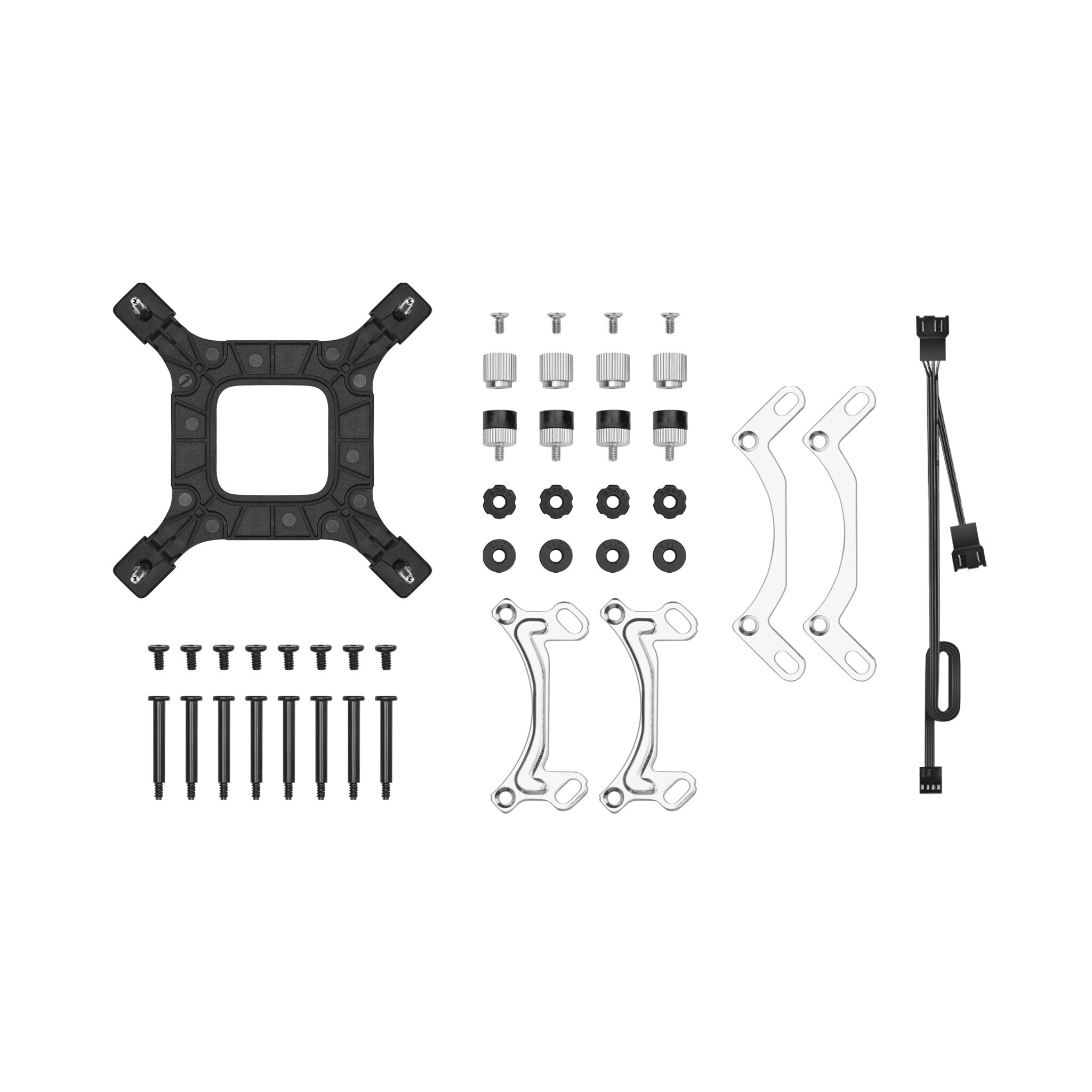

| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes |
| Other features | |
|---|---|
| LED voltage | 5 V |
