Zotac ZBOX CI649 NANO 1.8L sized PC Black, White Intel SoC i5-1335U 1.3 GHz
KEY FEATURES
- Powwerful Silence
- The Ideal Office Assistant
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Zotac ZBOX CI649 NANO 1.8L sized PC Black, White Intel SoC i5-1335U 1.3 GHz
Description
Zotac ZBOX CI649 NANO. Chassis type: 1.8L sized PC, Product type: Workstation barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.2. Cooling type: Passive. Power supply: 65 W
MULTI-TASK. EMAIL. DOCS. FASTER
The all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.
DEDICATED
The all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.
EFFICIENT AND RELIABLE
A system that takes up very little space and it’s designed with no moving parts* to remove wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 liters small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost savings
Flexible
The ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.
HAS GREAT COMMUNICATION
The ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.
CAN TAKE ON MORE
The ZBOX C Series nano can take on up to 64GB of fast DDR5 5200/4800 MHz Memory, a 2.5” HDD/SSD drive, and an M.2 NVMe PCIe 4.0 x4 SSD with little effort.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1335U |
| Processor frequency | 1.3 GHz |
| Processor cores | 10 |
| Processor threads | 12 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core boost frequency | 4.6 GHz |
| Efficient-core boost frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 55 W |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 4800,5200 MHz |
| Maximum internal memory | 64 GB |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA |
| Number of storage drives supported | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 10 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Chassis type | 1.8L sized PC |
| Product colour | Black, White |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power, Wi-Fi |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Workstation barebone |
| Performance | |
|---|---|
| Motherboard chipset | Intel SoC |
| Audio output channels | 8.0 channels |
| Windows operating systems supported | Windows 11 |
| General Information | |
|---|---|
| Product Family | ZBOX |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 65 W |
| Weight & dimensions | |
|---|---|
| Width | 204 mm |
| Depth | 129 mm |
| Height | 68 mm |

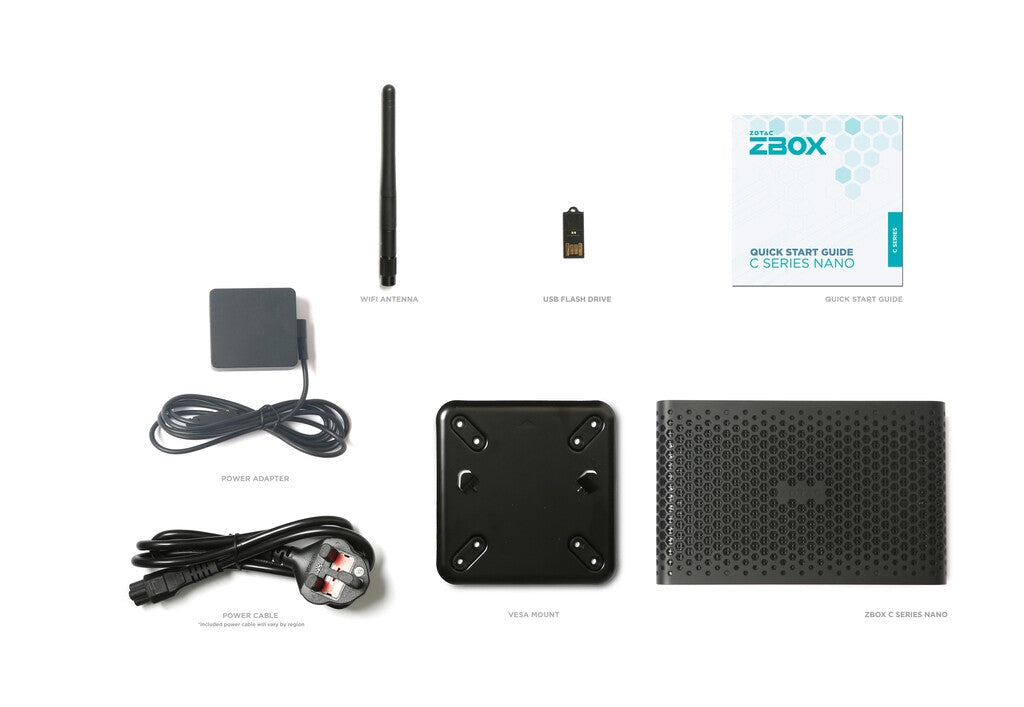

| Packaging content | |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
