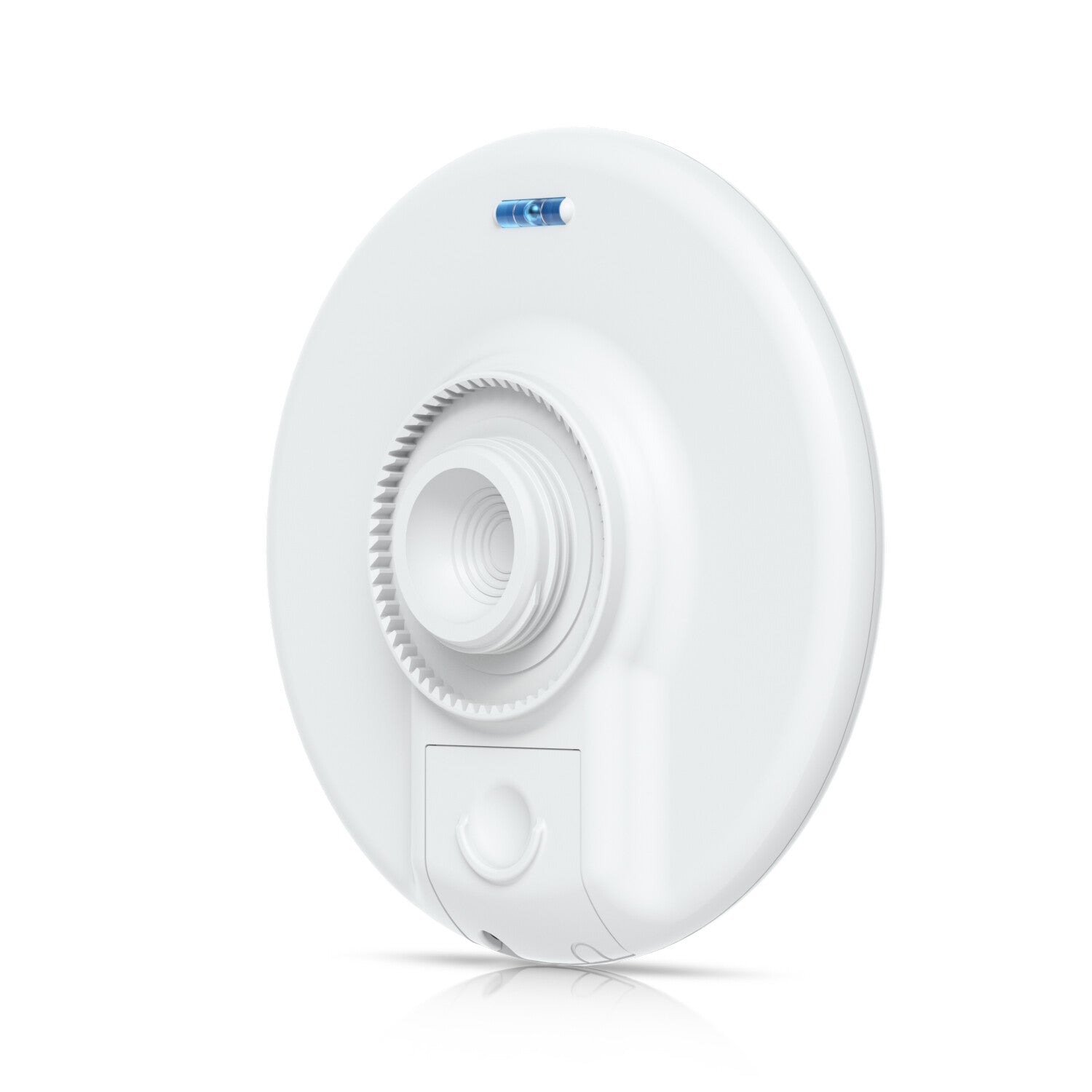

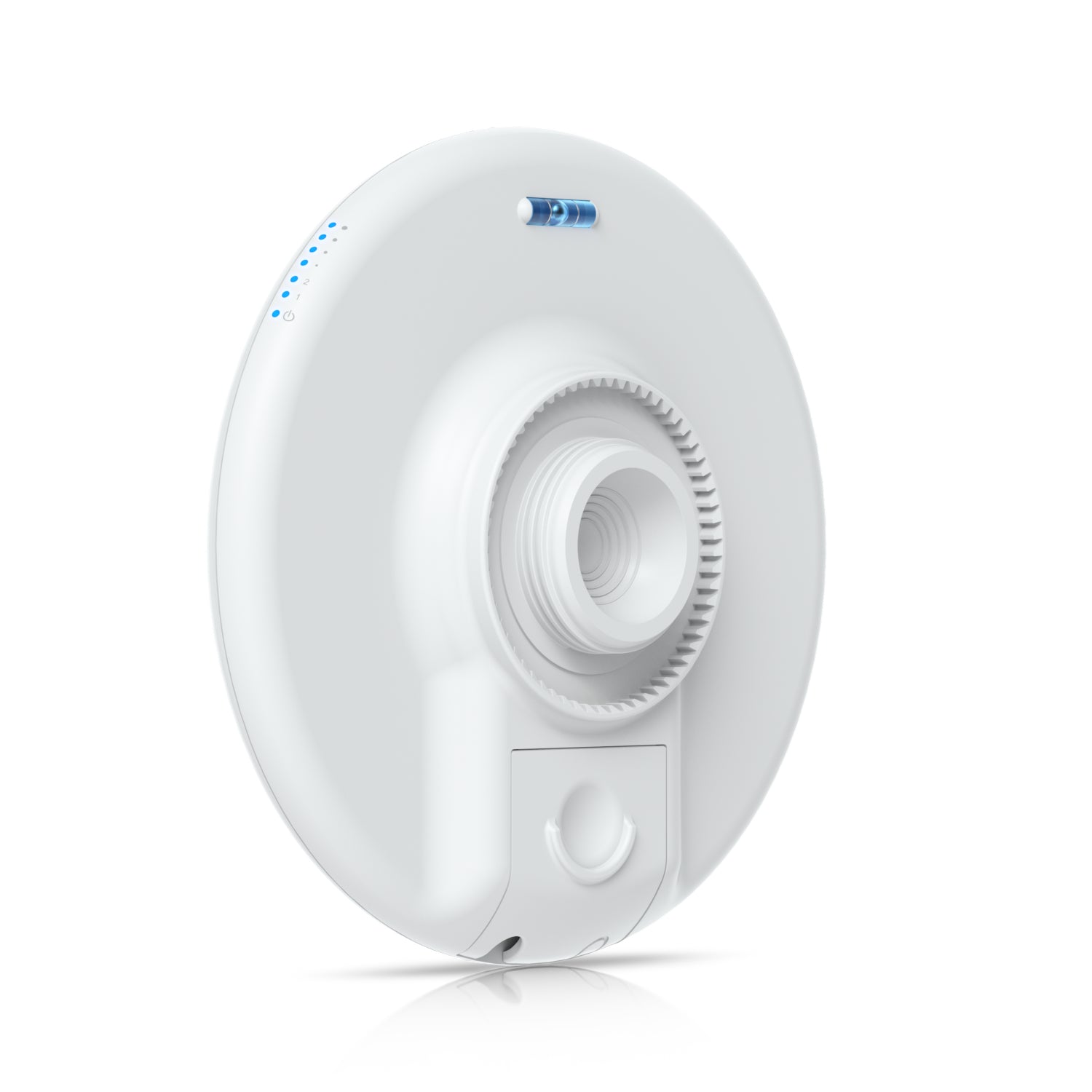

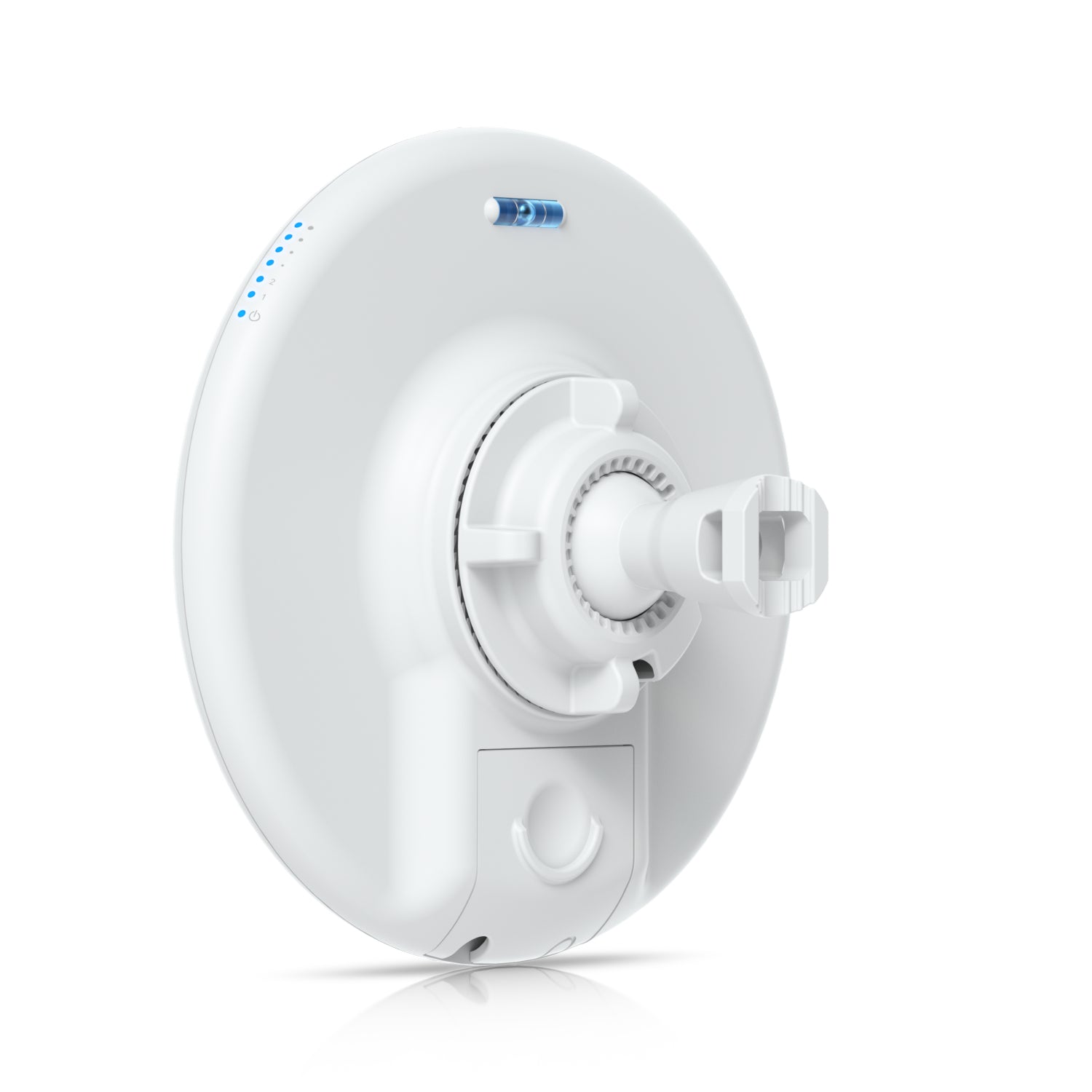

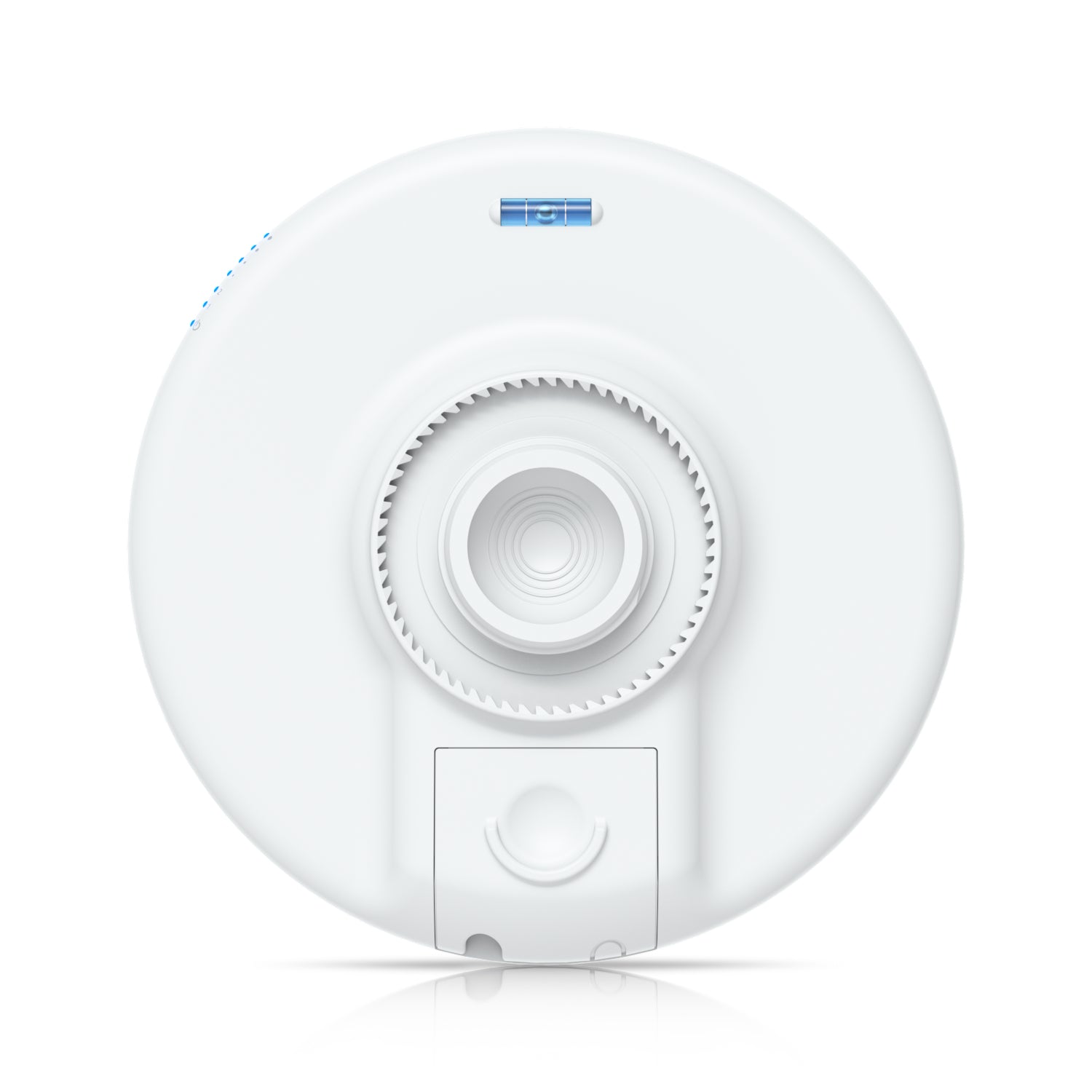

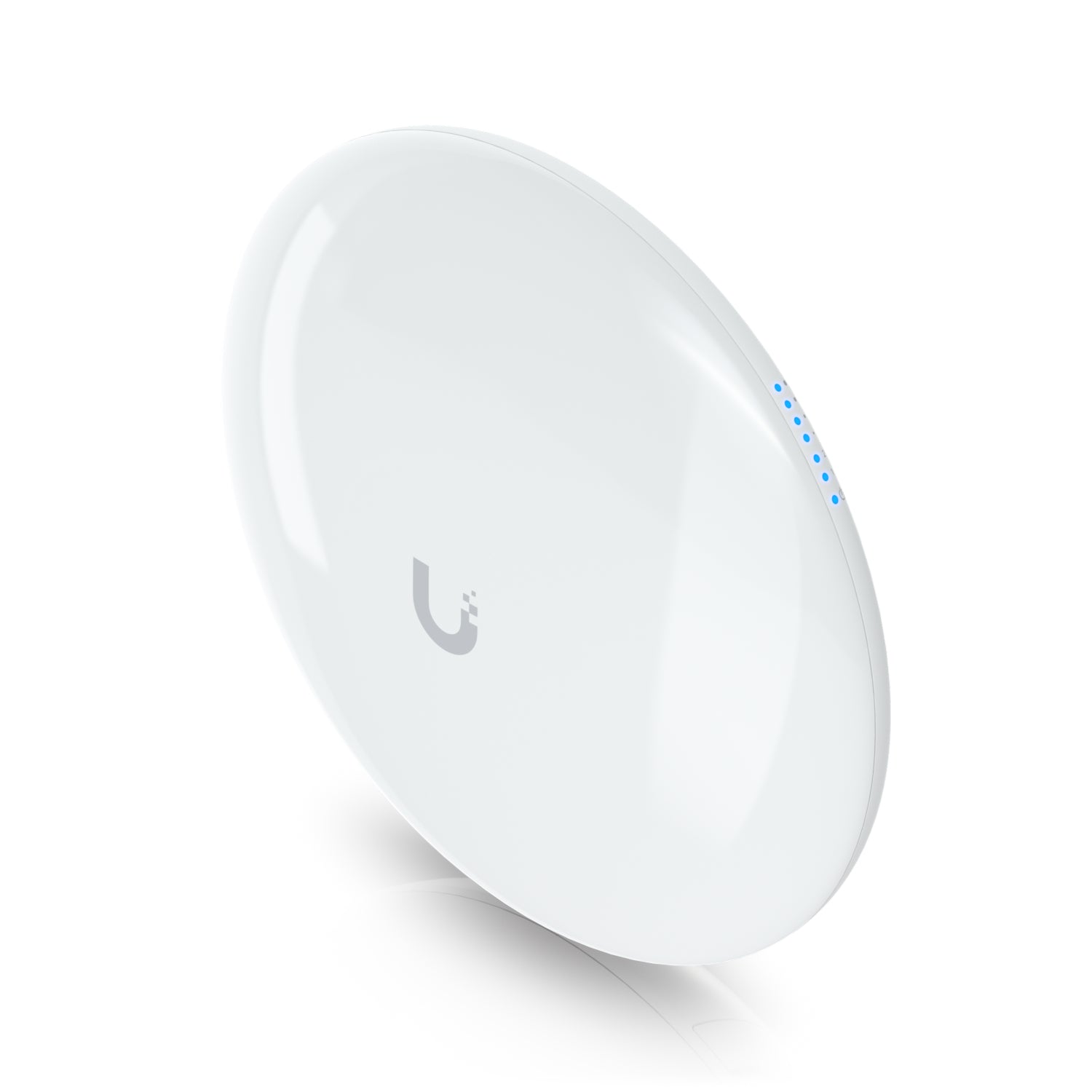

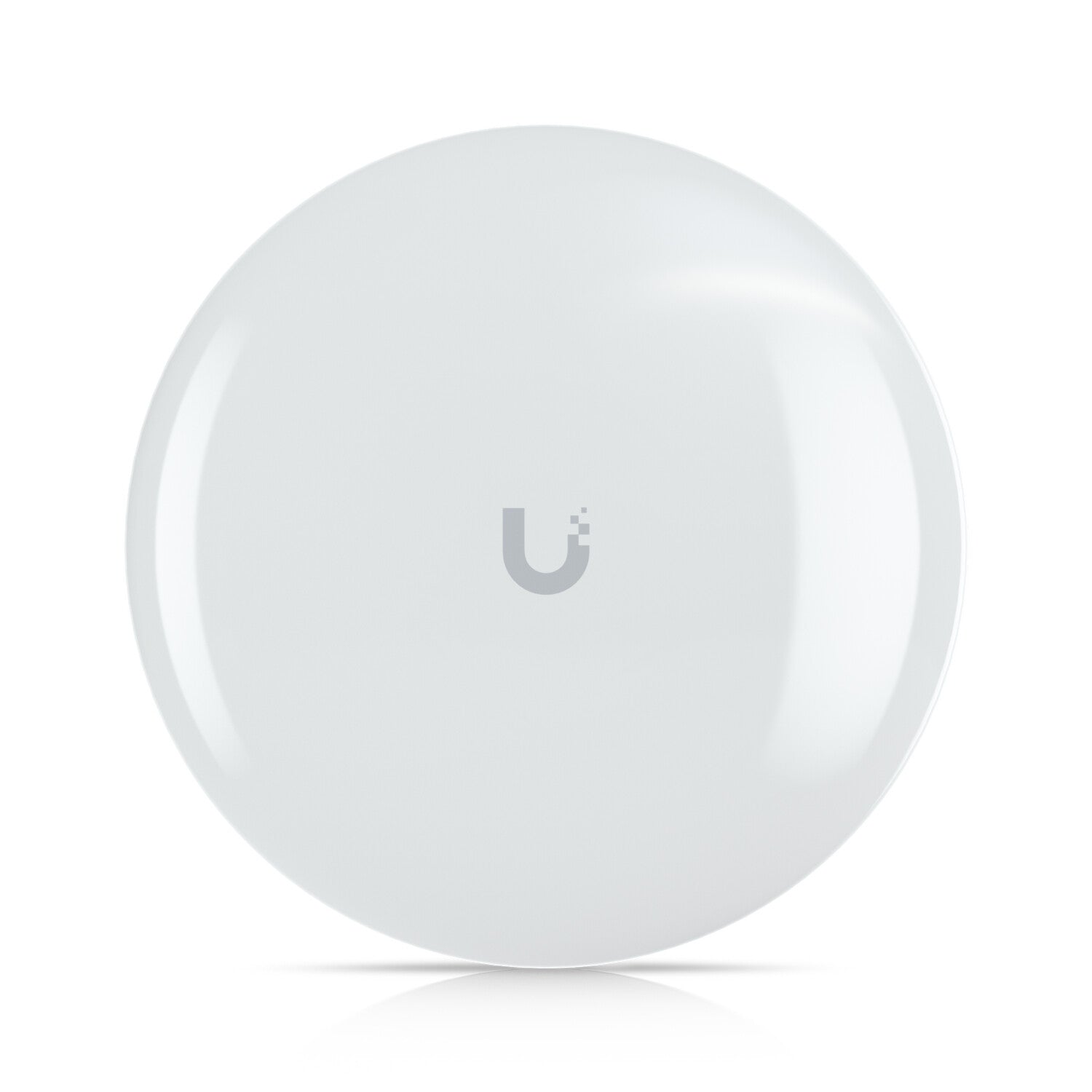

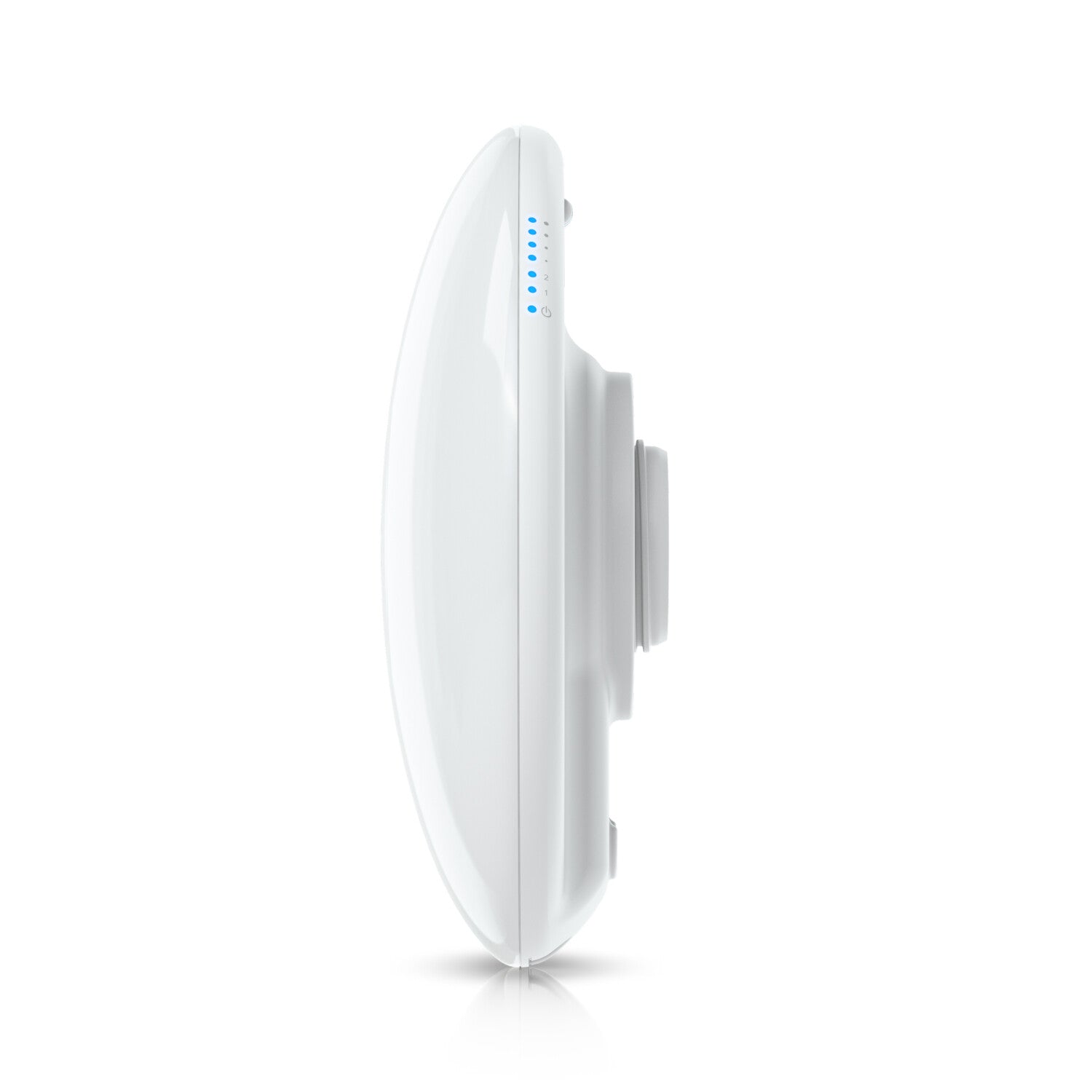

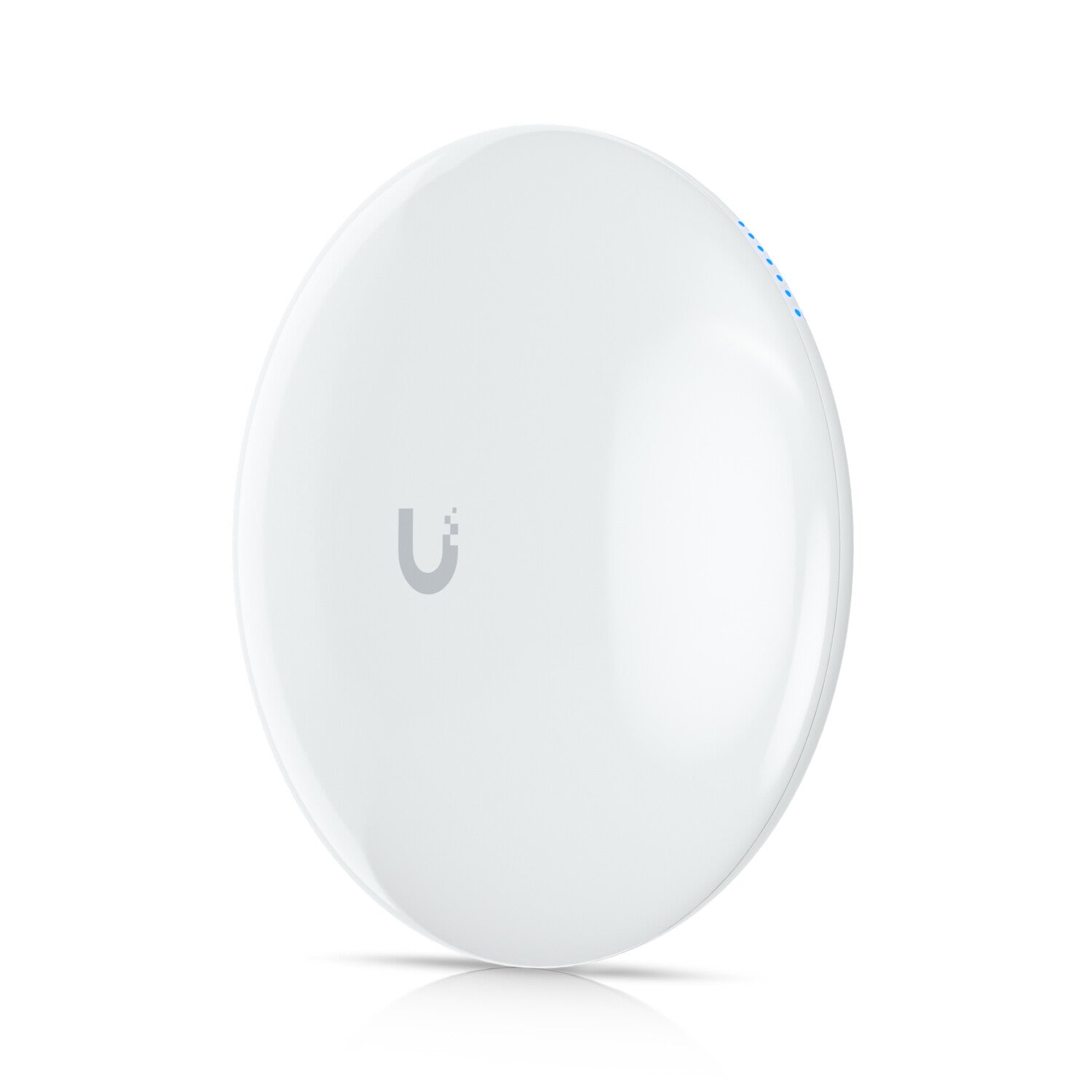

Ubiquiti UDB-Pro Network bridge 866.7 Mbit/s White
KEY FEATURES
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link

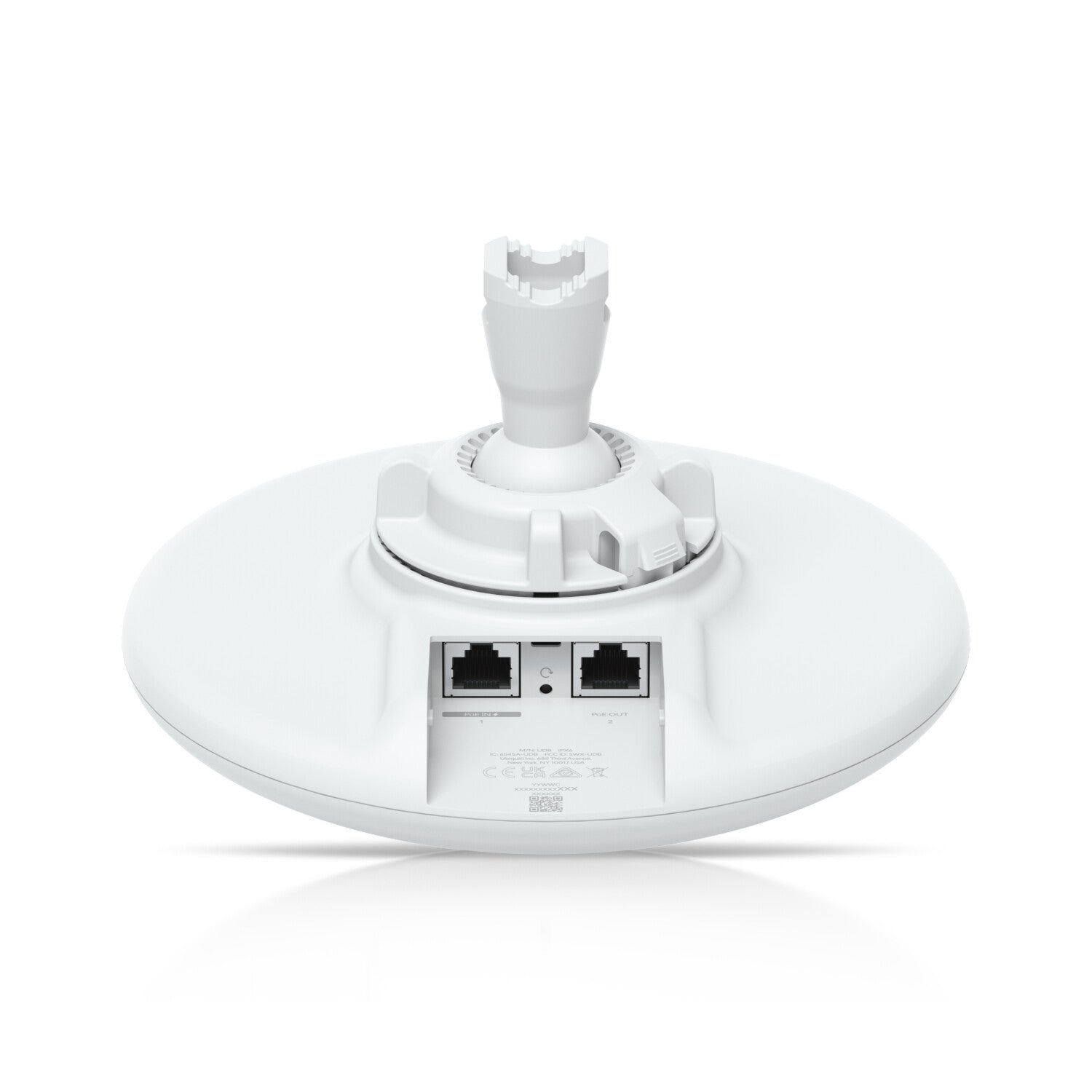

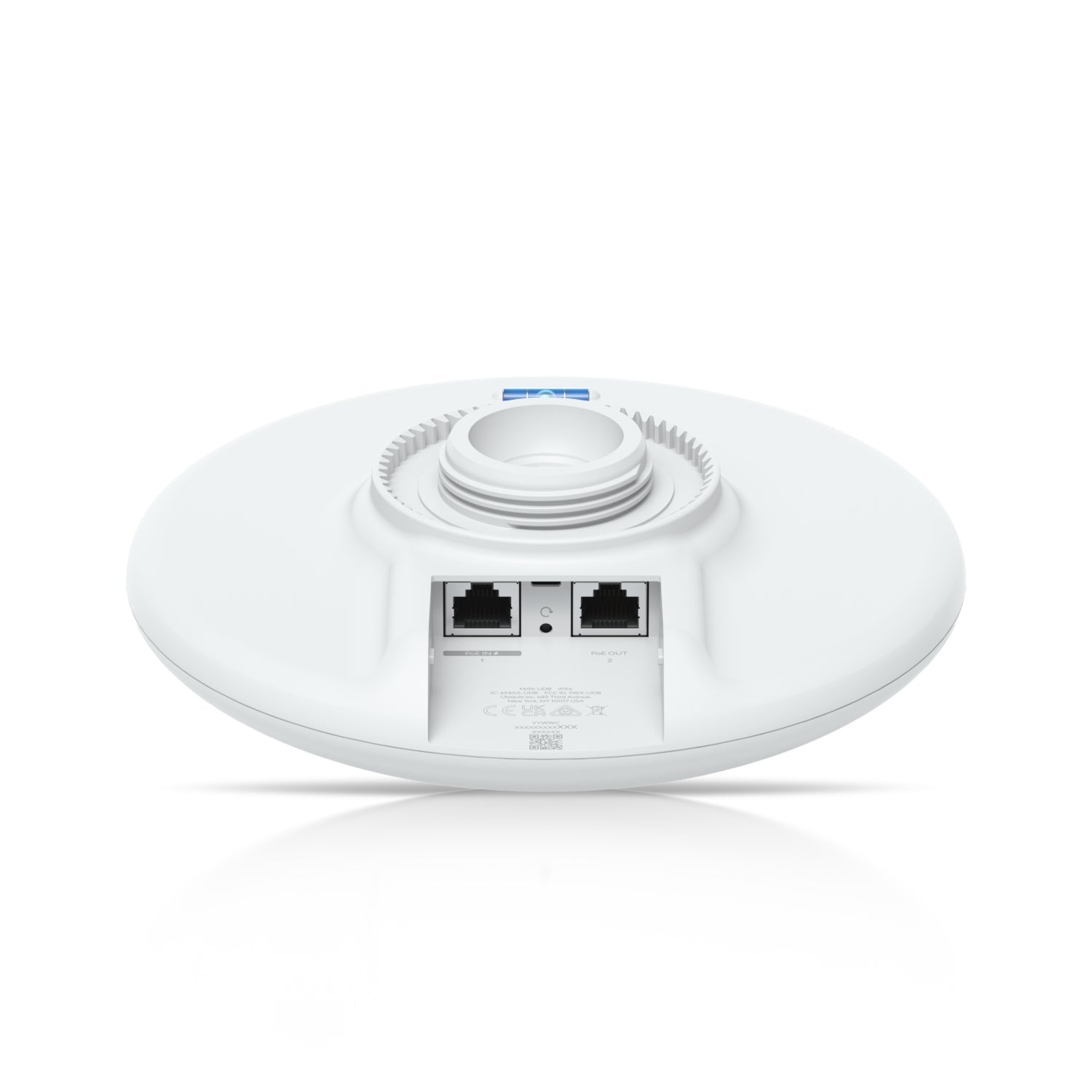

- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*

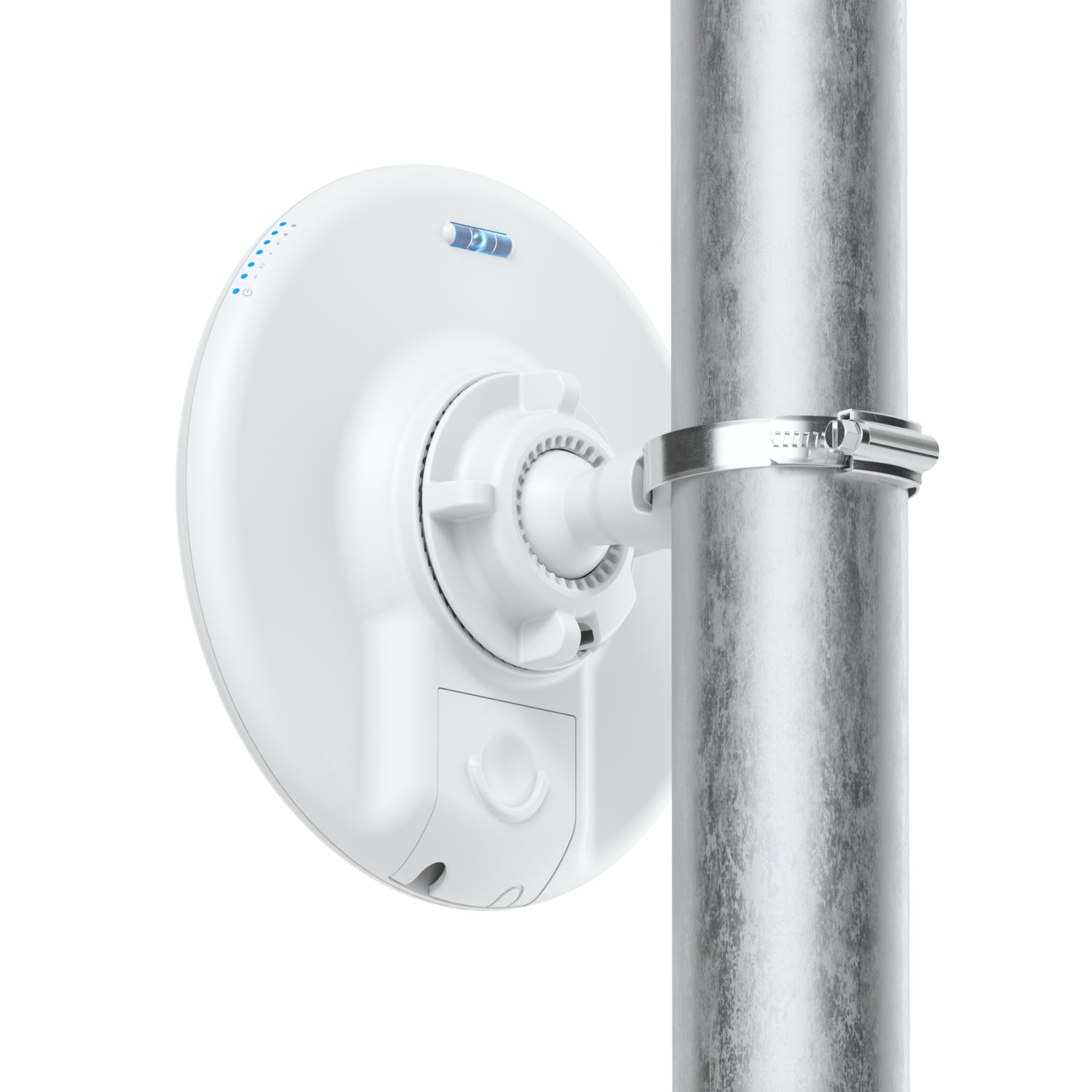

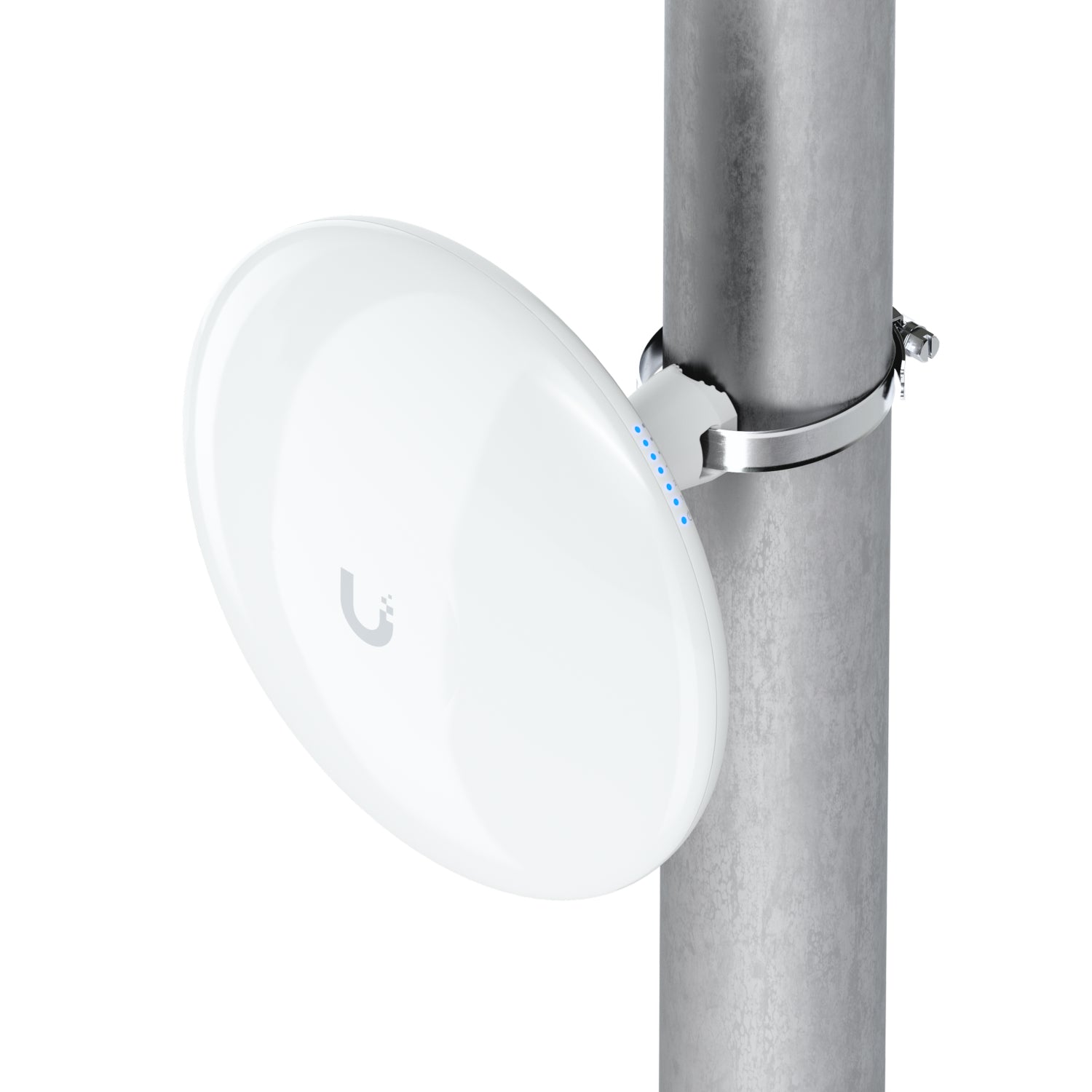

- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Ubiquiti UDB-Pro Network bridge 866.7 Mbit/s White
Description
Ubiquiti UDB-Pro. Maximum data transfer rate: 866.7 Mbit/s. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 19 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired & Wireless
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Data transmission | |
|---|---|
| Maximum data transfer rate | 866.7 Mbit/s |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Antenna type | 2x2 |
| Antenna gain level (max) | 19 dBi |
| Wireless LAN features | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 5 GHz |
| Signal strength | 25 dBm |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Outdoor range | 5+ km |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Security | |
|---|---|
| Security algorithms | WPA2-AES |
| Features | |
|---|---|
| Product type | Network bridge |
| Material | Polycarbonate (PC), Stainless steel |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | LAN, Power, Signal strength |
| Power LED | Yes |
| International Protection (IP) code | IPX6 |
| Reset button | Yes |
| Power | |
|---|---|
| Power source type | DC, PoE |
| DC input voltage | 42.5 - 57 V |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 189.5 mm |
| Depth | 64.3 mm |
| Height | 189.5 mm |
| Weight | 515 g |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |

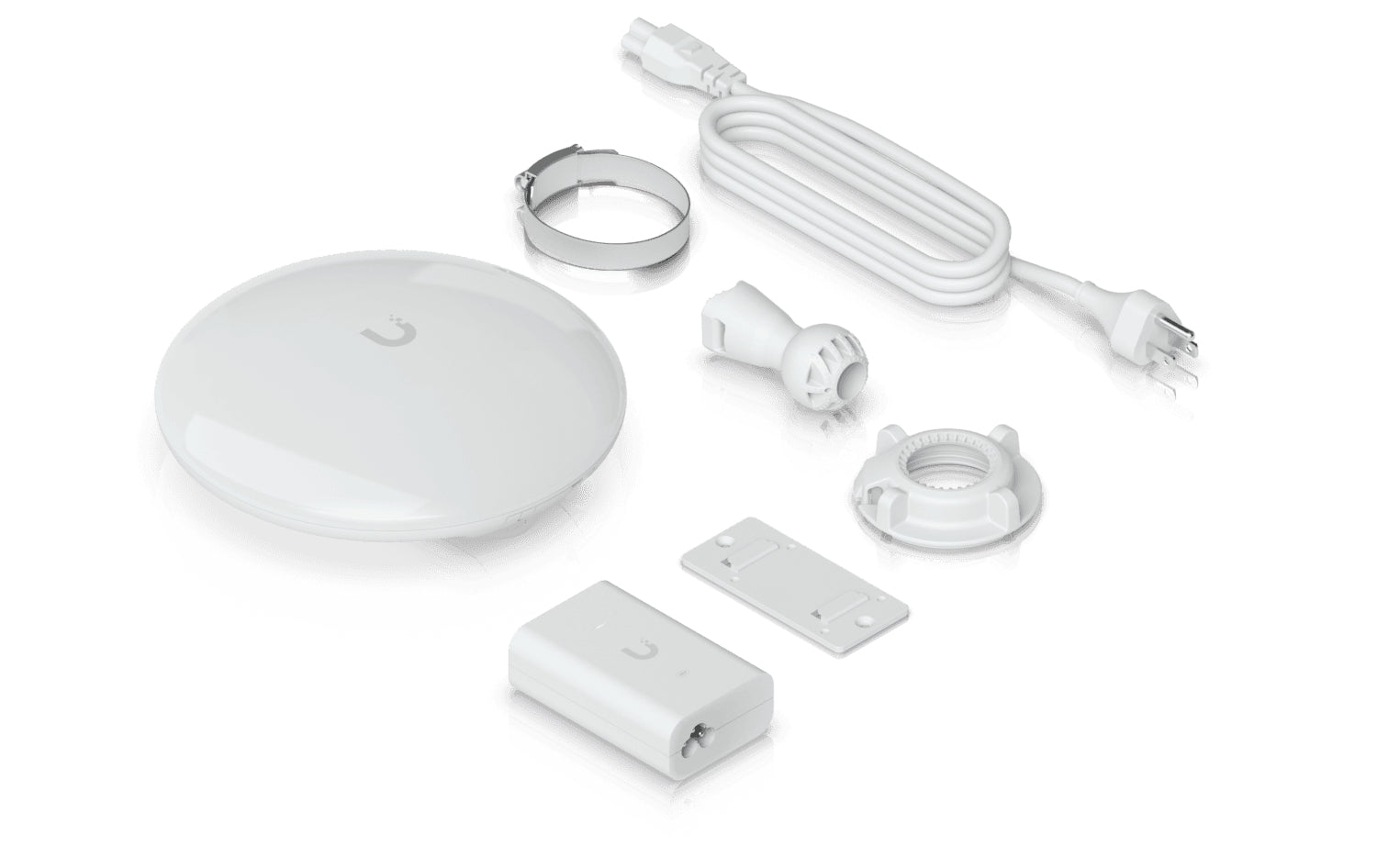

| Packaging content | |
|---|---|
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
