Ubiquiti Networks NanoBeam 5AC Gen 2 Network bridge 450 Mbit/s White
KEY FEATURES
- Network bridge 450 Mbit/s 15000 m
- Wi-Fi
- Ethernet LAN Gigabit Ethernet
- Plastic
- 19 dBi
- White
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions

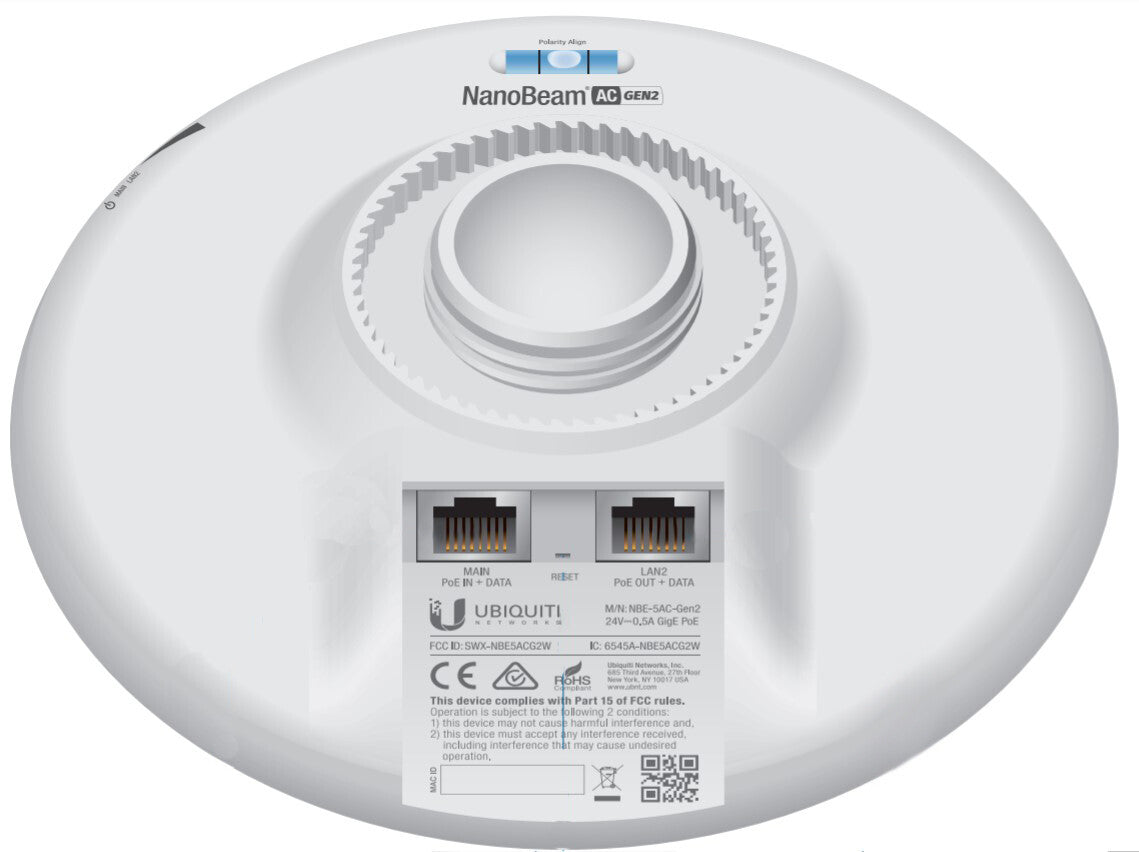

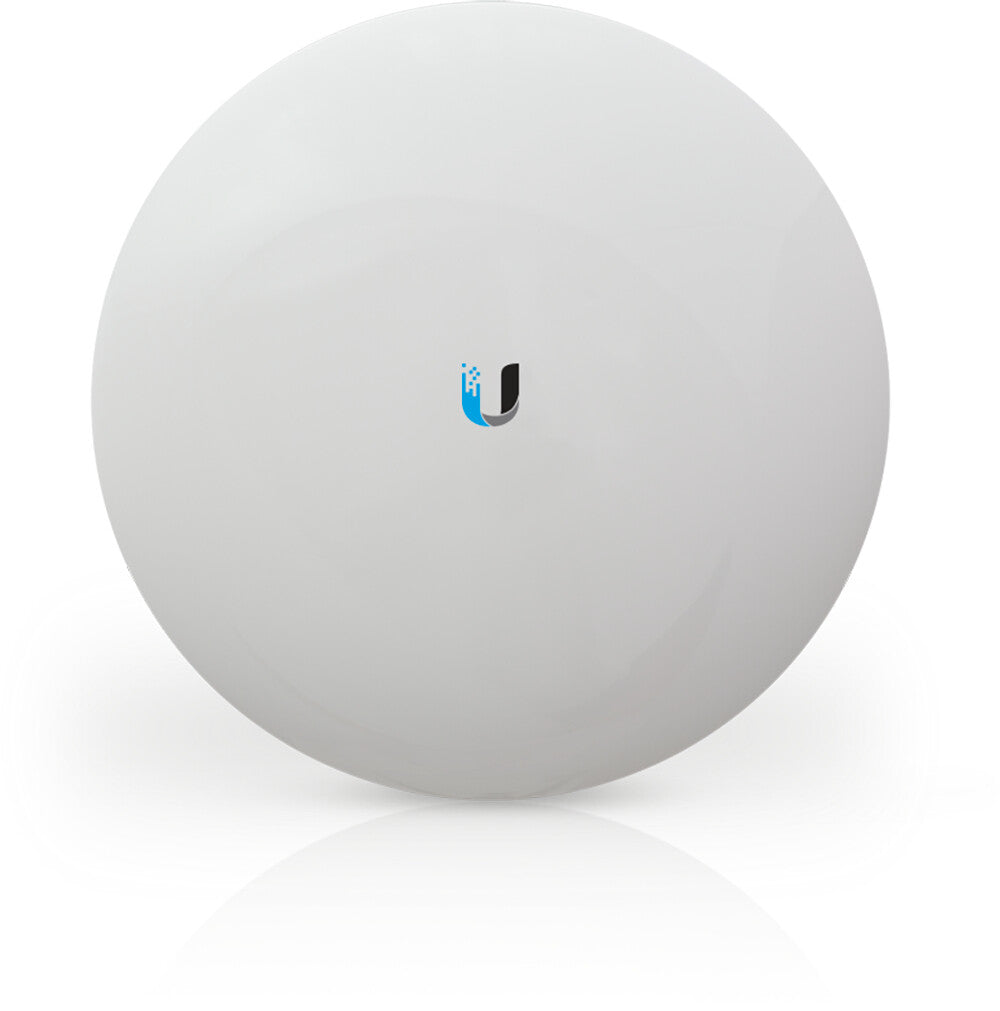

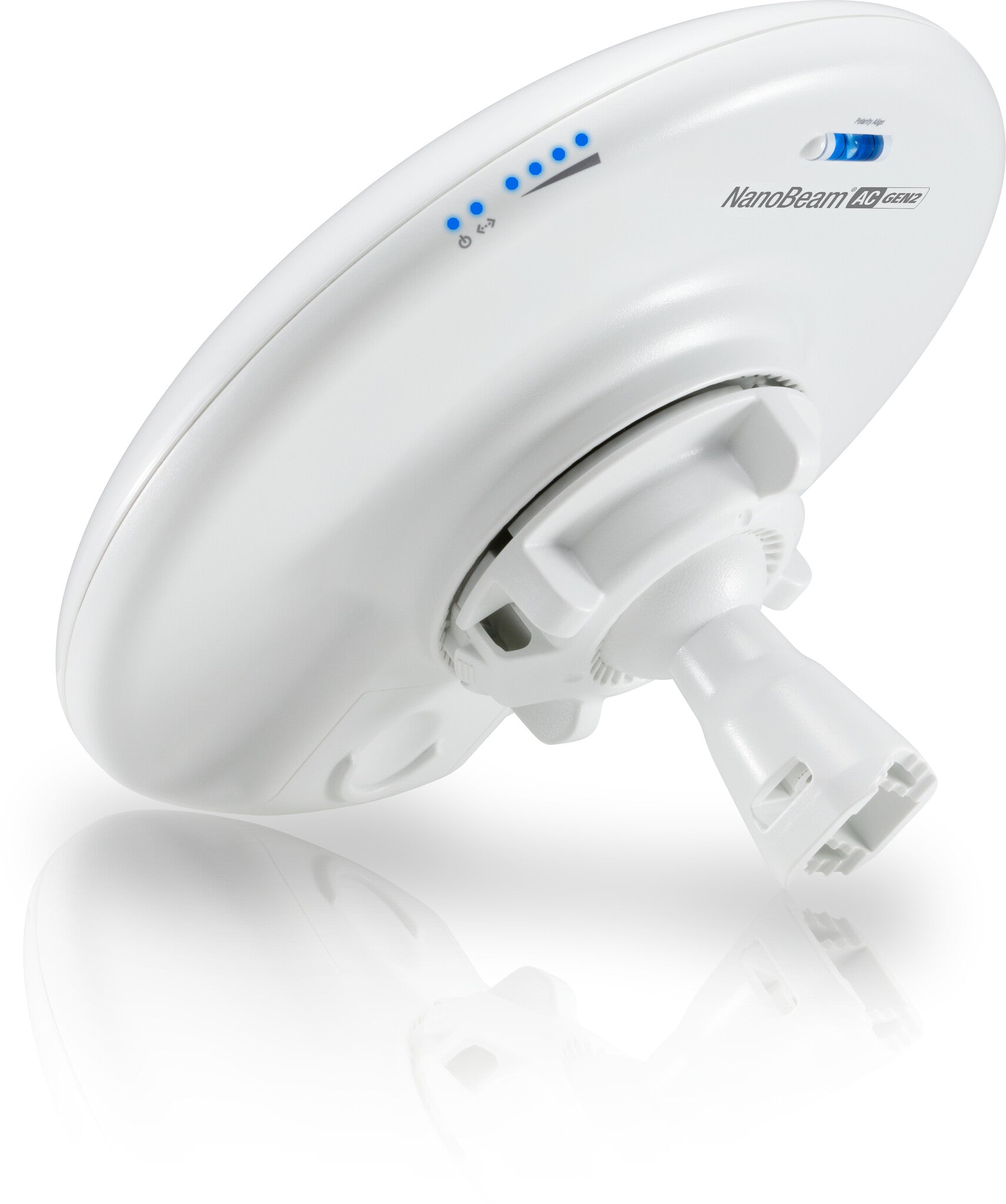

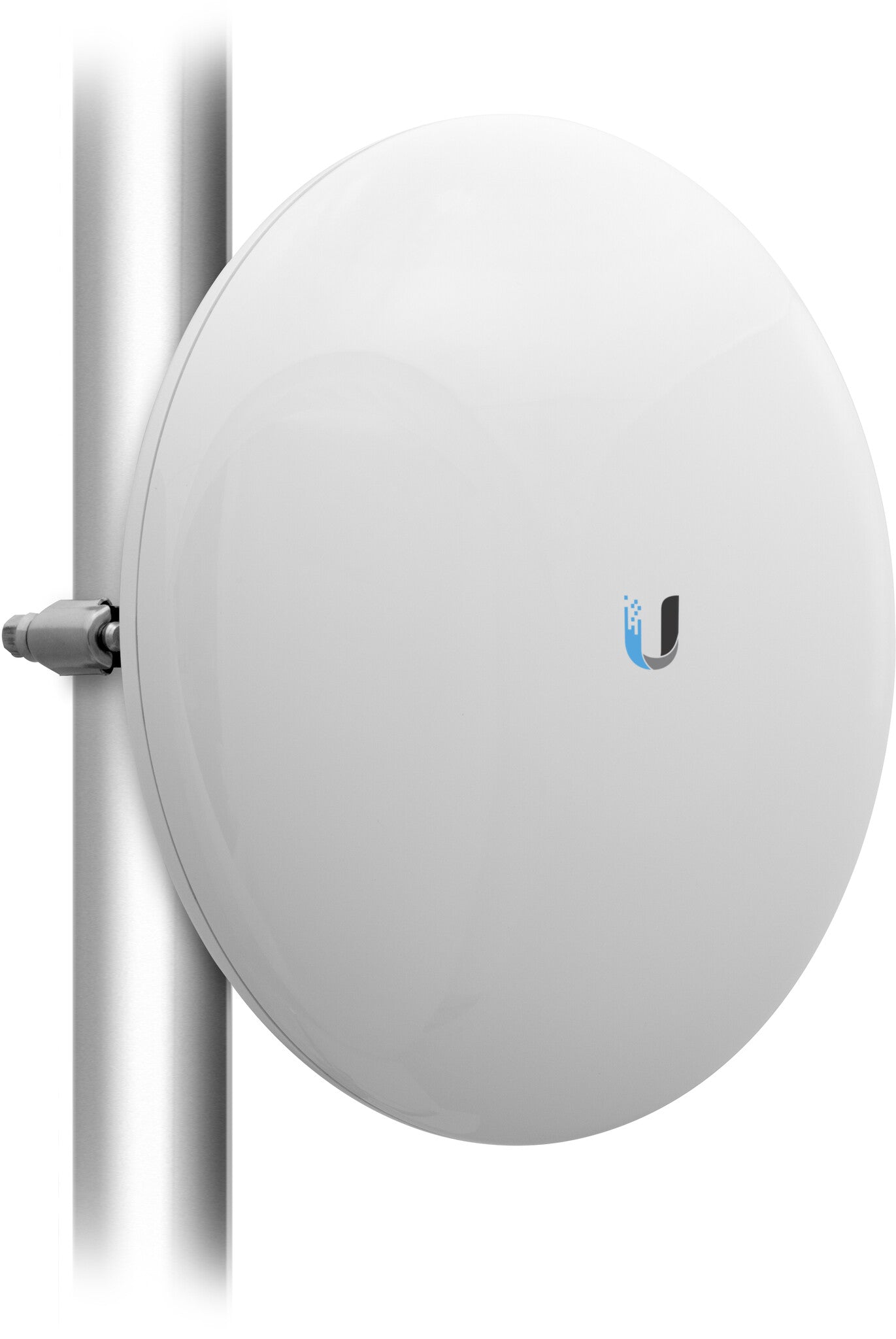

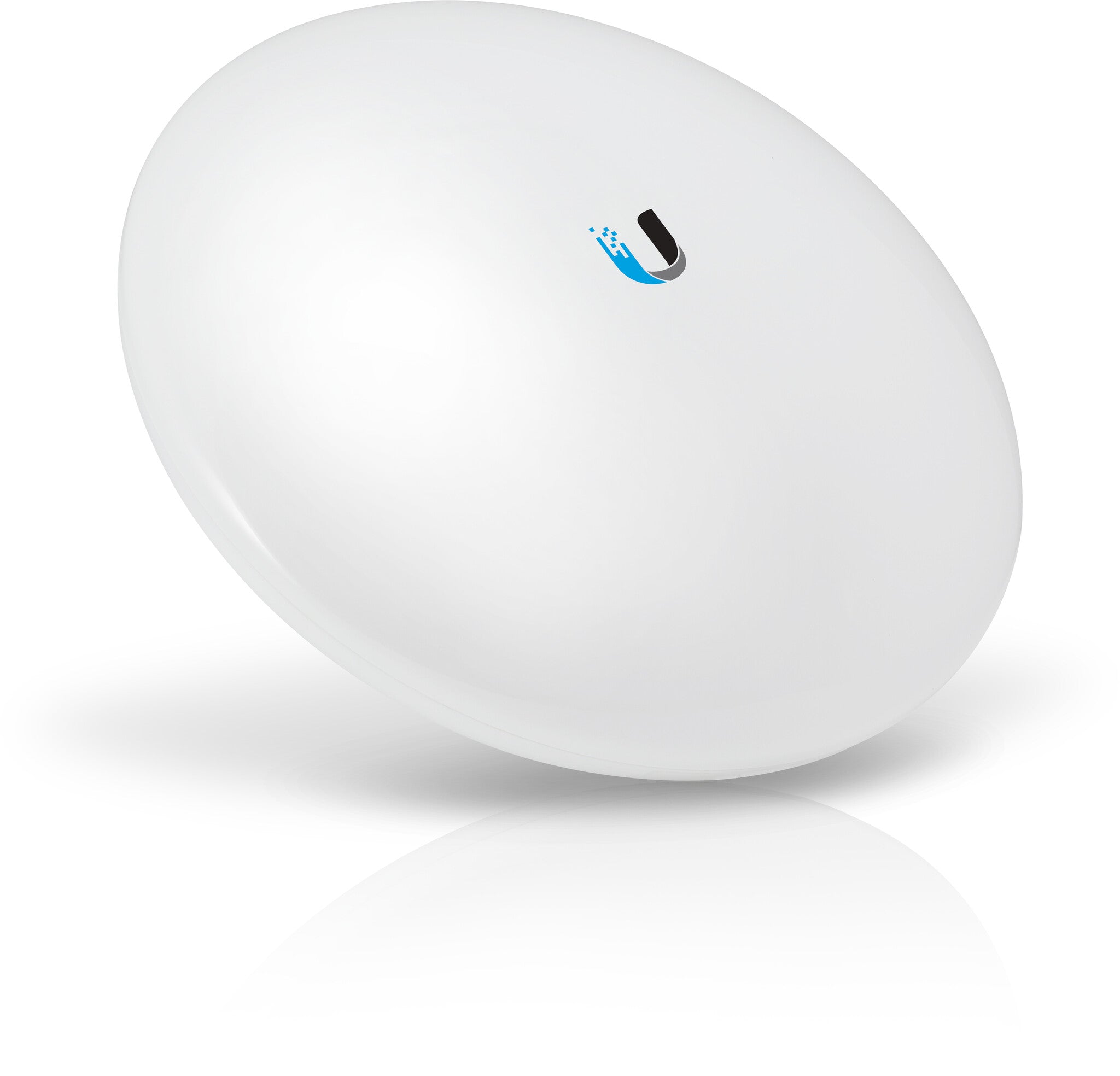

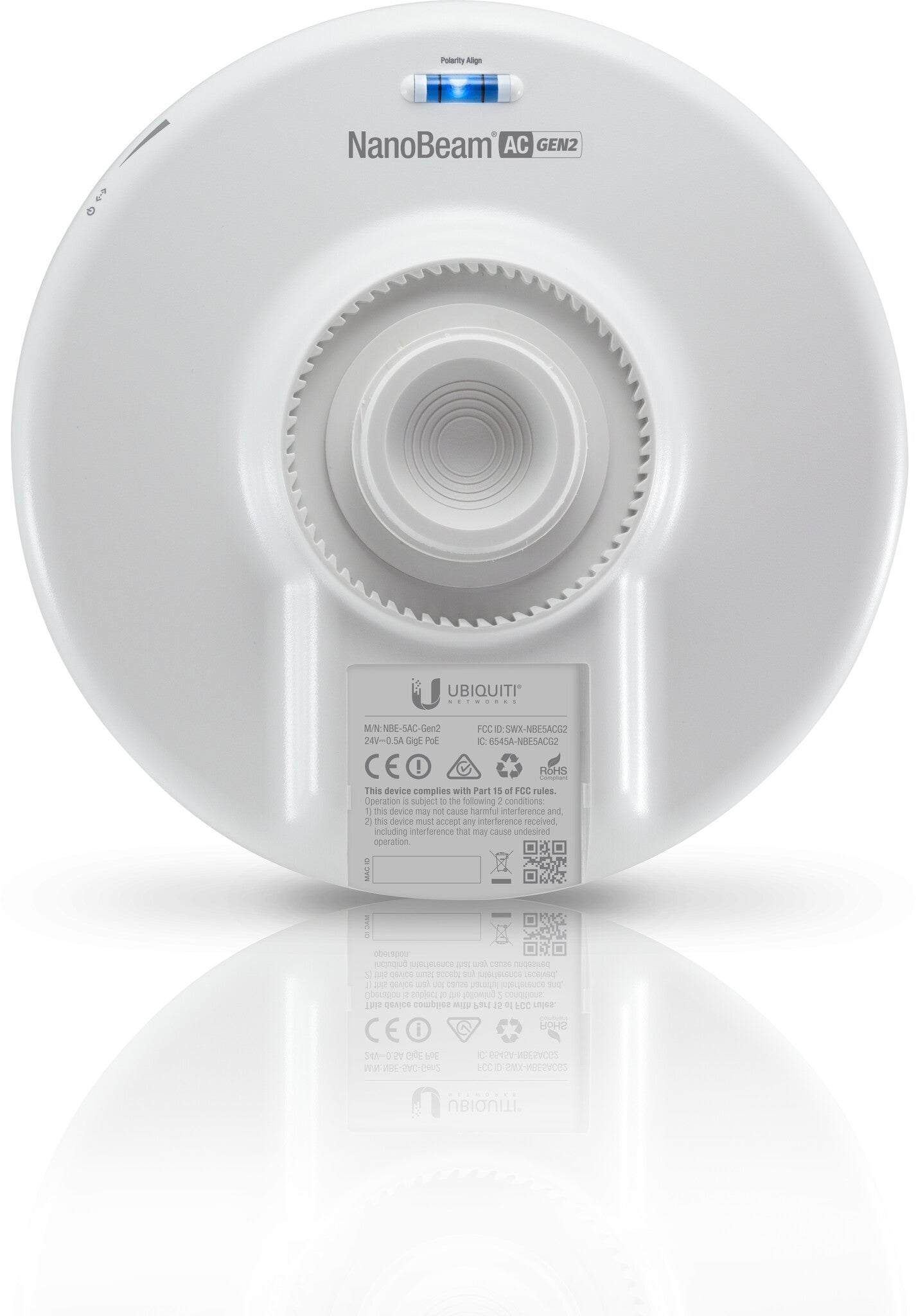

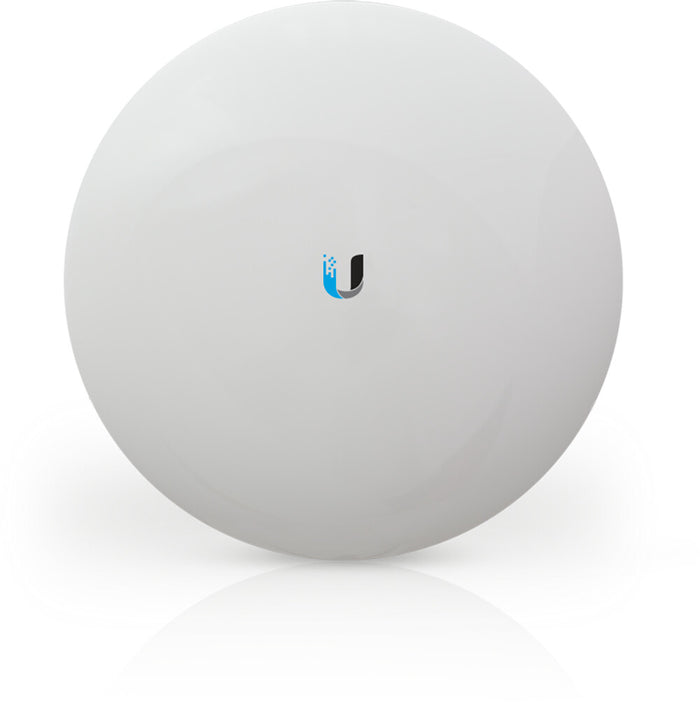

Ubiquiti Networks NanoBeam 5AC Gen 2 Network bridge 450 Mbit/s White
Description
Ubiquiti Networks NanoBeam 5AC Gen 2. Maximum data transfer rate: 450 Mbit/s, Maximum transfer distance: 15000 m. Antenna gain level (max): 19 dBi. Frequency band: 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WPA2
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint. Management Wi-Fi Radio The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Improved Surge Protection The NanoBeam AC features enhanced protection against ESD events. Superior Processing Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. Incredible Antenna “Beam” Performance The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments. Performance Breakthrough airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. Advanced Software Technology Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks. Plug and Play Installation The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting. Now with airOS8 airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Data transmission | |
|---|---|
| Maximum transfer distance | 15000 m |
| Maximum data transfer rate | 450 Mbit/s |
| Antenna | |
|---|---|
| Antenna gain level (max) | 19 dBi |
| Wireless LAN features | |
|---|---|
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Frequency band | 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
| Wi-Fi | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Security | |
|---|---|
| Security algorithms | WPA2 |
| Management features | |
|---|---|
| Web-based management | Yes |
| Features | |
|---|---|
| Internal memory | 128 MB |
| Reset button | Yes |
| Surge protection | Yes |
| LED indicators | LAN, Power, Signal strength |
| Product colour | White |
| Mounting type | Wall/Pole |
| Material | Plastic |
| Product type | Network bridge |
| Power | |
|---|---|
| DC output voltage | 24 V |
| DC output current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 8.5 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 176 °F |
| Operating temperature (T-T) | -40 - 80 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 530 g |
| Height | 125 mm |
| Depth | 189 mm |
| Width | 189 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Mounting bracket(s) included | Yes |
| PoE+ Injector(s) | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Memory | |
|---|---|
| RAM type | DDR2 |
| Flash memory | 8 MB |
| Processor | |
|---|---|
| Processor frequency | 720 MHz |
| Processor model | MIPS 74Kc |
| Processor family | Atheros |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
