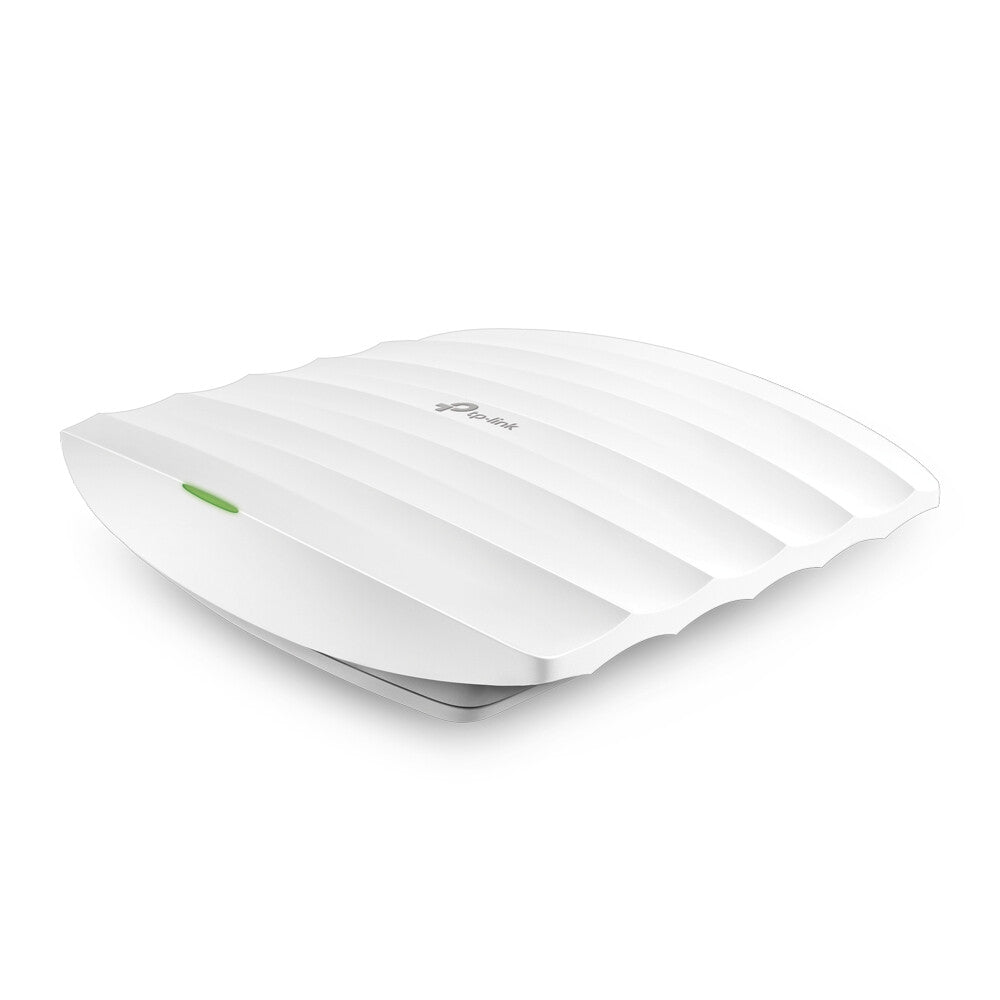

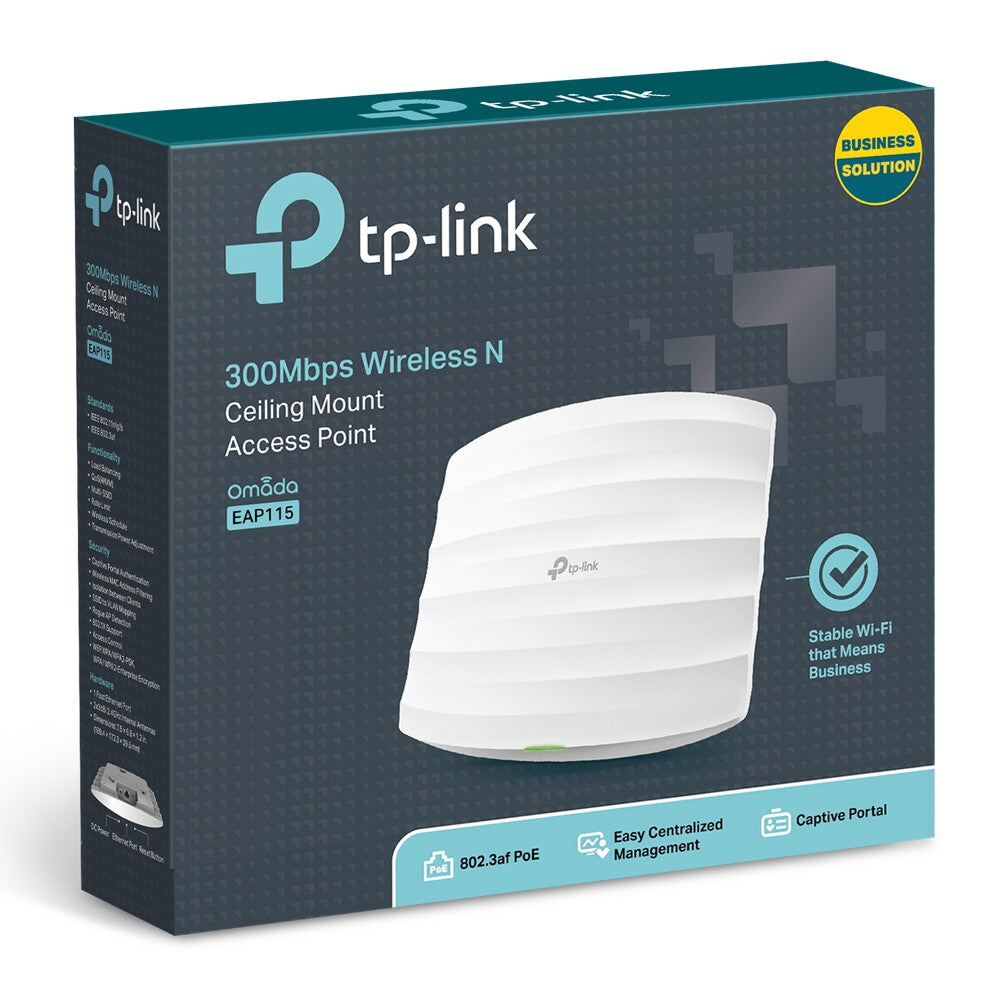

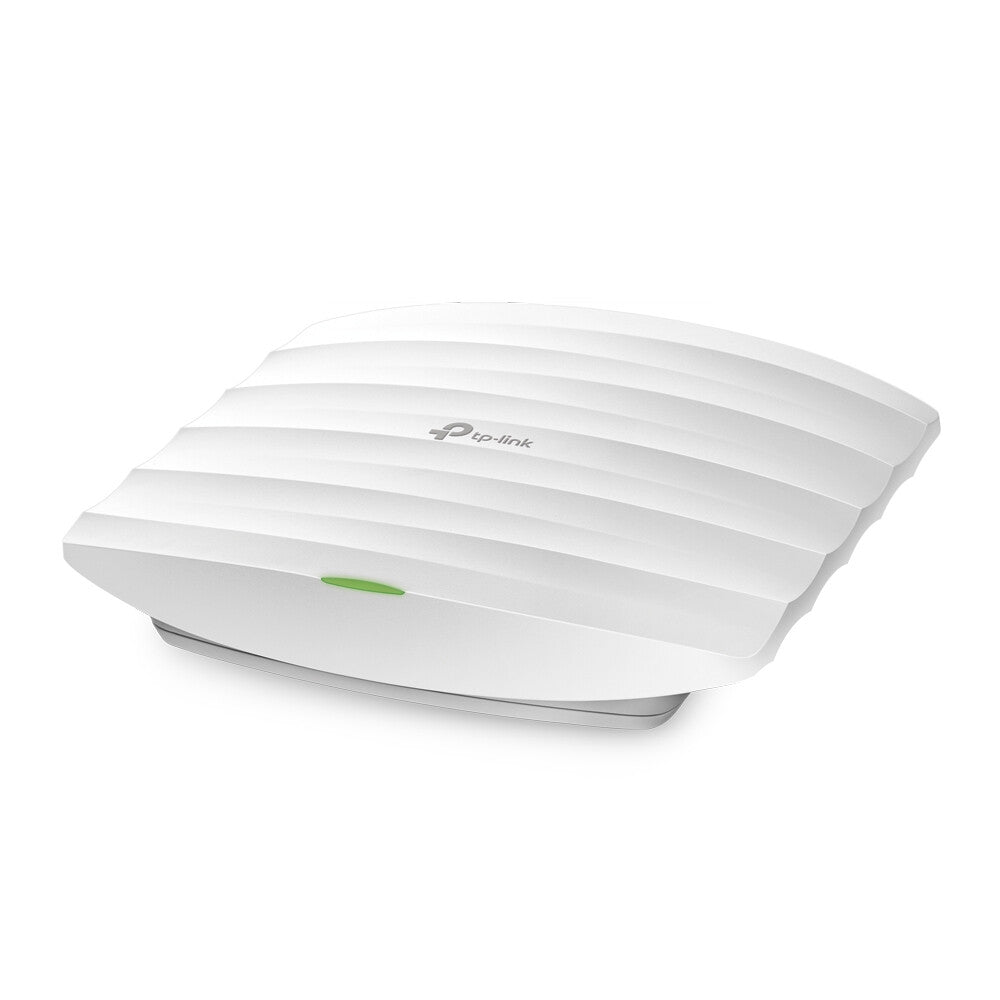

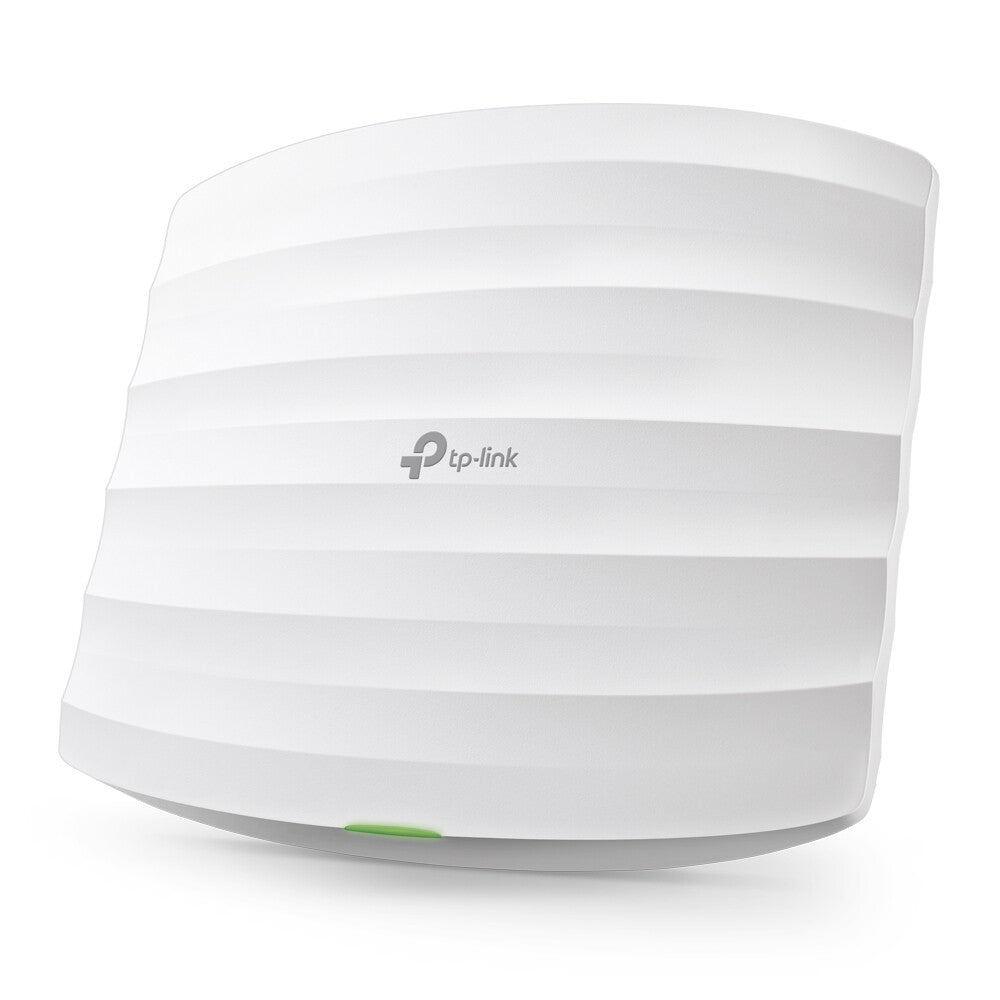

TP-Link 300Mbps Wireless N Ceiling Mount Access Point
KEY FEATURES
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
TP-Link 300Mbps Wireless N Ceiling Mount Access Point
Description
TP-Link 300Mbps Wireless N Ceiling Mount Access Point. Maximum data transfer rate: 300 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. WAN connection: Ethernet (RJ-45), Wi-Fi. Output voltage: 9 V, Output current: 0.6 A, Power consumption (typical): 2.8 W. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS
An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment

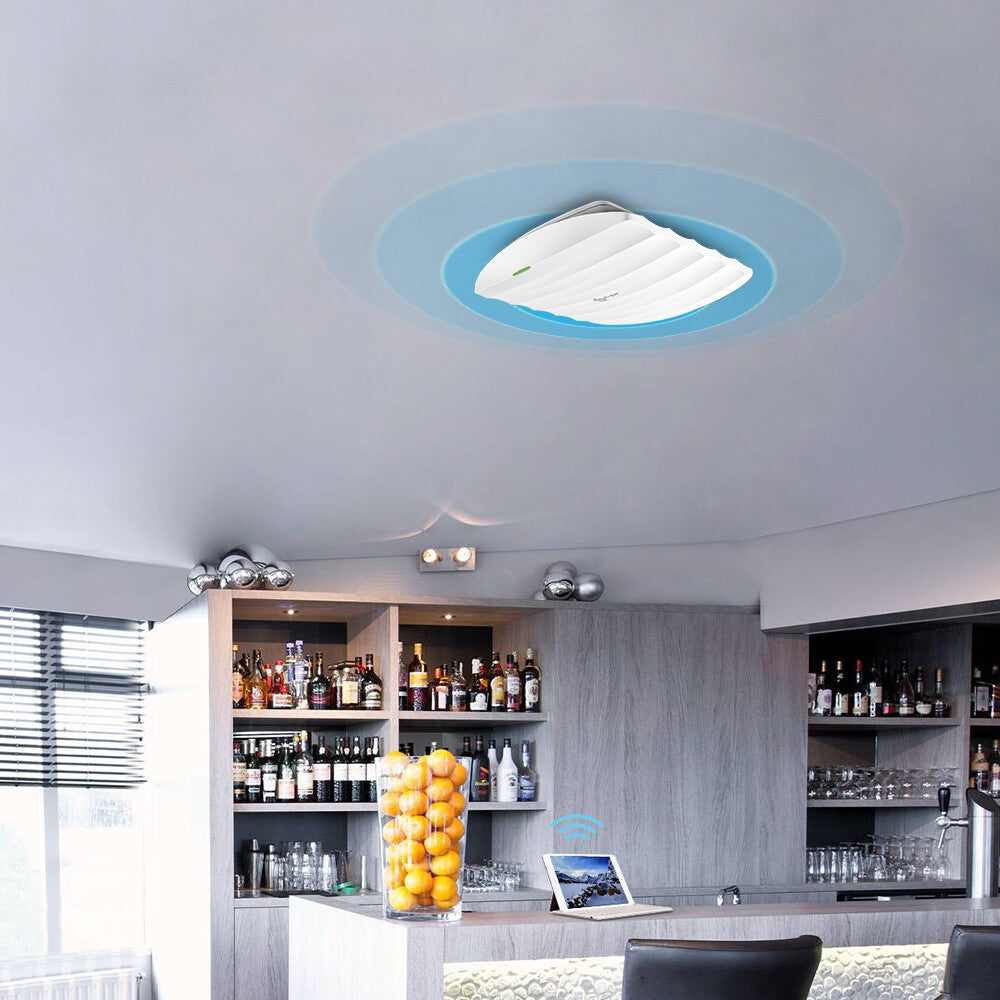

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Warranty: 3 year limited warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | No |
| 5 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Automatic channel selection | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | VLAN mapping |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power (FCC) | 21 dBm |
| Transmitting power (CE) | 19 dBm |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Security | |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| System status alarm | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45), Wi-Fi |
| Power | |
|---|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3 dBi |
| Performance | |
|---|---|
| Minimum system requirements | Microsoft Windows 10/8/7/Vista/XP |
| General Information | |
|---|---|
| Product Family | Omada |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 47.5 mm |
| Packaging data | |
|---|---|
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Package width | 246 mm |
| Package depth | 268 mm |
| Package height | 69 mm |
| Package weight | 600 g |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
