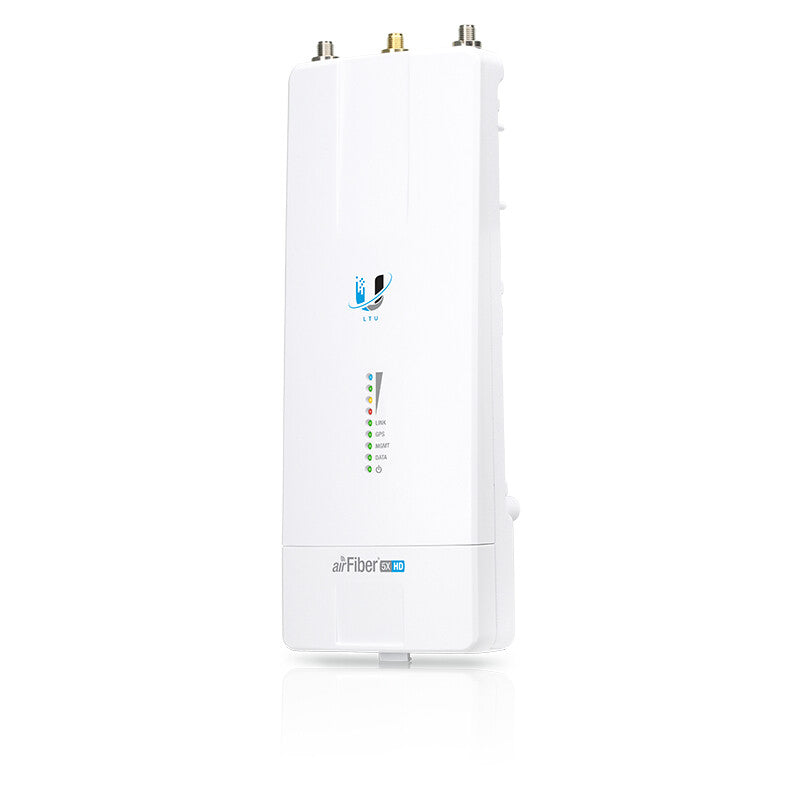

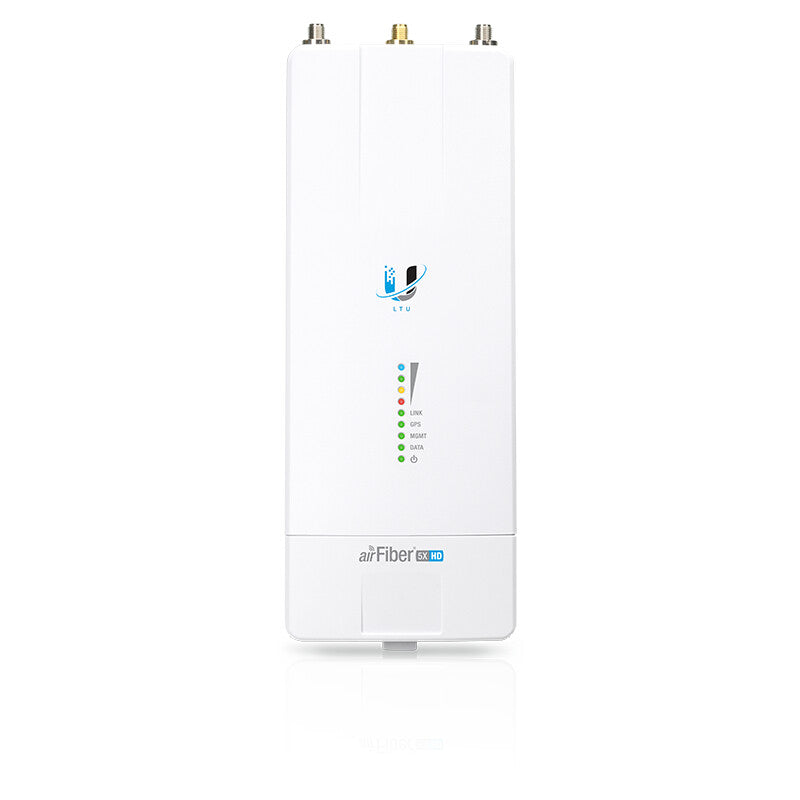

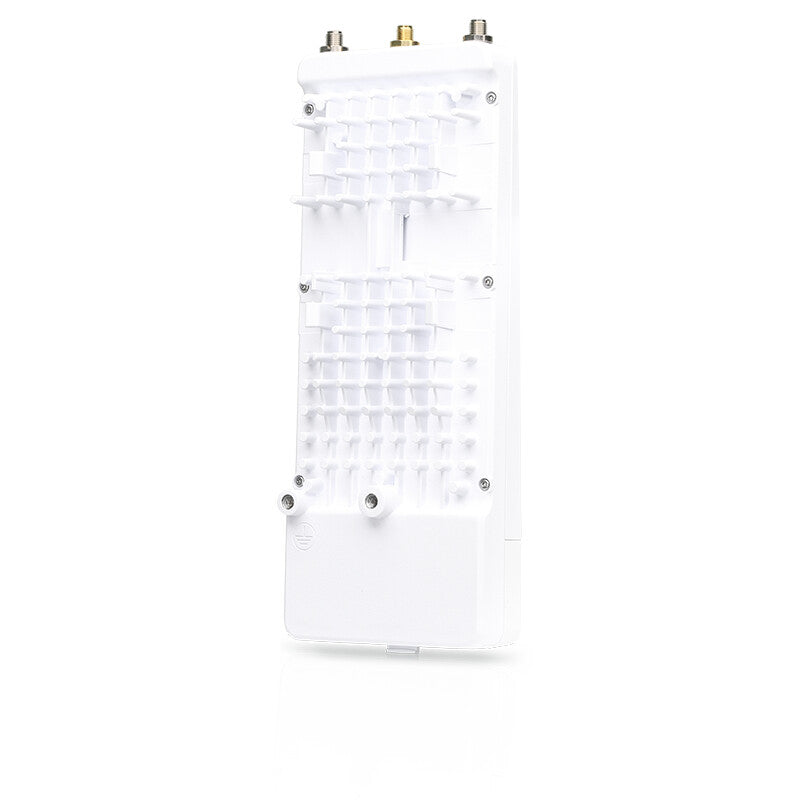

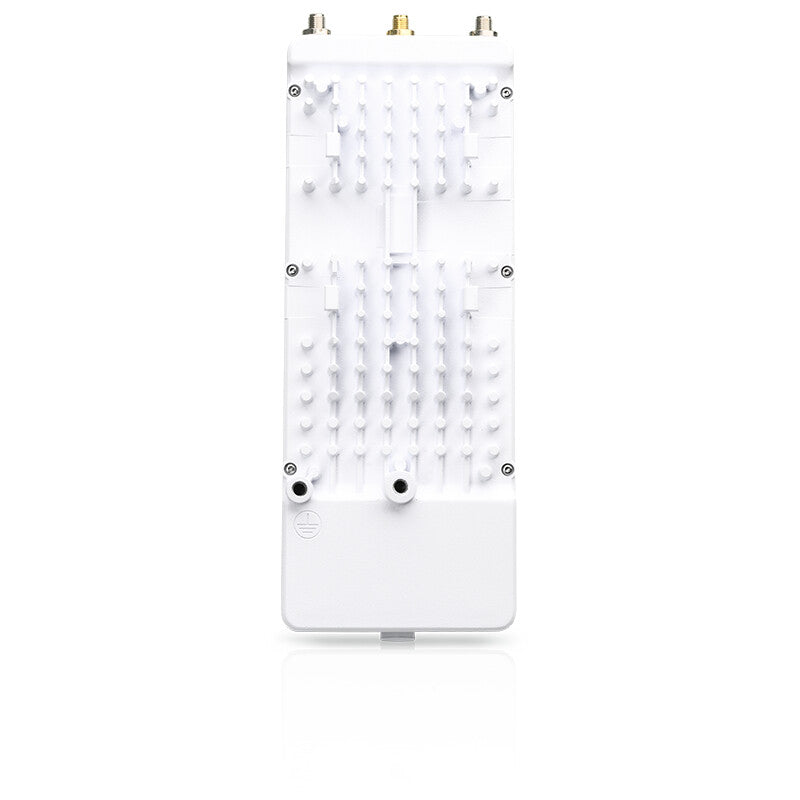

Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)
KEY FEATURES
- 1 Gbps+ Throughput
- 4096 QAM Modulation
- 2 Million+ Packets per Second
- Proprietary RF Filtering
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)
Description
Ubiquiti Networks AirFiber AF-5XHD. Maximum data transfer rate: 1000 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 5.150 - 5.250 / 5.740 - 5.850 GHz. Security algorithms: 256-bit AES. AC input voltage: 20 - 50 V, Output voltage: 24 V, Output current: 1 A. Placement: Wall, Product colour: White, International Protection (IP) code: IP67. Operating system installed: AirOS
The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 5.150 - 5.250 / 5.740 - 5.850 GHz |
| Channel bandwidth | 100 MHz |
| Modulation | QAM |
| GPS (satellite) | Yes |
| Maximum outdoor range | 200000 m |
| Transmitting power | 29 dBmW |
| Security | |
|---|---|
| Security algorithms | 256-bit AES |
| Ports & interfaces | |
|---|---|

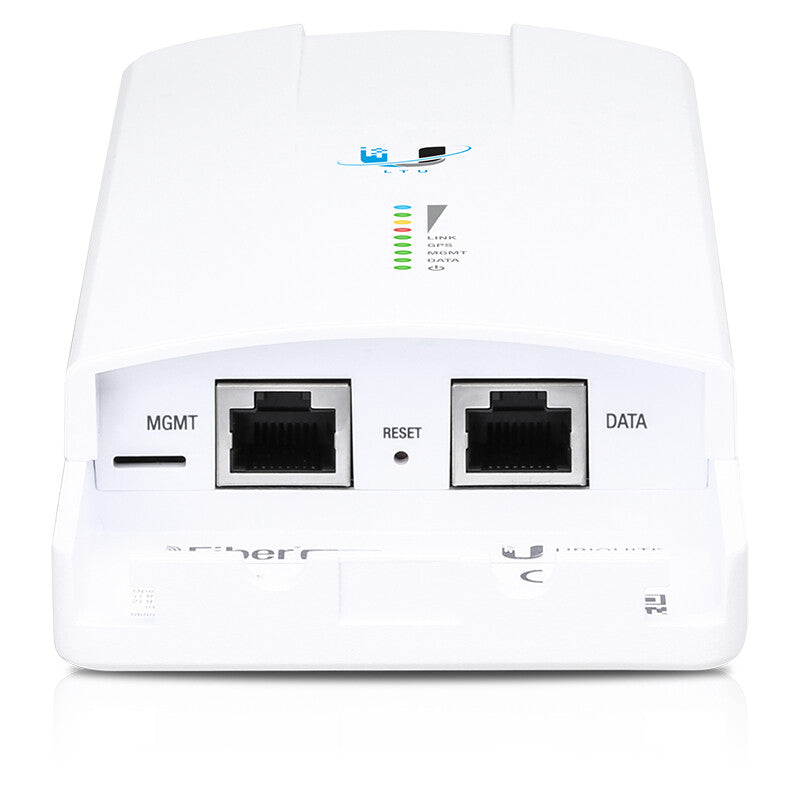

| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 20 - 50 V |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) | 12 W |
| Design | |
|---|---|
| Placement | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Certification | FCC |
| Internal | No |
| Antenna | |
|---|---|
| Antenna connector type | RP-SMA |
| Performance | |
|---|---|
| Operating system installed | AirOS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Technical details | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 48 mm |
| Height | 224 mm |
| Weight | 350 g |
| Packaging data | |
|---|---|
| Mounting kit | Yes |
