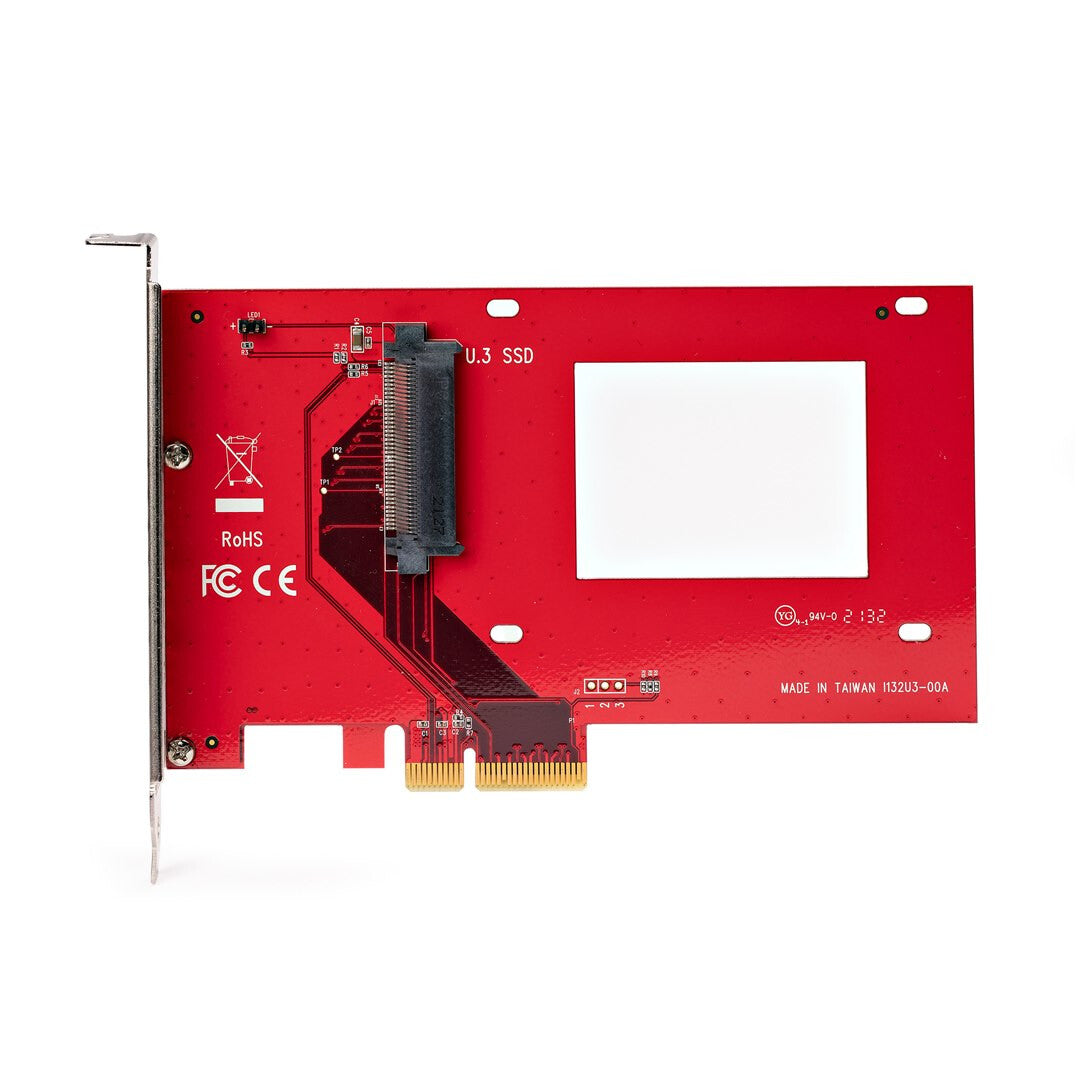

StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent
KEY FEATURES
- ADD HIGH PERFORMANCE U.3 STORAGE: Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server, enabling ultra-fast data access; Supports SFF-TA-1001 drives up to 15mm in height; Not compatible with U.2 drives
- UNIVERSAL COMPATIBILITY: Backwards compatible with PCI Express 3.0 motherboards that have an available x4, x8, or x16 PCIe slot; U.3 Adapter works with all workstation and server operating systems such as Windows, Windows Server, and Linux

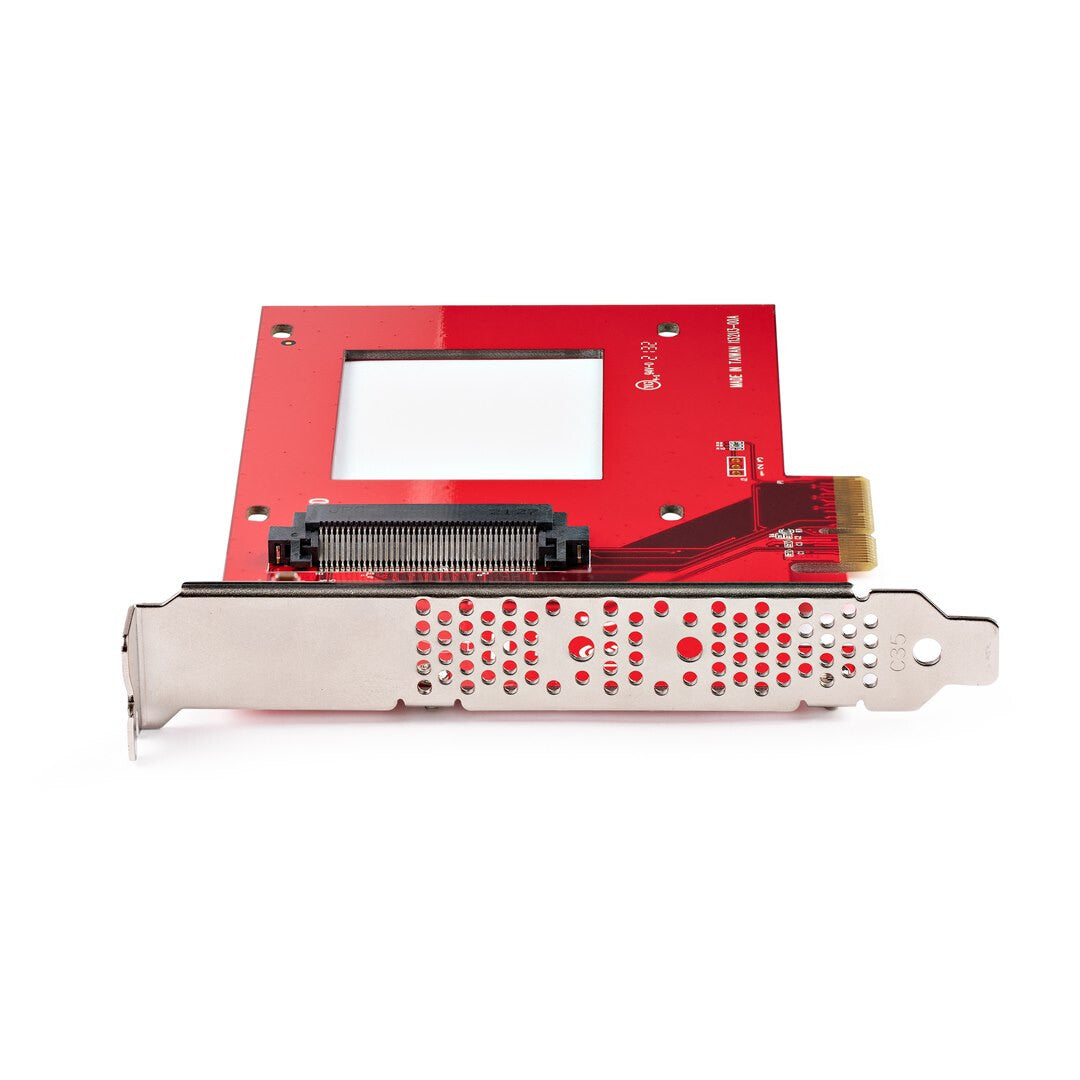

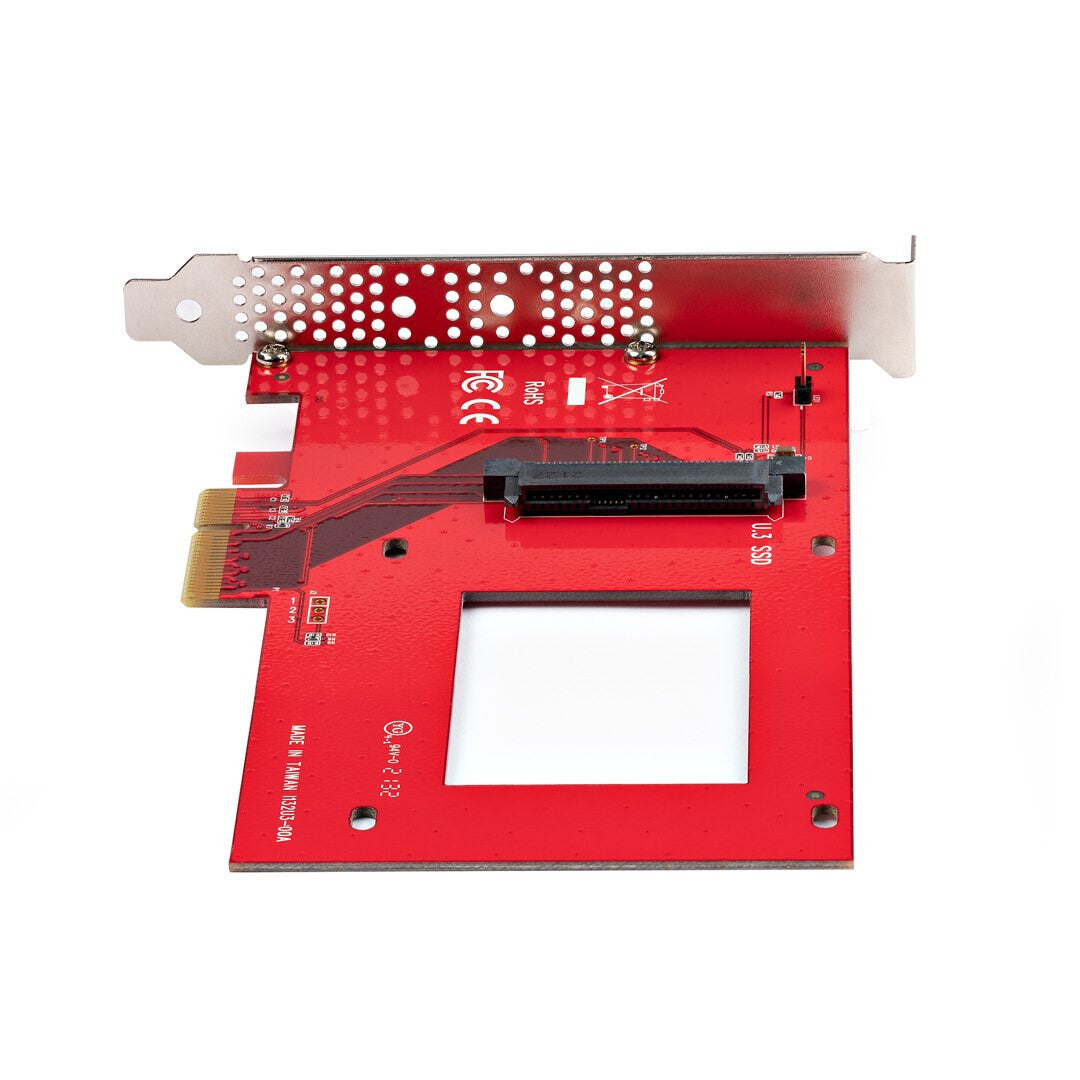

- PREVENT OVERHEATING: Vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while reducing potential thermal throttling

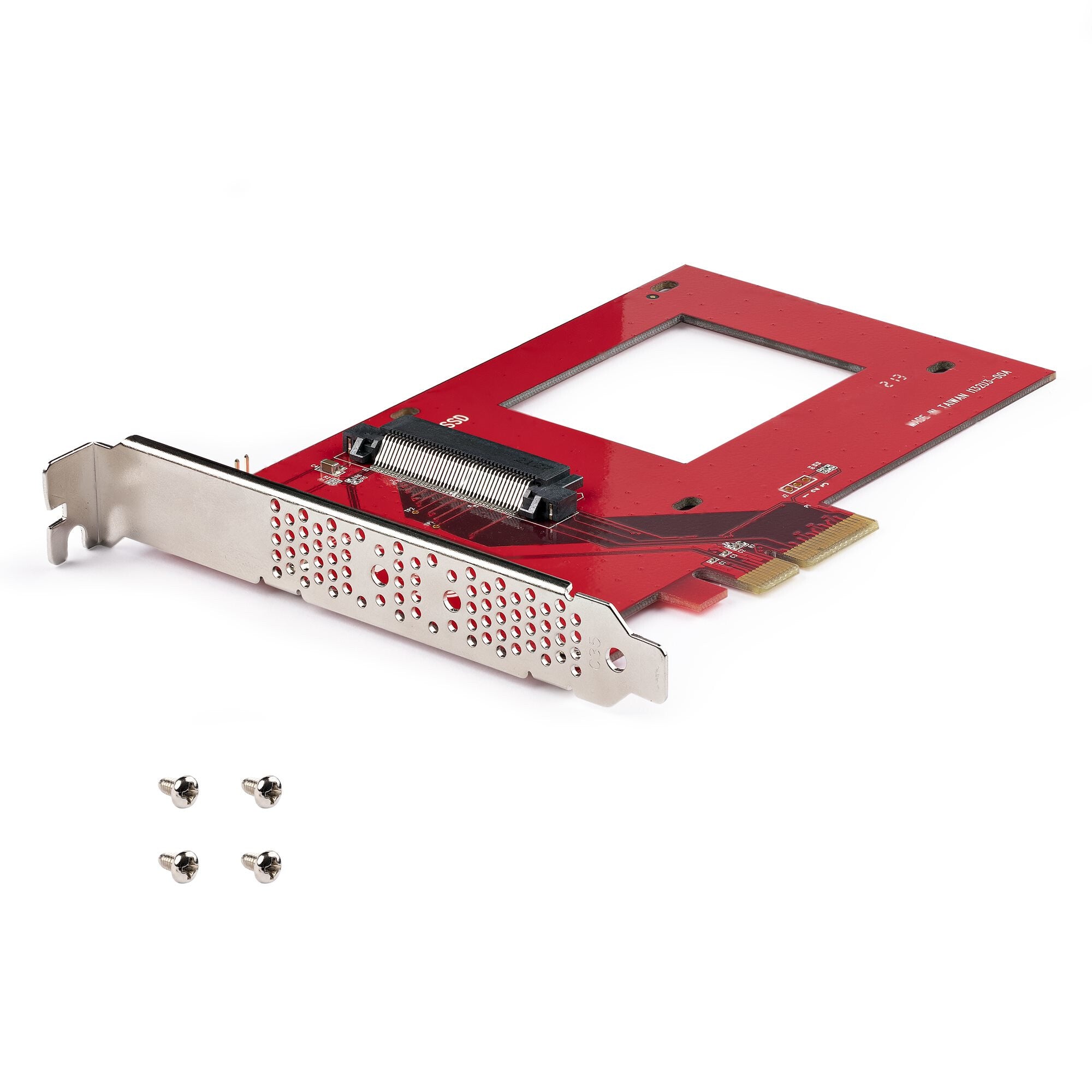

- HASSLE-FREE SETUP: Pre-installed full-profile bracket & included drive mounting screws enable the connection of a U.3 drive to a PCIe slot, without the need of a drive backplane or additional cables; The U.3 to PCIe Card requires no drivers or software
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this U.3 to PCI Express Adapter Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent
Description

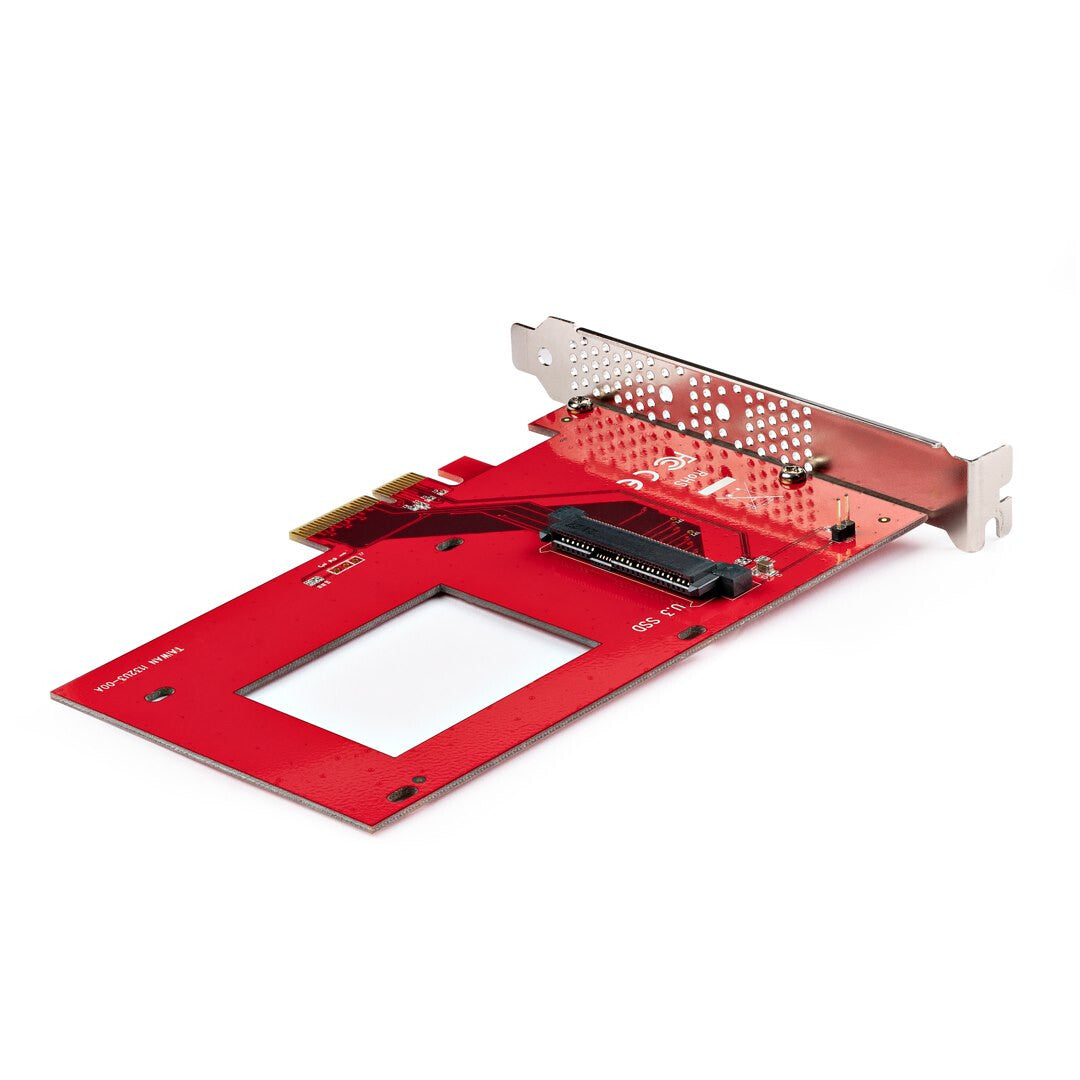

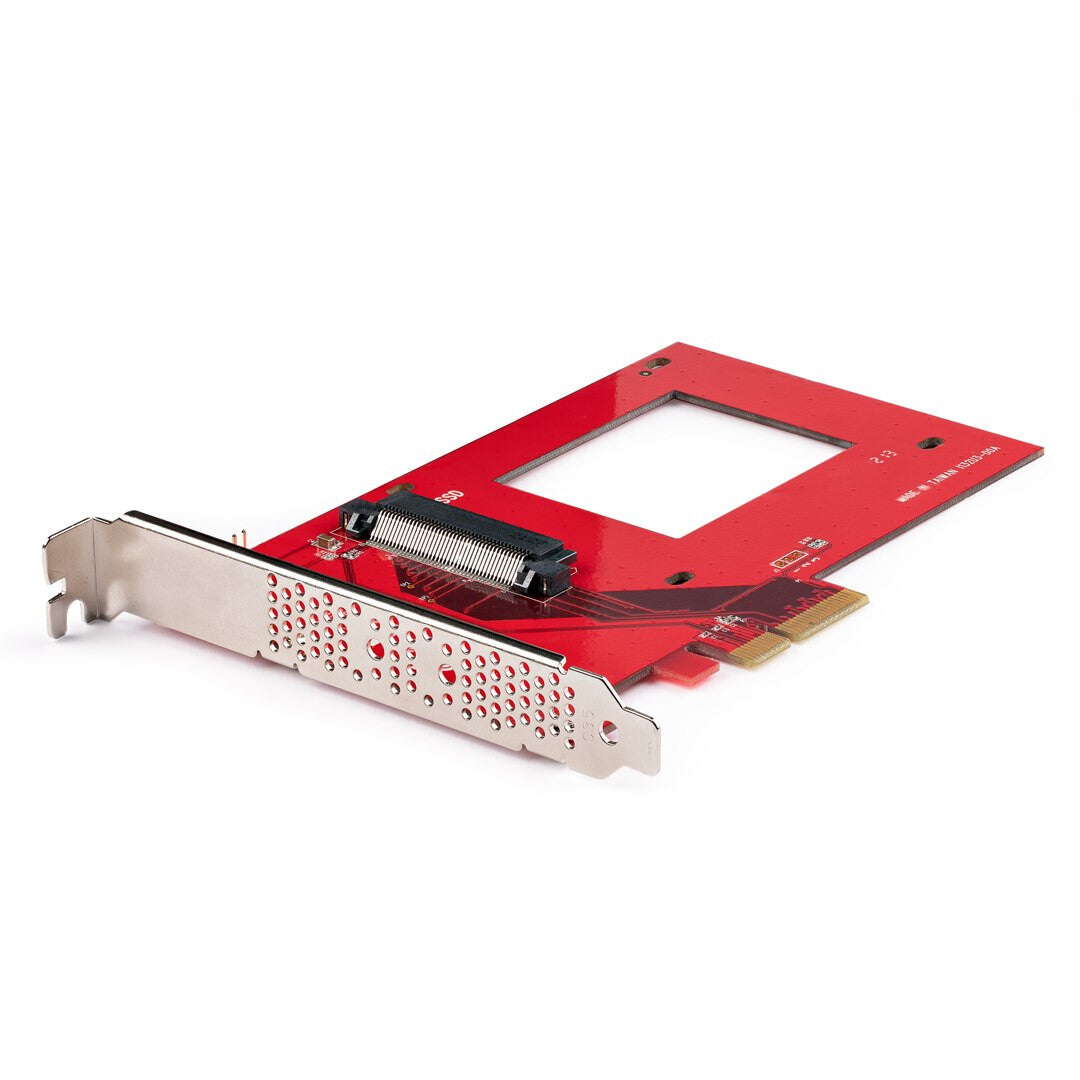

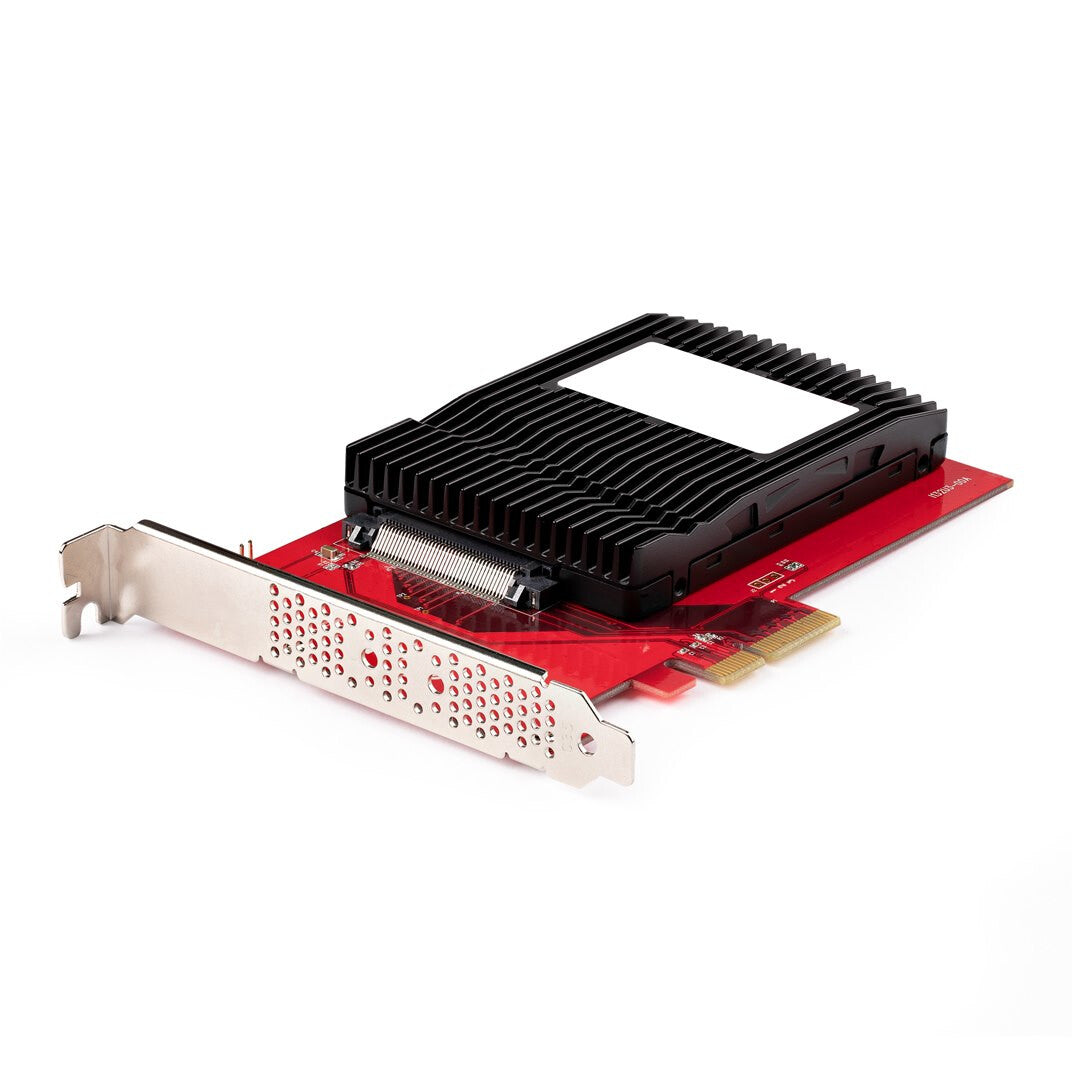

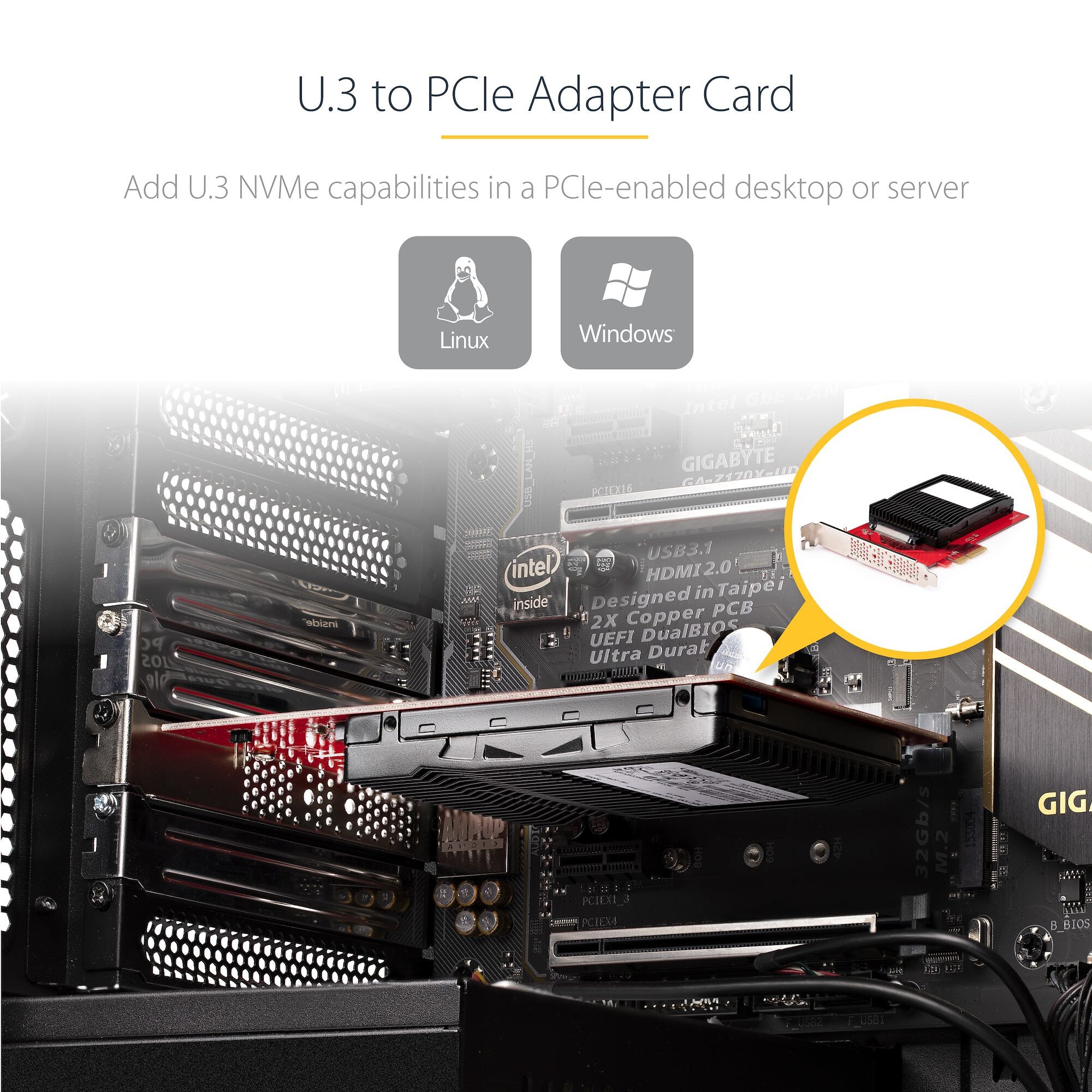

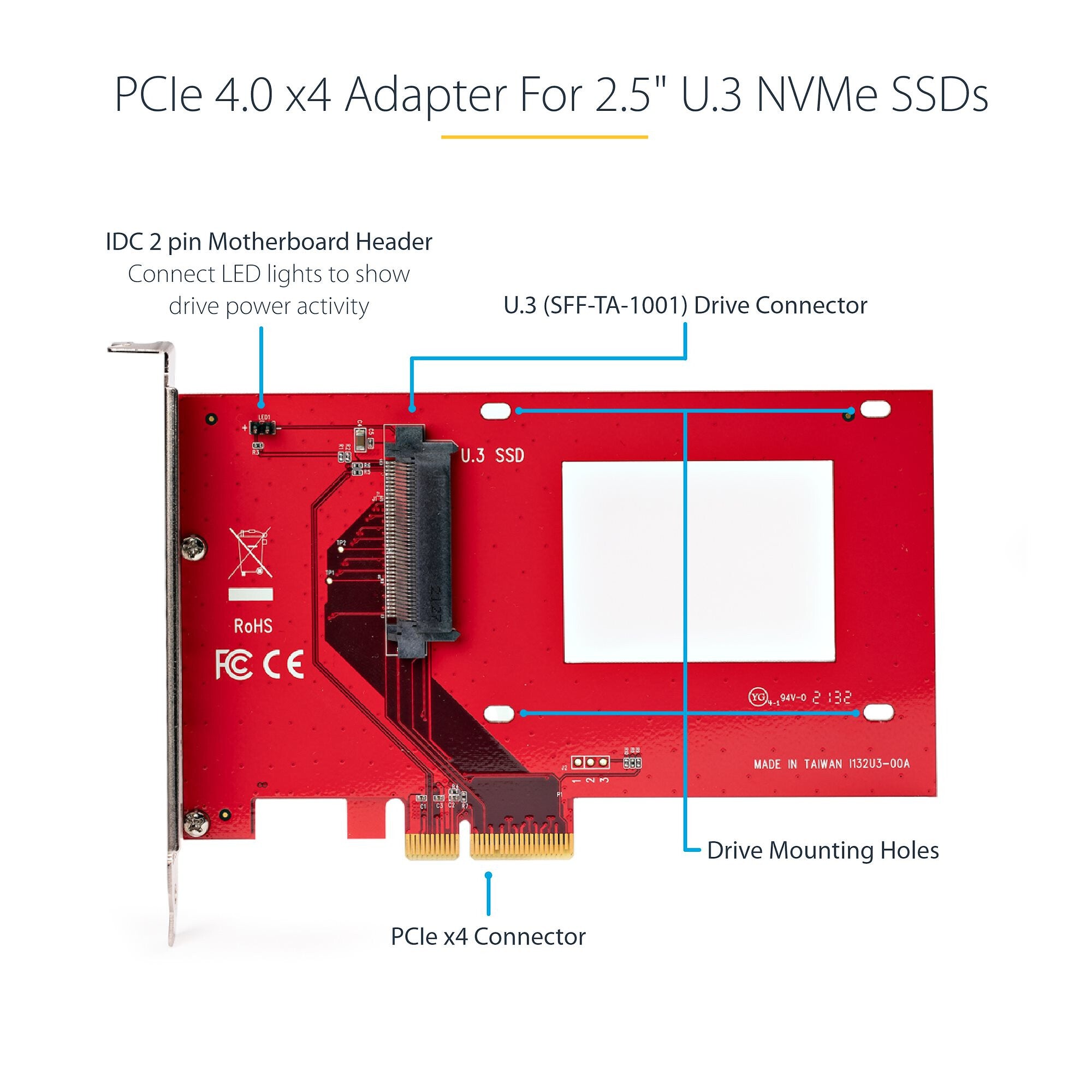

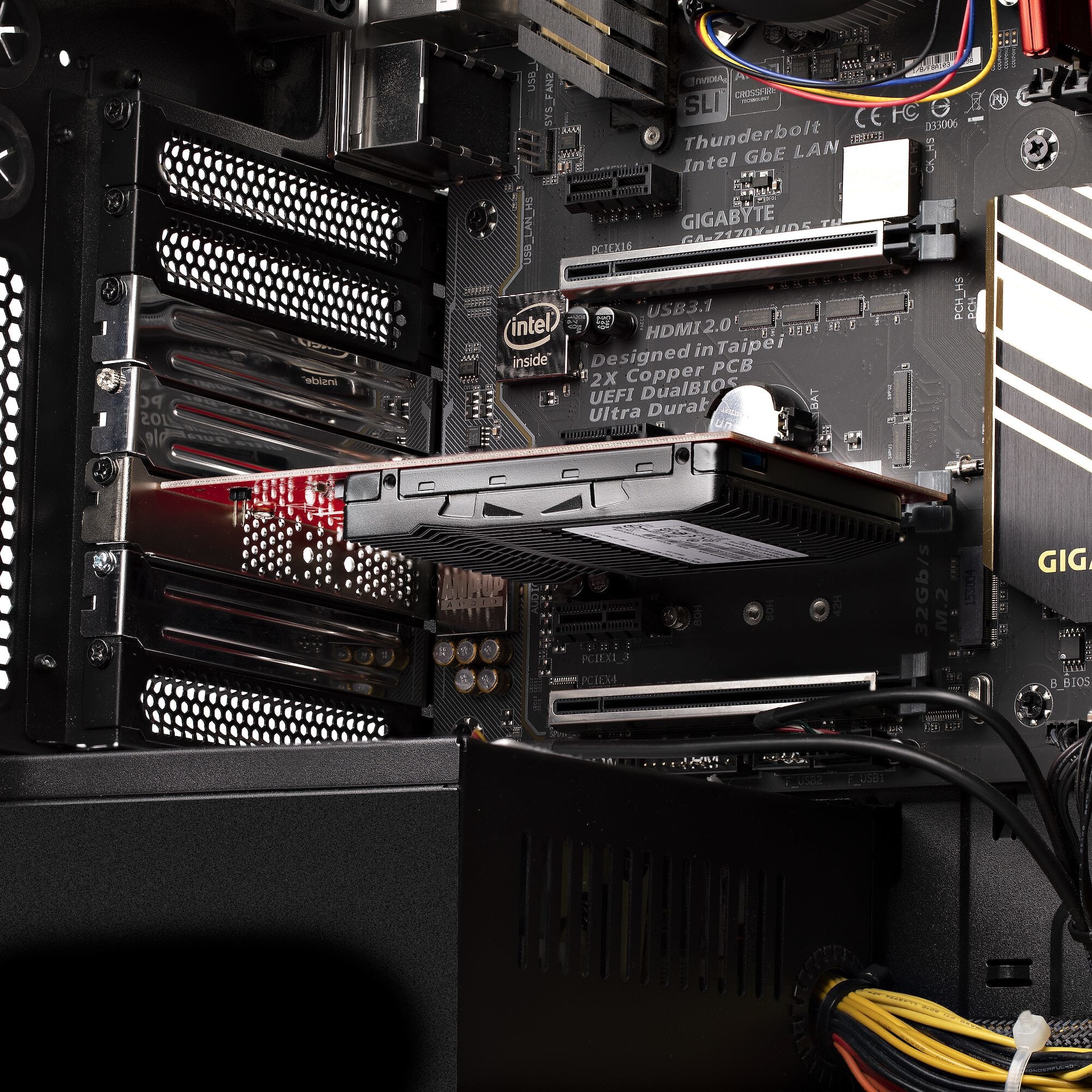

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slotAdd a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.Add U.3 Capabilities to a Desktop or ServerInstall an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.Universal CompatibilityThe Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.Optimal Airflow and Reliable PerformanceThe vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.The StarTech.com Advantage
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Output interface | U.3 |
| Host interface | PCIe |
| Design | |
|---|---|
| Hot-swap | No |
| Mean time between failures (MTBF) | 21693912 h |
| LED indicators | Activity, Power |
| Product colour | Red |
| Internal | Yes |
| Features | |
|---|---|
| Plug and Play | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| System requirements | |
|---|---|
| Supported storage drive heights | 5,7,9.5,12.5,15 mm |
| Weight & dimensions | |
|---|---|

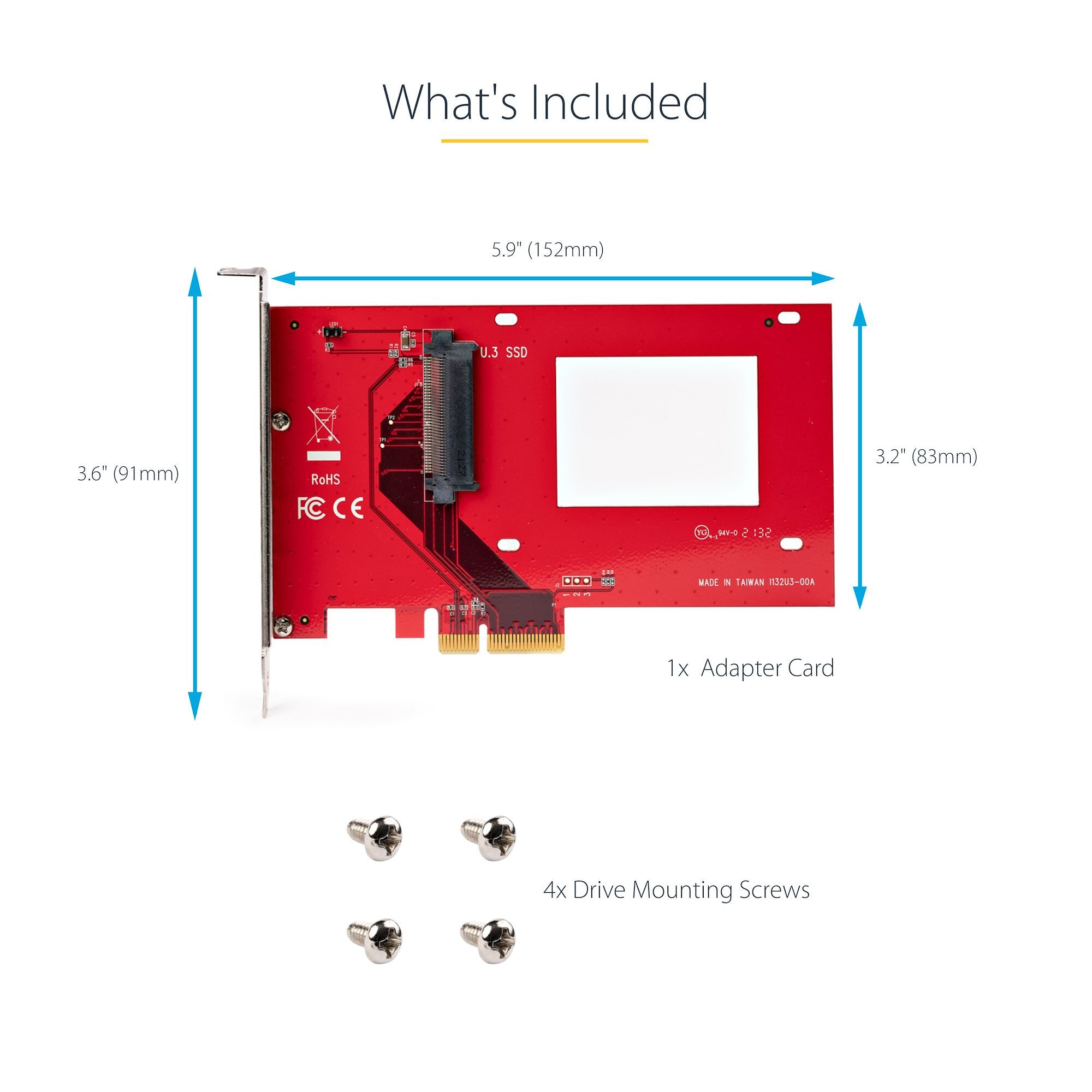

| Weight | 62 g |
| Height | 1.5 mm |
| Depth | 154 mm |
| Width | 90 mm |
| Packaging data | |
|---|---|
| Package weight | 130 g |
| Package height | 30 mm |
| Package depth | 155 mm |
| Package width | 215 mm |
| Quick installation guide | Yes |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Master (outer) case height | 490 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case width | 460 mm |
| Products per master (outer) case | 60 pc(s) |
