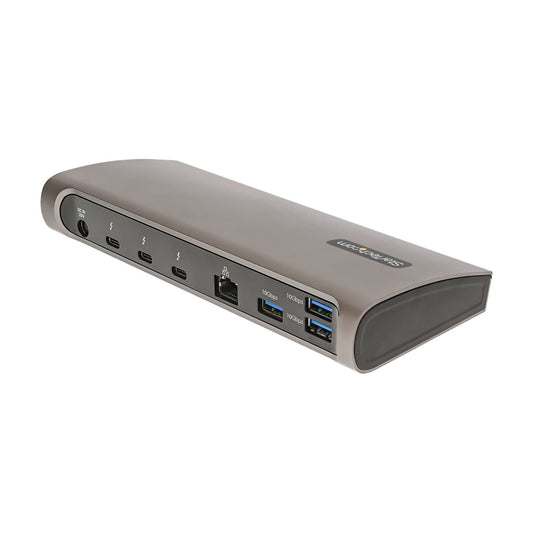

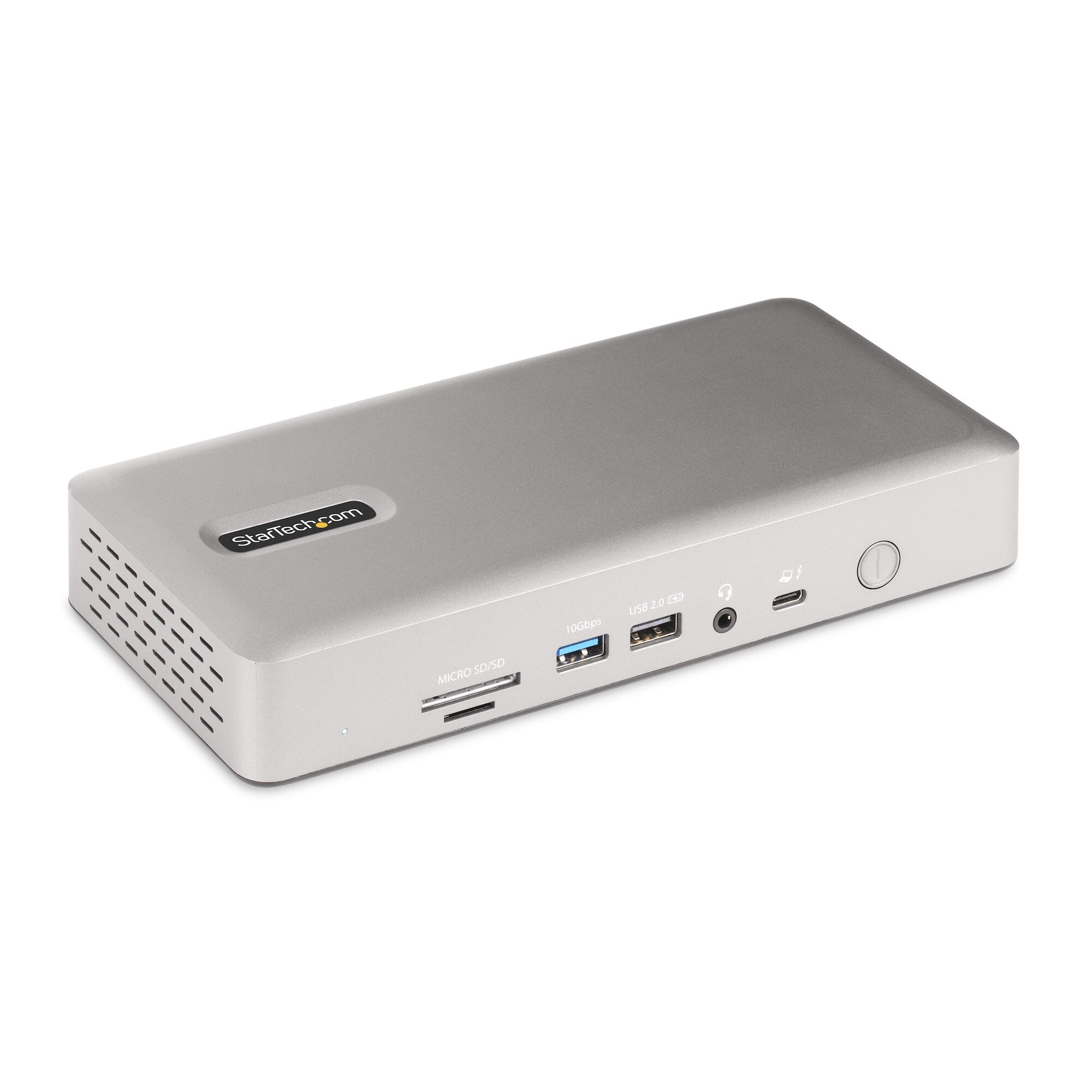

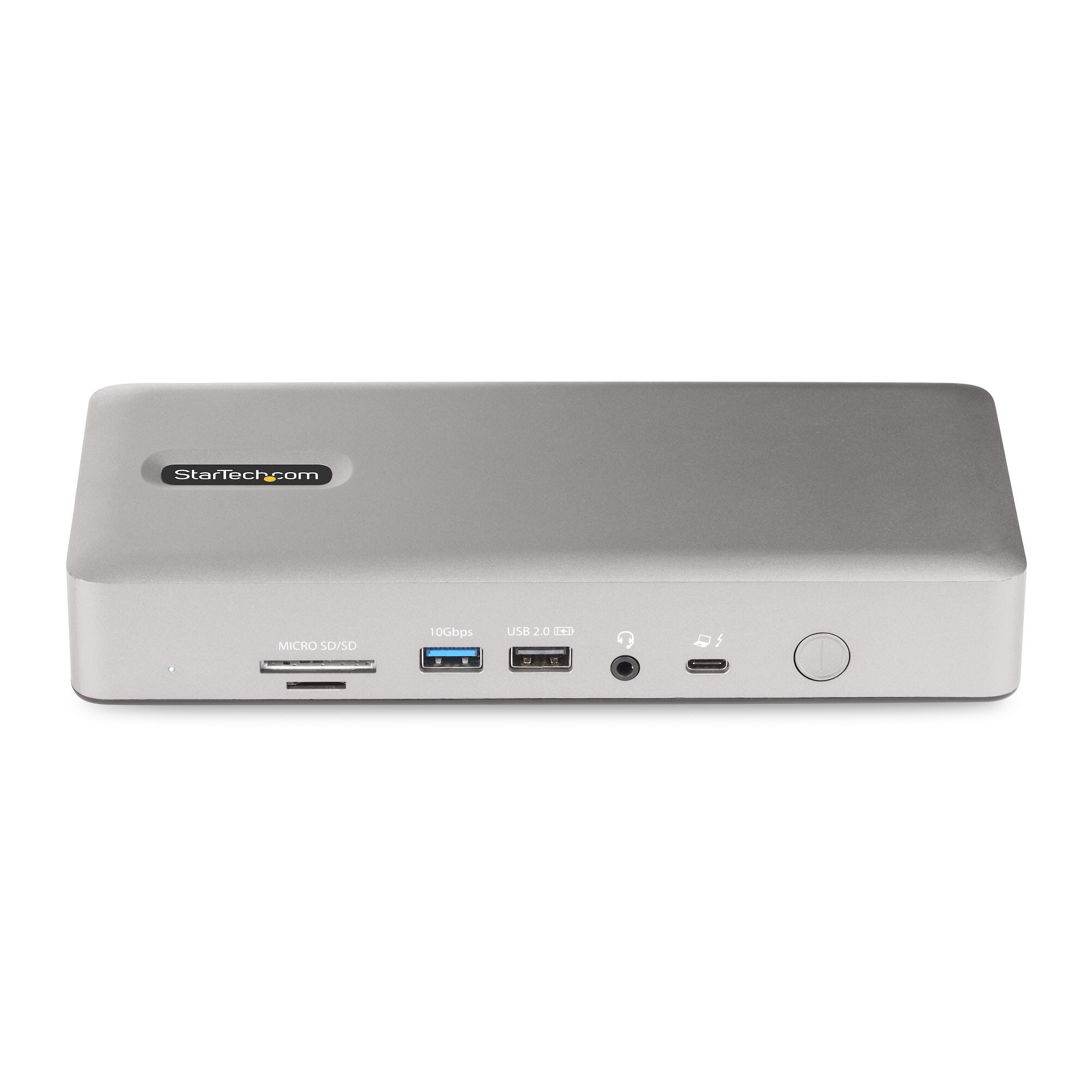

StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock - 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5Gb Ethernet, 98W Power Delivery
KEY FEATURES

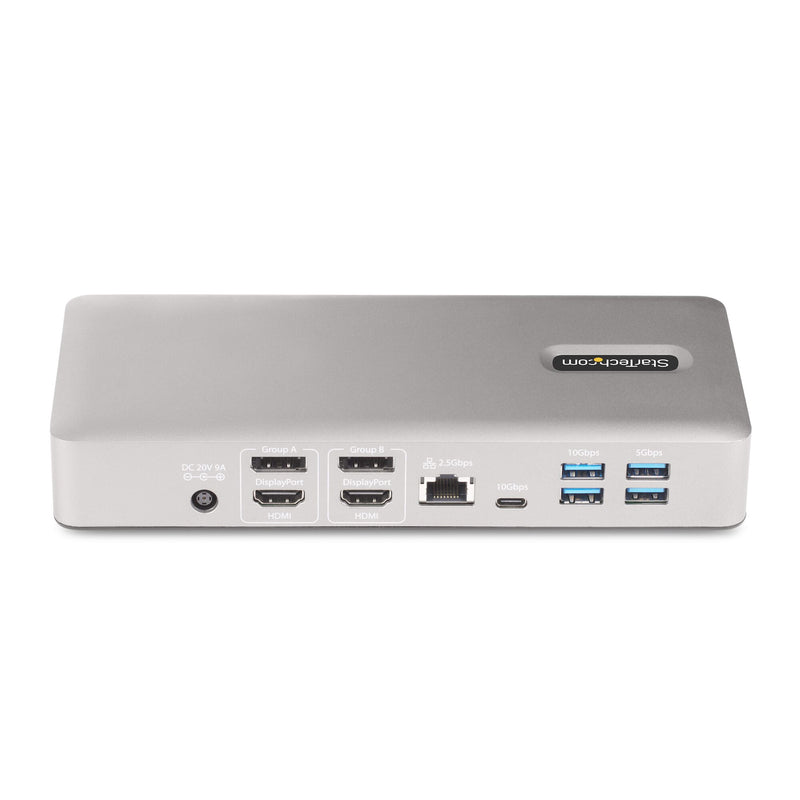

- HIGH-PERFORMANCE THUNDERBOLT 4 DOCK: Easy driverless setup; 2x DisplayPort; 2x HDMI; 7-Port USB Hub (3x USB-A 10Gbps/1x USB-C 10Gbps/2x USB-A 5Gbps/1x USB 2.0); SD & mSD card readers; 2.5GbE; Lock slots (k-slots); 3.5mm Headset jack

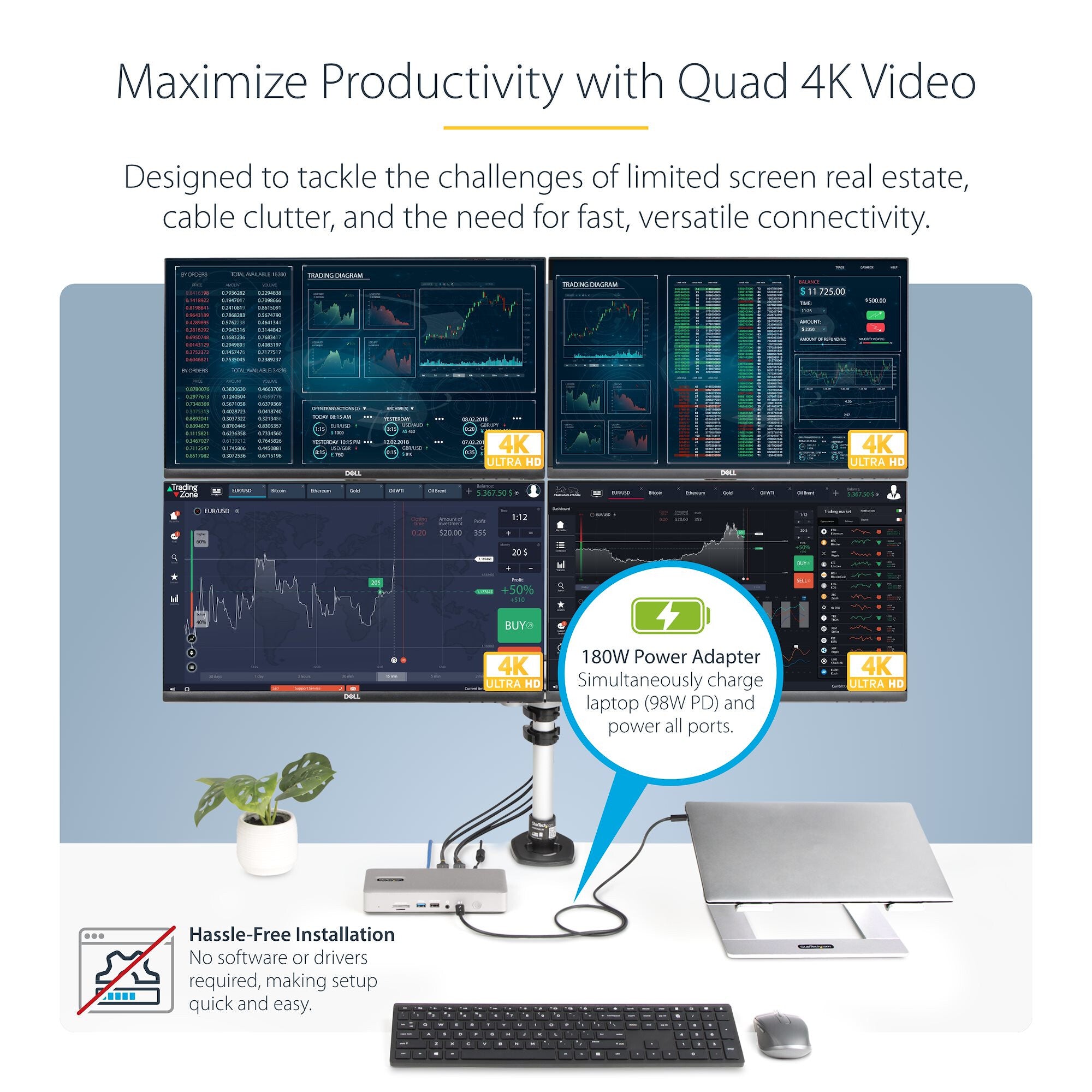

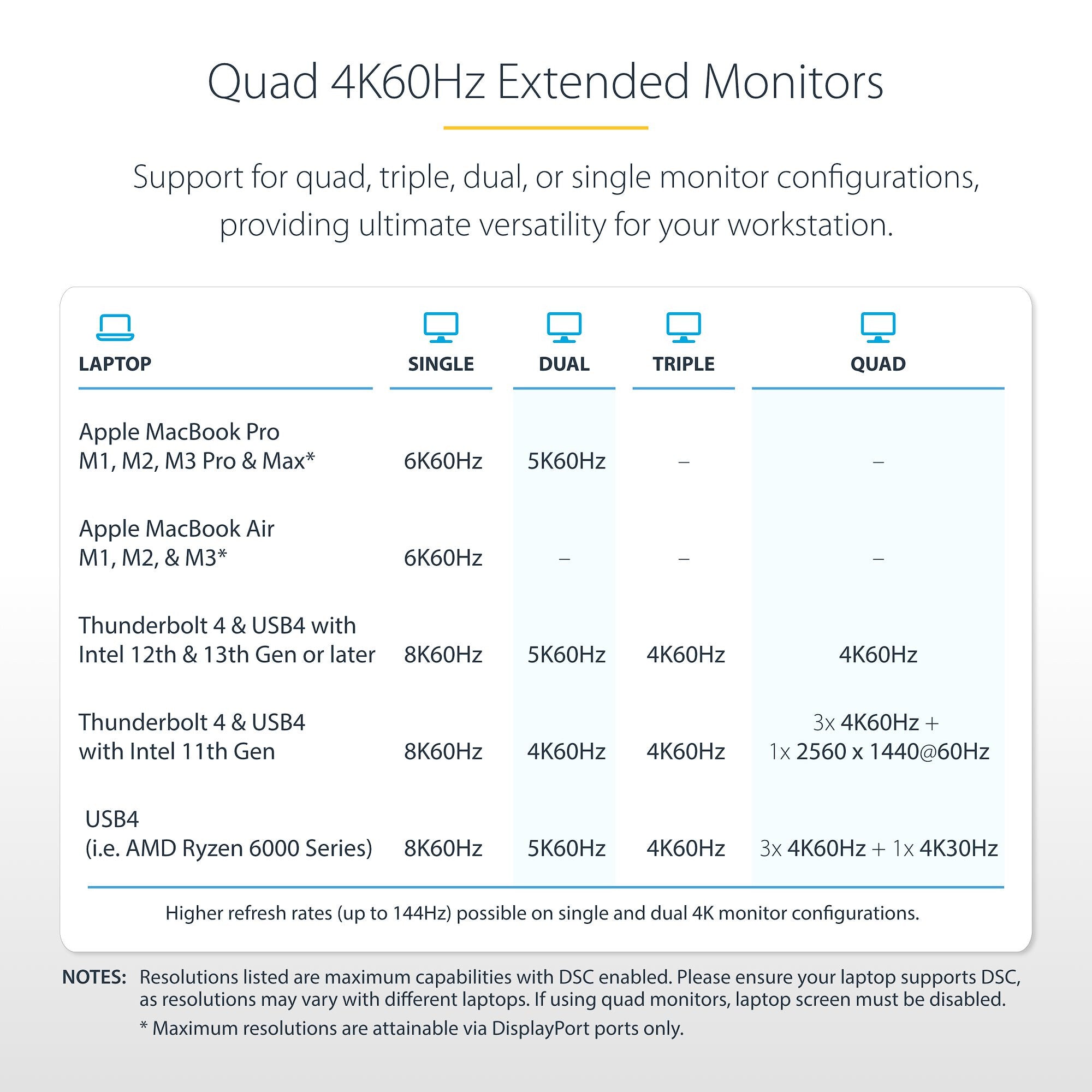

- MULTI-MONITOR FLEXIBILITY: Supports up to quad 4K 60Hz with Intel 12th Gen CPU (or higher) supporting DP 1.4 with DSC; Quad displays at lower resolutions or refresh-rates without DSC or with Intel 11th gen CPU (or lower); Single HDMI display up to 8K 60Hz

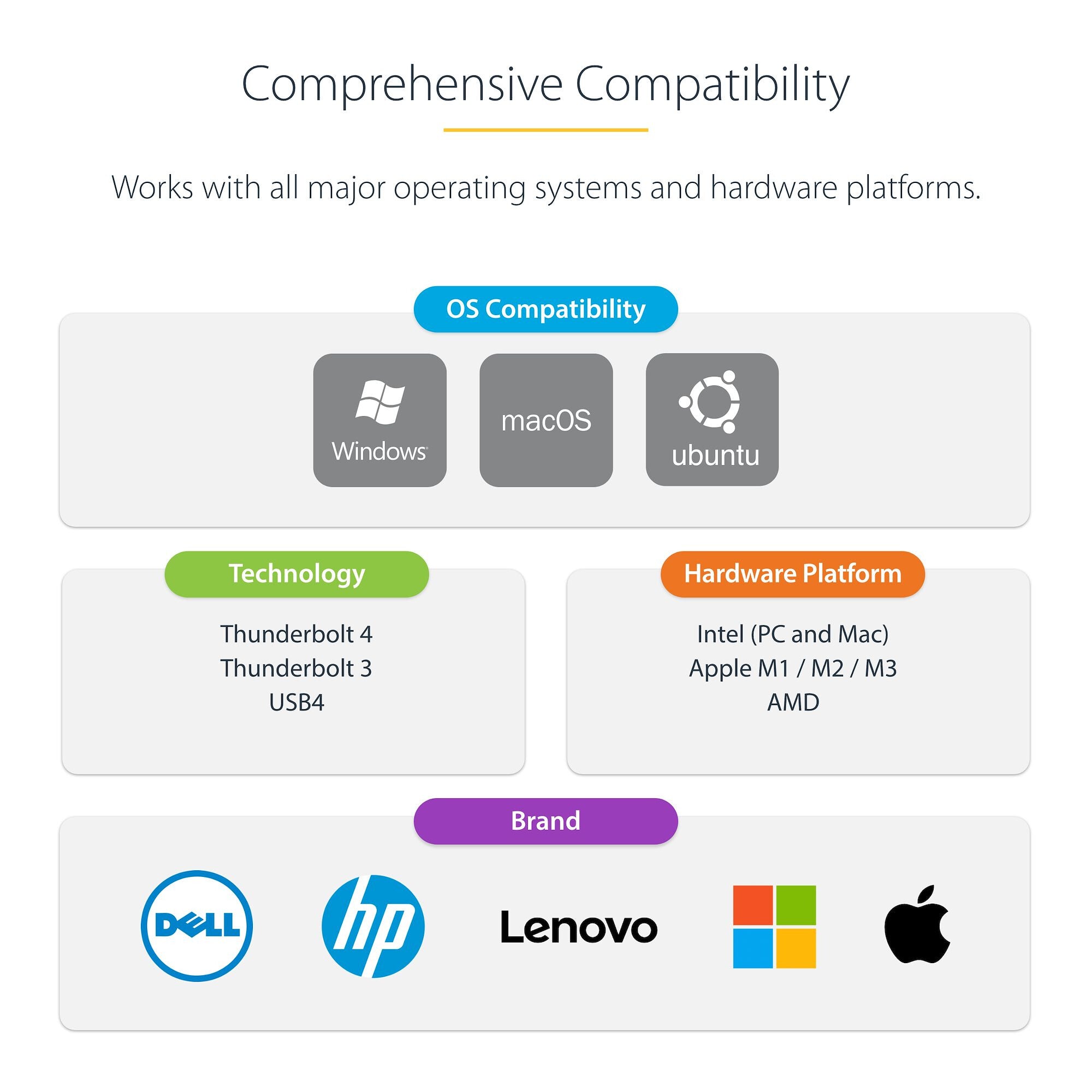

- COMPATIBILITY: Supports Windows, macOS & Ubuntu; Works with all Thunderbolt 4/3 and USB4 laptops; Quad display on Windows laptops; Dual display on MacBook Pro (Apple M1/M2/M3 Max & Pro); Single display on MacBook Air & iPad Pro M1 (and later)
- 98W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (98W PD) and power all ports; Downstream USB 2.0 port supports 7.5W (1.5A) for charging mobile devices or other battery-powered devices

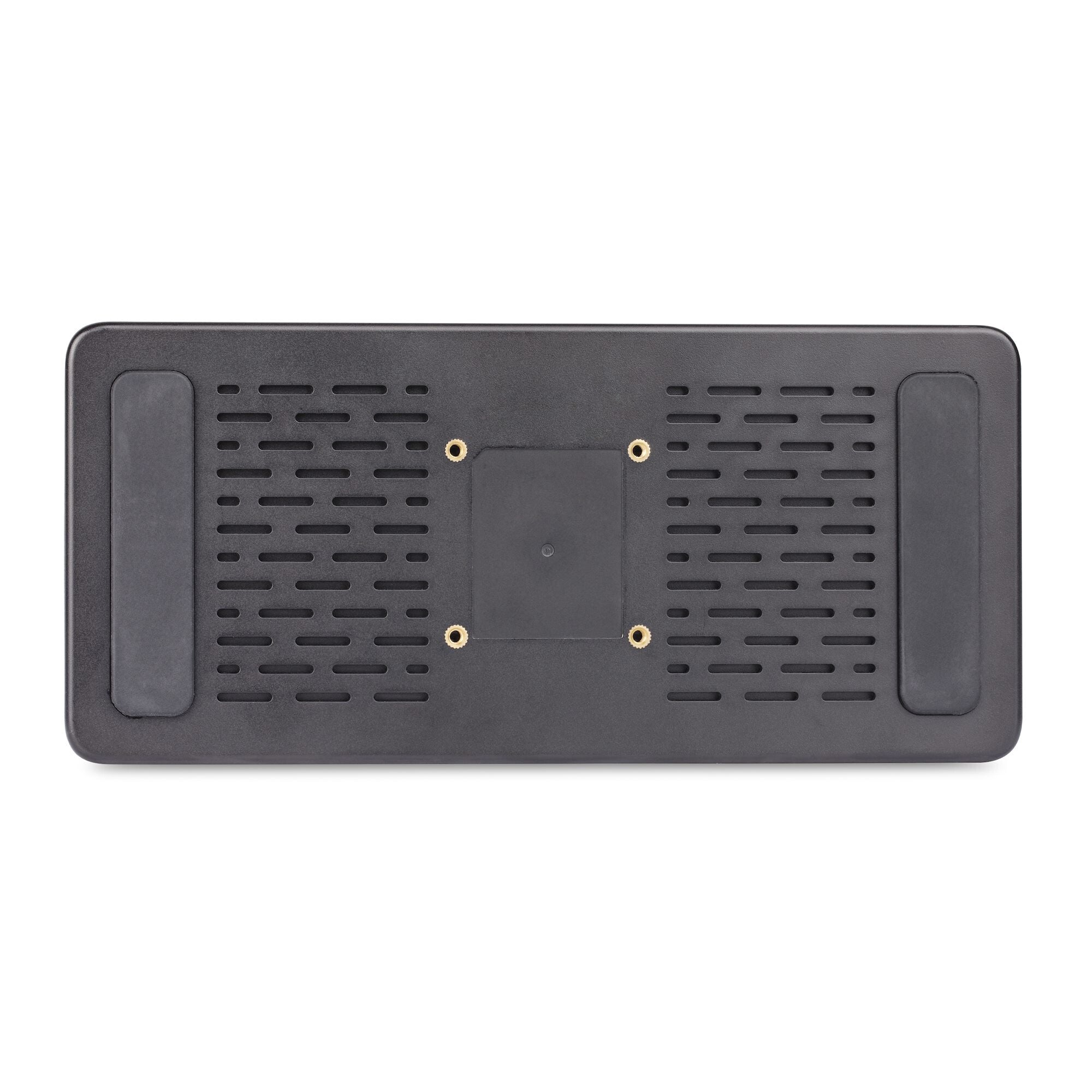

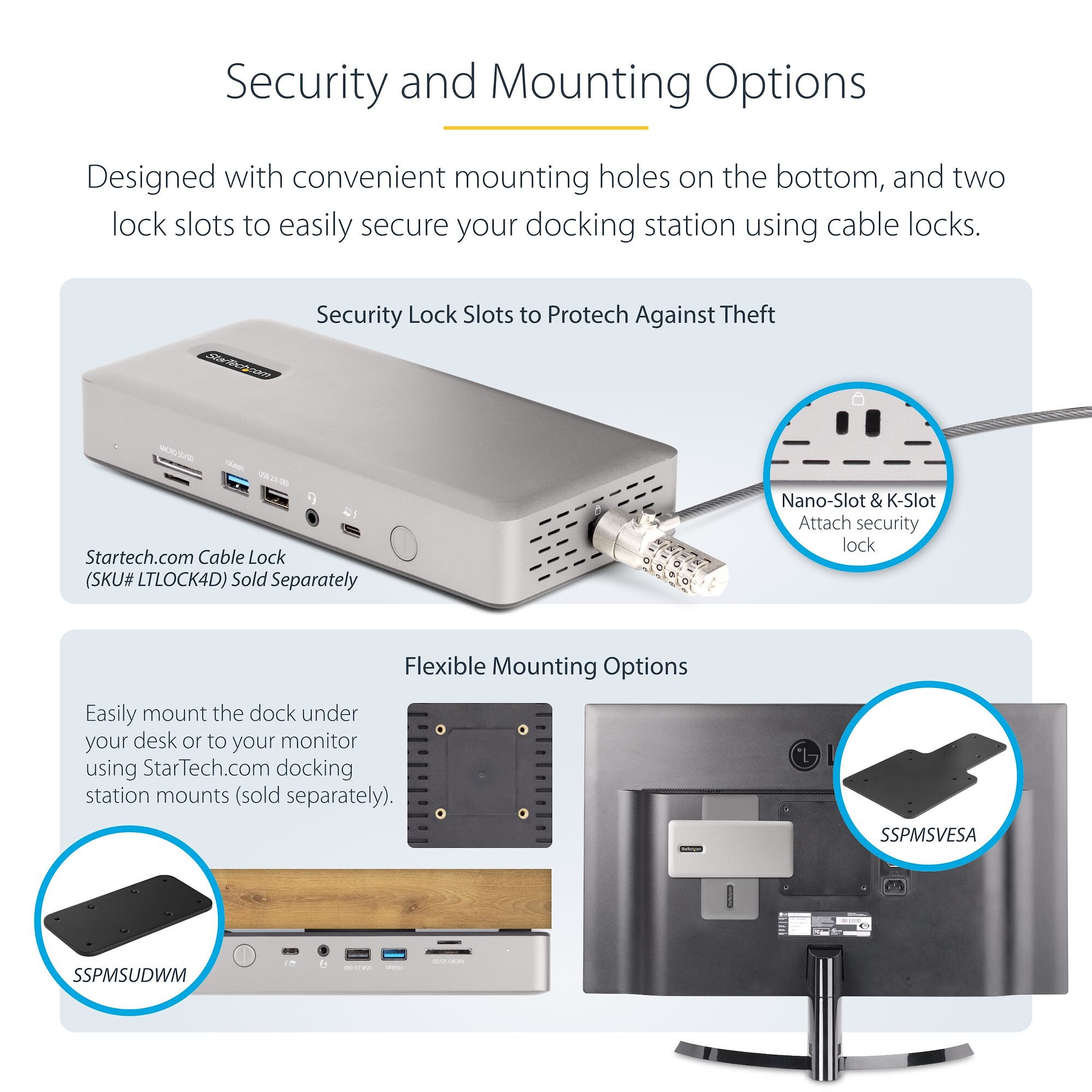

- IT PRO ADVANTAGES: Includes 3.3ft/1m TB4 host cable; Mounting holes for optional brackets (SSPMSVESA/SSPMSUDWM); K-Slots for lock; Connectivity Tools software w/MAC Address Pass-Through, USB Event Monitoring, WiFi Auto Switching & Windows Layout utilities
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock - 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5Gb Ethernet, 98W Power Delivery
Description

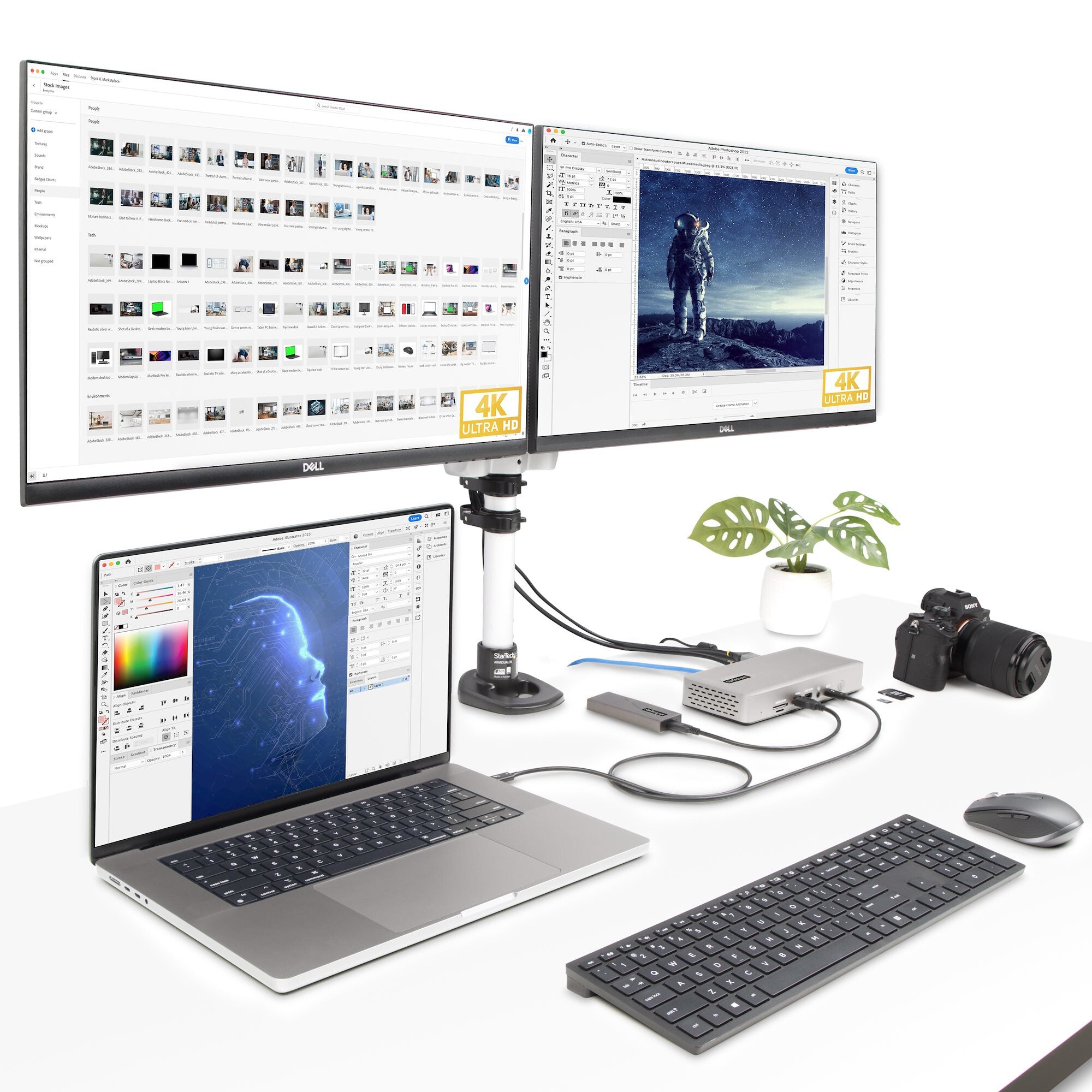

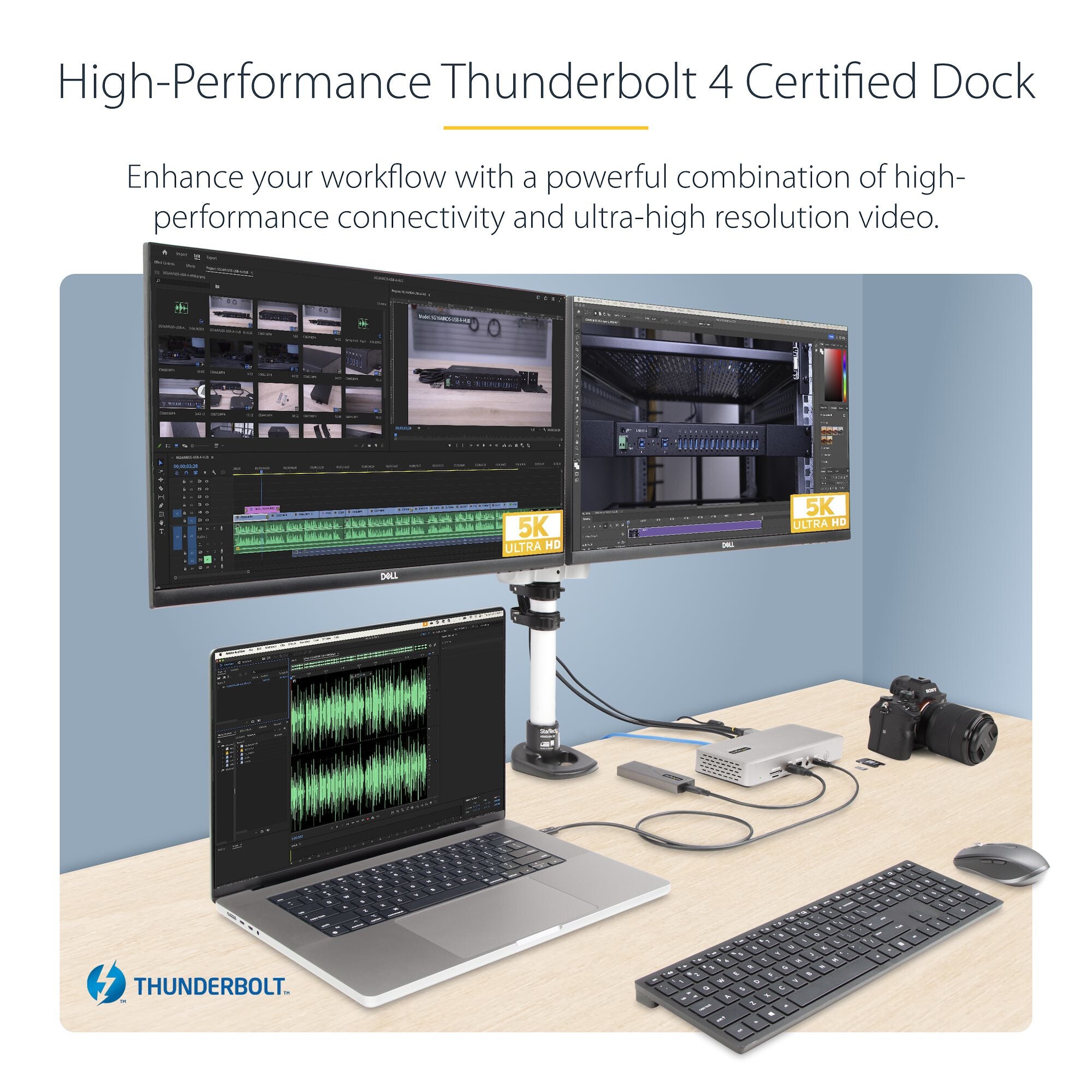

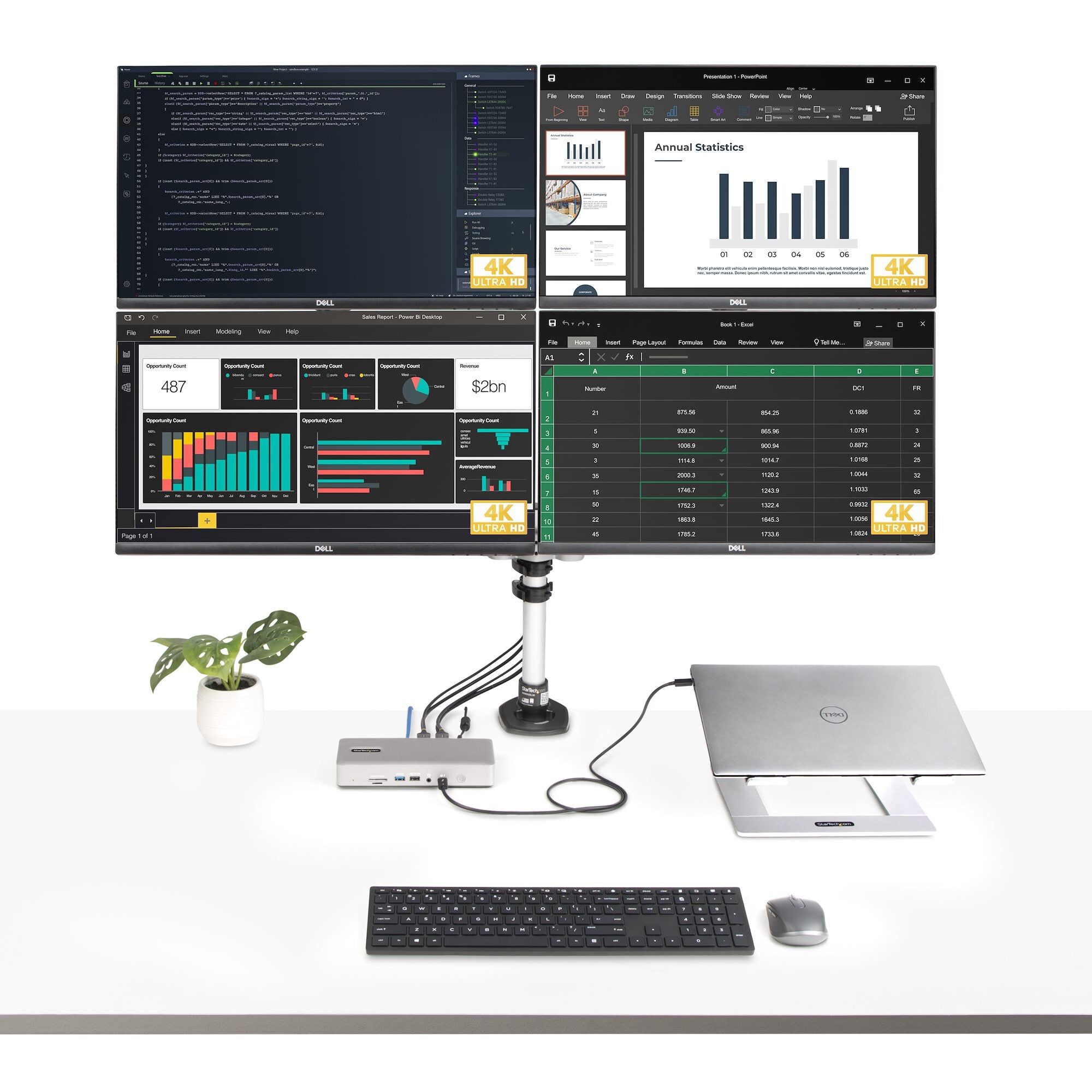

Transform a Thunderbolt 4 laptop into a high-resolution multi-monitor workstation with 7x USB ports, 2.5 Gigabit Ethernet port, 3.5mm audio, plus USB Power Delivery and downstream device chargingThis Thunderbolt 4 Certified docking station uses a single Thunderbolt 3, Thunderbolt 4, USB4, or USB Type-C port on a host computer to add high-performance connectivity while charging the laptop. For rapid deployment, the dock includes a 3.3ft. (1m) Thunderbolt 4 cable that connects to the front-facing USB-C host port, and features two sizes of Kensington-style security slots.Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60HzThe dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports.Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor, as well as iPad Pros with M1 or later processors, a single display is supported.Port ConnectivityThe docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.The dock features:• 2x HDMI ports to connect displays• 2x DisplayPort ports to connect displays• 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices• 1x USB 3.2 Gen 2 (10Gbps) Type-C ports to connect USB peripheral devices• 2x USB 3.2 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards• 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset98W USB Power Delivery CertifiedThe Thunderbolt 4 docking station includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.Thunderbolt CertifiedThis certification ensures the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1/M2/M3 Pro/Max MacBooks.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe StarTech.com Advantage
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery

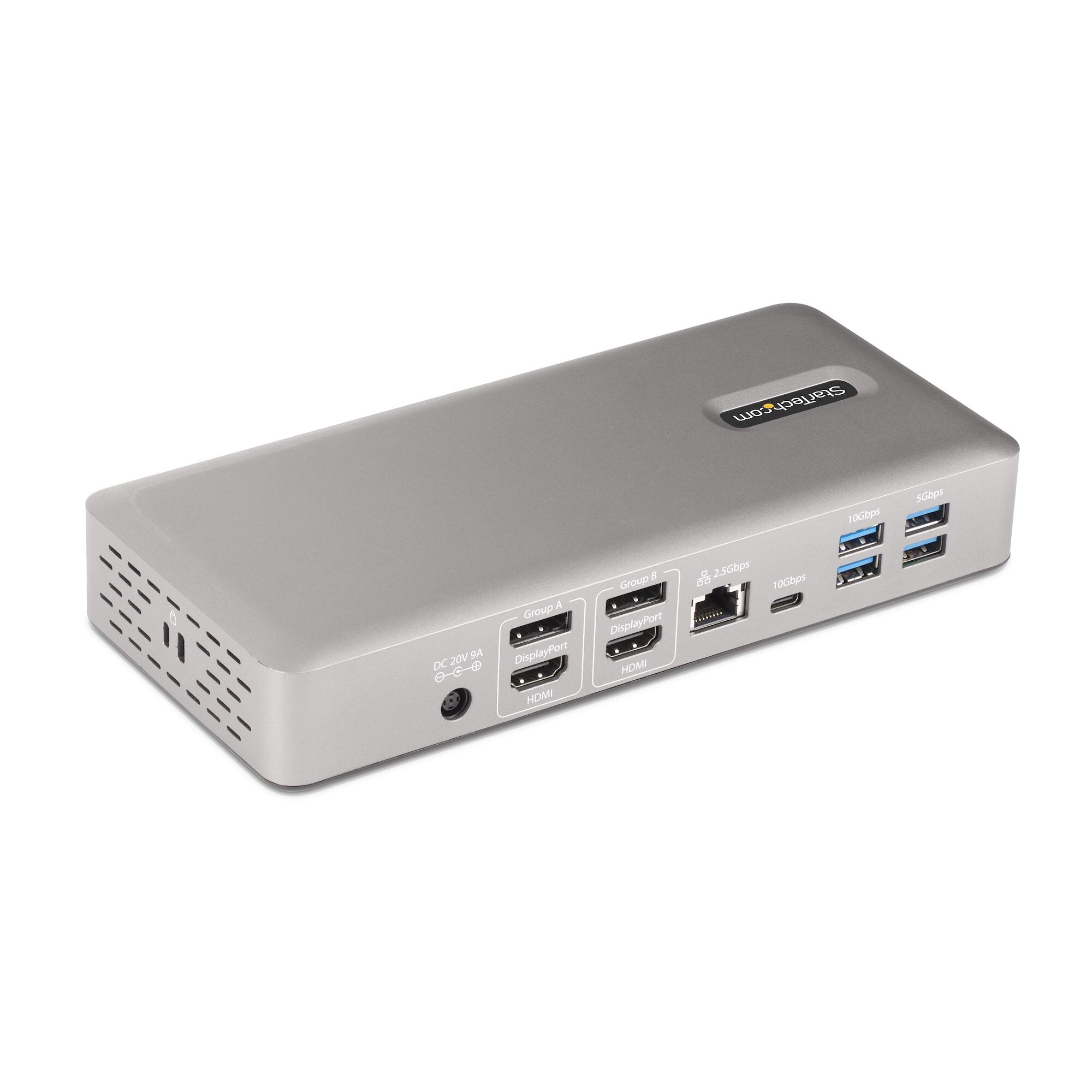

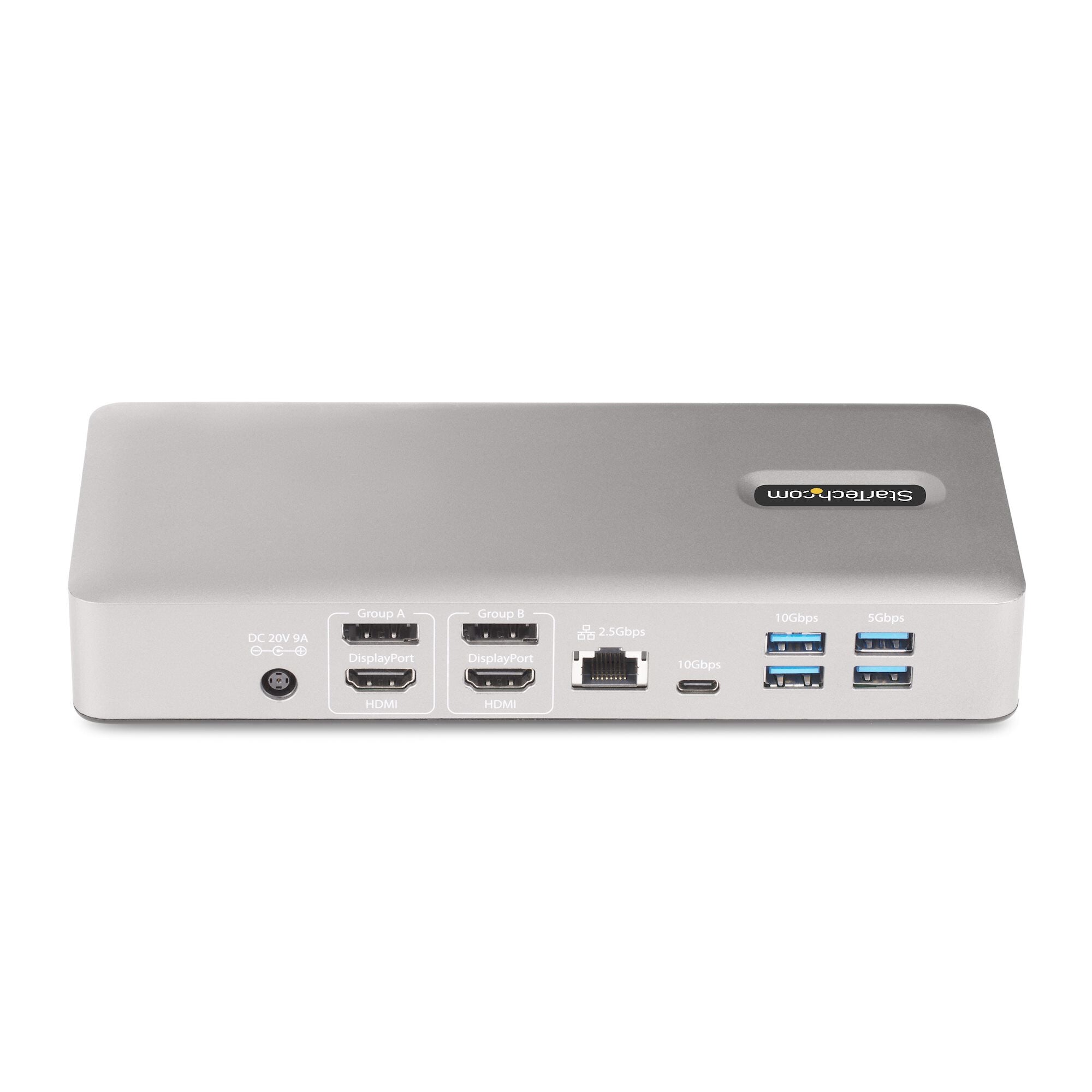

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB Power Delivery up to | 98 W |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Full duplex | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| UASP support | Yes |
| LED indicators | LAN, Power |
| Housing material | Aluminium |
| On/off switch | Yes |
| Cable lock slot type | Kensington, Nano |
| Cable lock slot | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Product colour | Grey |
| Power | |
|---|---|
| Compatible power plug types | EU, UK |
| Power consumption (max) | 180 W |
| Output voltage | 20 V |
| Output current | 9 A |
| Input current | 2.5 A |
| AC input voltage | 110 - 240 V |
| Power source type | DC |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Yes |

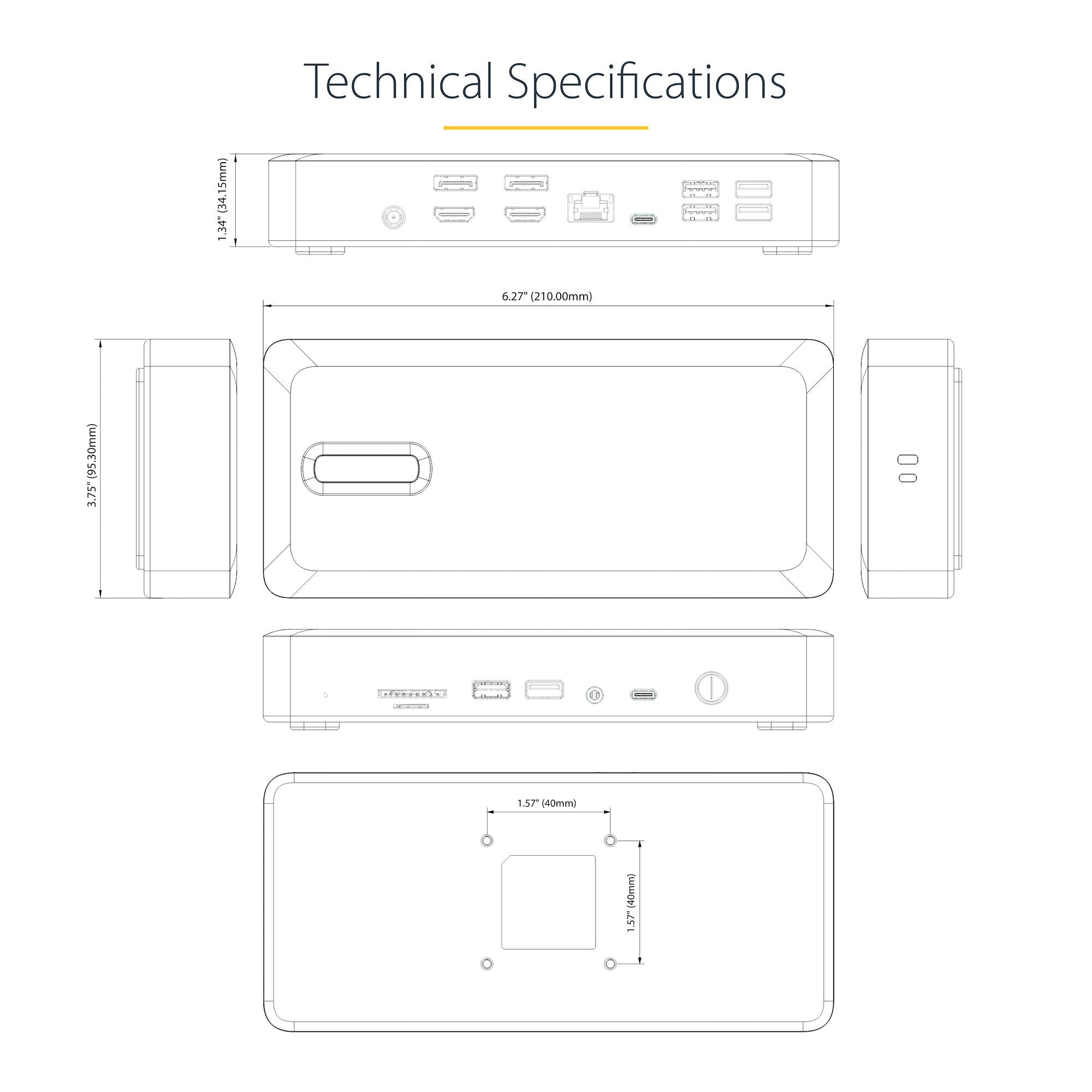

| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Height | 34 mm |
| Depth | 96 mm |
| Width | 210 mm |
| Packaging data | |
|---|---|
| Package weight | 1.4 kg |
| Package height | 90 mm |
| Package depth | 145 mm |
| Package width | 235 mm |

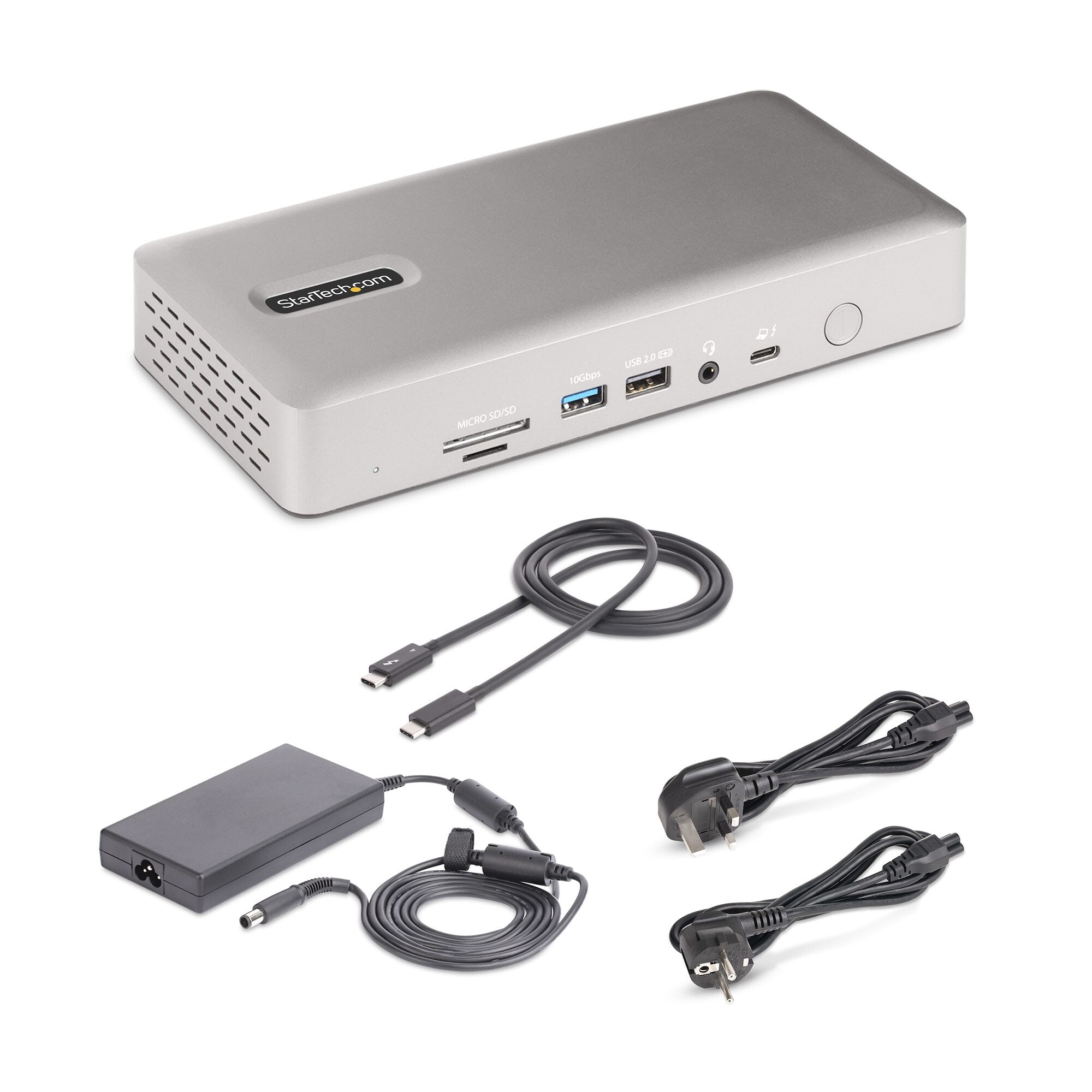

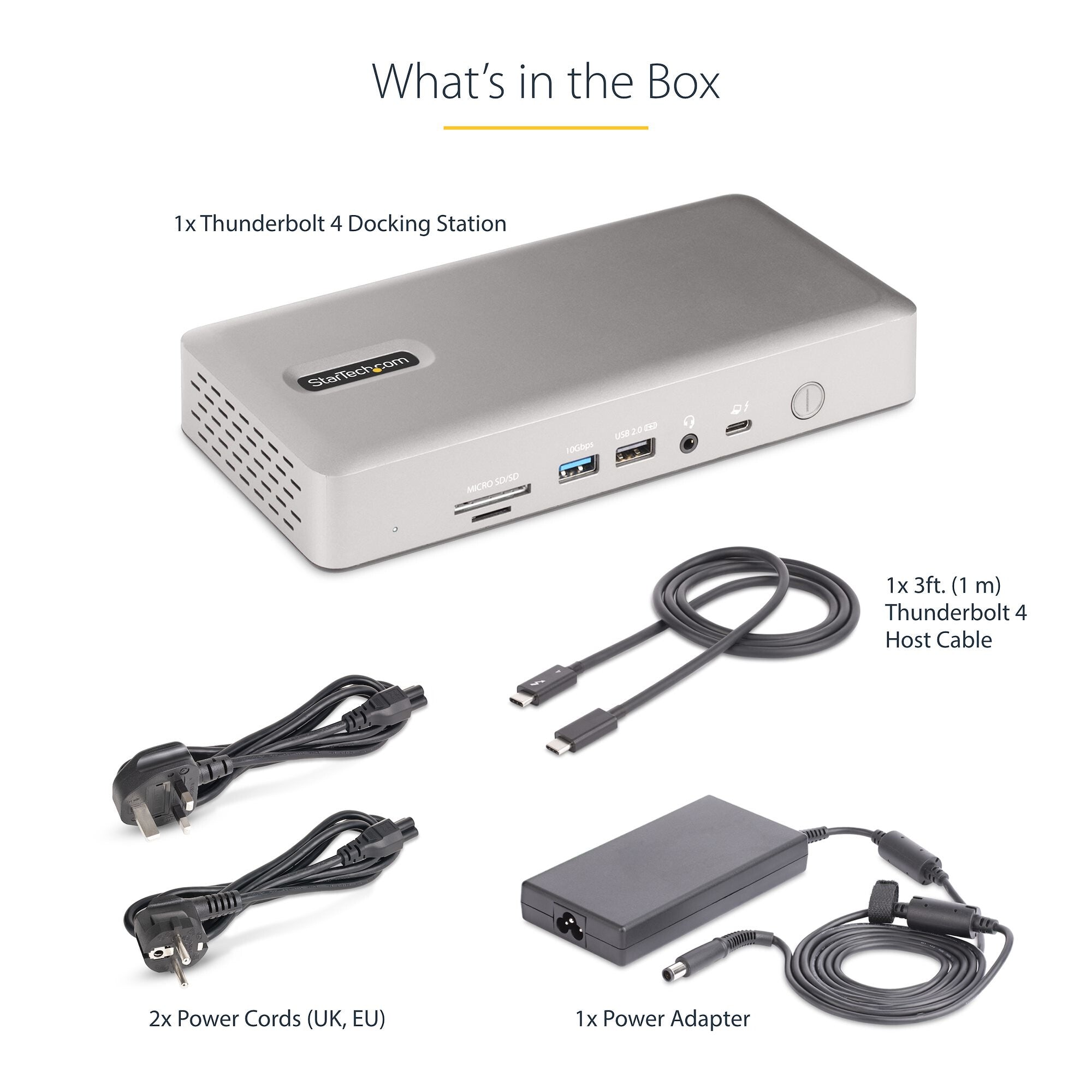

| Packaging content | |
|---|---|
| Cables included | Thunderbolt |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 285 mm |
| Other features | |
|---|---|
| Chipset | Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
