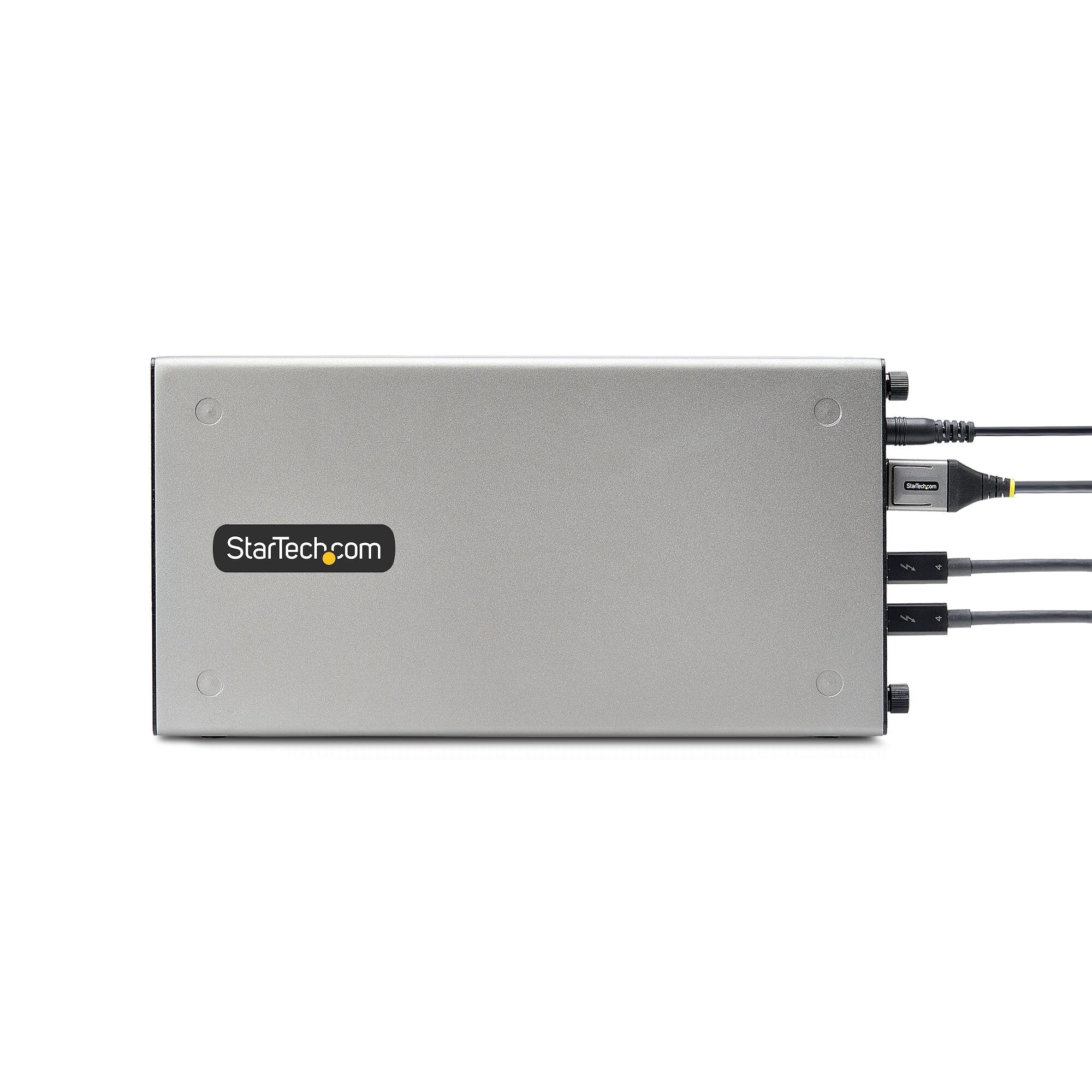

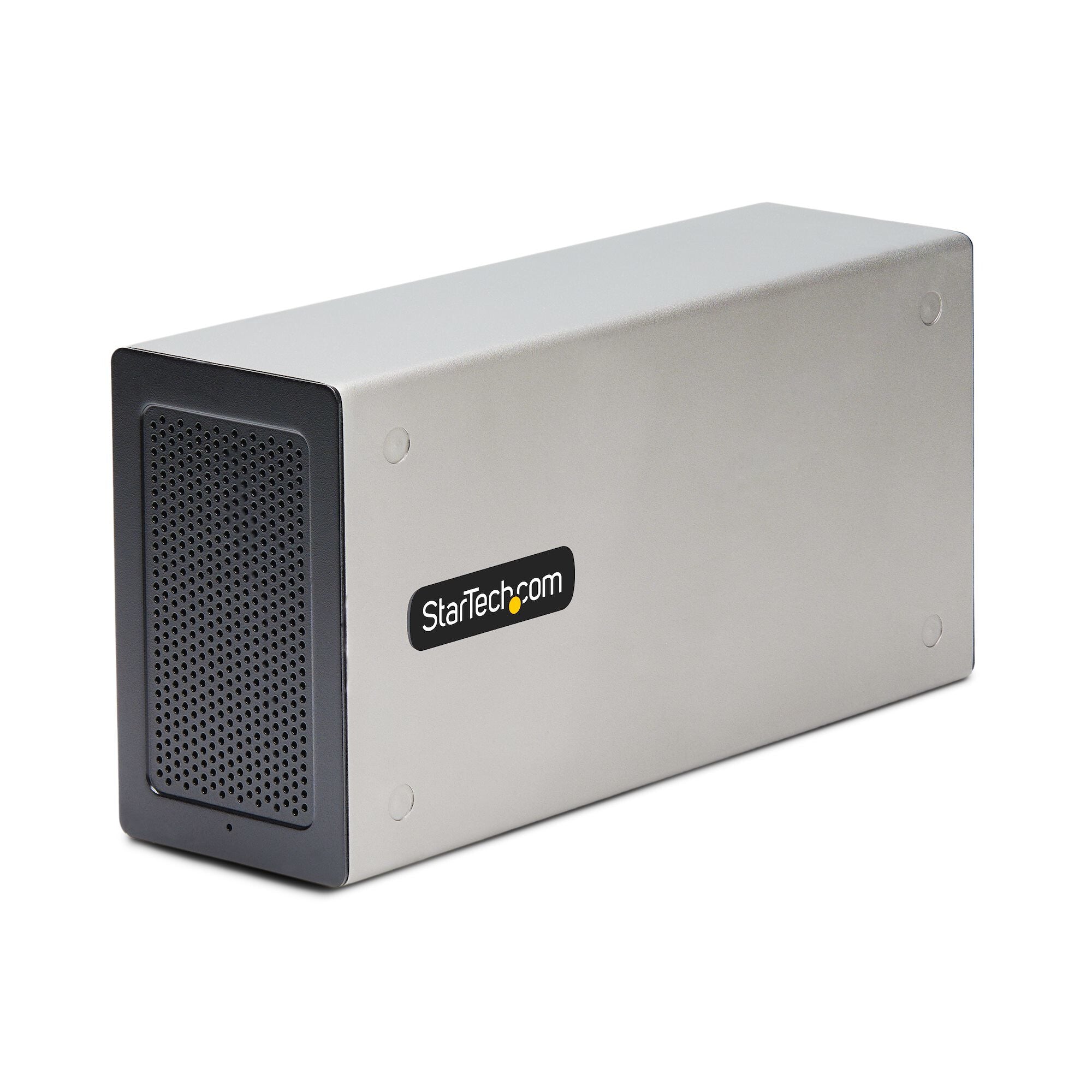

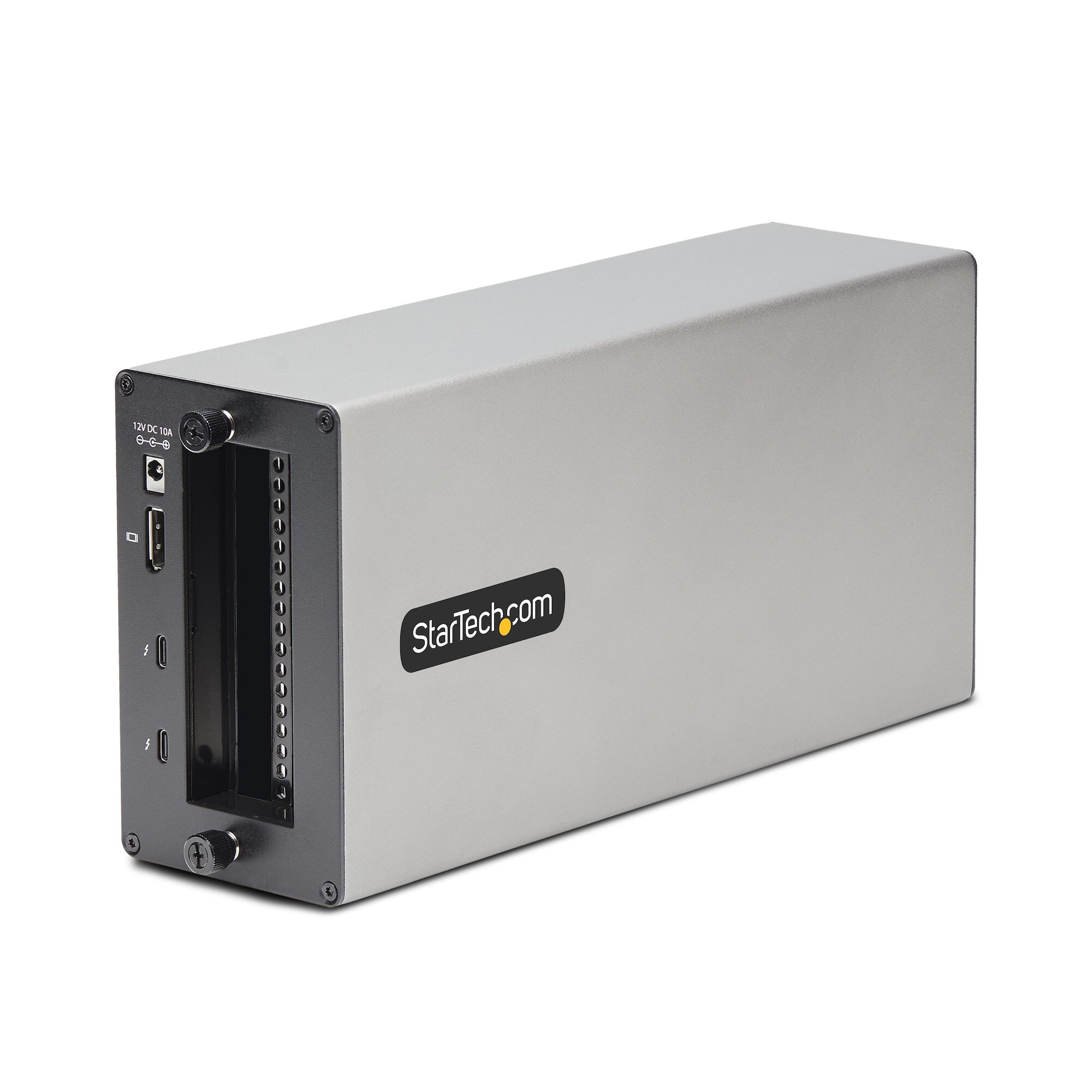

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards
KEY FEATURES
- THUNDERBOLT 3 PCIE EXPANSION CHASSIS: Add PCI Express support to a Thunderbolt 3/4 capable laptop/desktop computer; Dual external PCIe 3.0 x16 slots; 32Gbps of combined bandwidth (up to 21.6Gbps/2700Mbps per slot); 3.3ft (1m) Thunderbolt cable included

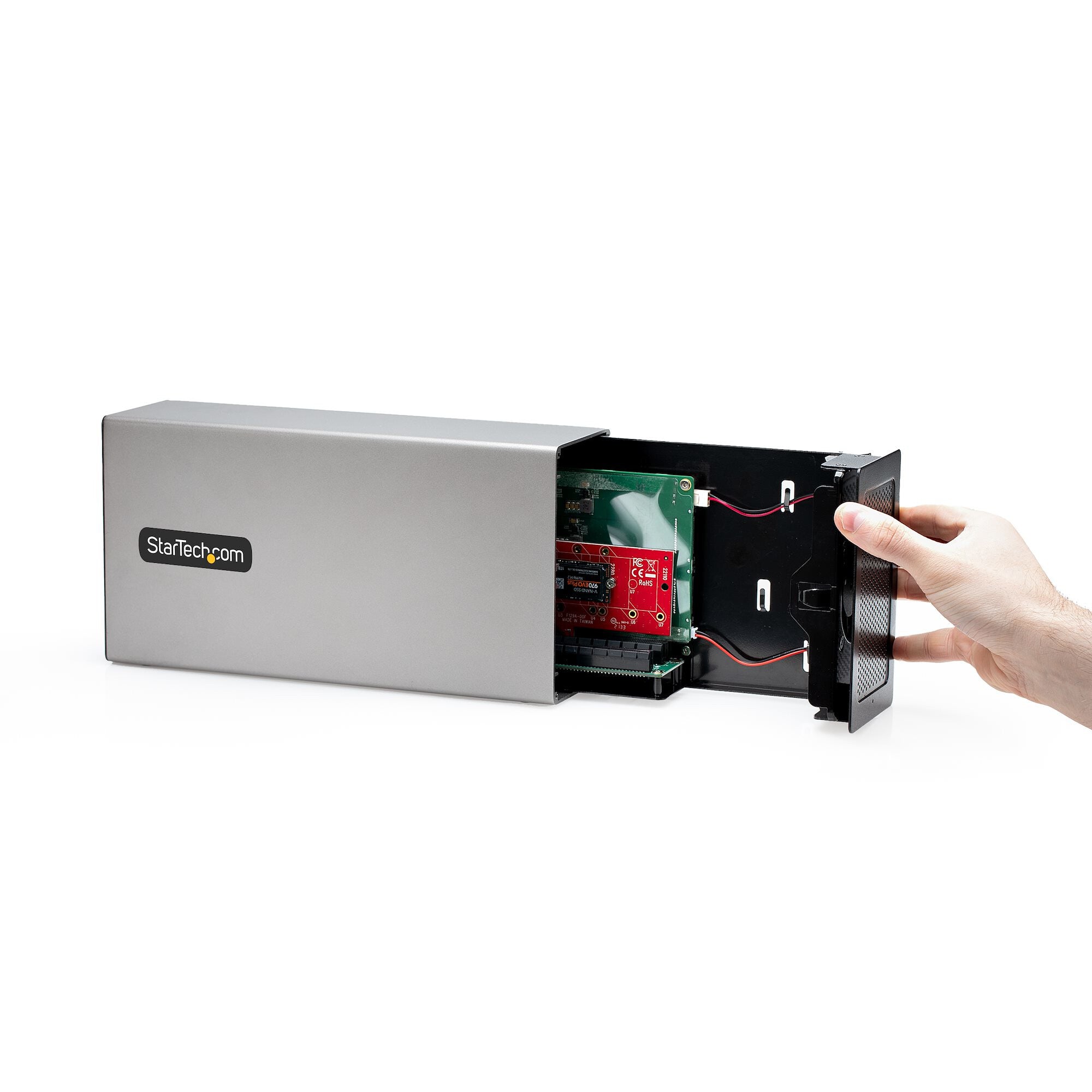

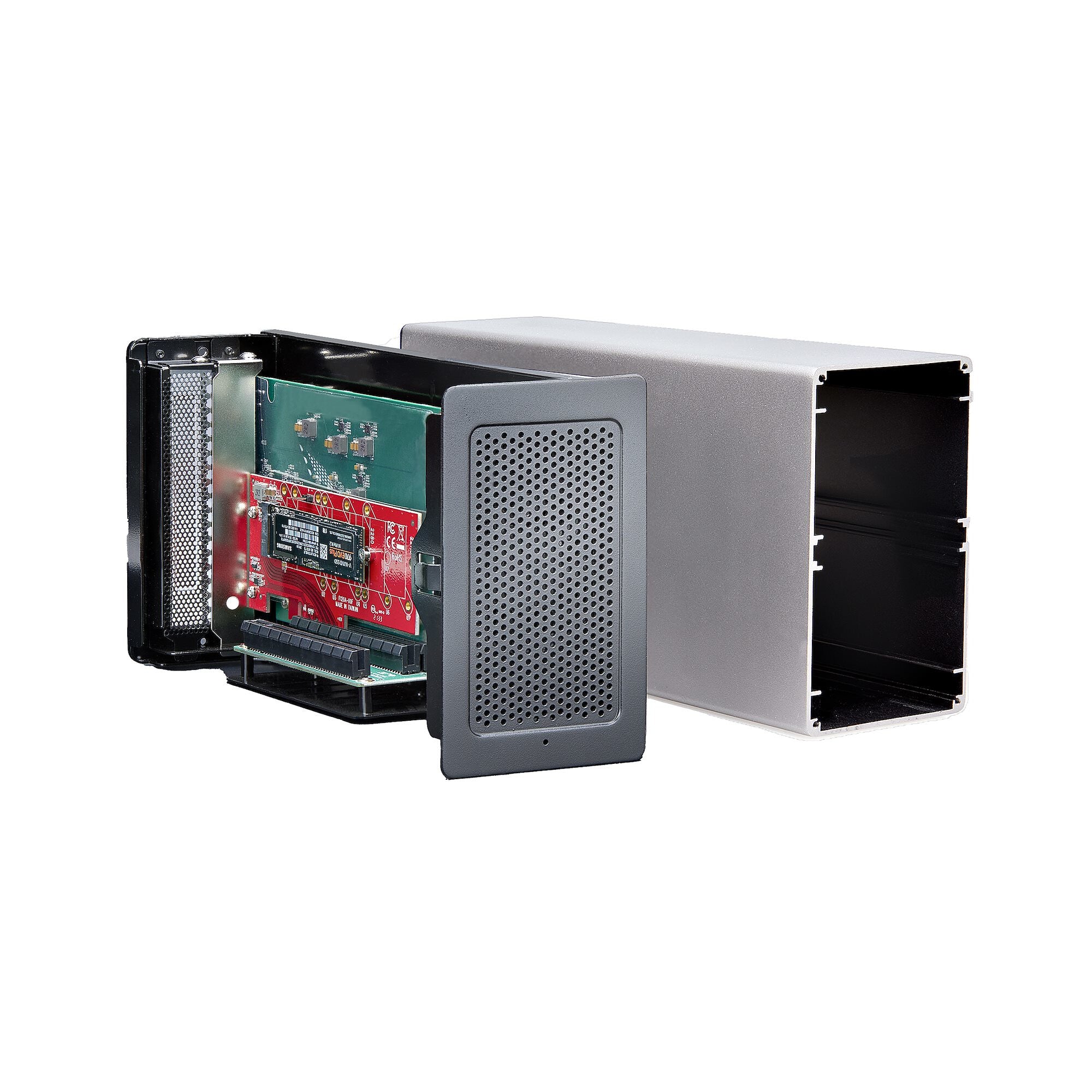

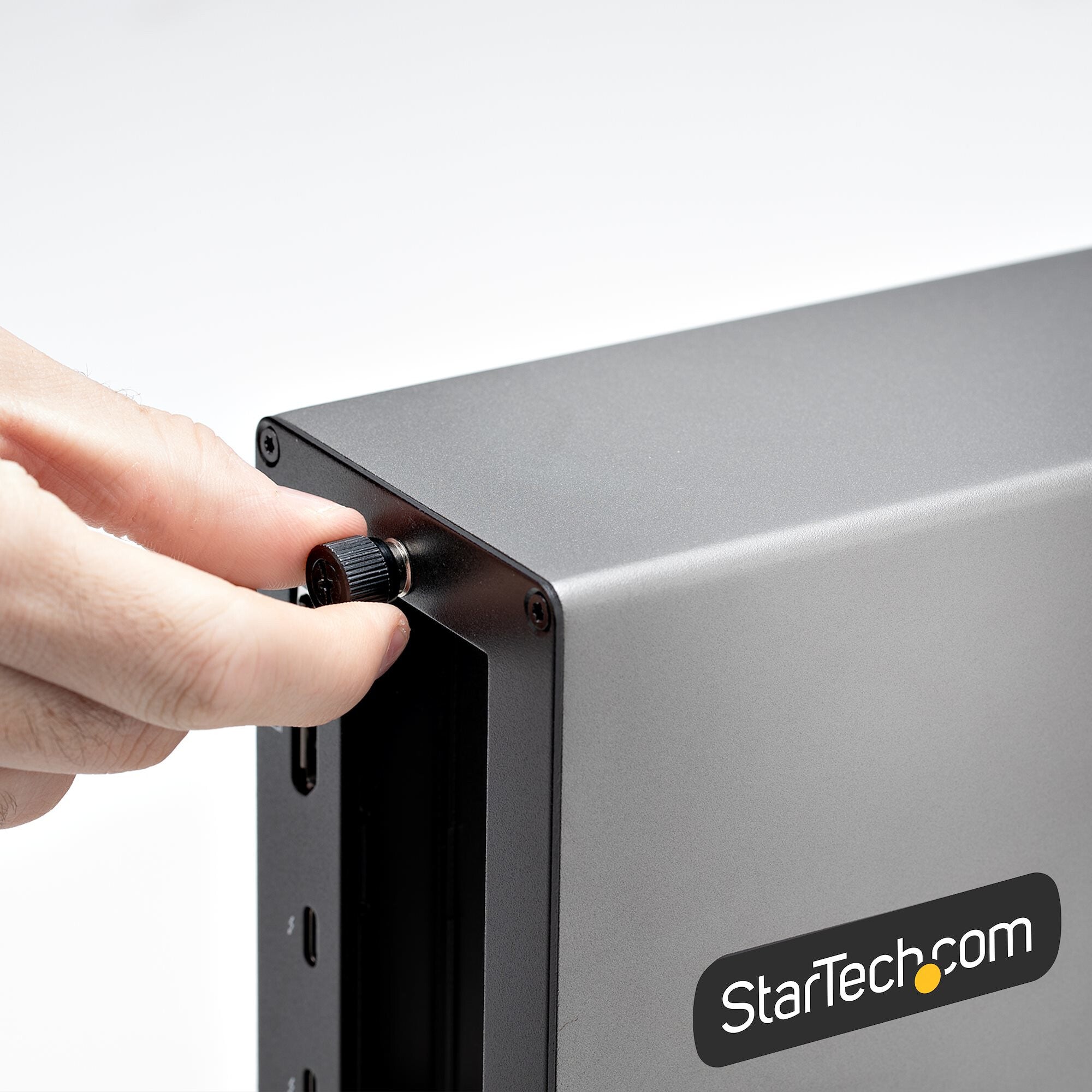

- EXPANDABILITY FOR LAPTOPS: Integrate video capture cards, high-speed fiber/Ethernet connectivity, NVMe drives, FireWire cards, and more to unlock the potential of a notebook using this Thunderbolt 3 to PCIe chassis; Toolless design; Aluminum construction

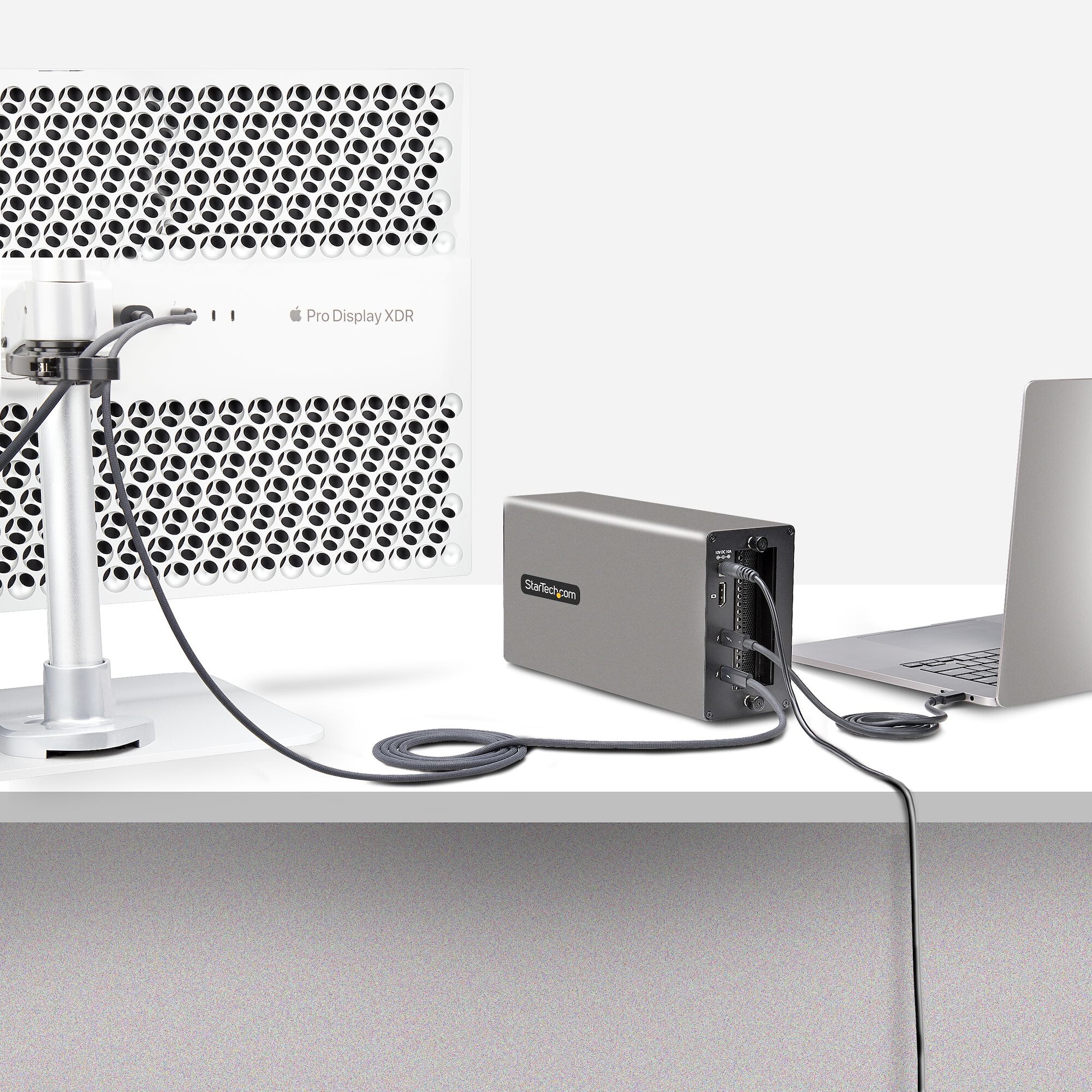

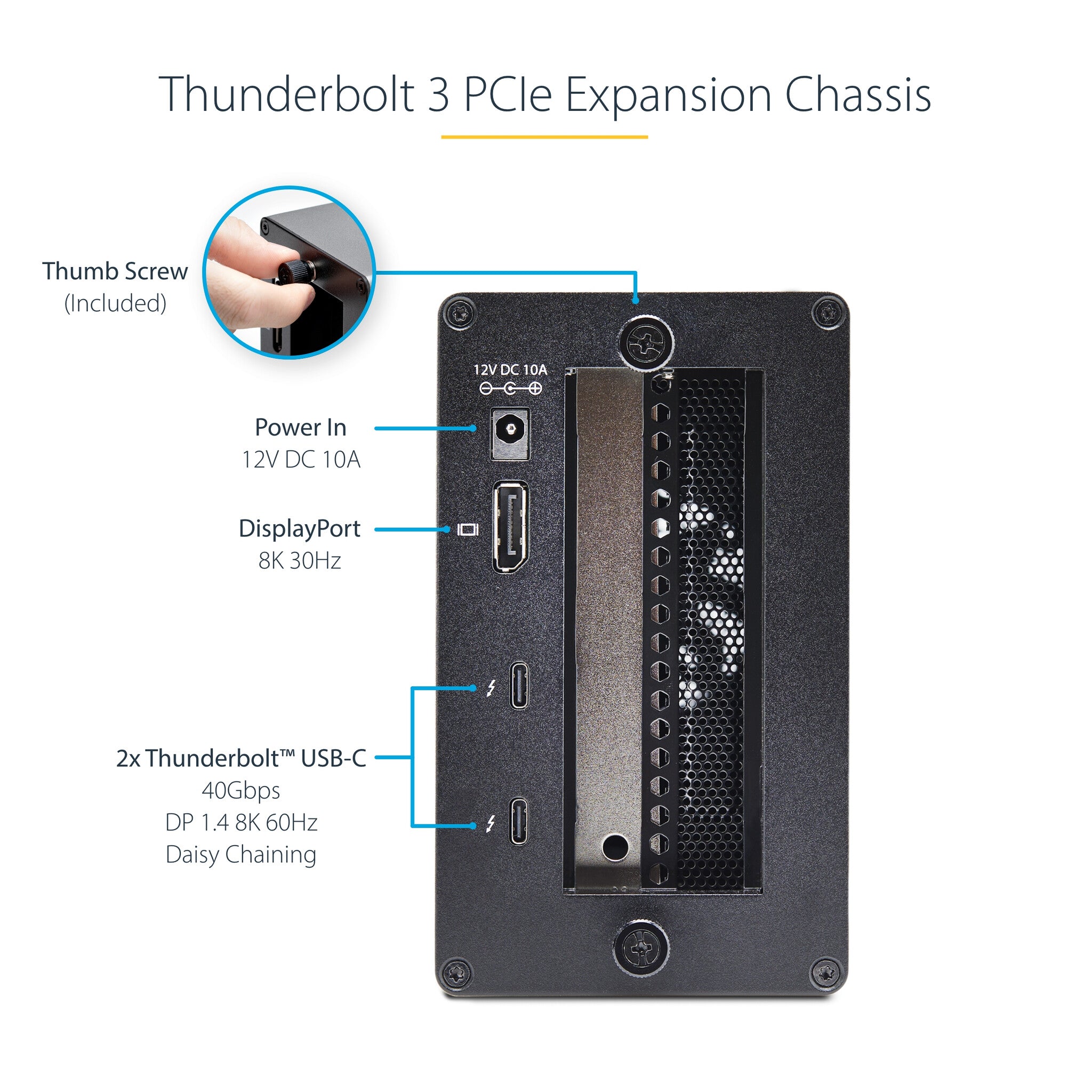

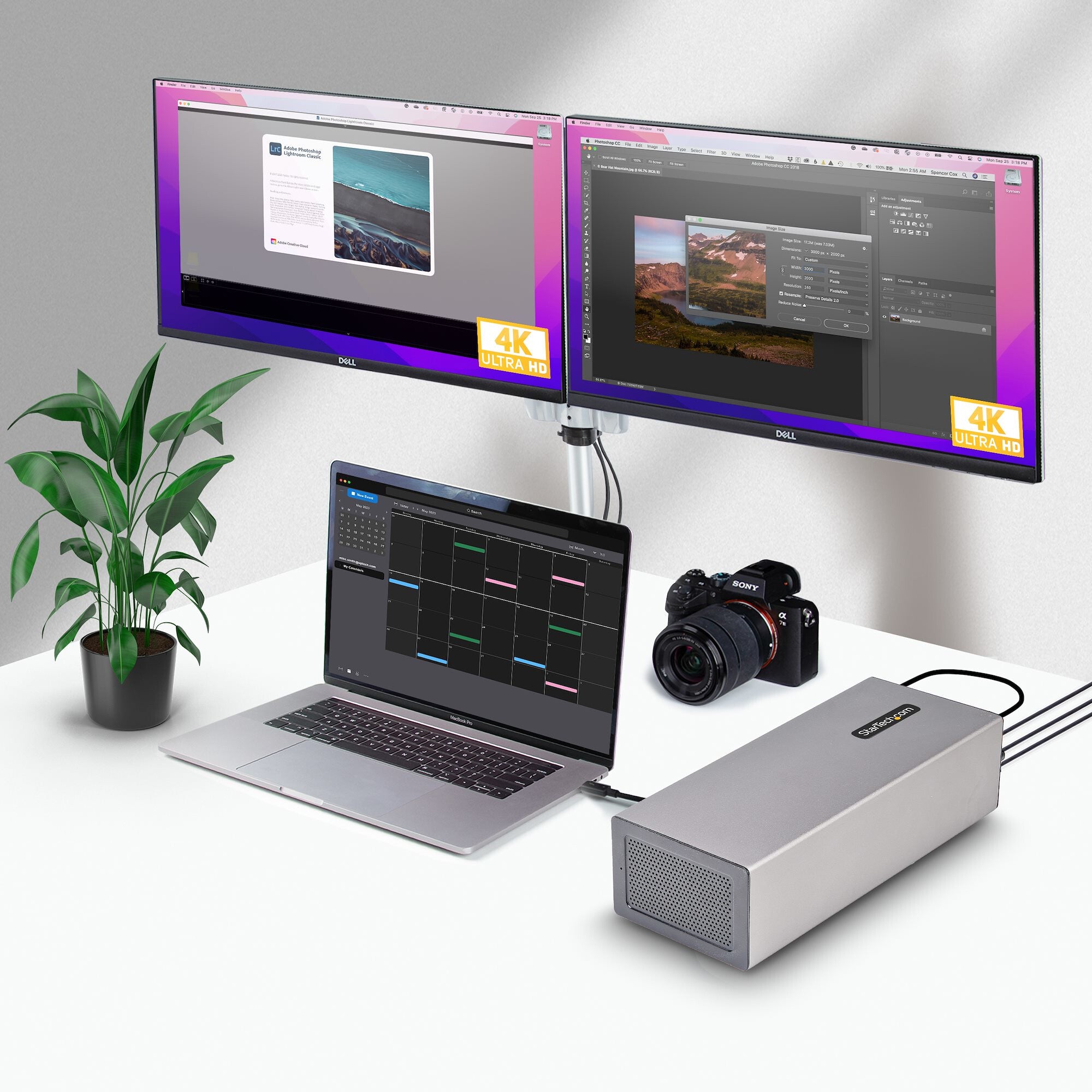

- 8K & 4K DISPLAY SUPPORT: Connect a display through the external PCIe enclosure; The DP 1.4 port and TB3 ports support video outputs up to 8K/5K 60Hz or dual 4K 60Hz (other video resolutions are also supported); PCIe box does not support GPU graphic cards

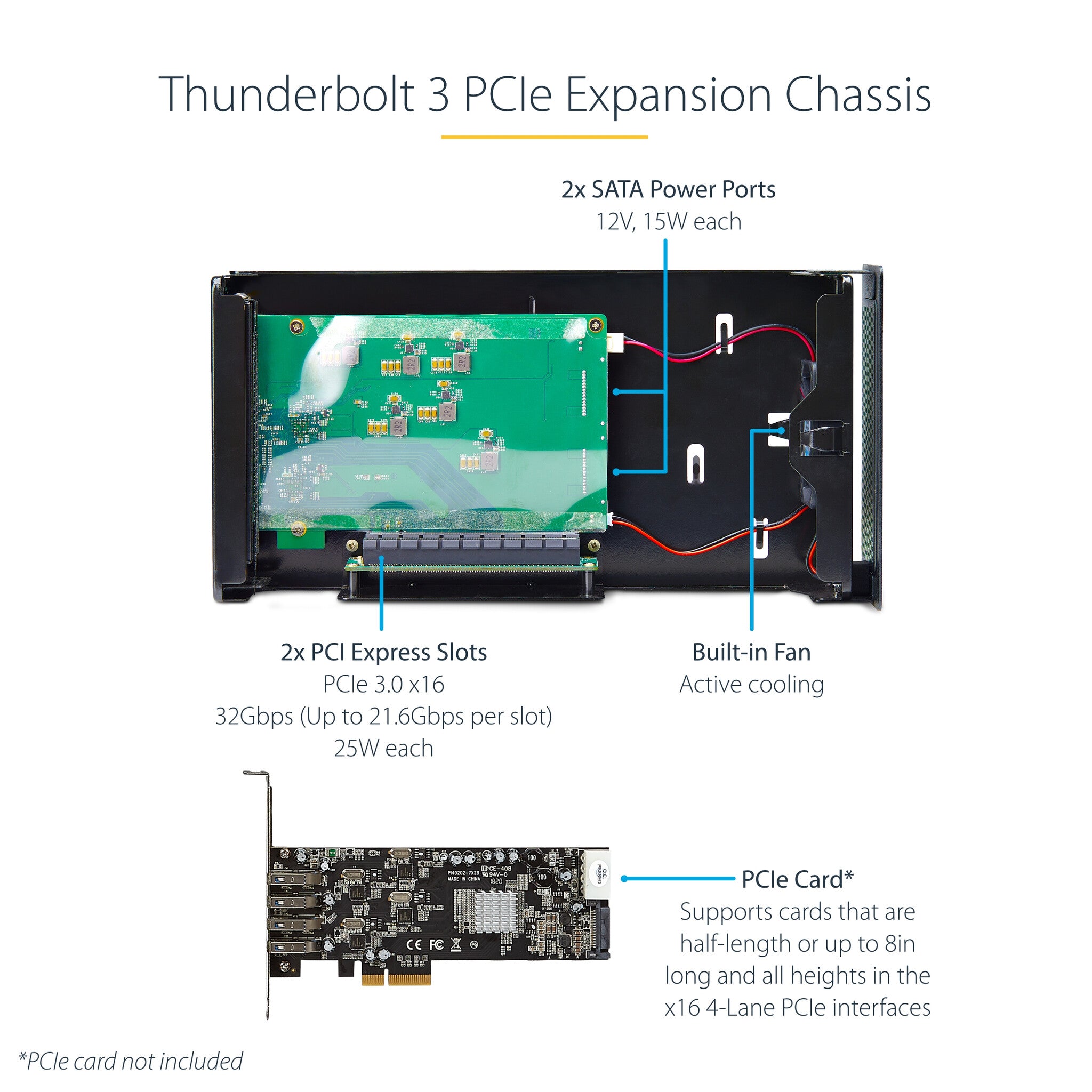

- ROBUST POWER: The chassis delivers 25W per PCIe slot and features dual internal 12V 15W SATA power ports for up to 40W per card; 12V 10A (120W) universal power adapter is included and is compatible with NA/JP, UK, EU, and ANZ regions
- COMPATIBILITY: Use single-width cards up to 8in (20.3cm) long; Built-in fan for active cooling; Daisy chain compatible with multiple TB3/4 devices; The chassis is driverless and is compatible with macOS, Windows, and Linux; TAA-compliant
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards
Description

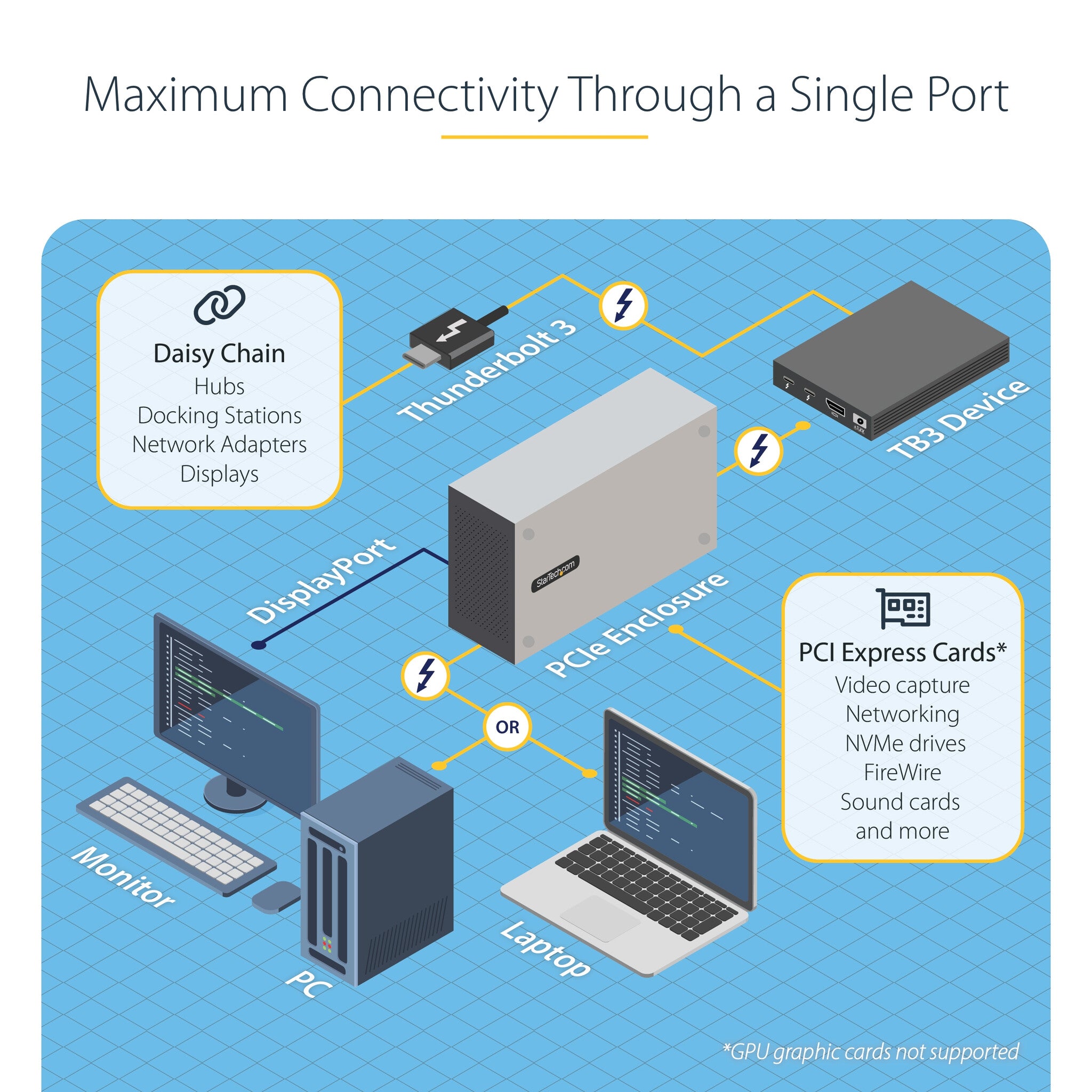

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.Enhanced Computer CapabilitiesConnect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.Flexible Card SupportThe expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.8K & 4K Monitor SupportConnect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).CompatibilityThe enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.Note: Some expansion cards installed in the chassis may require drivers to be installed.The StarTech.com Advantage
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |

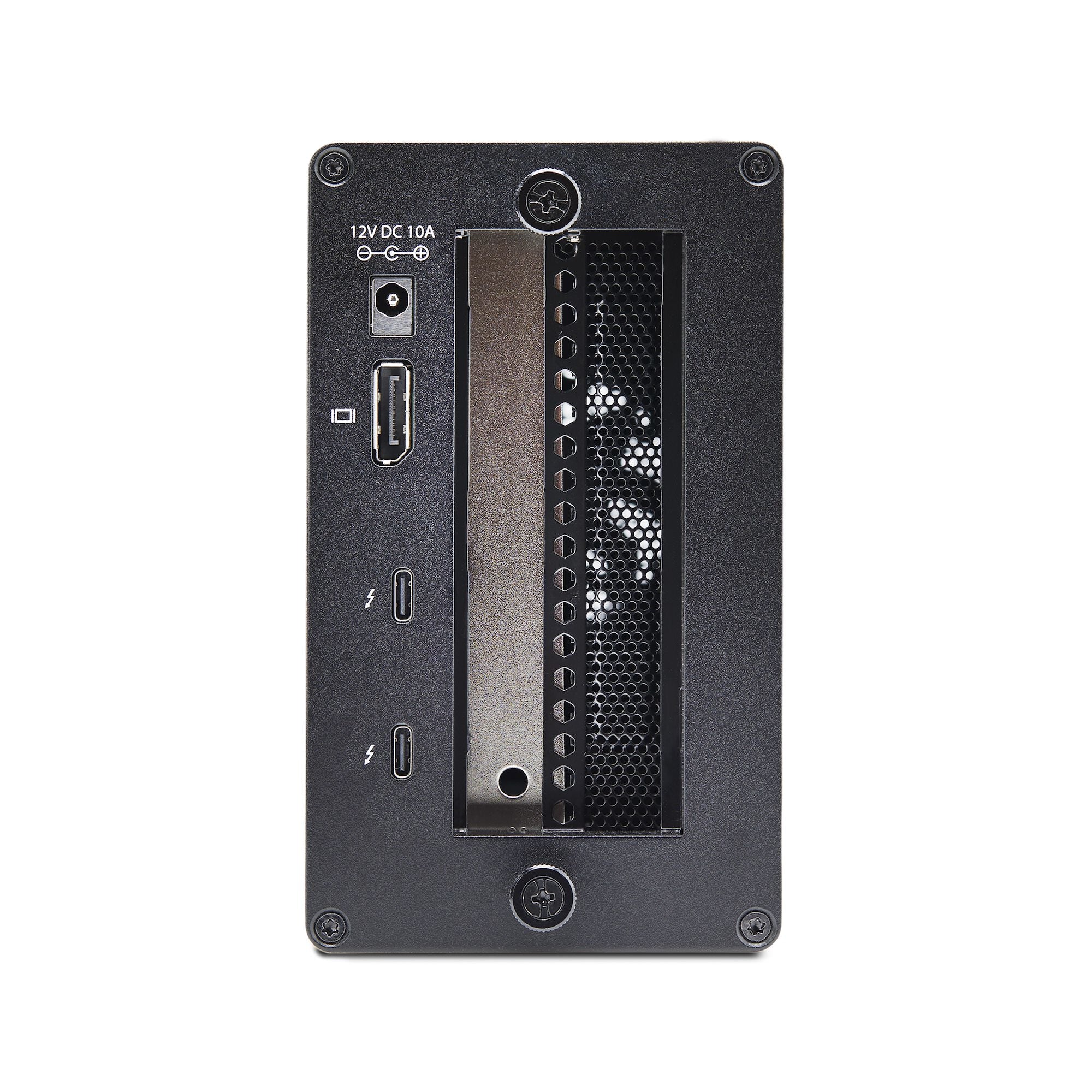

| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Thunderbolt 3 ports quantity | 2 |
| Microphone in | No |
| PCI Express x16 slots | 2 |
| PCIe version | 3.0 |
| Network | |
|---|---|
| Ethernet LAN | No |
| Performance | |
|---|---|
| Product colour | Silver |
| Card reader integrated | No |
| HD type | 8K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Rubber feet | Yes |
| Housing material | Aluminium |
| LED indicators | Power |
| Cooling | |
|---|---|
| Built-in fan | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 6 cm |
| Power | |
|---|---|
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 3 A |
| Output current | 10 A |
| Output voltage | 12 V |
| Power consumption (max) | 120 W |
| Compatible power plug types | AU, EU, JP, UK, US |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 65 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS, Trade Agreements Act (TAA) |
| Weight & dimensions | |
|---|---|
| Width | 281 mm |
| Depth | 84 mm |
| Height | 142 mm |
| Weight | 1.6 kg |
| Packaging data | |
|---|---|
| Package width | 285 mm |
| Package depth | 353 mm |
| Package height | 143 mm |
| Package weight | 3.4 kg |

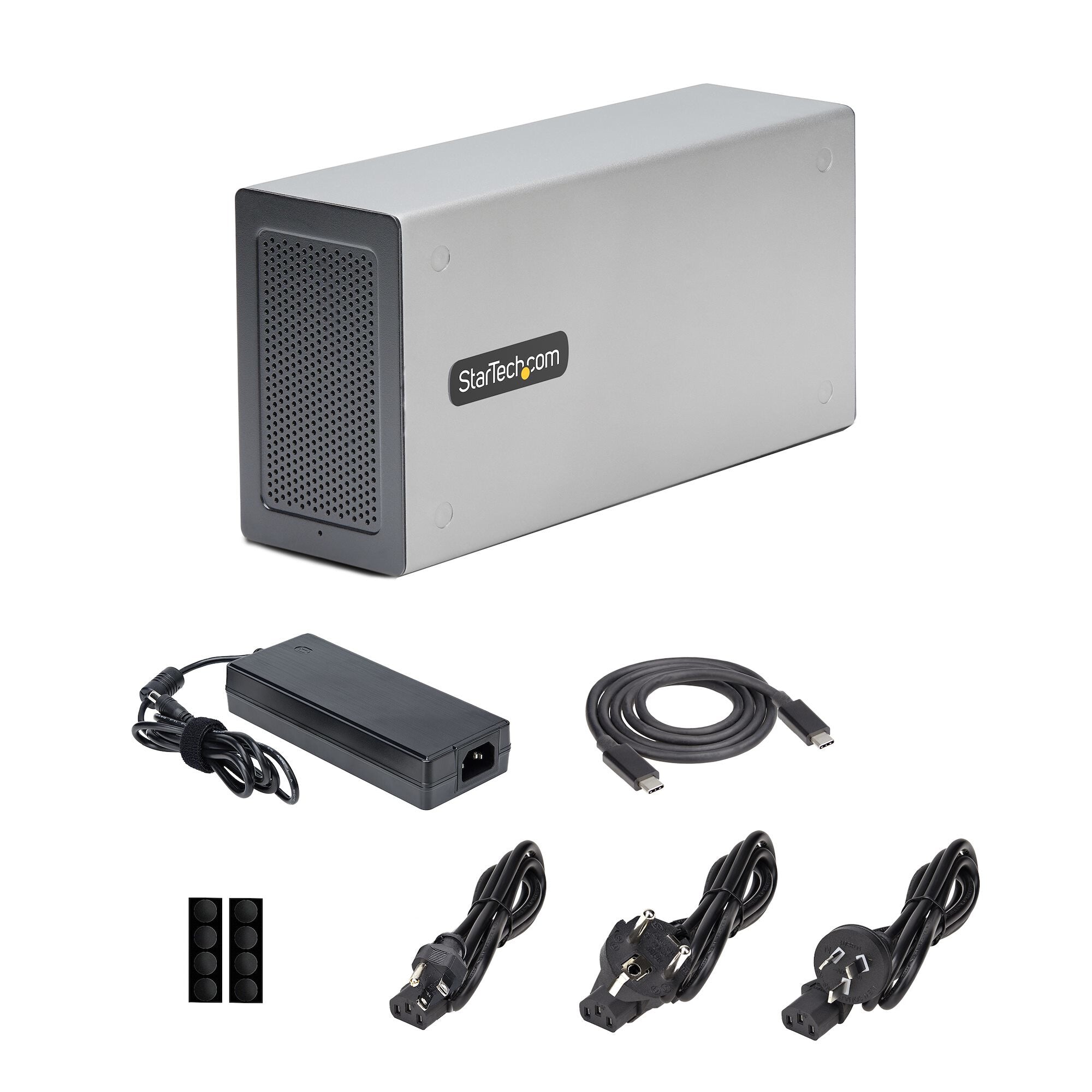

| Packaging content | |
|---|---|
| Cables included | Thunderbolt |

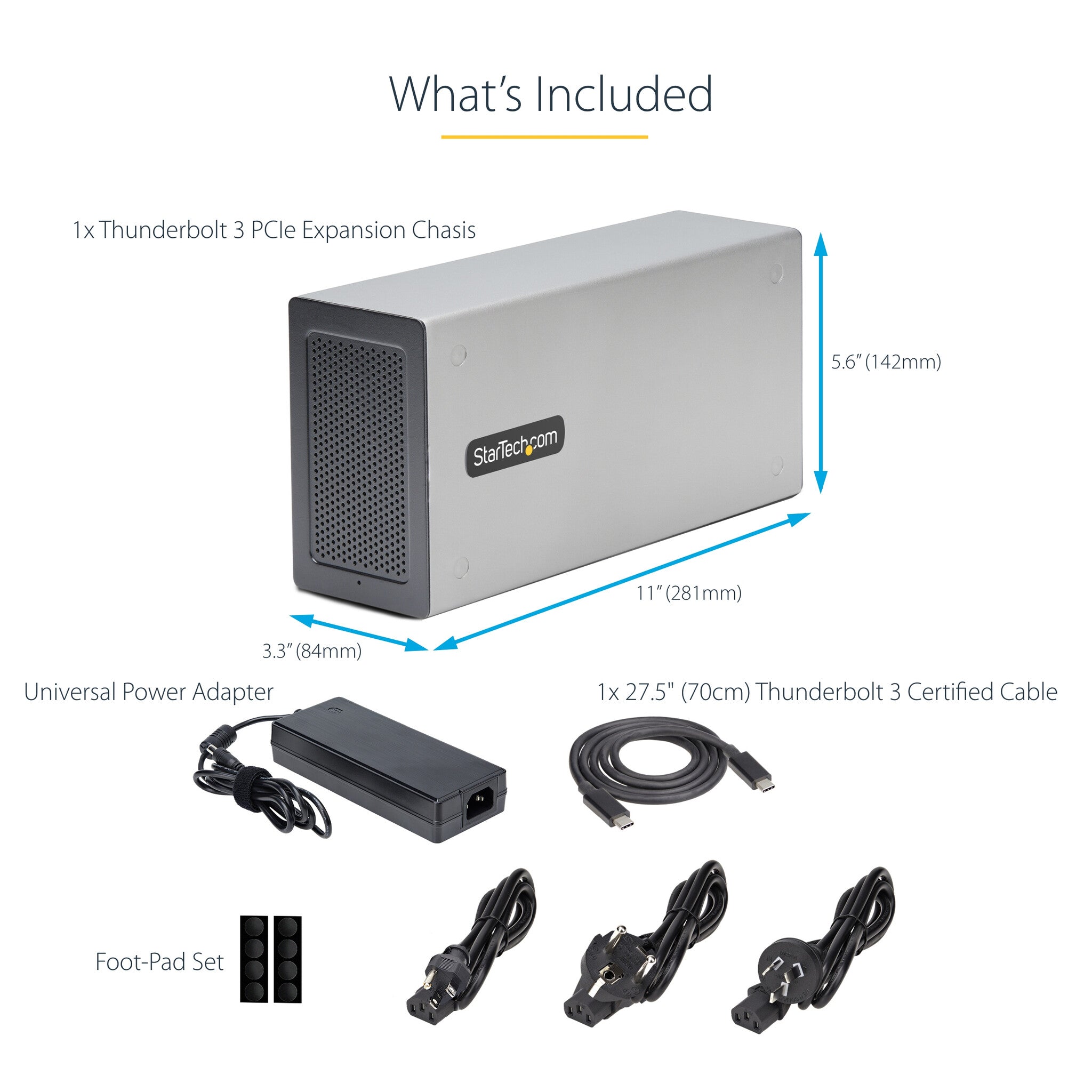

| Quick start guide | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
|---|---|
| Master (outer) case height | 325 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case width | 375 mm |
| Products per master (outer) case | 3 pc(s) |
| Other features | |
|---|---|
| Chipset | Titan Ridge DSL7440 (x2), Ti TPS65983B (x2) |
