StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
KEY FEATURES
- Internal
- Host interface: PCI/PCI-X
- Output interface: Serial
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Description
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART. Host interface: PCI/PCI-X, Output interface: Serial, Serial interface type: RS-422, RS-485. Certification: CE, FCC. Chipset: SystemBase -SB16C1052PCI, Baud rate: 128 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012. Width: 15 mm, Depth: 120 mm, Height: 45 mm

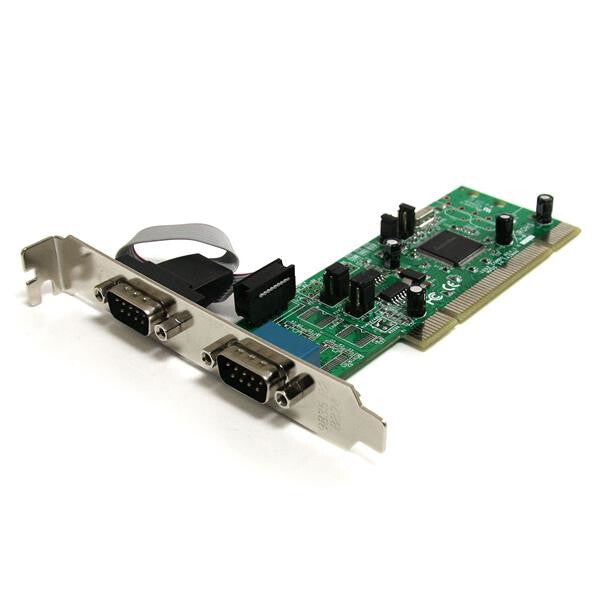

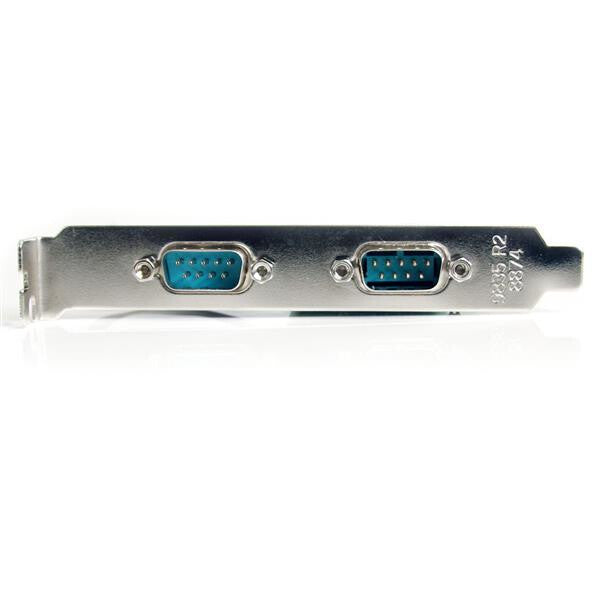

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

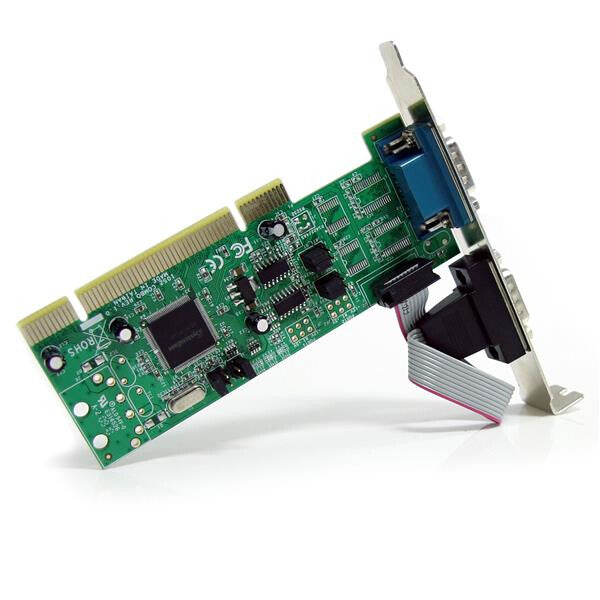

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
- A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application

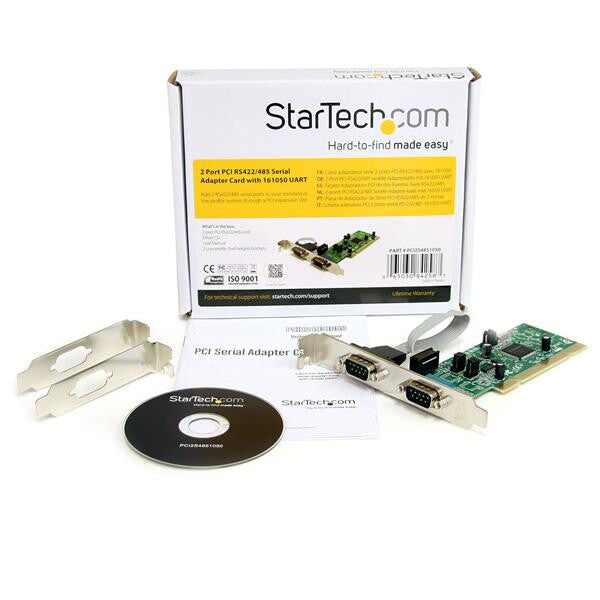

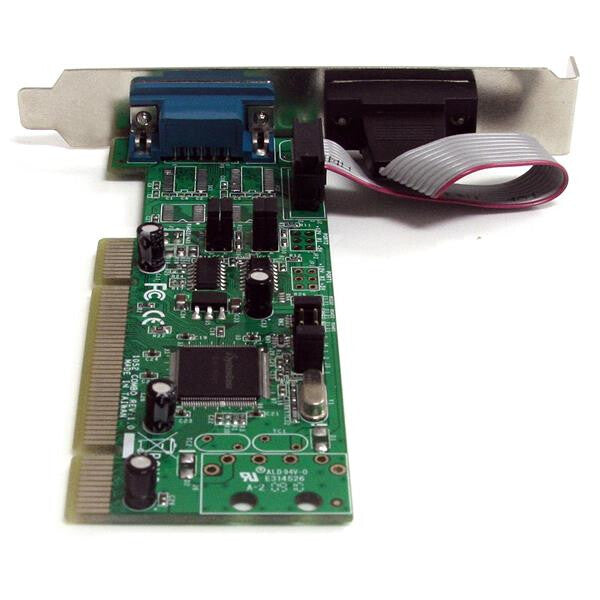

- Standard and low profile/half-height bracket included, ensuring easy installation into almost any system
Warranty: Lifetime
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-422, RS-485 |
| Serial ports quantity | 2 |
| Output interface | Serial |
| Host interface | PCI/PCI-X |
| Design | |
|---|---|
| Certification | CE, FCC |
| Internal | Yes |
| Features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Flow control support | Yes |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8 |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 128 Kbit/s |
| Chipset | SystemBase -SB16C1052PCI |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating temperature (T-T) | -10 - 80 °C |
| System requirements | |
|---|---|
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 58 g |
| Height | 45 mm |
| Depth | 120 mm |
| Width | 15 mm |
| Packaging data | |
|---|---|
| Package weight | 152 g |
| Package height | 32 mm |
| Package depth | 175 mm |
| Package width | 145 mm |
| Manual | Yes |
| Drivers included | Yes |
| Other features | |
|---|---|
| Compatible operating systems | Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x |
| Data transfer rate | 0.128 Mbit/s |
