StarTech.com Thunderbolt 3 Dock w/ USB-C Host Compatibility - Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI Monitors - Single 8K - TB3/USB-C Laptop Docking Station - 96W PD, 5xUSB - 10Gbps
KEY FEATURES
- HIGH-PERFORMANCE DOCK: Driverless setup for plug-and-play installation; Dual monitor 4K 60Hz; 5x USB Hub (incl 2x fast charge ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet, headset ports; 96W Power Delivery
- FLEXIBLE MONITOR OUTPUTS: Dual 4K 60Hz video output utilizing direct GPU performance with no software or compression; Use DP or HDMI monitors; Up to dual 4K 30Hz on USB-C (non TB3) laptops; Thunderbolt 3 Dock with 2x DP 1.4 & 2x HDMI 2.0 ports
- COMPATIBILITY: Compatible with Windows, macOS, ChromeOS & Ubuntu; Works with all USB-C and Thunderbolt 3/4 laptops; Extended dual displays on Apple M1 / M2 / M3 Max and Pro; single Display on Apple M1 / M2 / M3 MacBooks
- 96W POWER DELIVERY 3.0 CERTIFIED: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; The Dock can deliver up to 100W peak power (96W sustained)
- DEVICE SECURITY: Thunderbolt/USB-C dock Includes 2.6ft (0.8m) Thunderbolt 3 host cable; Mounting holes for optional brackets (SSPMSVESA, SSPMSUDWM); K-Slot for security lock
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com Thunderbolt 3 Dock w/ USB-C Host Compatibility - Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI Monitors - Single 8K - TB3/USB-C Laptop Docking Station - 96W PD, 5xUSB - 10Gbps
Description
StarTech.com Thunderbolt 3 Dock w/ USB-C Host Compatibility - Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI Monitors - Single 8K - TB3/USB-C Laptop Docking Station - 96W PD, 5xUSB - 10Gbps. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 96 W. Product colour: Black, Grey, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 7680 x 4320 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur,..., Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS. Width: 220 mm, Depth: 80 mm, Height: 30 mm
Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows®| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable
A high-performance Thunderbolt 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either Dual or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet & headset ports.
Flexible Dual Display Outputs
This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort
HDMI + HDMI
DisplayPort + HDMI
Resolutions and video outputs are host-dependent.
Host Output
DCS Status
Single Video
Dual Video
Thunderbolt with DP 1.4 (nVidia Graphics)
Off
8K (7680 x 4320) @ 30Hz (DP Only)
n/a
Thunderbolt with DP 1.4 (nVidia Graphics)
Off
n/a
2x 4K (3840x2160) @60Hz
Thunderbolt with DP 1.4 (nVidia Graphics)
On
4K (3840x2160) @144Hz
n/a
Thunderbolt with DP 1.4 (nVidia Graphics)
On
n/a
2x 4K (3840x2160) @60Hz
Thunderbolt with DP 1.4 (Intel Graphics)
n/a
5K (5120x2880) @60Hz (DP Only)
n/a
Thunderbolt with DP 1.4 (Intel Graphics)
n/a
n/a
2x 4K (3840x2160) @60Hz
Thunderbolt with DP 1.2
n/a
4K (3840x2160) @60Hz
n/a
Thunderbolt with DP 1.2
n/a
n/a
2x 4K (3840x2160) @60Hz
USB Type-C DP Alternate Mode DP 1.4
Off
4K (3840x2160) @30Hz
n/a
USB Type-C DP Alternate Mode DP 1.4
Off
n/a
2x QHD (2560x1440)
USB Type-C DP Alternate Mode DP 1.4
On
5K (5120x2880) @60Hz (DP Only)
n/a
USB Type-C DP Alternate Mode DP 1.4
On
n/a
2x 4K (3840x2160) @60Hz
USB Type-C DP Alternate Mode DP 1.2
n/a
4K (3840x2160) @30Hz
n/a
USB Type-C DP Alternate Mode DP 1.2
n/a
n/a
2x 1080p (1920x1080) @ 60Hz
More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

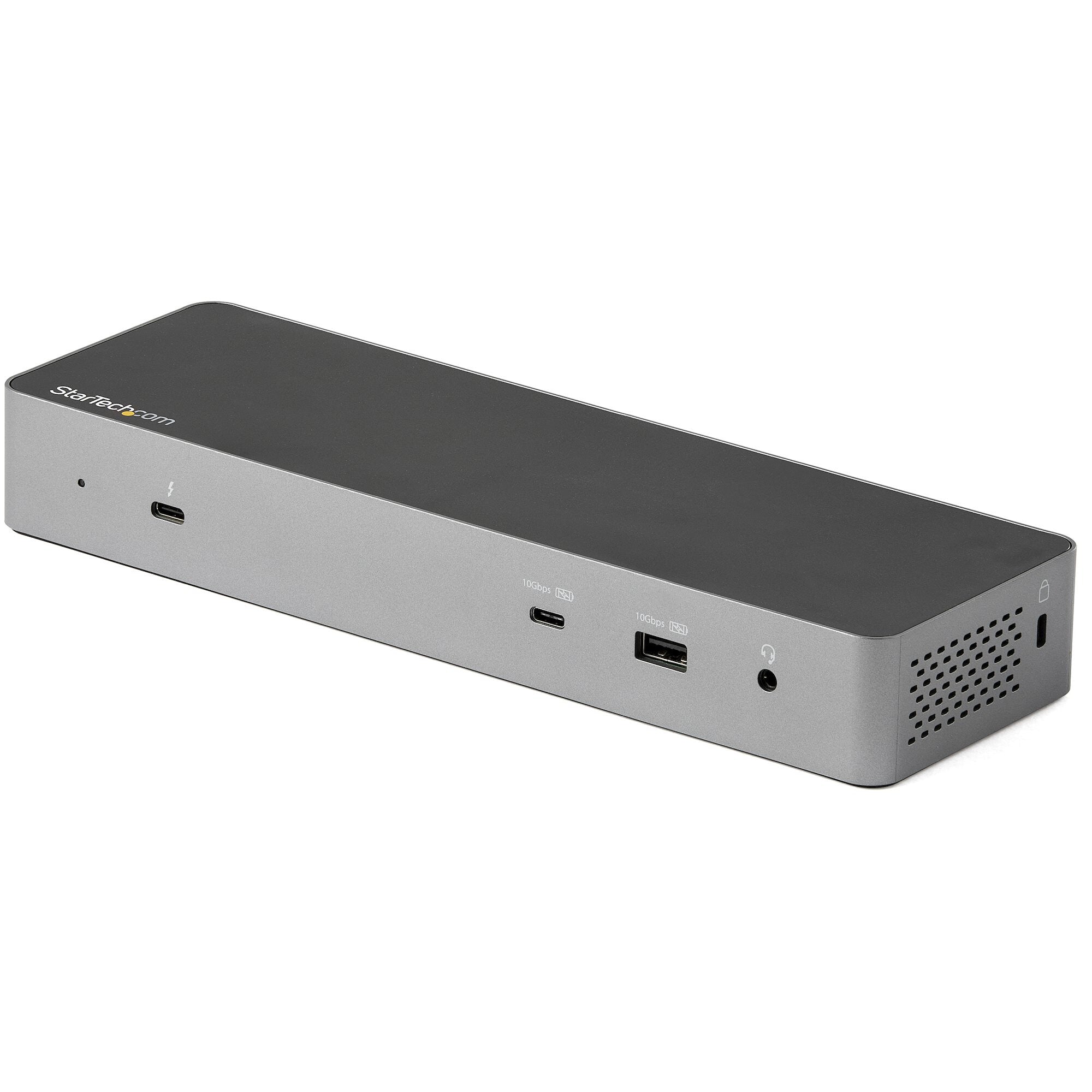

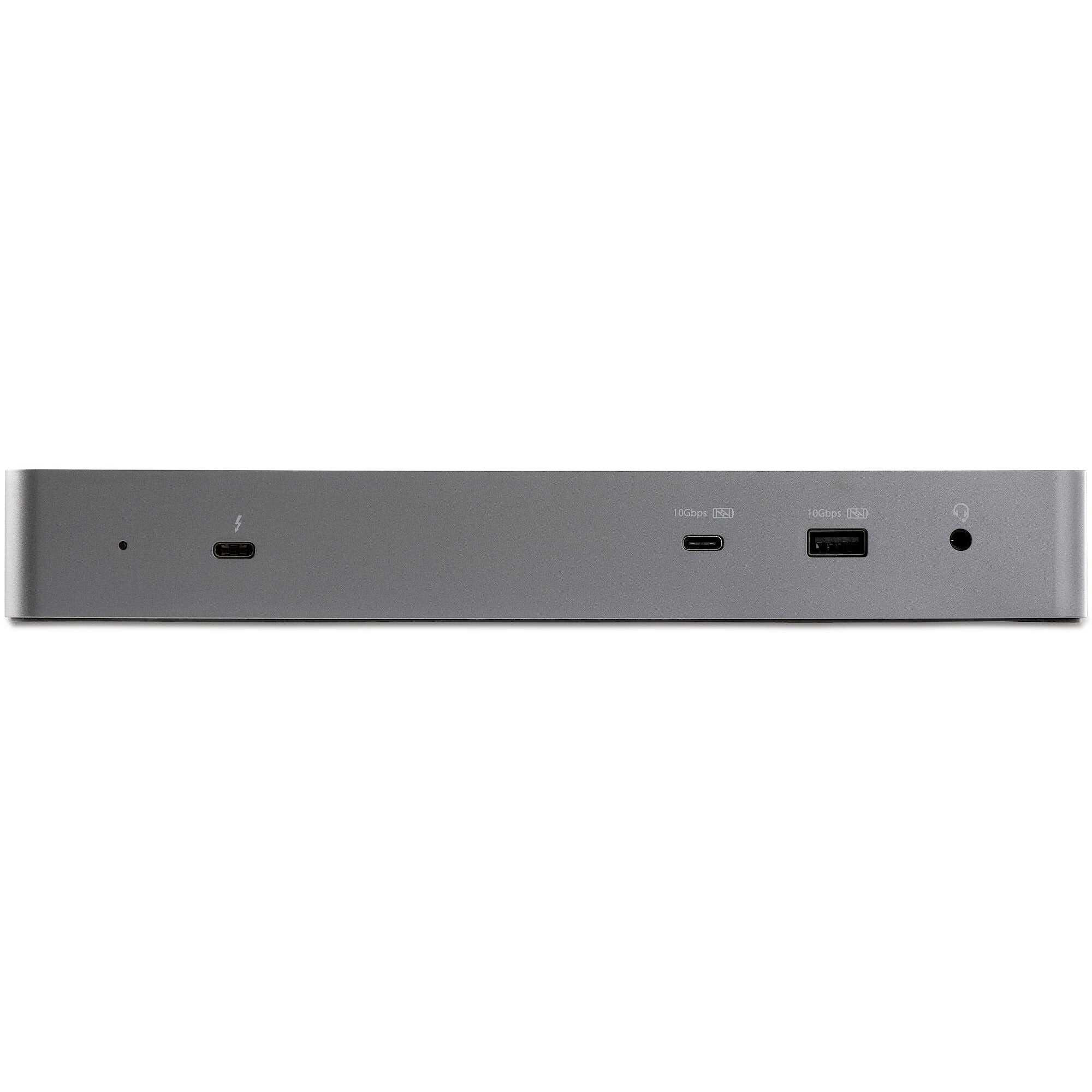

Front Facing:
1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

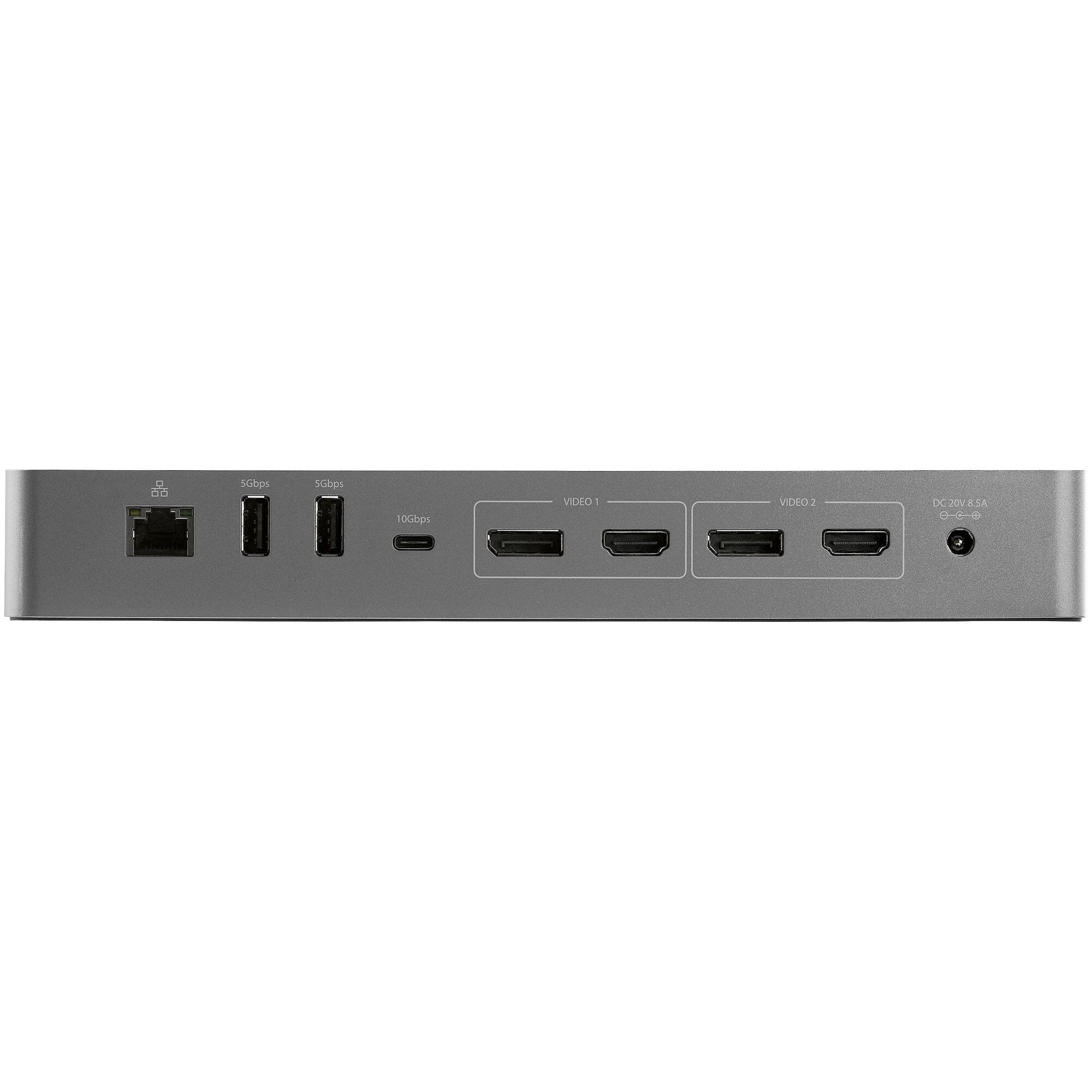

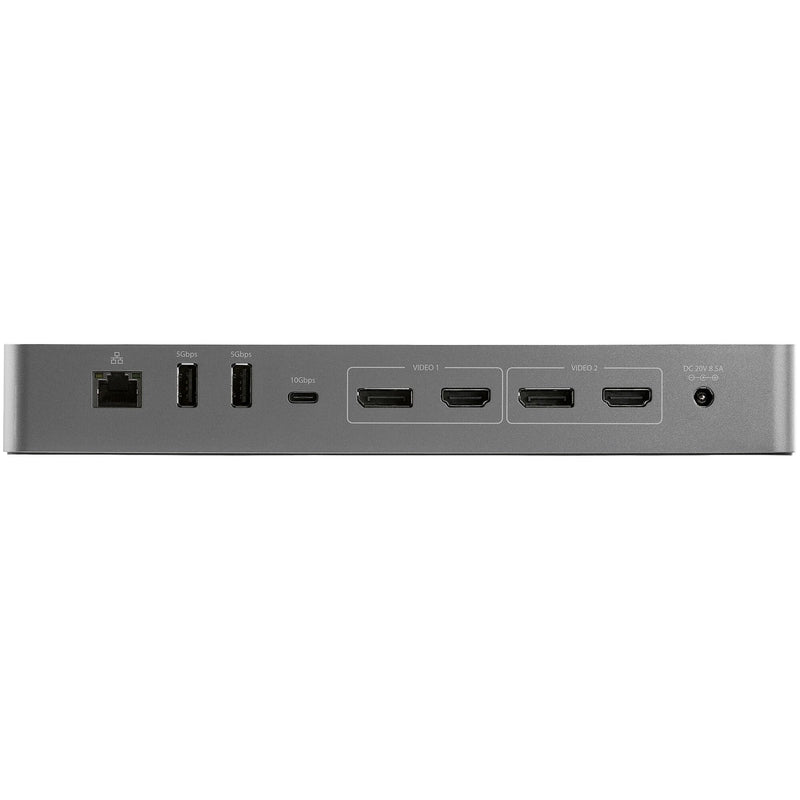

Back Facing:
2x USB 3.2 Gen 1 Type-A (5 Gbps)
1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage
This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Connected Device Transparency with the StarTech.com MAC Address Changer Utility
The TB3CDK2DHUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.
TB3CDK2DHUE is backed by a StarTech.com three-year warranty and free lifetime technical support.
The StarTech.com Advantage
- FULL FUNCTION DOCK: Thunderbolt 3 docking station with USB-C compatibility features dual monitor 4K 60Hz, 96W PD, 5x USB Hub (incl 2x BC 1.2 charging ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet, headset ports
- 96W CERTIFIED POWER DELIVERY: Thunderbolt 3 / USB Type-C Dock can deliver up to 100W peak power (96W sustained) and charge high performance laptops, Ultrabooks & workstation laptop computers such as MacBook Pro 16, HP, Lenovo ThinkPad & Dell XPS
- FLEXIBLE MONITOR OUTPUTS: Thunderbolt 3 docking station features dual DisplayPort 1.4 w/ DSC (single 8K 30Hz) or dual HDMI 2.0 video outputs w/ options for dual DP, dual HDMI or DP + HDMI displays at dual 4K 60Hz on both TB3 & USB-C (non TB3) laptops
Warranty: 3 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| USB Power Delivery up to | 96 W |
| USB Power Delivery | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Host interface | Thunderbolt 3 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Number of displays supported | 2 |
| Maximum digital resolution | 7680 x 4320 pixels |
| Data transfer rate | 40 Gbit/s |
| Card reader integrated | No |
| Product colour | Black, Grey |
| Power | |
|---|---|
| Compatible power plug types | EU, UK |
| Output voltage | 20 V |
| Output current | 8.5 A |
| Input current | 2.5 A |
| AC input voltage | 100 - 240 V |
| Software | |
|---|---|
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 250 g |
| Height | 30 mm |
| Depth | 80 mm |
| Width | 220 mm |
| Packaging data | |
|---|---|
| Package weight | 1.1 kg |
| Package height | 110 mm |
| Package depth | 160 mm |
| Package width | 305 mm |
| Packaging content | |
|---|---|
| Cables included | AC, Thunderbolt |
| Manual | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 248 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 320 mm |
| Other features | |
|---|---|
| Chipset | C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C |
