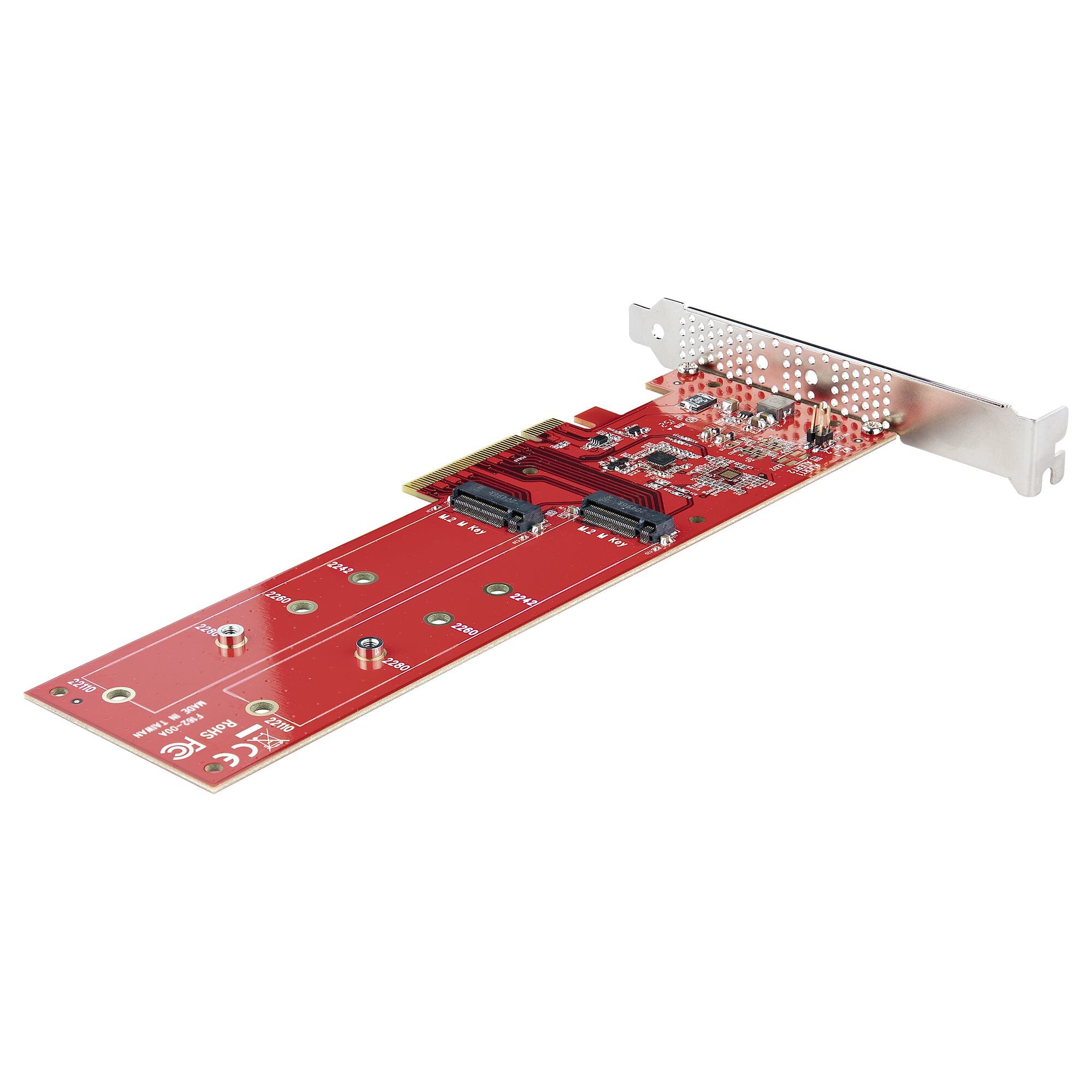

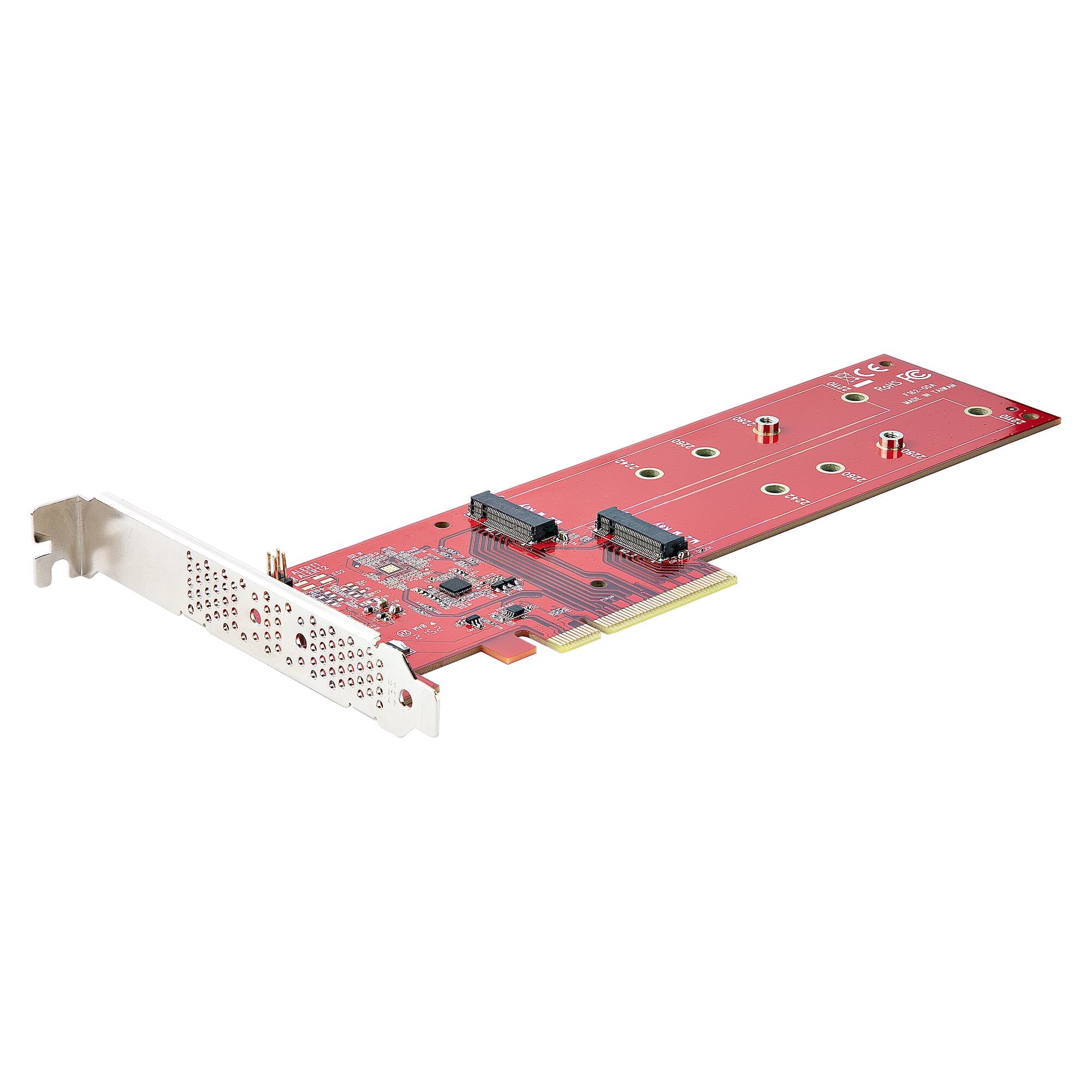

StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible
KEY FEATURES

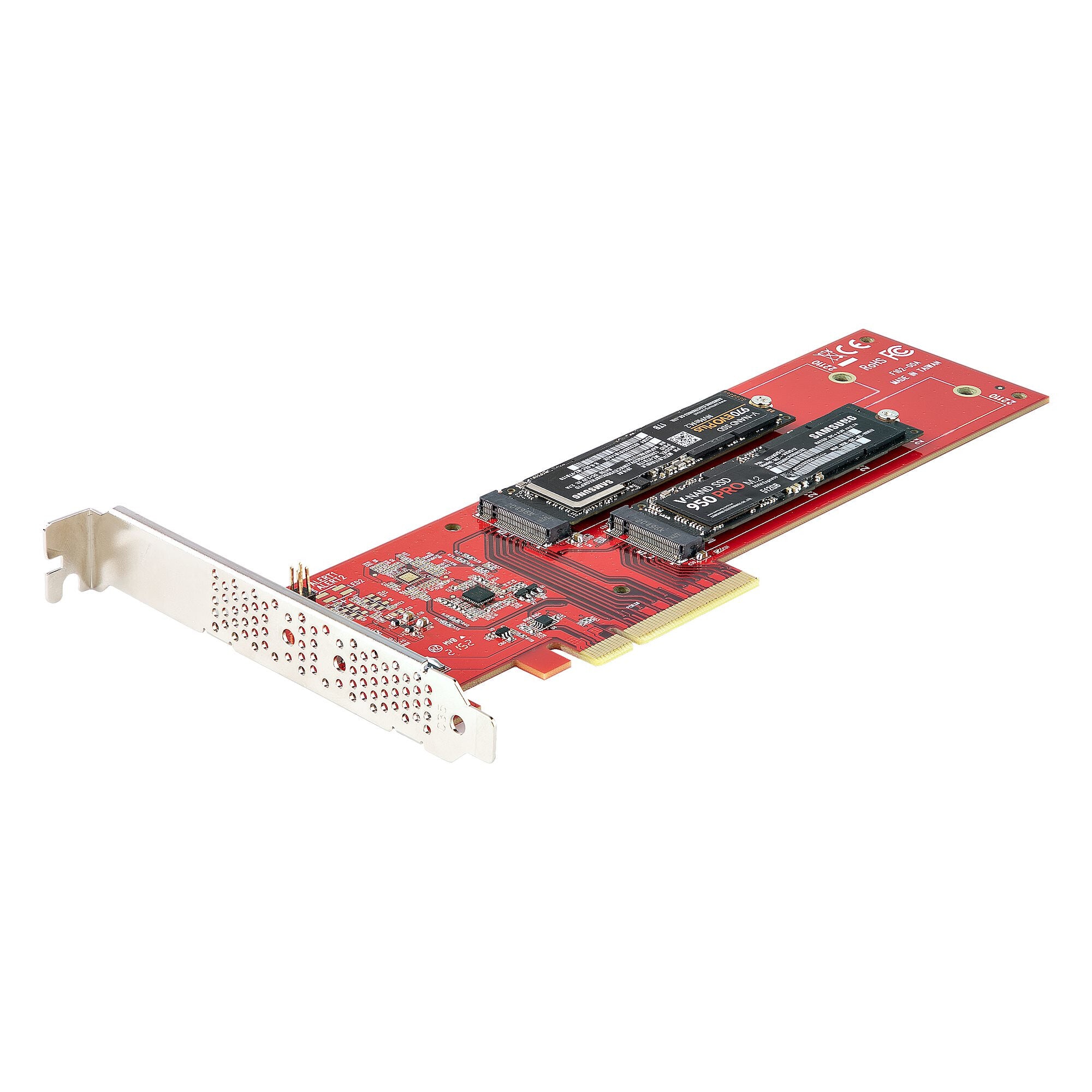

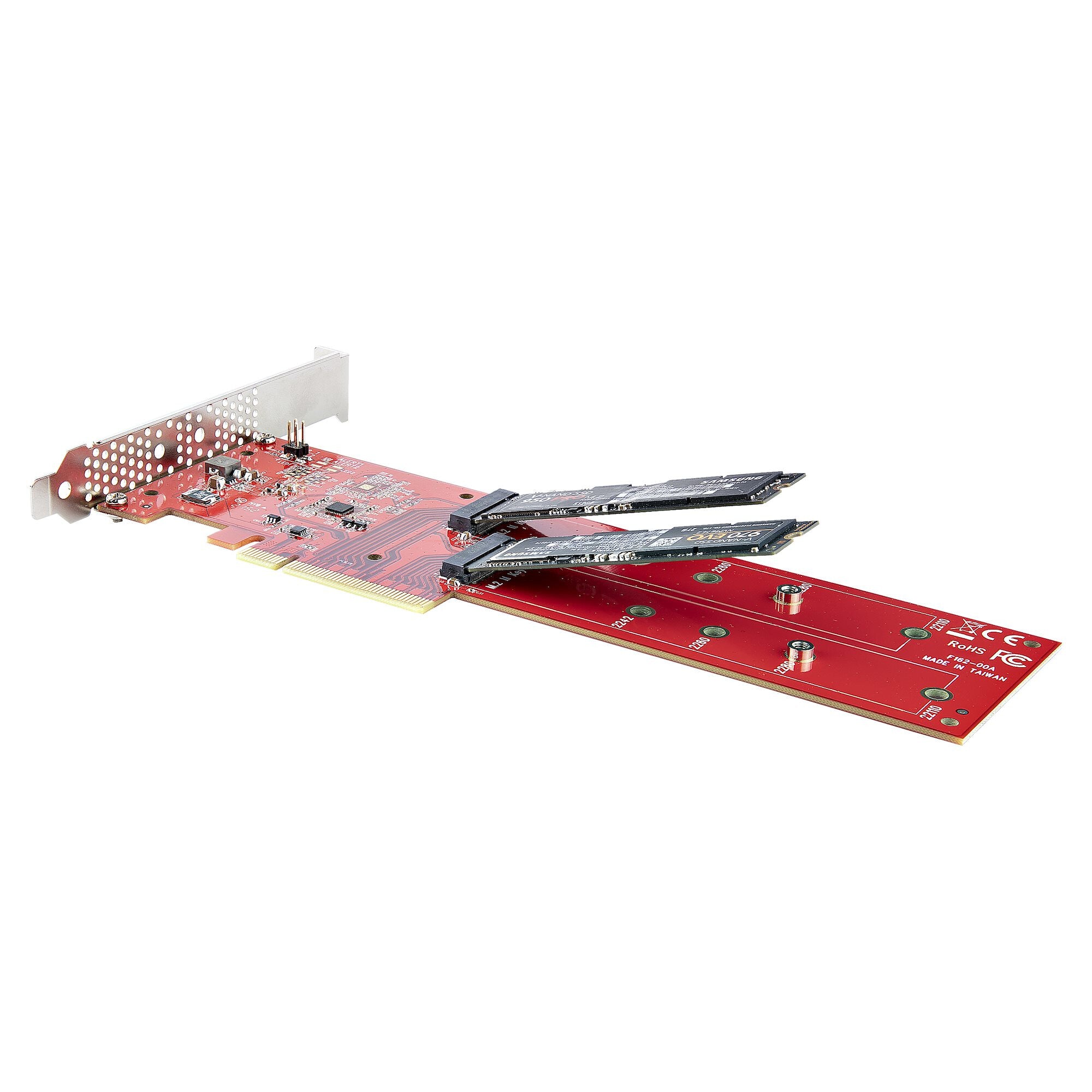

- HIGH PERFORMANCE: Install 2x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x8 or x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive

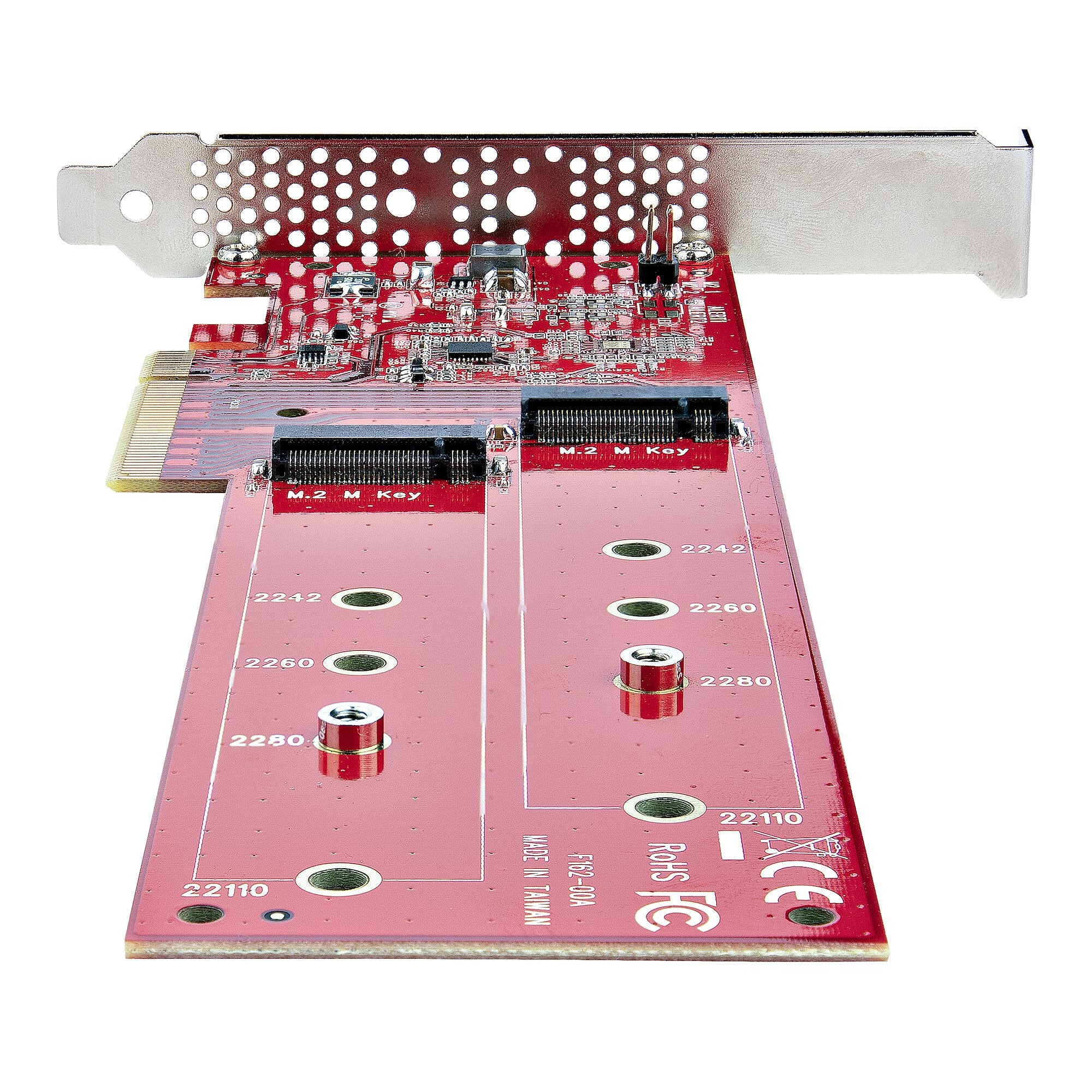

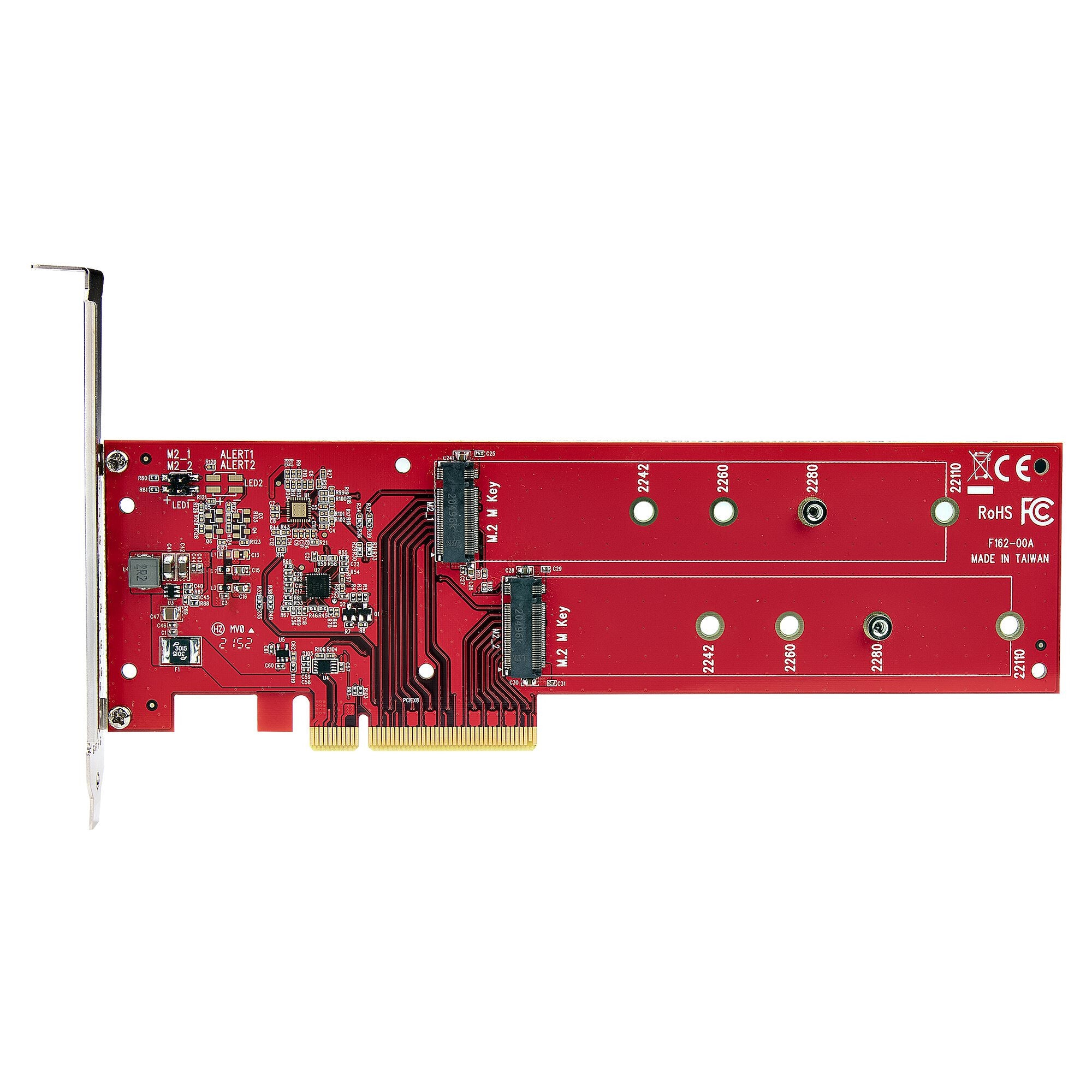

- WIDE COMPATIBILITY: This Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs / Not compatible with SATA based M.2 drives
- BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x8 or x16 PCIe slot / PCIe bifurcation is required / Works with all workstation and server OS's such as Windows, Windows Server, and Linux
- SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to your M.2 PCIe SSDs individually / With OS or 3rd party RAID software, build an array to add redundancy, higher capacity, or performance through RAID 0, RAID 1, or JBOD

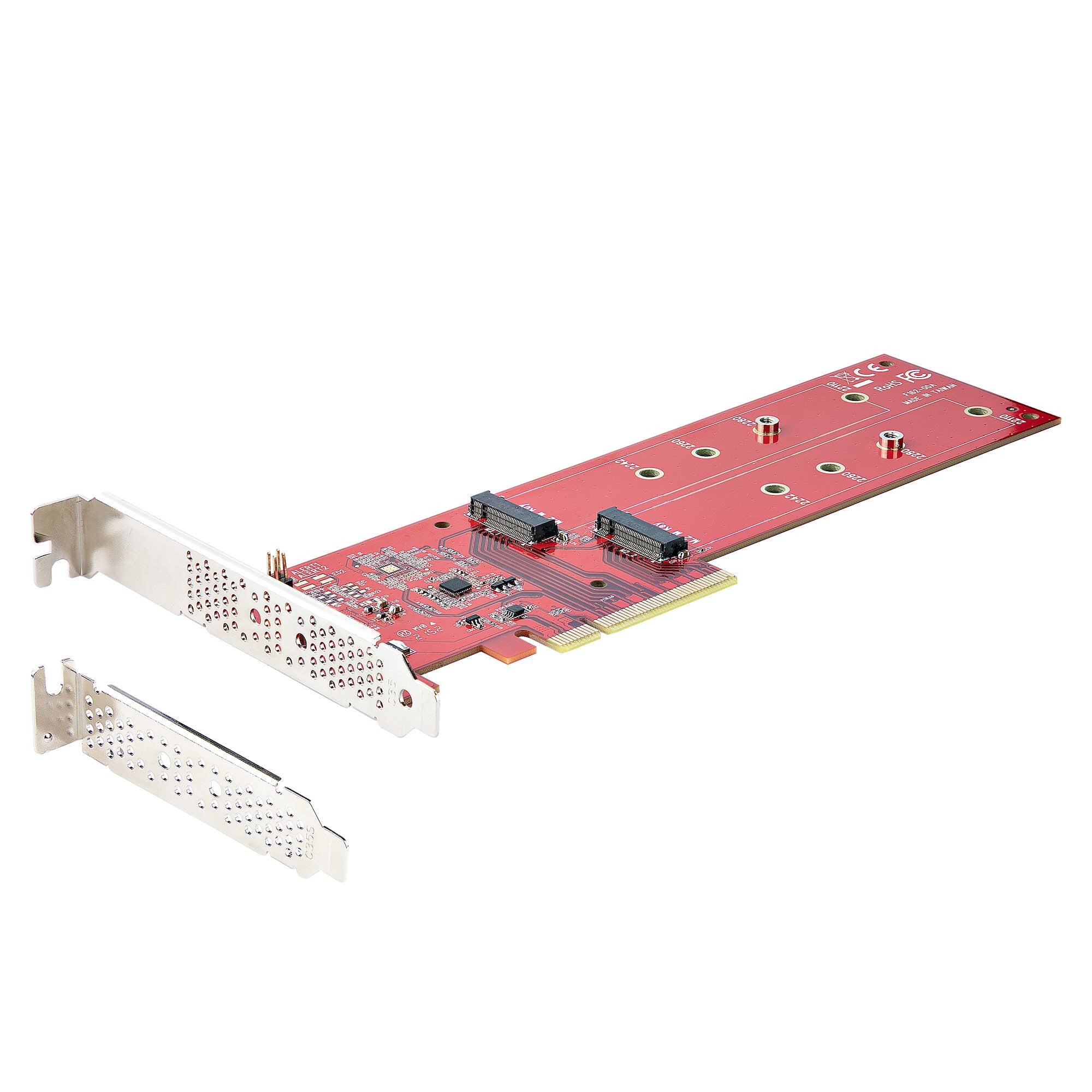

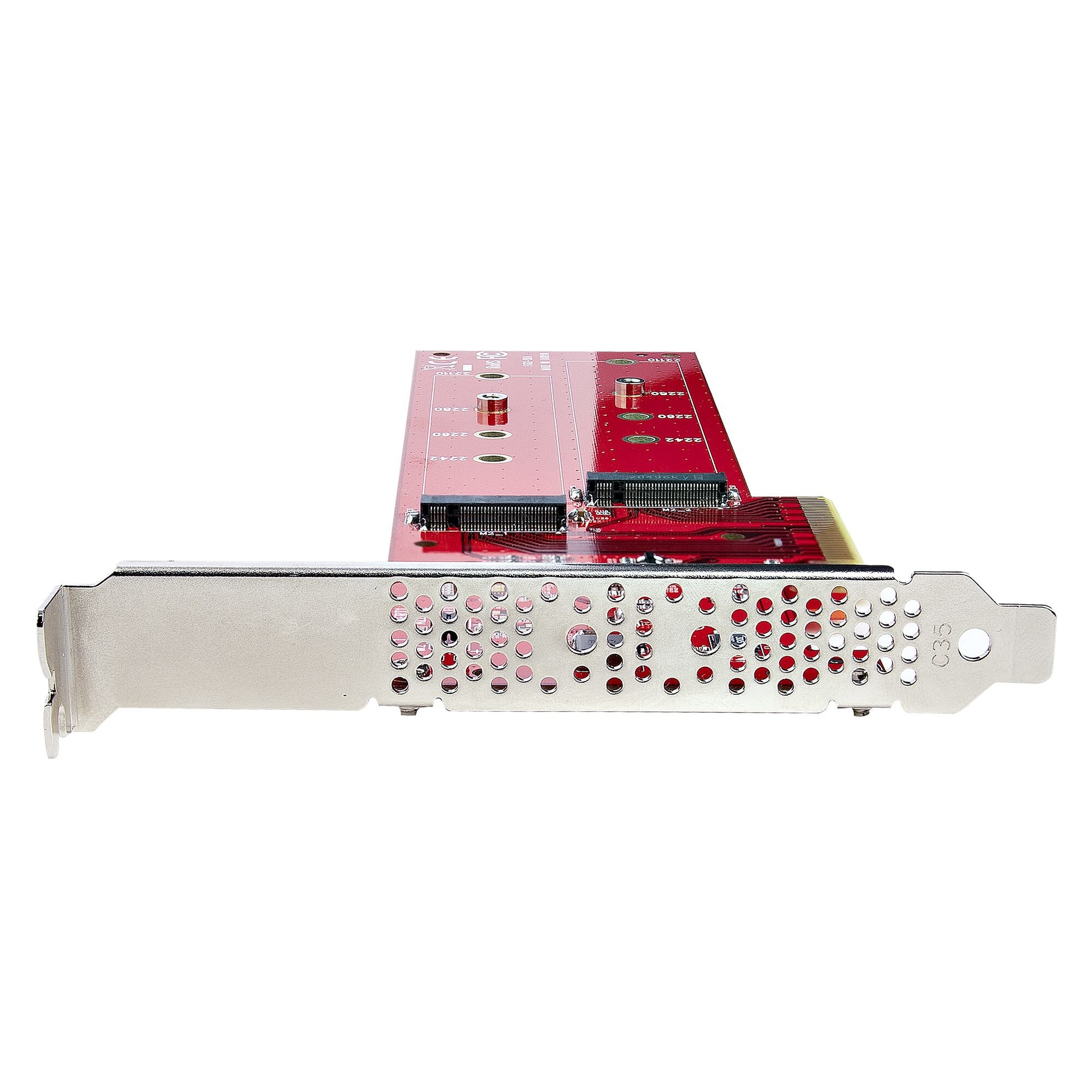

- VENTED BRACKETS: Pre-installed full profile bracket with included low-profile (half-height) bracket in the box / Vented brackets allow for better air flow which helps avoid overheating that can cause drive throttling
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible
Description
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Red, Mean time between failures (MTBF): 6493014 h. Data transfer rate (max): 7.8 Gbit/s. Supported storage drive heights: 22 mm. Width: 102 mm, Depth: 228 mm, Height: 22 mm

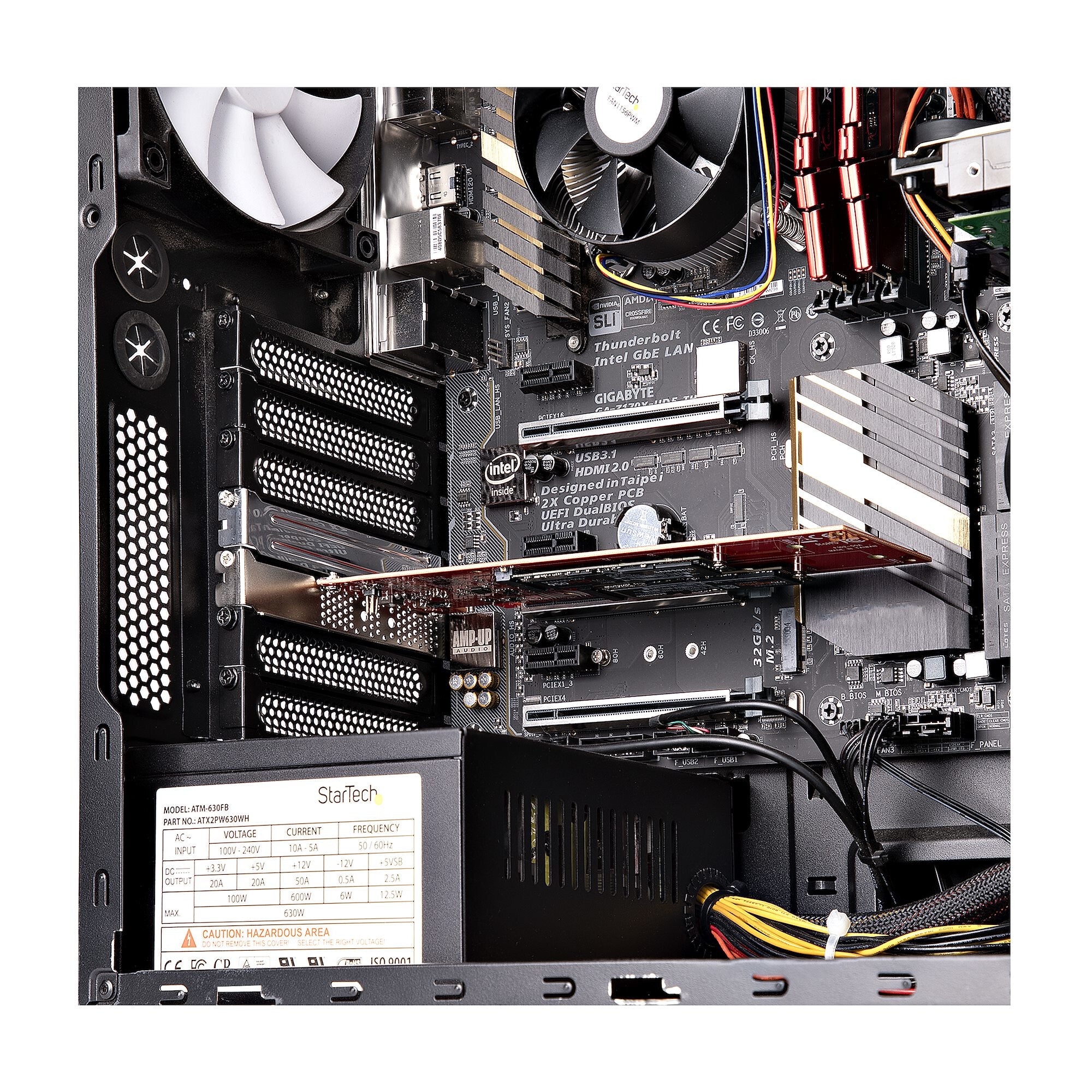

Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | BifurcationThis Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.Boost System PerformanceTake full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.Access two M.2 PCIe SSDs simultaneouslyNo on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.Wide CompatibilityThe PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.Vented BracketsThe included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistanceThe StarTech.com Advantage
Warranty: 2 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Expansion card standard | PCIe 4.0 |
| Output interface | M.2 |
| Host interface | PCIe |
| Design | |
|---|---|
| Hot-swap | No |
| Mean time between failures (MTBF) | 6493014 h |
| LED indicators | Yes |
| Product colour | Red |
| Internal | Yes |
| Features | |
|---|---|
| Data transfer rate (max) | 7.8 Gbit/s |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 15 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| System requirements | |
|---|---|
| Supported storage drive heights | 22 mm |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 74 g |
| Height | 22 mm |
| Depth | 228 mm |
| Width | 102 mm |
| Packaging data | |
|---|---|
| Package weight | 192 g |
| Package height | 30 mm |
| Package depth | 290 mm |
| Package width | 170 mm |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Master (outer) case height | 310 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 380 mm |
| Products per master (outer) case | 30 pc(s) |
