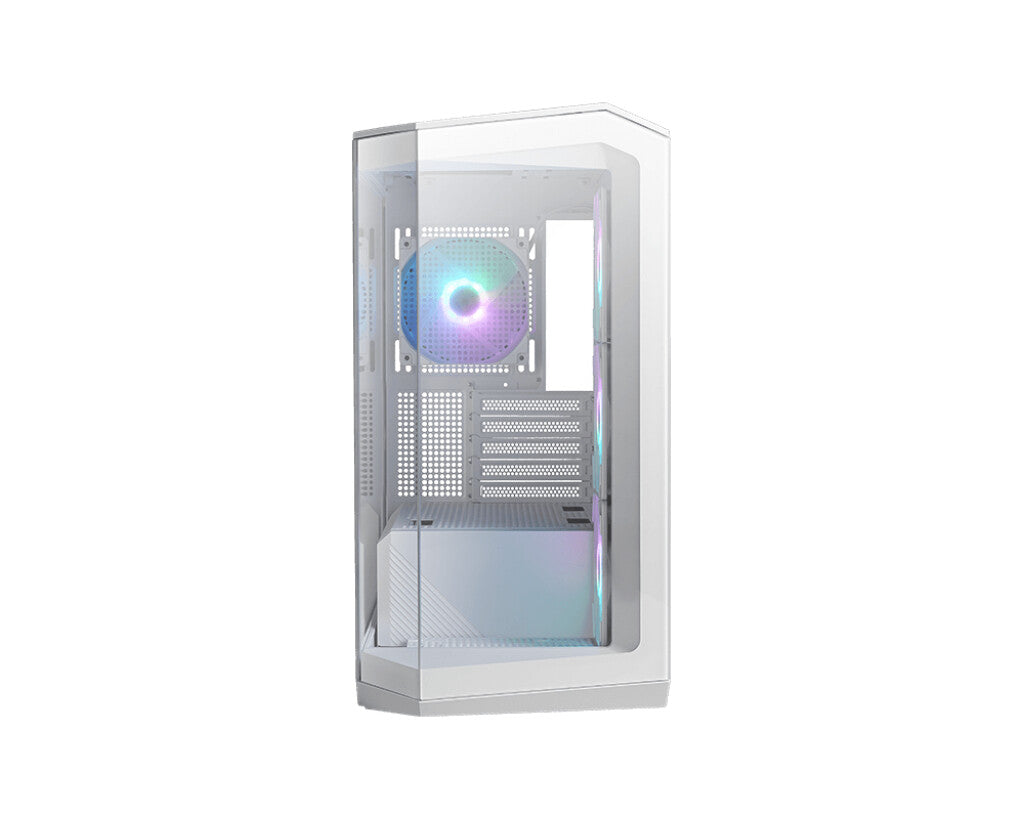

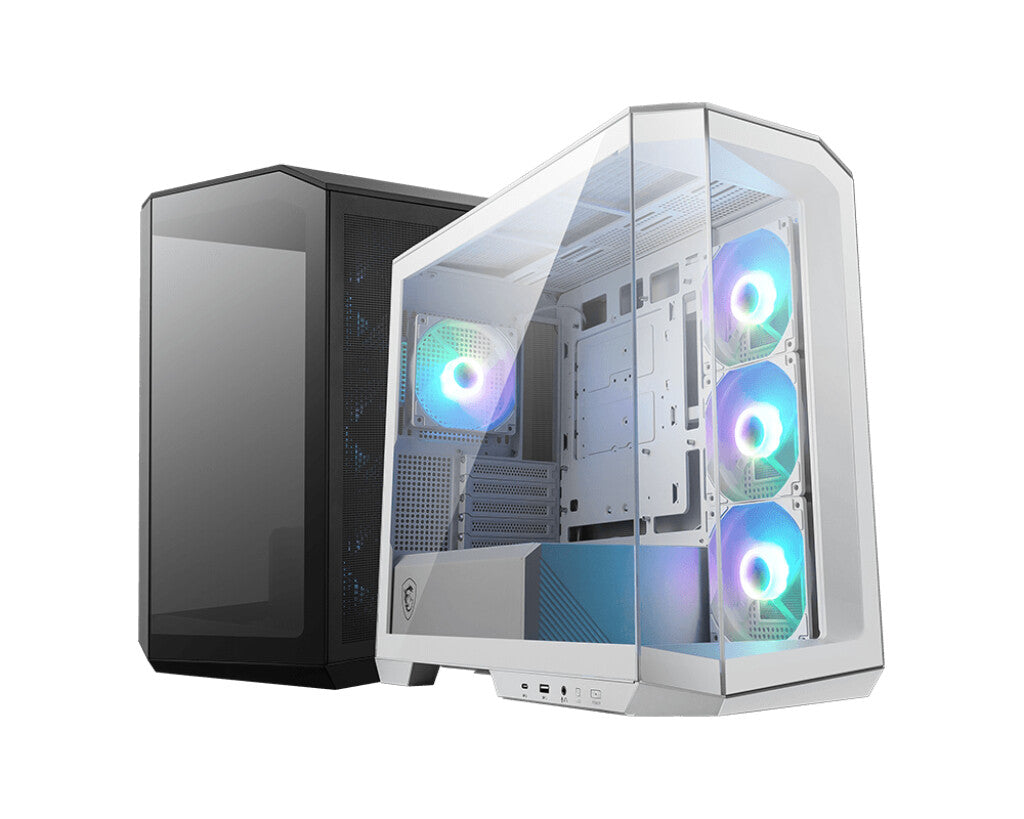

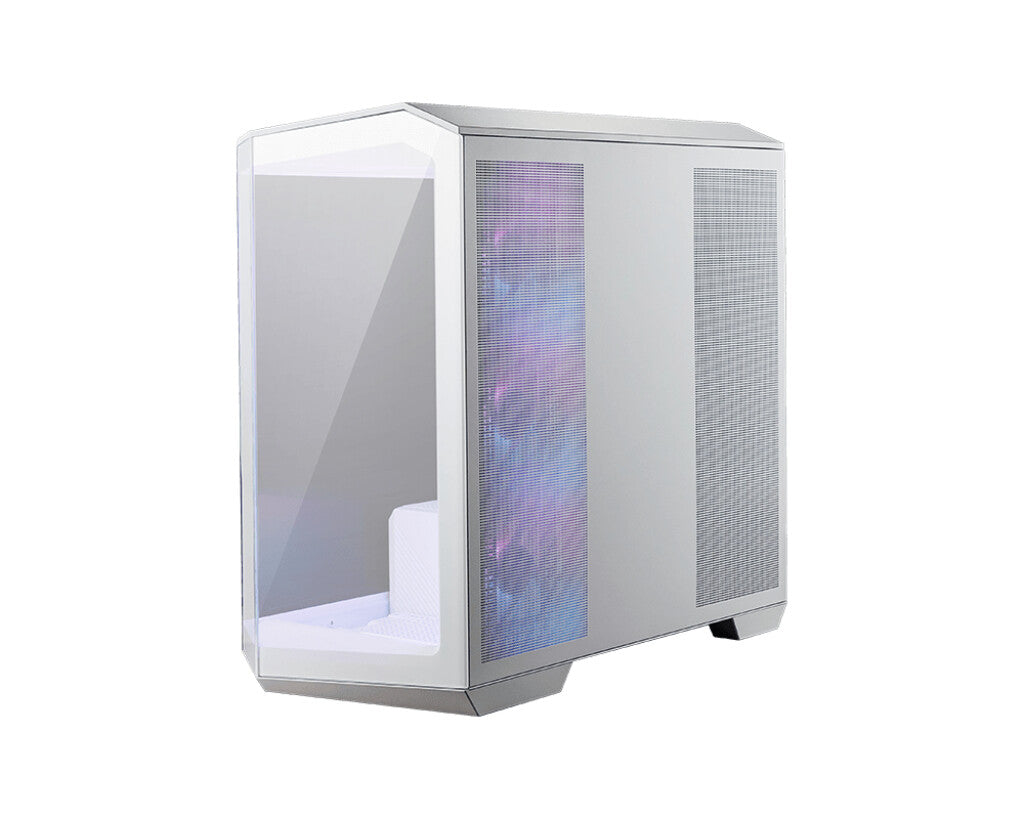

MSI MAG PANO M100R PZ ARGB Micro Tower PC Case White | Liquid Cooling Support
KEY FEATURES
- Micro-ATX Back-connect PROJECT ZERO motherboard supported
- Supports up to 360 mm AIO liquid cooler on the top
- 270-degree panoramic tempered glass
- Supports up to 10 x 120 mm system fans
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects
- The Magnetic Dust Filter at the bottom being easily removed for cleaning
- DIY Friendly cables make your DIY process easier and create more possibilities to your system
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
MSI MAG PANO M100R PZ ARGB Micro Tower PC Case White | Liquid Cooling Support
Description
MSI MAG PANO M100R PZ. Form factor: Micro Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 235 mm, Depth: 440 mm, Height: 405 mm
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.
FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
BETTER TOGETHER
Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high speed data transmission.
CONNECTABLE FRONT I/O
- USB 3.2 Gen 2x2 Type-C
- USB 3.2 Gen 1 Type-A
- Mic-in / Audio-out
- LED Switch
- Power
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Design | |
|---|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | Metal |
| Product colour | White |
| Supported motherboard form factors | ITX, micro ATX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 39 cm |
| Maximum PSU length | 20 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Power supply shroud | Yes |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
|---|---|
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator fan sizes supported | 120,140 mm |
| Top radiator fan sizes supported | 120,240,360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 235 mm |
| Depth | 440 mm |
| Height | 405 mm |
| Weight | 8.66 kg |
| Packaging data | |
|---|---|
| Package weight | 11.3 kg |
