MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H, Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
KEY FEATURES
- Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU
- Supports DDR5 5200MHz memory
- Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
- Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
- 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
- MSI Power Link support
- MSI Power Meter software
- Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H, Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Description
MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H, Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA. Processor frequency: 1.2 GHz, Processor family: Intel Core Ultra 5, Processor model: 125H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black

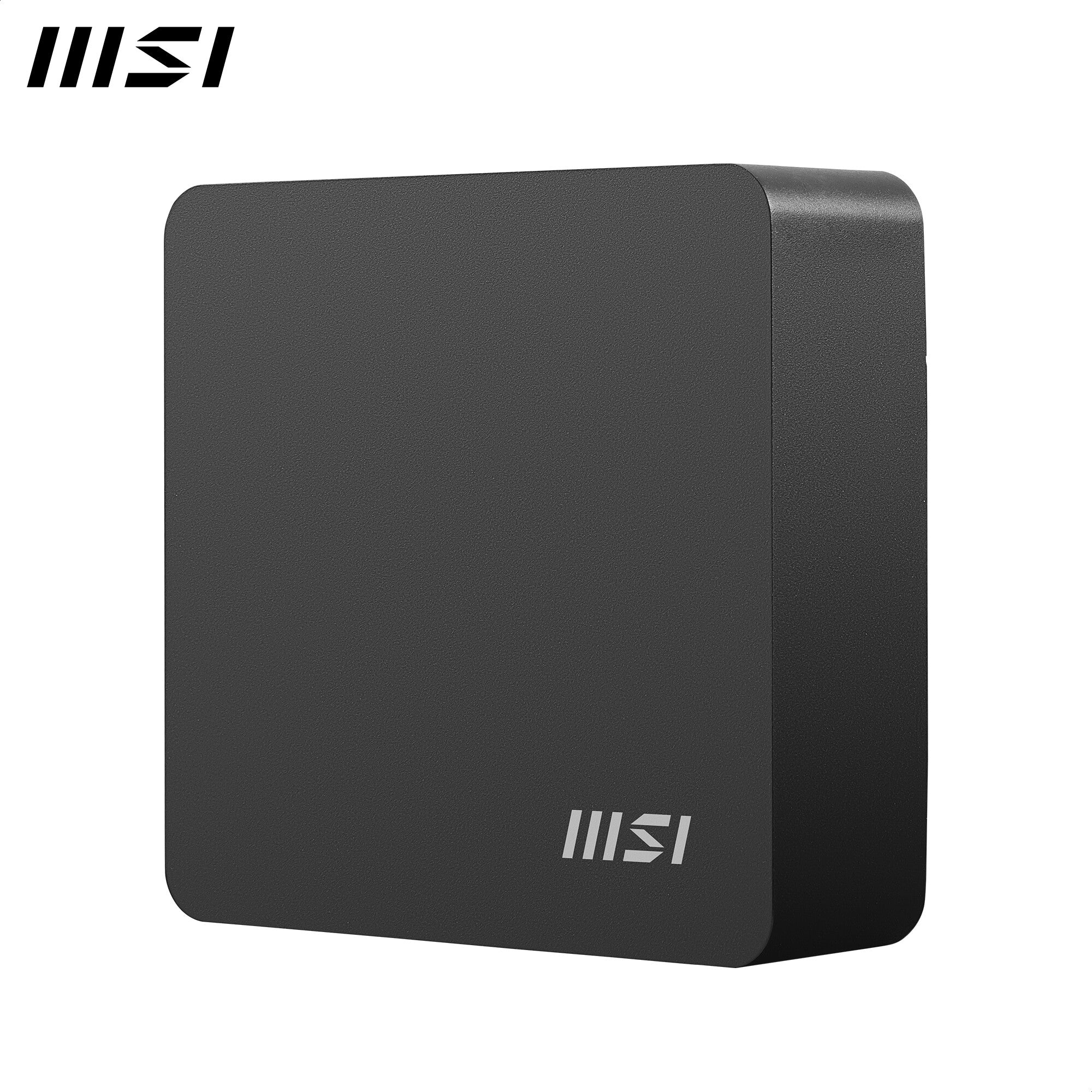

The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel Core Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience

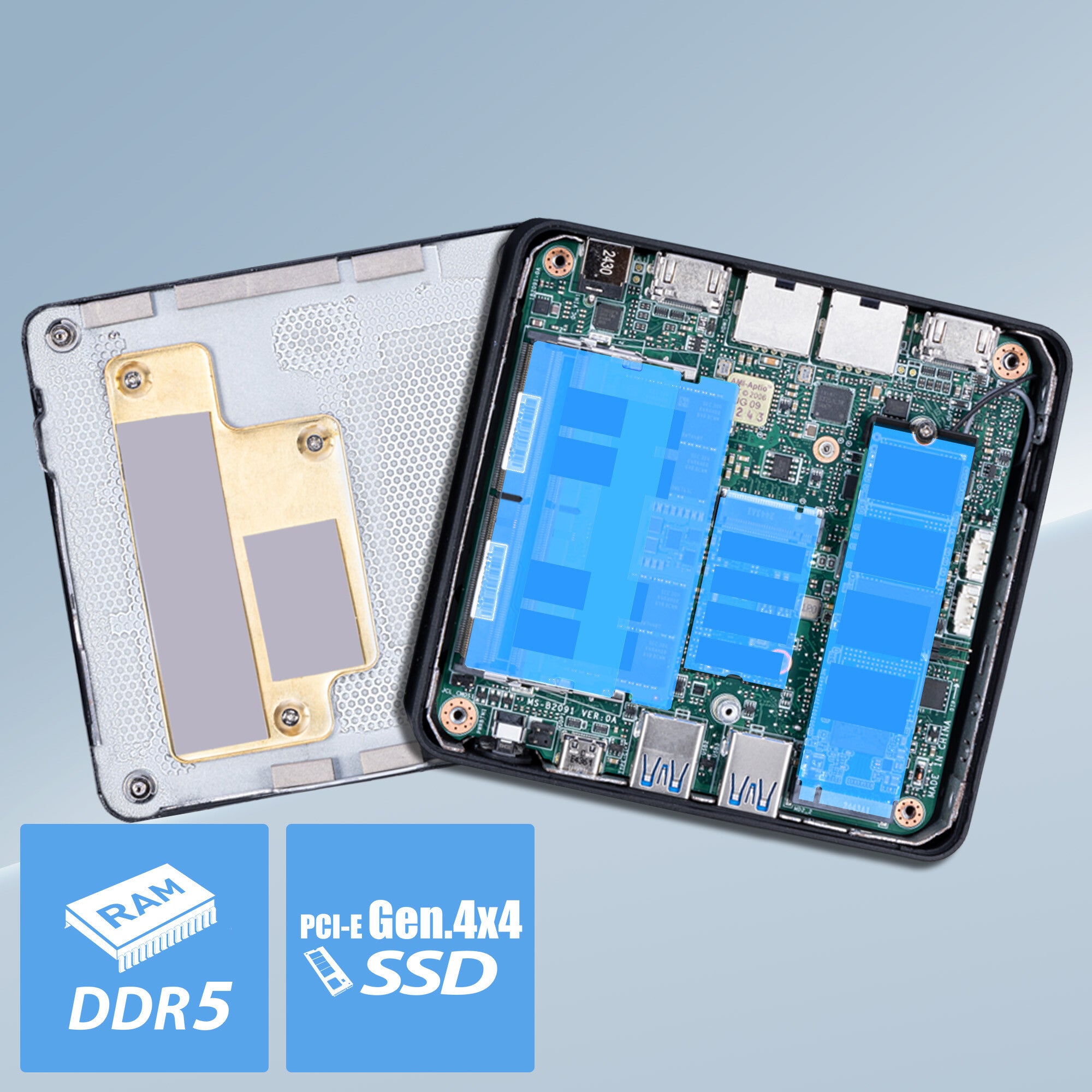

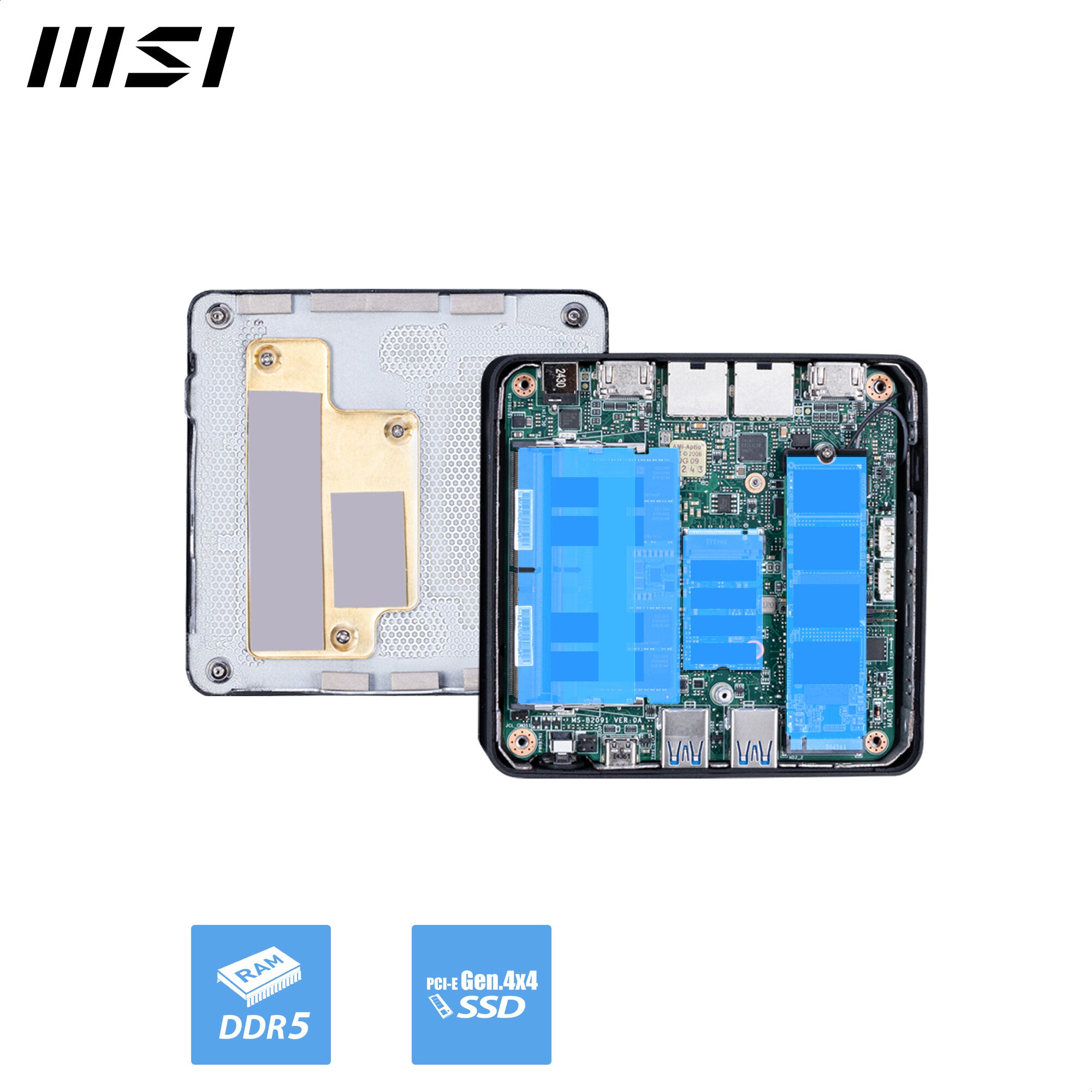

RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x 8GB DDR55 SO-DIMM, up to 64GB). 1 x M.2 2280 SSD (PCIE, factory pre-installed) 1x M.2 2242 SSD (PCIE, free slot)

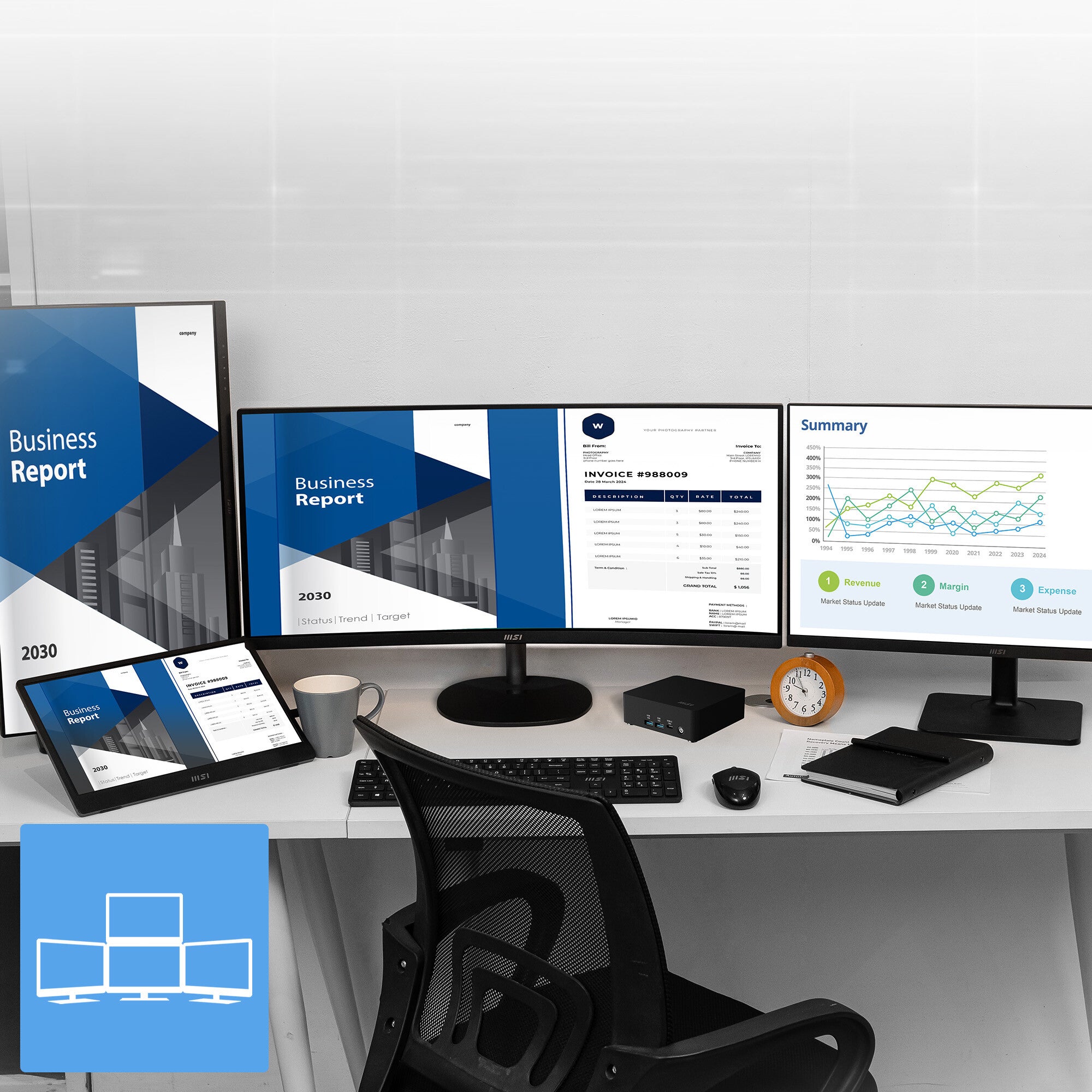

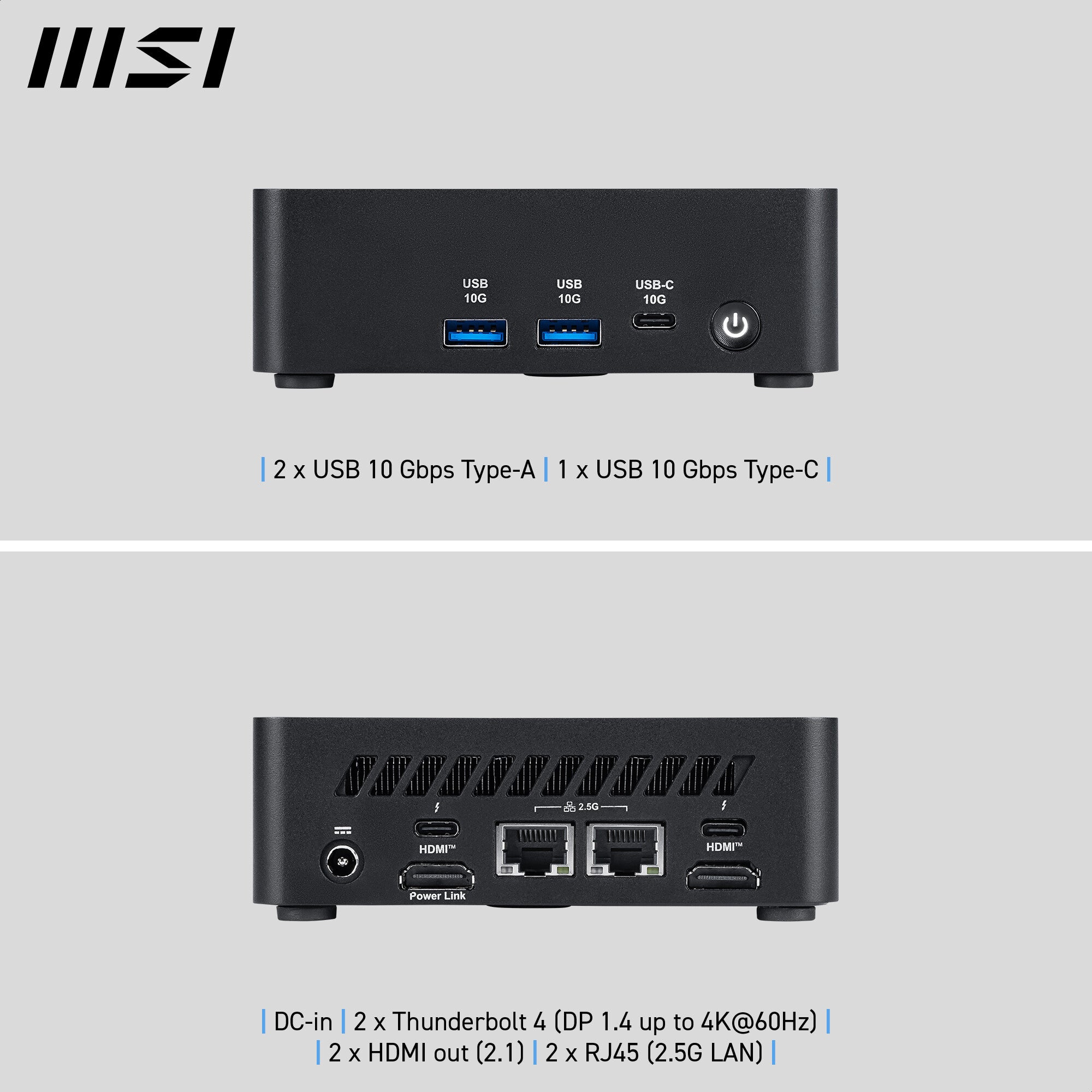

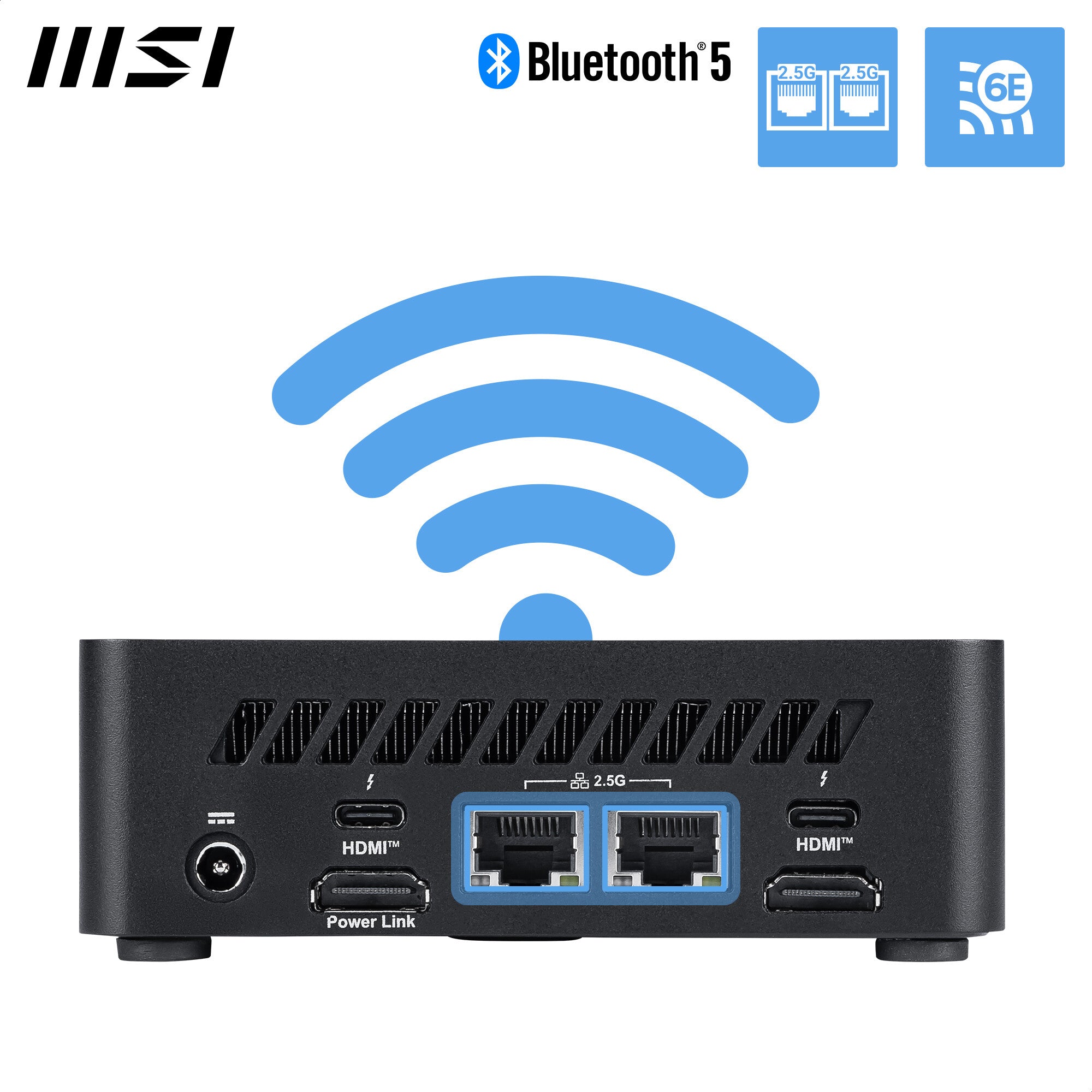

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content

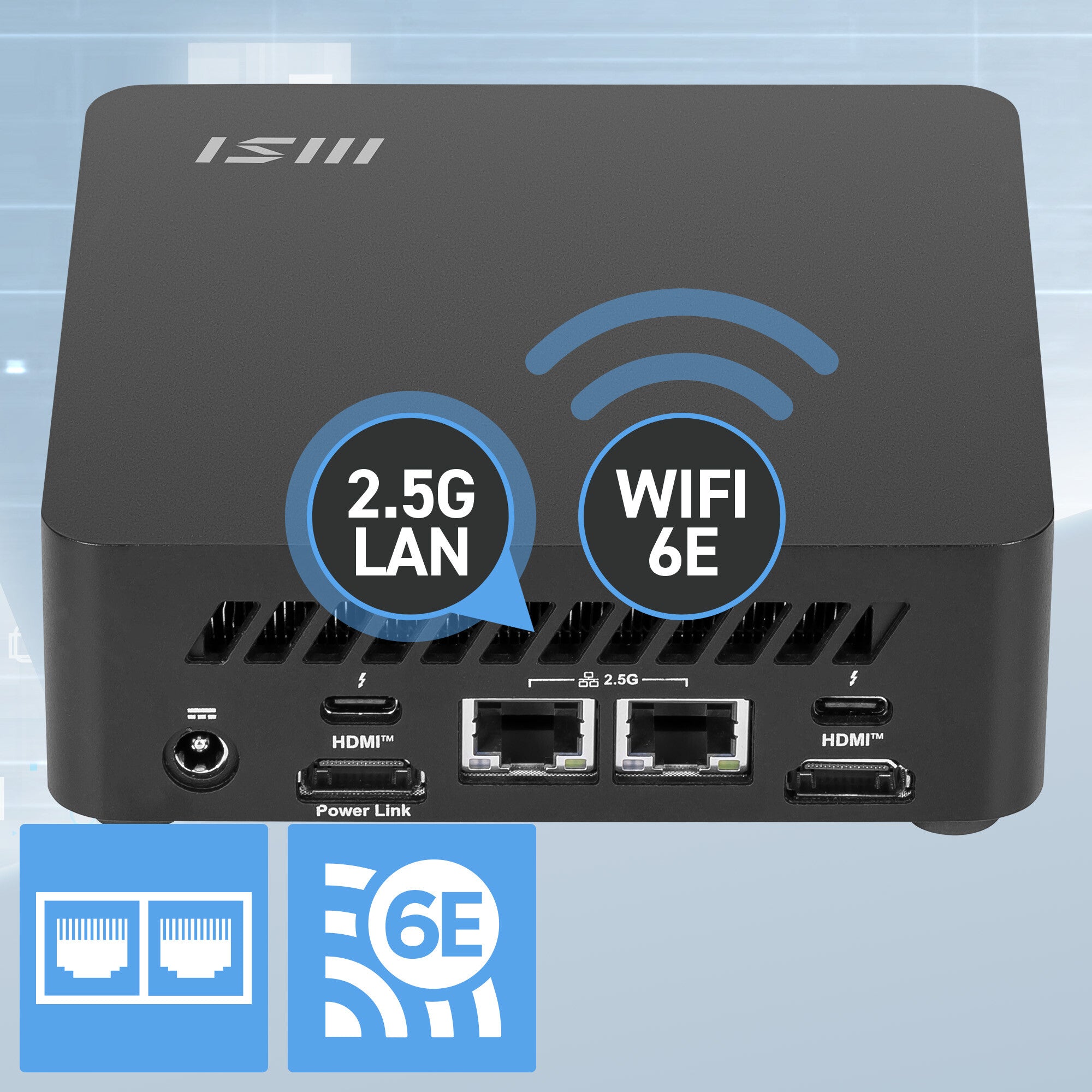

Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included

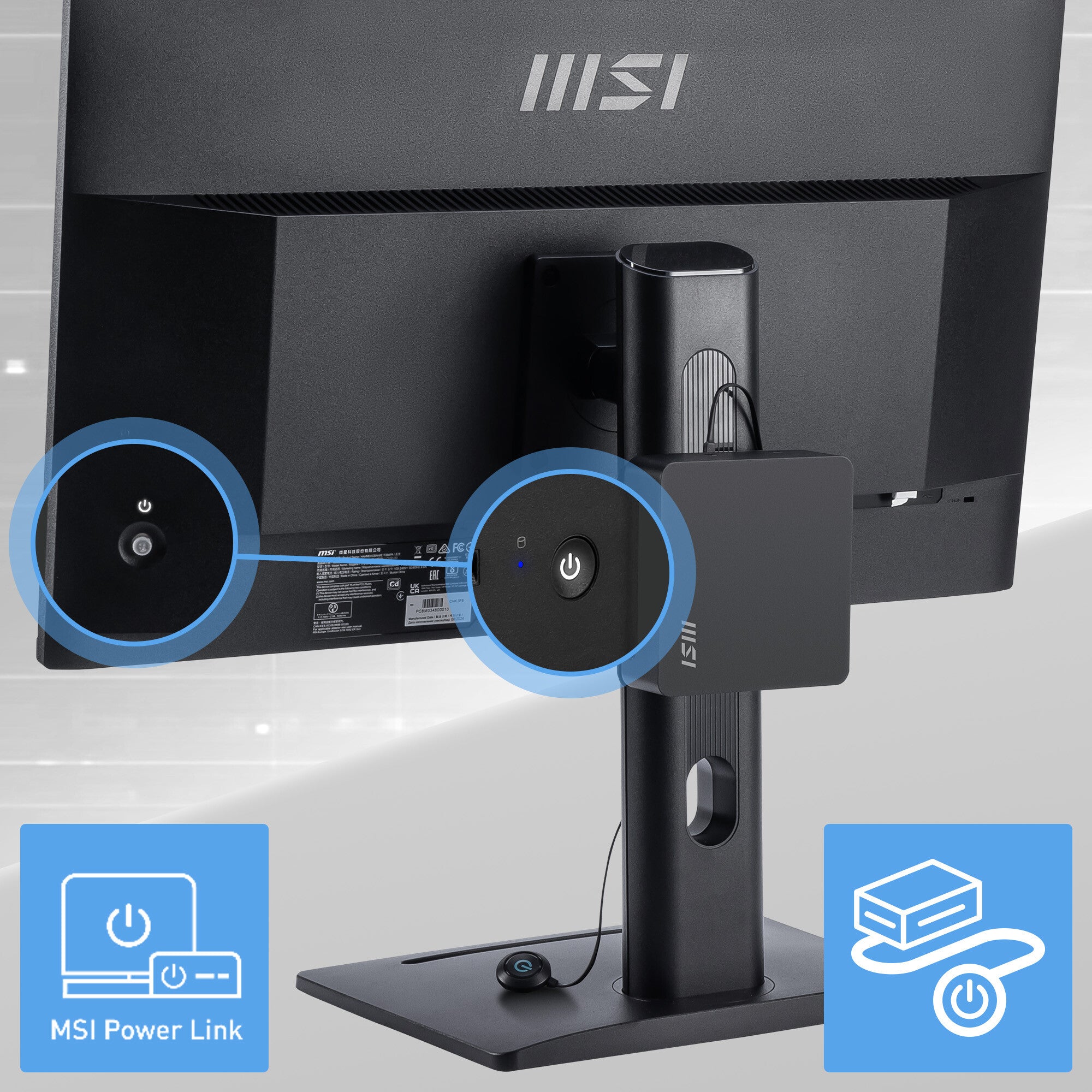

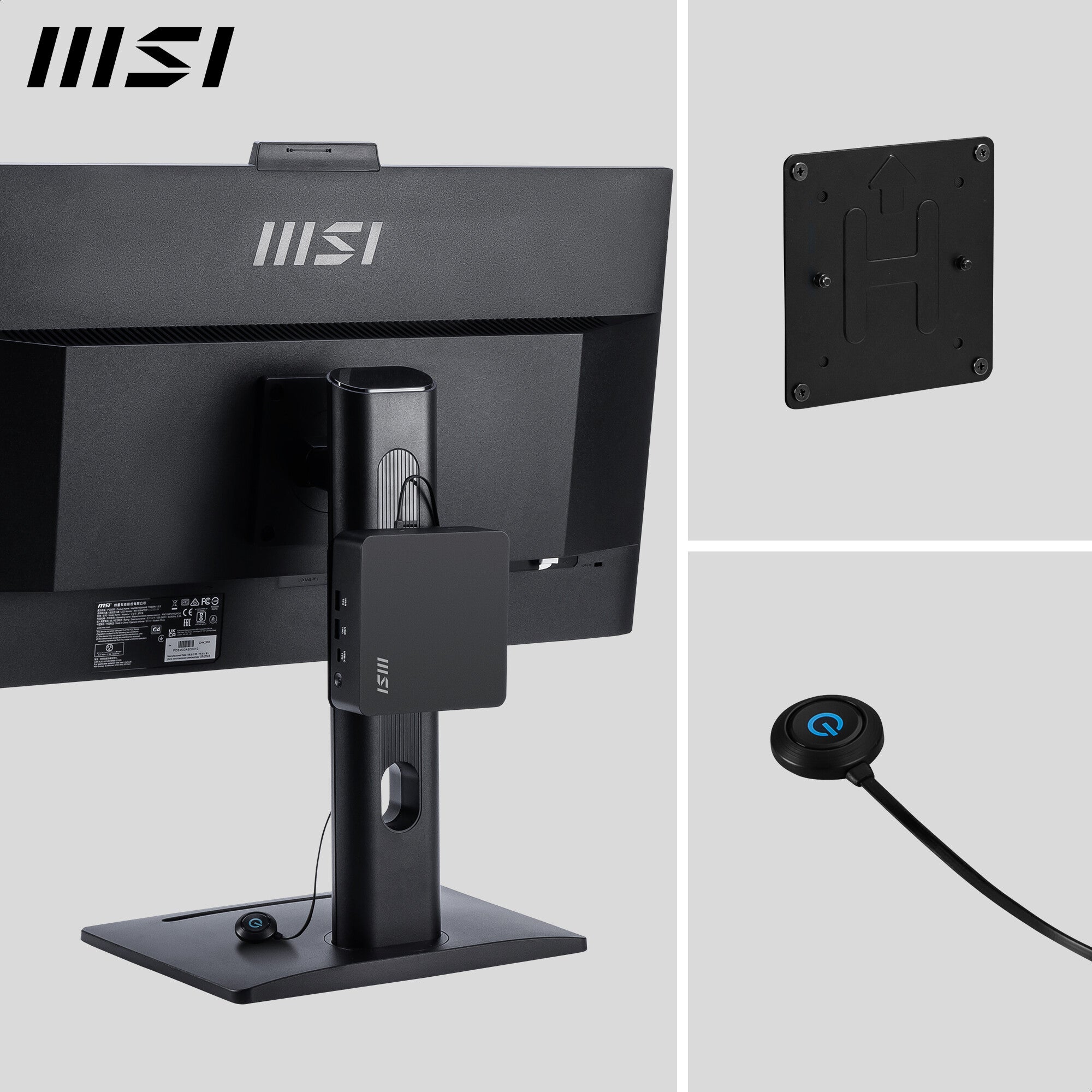

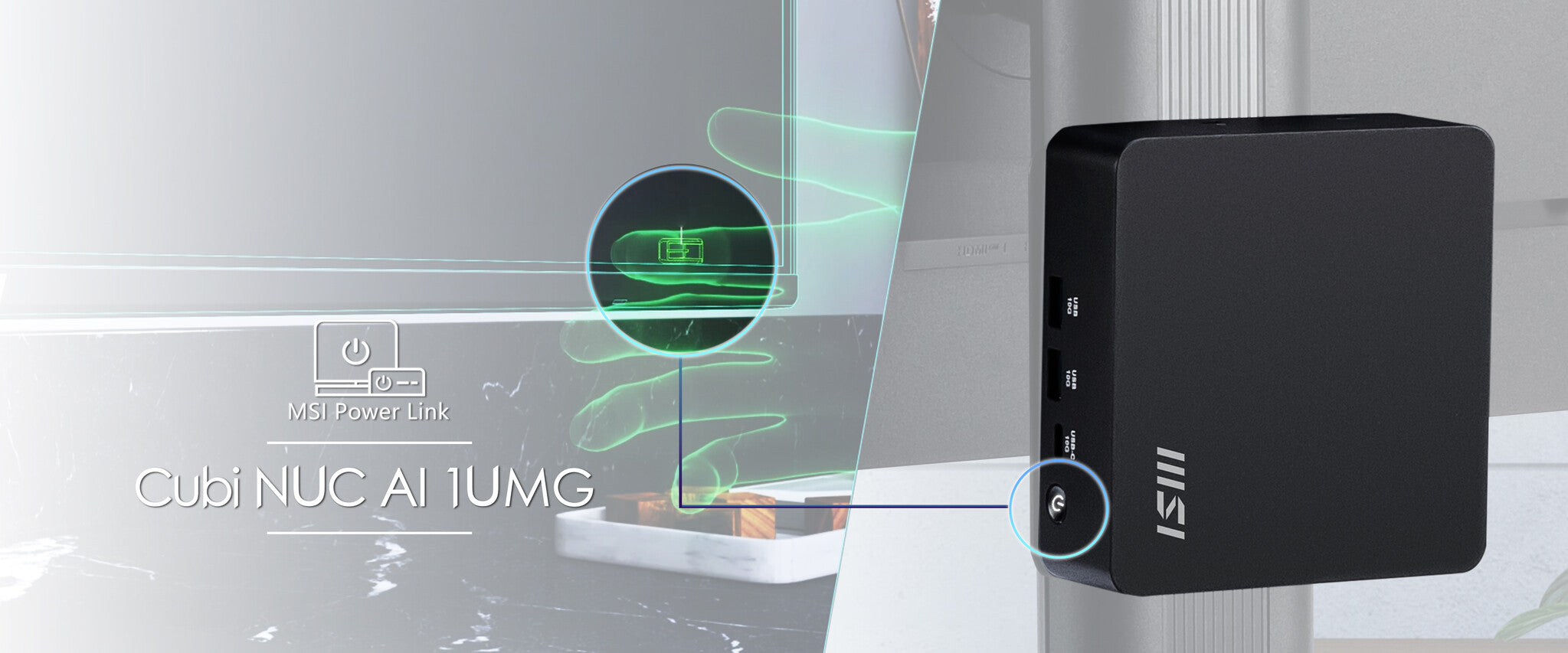

The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series

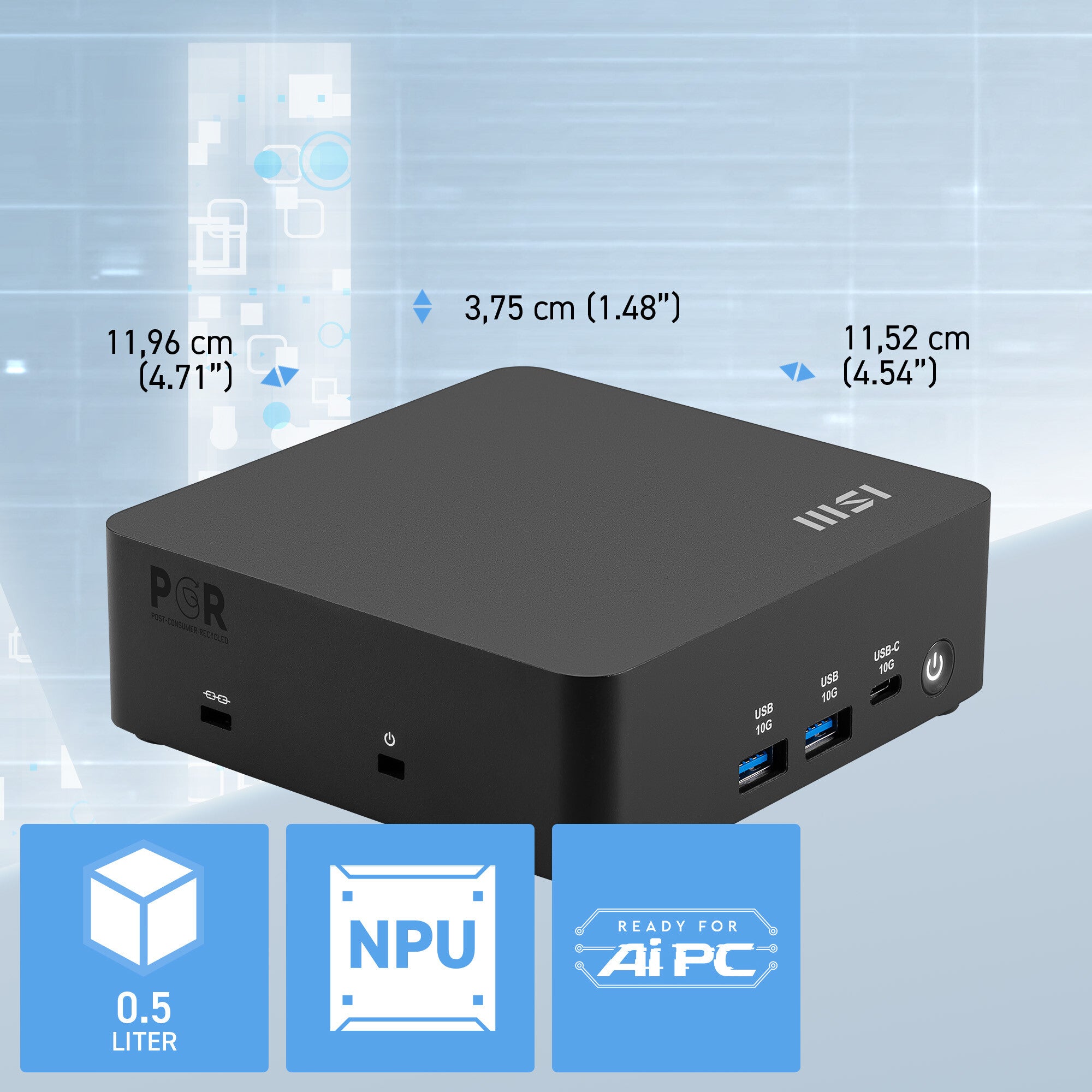

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment

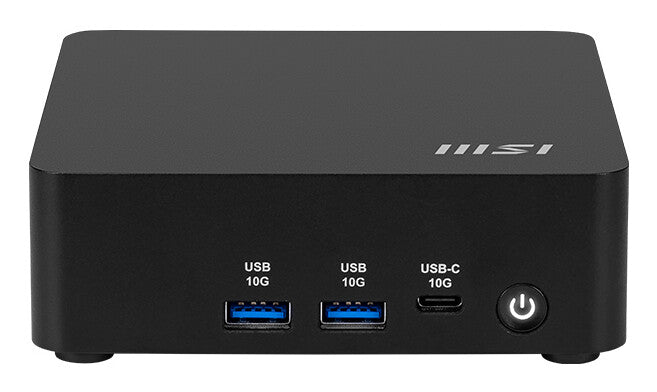

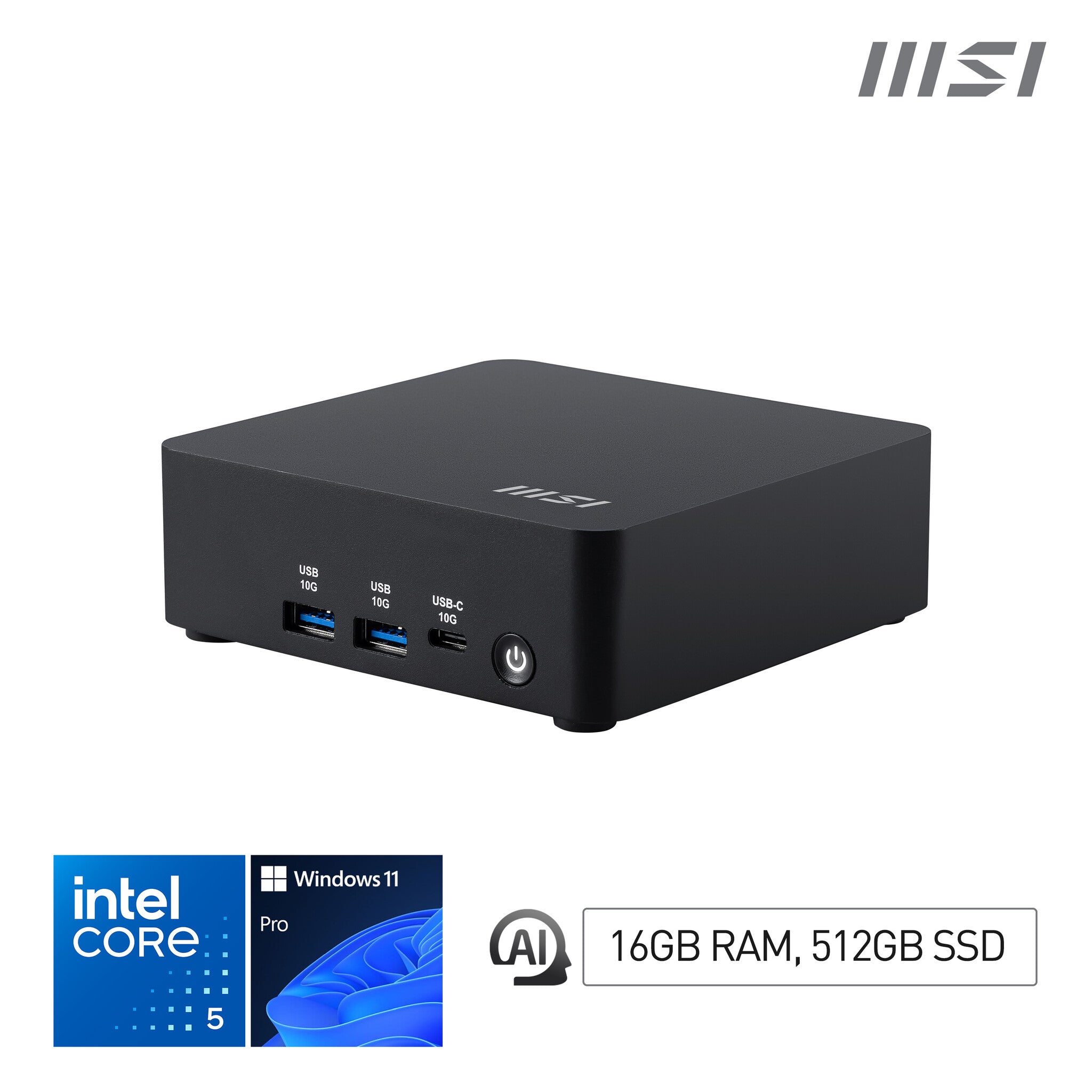

The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free

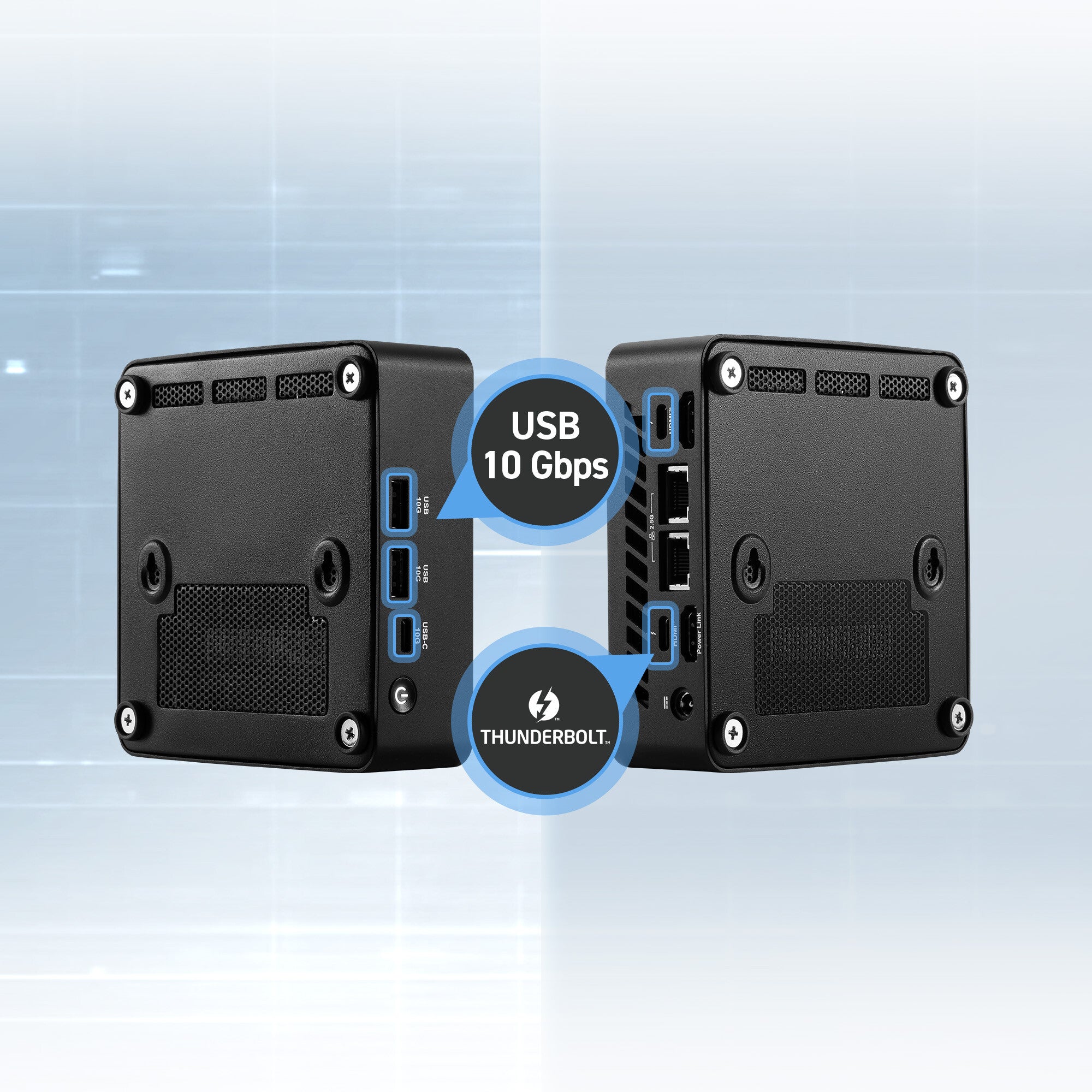

The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload

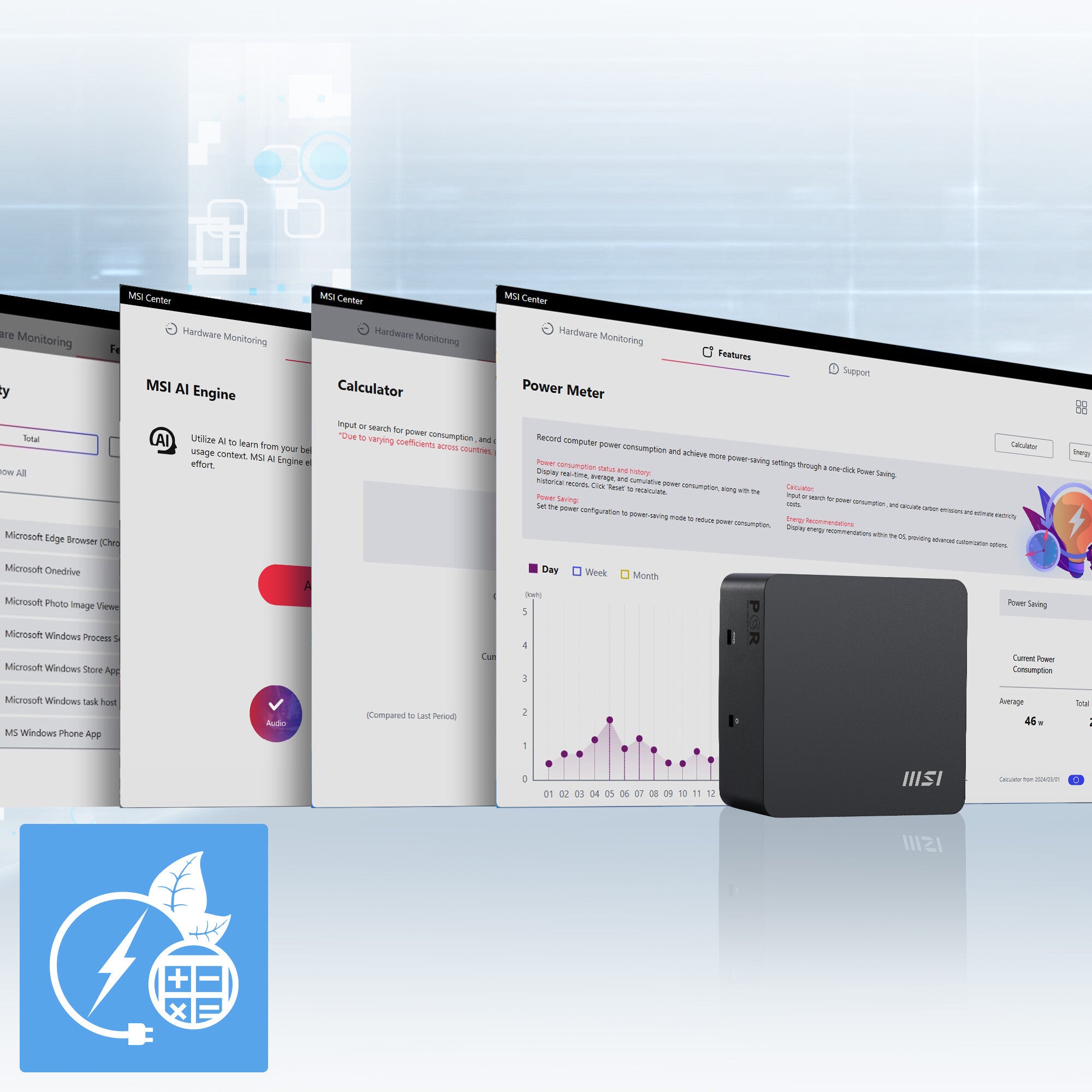

Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
3 years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor model | 125H |
| Processor cores | 14 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 1.2 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Efficient-core base frequency | 0.8 GHz |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor threads | 18 |
| Number of processors installed | 1 |
| Maximum turbo power | 115 W |
| Processor base power | 28 W |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | No |
| Sparsity support | No |
| Windows Studio effects support | No |
| Memory | |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory data transfer rate | 5600 MT/s |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| ECC | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 2 |
| Total HDDs capacity | 0 GB |
| HDD capacity | 0 GB |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Intel® Optane™ Memory module installed | No |
| Intel® Optane™ Memory module capacity | 0 GB |
| Embedded storage capacity | 0 MB |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card cores | 8 |
| On-board graphics card 6K support | Yes |
| On-board graphics card 8K support | Yes |
| Number of external displays supported | 4 |
| Graphics card Open GL support | Yes |
| Ray tracing acceleration | Yes |
| AMD FreeSync | No |
| NVIDIA GameWorks VR | No |
| NVIDIA G-SYNC | No |
| CUDA | No |
| Graphics card HDMI ports quantity | 2 |
| Graphics card DisplayPorts quantity | 2 |
| Graphics card USB Type-C ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| Miracast | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| PowerShare | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 5 | No |
| Intel® Thunderbolt 4 | Yes |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | No |
| Line-in | No |
| Line-out | No |
| Combo headphone/mic port | No |
| S/PDIF out port | No |
| DC-in jack | No |
| Fiber NIC port (Flex I/O) | No |
| Number of front USB ports | 2 |
| Number of rear USB ports | 4 |
| Number of rear audio ports | 2 |
| Number of front audio ports | 1 |
| Design | |
|---|---|
| Chassis type | Mini PC |
| Colour name | black |
| Volume | 1.35 L |
| VESA mounting | Yes |
| Placement supported | Horizontal/Vertical |
| Water cooling system | No |
| Cable lock slot | No |
| Copilot key | Yes |
| Product colour | Black |
| Introduction month | June |
| Introduction year | 2025 |
| RGB memory lighting | No |
| Viewing window | No |
| Housing material | Metal, Plastic |
| Country of origin | China |
| Certified refurbished | No |
| Performance | |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Powered by | Intel |
| Virtual Reality (VR) ready | Yes |
| Motherboard form factor | NUC |
| Audio chip | Realtek ALC256 |
| Audio system | High Definition Audio |
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | No |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Fingerprint reader | No |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | Yes |
| Operating system language | English |
| Apple Intelligence | No |
| Copilot+ PC | No |
| Drivers included | Yes |
| Pre-installed software | Y |
| Processor special features | |
|---|---|
| Video encode engine | Yes |
| Video decode engine | Yes |
| Power | |
|---|---|
| Power supply | 120 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (max) | 115 W |
| Power consumption (standby) | 5 W |
| Power consumption (typical) | 35 W |
| USB Type-C output power | 15 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certificates | |
|---|---|
| PSTI certified | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
|---|---|
| Width | 119.6 mm |
| Depth | 115.2 mm |
| Height | 37.5 mm |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Packaging content | |
|---|---|
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
| Keyboard backlit | No |
| Numeric keypad | No |
| Power cable length | 1.2 m |
| Cables included | Power |
| VESA mount included | Yes |
| Screws included | Yes |
| Manual | Yes |
| General | |
|---|---|
| Product family | Cubi |
| Technical details | |
|---|---|
| Not classified as hazardous under GHS | Yes |
| Statement of conformance & platform certificate included | No |
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Video compression formats | AVC, AVI, HEVC |
| Video formats supported | MKV, MP4, VP9 |
| TV tuner integrated | No |
| Locale | English |
| Built-in microphone | No |
| Special features | Thunderbolt 4, VESA Mount Kit |
