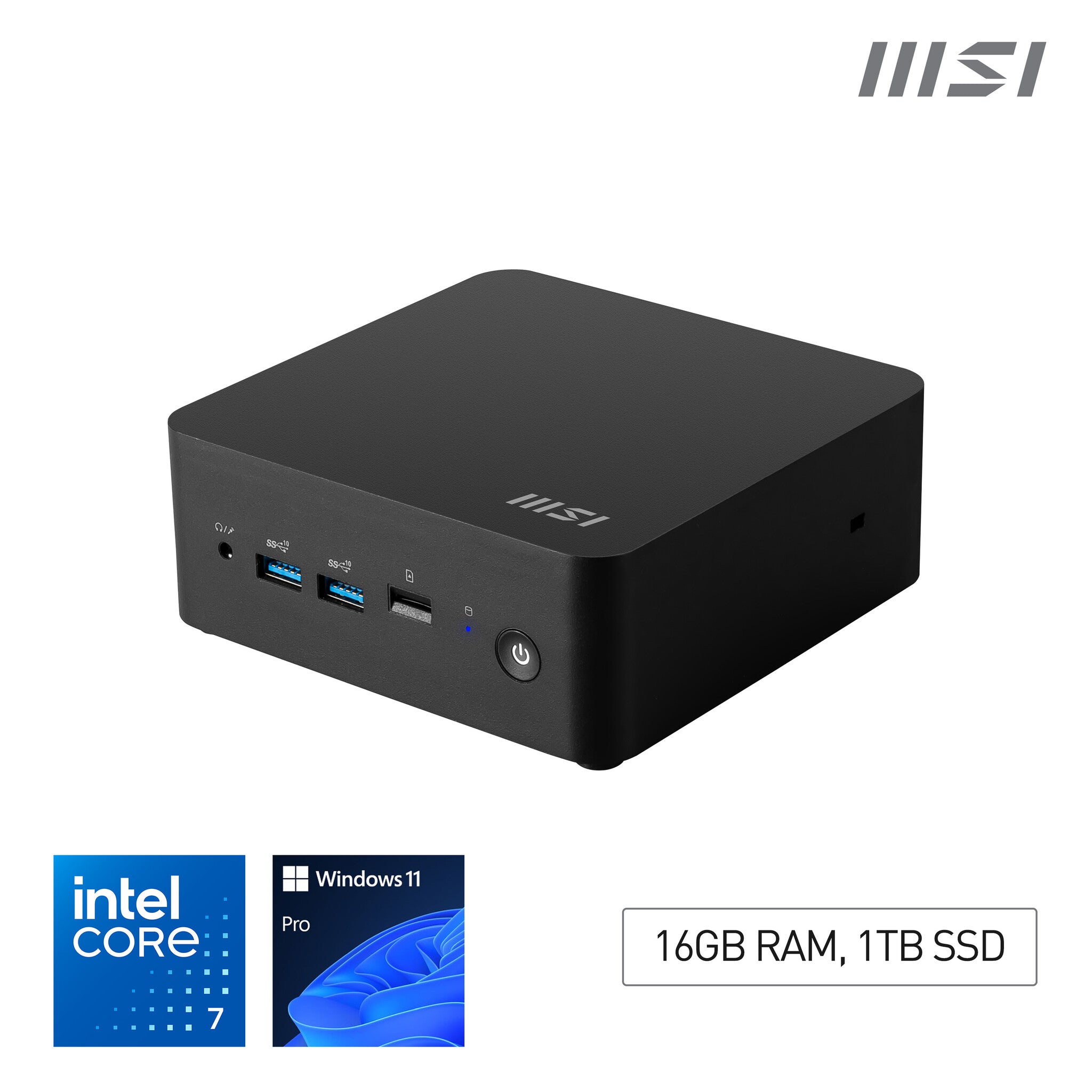

MSI Cubi NUC 1M Intel Core 7 150U Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 1TB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
KEY FEATURES
- INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel® Core 7 processor 150U CPU, 16GB DDR5, 1TB M.2 SSD Storage, Windows 11 Pro software pre-installed
- 16GB RAM, Intel GRAPHICS - The system includes 16GB of pre-installed DDR5-5200 memory (Total 2 x SO-DIMM slots available) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups
- 1TB of pre-installed M.2 SSD storage ensures faster loading speeds 1x M.2 2280 SSD (PCIE, factory pre-installed), 1 x 2.5" HDD/SSD & and 1x M.2 2242 SSD free-slot

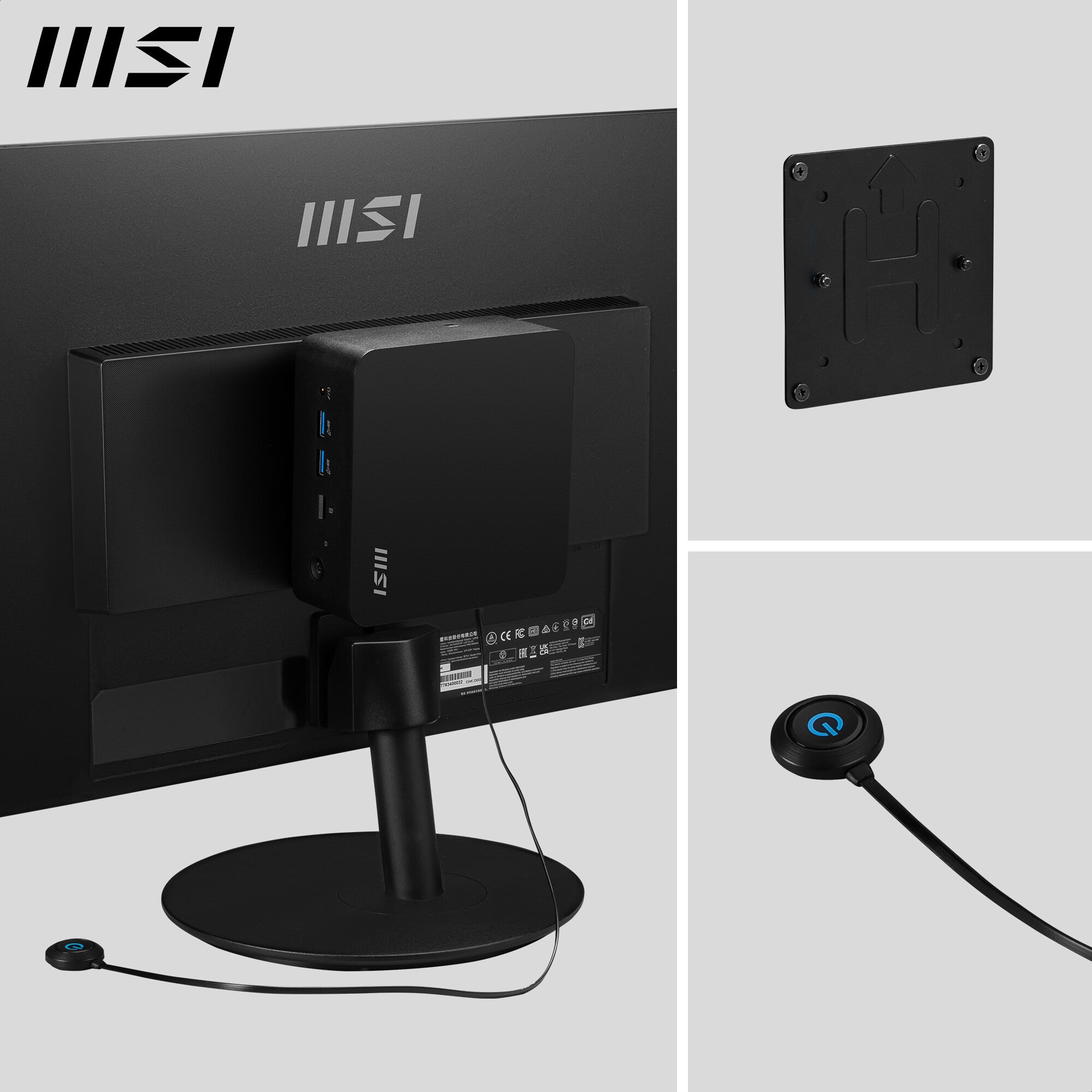

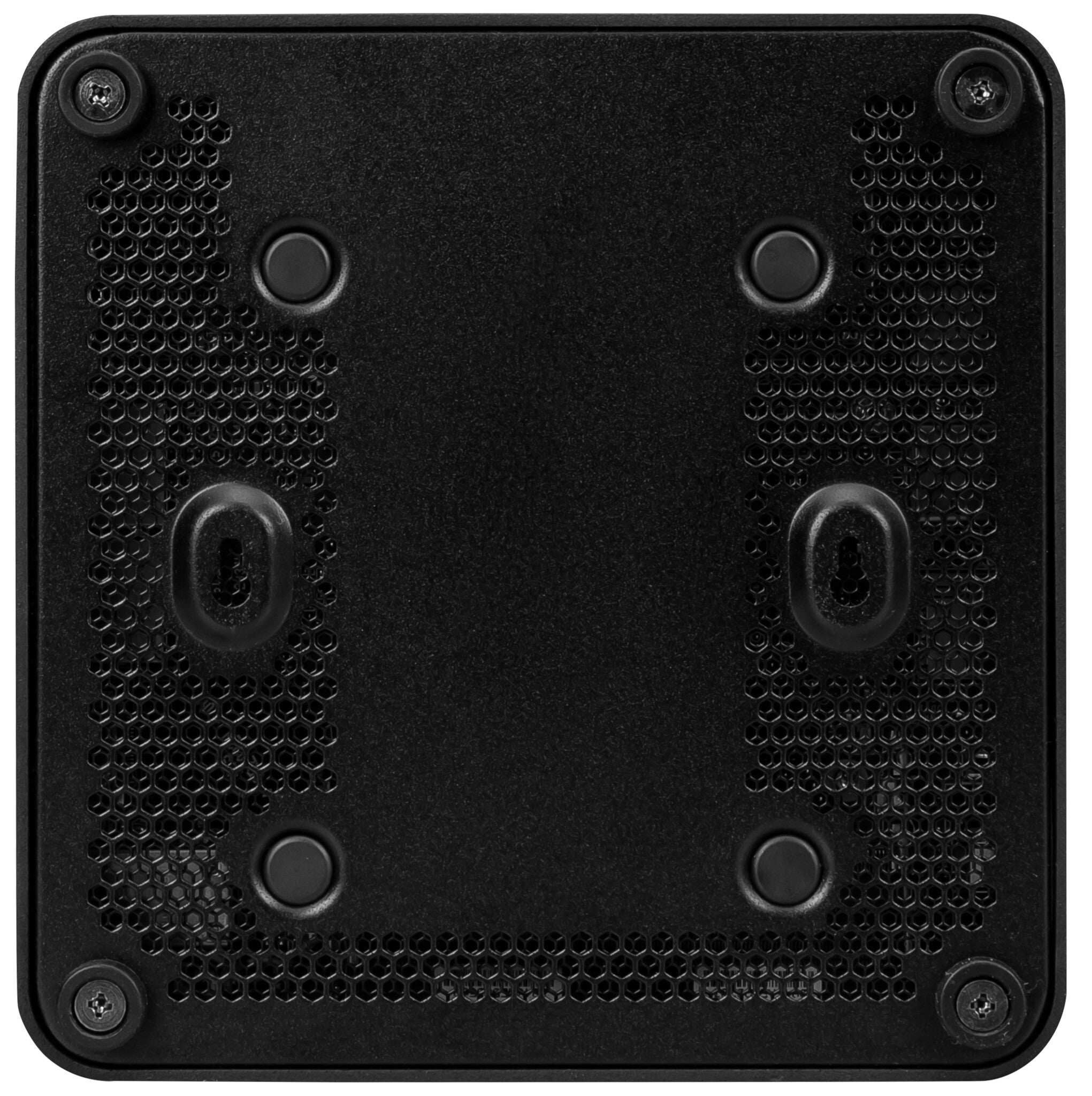

- VESA mountable design and Mounting Bracket included (75mm x 75mm or 100mm x 100mm)

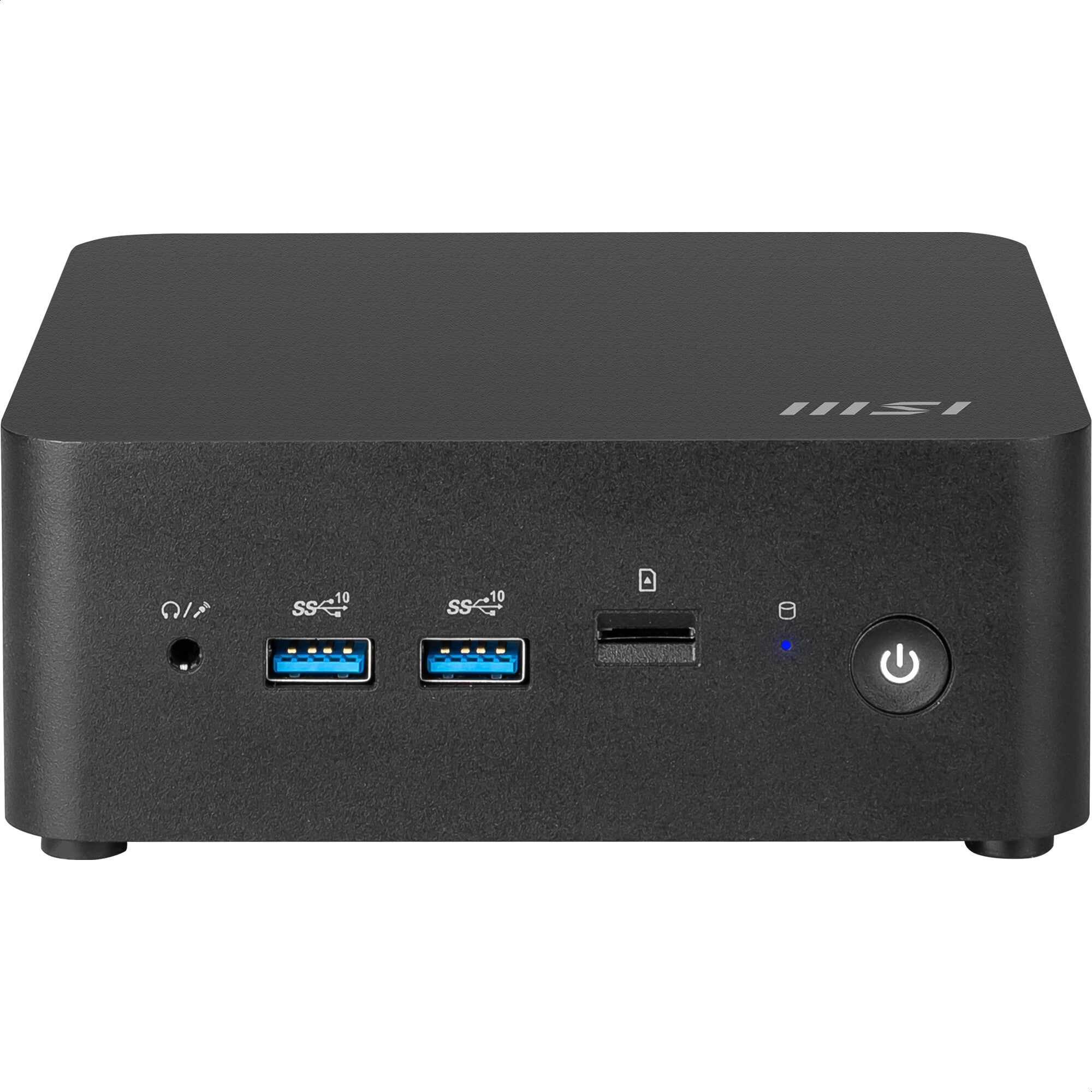

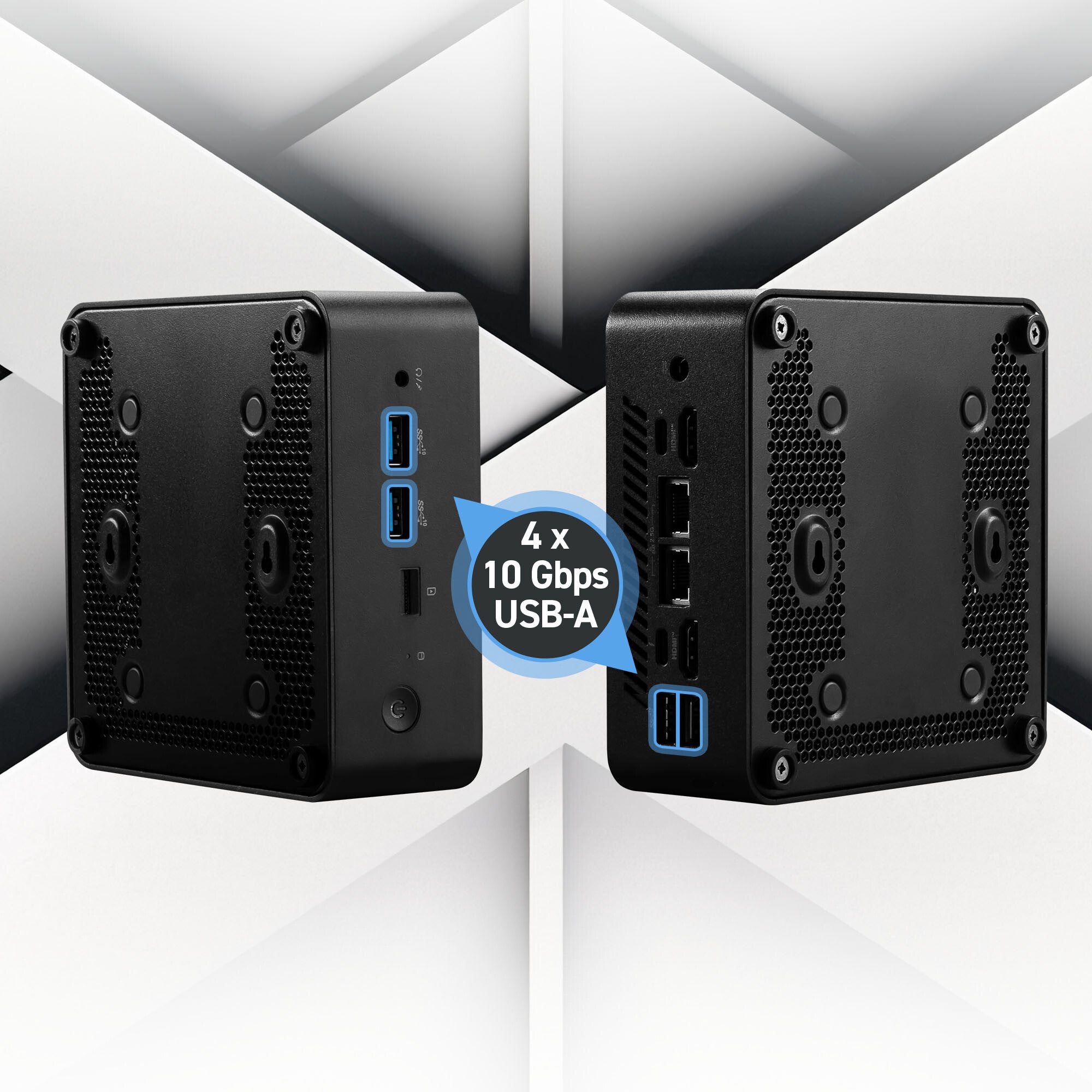

- The front I/O panel features a 2x USB 10Gbps Type A and Micros-SD card reader; The rear I/O panel features 2x USB 10Gbps Type A as well. The compact 0.826L SFF case incorporates an efficient thermal design & low-noise fan with 21 dBA noise levels

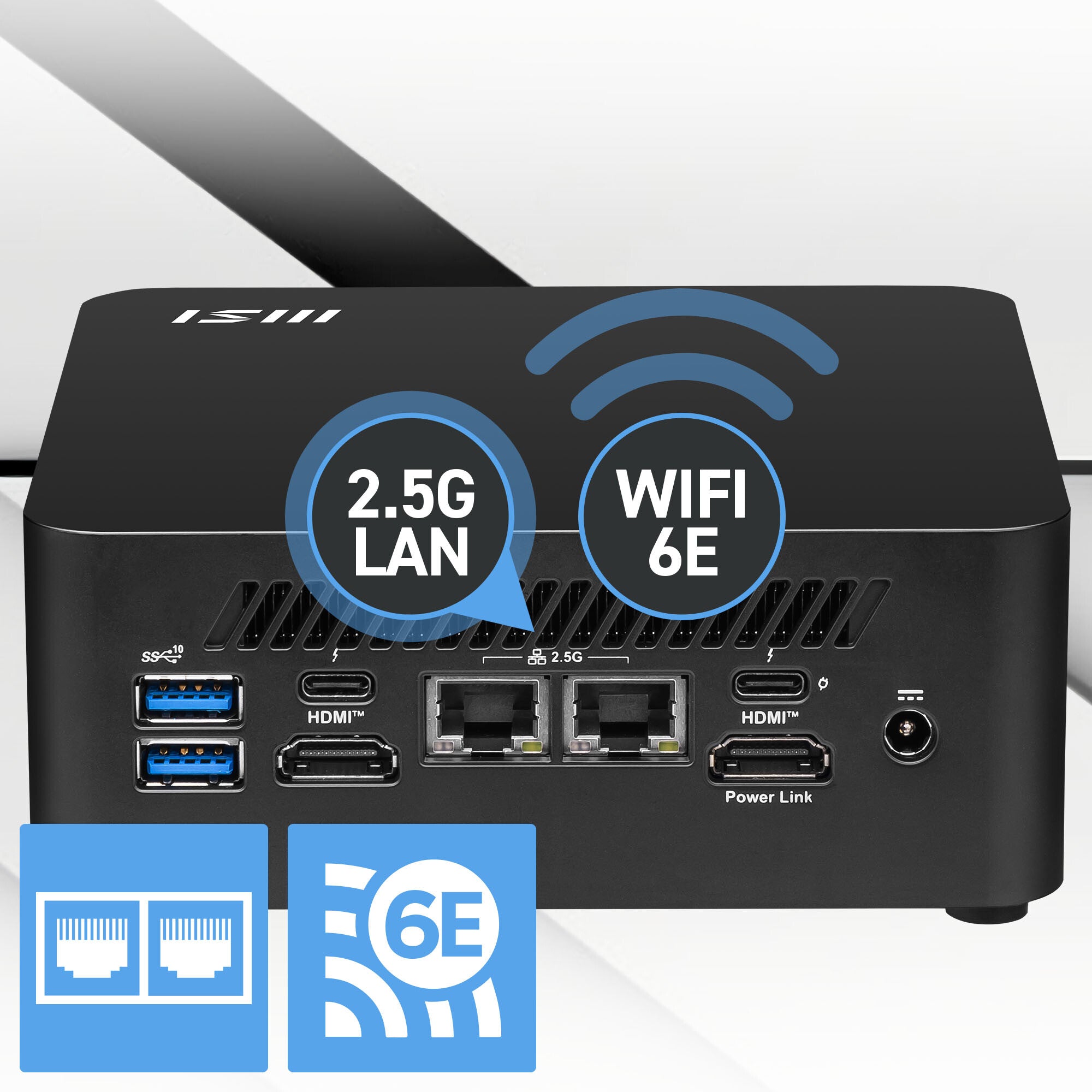

- WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 and dual 2.5G ethernet LAN ports
- dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
MSI Cubi NUC 1M Intel Core 7 150U Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 1TB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Description
MSI Cubi NUC 1M Intel Core 7 150U Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 1TB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA. Processor family: Intel Core 7, Processor model: 150U. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5200 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 625 g. Product colour: Black
"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

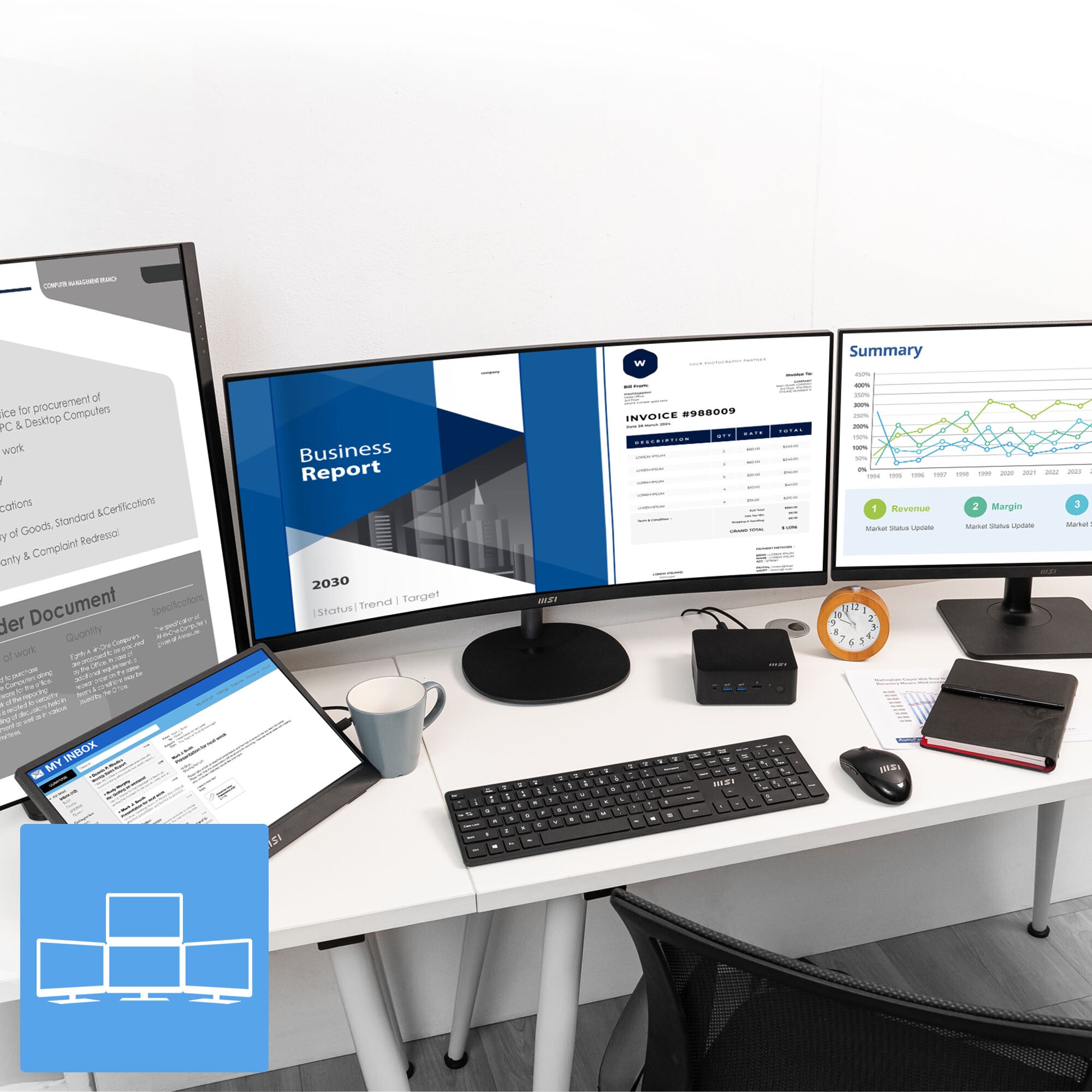

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i7 150U FS 16GB 1TB W11P configuration is a complete system equipped with an Intel Intel® Core 7 processor 150U, 16GB of DDR5-5200MHz memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.

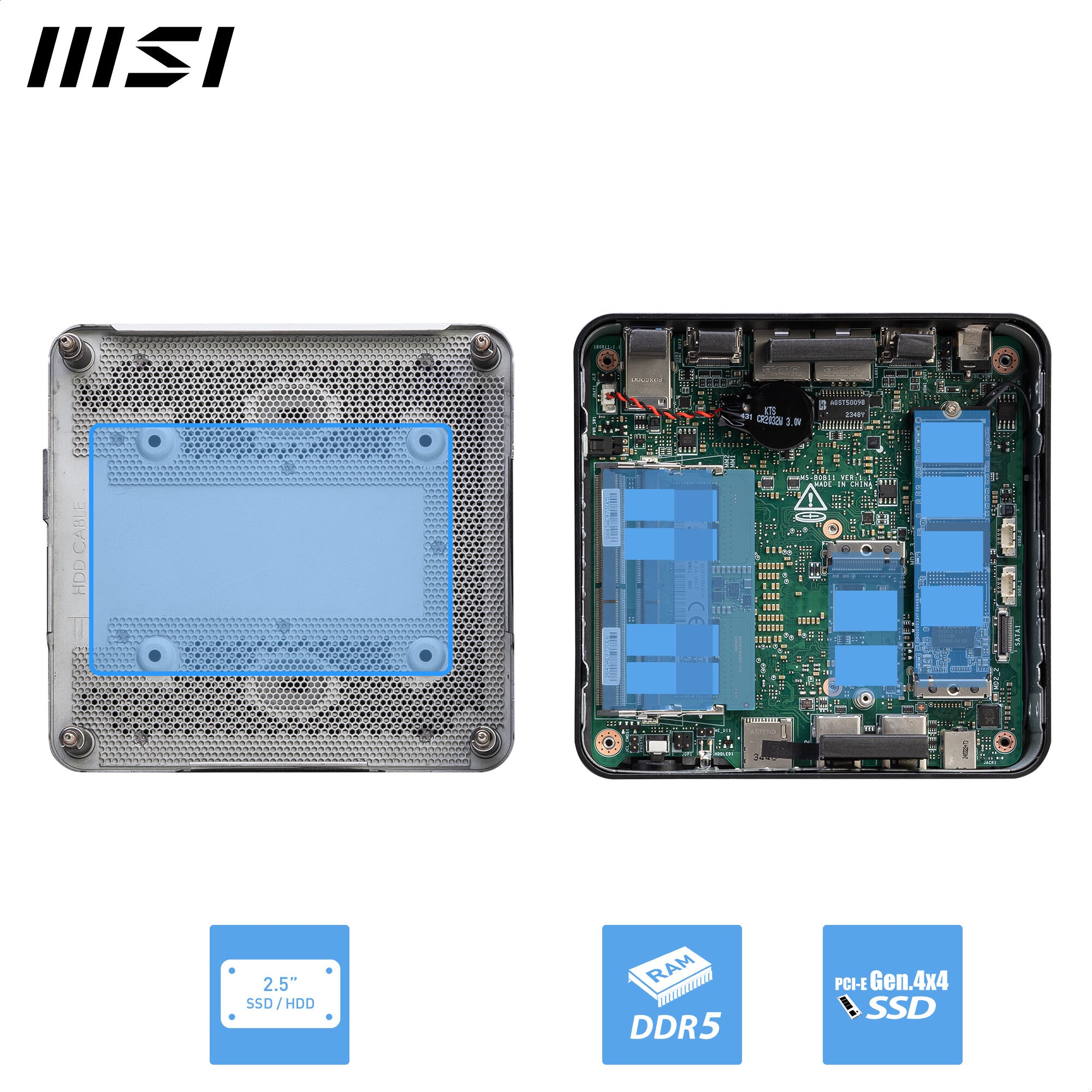

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

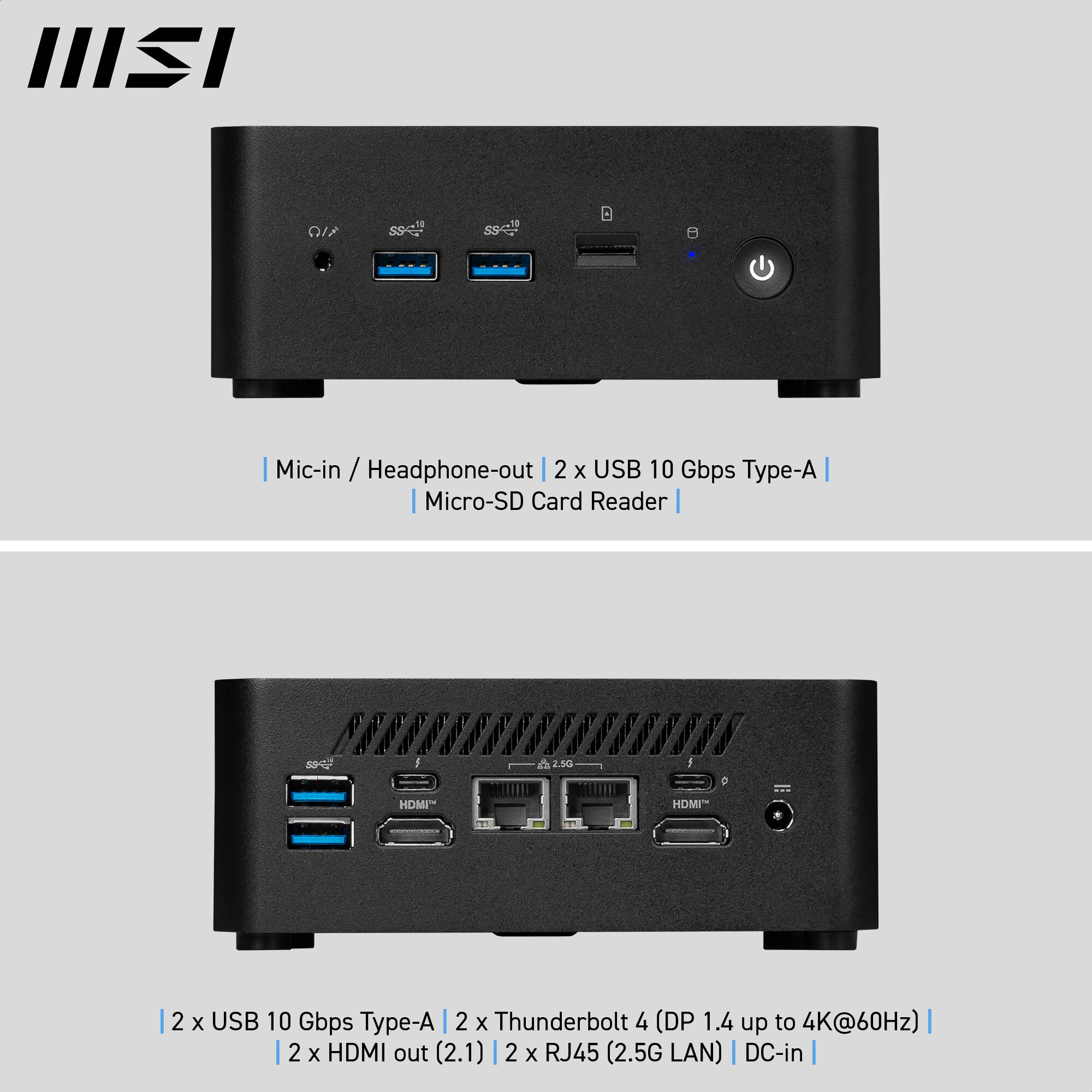

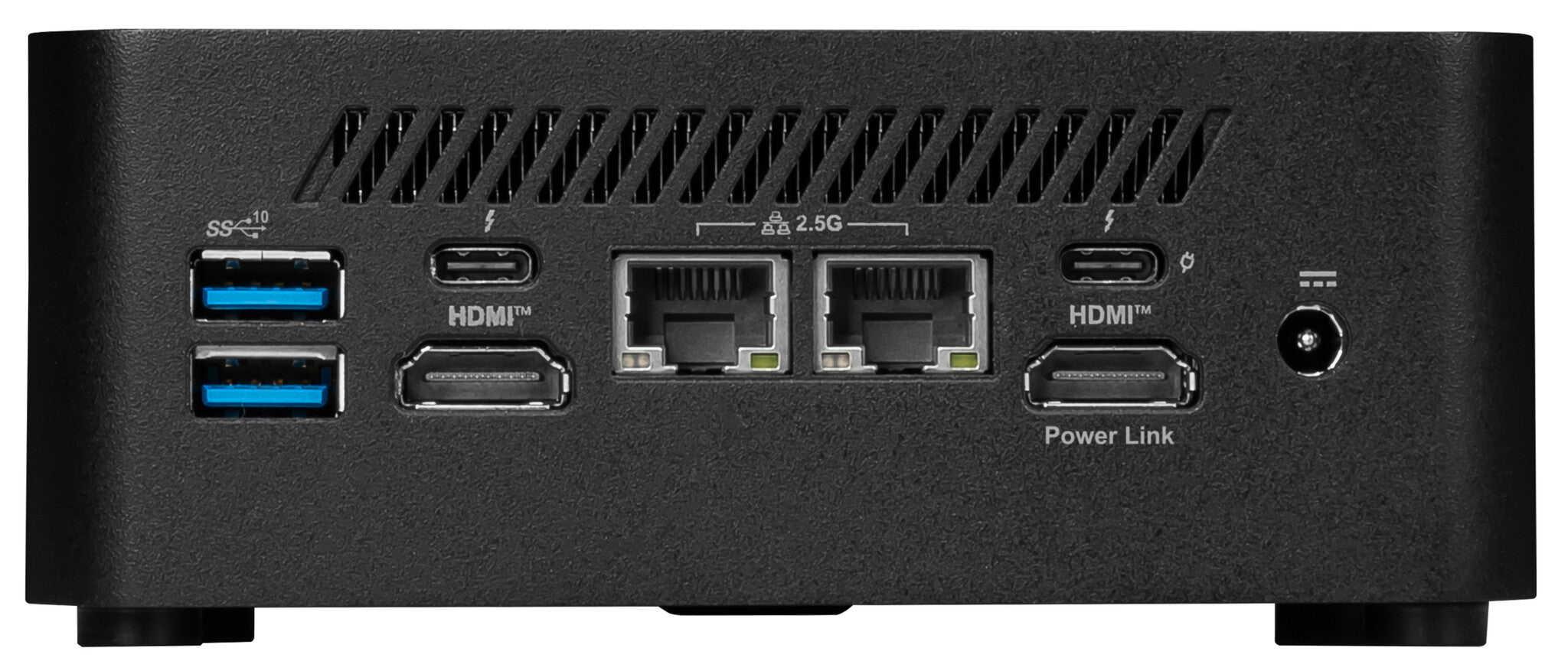

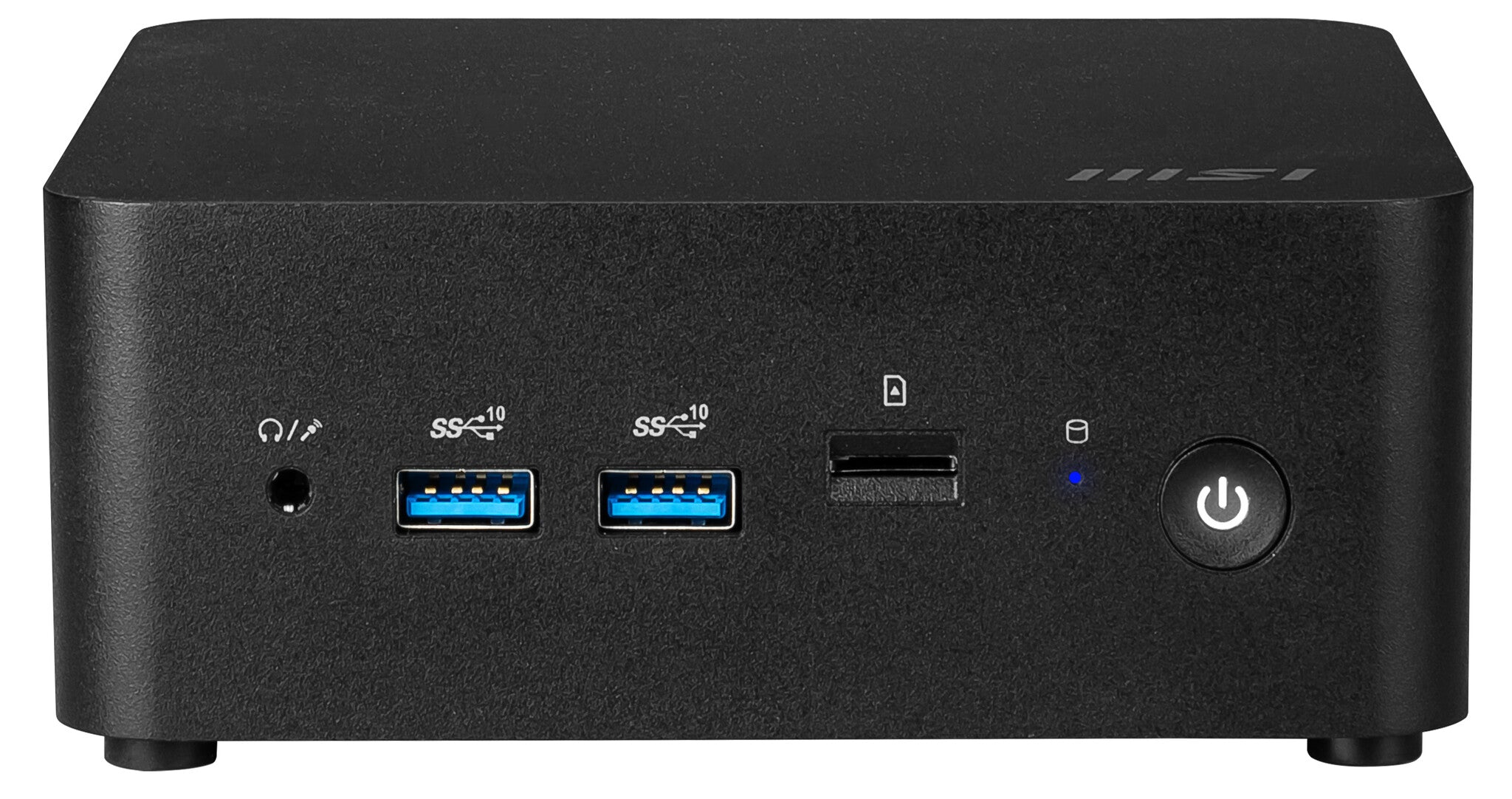

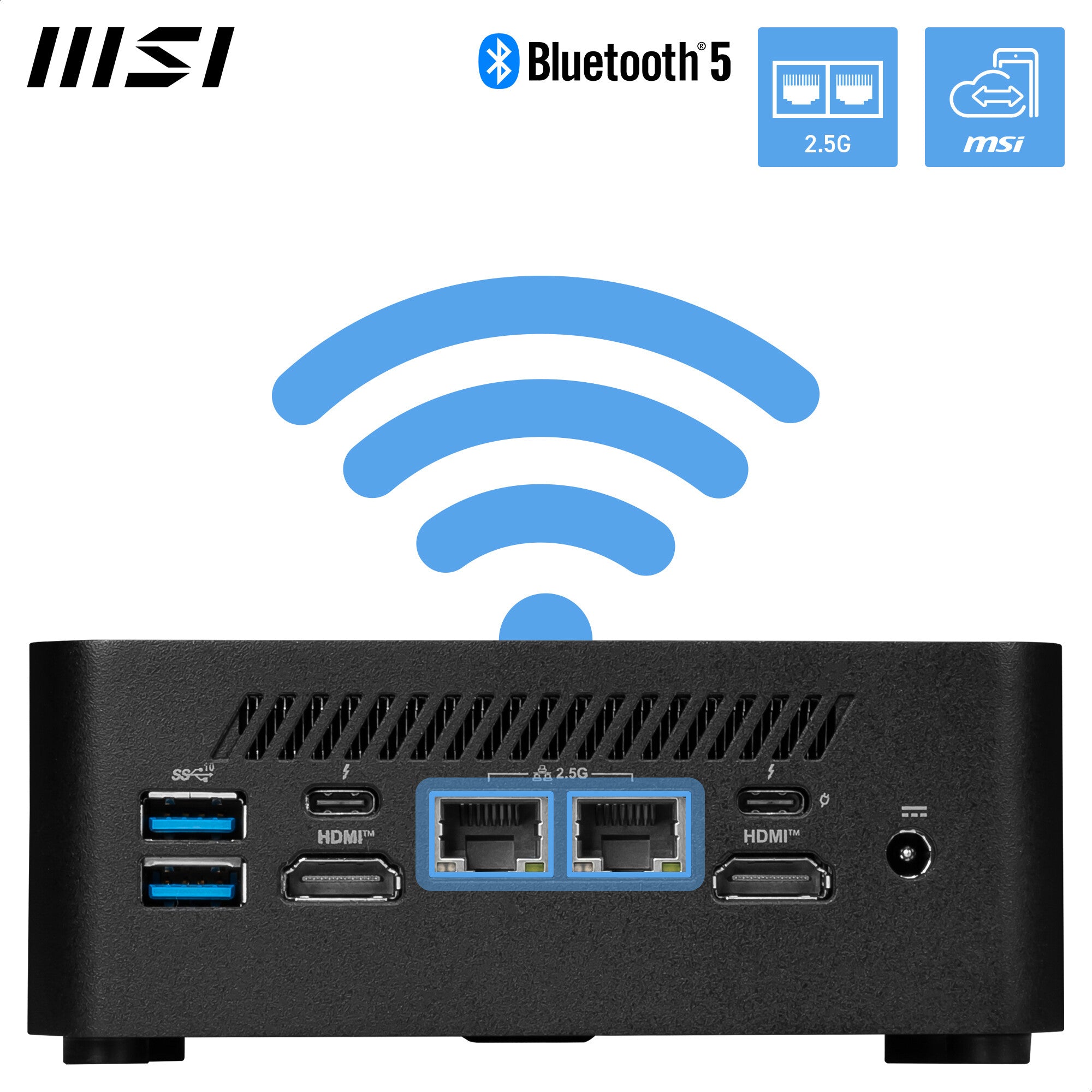

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
3 Years Back to Base
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 7 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 150U |
| Processor cores | 10 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core base frequency | 1.8 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Processor cache | 12 MB |
| Processor threads | 12 |
| Number of processors installed | 1 |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
| Memory | |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5200 MHz |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 3 |
| HDD size | 2.5" |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PowerShare | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 1.4/2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | No |
| Headphone outputs | 1 |
| Line-in | No |
| Line-out | No |
| Combo headphone/mic port | Yes |
| S/PDIF out port | No |
| DC-in jack | Yes |
| Fiber NIC port (Flex I/O) | No |
| Number of front USB ports | 2 |
| Number of rear USB ports | 4 |
| Number of front audio ports | 1 |
| Design | |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Volume | 0.84 L |
| VESA mounting | Yes |
| Placement supported | Horizontal |

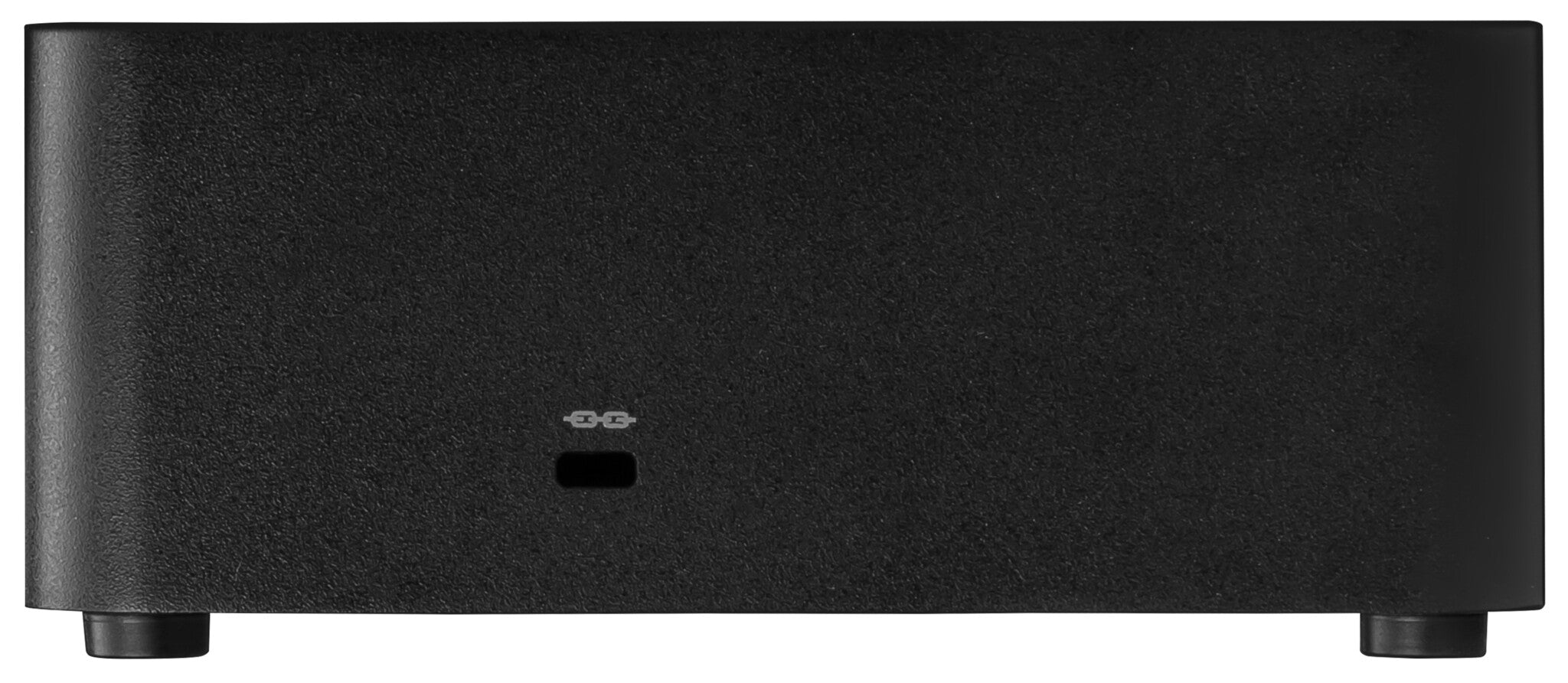

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction month | July |
| Introduction year | 2024 |
| RGB memory lighting | No |
| Viewing window | No |
| Housing material | Plastic |
| Country of origin | China |
| Performance | |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Powered by | MSI |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power supply | 120 W |
| Power supply input voltage | 100-240 V |
| Power supply input frequency | 50-60 Hz |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Weight & dimensions | |
|---|---|

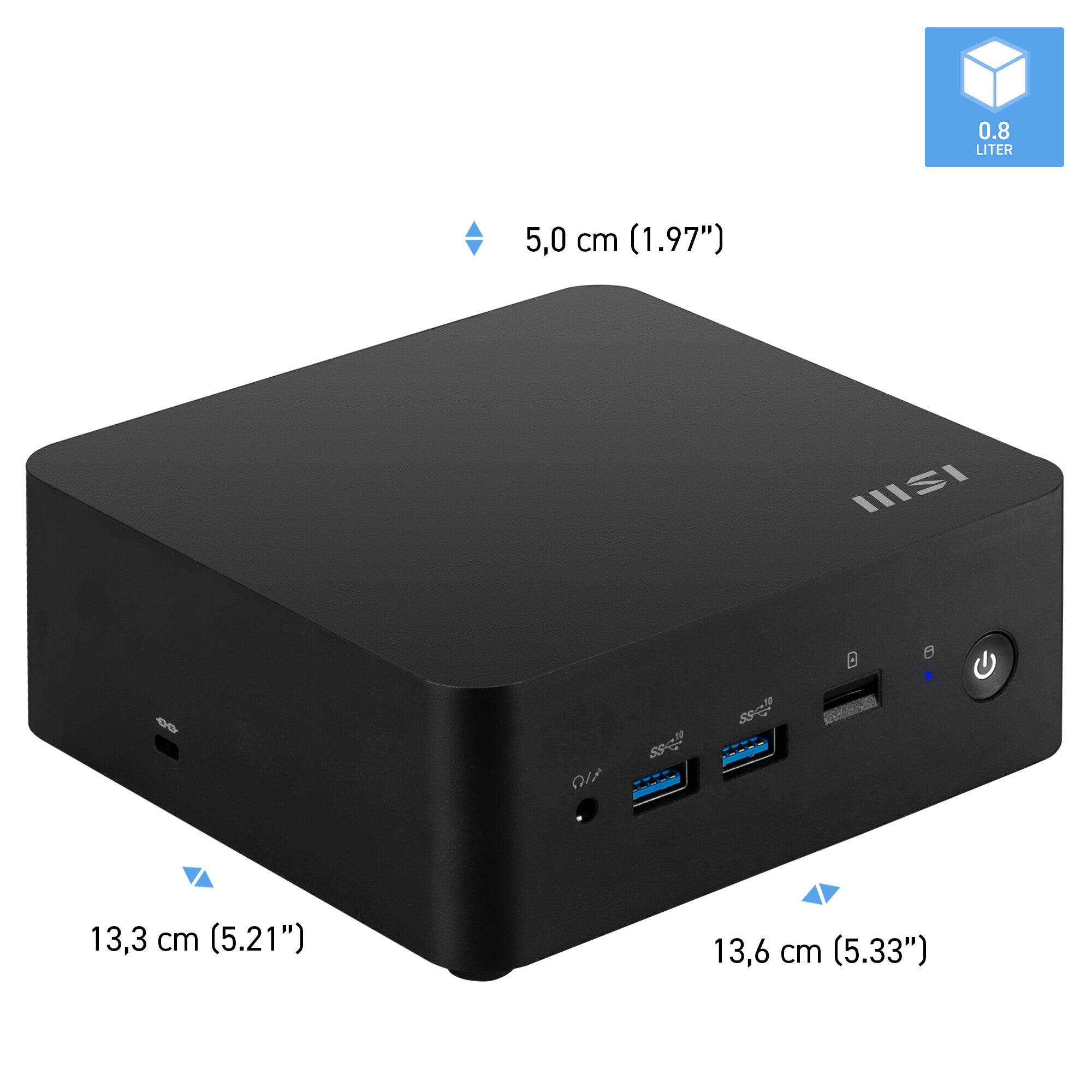

| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 625 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.45 kg |
| Packaging content | |
|---|---|
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
| Cables included | AC, Power |
| VESA mount included | Yes |
| Screws included | Yes |
| General | |
|---|---|
| Product family | Cubi |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| TV tuner integrated | No |
| Locale | English |
| Built-in microphone | No |
