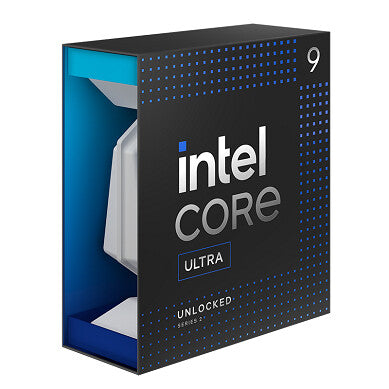

Intel Core Ultra 9 285 24 Core Processor | LGA1851 2.5GHz 36MB Cache | Cooler Included | Intel Graphics
Sku: BX80768285
Availability: In Stock
Brand: Intel
Category: Processors
Regular price
£579.85
Regular price
Sale Price
£579.85
Unit price
per
KEY FEATURES
- Intel Core Ultra 9 285
- 36 MB Smart Cache LGA 1851 (Socket V1)
- Processor cores: 24 64-bit
- Maximum internal memory supported by processor: 192 GB DDR5-SDRAM
- On-board graphics card Intel Graphics
- Box
Order within calculating...
Flexible Payment Options
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Does the Intel Core Ultra 9 285 come with a cooler in the box?
Yes, the retail boxed version includes an Intel stock cooler suitable for the processor's 65W base power. For heavy sustained workloads or overclocking to the 182W maximum turbo power, an aftermarket tower or AIO cooler is recommended.
What motherboard socket does the Intel Core Ultra 9 285 require?
This processor uses the LGA1851 socket, also known as Socket V1. You will need a motherboard with an Intel 800 series chipset designed for Core Ultra processors. It is not compatible with older LGA1700 or LGA1200 boards.
Do I need a graphics card with the Intel Core Ultra 9 285?
Not for basic display output. The processor includes integrated Intel Graphics with 4 Xe-cores that can drive up to four monitors. For gaming or GPU-accelerated creative work, a discrete graphics card is recommended.
Intel Core Ultra 9 285 24 Core Processor | LGA1851 2.5GHz 36MB Cache | Cooler Included | Intel Graphics
Regular price
£579.85
Regular price
Sale Price
£579.85
Unit price
per
Rated Excellent on Trustpilot
Carbon Neutral Deliveries
Free Standard Delivery Over £99
Rated Excellent on Trustpilot
Carbon Neutral Deliveries
Free Standard Delivery Over £99
Rated Excellent on Trustpilot
Carbon Neutral Deliveries
Free Standard Delivery Over £99
Rated Excellent on Trustpilot
Carbon Neutral Deliveries
Free Standard Delivery Over £99
Rated Excellent on Trustpilot
Carbon Neutral Deliveries
Free Standard Delivery Over £99
Rated Excellent on Trustpilot
Carbon Neutral Deliveries
Free Standard Delivery Over £99
Description
The Intel Core Ultra 9 285 is a high-end desktop processor designed for demanding workloads including content creation, professional software, and multitasking. With a 65W base power design, it offers efficient performance for productivity builds while retaining the headroom to boost up to 182W when needed. The integrated AI Boost NPU delivers up to 13 TOPs for AI acceleration, making it ideal for creators using AI-enhanced workflows and Windows Studio Effects. This processor features 24 cores and 24 threads split across 8 performance cores running up to 5.4GHz and 16 efficient cores reaching 4.6GHz. The 36MB cache ensures responsive application performance, while the integrated Intel Graphics with 4 Xe-cores provides basic display output for up to four monitors without a discrete GPU. Total AI performance reaches 36 TOPs when combining CPU, GPU, and NPU capabilities, supporting frameworks like OpenVINO and DirectML. Designed for the LGA1851 socket, this processor requires a compatible motherboard with Intel 800 series chipsets. A boxed cooler is included in the retail package, so no separate thermal solution is required for standard operation. The chip supports Thunderbolt 4, Intel Stable IT Platform Program for enterprise deployments, and comes ready for professional and creative workstation builds where AI acceleration and multithreaded performance matter.Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 285 |
| Processor cores | 24 |
| Processor socket | LGA 1851 (Socket V1) |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Performance cores | 8 |
| Efficient cores | 16 |
| Processor boost frequency | 5.6 GHz |
| Performance-core boost frequency | 5.4 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core boost frequency | 4.6 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 182 W |
| Processor base power | 65 W |
| AI software frameworks supported by CPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Maximum number of DMI lanes | 8 |
| Processor codename | Arrow Lake |
| Processor ARK ID | 241061 |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
|---|---|
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Graphics |
| On-board graphics card outputs supported | HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1 |
| On-board graphics card dynamic frequency (max) | 2000 MHz |
| On-board graphics card base frequency | 300 MHz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card ID | 0x7D67 |
| Discrete graphics card model | Not available |
| Xe-cores | 4 |
| Features | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Market segment | Desktop |
| Use conditions | Workstation, PC/Client/Tablet |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 4.0, 5.0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Embedded options available | Yes |
| Scalability | 1S |
| Processor special features | |
|---|---|
| Intel® Quick Sync Video Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.5 GHz |
| Intel® Thunderbolt 4 | Yes |
| Intel® Thermal Velocity Boost Frequency | 5.6 GHz |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
| Intel® Remote Platform Erase (RPE) | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
| Intel® One-Click Recovery | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Active Management Technology (Intel® AMT) | Yes |
| Intel® Boot Guard | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® Hardware Shield Eligibility | Yes |
| Intel vPro® Enterprise Platform Eligibility | Yes |
| Intel® Threat Detection Technology (TDT) | Yes |
| General | |
|---|---|
| Product series | Ultra 9 |
| Product family | Core |
| Operational conditions | |
|---|---|
| Maximum operating temperature | 105 °C |
| Packaging data | |
|---|---|
| Package type | Box |
| Technical details | |
|---|---|
| OpenCL version | 3.0 |
| Status | Launched |
| Launch date | Q1'25 |
| Other features | |
|---|---|
| L2 cache | 40960 KB |
| Maximum internal memory | 192 GB |
| Graphics output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
Frequently Asked Questions
Does the Intel Core Ultra 9 285 come with a cooler in the box?
Yes, the retail boxed version includes an Intel stock cooler suitable for the processor's 65W base power. For heavy sustained workloads or overclocking to the 182W maximum turbo power, an aftermarket tower or AIO cooler is recommended.
What motherboard socket does the Intel Core Ultra 9 285 require?
This processor uses the LGA1851 socket, also known as Socket V1. You will need a motherboard with an Intel 800 series chipset designed for Core Ultra processors. It is not compatible with older LGA1700 or LGA1200 boards.
Do I need a graphics card with the Intel Core Ultra 9 285?
Not for basic display output. The processor includes integrated Intel Graphics with 4 Xe-cores that can drive up to four monitors. For gaming or GPU-accelerated creative work, a discrete graphics card is recommended.
Is the Intel Core Ultra 9 285 suitable for AI workloads and content creation?
Yes, it is specifically designed for AI-enhanced applications with a built-in NPU delivering 13 TOPs and total system AI performance of 36 TOPs. The 24-core configuration excels in video editing, 3D rendering, and professional software that benefits from high thread counts.
