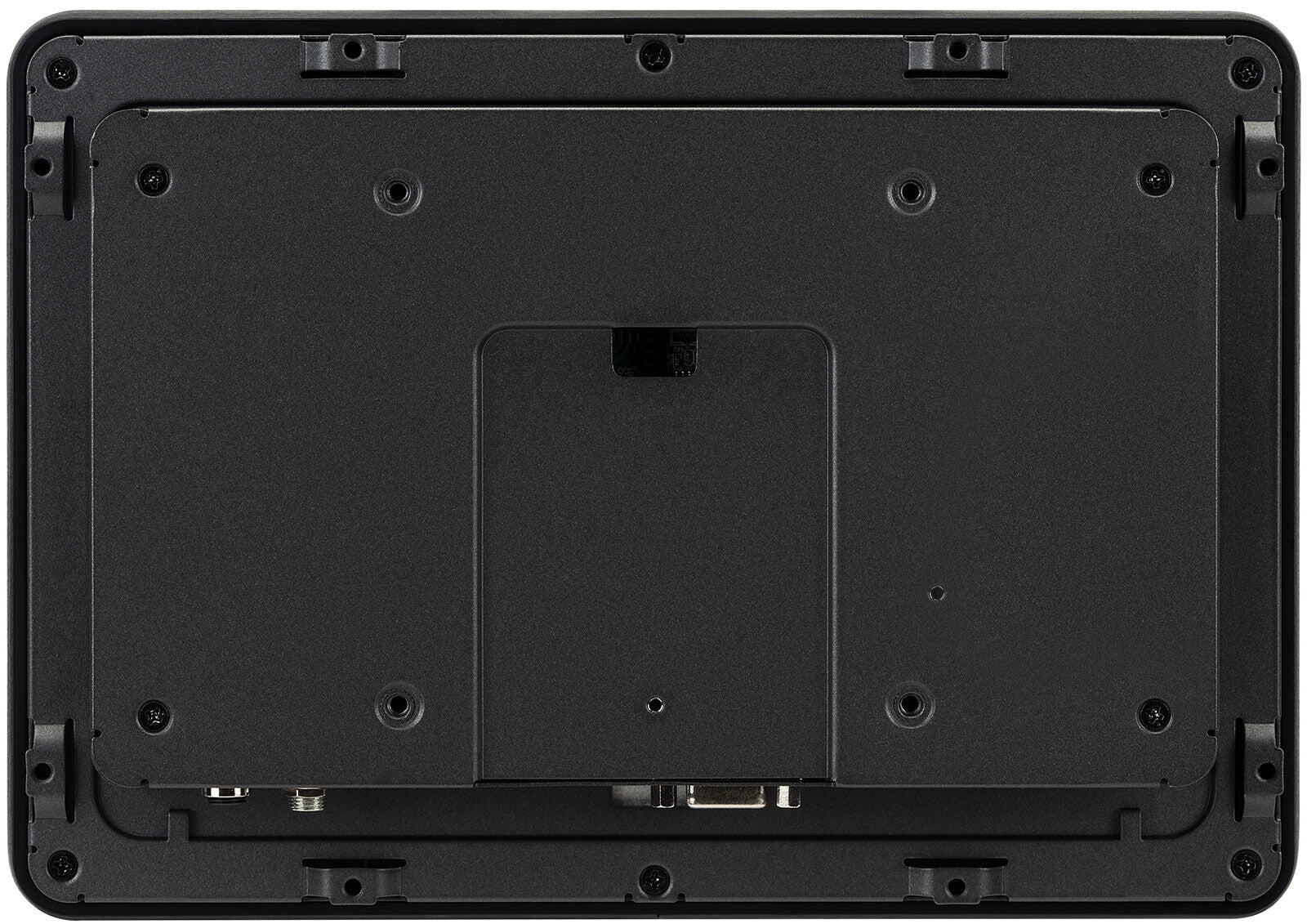

iiyama TF1015MC-B3 computer monitor 25.6 cm (10.1") 1280 x 800 pixels HD LED Touchscreen Black
KEY FEATURES
- 25.6 cm (10.1") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Maximum refresh rate: 75 Hz Response time: 29 ms
- 1280 x 800 pixels HD Panel type: IPS
- Energy efficiency class (SDR): C ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
iiyama TF1015MC-B3 computer monitor 25.6 cm (10.1") 1280 x 800 pixels HD LED Touchscreen Black
Description
iiyama TF1015MC-B3. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, HD type: HD, Display technology: LED, Response time: 29 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black

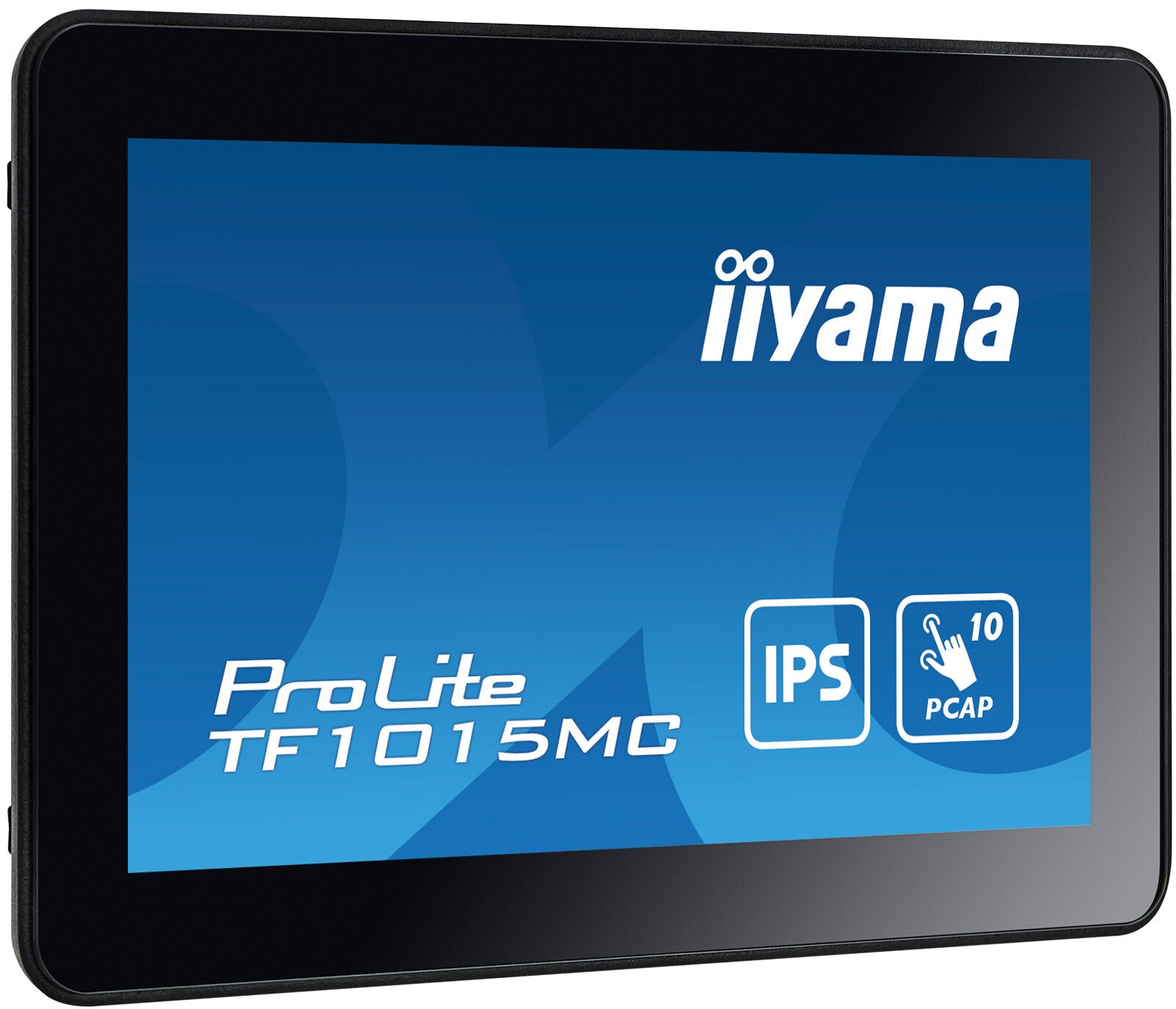

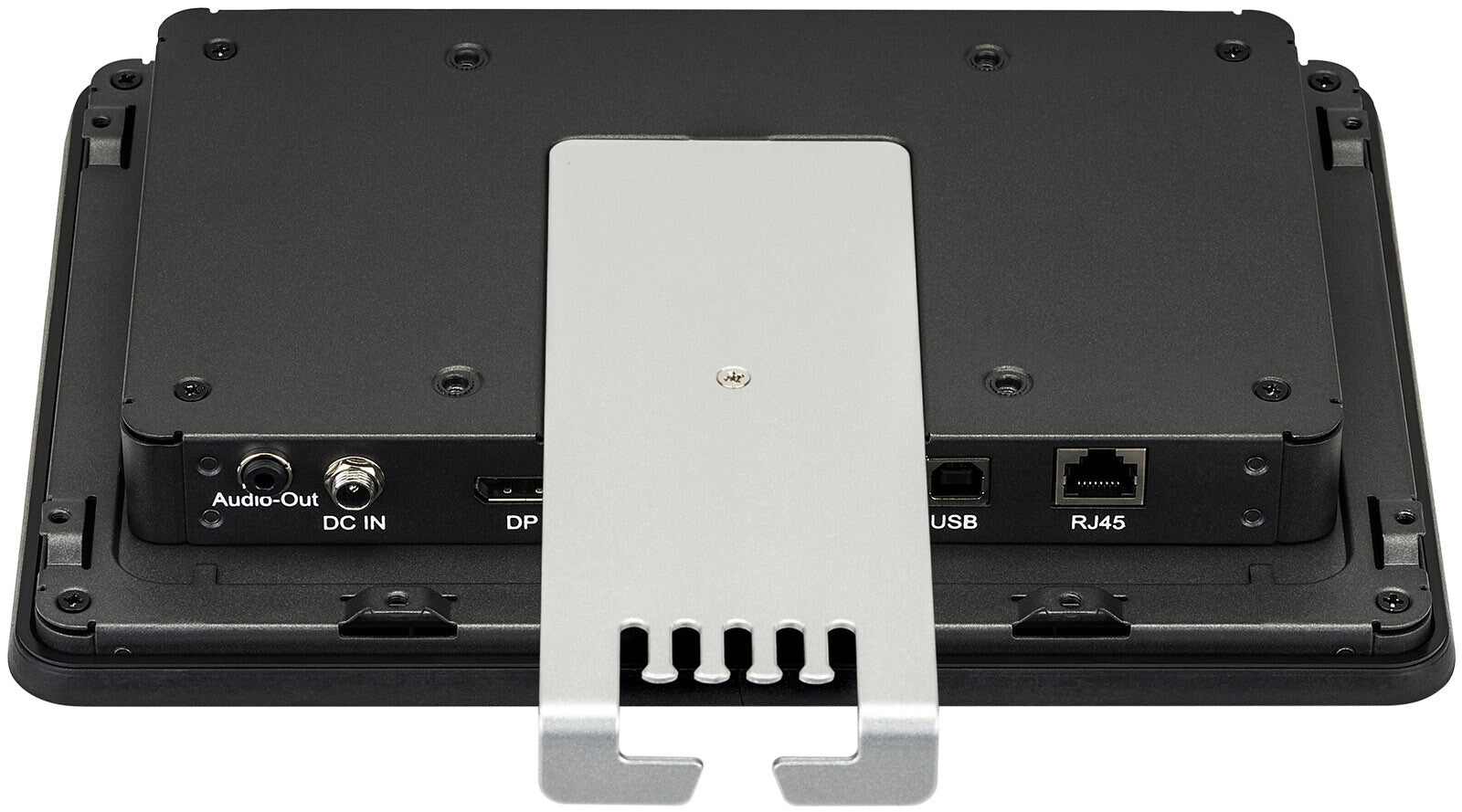

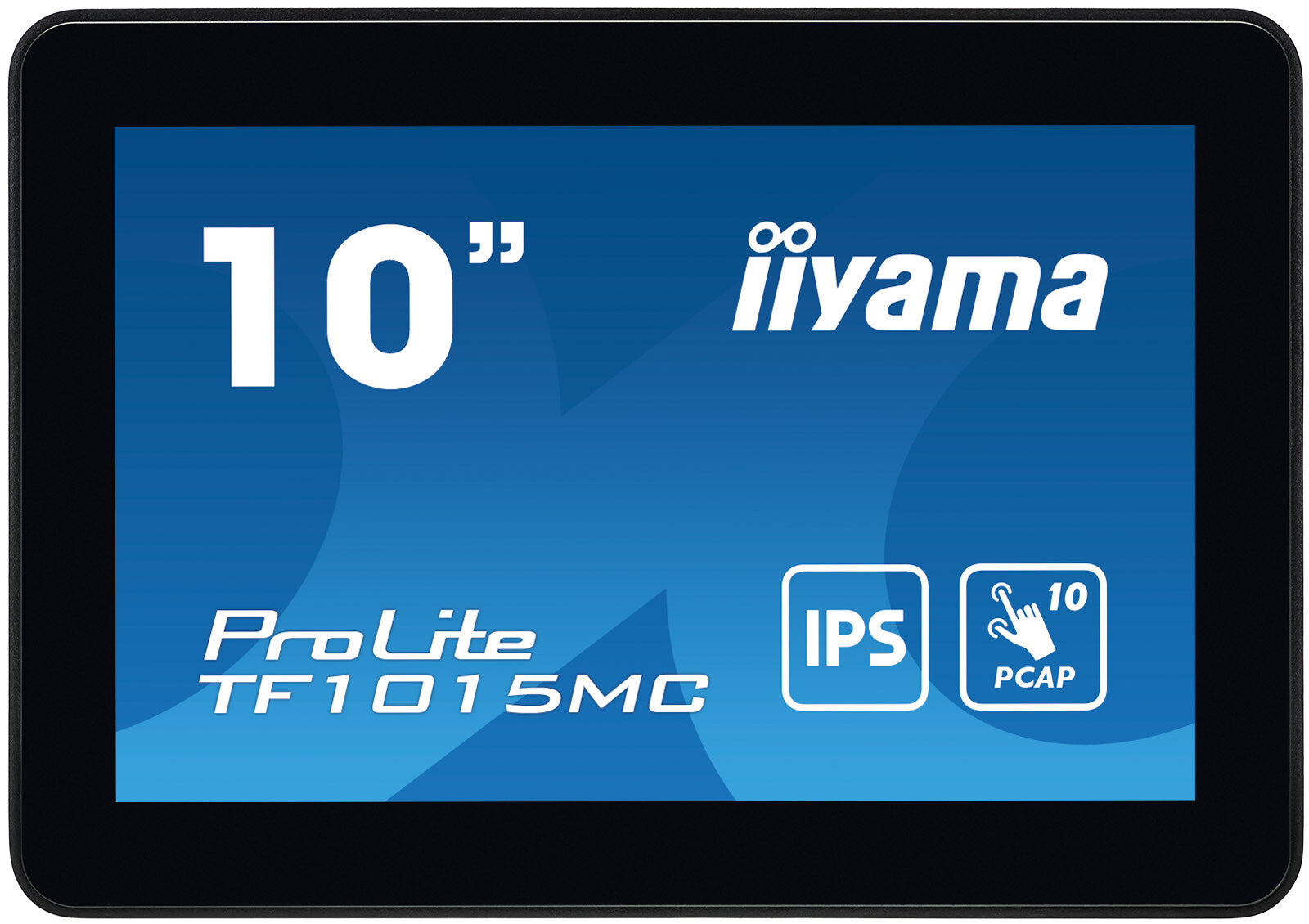

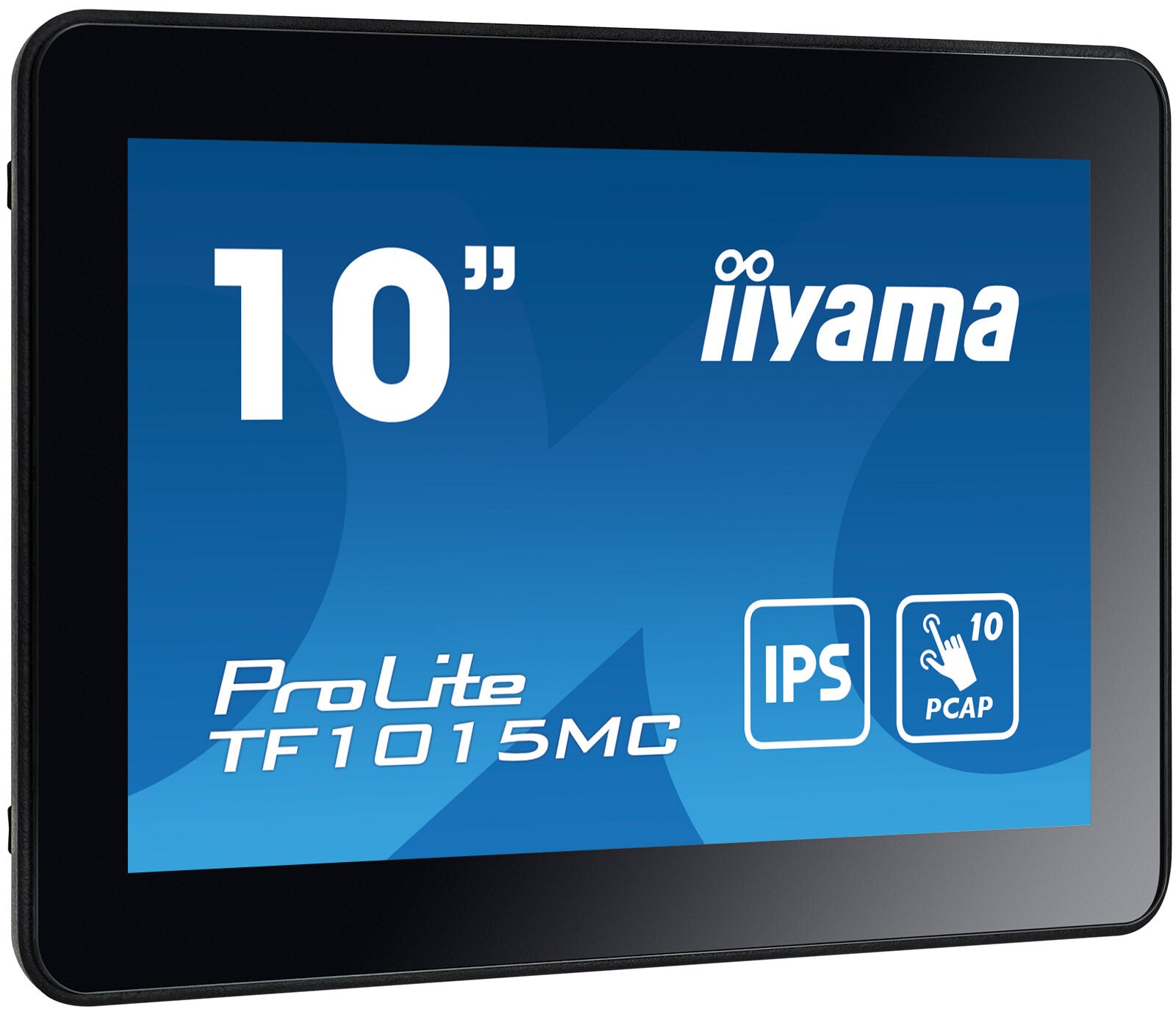

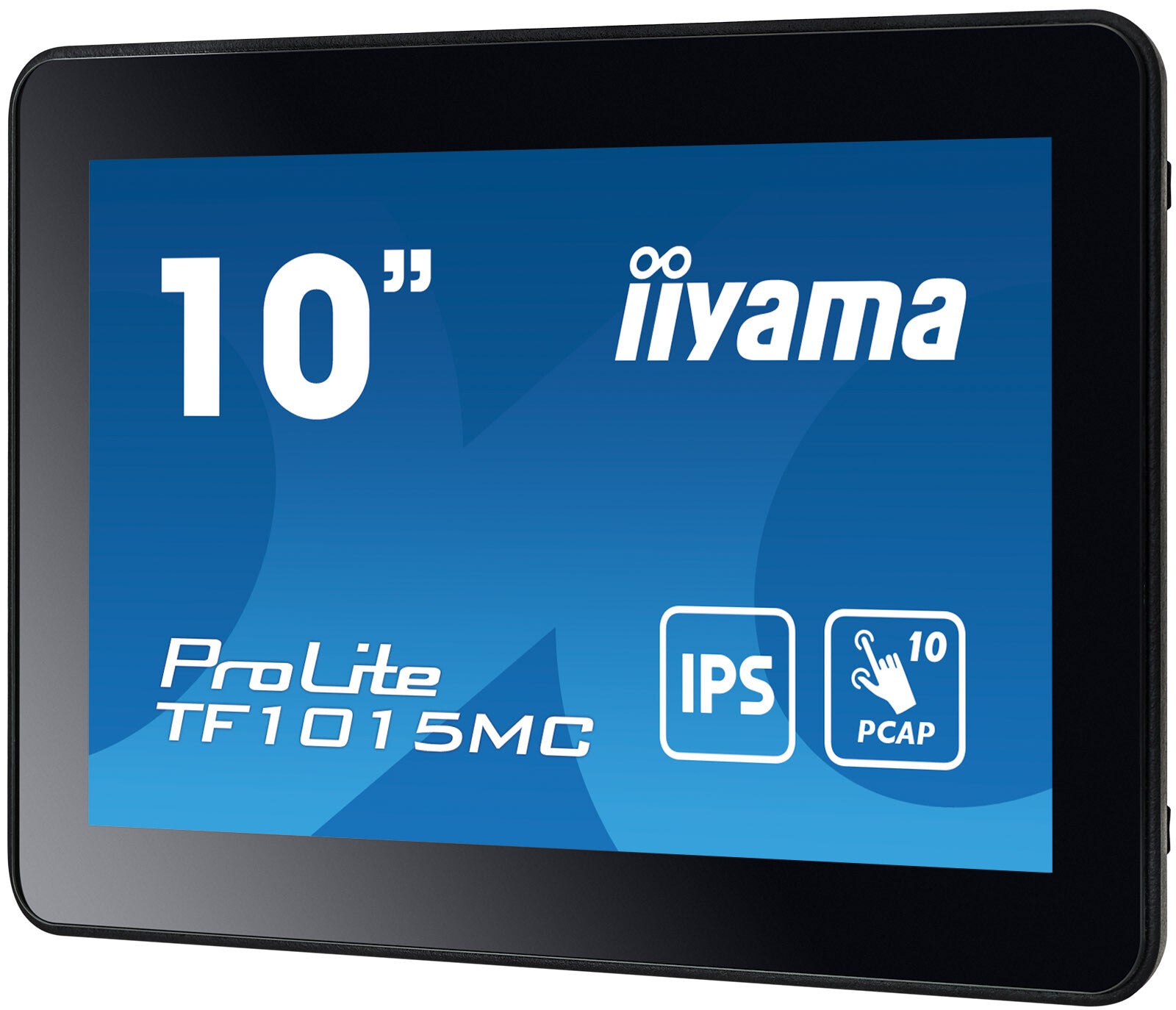

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness (peak) | 500 cd/m² |
| Display brightness | 425 cd/m² |
| Display brightness (typical) | 500 cd/m² |
| Response time | 29 ms |
| HD type | HD |
| Display technology | LED |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1695 x 0.1695 mm |
| Horizontal scan range | 30 - 49.7 kHz |
| Viewable size, horizontal | 21.7 cm |
| Viewable size, vertical | 13.6 cm |
| Digital horizontal frequency | 30 - 49.7 kHz |
| Display diagonal (metric) | 25.7 cm |
| Surface hardness | 7H |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Palm rejection | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Design | |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Glass thickness | 3.3 mm |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |

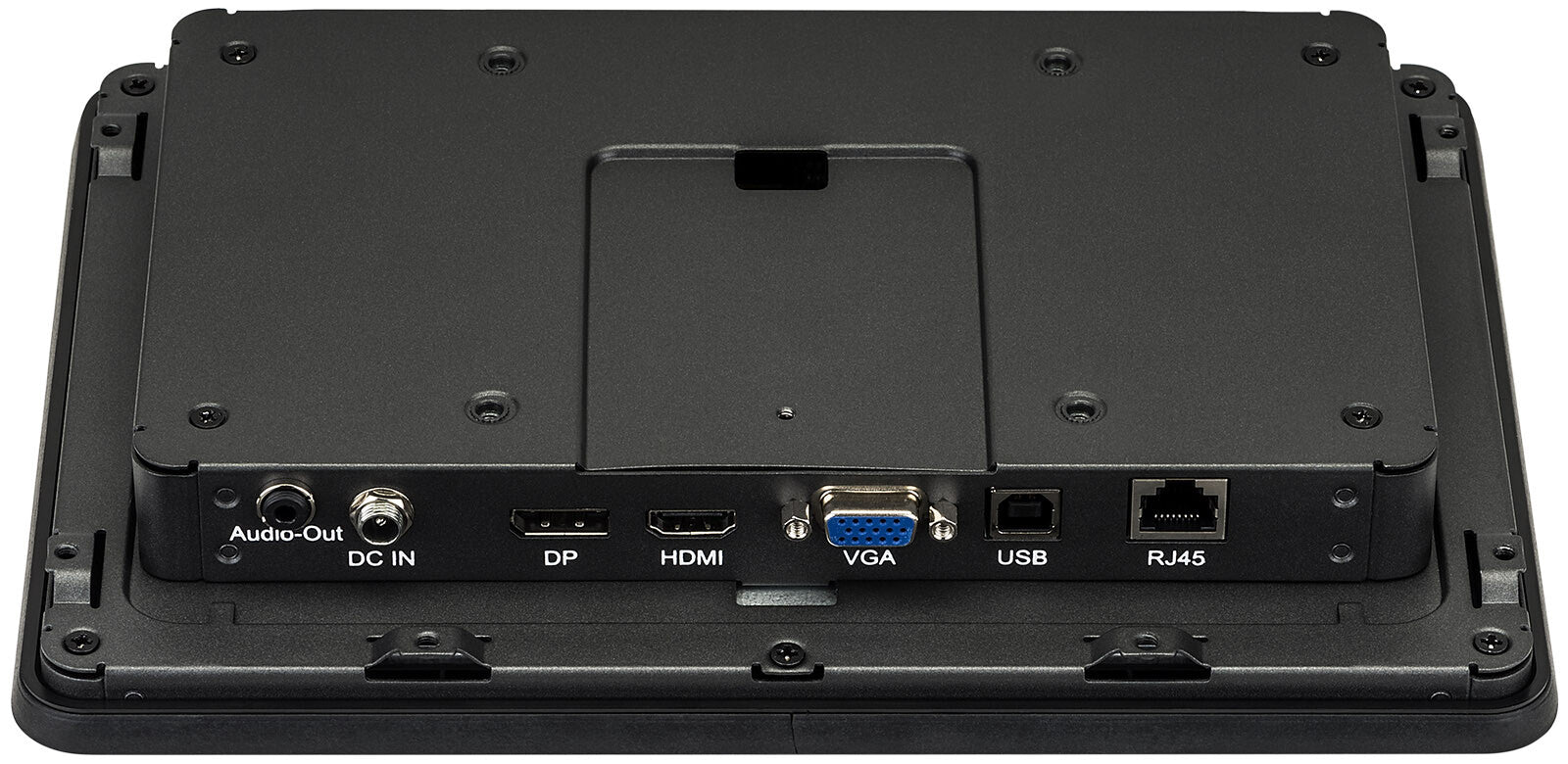

| Ports & interfaces | |
|---|---|
| Built-in USB hub | Yes |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone connectivity | 3.5 mm |
| USB Touch port | Yes |
| HDCP | Yes |
| Ergonomics | |
|---|---|

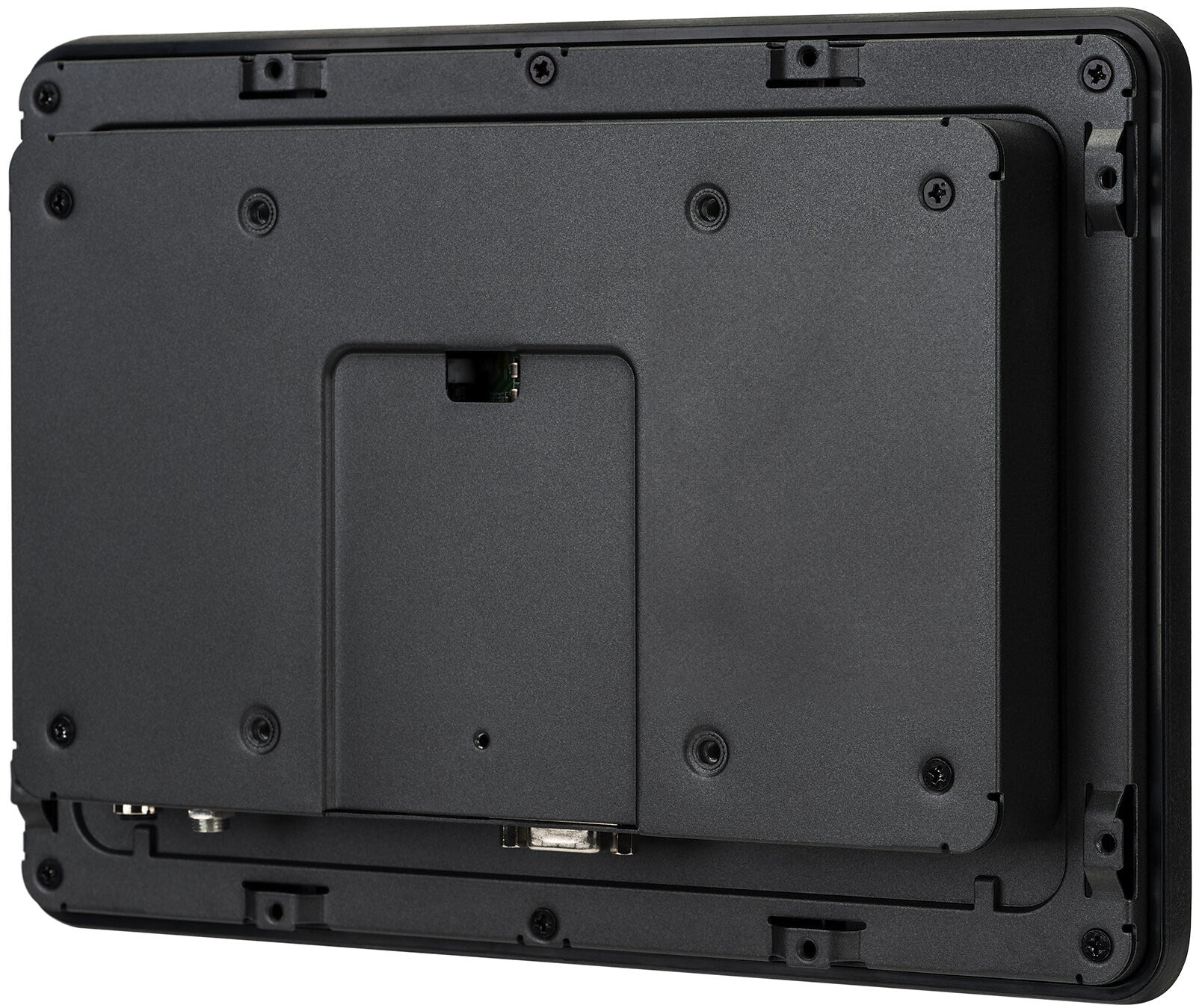

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Power | |
|---|---|
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 5.7 kWh |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 260.5 mm |
| Depth (with stand) | 39.5 mm |
| Height (with stand) | 183.5 mm |
| Weight (with stand) | 1.4 kg |
| Width (without stand) | 260.5 mm |
| Depth (without stand) | 39.5 mm |
| Height (without stand) | 183.5 mm |
| Weight (without stand) | 2.7 kg |
| Packaging data | |
|---|---|

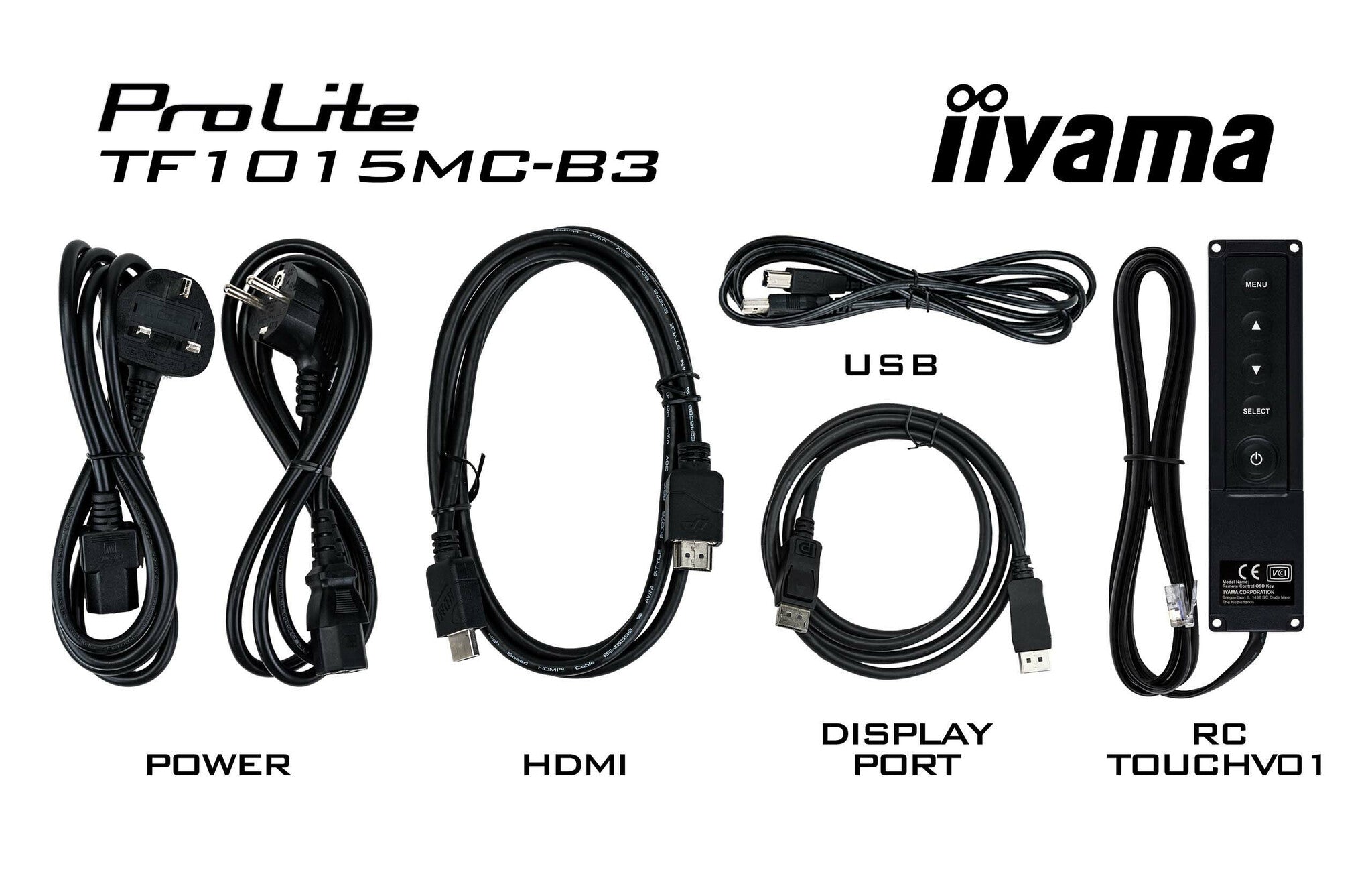

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Remote control included | Yes |
| Package width | 310 mm |
| Package depth | 370 mm |
| Package height | 160 mm |
| Package weight | 2.7 kg |
| Technical details | |
|---|---|
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Other features | |
|---|---|
| AC adapter included | Yes |
| Packaging content | AC adapter, external control pad |
| Width | 260.5 mm |
| Height | 183.5 mm |
| Depth | 39.5 mm |
| Weight | 1.4 kg |
| USB ports quantity | 1 |
| Brightness | 425 cd/m² |
| Placement supported | Indoor |
| Active display area (W x H) | 216.96 x 135.6 mm |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
