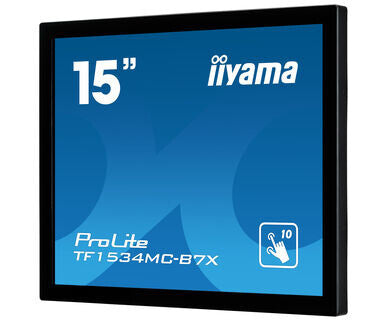

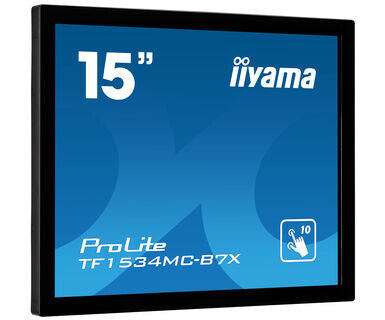

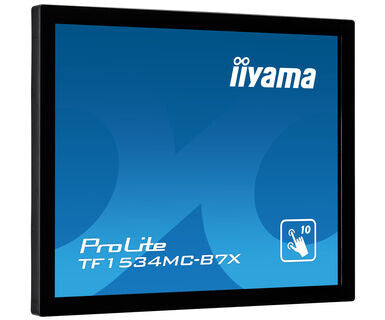

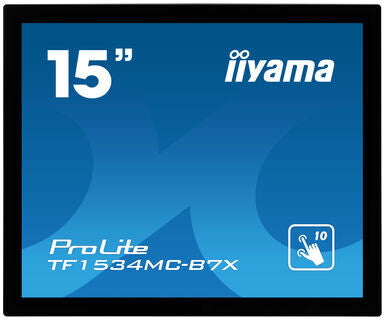

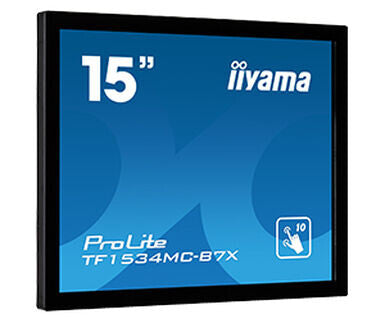

iiyama ProLite TF1534MC-B7X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Multi-user Black
KEY FEATURES
- 38.1 cm (15") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Response time: 8 ms
- 1024 x 768 pixels XGA Panel type: TN
- Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, WEEE
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
iiyama ProLite TF1534MC-B7X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Multi-user Black
Description
iiyama ProLite TF1534MC-B7X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 170°. VESA mounting. Product colour: Black
The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

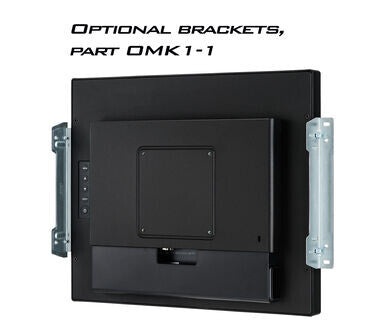

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Display | |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Panel type | TN |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness | 330 cd/m² |
| Display brightness (typical) | 370 cd/m² |
| Response time | 8 ms |
| HD type | XGA |
| Display technology | LED |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Palm rejection | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Design | |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | Yes |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 337.5 mm |
| Depth (with stand) | 44.5 mm |
| Height (with stand) | 265.5 mm |
| Weight (with stand) | 2.7 kg |
| Width (without stand) | 337.5 mm |
| Depth (without stand) | 44.5 mm |
| Height (without stand) | 265.5 mm |
| Weight (without stand) | 2.7 kg |
| Packaging data | |
|---|---|

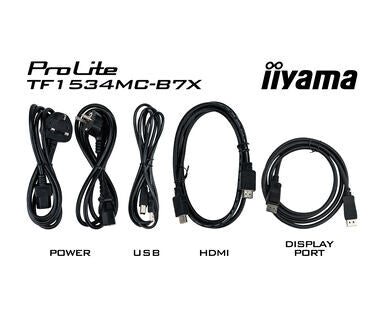

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Package width | 435 mm |
| Package depth | 165 mm |
| Package height | 335 mm |
| Package weight | 4 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Products per pallet | 78 pc(s) |
| Technical details | |
|---|---|
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Pallet net width | 91 cm |
| Pallet net length | 198.7 cm |
| Pallet net height | 114 cm |
| Other features | |
|---|---|
| AC adapter included | Yes |
| Packaging content | AC adapter |
| Width | 337.5 mm |
| Height | 265.5 mm |
| Depth | 44.5 mm |
| Weight | 2.7 kg |
| Brightness | 330 cd/m² |
| Active display area (W x H) | 304 x 228 mm |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display viewable area (HxV) | 304 x 228 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
