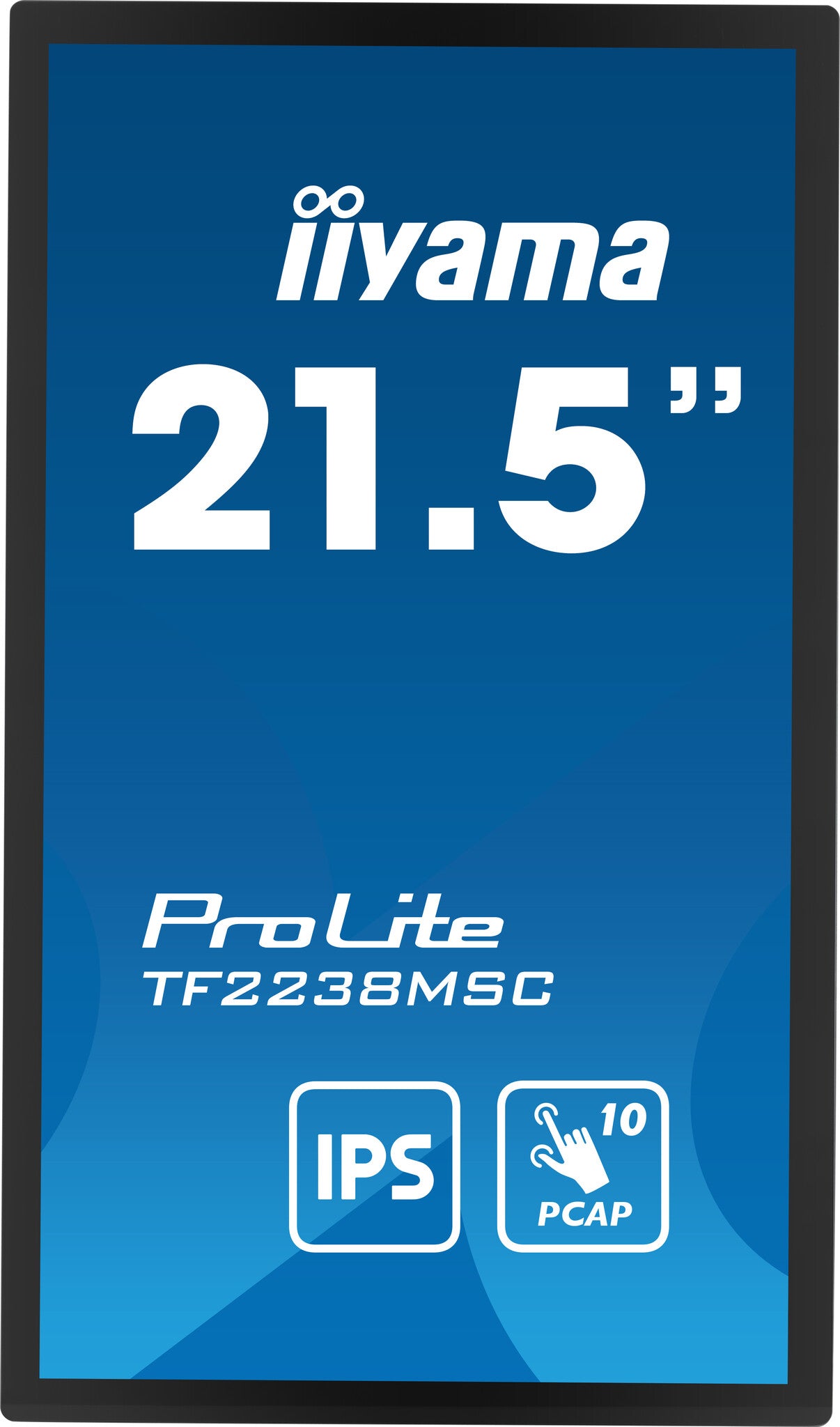

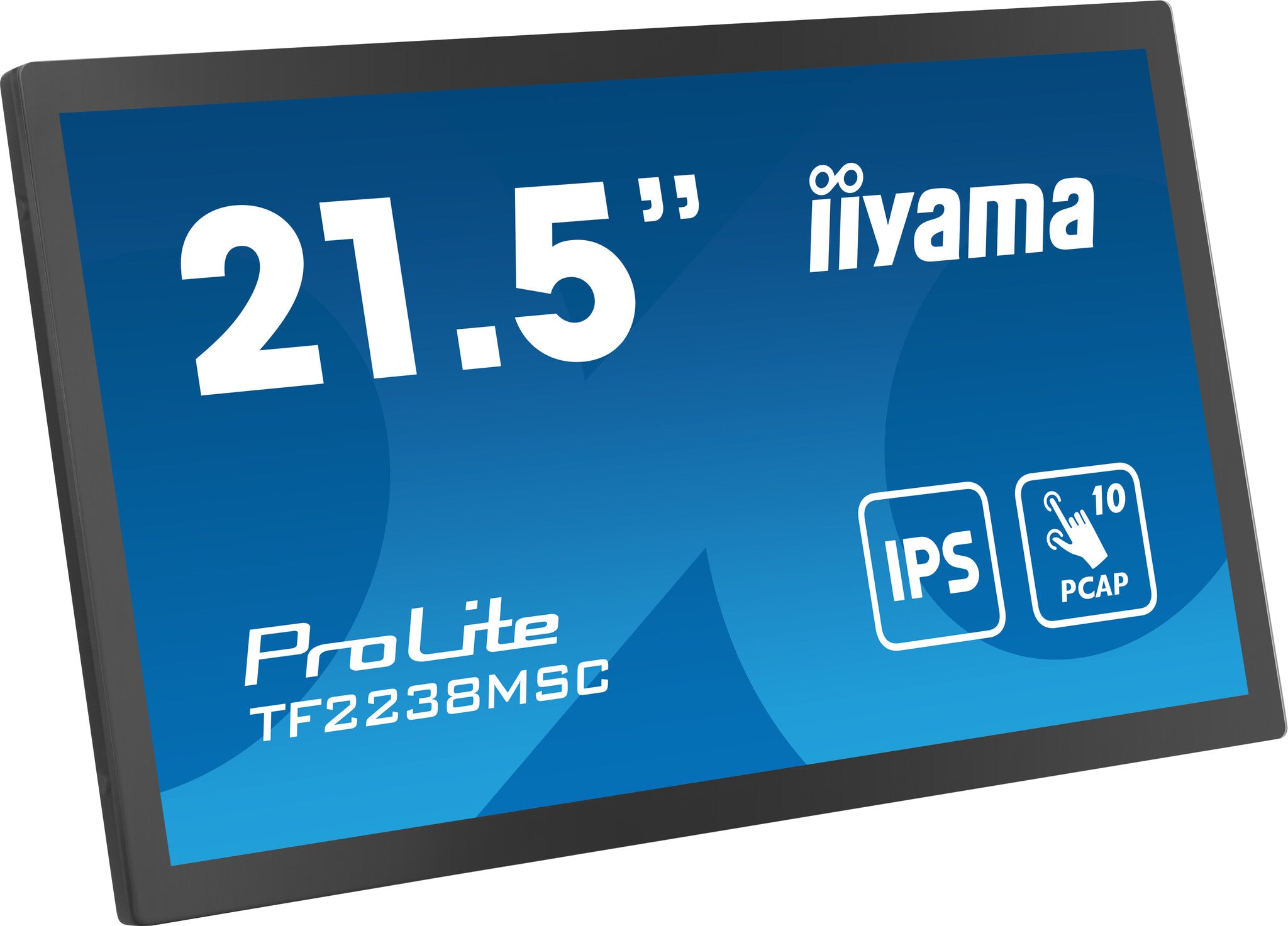

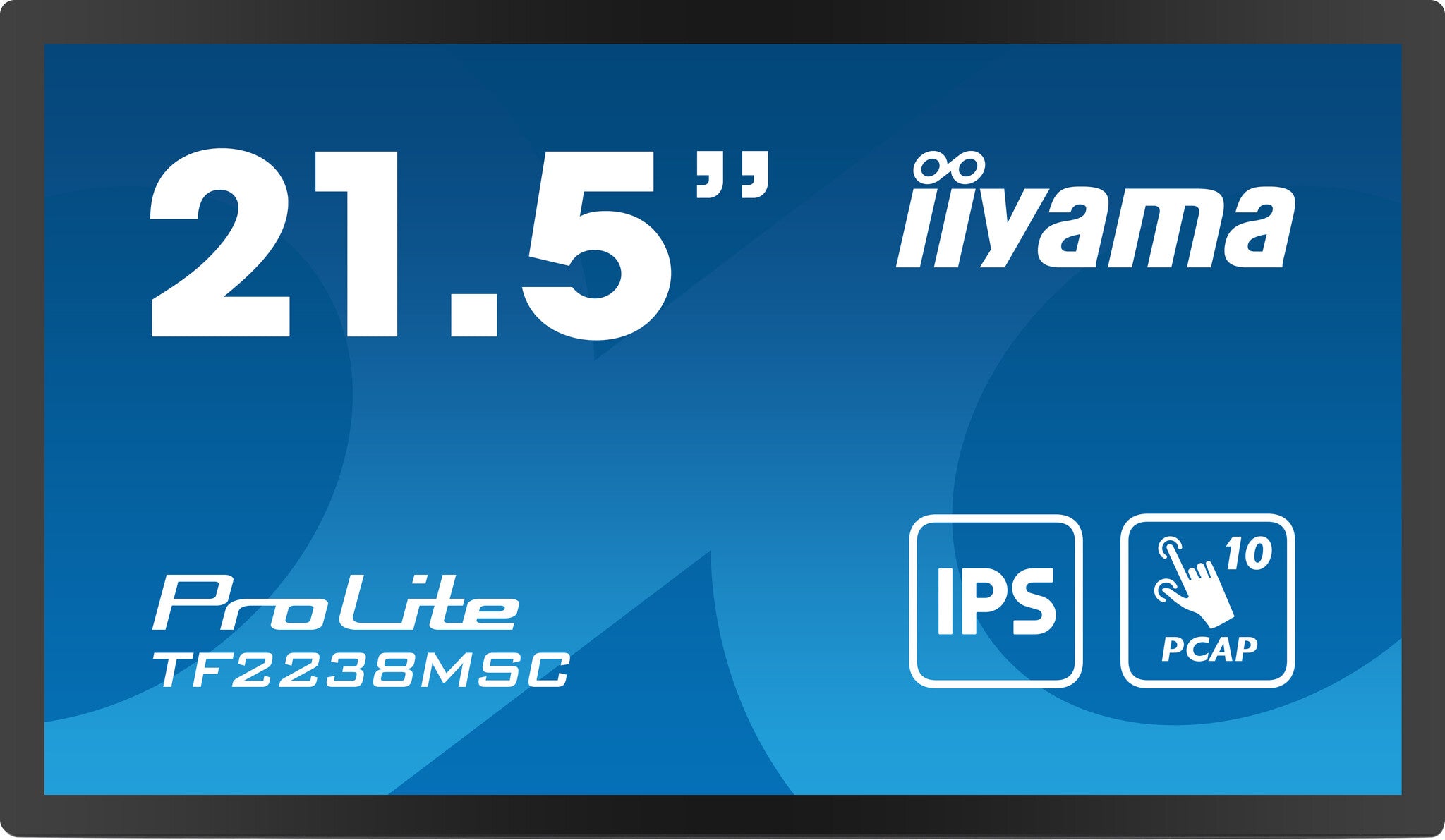

iiyama PROLITE Digital A-board 55.9 cm (22") LED 600 cd/m² Full HD Black Touchscreen
KEY FEATURES
- OPTICAL BONDED PCAP
- OPEN FRAME LFD
- IPS TECHNOLOGY
- SCRATCH RESISTANCE
- SPEAKERS
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
iiyama PROLITE Digital A-board 55.9 cm (22") LED 600 cd/m² Full HD Black Touchscreen
Description
iiyama PROLITE. Product design: Digital A-board. Display diagonal: 55.9 cm (22"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 600 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
PROLITE TF2438MSC-B1
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
OPEN FRAME LFD

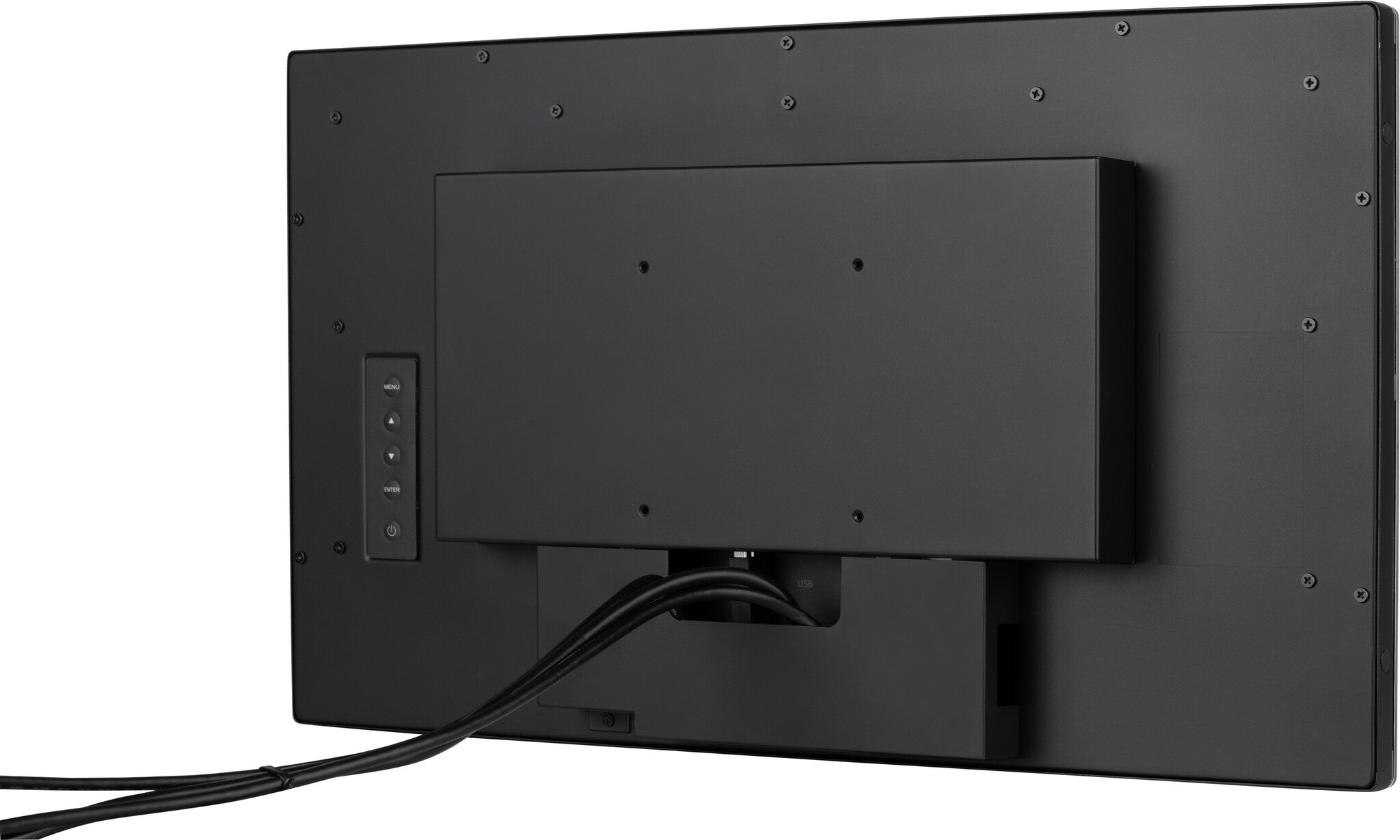

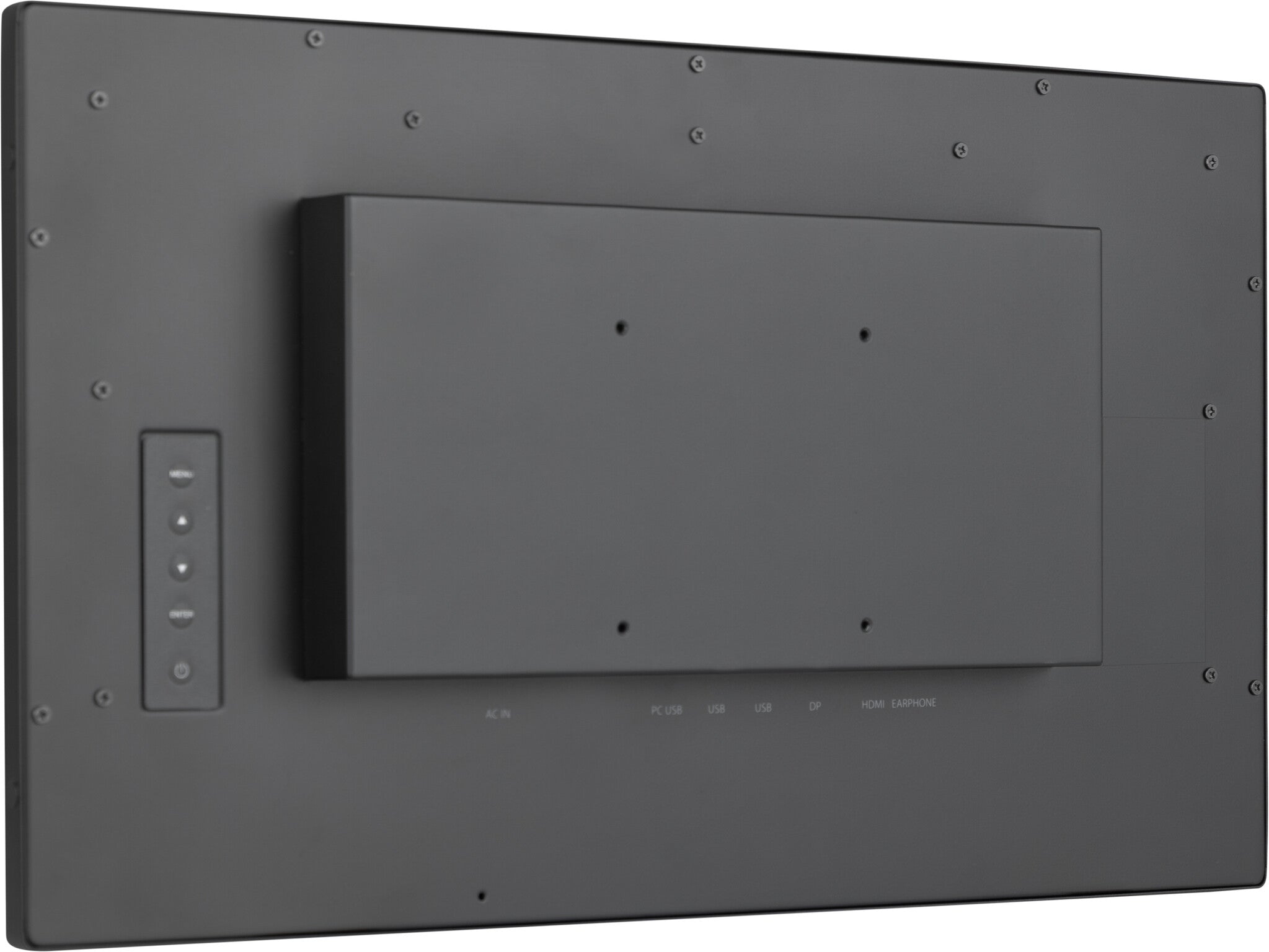

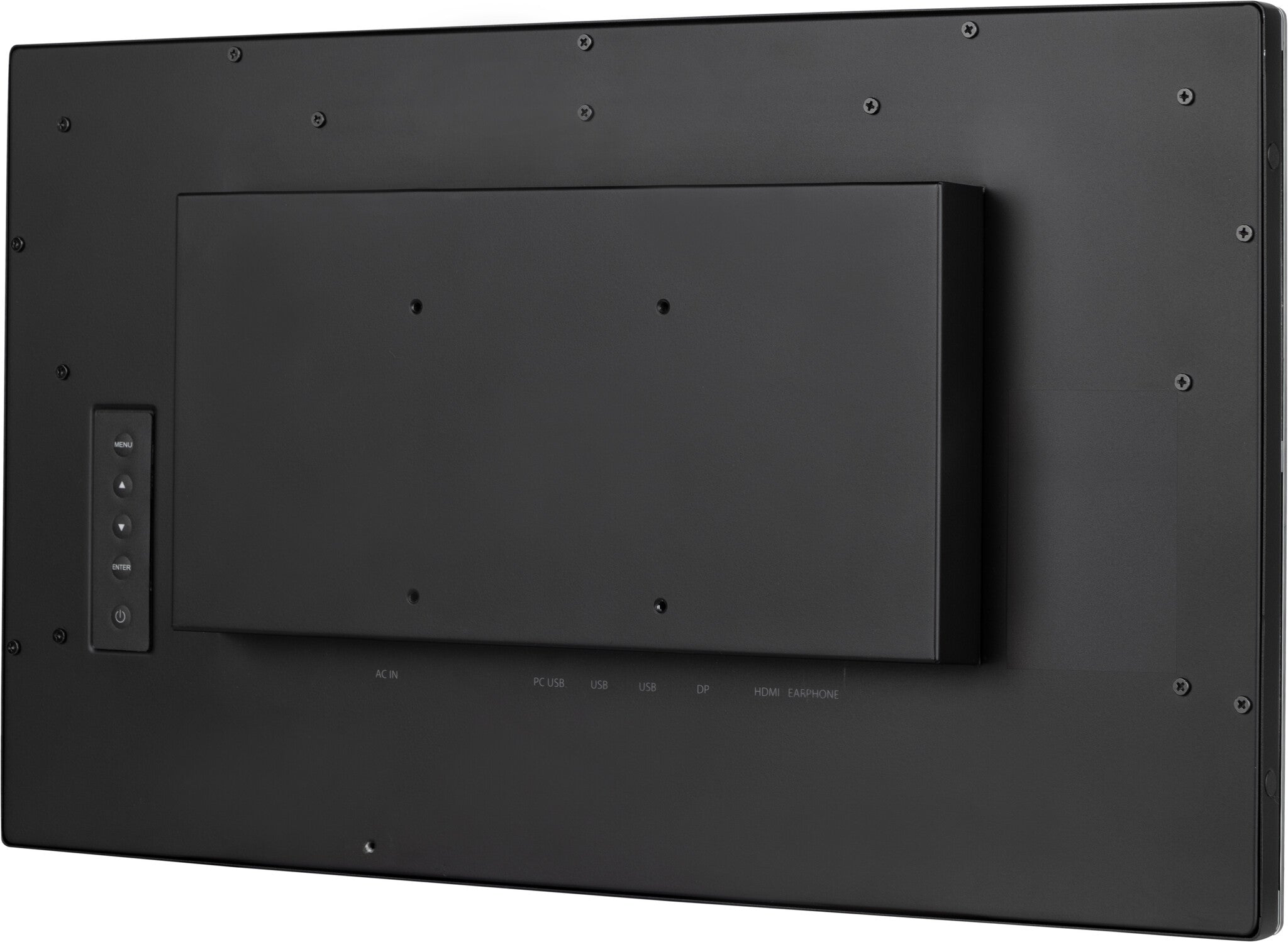

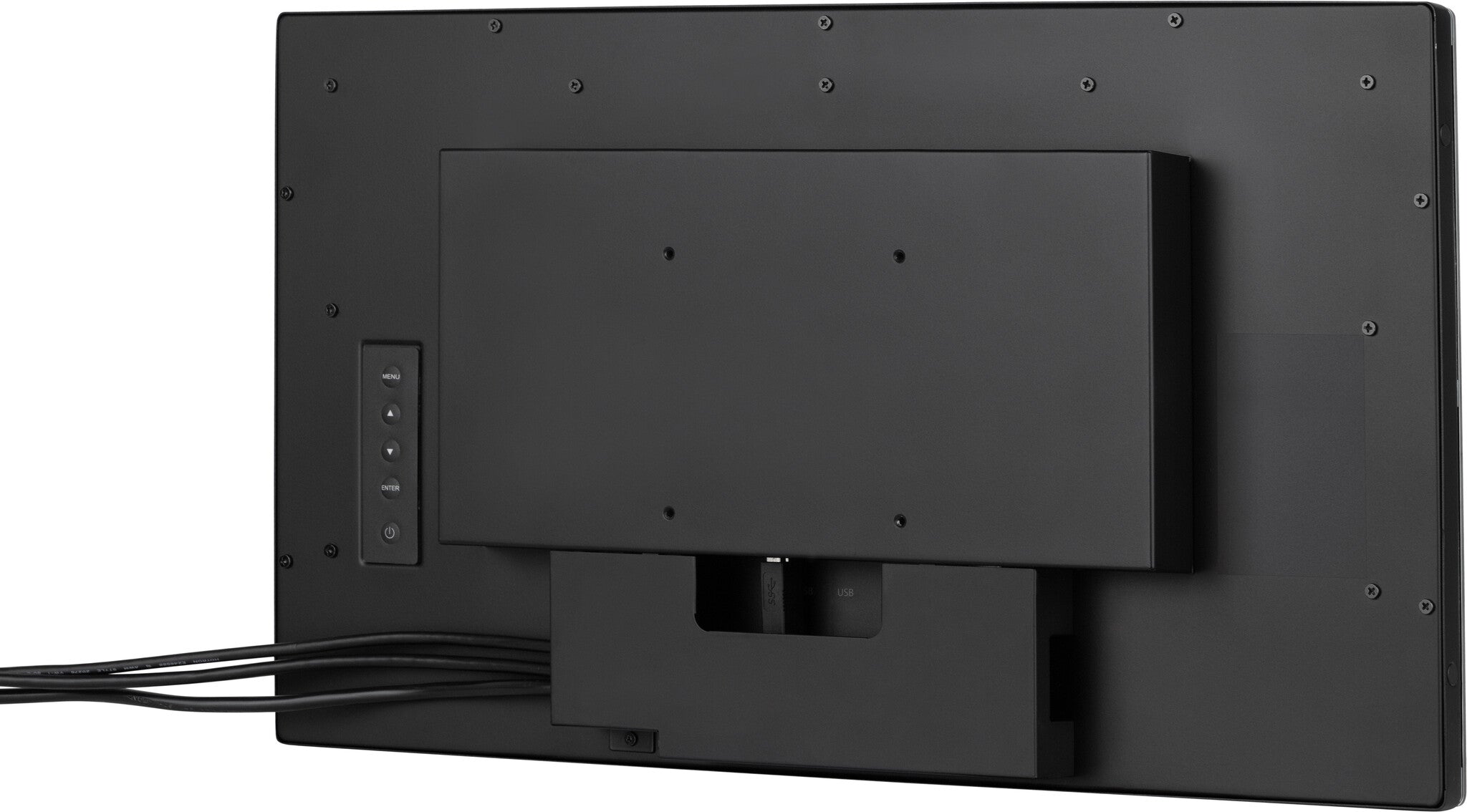

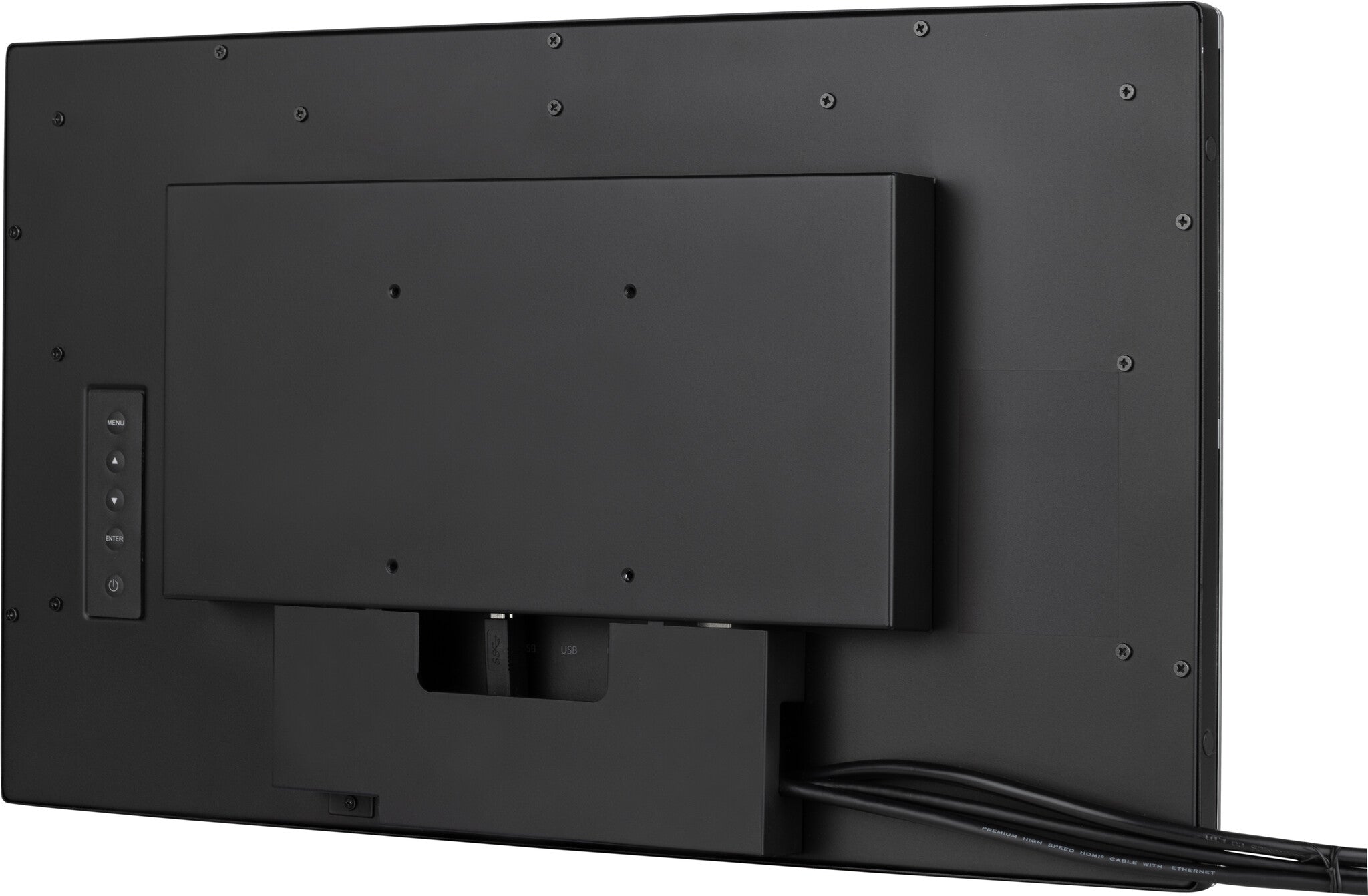

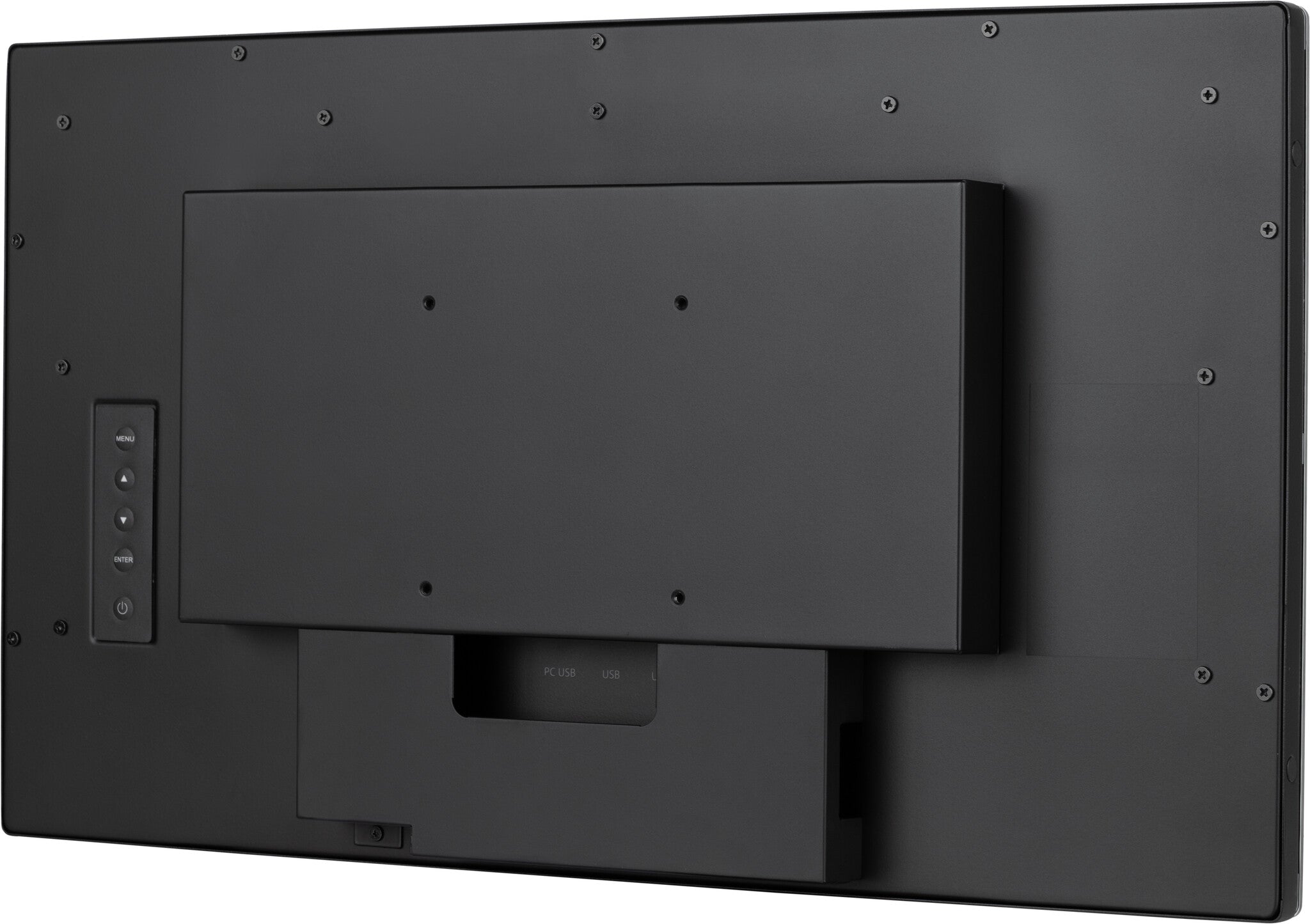

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Display | |
|---|---|
| Display diagonal | 53.3 cm (21") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Response time measurement type | GTG (Gray to Gray) |
| Display brightness | 525 cd/m² |
| Display brightness (typical) | 600 cd/m² |
| Response time | 5 ms |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.249 x 0.249 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 47.9 cm |
| Viewable size, vertical | 26 cm |
| Display diagonal (metric) | 54.5 cm |
| Surface hardness | 7H |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Design | |
|---|---|
| Product colour | Black |
| Glass thickness | 3.6 mm |
| Front bezel colour | Black |
| International Protection (IP) code | IP1X |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |

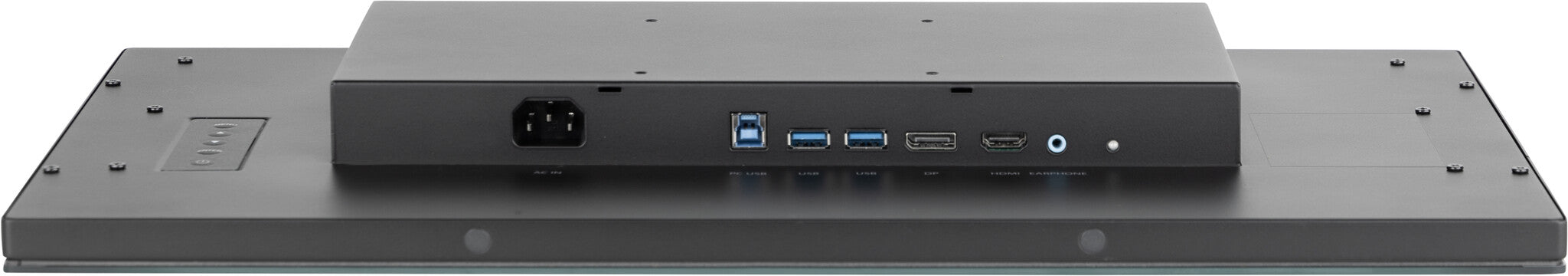

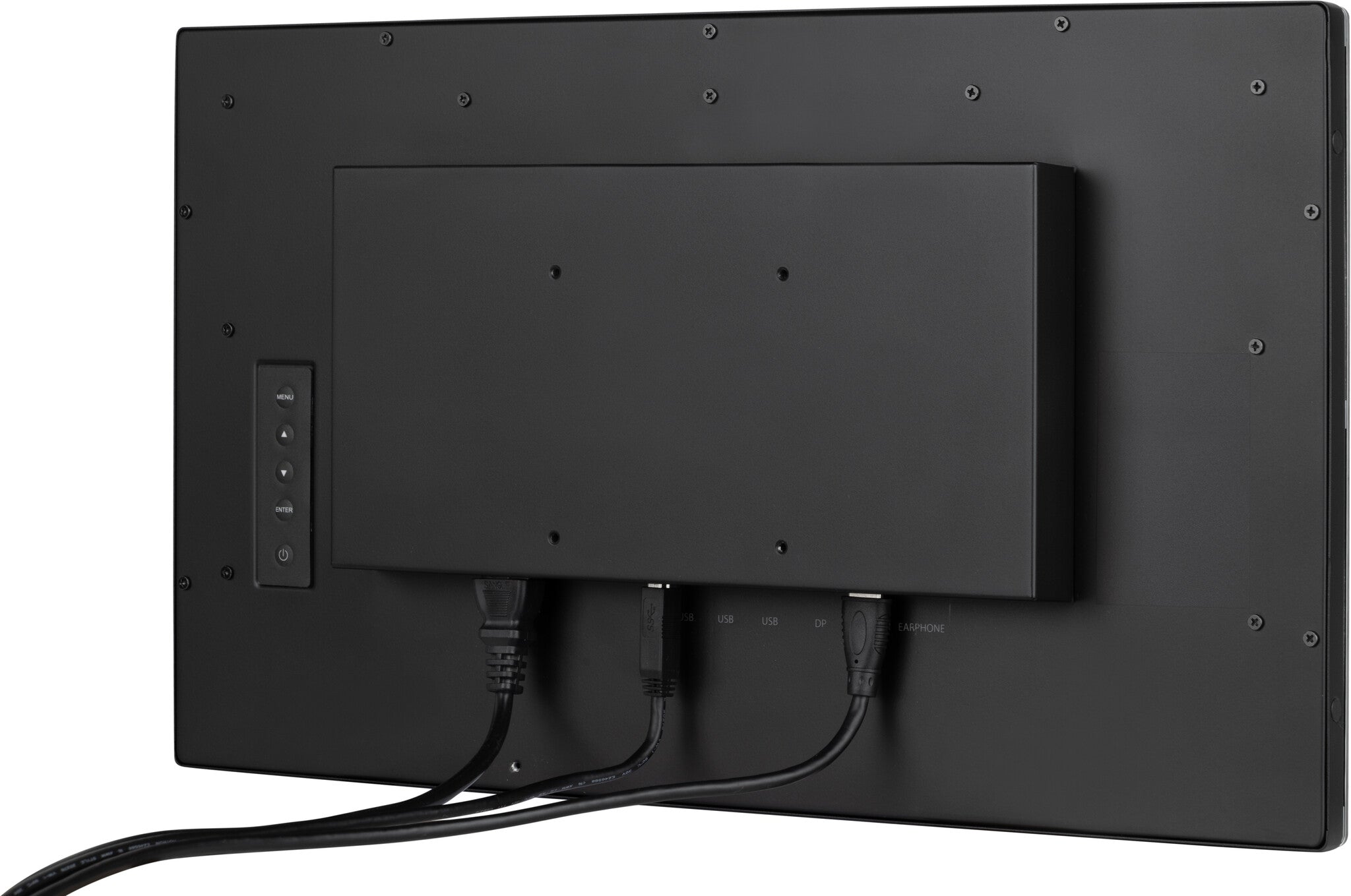

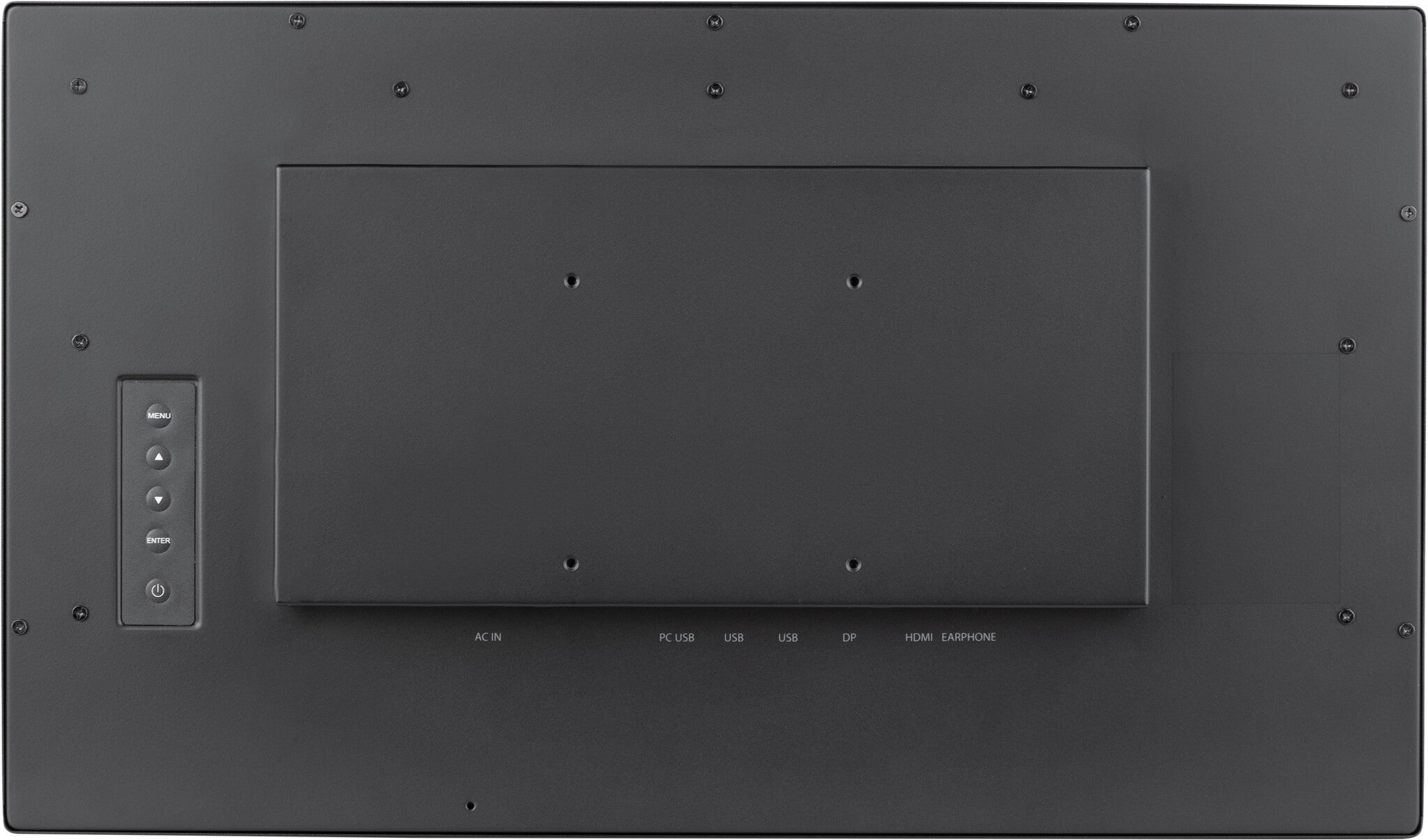

| Ports & interfaces | |
|---|---|
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI port | No |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Number of downstream ports | 2 |
| USB Touch port | Yes |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| Power | |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 12.9 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Network | |
|---|---|
| Wi-Fi | No |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 512.5 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 300 mm |
| Weight (with stand) | 5.1 kg |
| Bezel width (side) | 1.7 cm |
| Bezel width (top) | 1.98 cm |
| Bezel width (bottom) | 1.98 cm |
| Packaging data | |
|---|---|
| Cables included | AC, USB, HDMI |
| Quick start guide | Yes |
| Package width | 572 mm |
| Package depth | 112 mm |
| Package height | 364 mm |
| Package weight | 6.4 kg |
| Technical details | |
|---|---|
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Other features | |
|---|---|
| Built-in processor | No |
| Width | 512.5 mm |
| Height | 300 mm |
| Depth | 47 mm |
| Weight | 5.1 kg |
| USB ports quantity | 2 |
| Brightness | 525 cd/m² |
| Placement supported | Indoor |
| Active display area (W x H) | 479 x 260 mm |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN | No |

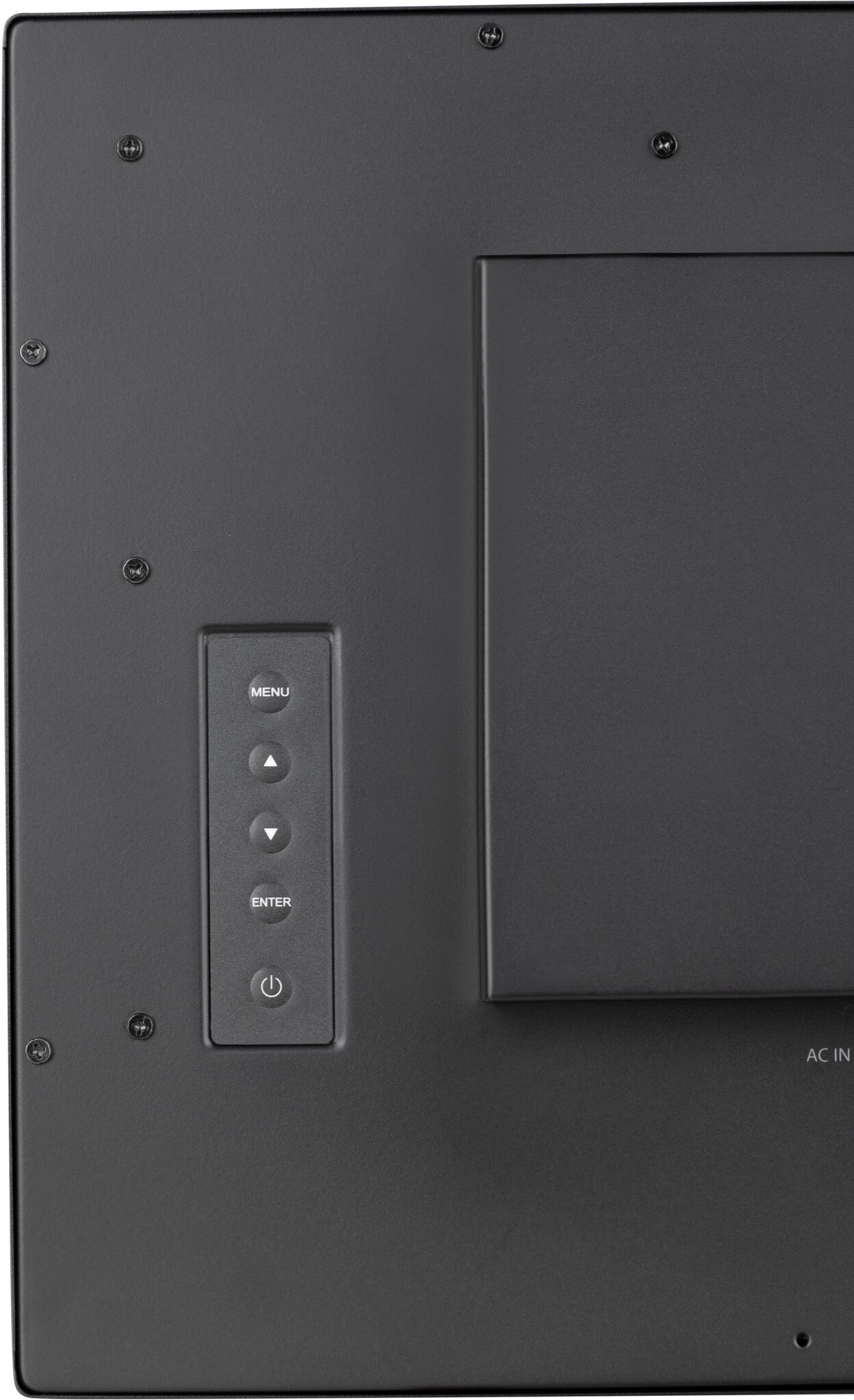

| Control panel | Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Touch method | stylus, finger, glove |
