Gigabyte GeForce RTX 4060 Ti 16 GB GDDR6 Graphics Card | PCIe 4.0 x8 | 2 ? DP and 2 ? HDMI | Active Cooling
KEY FEATURES
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4060 Ti (16GB)
- Integrated with 16GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Protection metal back plate
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Gigabyte GeForce RTX 4060 Ti 16 GB GDDR6 Graphics Card | PCIe 4.0 x8 | 2 ? DP and 2 ? HDMI | Active Cooling
Description
Gigabyte GeForce RTX 4060 Ti Windforce OC 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti, Processor frequency: 2535 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

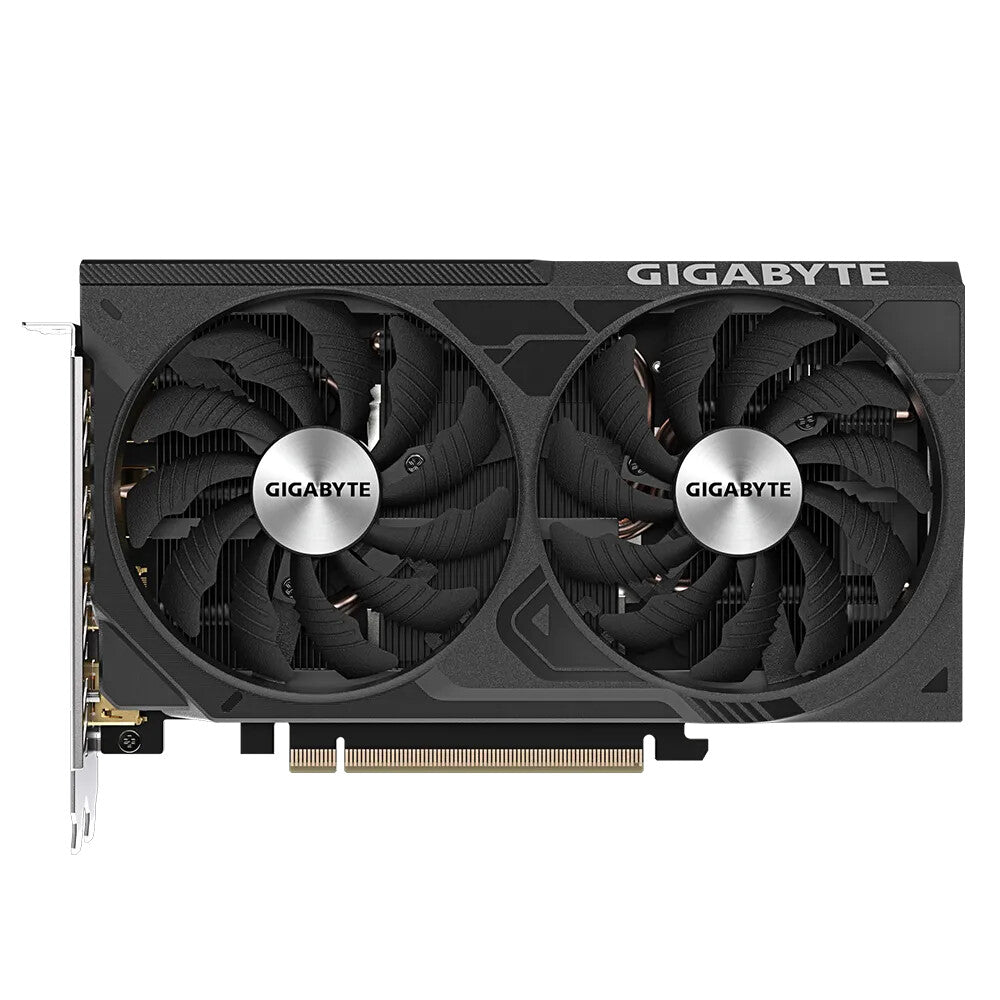

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure..
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

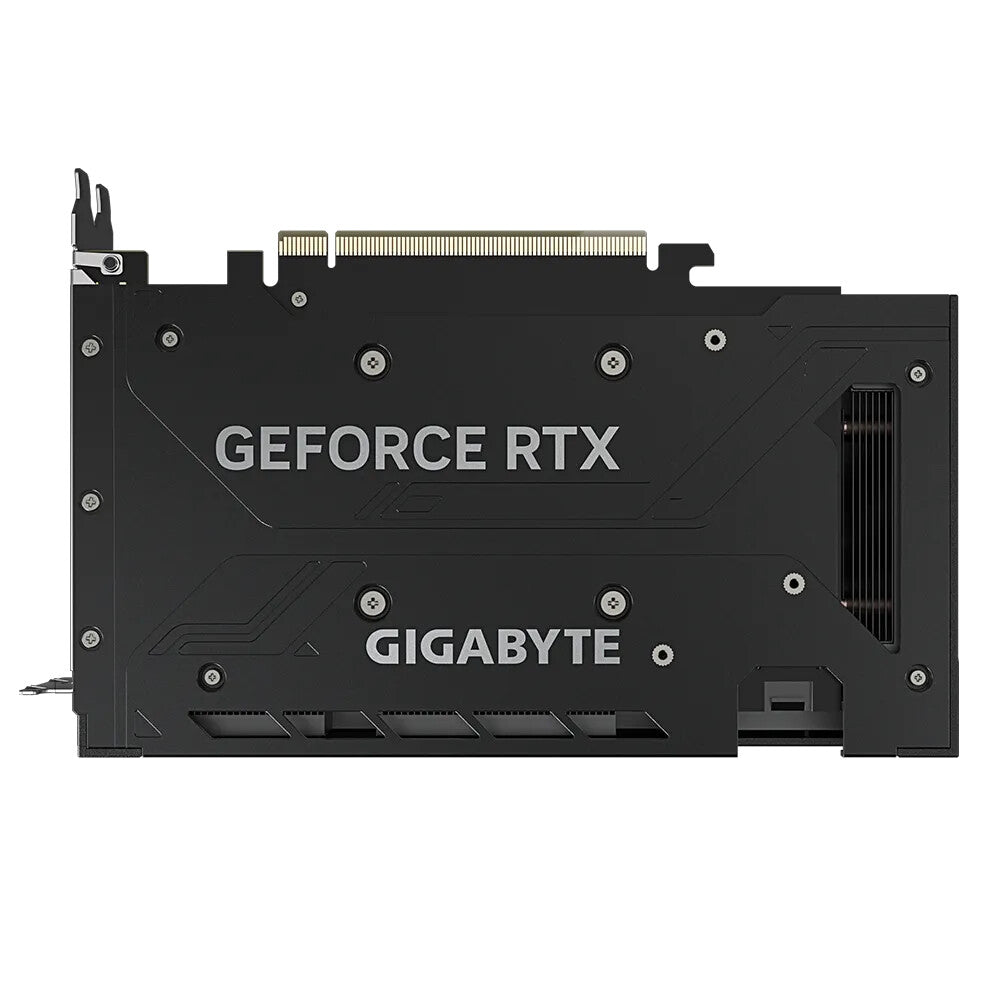

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2565 MHz |
| CUDA cores | 4352 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4060 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Memory clock speed | 18000 MHz |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |

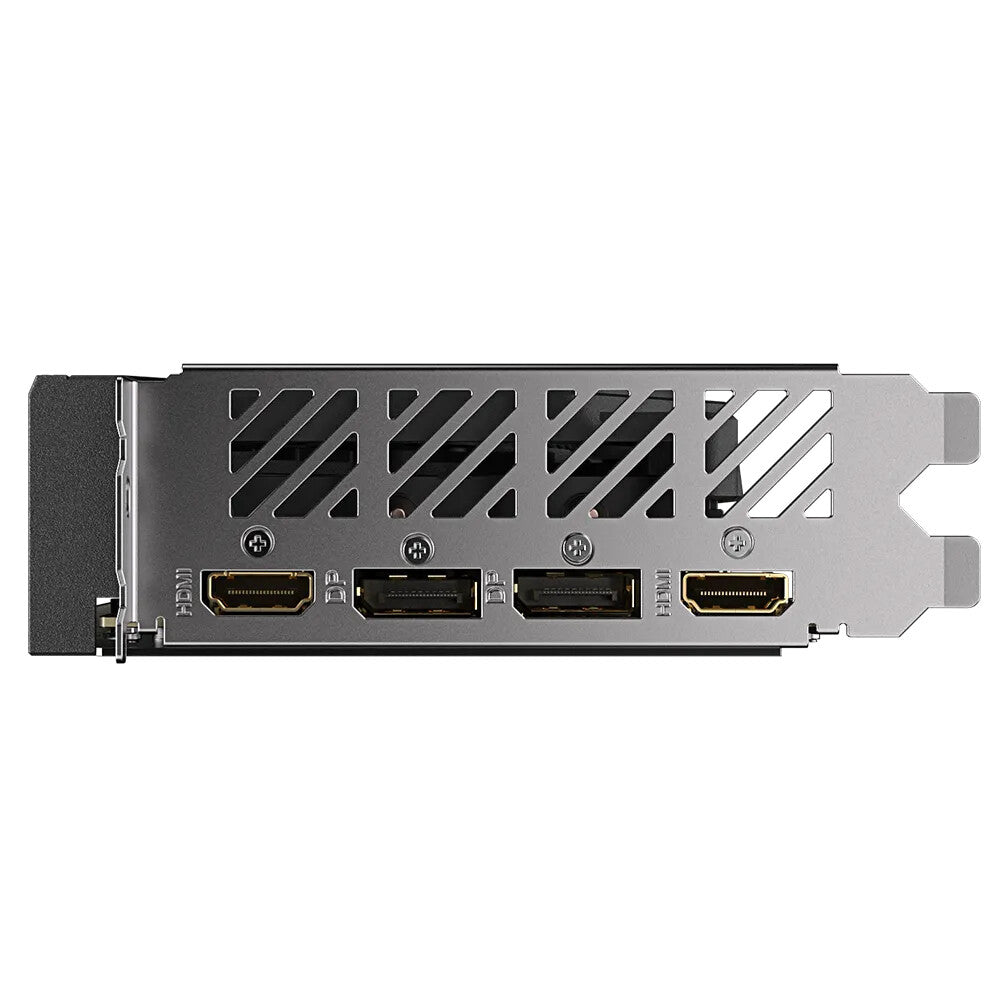

| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of fans | 2 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Cooling type | Active |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 165 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 500 W |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Weight & dimensions | |
|---|---|
| Depth | 41 mm |
| Height | 120 mm |
| Length | 201 mm |
| Weight | 600 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 900 g |
| Package height | 50 mm |
| Package depth | 295 mm |
| Package width | 210.5 mm |
| User guide | Yes |
| Cables included | Power |
