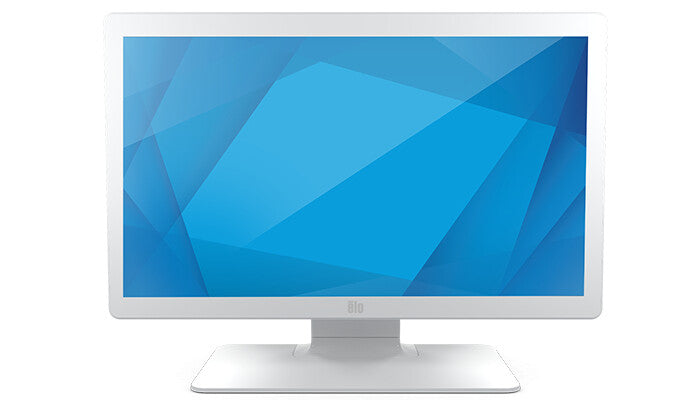

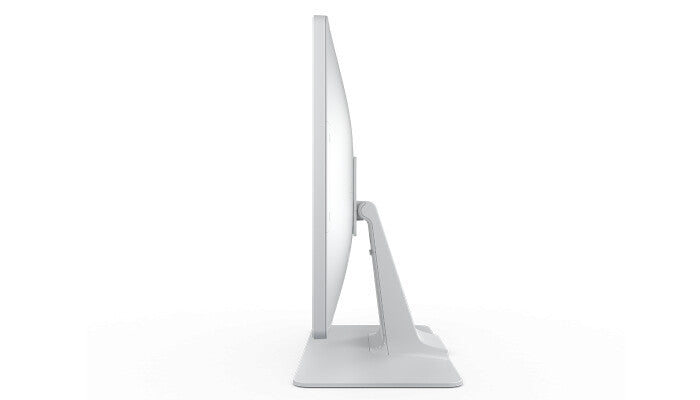

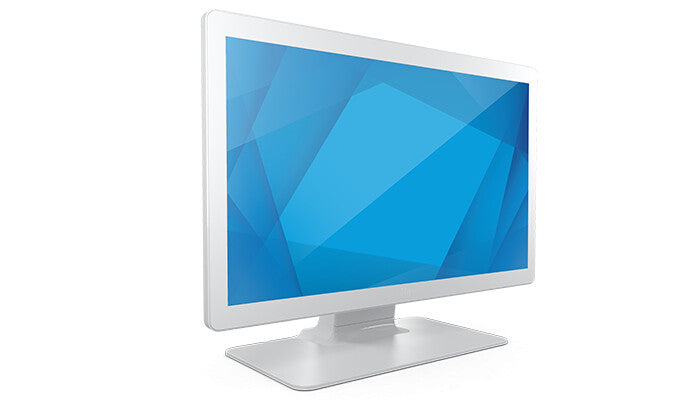

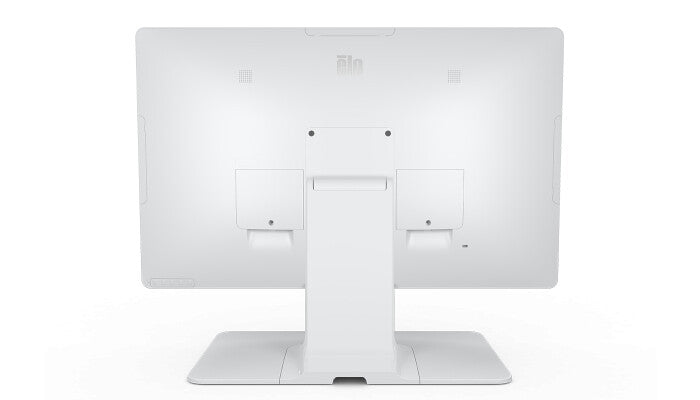

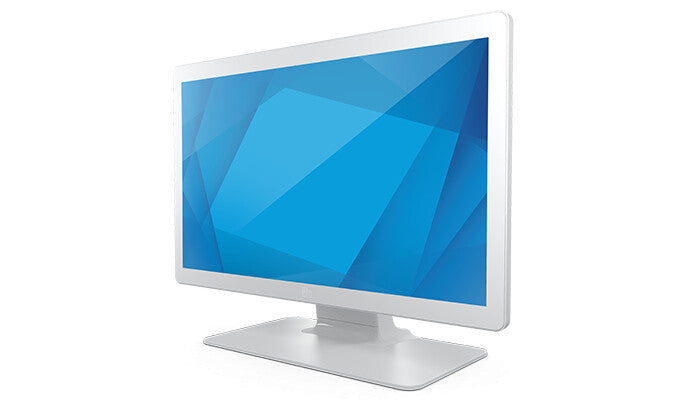

Elo Touch Solution 2403LM 24" Full HD Monitor | 1920 x 1080 70Hz HDMI VGA
KEY FEATURES
- Touchscreen 60.5 cm (23.8") LCD TFT
- Full HD 1920 x 1080 pixels 16:9
- 70 Hz 16 ms 1000:1
- E 18 kWh 15.68 W
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Elo Touch Solution 2403LM 24" Full HD Monitor | 1920 x 1080 70Hz HDMI VGA
Description
Elo Touch Solutions 2403LM. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Warranty: 3 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Display | |
|---|---|
| Display diagonal (metric) | 60.5 cm |
| Viewable size, vertical | 29.6 cm |
| Viewable size, horizontal | 52.7 cm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 70 Hz |
| Contrast ratio (typical) | 1000:1 |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Display technology | LCD |
| HD type | Full HD |
| Response time | 16 ms |
| Display brightness | 225 cd/m² |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Panel type | TFT |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 60.5 cm (23.8") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| International Protection (IP) code | IP54 |
| Product colour | White |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ergonomics | |
|---|---|
| LED indicators | Power |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | DC |
| Power consumption (off) | 0.24 W |
| Power consumption (max) | 17.33 W |
| Power consumption (standby) | 1.09 W |
| Power consumption (typical) | 15.68 W |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.69 kg |
| Weight (with stand) | 9.8 kg |
| Height (with stand) | 432.9 mm |
| Depth (with stand) | 233 mm |
| Packaging data | |
|---|---|
| Package width | 680 mm |
| Cables included | HDMI, USB, VGA |
| Other features | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Touchscreen | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Number of simultaneous touchpoints | 10 |
