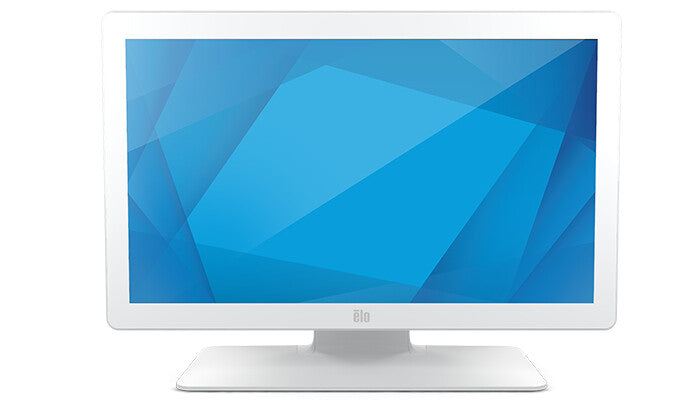

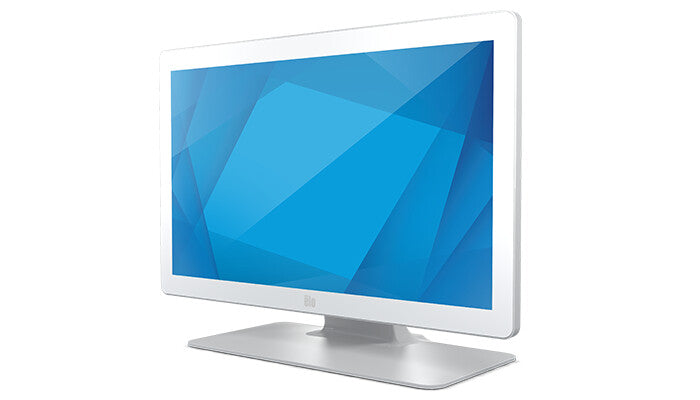

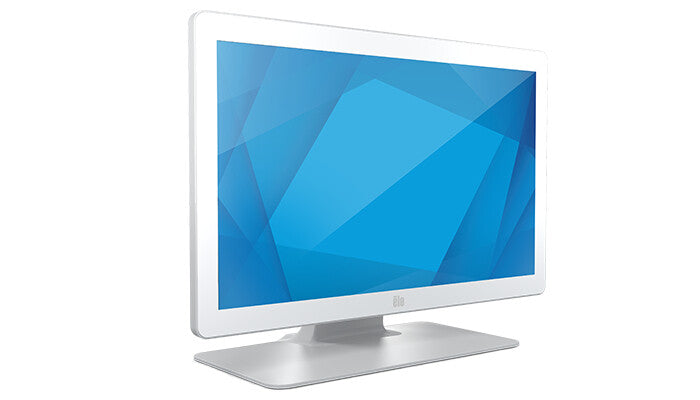

Elo Touch Solutions 2203LM computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen White
KEY FEATURES
- Touchscreen 54.6 cm (21.5") LCD TFT
- Full HD 1920 x 1080 pixels 16:9
- 70 Hz 14 ms 1000:1
- F 16 kWh 14.4 W
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Elo Touch Solutions 2203LM computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen White
Description
Elo Touch Solutions 2203LM. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 -Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Warranty: 3 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Panel type | TFT |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness | 225 cd/m² |
| Response time | 14 ms |
| HD type | Full HD |
| Display technology | LCD |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 70 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 54.61 cm |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Design | |
|---|---|
| Product colour | White |
| International Protection (IP) code | IP54 |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| LED indicators | Power |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Power consumption (typical) | 14.4 W |
| Power consumption (standby) | 0.78 W |
| Power consumption (max) | 16 W |
| Power consumption (off) | 0.36 W |
| Power supply type | DC |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 526.9 mm |
| Depth (with stand) | 193.4 mm |
| Height (with stand) | 383.8 mm |
| Weight (with stand) | 6.75 kg |
| Weight (without stand) | 4.75 kg |
| Packaging data | |
|---|---|
| Cables included | HDMI, USB, VGA |
| Package width | 617 mm |
| Package depth | 260 mm |
| Package height | 477 mm |
| Package weight | 10.8 kg |
| Other features | |
|---|---|
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display viewable area (HxV) | 476.06 x 267.79 mm |
| Mean time between failures (MTBF) | 50000 h |
