Elo Touch Solution

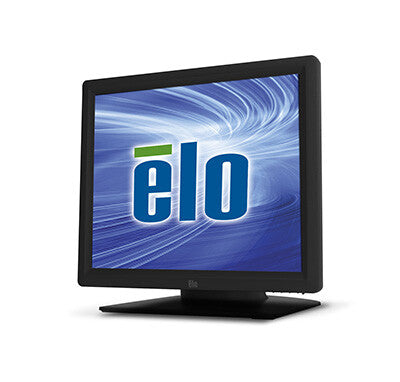

Elo Touch Solution 1517L Rev B 15" Monitor | 1024 x 768 VGA

Name: Elo Touch Solution 1517L Rev B 15" Monitor | 1024 x 768 VGA
Brand: Elo Touch Solution
Price: 566.50 GBP
Availability: OutOfStock

SKU: E829550

£566.50

0 in stock. Need more? Contact us!

FREE carbon neutral delivery on orders over £99

Description

Elo Touch Solutions 1517L Rev B. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 160°, Viewing angle, vertical: 140°. Product colour: Black

The...

Delivery & Returns

Got questions? Call our team on 020 8208 1234

£566.50

Description

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.

Warranty: 3 years

View Product Specifications

Reviews

Frequently Asked Questions

When will it arrive?

Any order over £59 wil be shipped on our free 2-3 working day service, if you opt for Next Working Day shipping then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 day service.

What information do I need to provide for the delivery?

How long is the returns policy?

Delivery & Returns

How long will it take to receive my order?

We provide multiple shipping options for our customers including next day delivery. If you opt for Next Working Day shipping order needs to be placed before 2 PM; all orders placed after 2pm will be processed following working day and then this will be with you the next working day between 09:00 and 18:00. Deliveries to Northern Ireland, Channel Islands and the Scottish Highlands will be on a 3 working day service.

Can I choose a specific day to receive my order?

This is something that we are working hard to bring to you - we recognise that having deliveries on preferred days not only makes it easier for you but it is also great for the environment. By having deliveries arranged on days that you are going to be in or consolidating your orders to arrive to you at the same time means that the courier won't need to come back multiple times due to missed deliveries or multiple deliveries.

Can I change my delivery address once the order has been placed?

Our systems are highly automated, where possible we will do our utmost to accommodate this. To ensure we maintain a high delivery success rate most of our orders are picked and prepped for shipment within 30 minutes

How do I return my order?

If you need to return your order please raise a return through your order page detailing the reason for return. Once this form has been submitted it will be reviewed by the Returns Department who will contact you to arrange the return.
Please note the returns department may ask for more information such as the serial number(s) and images where applicable to process the return.

How long do I have to return an item?

For most products bought online, you have a legal right to change your mind within 14 days and receive a refund. If you wish to return unwanted products, you must let us know that you want to return them within 14 calendar days from the day after delivery. The item must also be returned to us within 7 working days from approval of return and receipt of the return label

Are returns free?

Returns for faulty / damaged items will be free of charge
Returns for unwanted items that have no fault will incur a minimal returns fee - delivery charges will not be refunded

Save On Delivery Carbon Neutral Deliveries Free Standard Delivery Over £99

Display
Vertical scan range	56 - 75 Hz
Horizontal scan range	31.5 - 60 kHz
Display number of colours	16.78 million colours
Viewing angle, vertical	140°
Viewing angle, horizontal	160°
Contrast ratio (typical)	700:1
Aspect ratio	4:3
Supported graphics resolutions	720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Screen shape	Flat
Display technology	LCD
Response time	16 ms
Display brightness	225 cd/m²
LED backlight	Yes
Native aspect ratio	4:3
Display resolution	1024 x 768 pixels
Display diagonal	38.1 cm (15")

Performance
AMD FreeSync	No
NVIDIA G-SYNC	No

Design
Glass thickness	4.3 cm
Product colour	Black

Ports & interfaces
RS-232 ports	1
VGA (D-Sub) ports quantity	1
Number of upstream ports	1

Ergonomics
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	8
Panel mounting interface	75 x 75 mm

Power
Power supply type	AC/DC
Voltage tolerance	5%
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (typical)	12 W

Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Weight (with stand)	4.3 kg
Height (with stand)	319 mm
Depth (with stand)	197 mm
Width (with stand)	358 mm

Packaging data
Package weight	7.3 kg
Package height	485 mm
Package depth	231 mm
Package width	487 mm

Logistics data
Harmonized System (HS) code	85285210

Other features
Mean time between failures (MTBF)	50000 h
Touchscreen	Yes
Display viewable area (HxV)	228 x 304 mm
Touchscreen type	Tabletop
Dimensions (W x D x H) with stand	358 x 197 x 319 mm

Display
Vertical scan range	56 - 75 Hz
Horizontal scan range	31.5 - 60 kHz
Display number of colours	16.78 million colours
Viewing angle, vertical	140°
Viewing angle, horizontal	160°
Contrast ratio (typical)	700:1
Aspect ratio	4:3
Supported graphics resolutions	720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Screen shape	Flat
Display technology	LCD
Response time	16 ms
Display brightness	225 cd/m²
LED backlight	Yes
Native aspect ratio	4:3
Display resolution	1024 x 768 pixels
Display diagonal	38.1 cm (15")

Ergonomics
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	8
Panel mounting interface	75 x 75 mm

Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Other features
Mean time between failures (MTBF)	50000 h
Touchscreen	Yes
Display viewable area (HxV)	228 x 304 mm
Touchscreen type	Tabletop
Dimensions (W x D x H) with stand	358 x 197 x 319 mm
