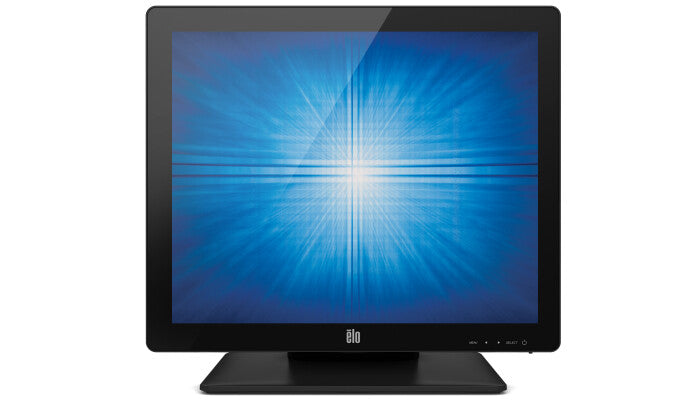

Elo Touch Solutions 1517L 15" XGA Touchscreen Monitor | 1024 x 768 5-Wire Resistive AccuTouch Single-Touch Serial USB
KEY FEATURES
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 12W, internal and external power options
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Can this monitor rotate into portrait mode for coding or document work?
Is this monitor a good choice for multi-monitor setups?
Does this monitor support height, tilt, or swivel adjustments for ergonomic use?
Elo Touch Solutions 1517L 15" XGA Touchscreen Monitor | 1024 x 768 5-Wire Resistive AccuTouch Single-Touch Serial USB
Description
Elo Touch Solutions 1517L. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, Display technology: LED, Response time: 23 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 160°, Viewing angle, vertical: 150°. VESA mounting. Product colour: Black
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Warranty: Three-year standard warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Display | |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Panel type | TFT |
| Touchscreen technology | Resistive |
| Touch technology | Single-touch |
| LED backlight | Yes |
| Display brightness | 240 cd/m² |
| Response time | 23 ms |
| Display technology | LED |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Display number of colours | 16.2 million colours |
| Horizontal scan range | 31.5 - 60 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 22.8 cm |
| Viewable size, vertical | 30.4 cm |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
| Design | |
|---|---|
| Product colour | Black |
| Glass thickness | 4.3 cm |
| Certification | UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| RS-232 ports | 1 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Japanese |
| Number of OSD languages | 8 |
| LED indicators | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 10.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 358 mm |
| Depth (with stand) | 197 mm |
| Height (with stand) | 319 mm |
| Weight (with stand) | 4.3 kg |
| Packaging data | |
|---|---|
| Stand included | Yes |
| Cables included | AC, USB, VGA |
| Package width | 487 mm |
| Package depth | 231 mm |
| Package height | 485 mm |
| Package weight | 7.3 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| Placement supported | Horizontal |
| Touchscreen | Yes |
