DeepCool R-CH170-BKNPI0D-G-1 Tower PC Case Black | Liquid Cooling Support
KEY FEATURES
- Tower PC
- Mini-ATX
- Supported HDD sizes: 3.5" SSD form factor: 2.5"
- Number of 2.5" bays: 1 Number of 3.5" bays: 1
- Acrylonitrile butadiene styrene (ABS), SPCC
- Black
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
DeepCool R-CH170-BKNPI0D-G-1 Tower PC Case Black | Liquid Cooling Support
Description
CH170 DIGITALThe Tiny Tower of Power
HIGH AIRFLOW PANELS
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.

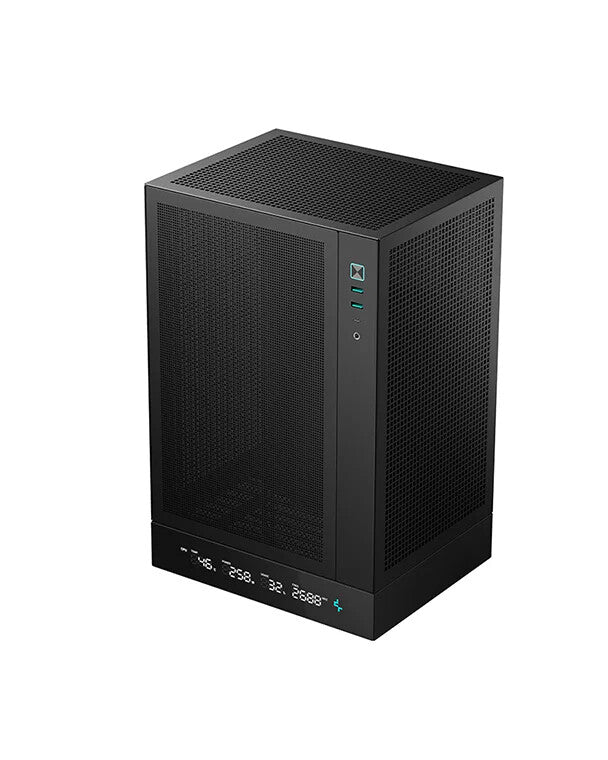

MULTIPLE DATA POINT DISPLAY
The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
OR GO LIQUID
If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
Create on PlXEL canvas
DeepCool PIXEL bits are colorful rubber pieces offered to add creativity and playfulness to the case panels for customized designs, currently compatible with CH series and MORPHEUS cases.Let out your inner designer and create with PIXEL bits on DeepCool PC cases.

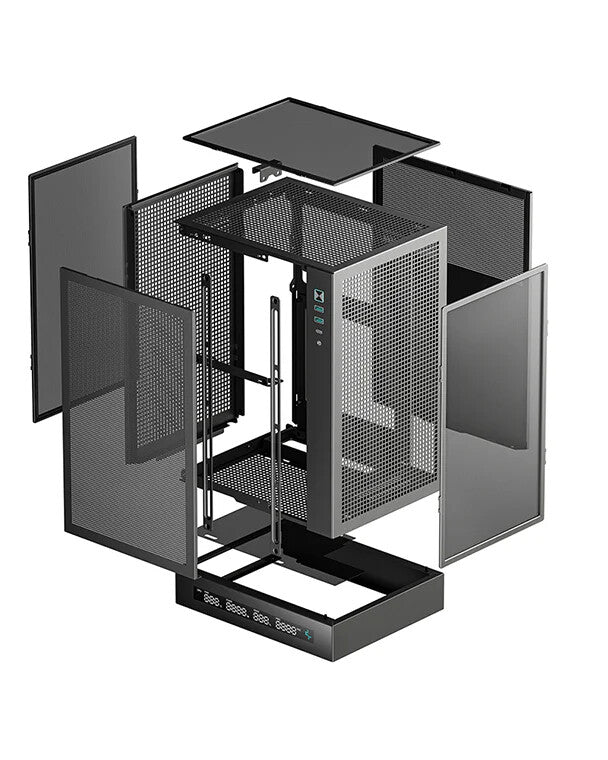

QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Design | |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC |
| Product colour | Black |
| Supported motherboard form factors | Mini-ATX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 3 |
| Maximum CPU cooler height | 17.2 cm |
| Maximum graphics card length | 30.5 cm |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2, SFX, SFX-L |
| Display | |
|---|---|
| Built-in display | Yes |
| Display type | LED |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| USB Type-C ports quantity | 1 |
| Cooling | |
|---|---|
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 1 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Side radiator fan sizes supported | 240 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Weight & dimensions | |
|---|---|
| Width | 200 mm |
| Depth | 250 mm |
| Height | 380 mm |
| Weight | 3.4 kg |
