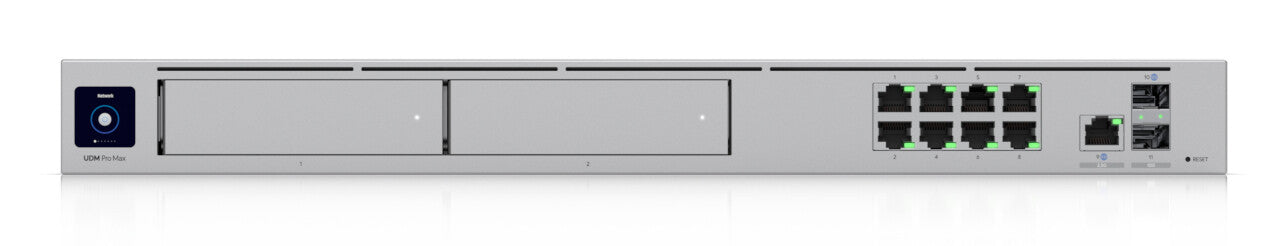

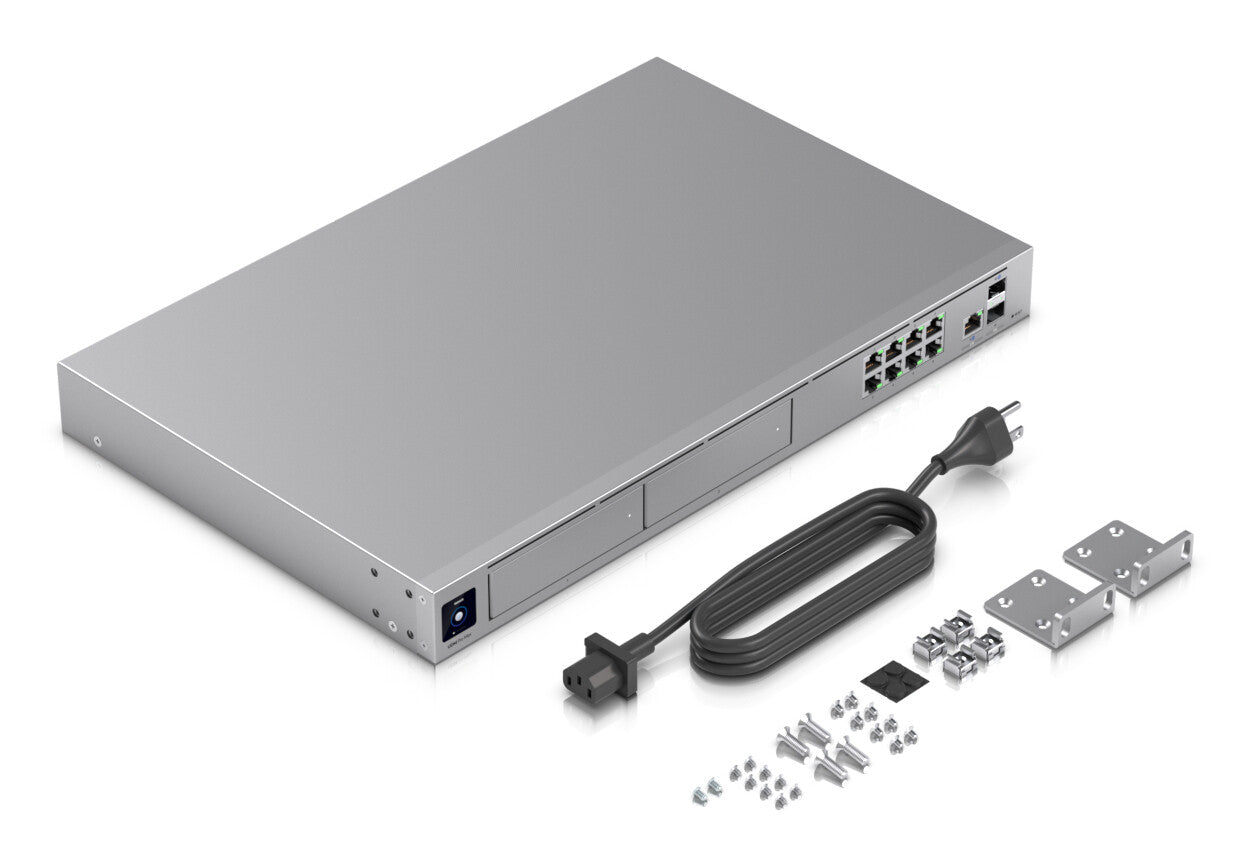

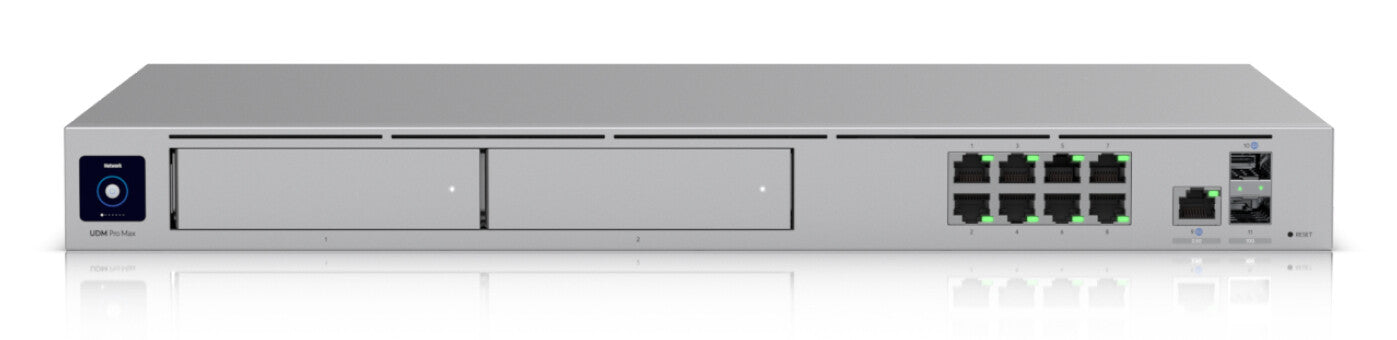

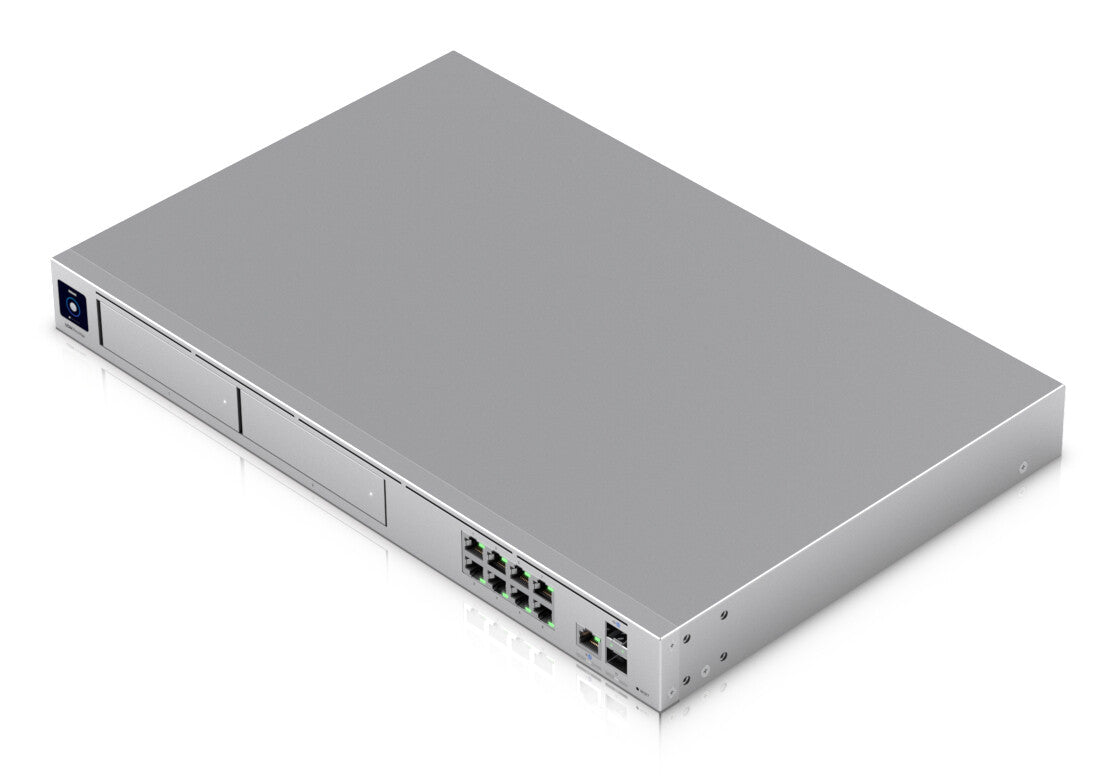

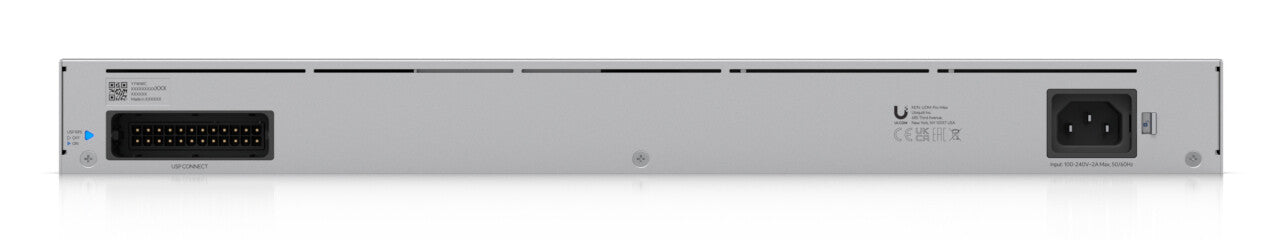

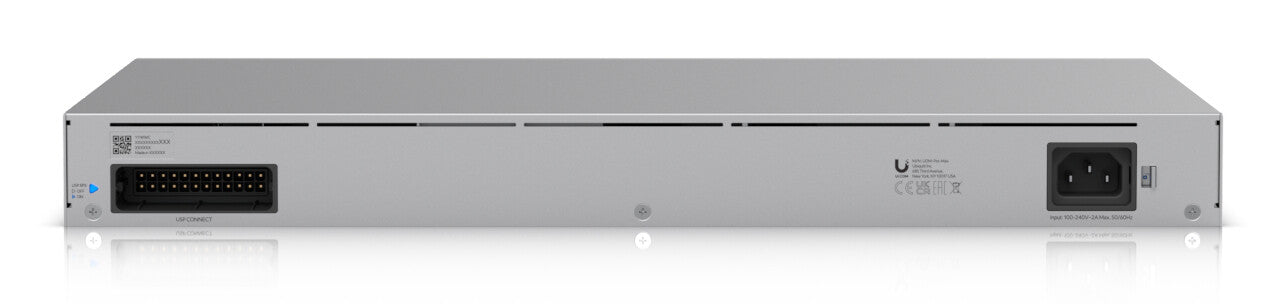

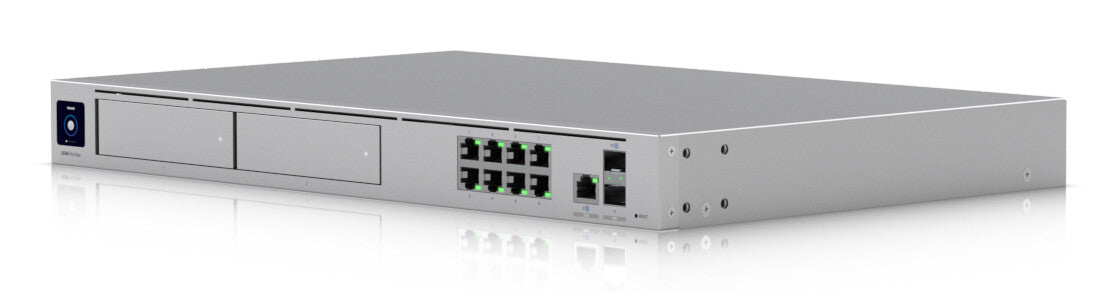

Ubiquiti Dream Machine Pro Max gateway/controller 10, 100, 1000, 2500 Mbit/s
KEY FEATURES
- Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
- Includes full UniFi application suite for device management
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+*, (8) GbE RJ45 LAN ports
- (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
- (2) 3.5" NVR HDD bays with RAID data protection
- Built-in 128 GB SSD for NVR detection recordings
- 1.3" touchscreen
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Ubiquiti Dream Machine Pro Max gateway/controller 10, 100, 1000, 2500 Mbit/s
Description
Ubiquiti Dream Machine Pro Max. Product colour: Grey, Rack capacity: 1U, Enclosure material: Aluminium/SGCC. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: OSPF, BGP. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. WAN connection: Ethernet (RJ-45), SFP+
Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Performance | |
|---|---|
| Display type | LCM |
| Processor family | ARM Cortex |
| Processor manufacturer | ARM |
| Processor model | Cortex-A57 |
| SSD capacity | 128 GB |
| Protocols | |
|---|---|
| Routing protocols | OSPF, BGP |
| DHCP server | Yes |
| Security | |
|---|---|
| Firewall security | Yes |
| VLAN support | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Port aggregation | Yes |
| Management features | |
|---|---|
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Ports & interfaces | |
|---|---|
| SFP+ ports quantity | 2 |
| WAN connection | Ethernet (RJ-45), SFP+ |
| Ethernet LAN (RJ-45) ports | 9 |
| Weight & dimensions | |
|---|---|
| Height | 43.7 mm |
| Depth | 285.6 mm |
| Width | 442.4 mm |
| Weight | 4.7 kg |
| Power | |
|---|---|
| Power consumption (max) | 60 W |
| Input frequency | 50/60 Hz |
| Heat dissipation | 205 BTU/h |
| Input voltage | 100 - 240 V |
| Input current | 2 A |
| DC input voltage | 12 V |
| Power over Ethernet (PoE) | No |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 15 kV |
| Electromagnetic (EMP) protection (contact) | 8 kV |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Indication | |
|---|---|
| LED indicators | Activity, Error, Link, Ready |
| Technical details | |
|---|---|
| Built-in processor | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Processor frequency | 2000 MHz |
| Number of processors installed | 1 |
| Display | |
|---|---|
| Control display unit | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Enclosure material | Aluminium/SGCC |
| Packaging content | |
|---|---|
| Cables included | AC |
| Memory | |
|---|---|
| Flash memory | 32000 MB |
| Internal memory | 8000 MB |
