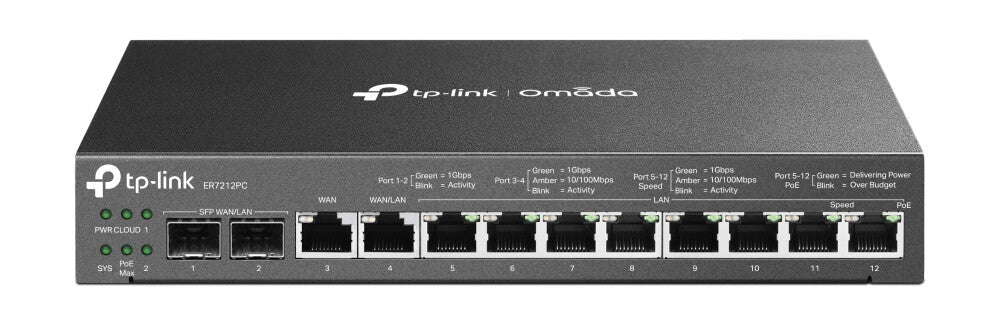

TP-Link Omada 3-in-1 Gigabit VPN Router
KEY FEATURES
- 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether
- Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports
- Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port
- 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*
- Centralized Management: Cloud access and the Omada app offer convenience and easy management
- Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections
- Easy Installation: Fanless and compact design for desktop and wall mounting
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
TP-Link Omada 3-in-1 Gigabit VPN Router
Description
TP-Link Omada 3-in-1 Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Supported protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP. NAT functionality: Multi-Net NAT; Virtual Server; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;. Processor frequency: 1200 MHz, Flash memory: 4096 MB, Internal memory: 1024 MB. Product colour: Black, Housing material: Metal
Warranty: 3 year limited warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| WAN connection | |
|---|---|
| SFP WAN | Yes |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Port forwarding | Yes |
| Static route | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Management features | |
|---|---|
| Reset button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Combo SFP ports quantity | 2 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 10 |
| Protocols | |
|---|---|
| Supported protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP |
| DHCP client | Yes |
| DHCP server | Yes |
| General Information | |
|---|---|
| Product Family | Omada |
| Security | |
|---|---|
| NAT functionality | Multi-Net NAT;Virtual Server;NAT-DMZ;FTP/H.323/SIP/IPSec/PPTP ALG;UPnP; |
| Access Control List (ACL) | Yes |
| URL filtering | Yes |
| Features | |
|---|---|
| Certification | CE, FCC, RoHS |
| Internal memory type | DDR3 |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Processor frequency | 1200 MHz |
| Built-in processor | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 131 mm |
| Width | 226 mm |
| Packaging data | |
|---|---|
| Package weight | 1.92 kg |
| Package height | 73 mm |
| Package depth | 374 mm |
| Package width | 227 mm |
| Manual | Yes |
| AC adapter included | Yes |
