TP-Link Omada 10GBase-SR SFP+ LC Transceiver
KEY FEATURES
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
TP-Link Omada 10GBase-SR SFP+ LC Transceiver
Description
TP-Link Omada 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Certification: FCC, CE. Input voltage: 3.3 V. Width: 61.3 mm, Depth: 14.5 mm, Height: 12.2 mm. Number of products included: 1 pc(s)

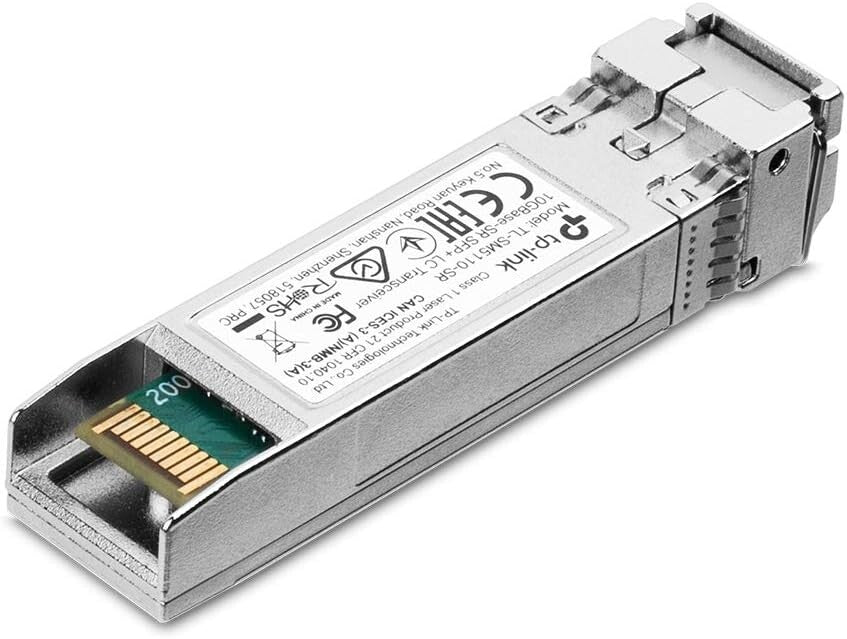

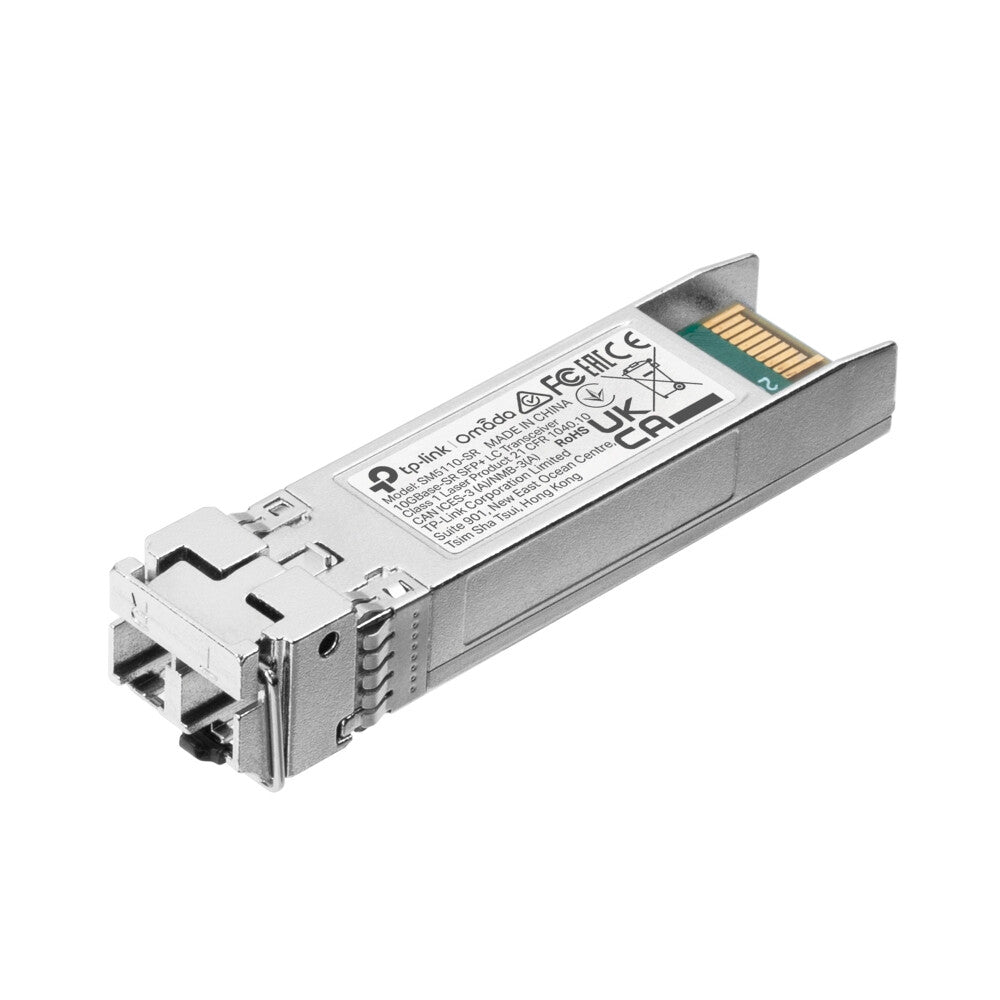

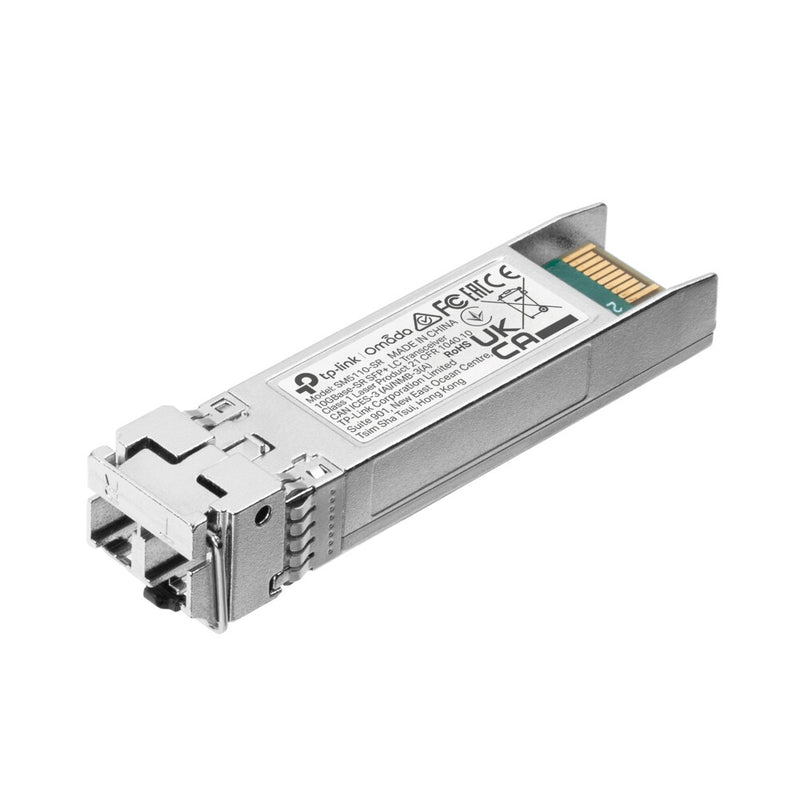

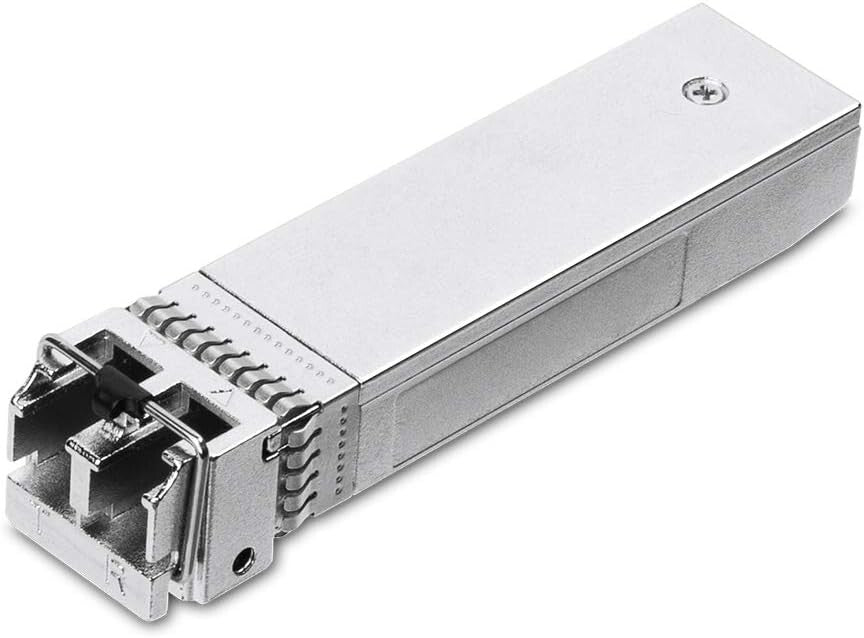

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Performance | |
|---|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 300 m |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Fiber optic connector | LC (UPC) |
| Multi-mode fiber (MMF) supported | Yes |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | FCC, CE |
| Hot-swap | Yes |
| Product colour | Silver |
| Power | |
|---|---|
| Input voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| General Information | |
|---|---|
| Product Family | Omada |
| Weight & dimensions | |
|---|---|
| Height | 12.2 mm |
| Depth | 14.5 mm |
| Width | 61.3 mm |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
