TP-Link 10/100Mbps WDM Media Converter with 1-Port PoE
KEY FEATURES
- Converts the data between fiber (optical signal) and copper (electric signal)
- Extends fiber distance up to 20 km
- The 802.3af PoE output makes remote camera deployment easier and more convenient
- WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two
- Wide operating temperature (0–50 ℃) with reliability
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
TP-Link 10/100Mbps WDM Media Converter with 1-Port PoE
Description

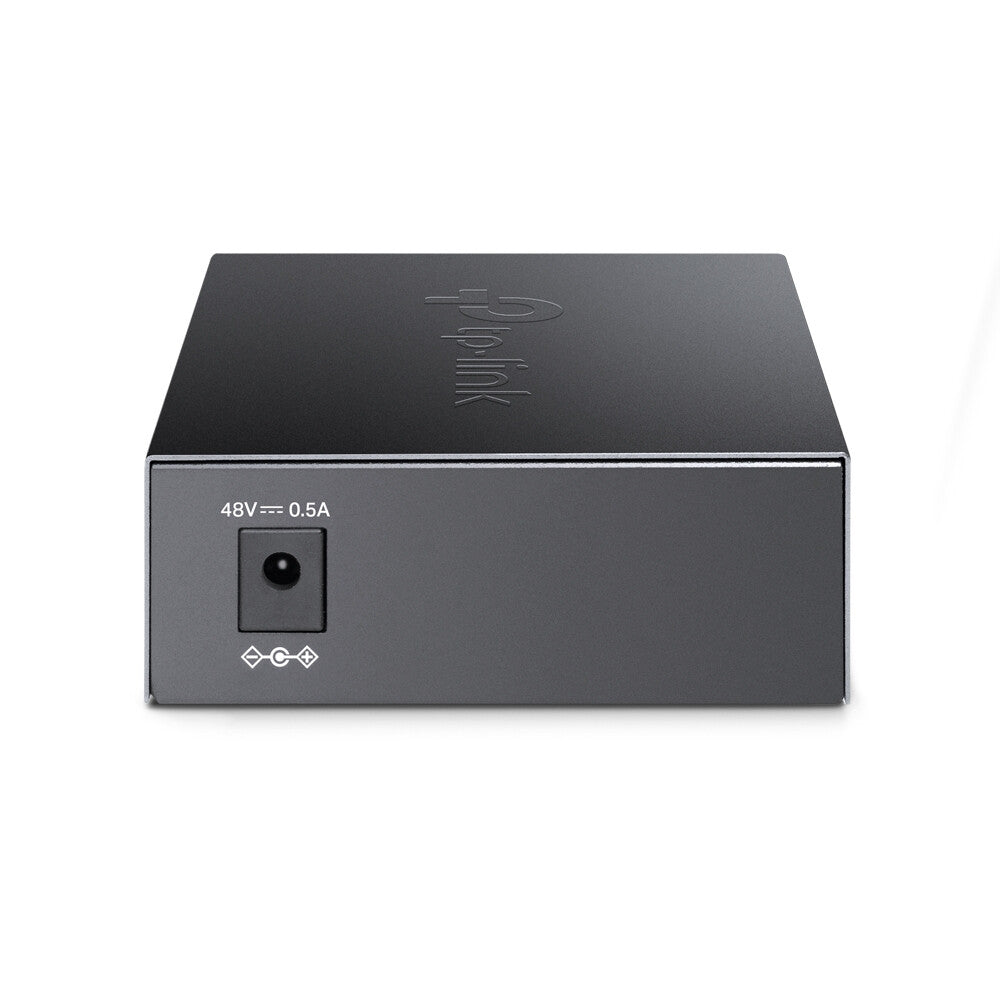

TP-Link 10/100Mbps WDM Media Converter with 1-Port PoE. Maximum data transfer rate: 100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 100 m, Fiber cable diameters supported (core/cladding): 9/125 µm. Product colour: Black. Input voltage: 48 V, Input current: 0.5 A
What This Product Does

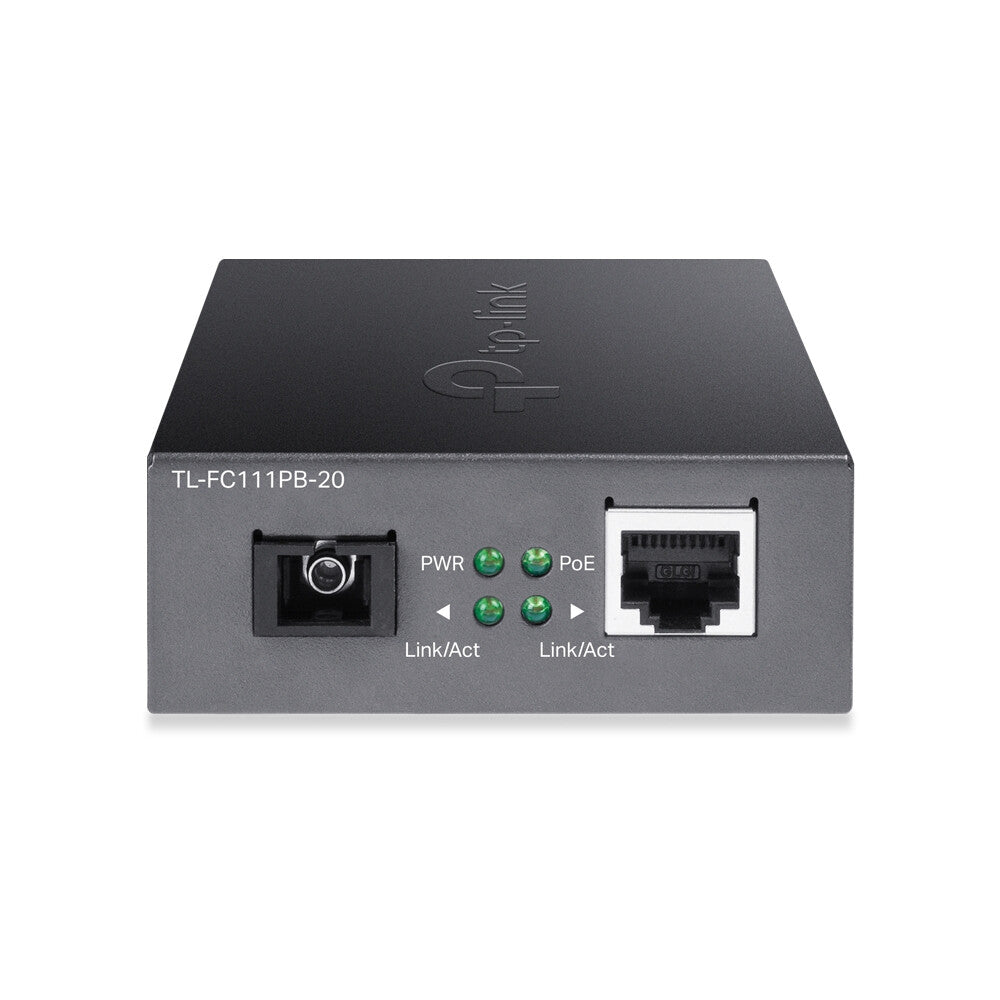

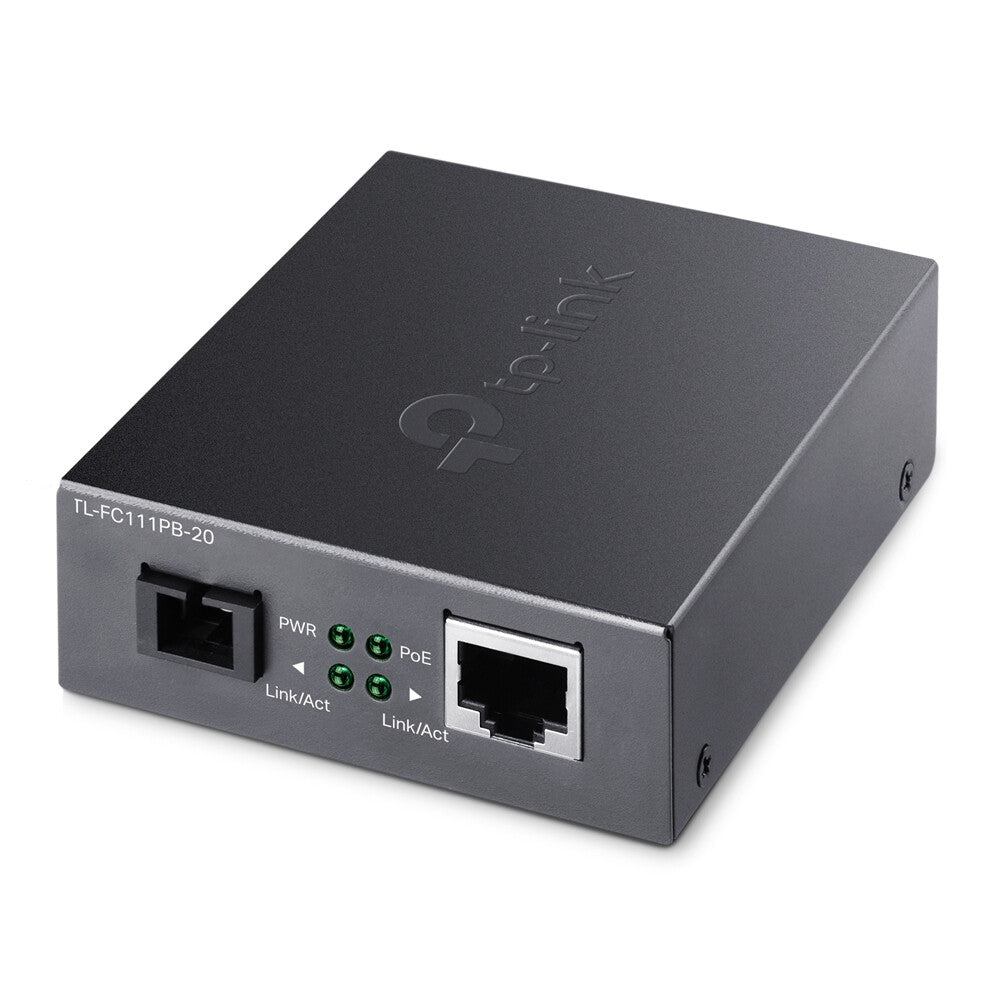

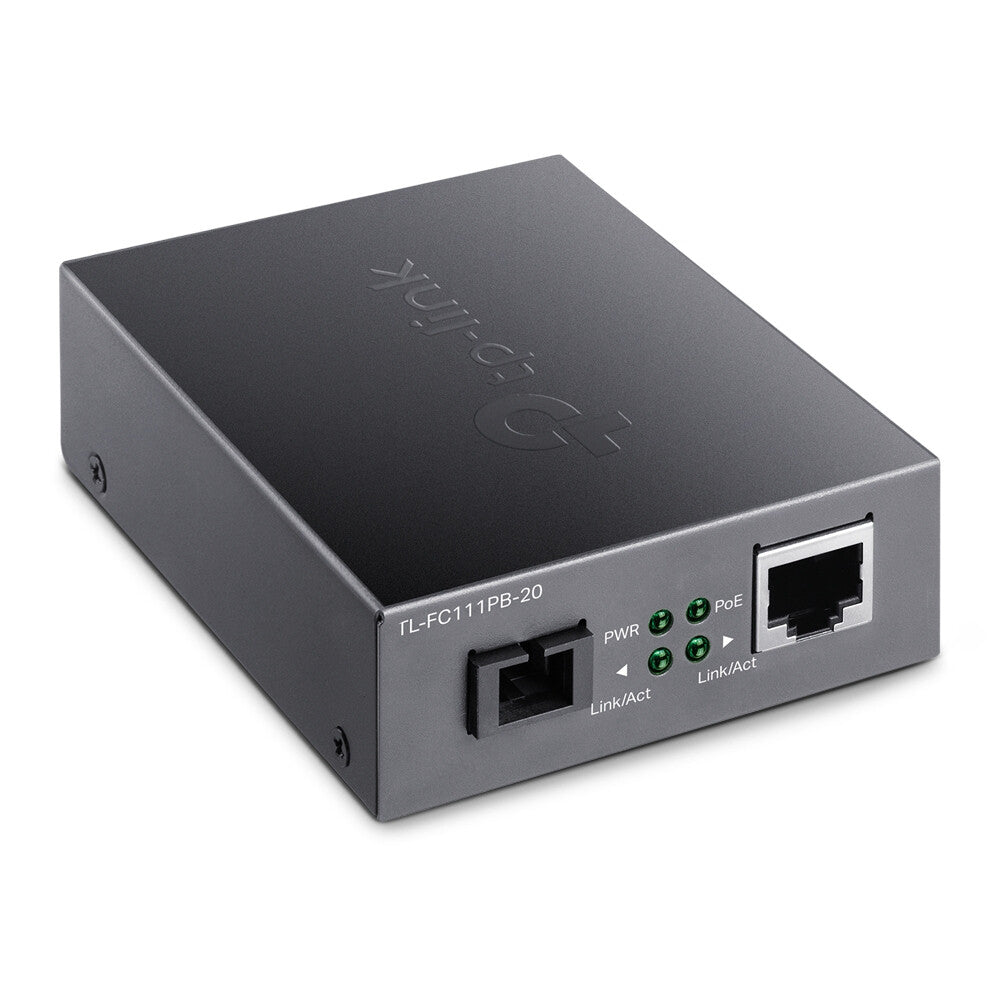

TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.
How This Product Works
TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
2 year
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Network | |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Ports & interfaces | |
|---|---|
| Power over Ethernet (PoE) ports quantity | 1 |
| Fiber ports quantity | 1 |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Fiber mode structure | Single-mode |
| Maximum transfer distance | 20000 m |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Internal | No |
| Weight & dimensions | |
|---|---|
| Height | 27 mm |
| Depth | 73 mm |
| Width | 94.5 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | |
|---|---|
| User guide | Yes |
| AC adapter included | Yes |
