StarTech 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
KEY FEATURES
- Wired
- 200 Mbit/s 20000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode Fiber ports quantity: 1 SC
- Black
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Description
StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km. Maximum data transfer rate: 200 Mbit/s, Converter input interface: 100Base-TX, 10Base-T, Converter output interface: 100Base-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Certification: CE, FCC. Output voltage: 12 V, Output current: 1 A
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable

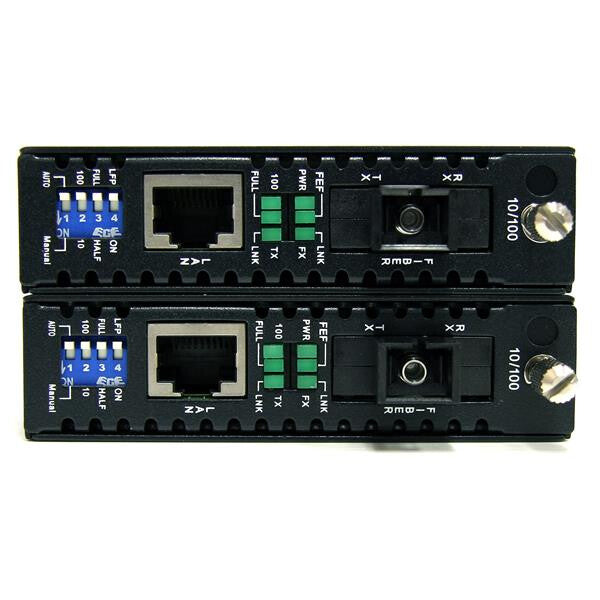

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.

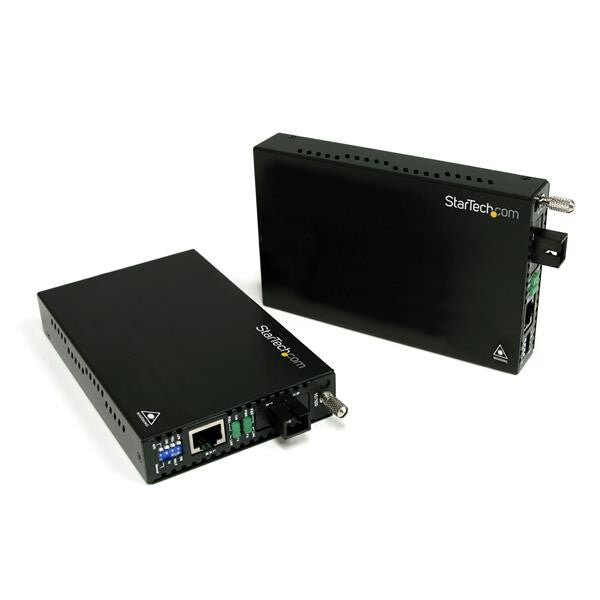

The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

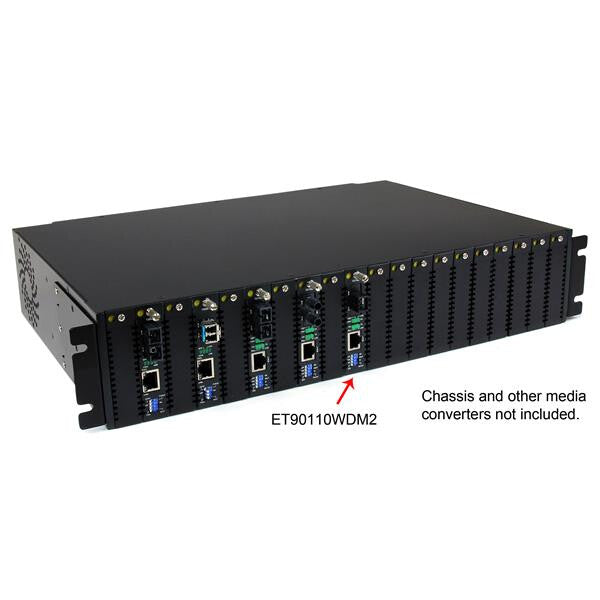

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
2 Year Warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Network | |
|---|---|
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Converter output interface | 100Base-FX |
| Converter input interface | 100Base-TX, 10Base-T |
| Maximum data transfer rate | 200 Mbit/s |
| Ports & interfaces | |
|---|---|

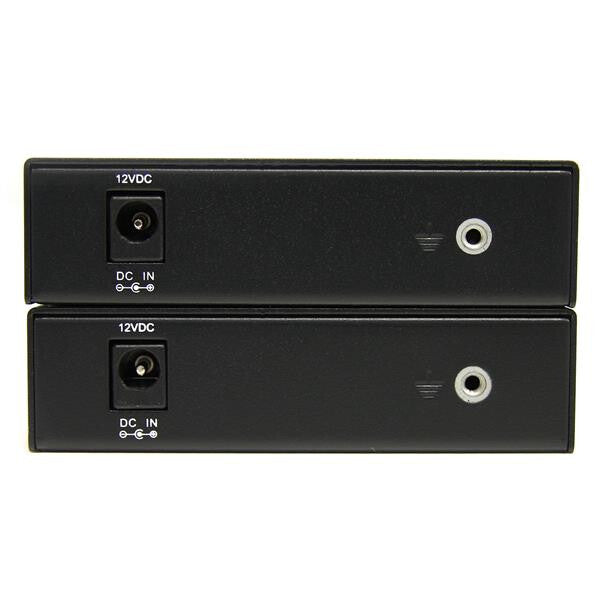

| DC-in jack | Yes |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Fiber mode structure | Single-mode |
| Wavelength | 1310 nm |
| Maximum transfer distance | 20000 m |
| Design | |
|---|---|
| Certification | CE, FCC |
| Product colour | Black |
| Internal | No |
| Power | |
|---|---|
| External power adapter | Yes |
| Output current | 1 A |
| Output voltage | 12 V |
| Management features | |
|---|---|
| Plug and Play | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Packaging data | |
|---|---|
| Package weight | 1.36 kg |
| Package height | 101 mm |
| Package depth | 279 mm |
| Package width | 211 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
| Other features | |
|---|---|
| Full duplex | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
