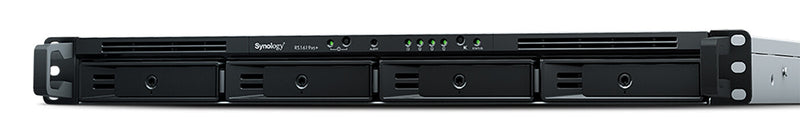

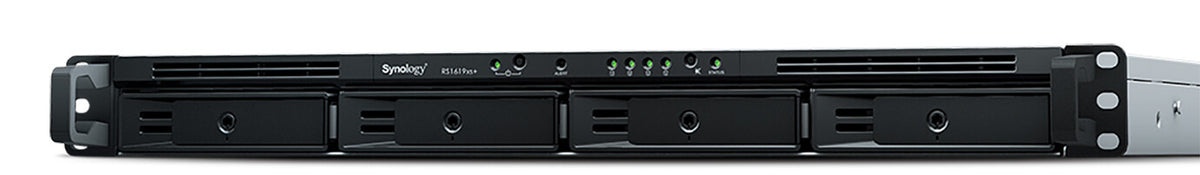

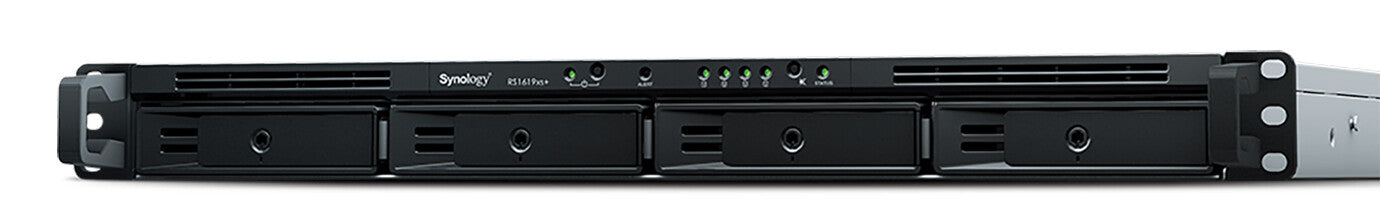

Synology RackStation RS1619XS+ Rack (1U) NAS with 4 x 16TB HAT5300 Drives | 4-bay, HDD & SSD, Intel Xeon D CPU, 8 GB GB RAM, 4 x LAN Ports
KEY FEATURES
- Powerful 1U NAS for growing businesses, featuring a quad-core CPU with AES-NI and 8 GB (up to 64 GB)
- DDR4 ECC UDIMM
- Built-in M.2 NVMe/SATA SSD slots for system cache support
- Excellent performance of over 1,523 MB/s sequential reading and 162,097 iSCSI random read IOPS1
- Optional 10GbE NIC support
- Scalable up to 16 drives with Synology RX1217/RX1217RP
- Complete virtualization solution with Synology Virtual Machine Manager
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Synology RackStation RS1619XS+ Rack (1U) NAS with 4 x 16TB HAT5300 Drives | 4-bay, HDD & SSD, Intel Xeon D CPU, 8 GB GB RAM, 4 x LAN Ports
Description
Synology RackStation RS1619XS+. Total installed storage capacity: 64 TB, Installed storage drive type: HDD, Supported storage drive types: HDD & SSD. Processor family: Intel® Xeon® D, Processor manufacturer: Intel, Processor model: D-1527. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV. Chassis type: Rack (1U), Cooling type: Active, Product colour: Aluminium, Black
Fast storage with outstanding computing power
RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.
Variable options to boost system computing performance
Equipped with a PCIe 3.0 slot, RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Ultimate Backup Solution
RS1619xs+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Active Backup for Microsoft 365 / Google Workspace
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
Powered by Synology DiskStation Manager
Warranty: 5 years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Storage | |
|---|---|
| Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
| Hot-swap drive bays | Yes |
| Online RAID expansion | Yes |
| Online RAID migration | Yes |
| RAID levels | 0, 1, 5, 6, 10, F1, JBOD |
| RAID support | Yes |
| Number of M.2 (M & B) slots | 2 |
| Maximum supported storage capacity | 200 TB |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive interfaces | M.2, Serial ATA |
| Storage drive interface | Serial ATA |
| Supported storage drive types | HDD & SSD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 4 |
| Total installed storage capacity | 64 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| CPU configuration (max) | 1 |
| Number of processors supported | 1 |
| Processor cores | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 2.2 GHz |
| Processor model | D-1527 |
| Processor family | Intel® Xeon® D |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory form factor | UDIMM |
| ECC | Yes |
| Memory slots | 4 |
| Maximum RAM supported | 64 GB |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Network | |
|---|---|
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Link aggregation | Yes |
| Wake-on-LAN ready | Yes |
| iSCSI support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| LED indicators | Alarm, HDD, Power, SSD, Status |
| Drive bay locking | Yes |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Product colour | Aluminium, Black |
| Cooling type | Active |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| On/off switch | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Internet Explorer 11 +, Safari 13 + |
| Share folder | 512 |
| Security algorithms | AES |
| Reset button | Yes |
| System log | Yes |
| Hot spare | Yes |
| Share folder access right management | Yes |
| Snapshot | Yes |
| Noise level | 39.3 dB |
| Number of users | 4000 user(s) |
| Backup features | iSCSI LUN |
| Backup function | Yes |
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Operating system installed | DiskStation Manager |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 150 W |
| Power supply location | Built-in |
| Weight & dimensions | |
|---|---|
| Weight | 8.16 kg |
| Height | 44 mm |
| Depth | 518.6 mm |
| Width | 480 mm |
| General Information | |
|---|---|
| Product Family | RackStation |
| Processor special features | |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Packaging content | |
|---|---|
| Power cables quantity | 2 |
| Cables included | AC |
| Technical details | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 35 °C |
| Certificates | |
|---|---|
| Certification | EACCCCKCFCCCEBSMIVCCIRCM |
