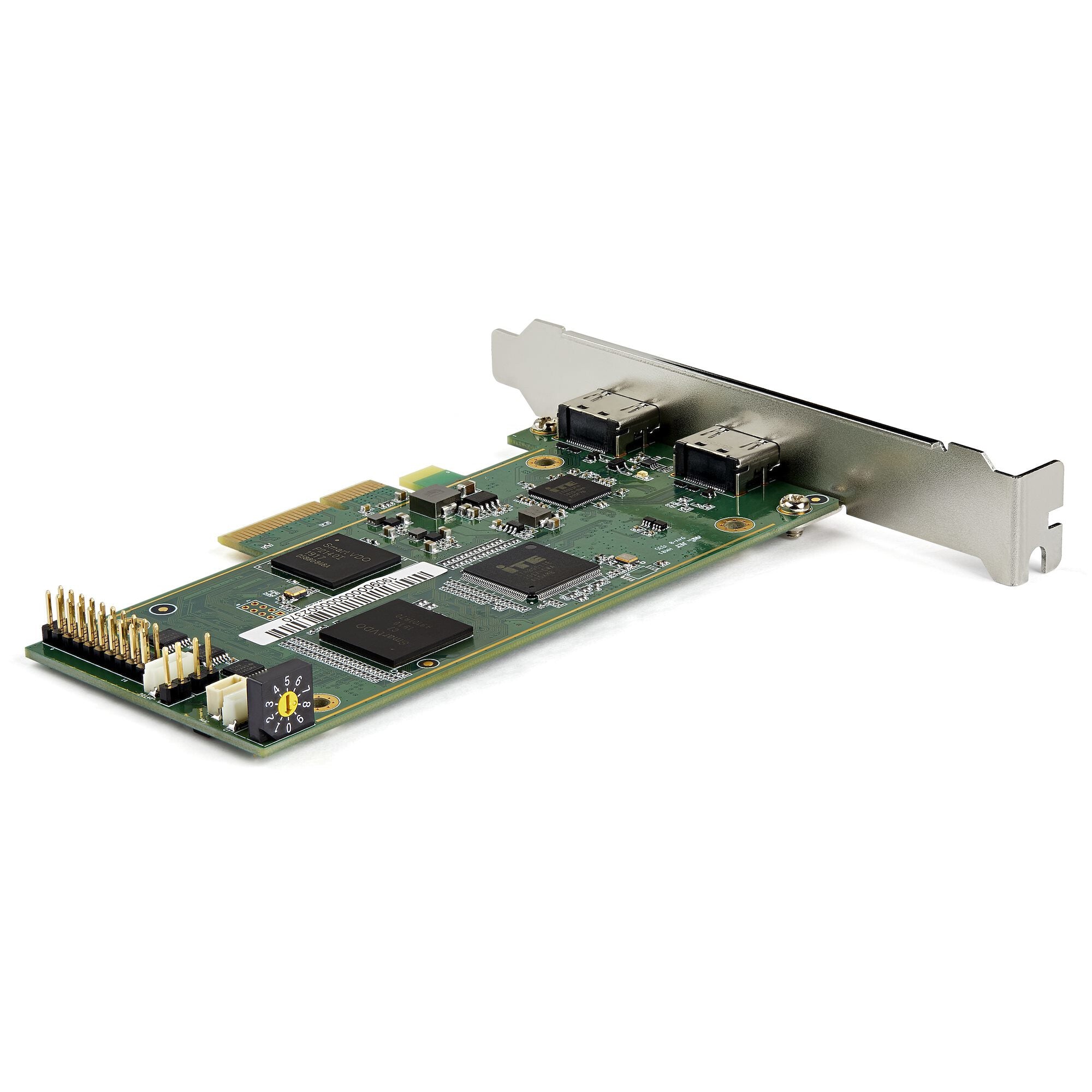

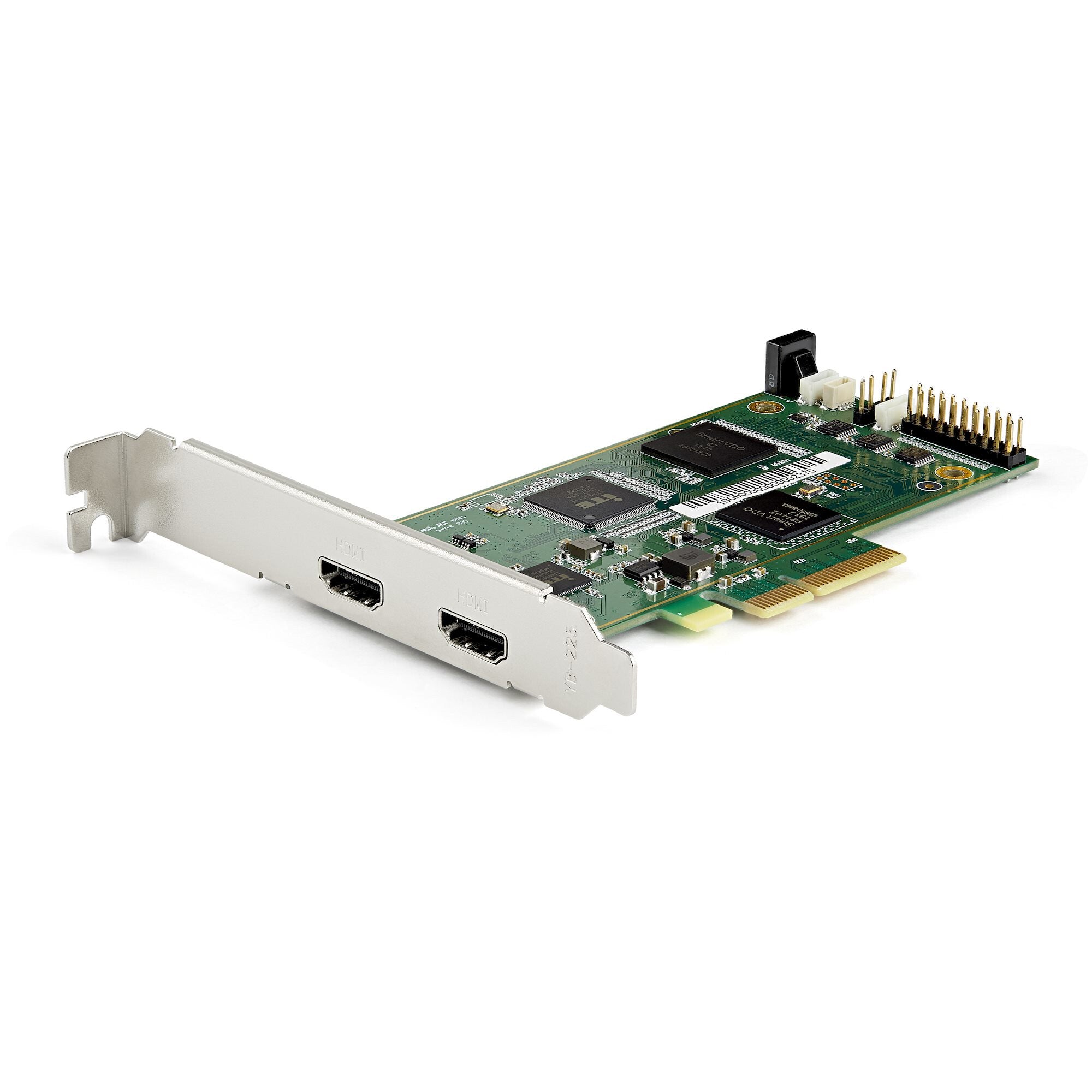

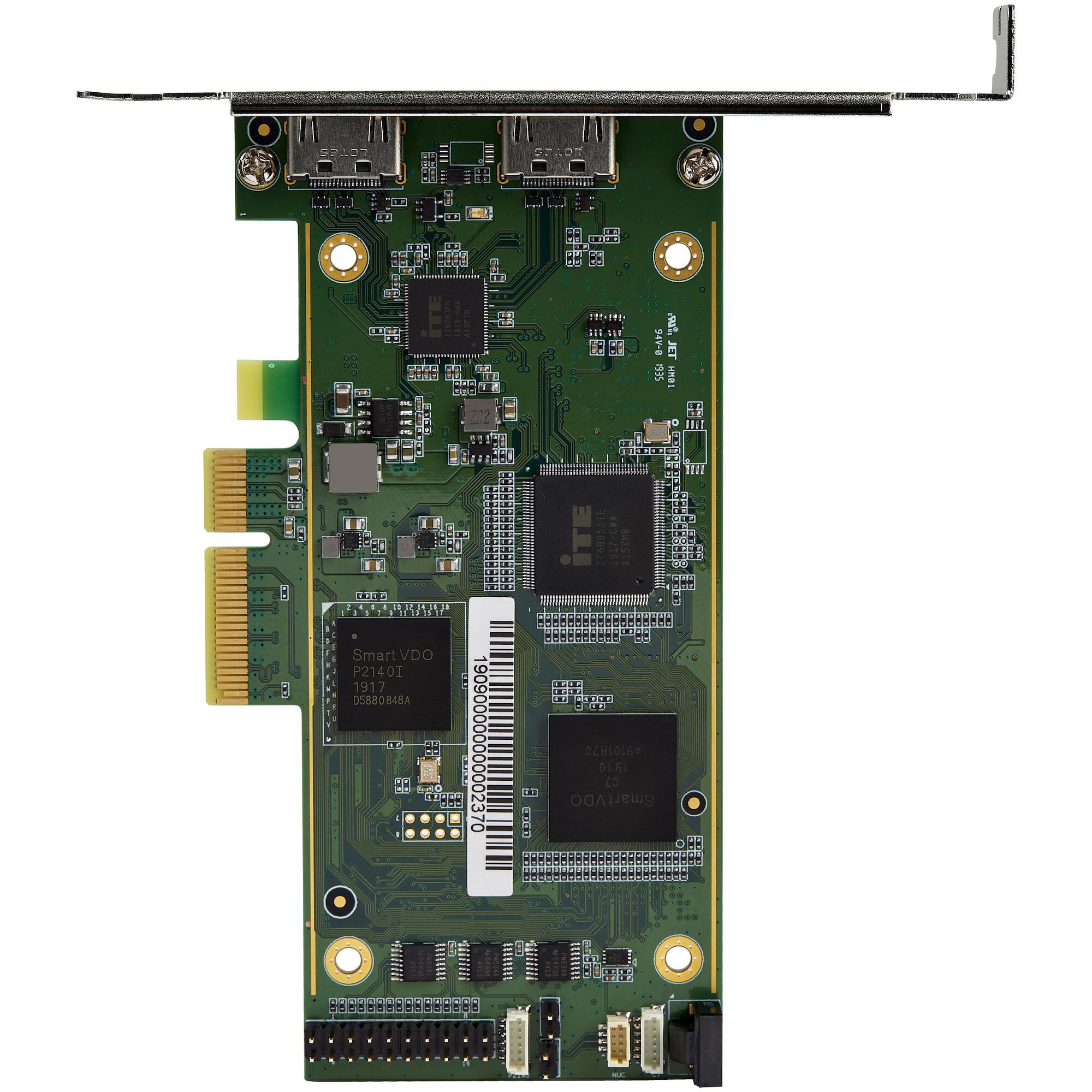

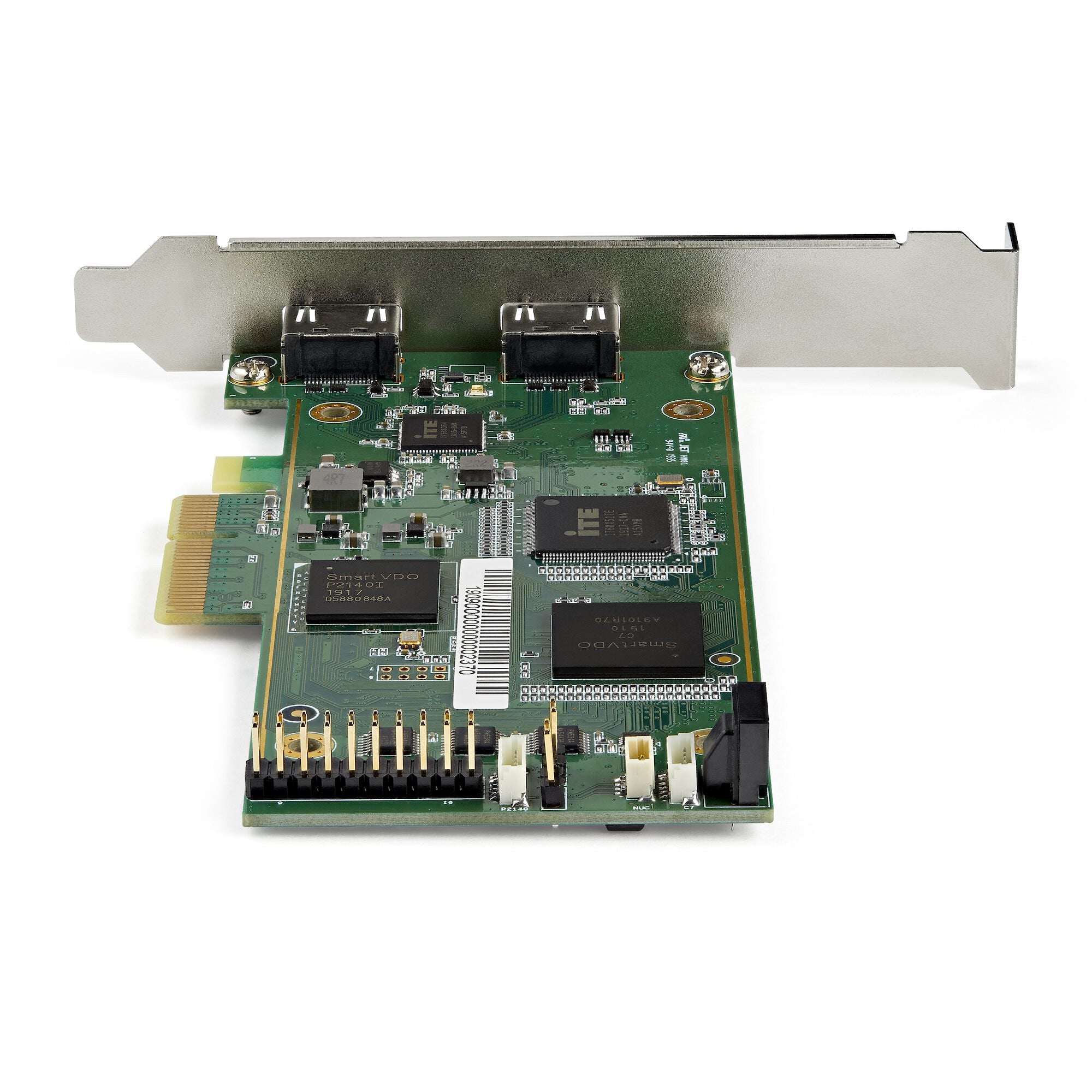

StarTech.com PCIe HDMI Capture Card - 4K 60Hz PCI Express HDMI 2.0 Capture Card w/HDR10 - PCIe x4 Video Capture Device for Desktop - Video Recorder/Adapter/Live Streaming - Supports H.264
KEY FEATURES
- 4K VIDEO CAPTURE: PCIe HDMI capture card (minimum x4 slot) captures unprotected 4K 60Hz video to a desktop computer through an HDMI 2.0 input port / 4096×2160p 60fps, HDR10, 2ch audio, 16:9 & 4:3 aspect ratio / Supports playback with HDMI monitor output
- APPLICATION: HDMI capture card for recording video, conference calls, camera feeds, medical imaging in 4K quality w/incl. Streamcatcher or 3rd party (OBS) software; Live streaming on YouTube & other platforms w/RTSP; Use w/collaboration apps Teams & Zoom
- COMPATIBILITY: Video capture card/adapter supports H.264 (MPEG-4) encoding to ensure compatibility with most platforms; Out of the box solution for use with incl. software or third-party options (DirectShow) / Includes Low & Full profile brackets
- OS COMPATIBILITY: PCI Express HDMI capture card and incl. Streamcatcher software is compatible with Windows 8 and up; Also works with NTSC and PAL systems / HDCP compliant, will not capture protected-content such as Blu-ray or video output from a Mac
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4K HDMI internal capture card/video grabber is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech.com PCIe HDMI Capture Card - 4K 60Hz PCI Express HDMI 2.0 Capture Card w/HDR10 - PCIe x4 Video Capture Device for Desktop - Video Recorder/Adapter/Live Streaming - Supports H.264
Description
StarTech.com PCIe HDMI Capture Card - 4K 60Hz PCI Express HDMI 2.0 Capture Card w/HDR10 - PCIe x4 Video Capture Device for Desktop - Video Recorder/Adapter/Live Streaming - Supports H.264. Host interface: PCIe, Video capture resolution (max): 4096 x 2160 pixels, Supported aspect ratios: 4:3, 16:9. Analog signal format system: NTSC, PAL, PAL 60, PAL M, Maximum refresh rate: 60 Hz. Video compression formats: H.264, MPEG4. Sustainability certificates: CE, RoHS. Width: 69 mm, Depth: 130 mm, Height: 10 mm

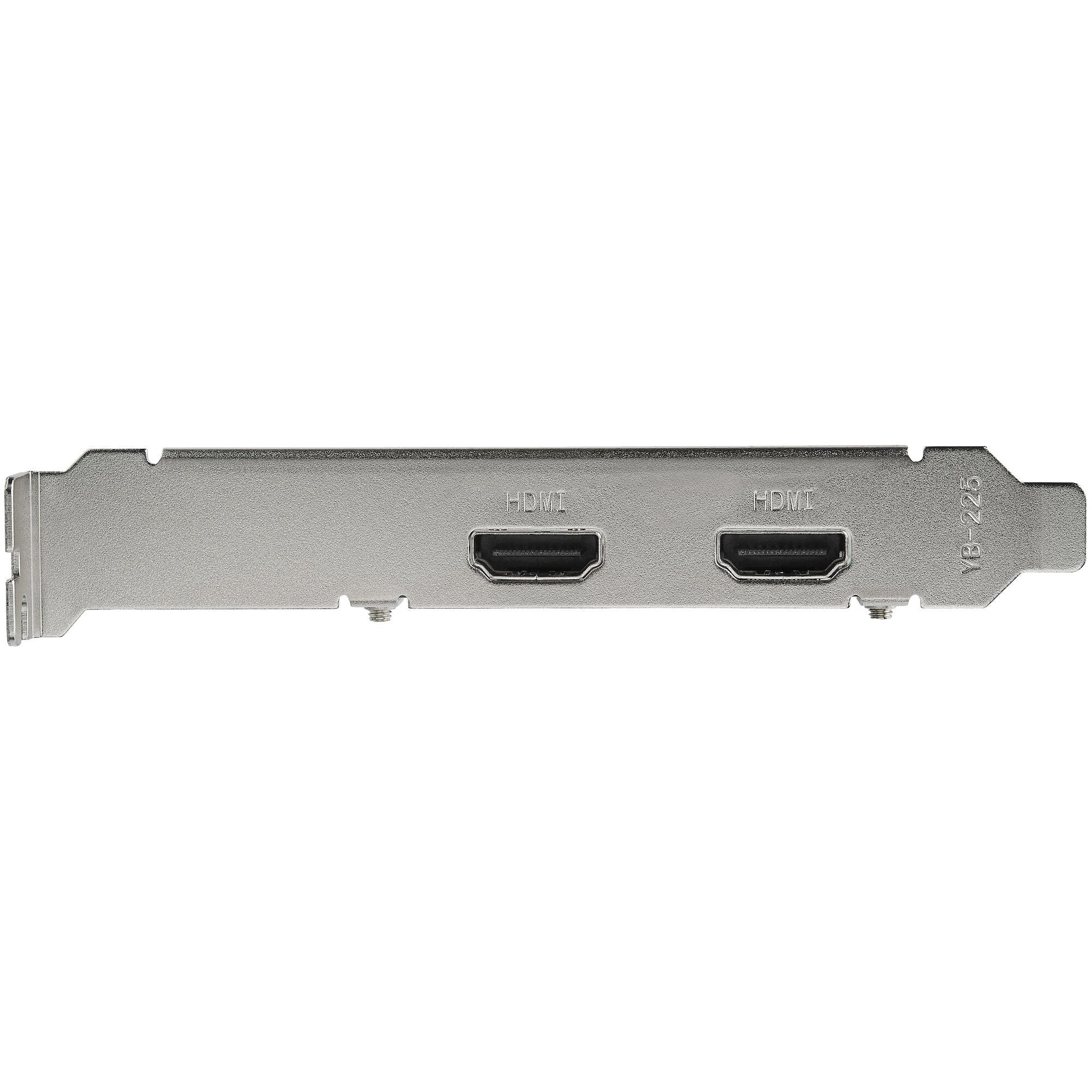

PCI Express HDMI Recorder | HDR | 4K @ 60Hz | For Windows®You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.Astonishing Picture Quality at 60 Frames Per SecondWith frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.H.264 Encoding for Wide Device CompatibilityThe software included with the 4K60 capture card encodes captured video in H.264 - the most widely adopted video compression standard in the world. This video recording card ensures your captures are compatible with most device platforms such as PC, Mac, iOS and Android™.Pass-through PortThe UHD capture card features an HDMI output port so you can watch the video source on a separate HDMI display while recording on your computer.The Choice of IT Pros Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.PEXHDCAP4K is backed by a StarTech.com 2-year warranty and free, lifetime technical support.Note:This capture device will not record digitally encrypted content
Warranty: 2 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Technical details | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Video capture resolution (max) | 4096 x 2160 pixels |
| Supported aspect ratios | 4:3, 16:9 |
| Sustainability certificates | CE, RoHS |
| Video | |
|---|---|
| Analog signal format system | NTSC, PAL, PAL 60, PAL M |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| File formats | |
|---|---|
| Video compression formats | H.264, MPEG4 |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Weight & dimensions | |
|---|---|
| Width | 69 mm |
| Depth | 130 mm |
| Height | 10 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Logistics data | |
|---|---|
| Master (outer) case length | 410 mm |
| Products per master (outer) case | 35 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 230 g |
| Package depth | 207 mm |
| Package width | 144 mm |
| Package height | 38 mm |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Packaging content | |
|---|---|
| Low-profile bracket | Yes |
| Quick installation guide | Yes |
| Other features | |
|---|---|
| Master (outer) case height | 490 mm |
| Master (outer) case width | 400 mm |
