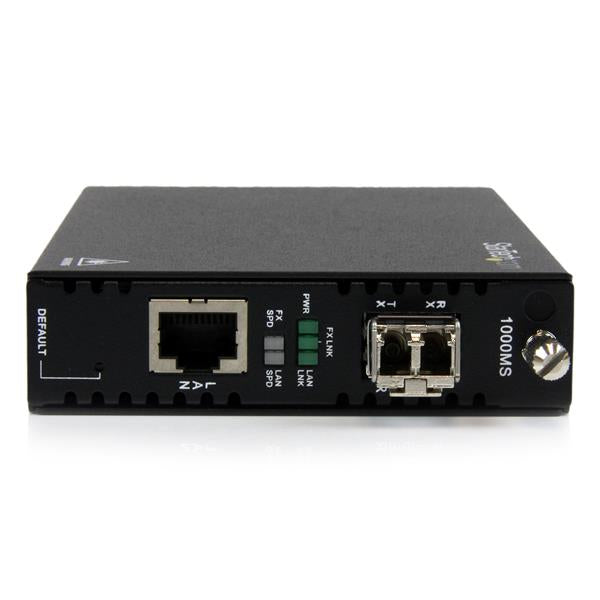

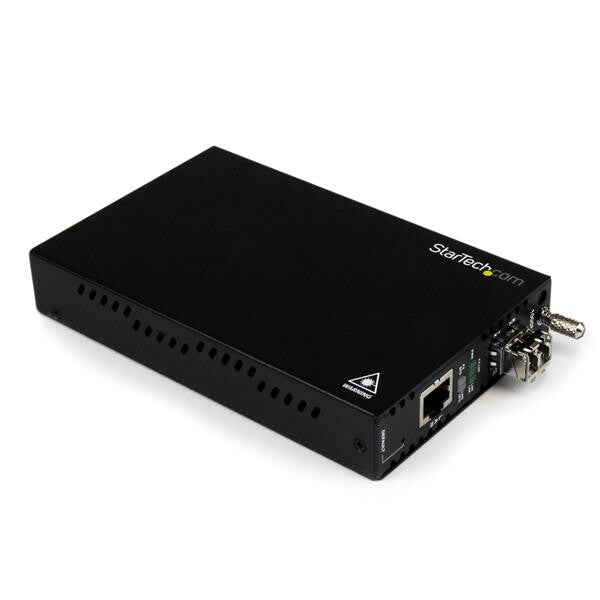

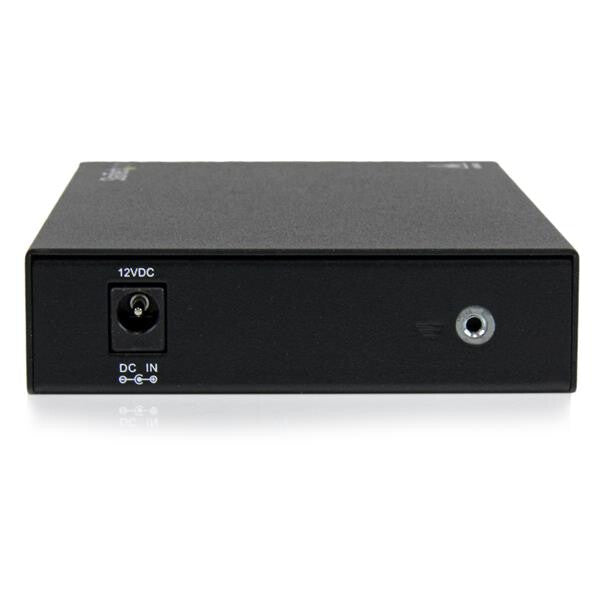

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
KEY FEATURES
- Wired
- 1250 Mbit/s 550 m 850 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Multi-mode Fiber ports quantity: 1 LC
- Black
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
Description
StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant. Maximum data transfer rate: 1250 Mbit/s, Converter input interface: 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Product colour: Black, Housing material: Steel. Input voltage: 100 - 240 V, Input current: 0.36 A, Output voltage: 12 V
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities
The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
2 Year Warranty
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Network | |
|---|---|
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Converter input interface | 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T |
| Maximum data transfer rate | 1250 Mbit/s |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 65000 h |
| Fiber mode structure | Multi-mode |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Design | |
|---|---|
| Certification | FCC, CE |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | LAN, Link, Power |
| Internal | No |
| Power | |
|---|---|
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
| Output current | 1 A |
| Output voltage | 12 V |
| Input current | 0.36 A |
| Input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 411 g |
| Height | 23 mm |
| Depth | 163 mm |
| Width | 87 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Packaging data | |
|---|---|
| Package weight | 789 g |
| Package height | 92 mm |
| Package depth | 206 mm |
| Package width | 136 mm |
| Packaging content | |
|---|---|

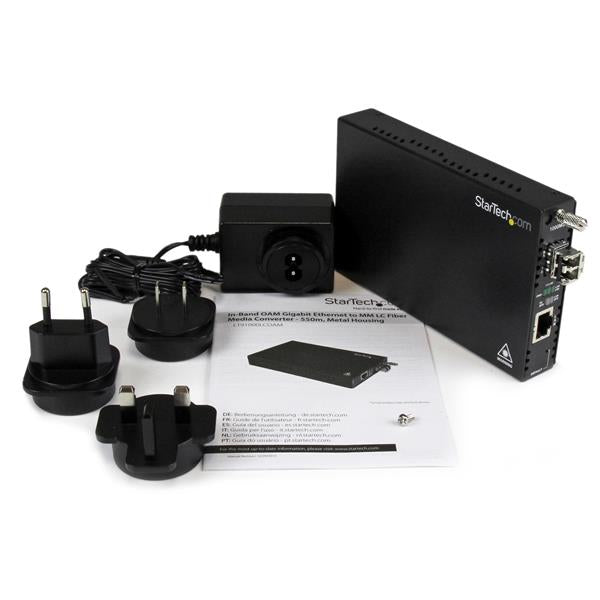

| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
