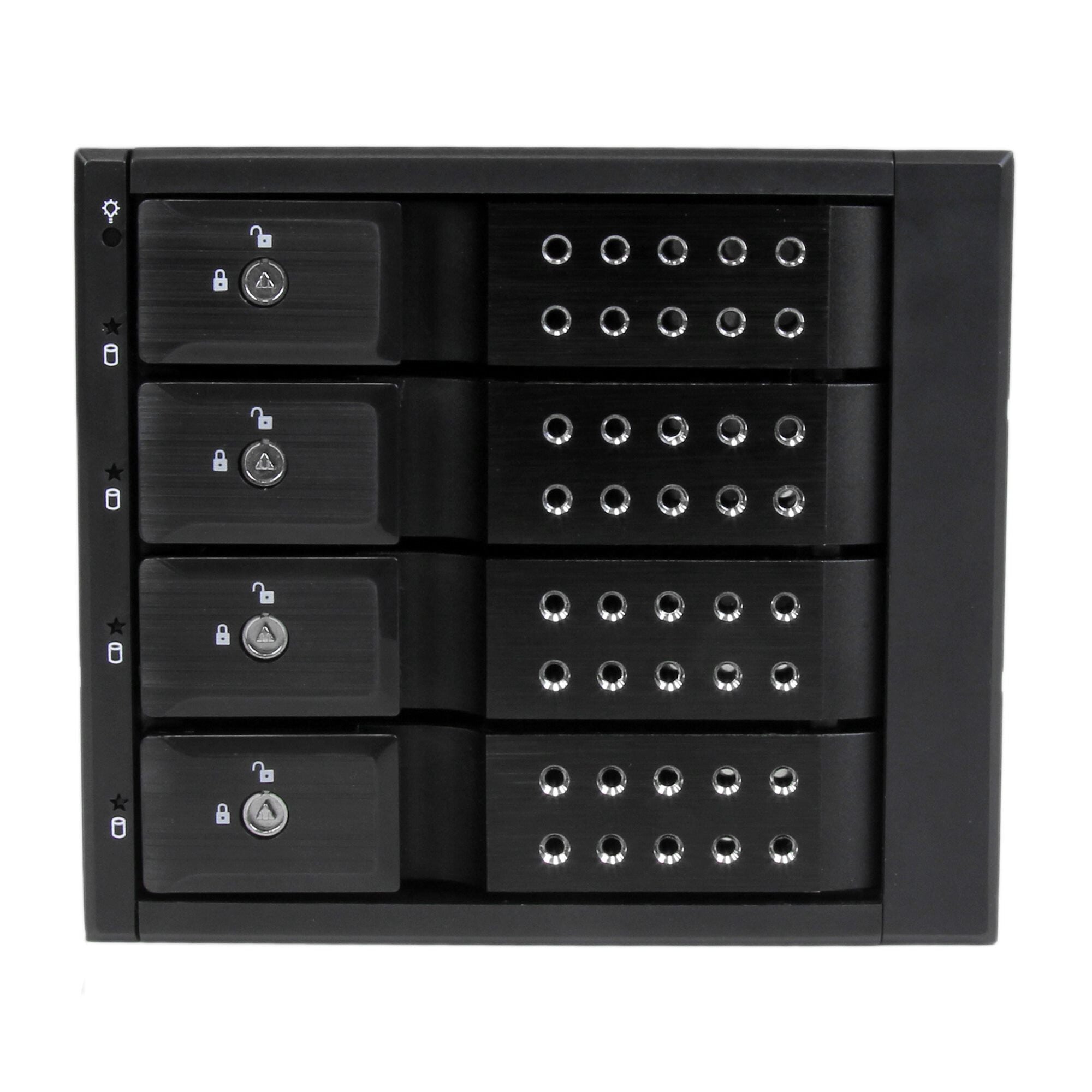

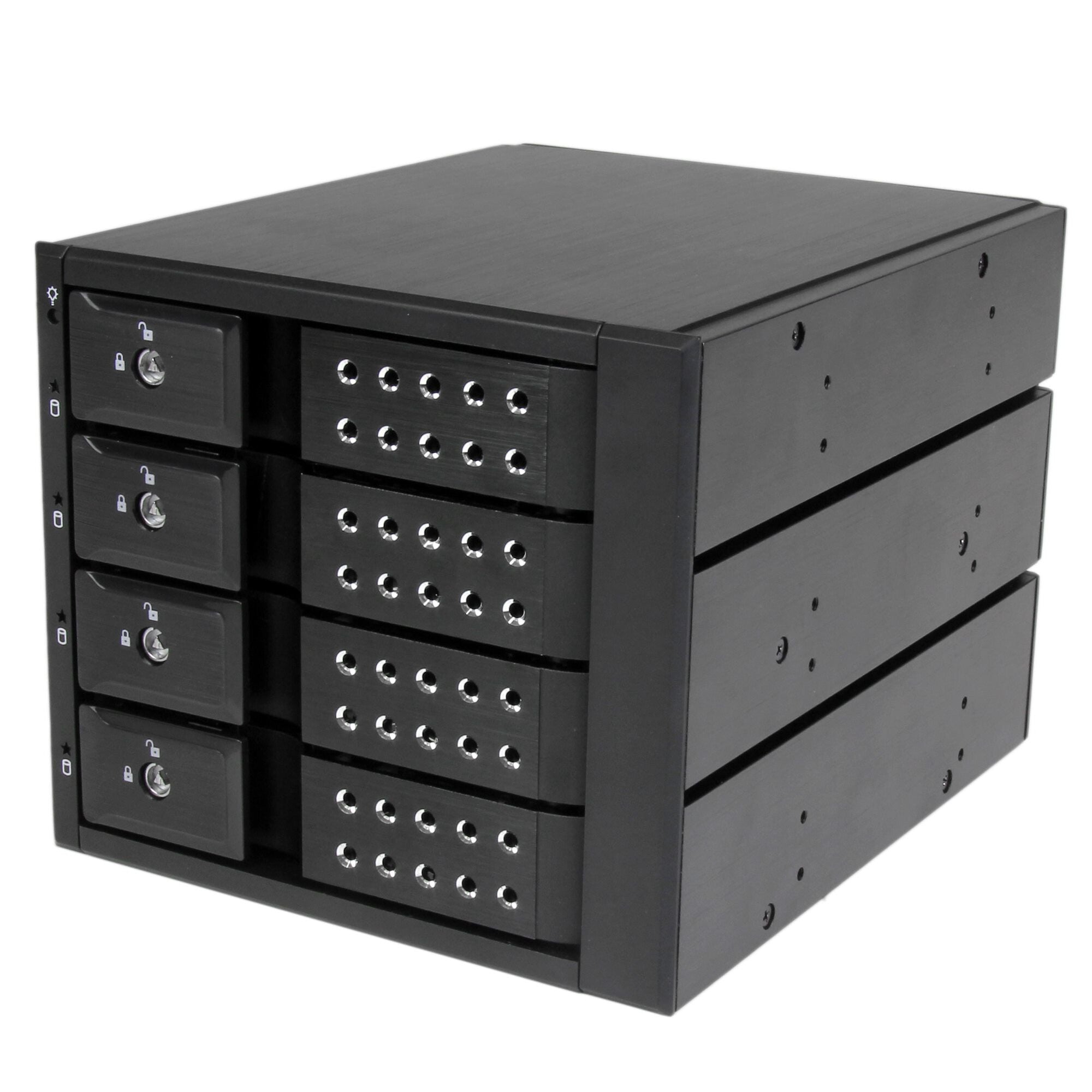

StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
KEY FEATURES
- Black
- Material: Aluminium
- Hot-swap
- 6 Gbit/s
- Key lock
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Description
StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD. Product colour: Black, Material: Aluminium, Number of fans: 1 fan(s). Width: 145 mm, Depth: 197 mm, Height: 124 mm. Package width: 254 mm, Package depth: 164 mm, Package height: 180 mm. Cables included: SATA. Sustainability certificates: RoHS

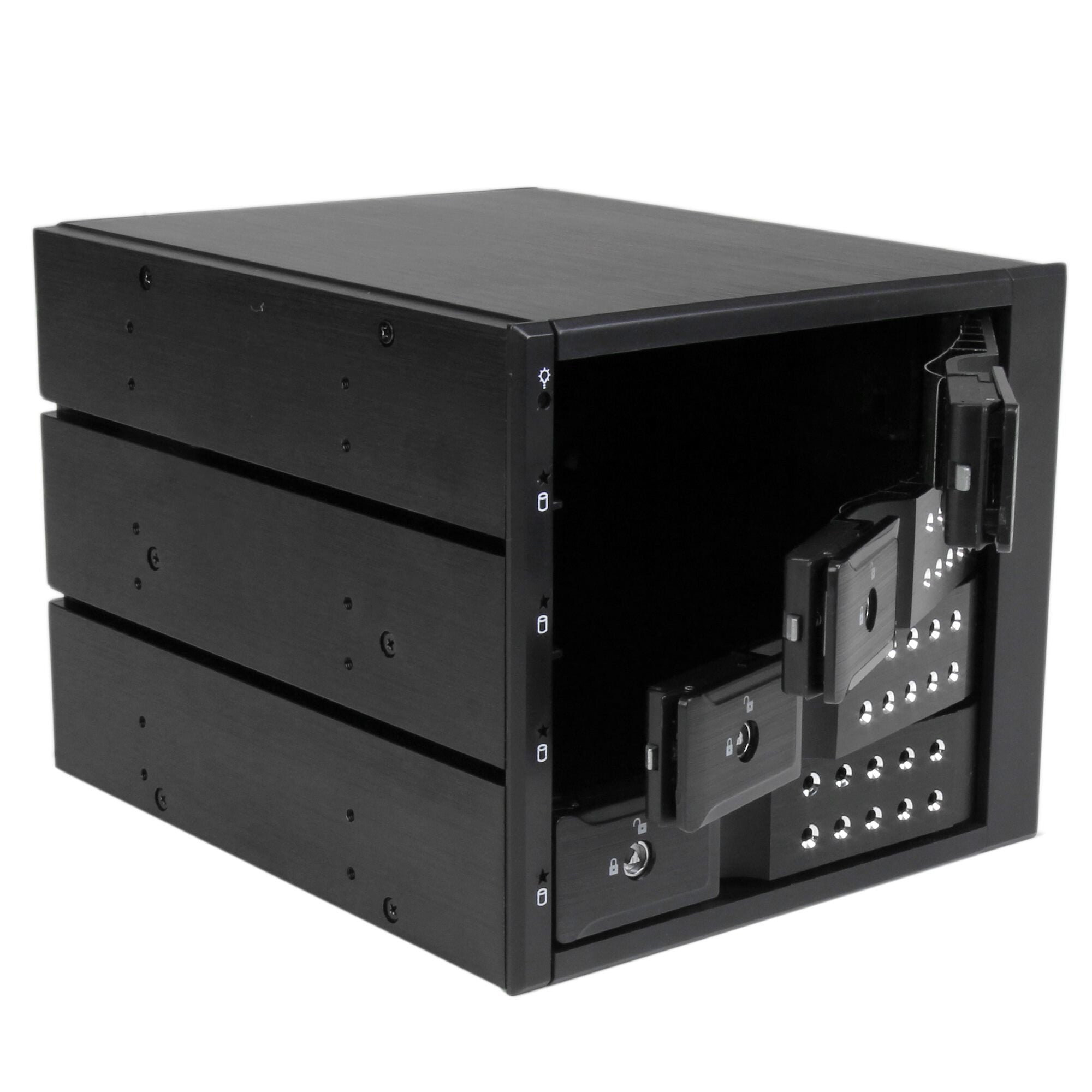

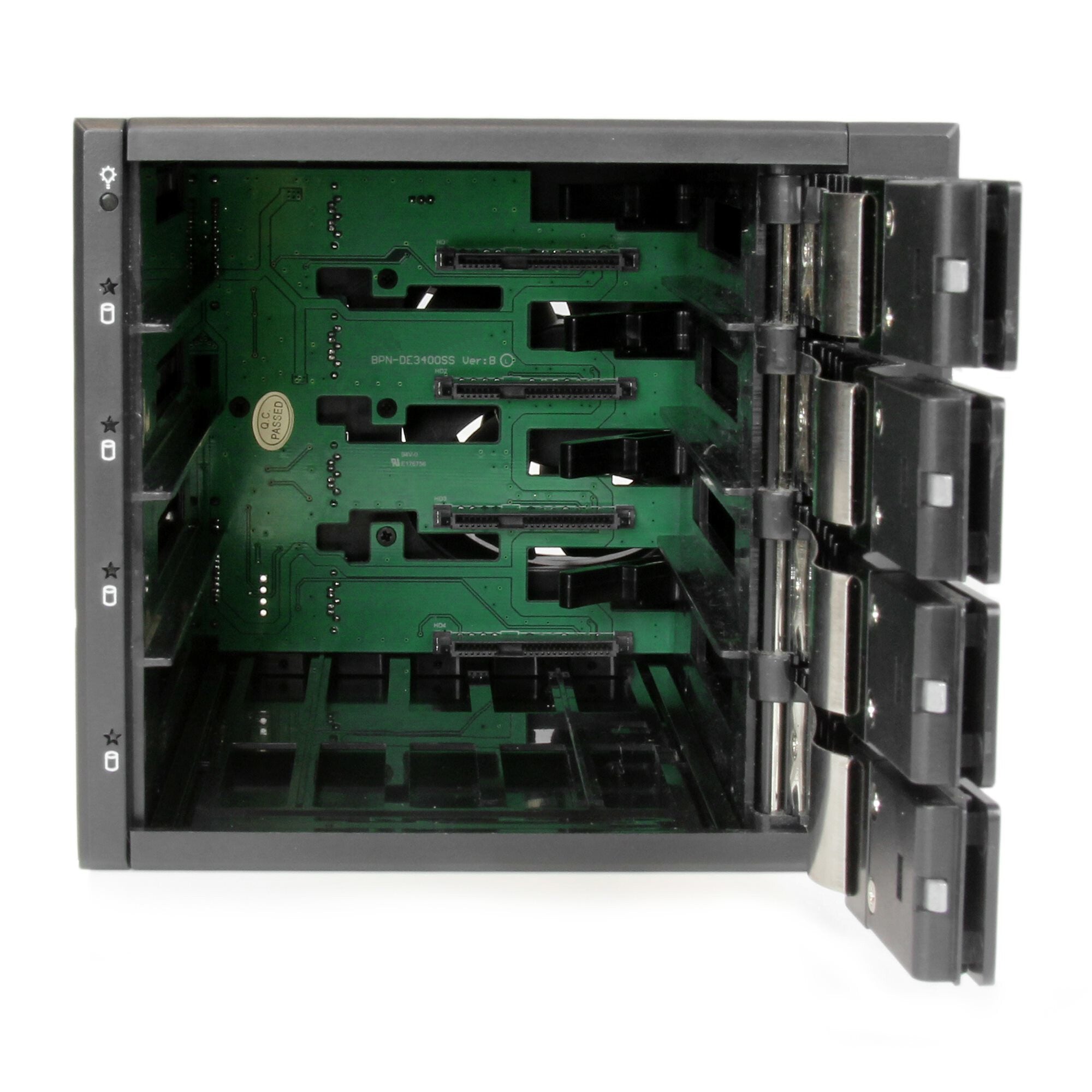

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces

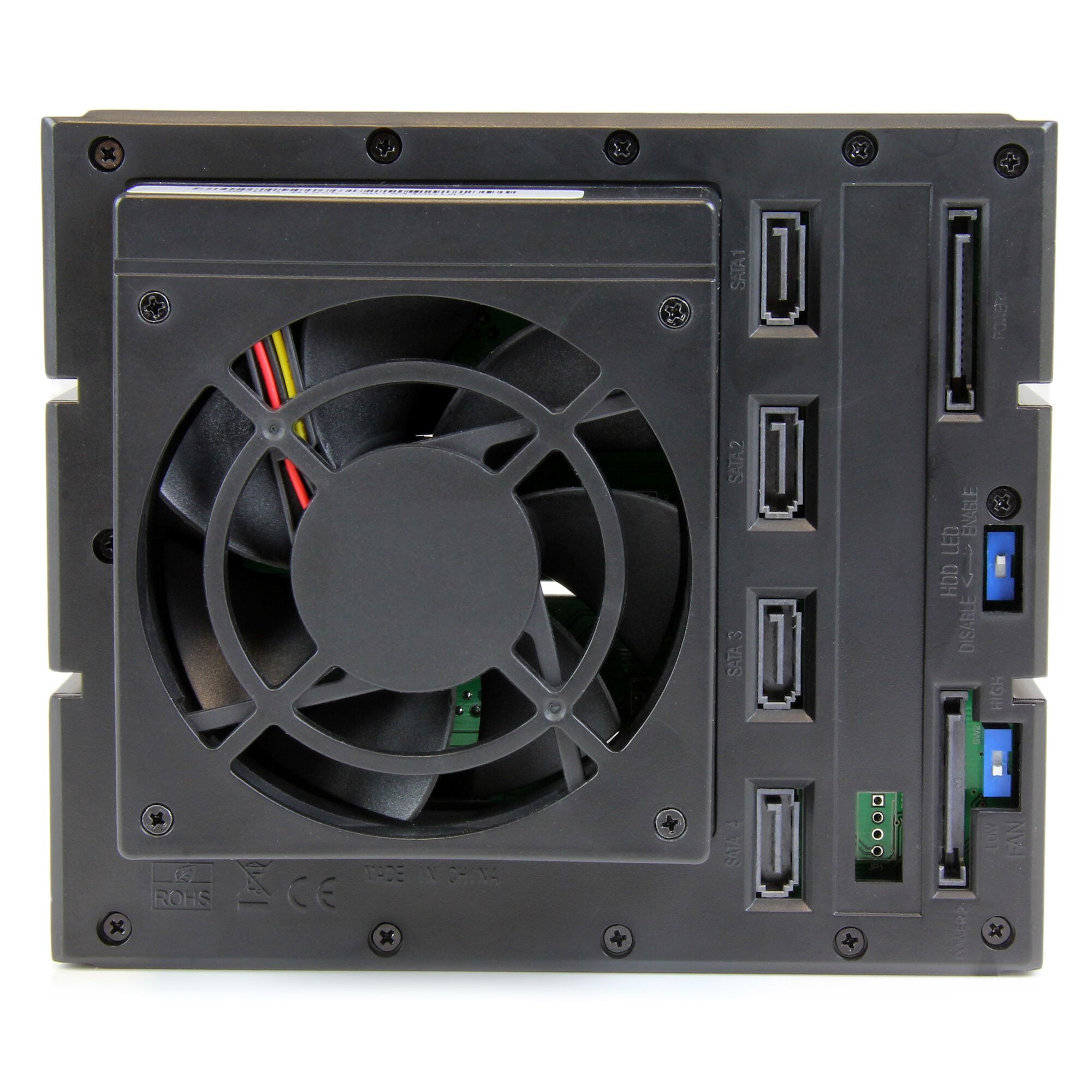

- Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan
Warranty: 2 Years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| Hot-swap | Yes |
| Key lock | Yes |
| LED indicators | Activity, Power |
| Data transfer rate | 6 Gbit/s |
| Fan diameter | 7 cm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Material | Aluminium |
| Certification | CE, FCC |
| Ports & interfaces | |
|---|---|
| External SATA ports quantity | 4 |
| Weight & dimensions | |
|---|---|
| Height | 124 mm |
| Depth | 197 mm |
| Width | 145 mm |
| Weight | 1.3 kg |
| Packaging data | |
|---|---|
| Package width | 254 mm |
| Package height | 180 mm |
| Package depth | 164 mm |
| Package weight | 1.59 kg |
| Packaging content | |
|---|---|
| Manual | Yes |

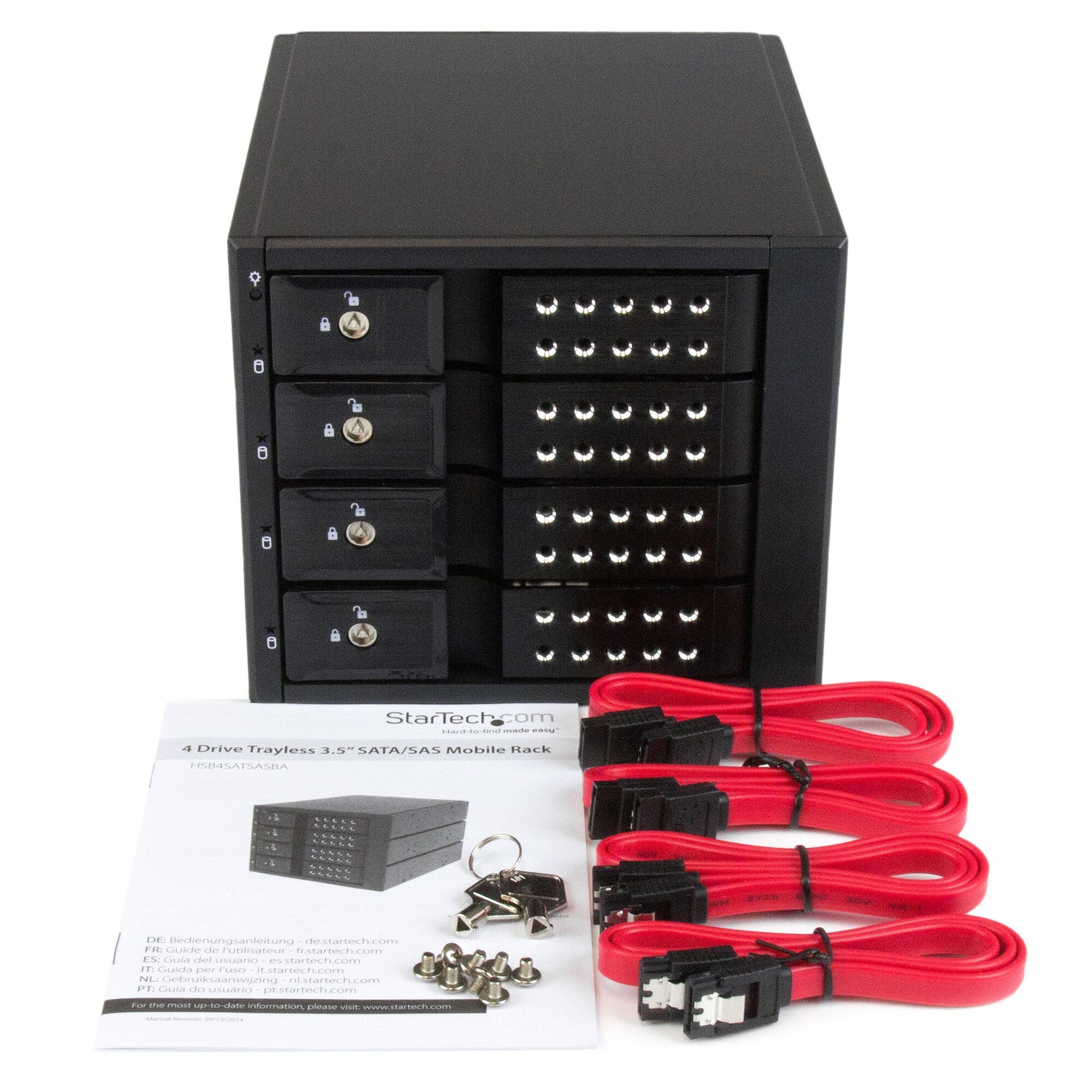

| Cables included | SATA |
| Screws included | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 0 - 55 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case height | 281 mm |
| Master (outer) case length | 516 mm |
| Master (outer) case width | 385 mm |
| Products per master (outer) case | 6 pc(s) |
