StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
KEY FEATURES
- Internal
- Host interface: PCIe
- Output interface: IEEE 1394/Firewire
- 0.8 Gbit/s
- Green
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Description
StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter. Host interface: PCIe, Output interface: IEEE 1394/Firewire, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 149905 h. Chipset: Texas Instruments - XIO2213B, Data transfer rate (max): 0.8 Gbit/s. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2019. Width: 58 mm, Depth: 90 mm, Height: 20 mm

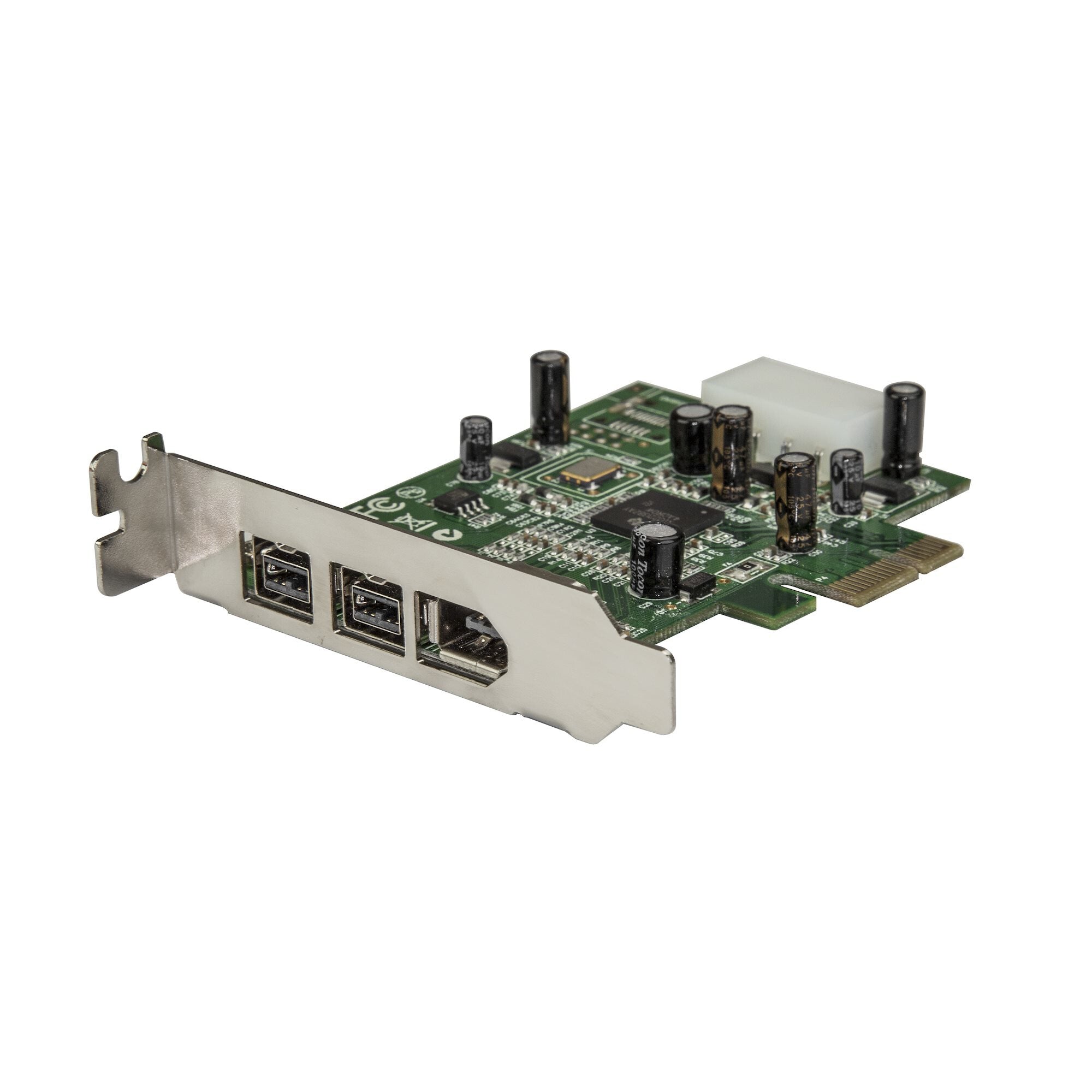

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.

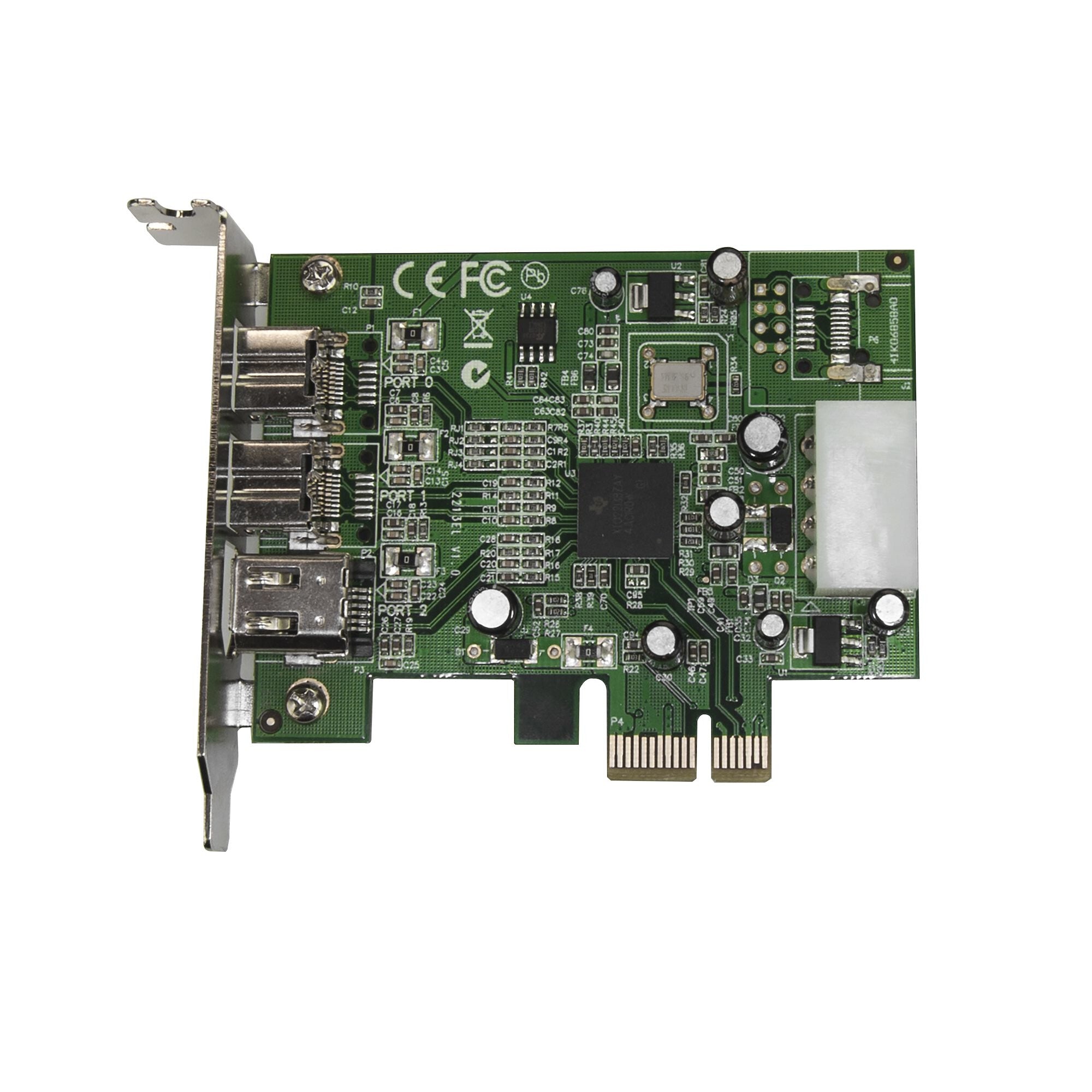

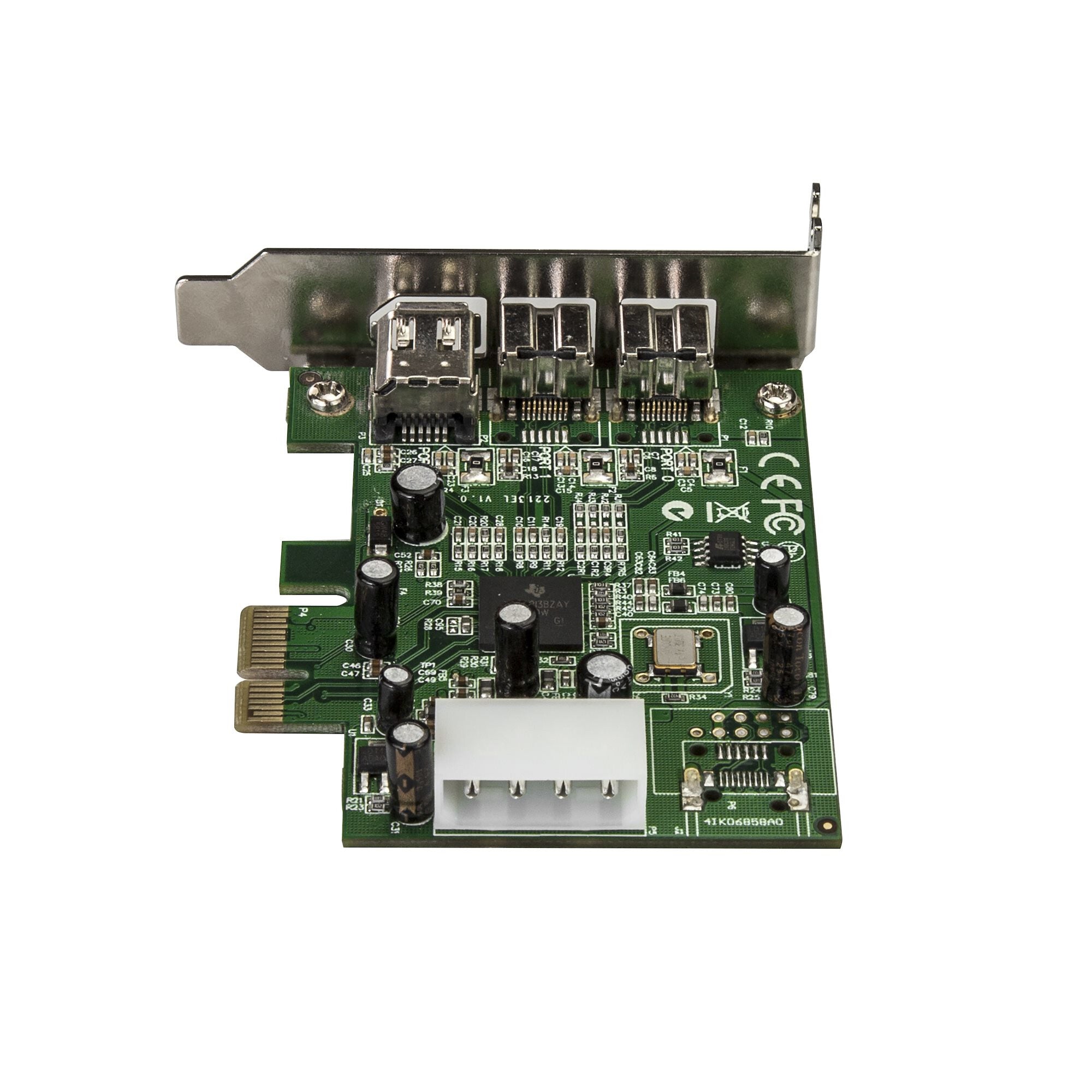

The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
The StarTech.com Advantage
- Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
- Native PCI Express chipset design rather than a bridge chip, ensures a fast, reliable and cost-effective FireWire expansion
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
Warranty: Lifetime
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | IEEE 1394/Firewire |
| Expansion card standard | PCIe 1.1 |
| Firewire (IEEE 1394) ports | 3 |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
| Design | |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Mean time between failures (MTBF) | 149905 h |
| Hot-swap | Yes |
| Features | |
|---|---|
| Chipset | Texas Instruments - XIO2213B |
| Data transfer rate (max) | 0.8 Gbit/s |
| Plug and Play | Yes |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2019 |
| Weight & dimensions | |
|---|---|
| Width | 58 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 43 g |
| Packaging data | |
|---|---|
| Cables included | FireWire |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 175 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 200 g |
| Logistics data | |
|---|---|
| Products per master (outer) case | 28 pc(s) |
| Master (outer) case width | 331 mm |
| Master (outer) case length | 504 mm |
| Master (outer) case height | 237 mm |
