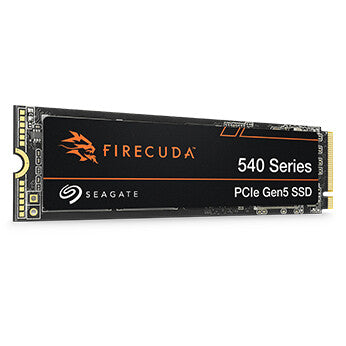

Seagate 540 2 TB Server/workstation Internal SSD | 3D TLC NVMe PCI Express 5.0 M.2
KEY FEATURES
- 2 TB M.2 PCI Express 5.0
- 1490000 IOPS
- 1500000 IOPS
- 3D TLC NVMe 2.0
- S.M.A.R.T. support TRIM support
- Component for: Server/workstation
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Seagate 540 2 TB Server/workstation Internal SSD | 3D TLC NVMe PCI Express 5.0 M.2
Description
Meet the Seagate FireCuda 540, a game-changing SSD with a massive capacity of 2 TB, housed in an M.2 2280-D2 form factor. This dynamic powerhouse is designed to work seamlessly with server and workstation components, amping up your system's productivity and performance. With its exceptional features including PCIe Gen5 x4 NVMe 2.0 offering speeds up to an astounding 10,000 MB/s, this SSD is solid value for anyone seeking rapid data transfer, particularly game enthusiasts and corporate professionals.
- Unparalleled Speed: Thanks to its capacity to hit speeds as high as 10,000 MB/s, the FireCuda 540 significantly outpaces its Gen4 counterparts by 50%, bringing in the full thrust of PCIe Gen5 speeds. Enjoy quicker load times with games and applications courtesy of DirectStorage support.
- Robust Storage: This SSD comes with a whopping 2,000 TB TBW, meaning you can write and delete 90% of the drive capacity daily for half a decade, making this drive a perfect match for the consistently heavy users.
- Performance Enhancement: Experience transfer speeds that are up to 17 times faster than SATA SSDs, and 50% faster than PCIe Gen4 NVMe SSDs, reducing your waiting window significantly while transferring large chunks of data.
- Perfect Gaming Companion: This SSD is PS5 compatible; meeting the console's performance and dimension specifications. Coupled with a heatsink or other efficient cooling structures, the FireCuda 540 makes for an easy plug-and-play expansion solution for your gaming needs.
- Software Support: With Seagates free utilities - DiscWizard and SeaTools. Cloning your current drive to your new Seagate drive, creating and formatting partitions, transferring data, and backup is a breeze with DiscWizard. Furthermore, SeaTools provides an easy way to monitor drive health, performance, and firmware updates, thereby ensuring your drive always functions optimally.
To cap it off, the Seagate FireCuda 540 is built not just for speed but also resilience. It holds the capability to withstand unexpected eventualities like water damage or natural disasters. Also, it comes with a solid 5 years limited warranty, ensuring your peace of mind. For the power user, the gamer or the data-intensive professional, the FireCuda 540 from Seagate is the best choice in SSD.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mean time between failures (MTBF) | 1800000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Sequential write speed (ATTO) | 10000 MB/s |
| Sequential read speed (ATTO) | 10000 MB/s |
| Random write (4KB) | 1500000 IOPS |
| Random read (4KB) | 1490000 IOPS |
| Component for | Server/workstation |
| NVMe version | 2.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Interface | PCI Express 5.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.144 W |
| Average power consumption (read) | 10.5 W |
| Average power consumption (write) | 11.5 W |
| Power consumption (average) | 11 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 1500 G |
| Non-operating vibration | 1.52 G |
| Storage relative humidity (H-H) | 0 - 93% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| General Information | |
|---|---|
| Product Family | FireCuda |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 7.4 g |
| Height | 3.58 mm |
| Depth | 80.2 mm |
| Width | 22.1 mm |
| Packaging data | |
|---|---|
| Package weight | 70 g |
| Package height | 155 mm |
| Package depth | 24 mm |
| Package width | 109 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 970 g |
| Master (outer) case height | 140 mm |
| Master (outer) case length | 292 mm |
| Master (outer) case width | 153 mm |
| Layers per pallet | 7 pc(s) |
| Master (outer) cases per pallet | 168 pc(s) |
