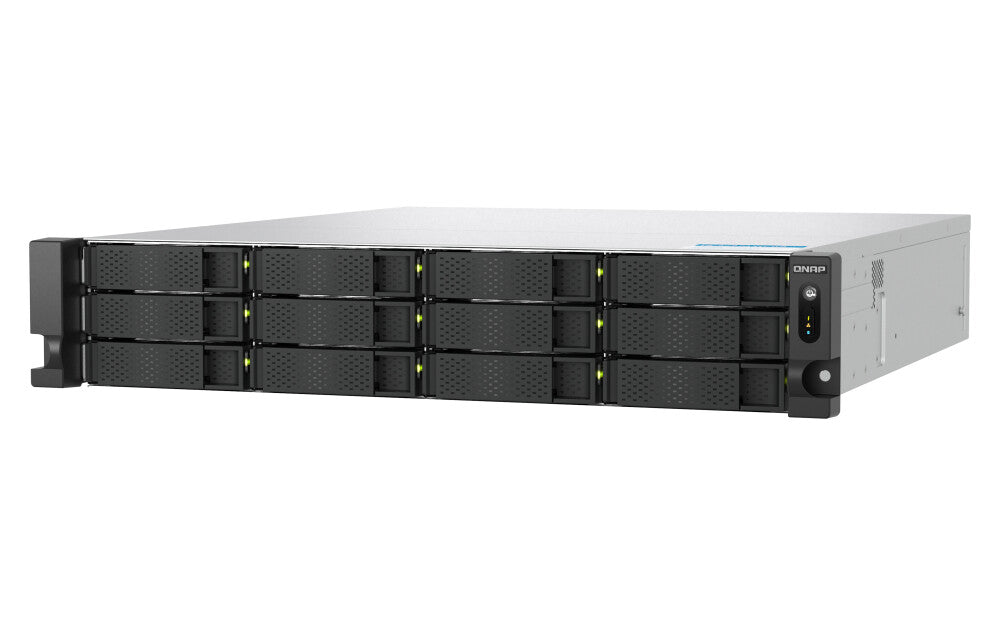

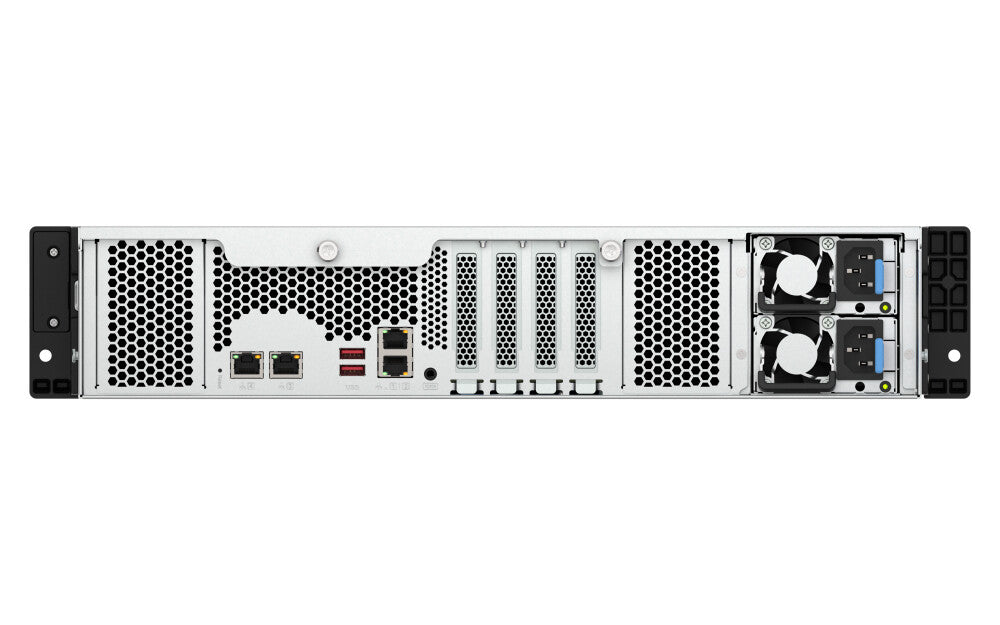

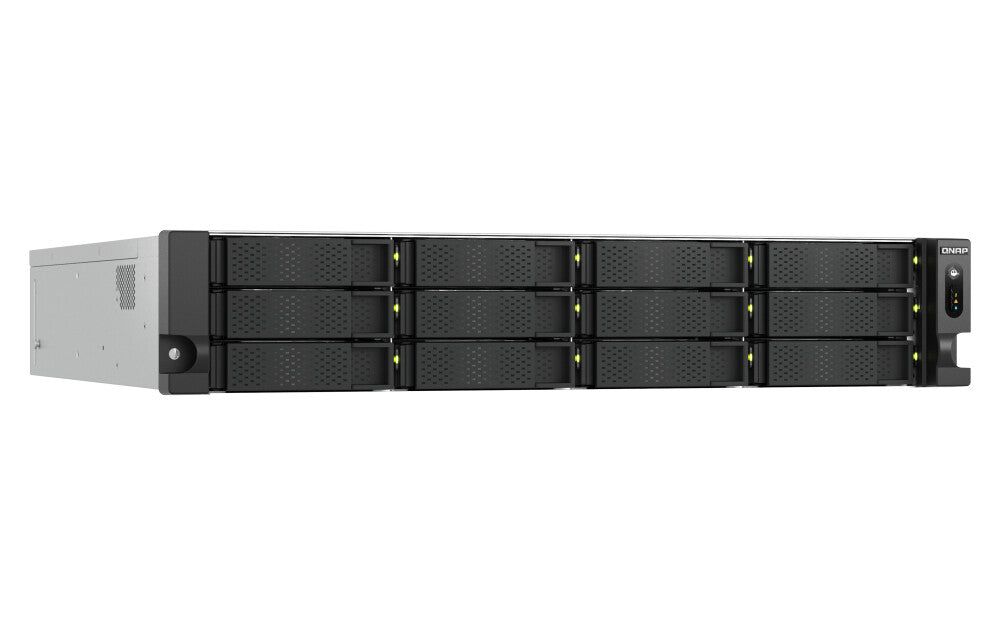

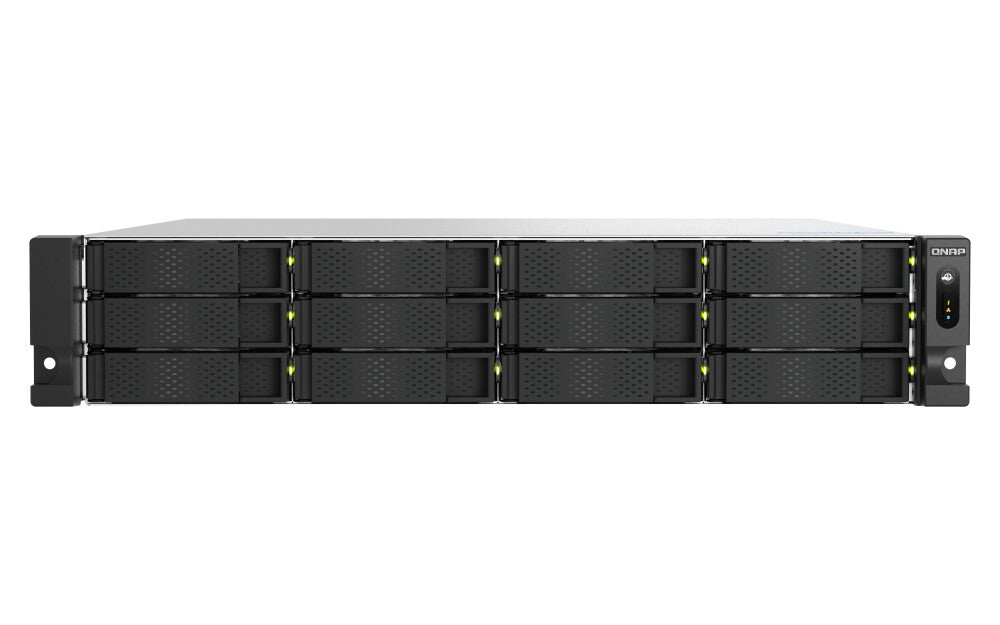

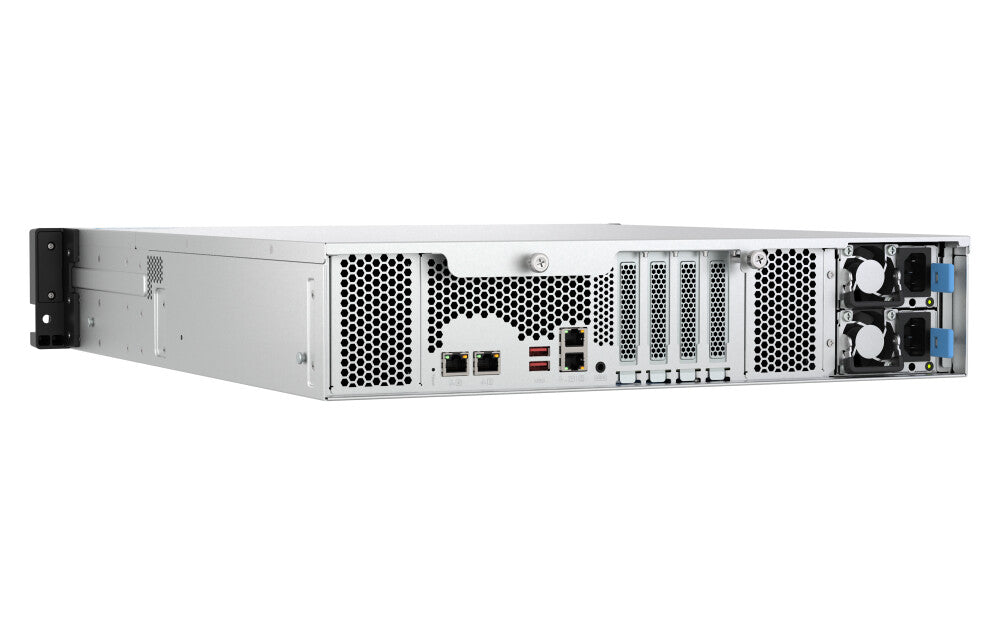

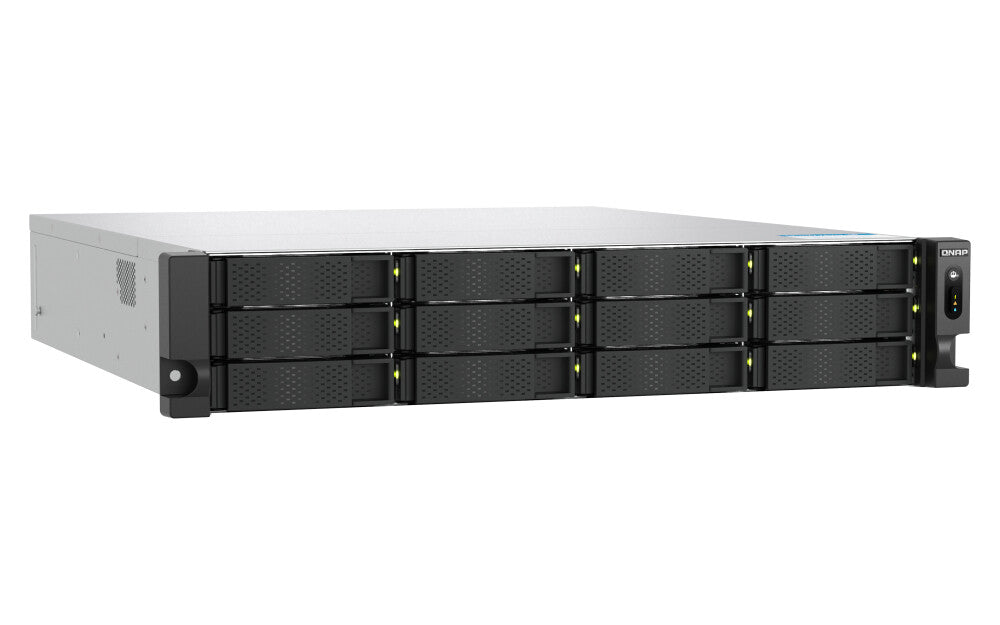

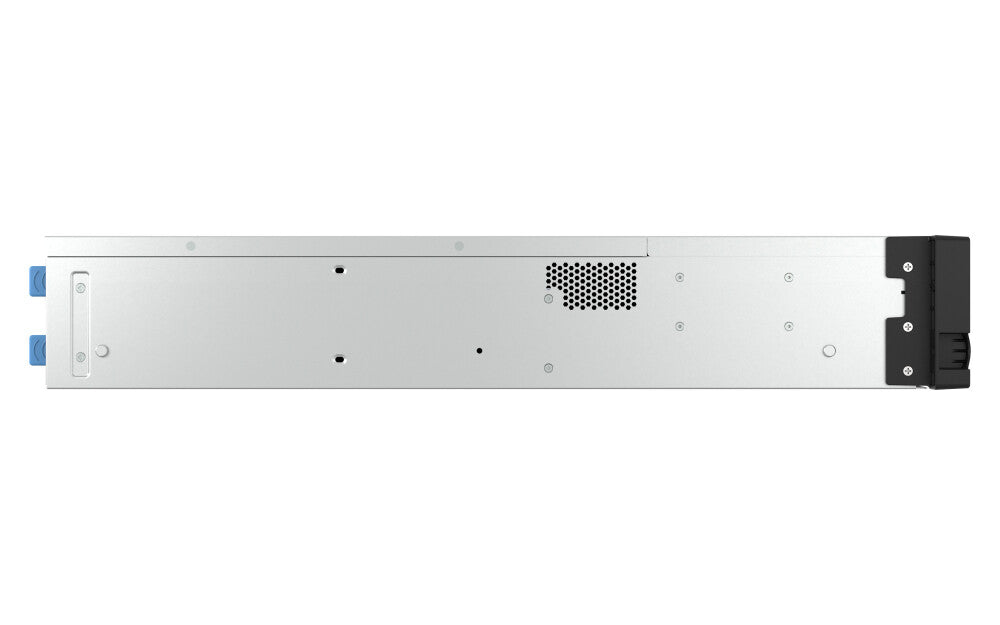

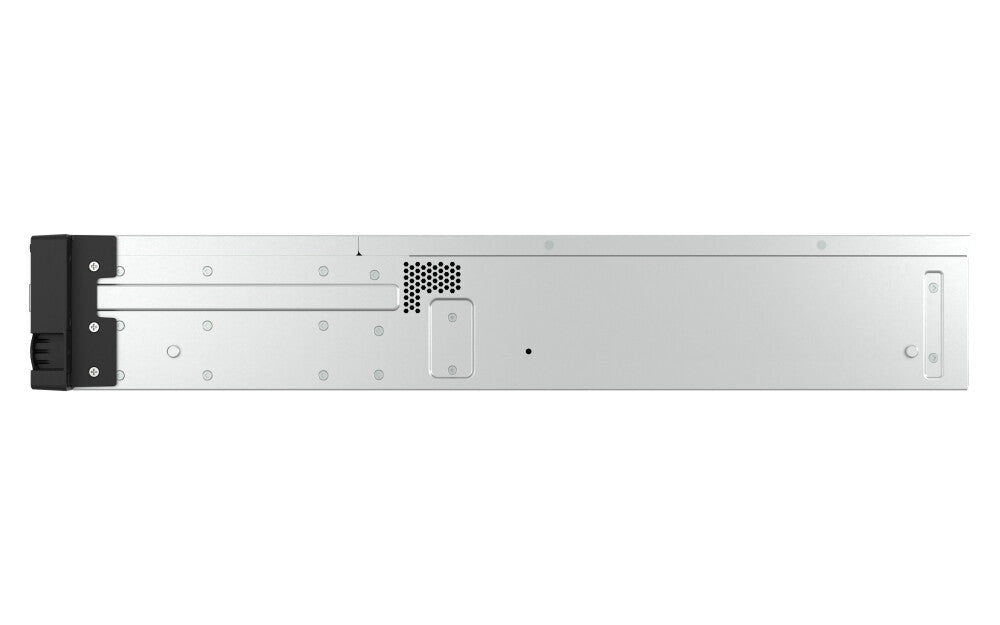

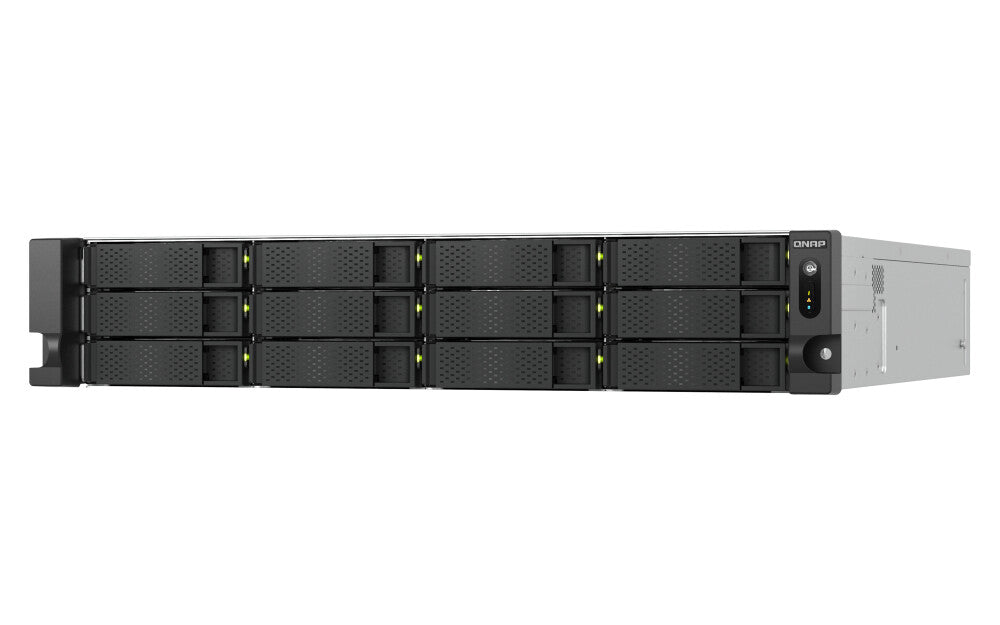

QNAP TS-H1277AXU-RP Rack (2U) NAS | 12-bay, HDD & SSD, AMD Ryzen 5 CPU, 16 GB GB RAM, 4 x LAN Ports
KEY FEATURES
- Supports up to 128GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported)
- Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment
- Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer
- Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cardsConnect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks
- The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
QNAP TS-H1277AXU-RP Rack (2U) NAS | 12-bay, HDD & SSD, AMD Ryzen 5 CPU, 16 GB GB RAM, 4 x LAN Ports
Description
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Storage | |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4 |
| Disk roaming | Yes |
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| Bus type | DMI3 |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Internal memory type | DDR5 |
| Internal memory | 16 GB |
| Maximum RAM supported | 192 GB |
| Memory slots | 4 |
| ECC | No |
| Memory form factor | UDIMM |
| Flash memory | 5000 MB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Design | |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | HDD, LAN, Power, SSD, Status |
| Performance | |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Snapshot | Yes |
| Management protocols | SNMP V2/V3 |
| Web-based management | Yes |
| Disk scan | Yes |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| System log | Yes |
| Share folder | CIFS/SMB |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Built-in FTP server | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, TLS |
| Software | |
|---|---|
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Linux operating systems supported | CentOS 7.0, Ubuntu 14.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Power | |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 367.65 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Width | 482 mm |
| Depth | 550 mm |
| Height | 88.6 mm |
| Weight | 13 kg |
| Package width | 567 mm |
| Package depth | 721 mm |
| Package height | 273 mm |
| Package weight | 17.6 kg |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Harmonized System (HS) code | 84714100 |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 2 |
| Number of screws | 84 |
| Package type | Box |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
