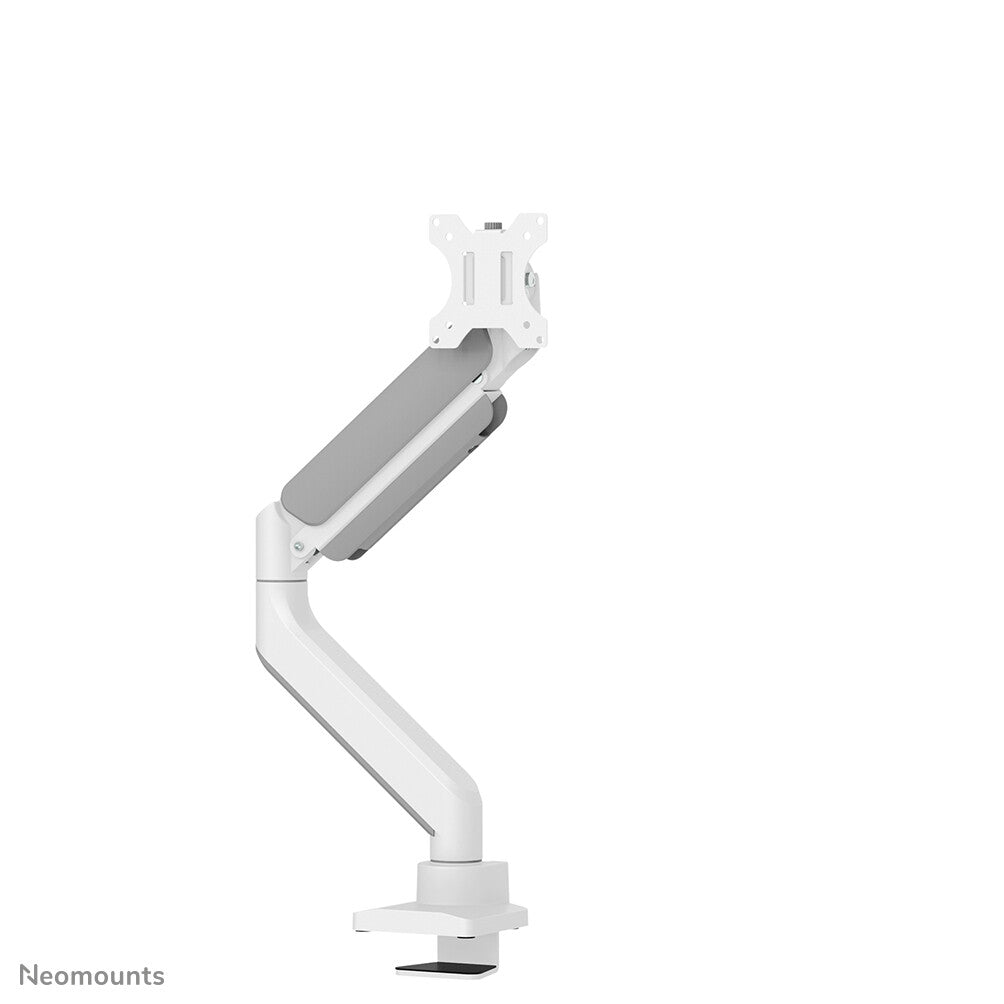

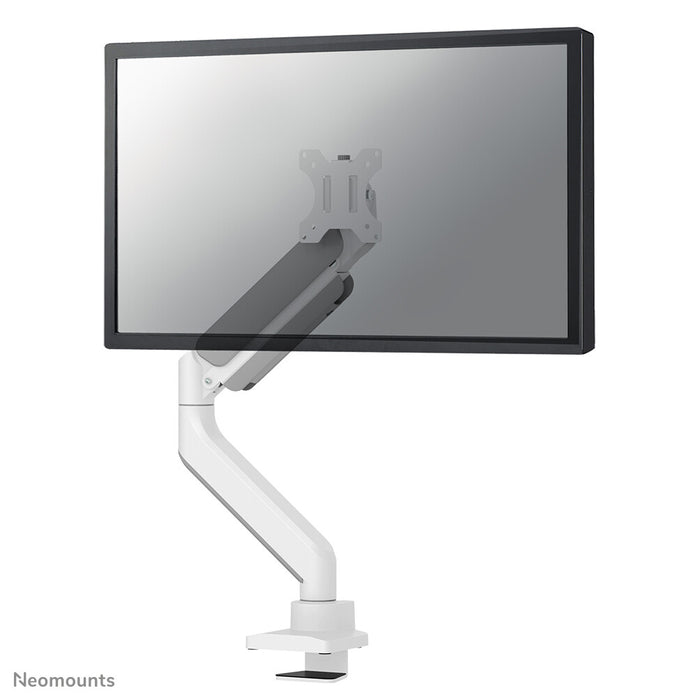

Neomounts by Newstar Neomounts monitor arm desk mount
KEY FEATURES
- Maximum weight capacity: 15 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 106.7 cm (42")
- Number of displays supported: 1
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management
- White
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Neomounts by Newstar Neomounts monitor arm desk mount
Description
Neomounts by Newstar Neomounts monitor arm desk mount. Mounting: Clamp/Bolt-through, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -35 - 45°. Product colour: White
The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.
The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
Warranty: 5 year
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Mounting | |
|---|---|
| Distance to the wall (max) | 56.8 cm |
| Distance to the wall (min) | 10.8 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Maximum screen size | 106.7 cm (42") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 15 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Y |
| Rotating | Y |
| Cable management | Y |
| Angle of rotation | 360° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 180° |
| Tilt angle range | -35 - 45° |
| Depth adjustment range | 0 - 514 mm |
| Adjustable depth | Y |
| Height adjustment range | 261 - 550 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Y |
| Design | |
|---|---|
| Product colour | White |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Package net weight | 5.1 kg |
| Package height | 445 mm |
| Package depth | 127 mm |
| Package width | 280 mm |
| Height | 653 mm |
| Depth | 568 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Mounting kit | Y |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case net weight | 18.4 kg |
| Products per pallet (EU) | 64 pc(s) |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case height | 580 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case width | 460 mm |
| Other features | |
|---|---|
| Country of origin | China |
