Neomounts by Newstar monitor desk mount
KEY FEATURES
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 1
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management
- Black
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions

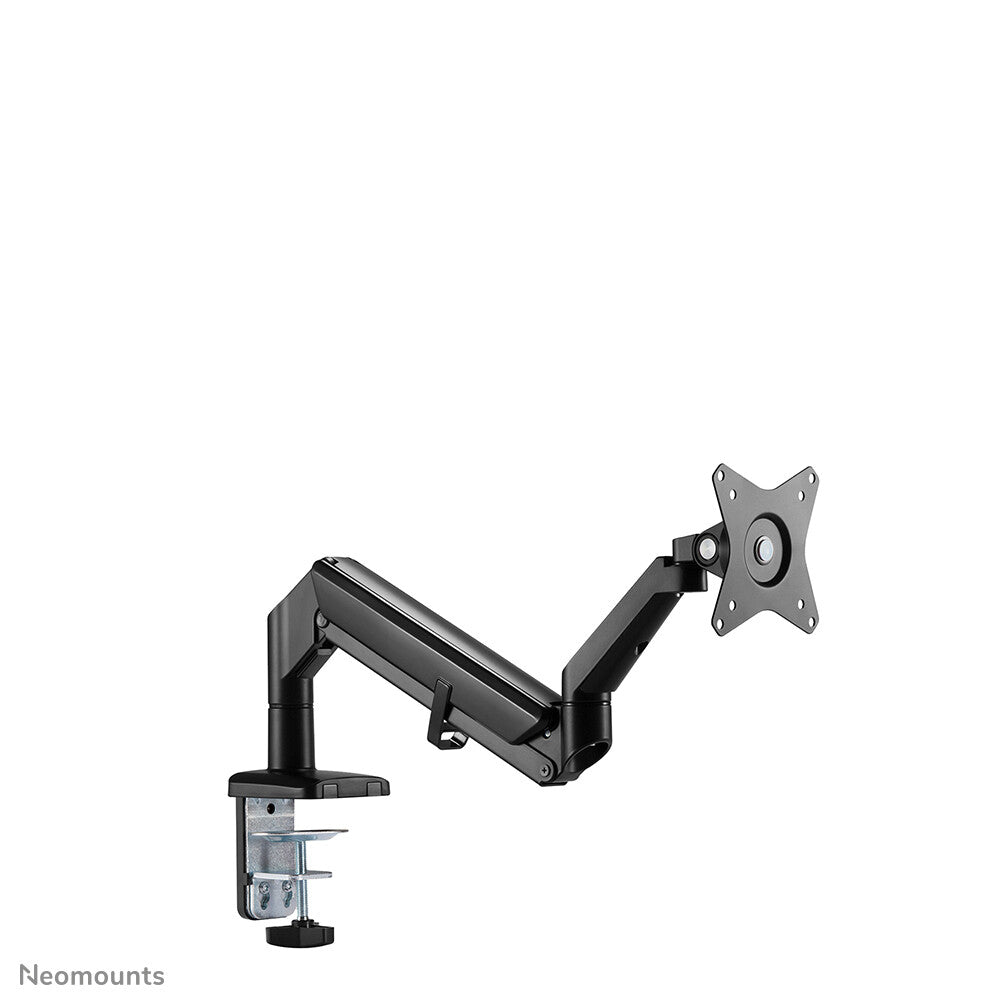

Neomounts by Newstar monitor desk mount
Description

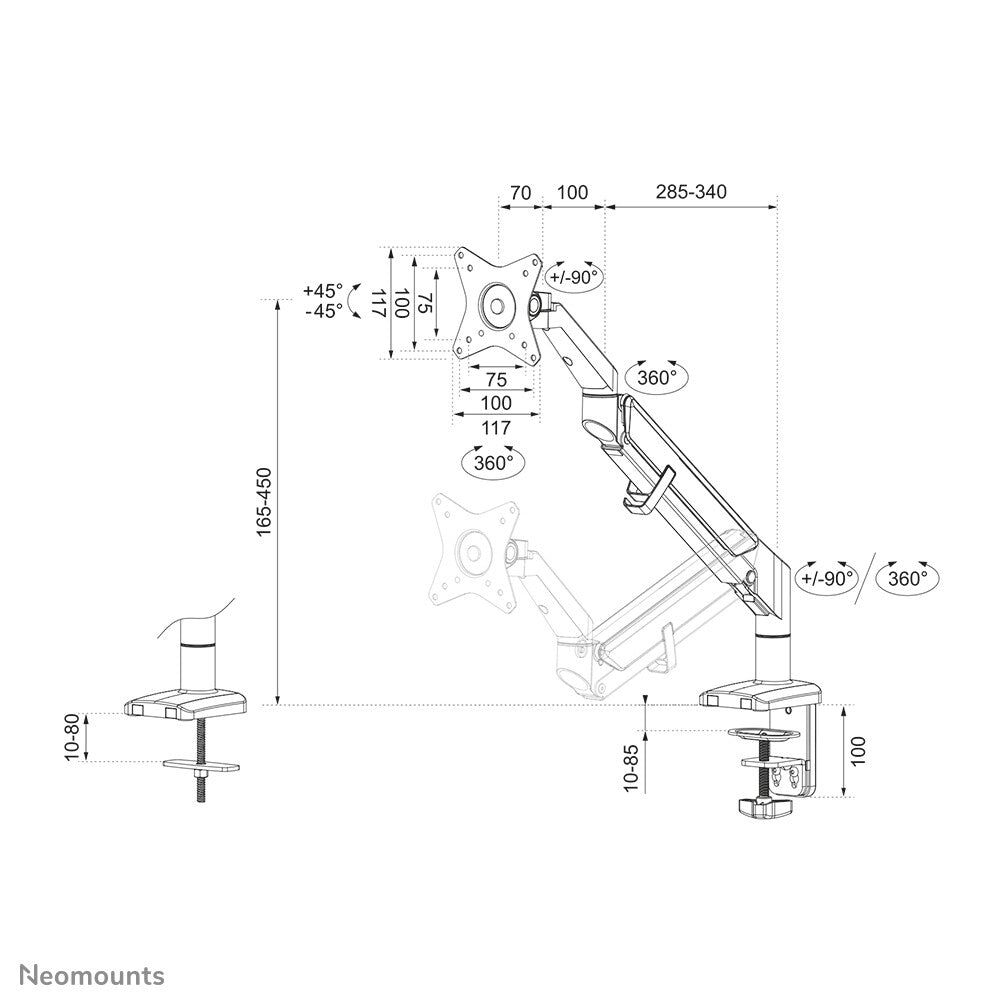

Neomounts by Newstar monitor desk mount. Mounting: Clamp/Bolt-through, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

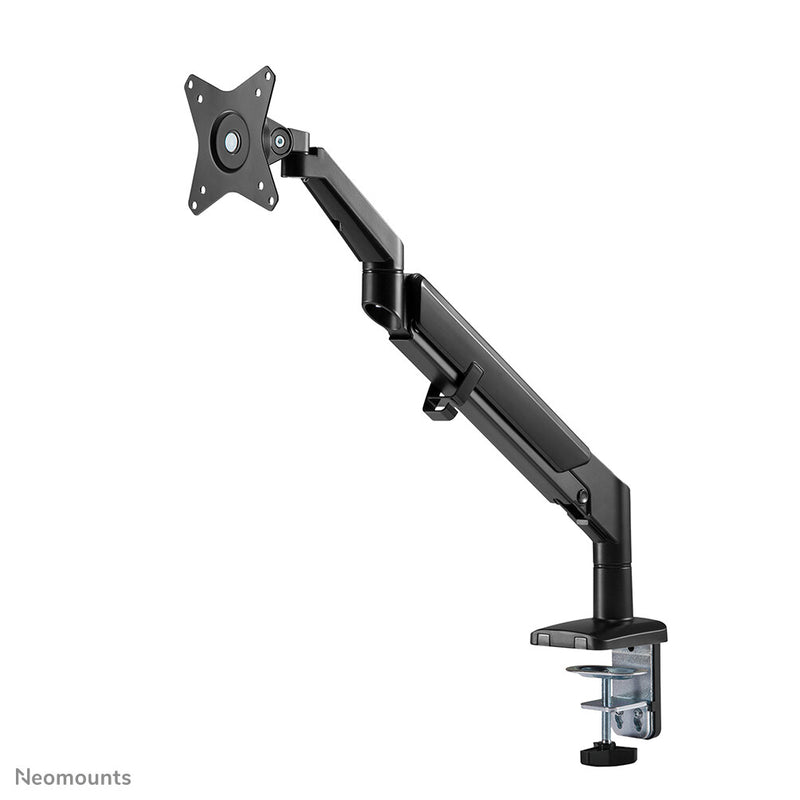

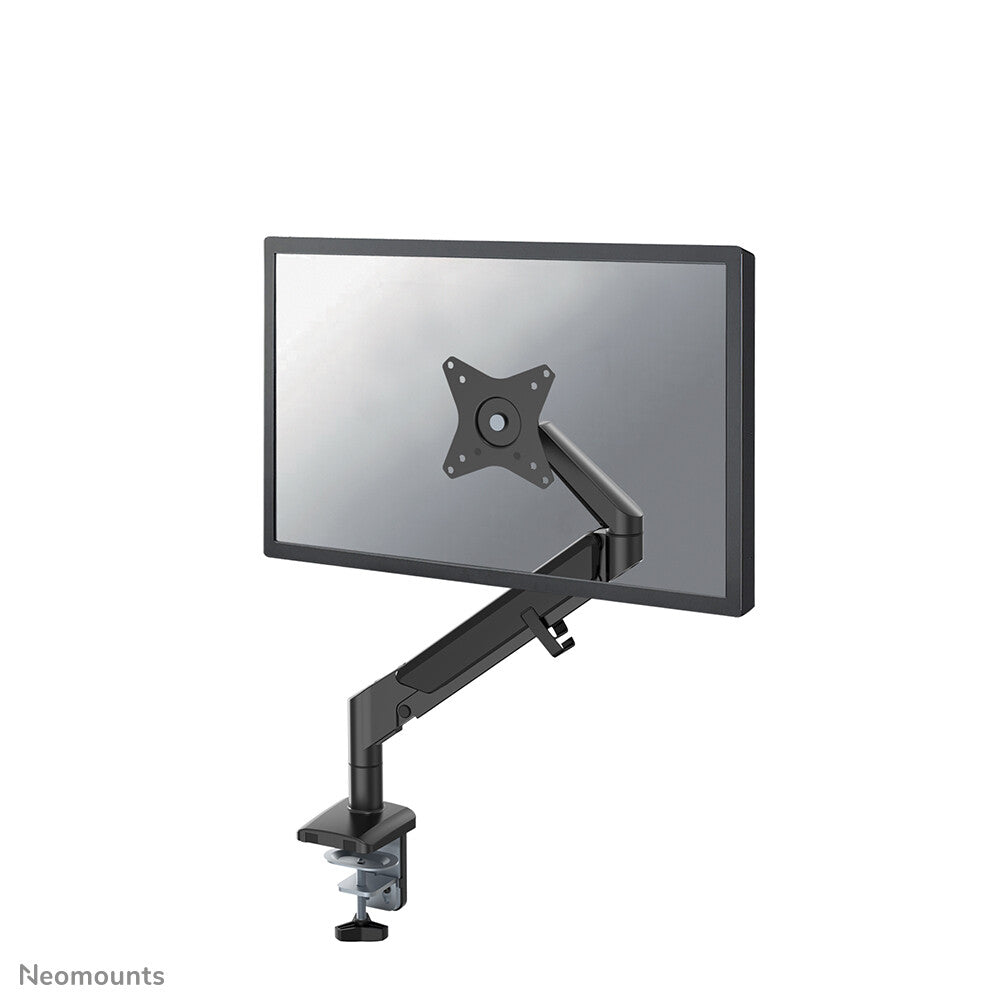

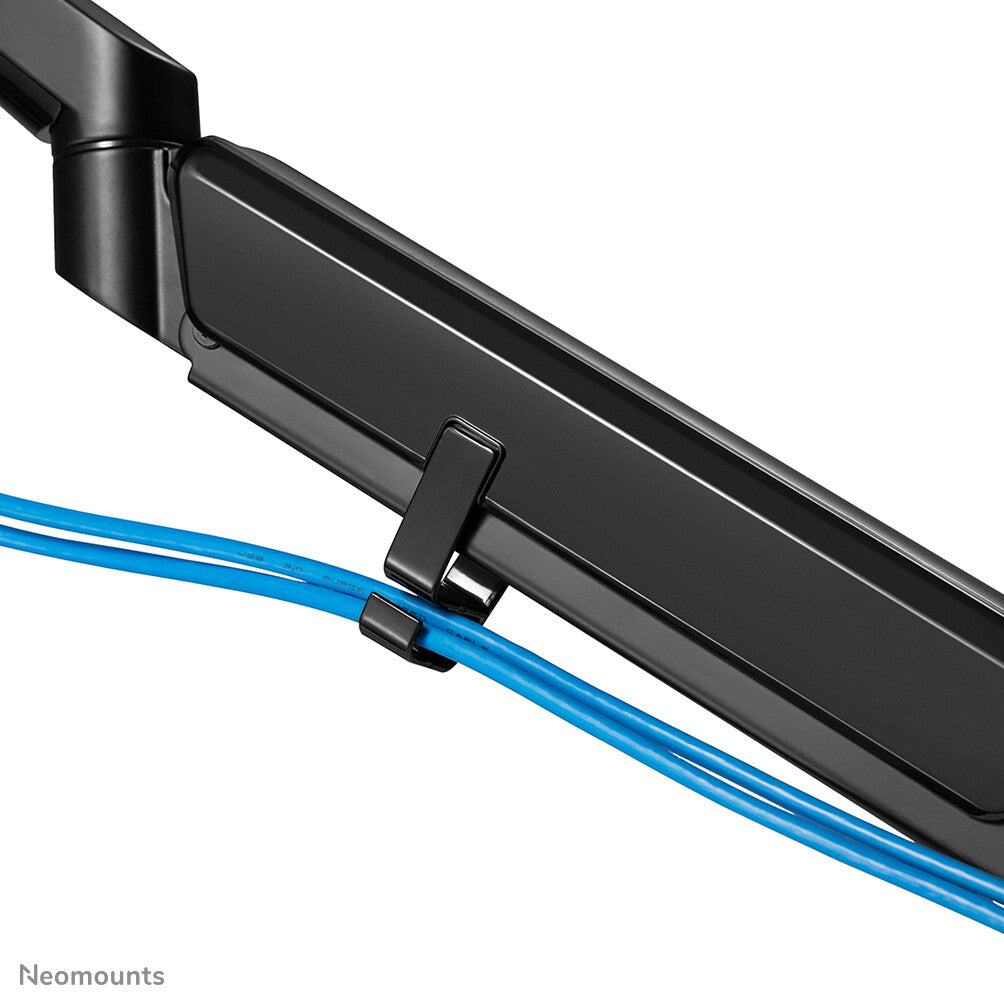

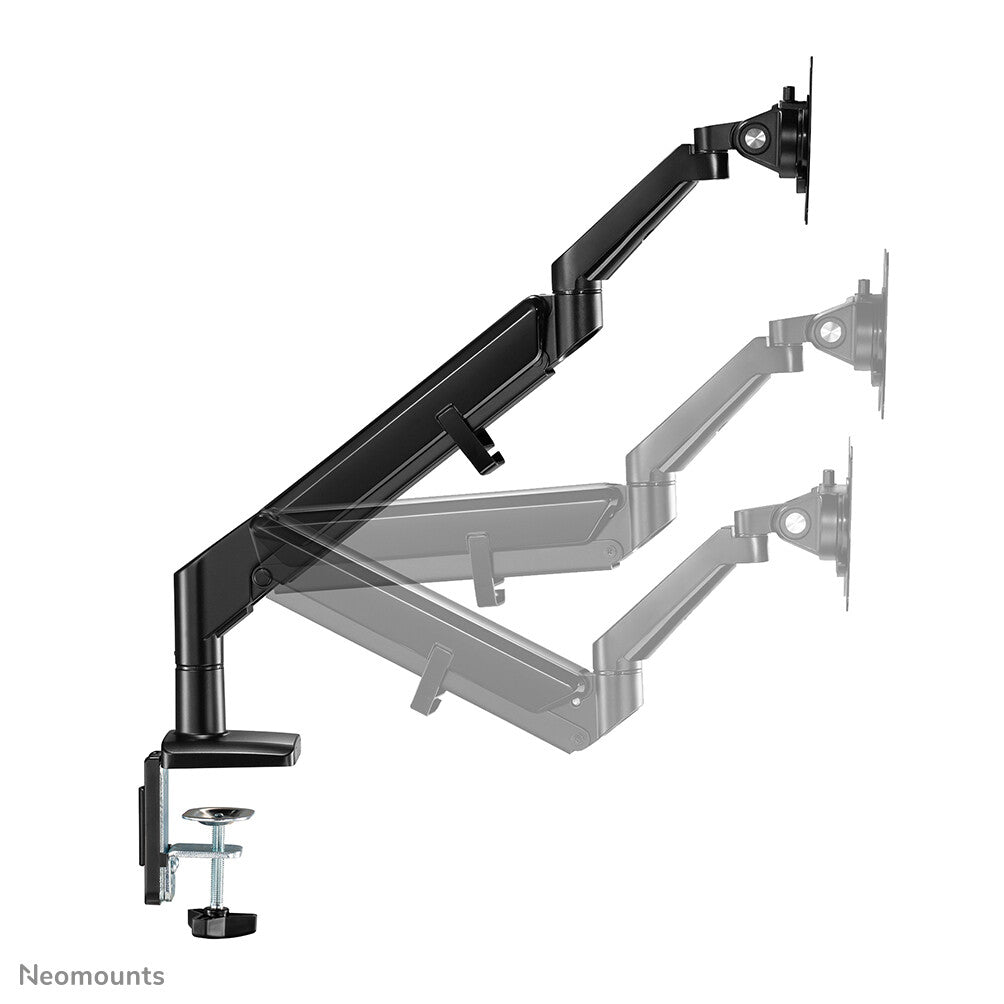

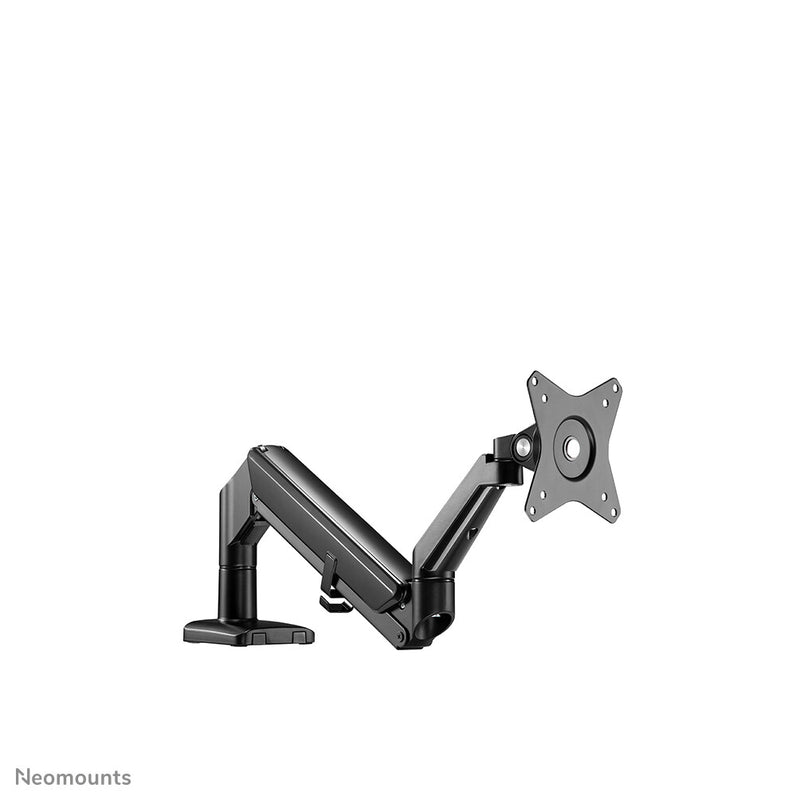

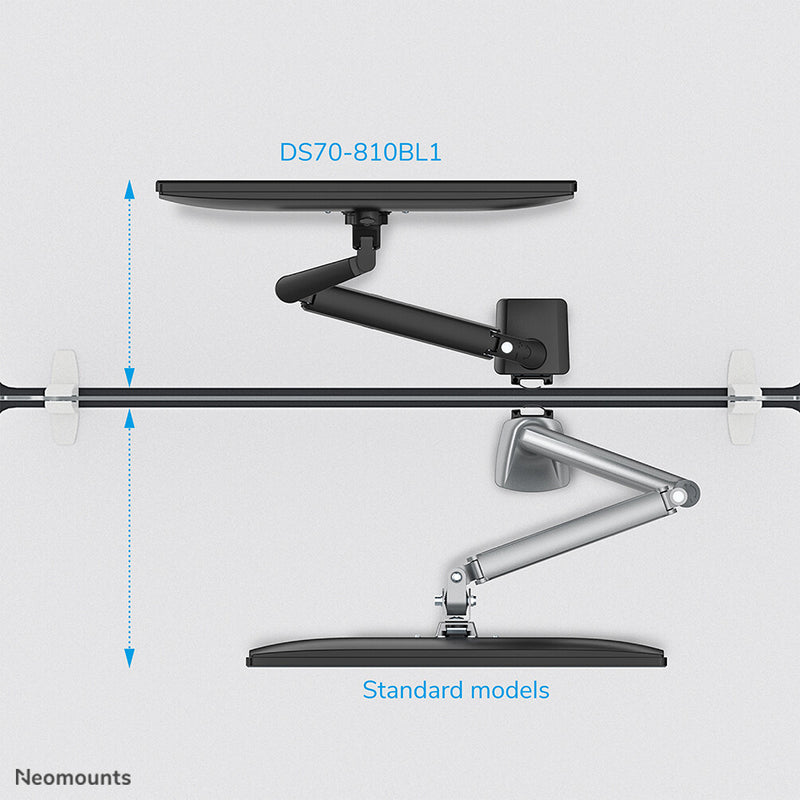

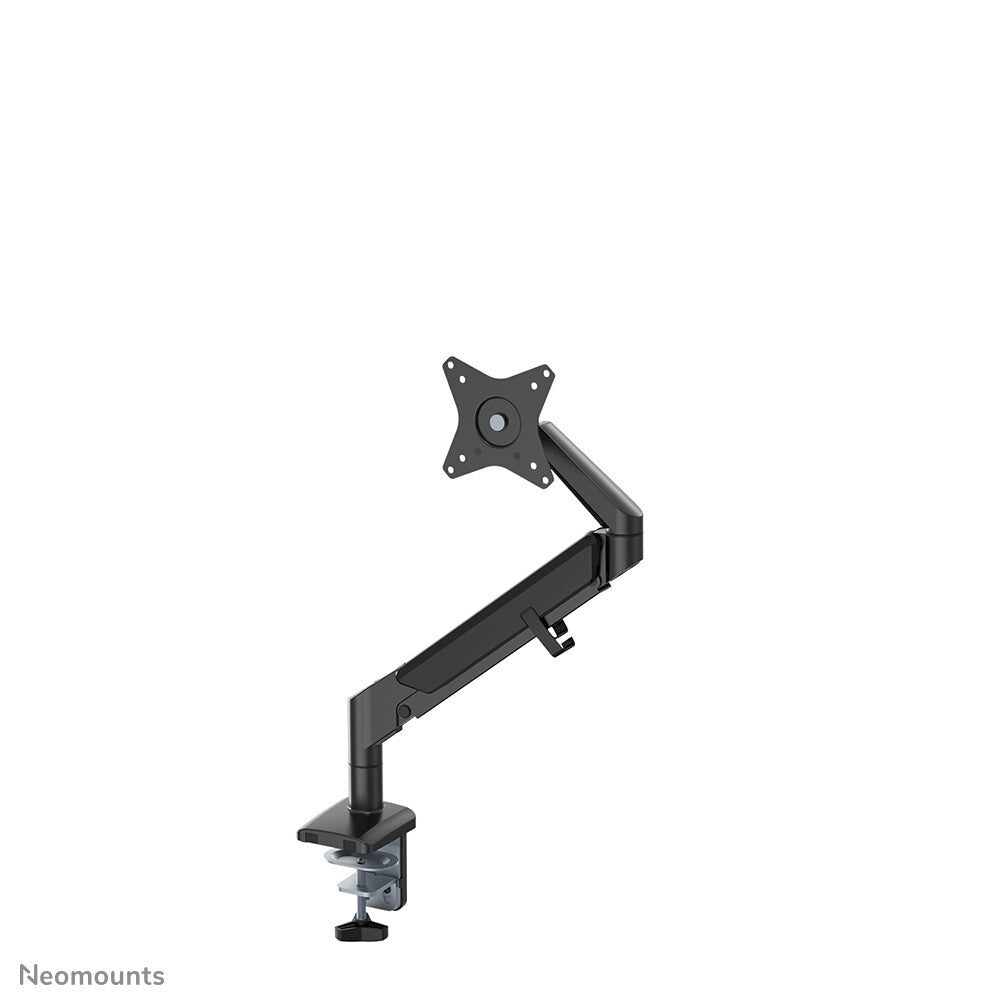

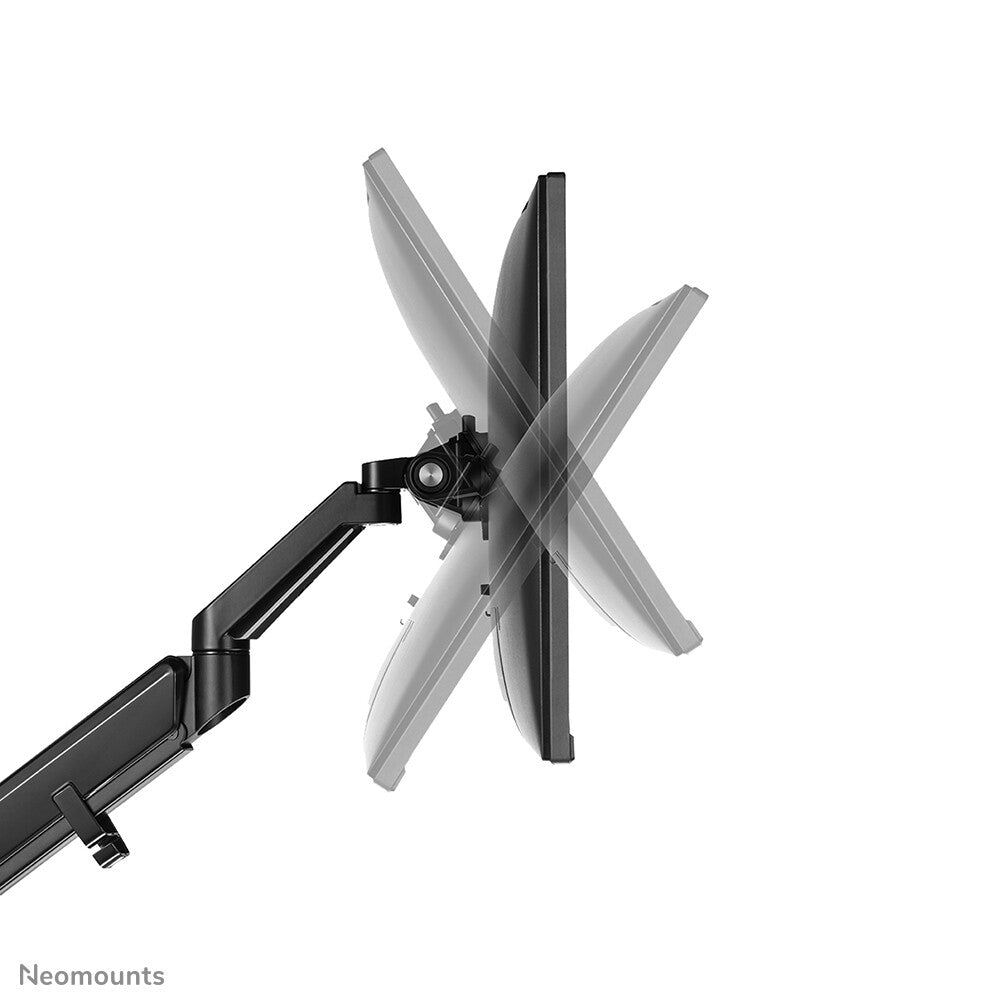

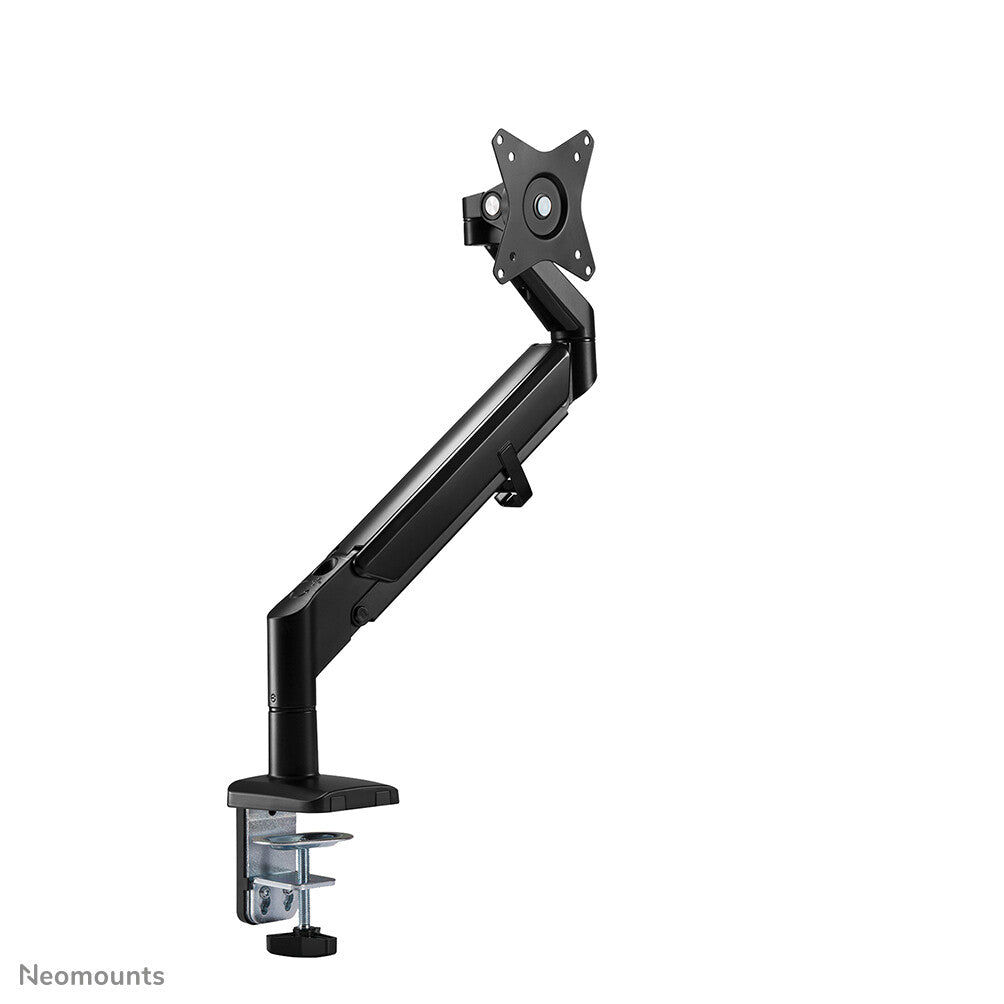

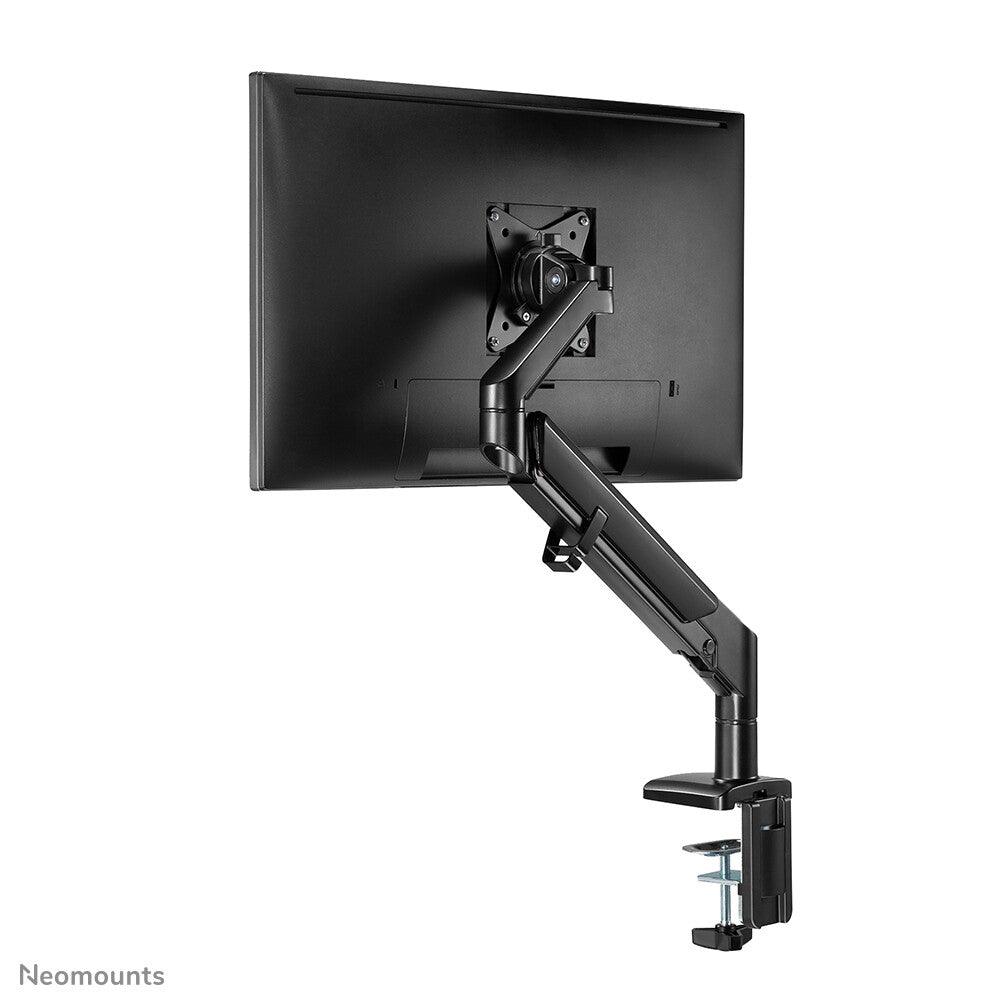

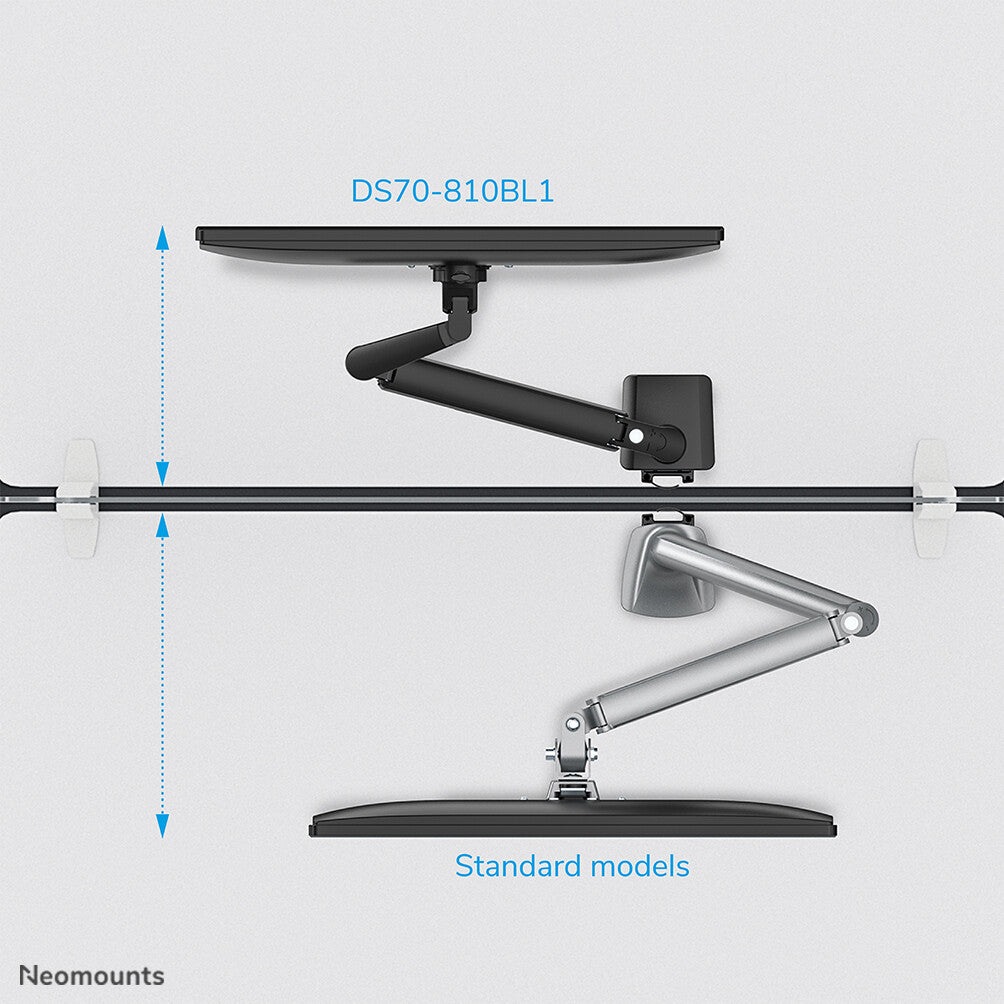

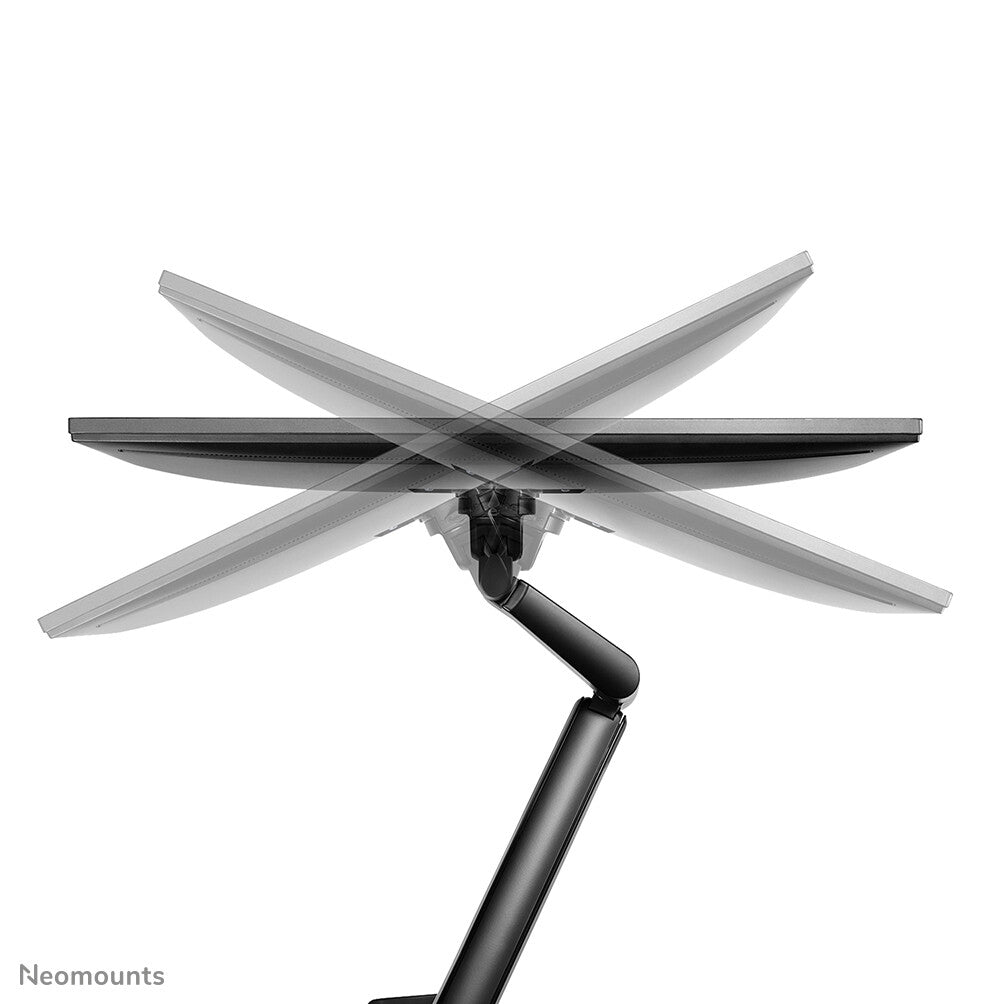

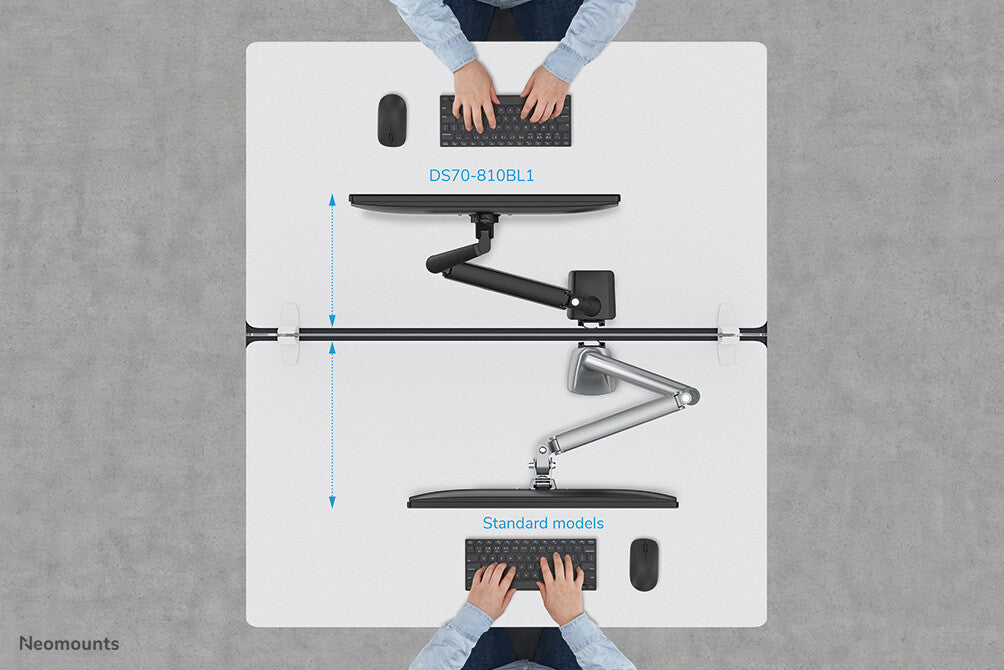

The Neomounts by Newstar DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.

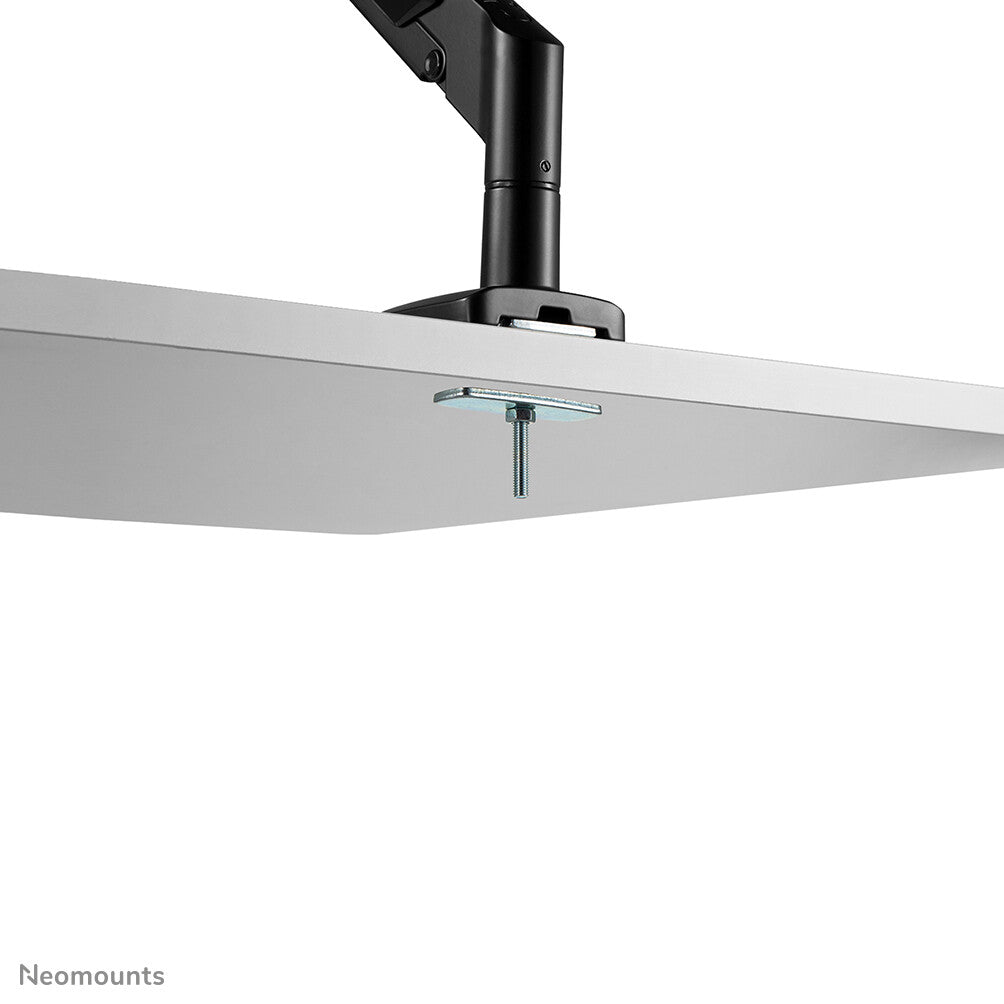

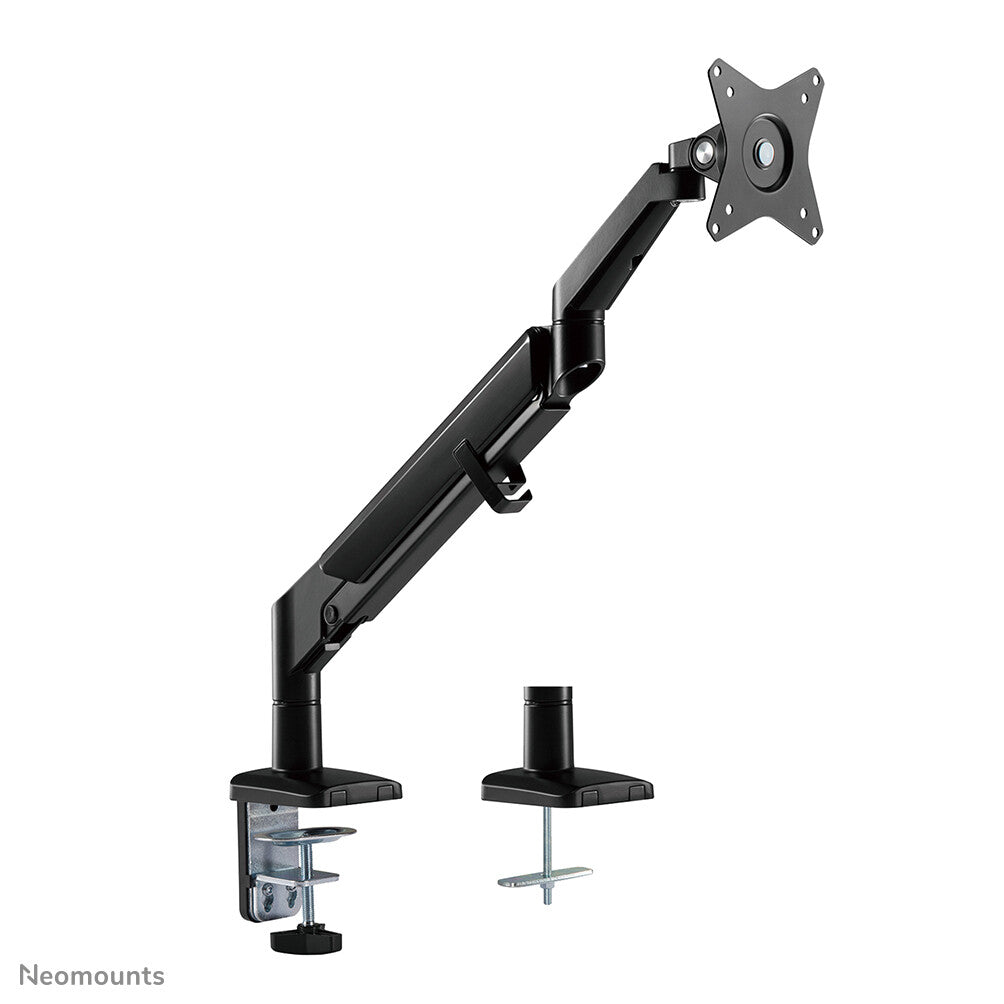

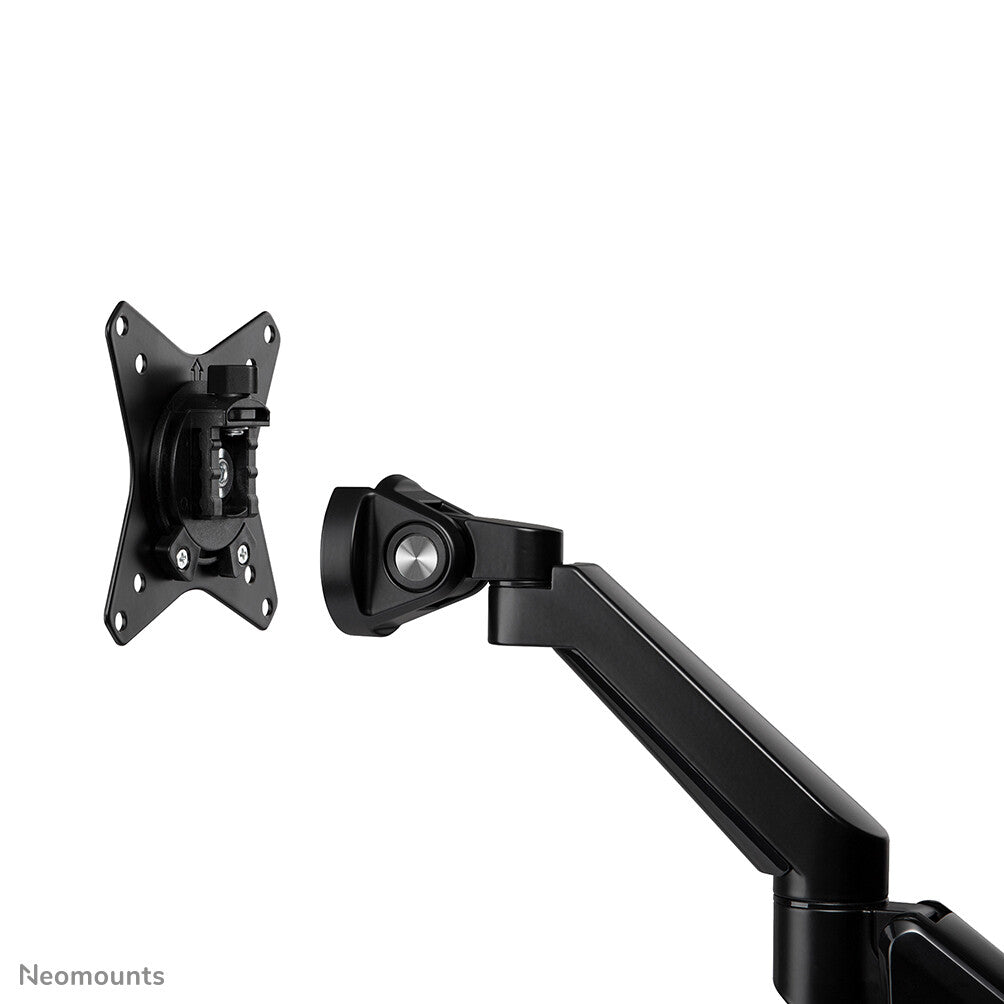

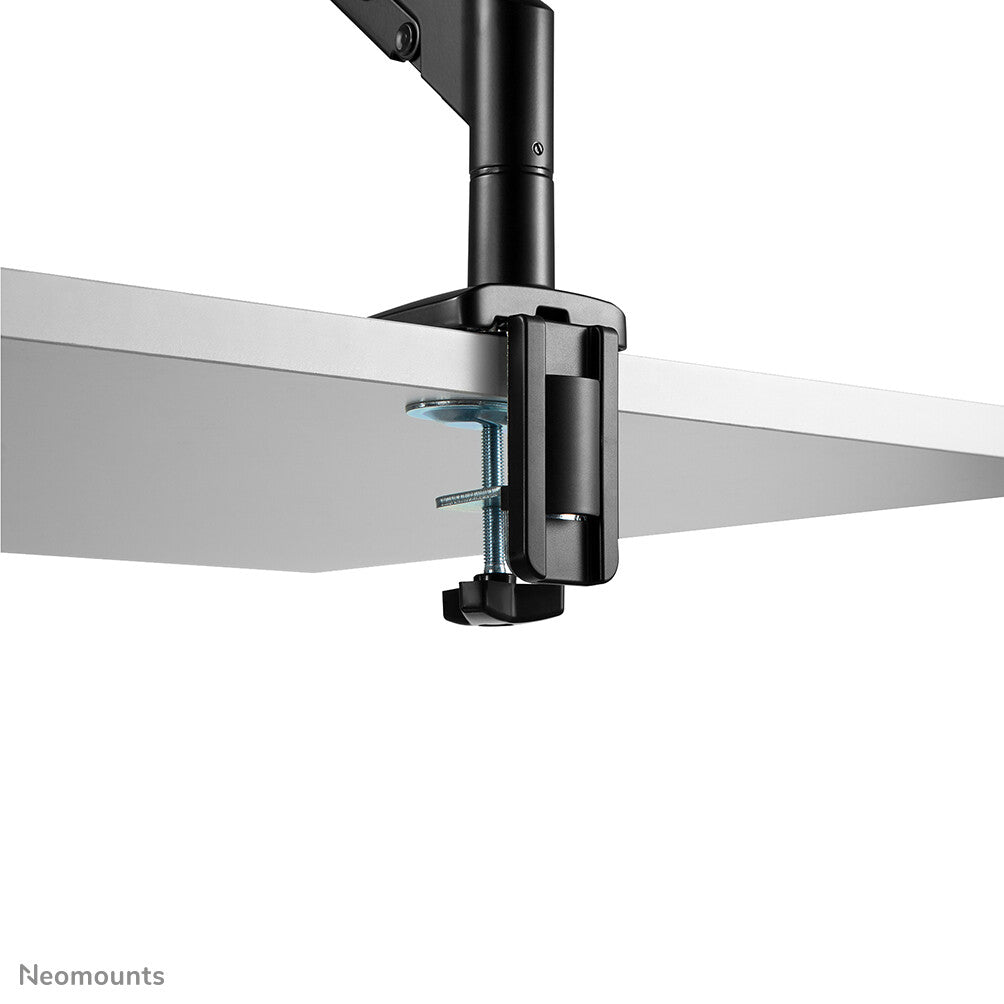

The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Warranty: 5 year
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Y |
| Rotating | Y |
| Cable management | Y |
| Angle of rotation | 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -45 - 45° |
| Depth adjustment range | 0 - 490 mm |
| Adjustable depth | Y |
| Height adjustment range | 265 - 550 mm |

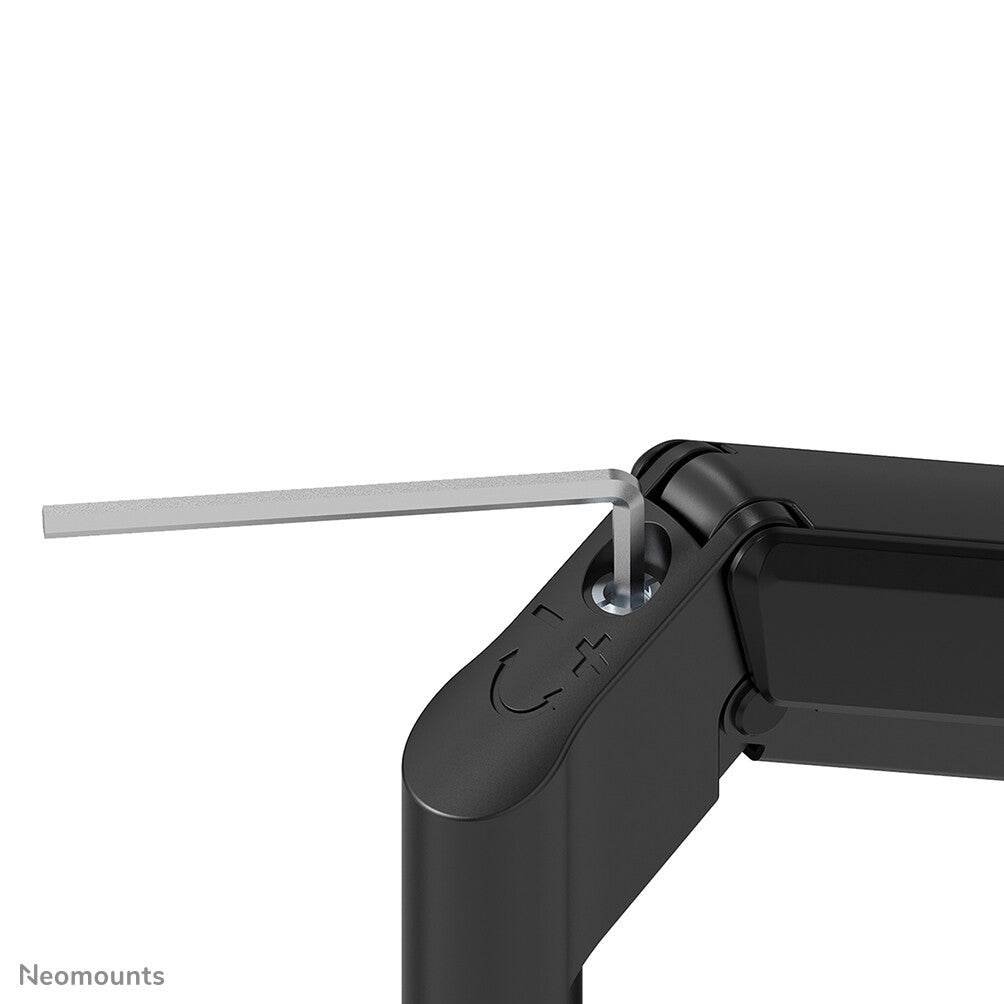

| Height adjustment type | Gas spring |
| Height adjustment | Y |
| Design | |
|---|---|
| Orientation | Landscape/Portrait |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package net weight | 3.6 kg |
| Package height | 400 mm |
| Package depth | 117 mm |
| Package width | 222 mm |
| Height | 615 mm |
| Depth | 555 mm |
| Width | 117 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | HS7326909890 |
| Master (outer) case net weight | 18 kg |
| Products per pallet (EU) | 72 pc(s) |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 370 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case width | 465 mm |
| Other features | |
|---|---|
| Country of origin | China |
