Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
KEY FEATURES
- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
- Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
Description
Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE
Faster and Smoother
with 4G+ Speed and
Dual Band WiFi
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

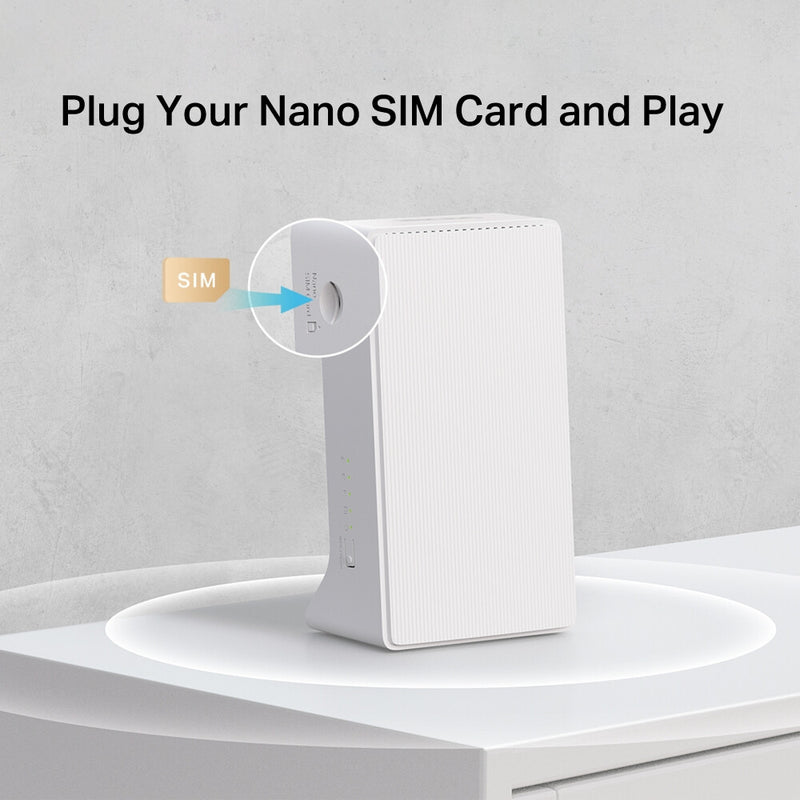

Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.
Extra Fast 4G+ Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.
Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Full with Strong and Stable Signal
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

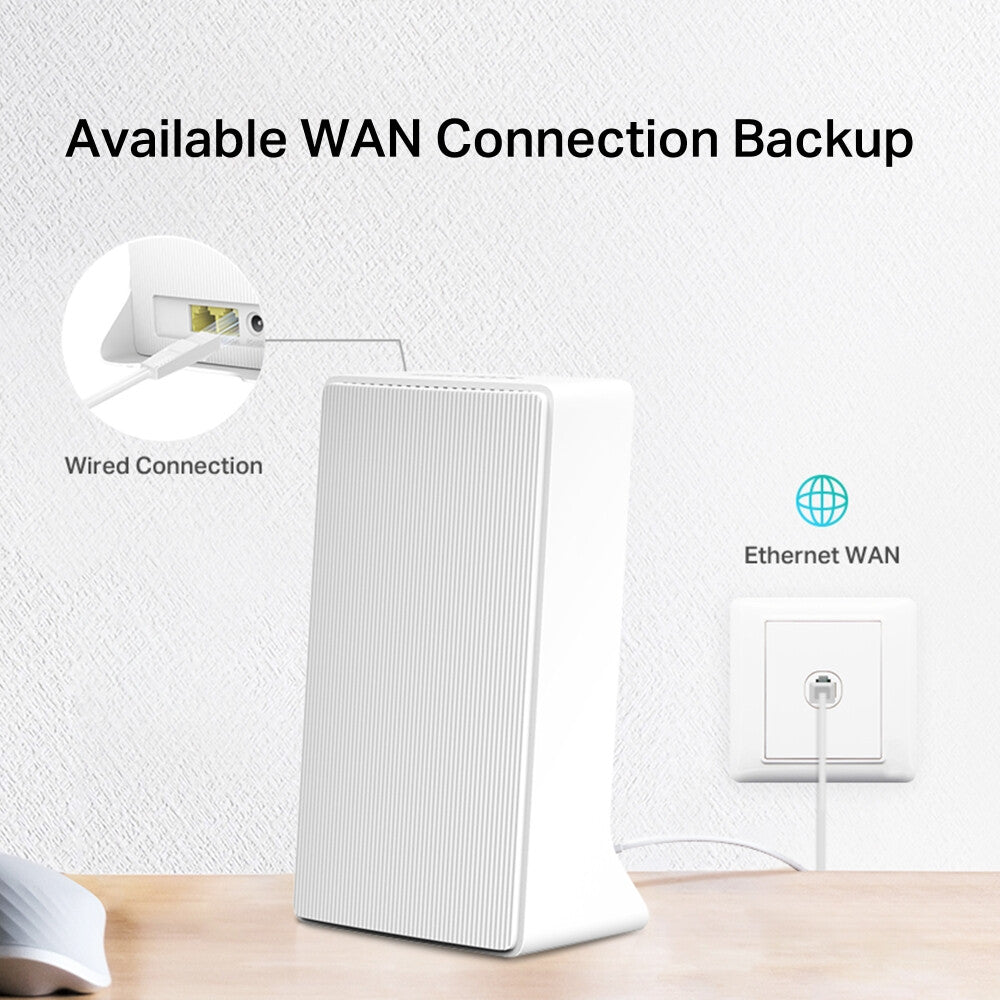

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| Dual SIM support | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Yes |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Receiver sensitivity | 11g 6Mbps: -95dBm; 11g 54Mbps: -77dBm; 11n HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm; 11a 6Mbps: -92dBm; 11a 54Mbps: -75dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65dBm; 11ac VHT80 MCS9: -61dBm |
| Mobile network | |
|---|---|
| Mobile network generation | 4G |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G bands supported | 850,900,2100 MHz |
| SIM card type | NanoSIM |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2600 MHz |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| DC-in jack | Yes |
| Management features | |
|---|---|
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
|---|---|
| Security algorithms | 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE |
| Firewall | Yes |
| Port-based Network Access Control (PNAC) | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| VoIP protocols | IPv4, IPv6 |
| Design | |
|---|---|
| Product type | Desktop/pole router |
| Product colour | White |
| Indication light | Yes |
| Antenna | |
|---|---|
| Antenna design | Internal |
| Features | |
|---|---|
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 166 mm |
| Depth | 61 mm |
| Width | 95 mm |
| Packaging data | |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Package type | Box |
| Number of products included | 1 pc(s) |
