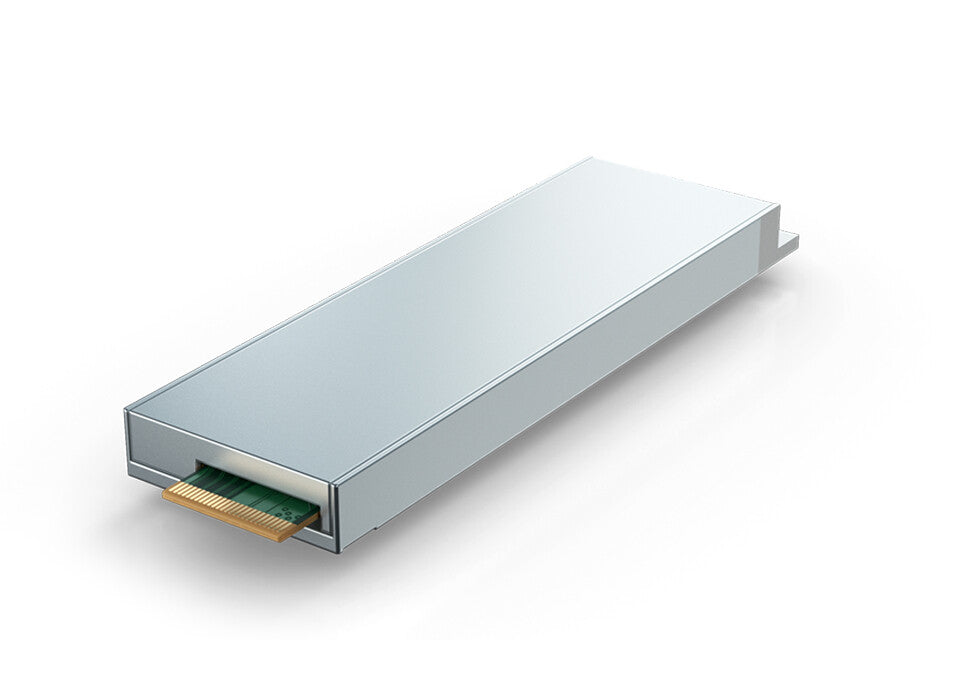

Intel D7 P5520 7.68 TB Server/workstation Internal SSD | TLC 3D NAND NVMe PCI Express 4.0 E1.S
KEY FEATURES
- 7.68 TB E1.S PCI Express 4.0
- TLC 3D NAND NVMe
- Hardware encryption 256-bit AES
- Component for: Server/workstation
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Intel D7 P5520 7.68 TB Server/workstation Internal SSD | TLC 3D NAND NVMe PCI Express 4.0 E1.S
Description
Intel D7 SSDPFUKX076T1N1. SSD capacity: 7.68 TB, SSD form factor: E1.S, Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Features | |
|---|---|
| SSD form factor | E1.S |
| SSD capacity | 7.68 TB |
| Interface | PCI Express 4.0 |
| Memory type | TLC 3D NAND |
| NVMe | Yes |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Random read (100% span) | 1100000 IOPS |
| Random write (100% span) | 220000 IOPS |
| Random latency - read (up to) | 75 µs |
| Random latency - write (up to) | 15 µs |
| Sequential latency - read (up to) | 10 µs |
| Sequential latency - write (up to) | 13 µs |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD temperature monitoring | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Use conditions | Server/Enterprise |
| Harmonized System (HS) code | 84717070 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| General Information | |
|---|---|
| Product Family | D7 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Weight & dimensions | |
|---|---|
| Weight | 72 g |
| Other features | |
|---|---|
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor family | Intel SSD D7-P5520 |
| Status | Launched |
| Sequential writing speed | 4200 MB/s |
| Sequential reading | 6600 MB/s |
| SSD shock | 1000G,0.5ms |
| Launch date | Q2'22 |
| Power consumption (active) | 18 W |
| SSD endurance rating | 14.0 PBW |
