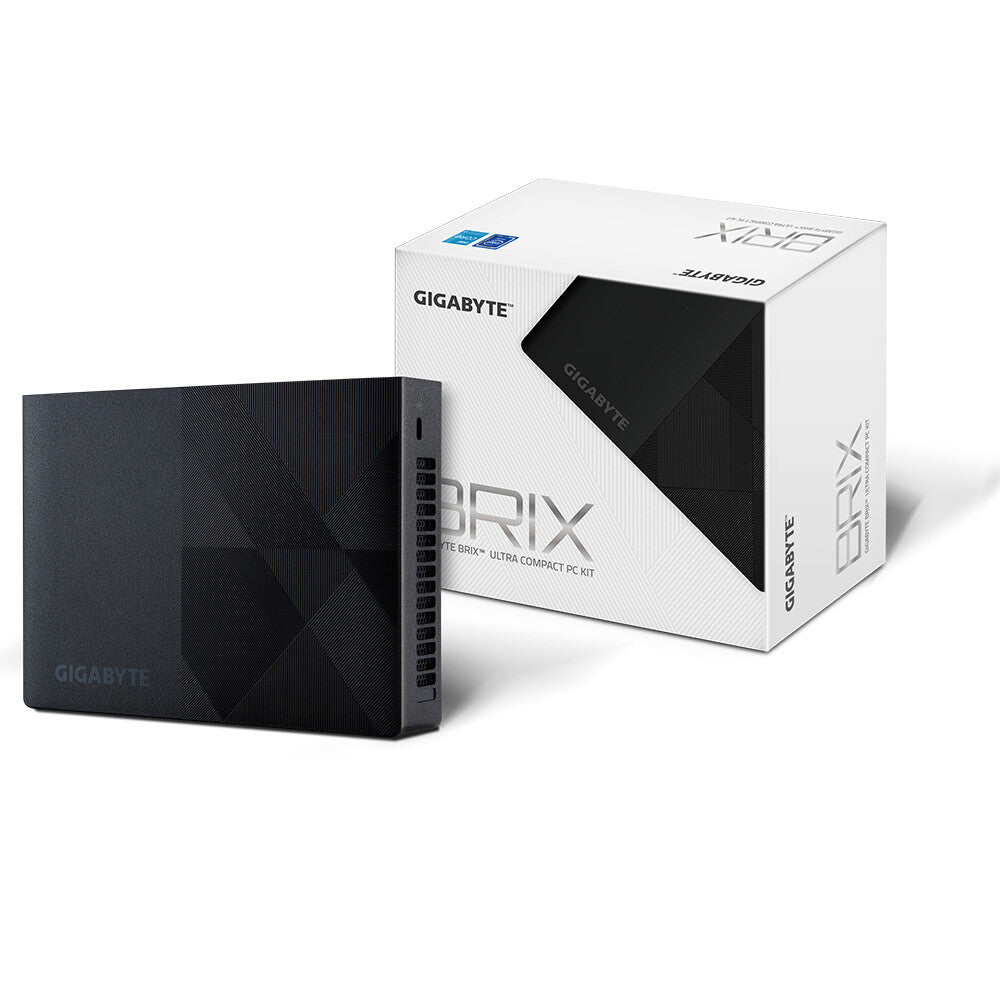

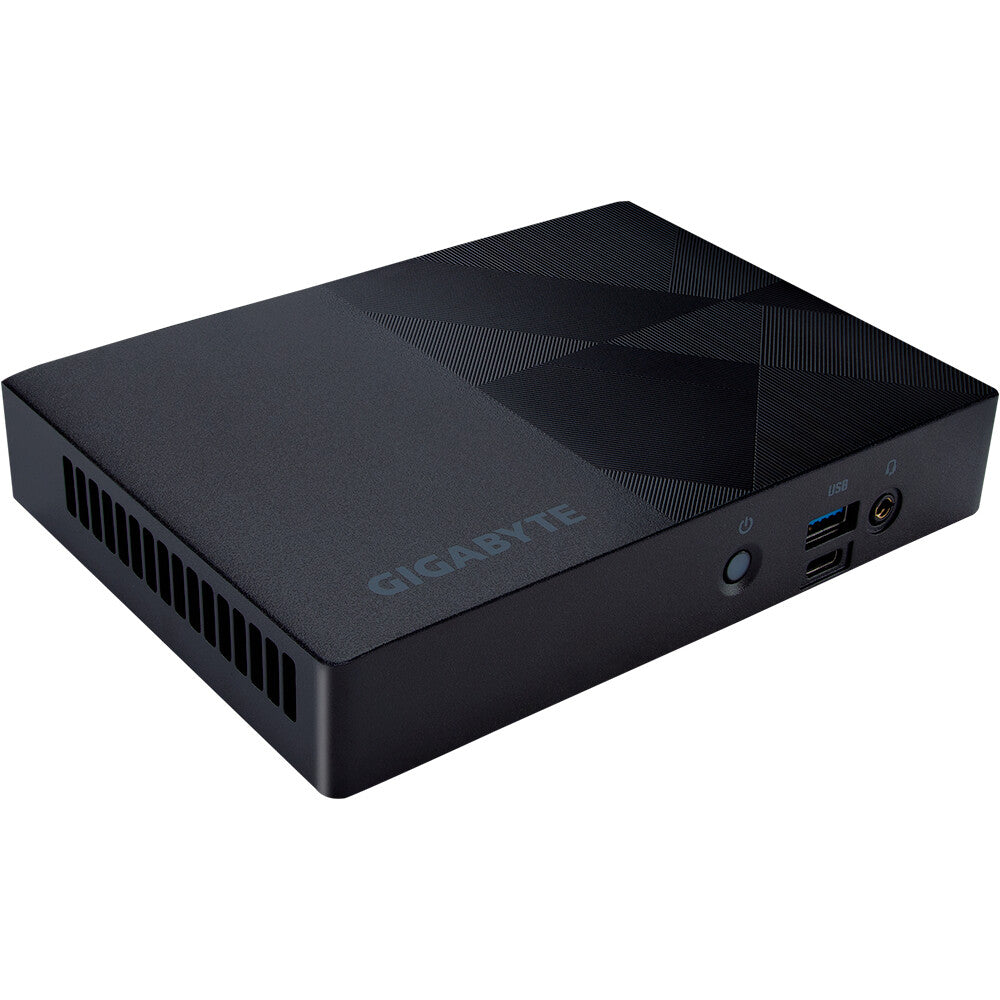

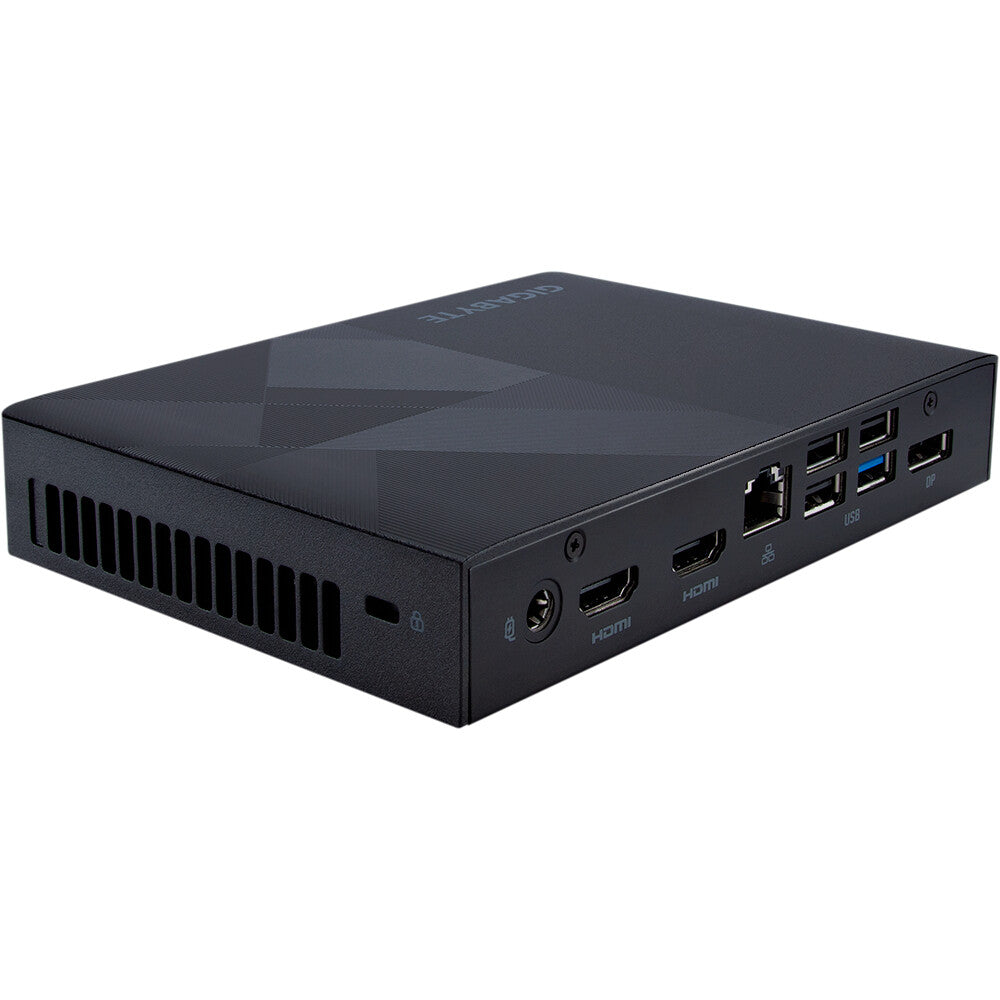

Gigabyte GB-BNi3-N305 Black
KEY FEATURES
- Simplified Design, Featherweight Feel
- 12th Gen Intel® Core™ i3 Processor N305
- Intel® UHD Graphics 1250
- Super Fast 2.5G LAN + Wi-Fi 6 Module
- 3 x 4K Module - 2 x HDMI 2.1 and 1 x DP 1.4
- 2 x 2280 M.2 Slots for SSD
- 3 x USB 3.2 Gen2 (2 x Type-A + 1 x Type-C) , 3 x USB 2.0 Ports
- Low Noise
- VESA Support
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
Gigabyte GB-BNi3-N305 Black
Description
Gigabyte GB-BNi3-N305. Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 1, Maximum internal memory: 32 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 1. Power supply: 90 W
Experience the merging of real and virtual worlds with our refreshing and impressive design.
The product boasts a sleek and contemporary grid design on its exterior, creating a fresh and minimalist impression. The intricately patterned surface produces a pleasing interplay of light, shadow, reflection, and refraction from different angles, for an overall pleasant aesthetic. This design not only enhances the product's visual appeal, but also symbolizes the numerous possibilities of integrating and merging virtual and real elements within this compact mini-PC.
Intel® Processor and Intel® Core™ i3 N-Series Processors deliver the performance you need at an affordable price to allow you to connect, learn, and play anywhere. The new Intel “Gracemont” CPU microarchitecture built on the latest Intel 7 process features up to 8 efficient cores (“E-cores”), enabling easy, responsive, streamlined experiences. You can scale up to BRIX BNi3 series (Intel® Core™ i3-N305) with an Intel Core i3 N-series platform for a 3.8 GHz turbo frequency and enable Intel® Wi-Fi 6E (Gig+), next-gen Intel® UHD Graphics, enhanced Image Processing Unit (IPU 6) to enjoy a balance of performance and value for the essential BRIX that’s right for you. With the above technologies, users can experience faster browsing and better productivity to accomplish more. Intel N-series processors harness power and efficiency to support learning, streaming and productivity at an affordable cost.
Performance
Intel® Processor and Intel® Core i3 N-Series Processor is much more powerful than the prior generation. The all-new Intel 7nm manufacturing process and E-core (Efficient Core) architecture, users can benefit not only from the performance boost, but also compute with greater power efficiency. Overall, generational performance improvements are easily 30% or more.
USB Type-C Connector
The USB Type-C™ is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.
Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 15 W |
| Processor cache | 6 MB |
| Processor boost frequency | 3.8 GHz |
| Processor threads | 8 |
| Processor cores | 8 |
| Processor family | Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Storage drive interface | PCI Express, Serial ATA |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 3 |
| Expansion slots | |
|---|---|
| PCI slots | 3 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Power | |
|---|---|
| AC adapter output voltage | 19 V |
| AC input voltage | 100 - 240 V |
| AC adapter output current | 4.74 A |
| Power supply | 90 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 28.5 mm |
| Depth | 116.8 mm |
| Width | 163.5 mm |
